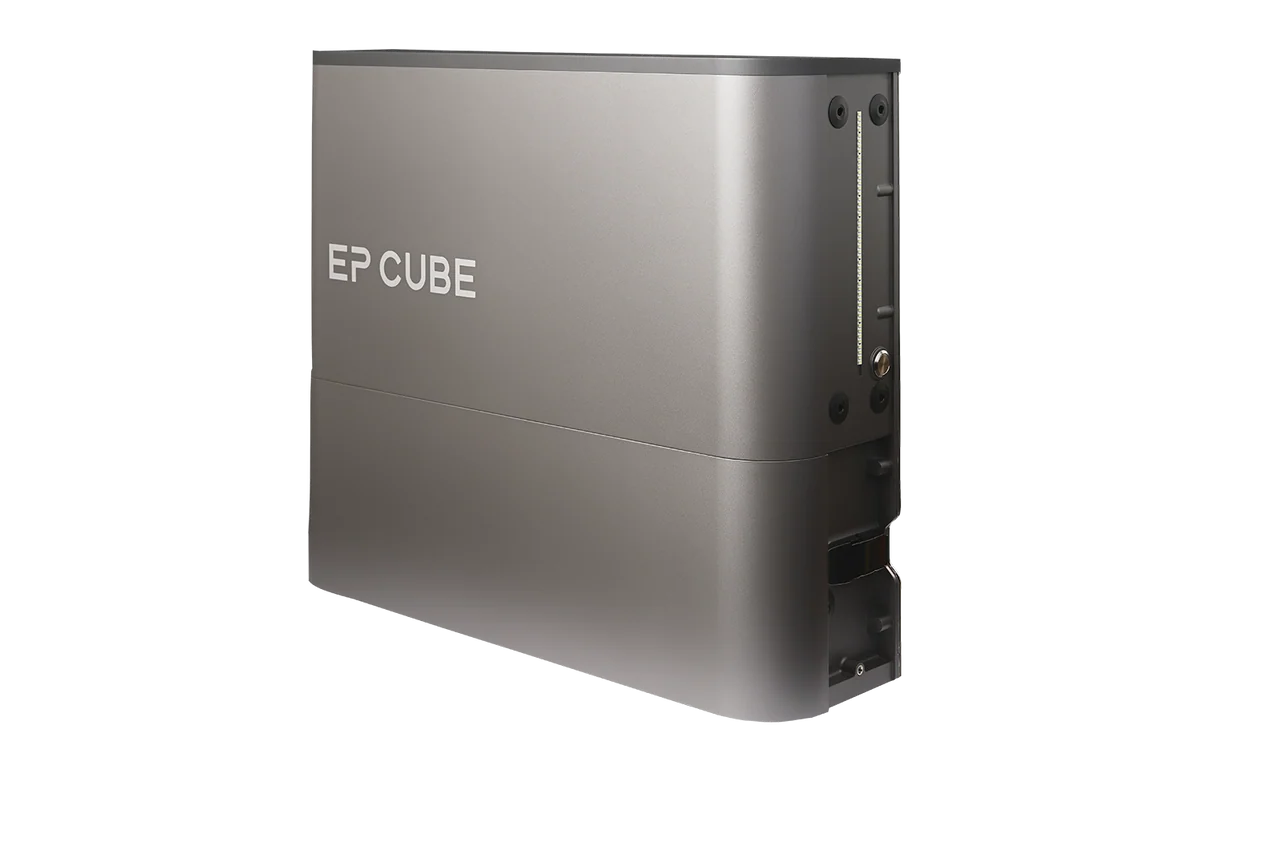

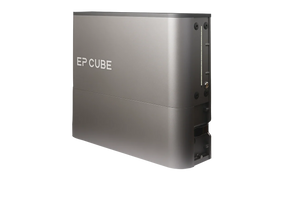

Canadian Solar EP Cube 2.0 Premium Hybrid Inverter | 11.5kW 120/240V Output | 23kW PV Solar Input

PRE-ORDER EXPECTED late July

Power your home with a high-performance Canadian Solar EP Cube 2.0 Hybrid Inverter engineered for modern solar + storage systems and 120/240V split-phase service. With 11.5kW on-grid AC output and support for up to 23kW PV solar input (2.0 DC:AC ratio), this hybrid inverter is built to maximize solar harvest, simplify system design, and deliver efficient energy conversion for residential installations.

Featuring 6 MPPTs, the EP Cube 2.0 hybrid inverter supports complex roof layouts and multiple array orientations, helping reduce mismatch losses and improve production throughout the day. Its high-voltage PV capability (up to 600Vdc) with a broad operating window makes it easier to design flexible strings while maintaining strong performance across varying temperatures and irradiance. With 96.5% maximum CEC efficiency, it converts more of your solar energy into usable power, reducing waste and improving overall system value.

Designed for real-world home power needs, it supports 100% split-phase load imbalance (up to 5.75kW per phase) and includes black start capability for system restart support when paired with compatible components.

Key Features & Benefits

• 11.5kW maximum AC output (on-grid) for residential solar + storage
• 120/240V split-phase and 208V support (Nominal: 208/240Vac)
• Up to 23kW PV input supported (Allowable DC:AC ratio 2.0)
• 6 MPPTs for multi-roof, multi-orientation array designs
• High-voltage PV withstand of 600Vdc
• Wide PV operating range of 60–550Vdc (MPPT range 60–480Vdc)
• Per-MPPT current of 16A (Imp) and 25A (Isc) per MPPT
• Black start capability: Yes
• Maximum inverter CEC efficiency of 96.5%
• Overcurrent protection device (OCPD): 60A
• 60Hz operation

Technical Highlights

• MPPTs: 6
• PV Voltage (withstand): 600Vdc
• PV DC Input Voltage Range: 60–550Vdc
• PV DC MPPT Voltage Range: 60–480Vdc
• Allowable DC:AC Ratio: 2.0
• Nominal Grid Voltage: 208/240Vac
• Frequency: 60Hz
• Max AC Output (on-grid): 11.5kW
• OCPD: 60A
• Max CEC Efficiency: 96.5%
• Split-Phase Imbalance: 100% (max 5.75kW per phase)

Canadian Solar EP Cube Specifications: Download

Canadian Solar EP Cube System Installation Manual: Download

Canadian Solar EP Cube User Manual: Download
