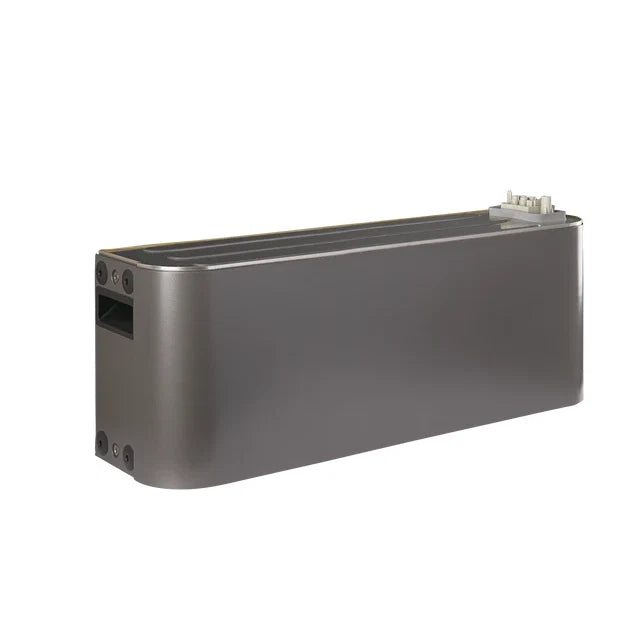

Canadian Solar EP Cube 2.0 5.12kWh Battery Module

PRE-ORDER EXPECTED late July

The Canadian Solar EP Cube 2.0 batteries are a modular, scalable home energy storage solution built for reliable backup power, higher solar self-consumption, and daily load shifting. Start with a smaller configuration and expand over time as your needs grow. EP Cube battery storage scales from 5.0 kWh up to 20.0 kWh on a single base, and can be expanded further to 25.0 kWh, 30.0 kWh, 35.0 kWh, and 40.0 kWh using a double-base setup—ideal for homeowners who want longer runtime, greater outage protection, and more flexibility as energy usage increases.

EP Cube batteries are engineered for split-phase 240V and 208V residential applications and deliver strong, usable continuous power. Battery-only charging performance scales with capacity and reaches up to 6kW continuous on larger configurations. Discharge performance increases as storage grows, delivering up to 11.5kW continuous battery-only discharge at 240V (48A) or 9.9kW at 208V (48A) on larger system sizes—supporting more essential loads during outages (when properly designed and installed). For solar-producing conditions, EP Cube supports up to 11.5kW (240V) / 9.9kW (208V) continuous discharge during full sun. Larger configurations also list 185A LRA (1s), supporting short-duration motor starting demands where applicable.

Key Features and Benefits

• Scalable capacity from 5.0 kWh to 40.0 kWh (25–40 kWh supported with a double-base configuration)
• Battery-only continuous charge power up to 6kW (25A at 240V, 28.8A at 208V on 15–40 kWh)
• Battery-only continuous discharge up to 11.5kW at 240V (48A) or 9.9kW at 208V (48A) on 15–40 kWh
• Full-sun continuous discharge support up to 11.5kW (240V) / 9.9kW (208V)
• Designed for 240V and 208V split-phase applications
• High short-duration capability on larger systems with 185A LRA (1s) listed on 15–40 kWh configurations

Power Performance by Capacity (Battery-Only Continuous)

5.0 kWh

• Charge: 3kW / 12.5A (240V), 3kW / 14.4A (208V)
• Discharge: 3kW / 12.5A (240V), 3kW / 14.4A (208V)

10.0 kWh

• Charge: 5kW / 20.8A (240V), 5kW / 24.0A (208V)
• Discharge: 8kW / 33.3A (240V), 8kW / 38.5A (208V)

15.0 - 20.0 kWh

• Charge: 6kW / 25A (240V), 6kW / 28.8A (208V)
• Discharge: 11.5kW / 48A (240V), 9.9kW / 48A (208V)
• LRA (1s): 185A

25.0 - 40.0 kWh (Double Base)

• Charge: 6kW / 25A (240V), 6kW / 28.8A (208V)
• Discharge: 11.5kW / 48A (240V), 9.9kW / 48A (208V)
• LRA (1s): 185A

Canadian Solar EP Cube Specifications: Download

Canadian Solar EP Cube System Installation Manual: Download

Canadian Solar EP Cube User Manual: Download
