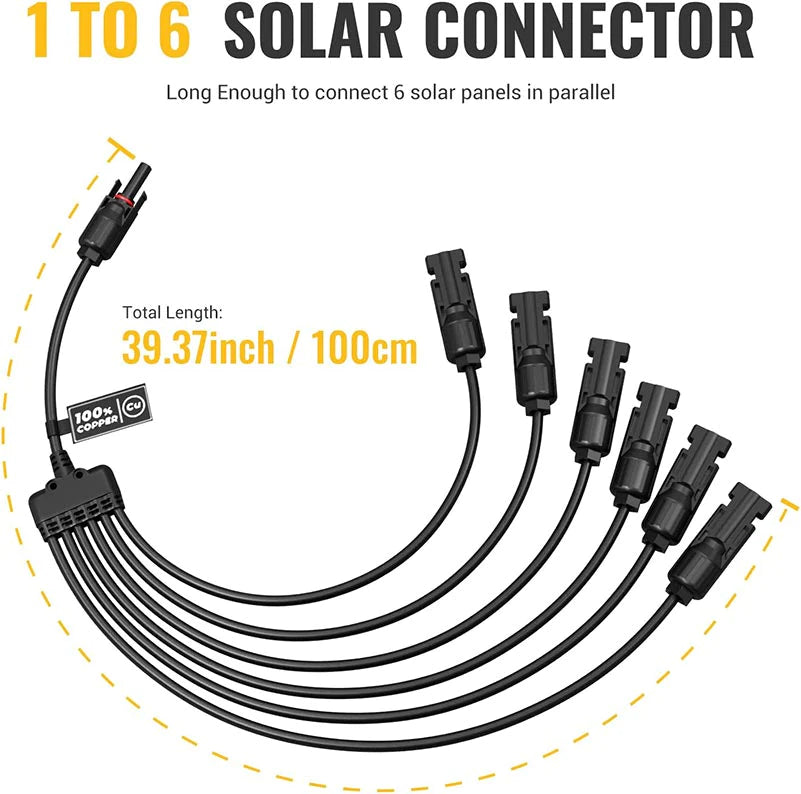

BougeRV Solar Y Connector

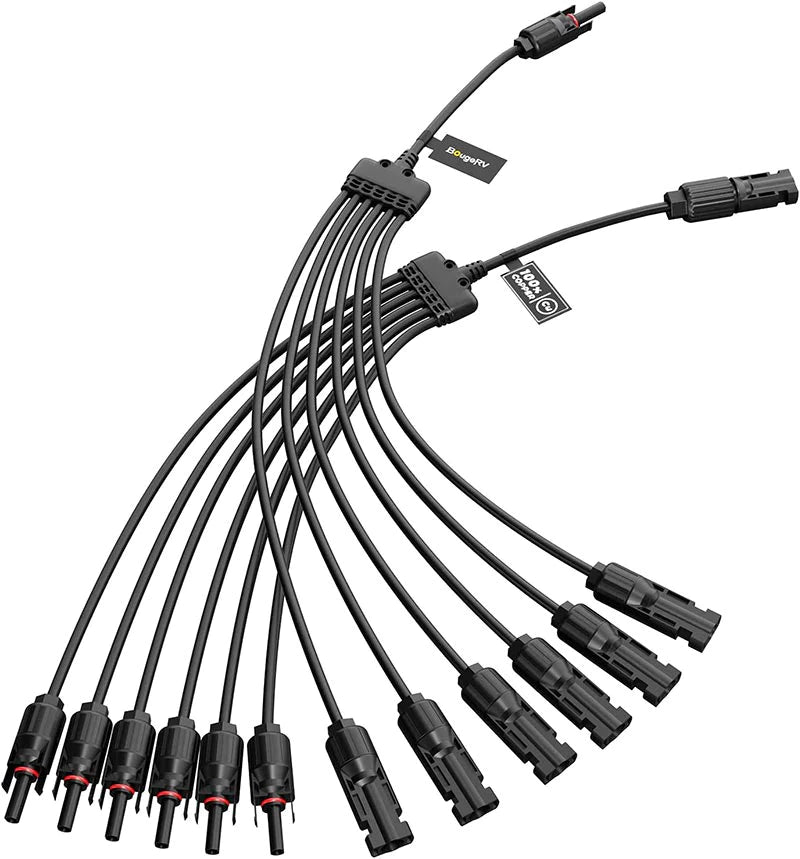

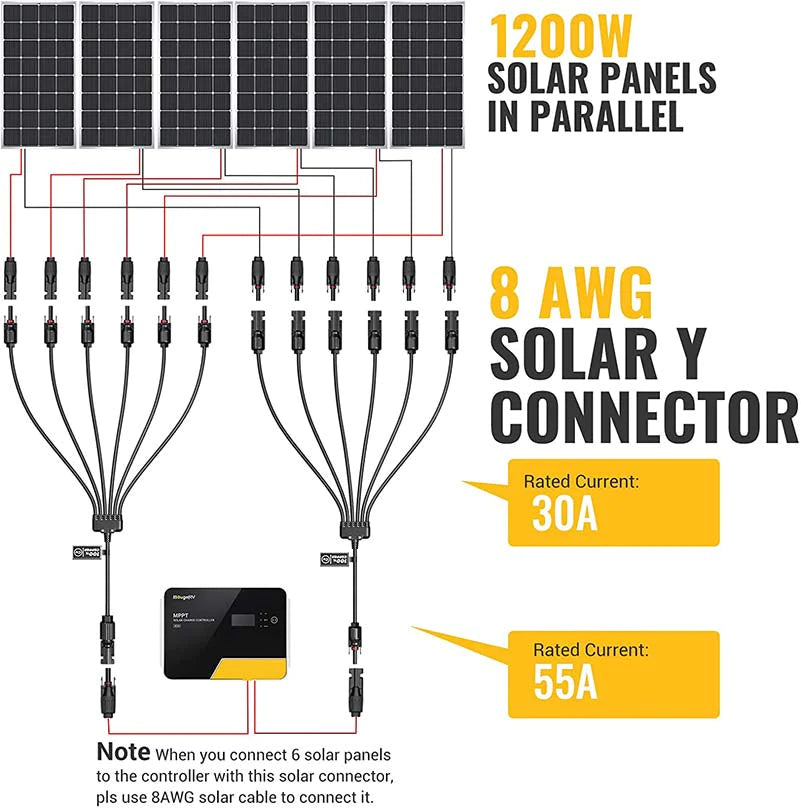

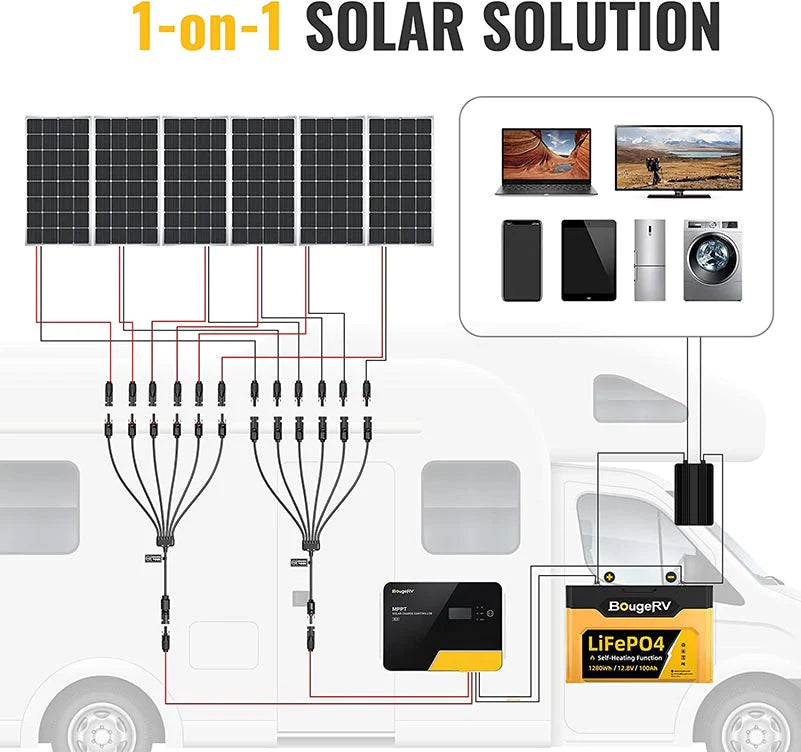

BougeRV offers a 6 to 1 MC4 Connector that simplifies the wiring process and allows you to efficiently link multiple panels together. With its 6 to 1 configuration, it enables you to connect up to six solar panels to a single output, reducing the number of cables and connections required. The reliable and secure connection offered by BougeRV's MC4 Connector not only enhances the efficiency of the solar panels but also contributes to the overall safety and durability of the system.

HIGHLIGHTS

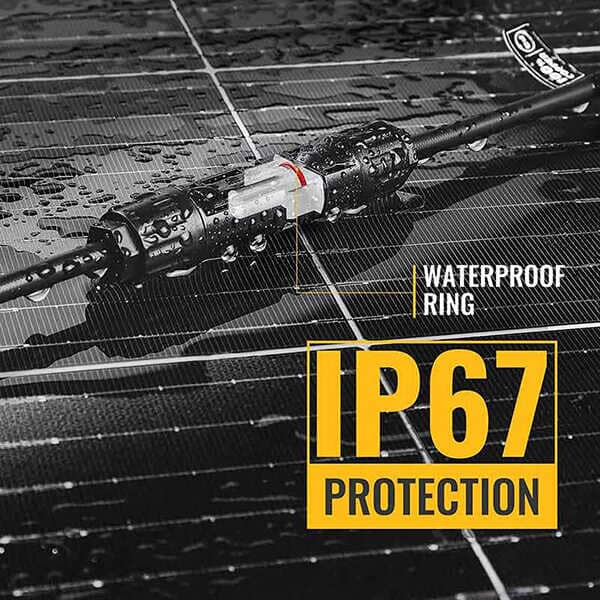

1. Main Technical Specification: -Rated Current:30A -Rated Voltage: DC1000V The waterproof ring on connection is perfect to seal out water and dust to prevent corrosion Suitable Single Core Cable Section: 1.5mm² -- 6mm² Quick & simple assembly processing and simple removal of plugs without the aid of any extra instrument
2. Package included Solar Y Connector Solar Panel Parallel Connectors Extra Long 6 to 1 Cable

PRODUCT SPECIFICATIONS

• SKU ISE156
• Rated Current Main Line: 55A / Branch Line: 30A
• Rated Voltage Main Line: DC 1500V / Branch Line: DC 1000V
• Contact Resistance ≤5mΩ
• Insulation Resistance >500mΩ
• Operating Temperature range -40℉ until+221℉
• Degree of Protection IP67
• Flame Class UL94-V0
• Safety Degree Ⅱ Suitable Single Core Cable Section 1.5mm² -- 6mm² ( include AWG14, AWG13,AWG12, AWG11,AWG10 )
