Victron · Accessories
SKU: Victron-VBB160080010

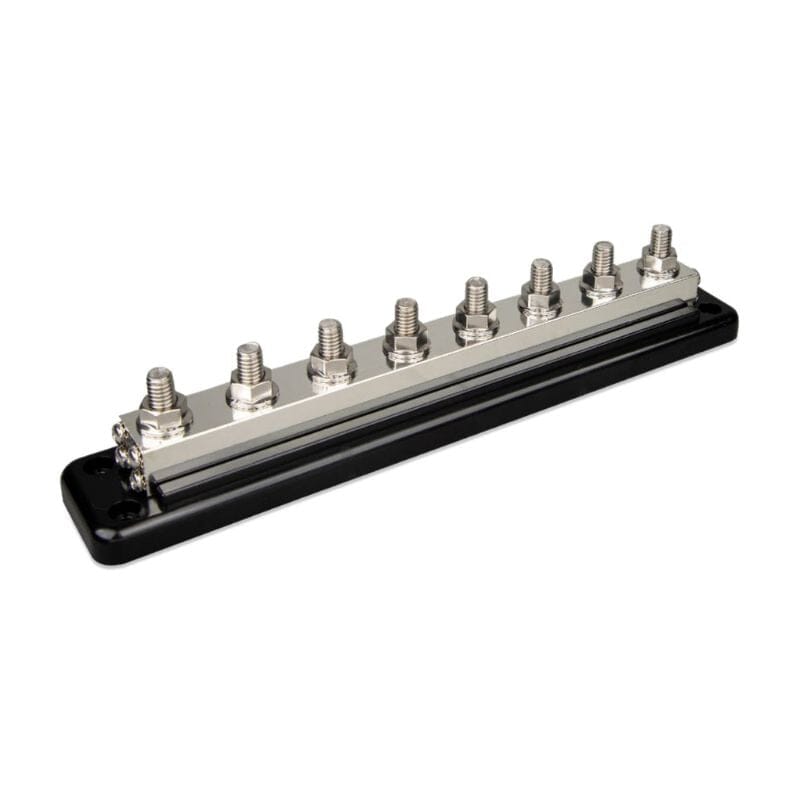

Victron 600 Amp Bus Bar - 600A / 70V - 8 High Current Connections / 8 Low Current Connections
Victron 600Amps Bus Bar are used for high current distribution and at the same time they provide connections for batteries and/or DC equipment.
- Regular price
- $180.00
- Sale price
- $180.00
- Regular price
-
$225.00
Questions before you buy?
Call 877-242-2792 and we’ll work it out with you. Mon–Thu 10am–5:30pm, Fri 10am–1pm EST.
Frequently bought together
The details.
Victron 600Amps Bus Bar are used for high current distribution and at the same time they provide connections for batteries and/or DC equipment.
We offer a number of busbars with different current ratings, and a different number of connection terminals. Each busbar is fitted out with a removable protection cover.
600A / 70V - 8 high current connections and 8 low current connections
Victron 600Amps Bus Bar - 8studs Specifications
- Busbar 600 A with cover
- Max. current 600 A
- Max. Voltage 70 VDC
- Terminal diameter 3/8 inch / 9.53 mm
- Terminal height 0.76 inch / 19 mm
- Terminal material Stainless steel
- Flange nut material Stainless steel
- Recommended torque 180 lbf·inch / 20 N·m
- Screw terminals diameter #8 (0.164 inch) / 4.2 mm
- Screw material Stainless steel
- Recommended torque 17 lbf-inch / 2 N·m
- Busbar material Tin-plated copper (19 x 24 mm)
- Base material ABS, black, UL 94 V-0
- Cover material ABS, black, UL 94 V-2
- Weight, 4 terminals 1.7 lb / 0.75 kg
- Dimensions (hxwxd) (with cover) 2.6 x 8.5 x 3.4 inch 65 x 216 x 86 mm
- Weight, 8 terminals 2.9 lb / 1.3 kg
- Dimensions (hxwxd) (with cover) 2.6 x 12.9 x 3.4 inch 65 x 327 x 86 mm
