Victron · Accessories
SKU: VBB160040010

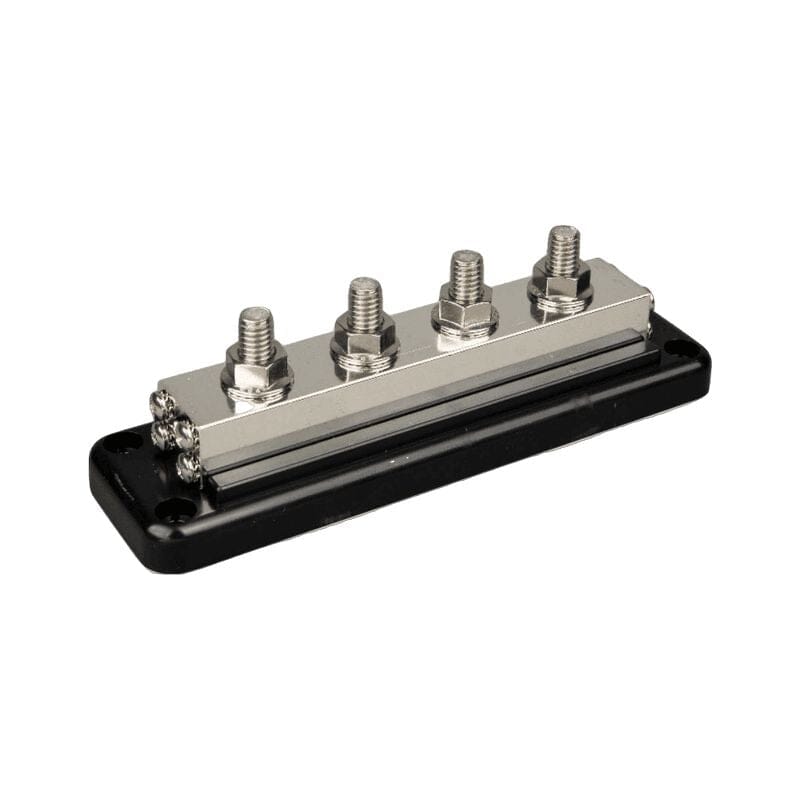

Victron 600A Bus Bar - 4 Studs with Cover
Victron 600A Bus Bar with 4 high current terminals and 8 low current screw terminals, with cover.
- Regular price
- $119.00
- Sale price
- $119.00
- Regular price
-
$149.99
Orders processed in 24–48 hours
30-day returns
Lifetime support by phone, chat & email
Full manufacturer warranty
Questions before you buy?
Call 877-242-2792 and we’ll work it out with you. Mon–Thu 10am–5:30pm, Fri 10am–1pm EST.
Trusted by 50,000+
Customers powered since 2018
Lifetime Support
Phone, email or live chat, for good
Price Match
Found it cheaper? Tell us
Ships from the USA
Warehouses in CA, TX and NY
Frequently bought together
The details.
Victron 600A Bus Bar with 4 high current terminals and 8 low current screw terminals, with cover
Victron 600A Bus Bar Specifications
- Max. current 600 A Max.
- Voltage 70 VDC
- Terminal diameter 3/8 inch / 9.53 mm
- Terminal height 0.76 inch / 19 mm
- Terminal material Stainless steel
- Flange nut material Stainless steel
- Recommended torque 180 lbf·inch / 20 N·m
- Screw terminals diameter #8 (0.164 inch) / 4.2 mm
- Screw material Stainless steel
- Recommended torque 17 lbf-inch / 2 N·m
- Busbar material Tin-plated copper (19 x 24 mm)
- Base material ABS, black, UL 94 V-0
- Cover material ABS, black, UL 94 V-2
- Weight, 4 terminals 1.7 lb / 0.75 kg
- Dimensions (hxwxd) (with cover) 2.6 x 8.5 x 3.4 inch 65 x 216 x 86 mm
- Weight, 8 terminals 2.9 lb / 1.3 kg
- Dimensions (hxwxd) (with cover) 2.6 x 12.9 x 3.4 inch 65 x 327 x 86 mm
