Tamarack UNI-SA Single-Arm Side Pole Mount (2–4")

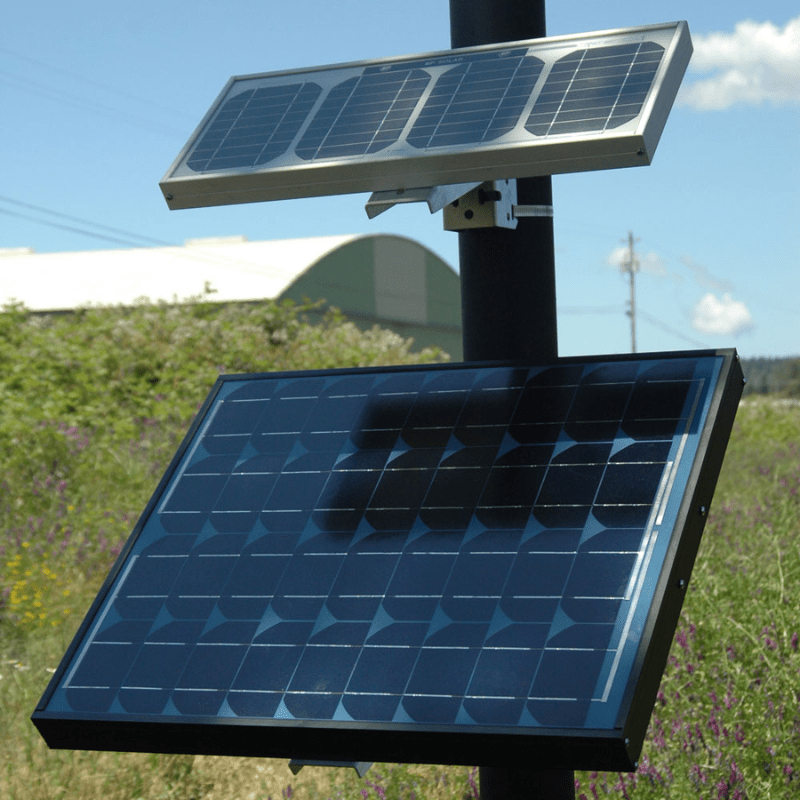

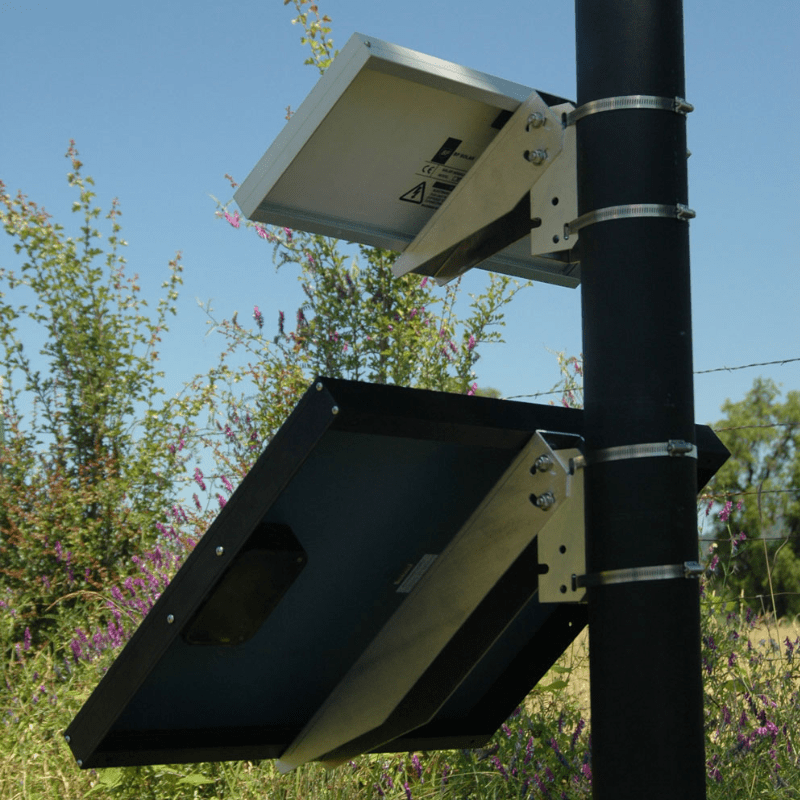

Tamarack Solar’s UNI-SA Single-Arm Side-of-Pole Mounts are a proven, DIY-friendly racking solution for mounting a solar module to the side of a Schedule 40 pole—perfect for light poles, sign poles, and towers. Built from heavy-duty 5000-series aluminum and engineered for up to 90 mph wind speeds, these mounts deliver a clean, durable install with simple sizing based on your module’s inside frame extrusion dimension.

Key Features & Benefits:

• Side-of-pole mounting for 2"–4" diameter Schedule 40 poles (pole not included)

• Single-arm design for a straightforward, versatile install on poles and other flat surfaces

• Engineered for 90 mph wind speeds for reliable performance in demanding conditions

• Corrosion-resistant 5000-series aluminum for long-term outdoor durability

• Fits module widths from 5.26" to 25.5" (verify with inside extrusion dimension)

• UPS shippable + in stock for fast delivery

• 10-year structural warranty on the racking system

• Max installation height: up to 30 ft above grade (per mounting guidance)

Available Size Variants:

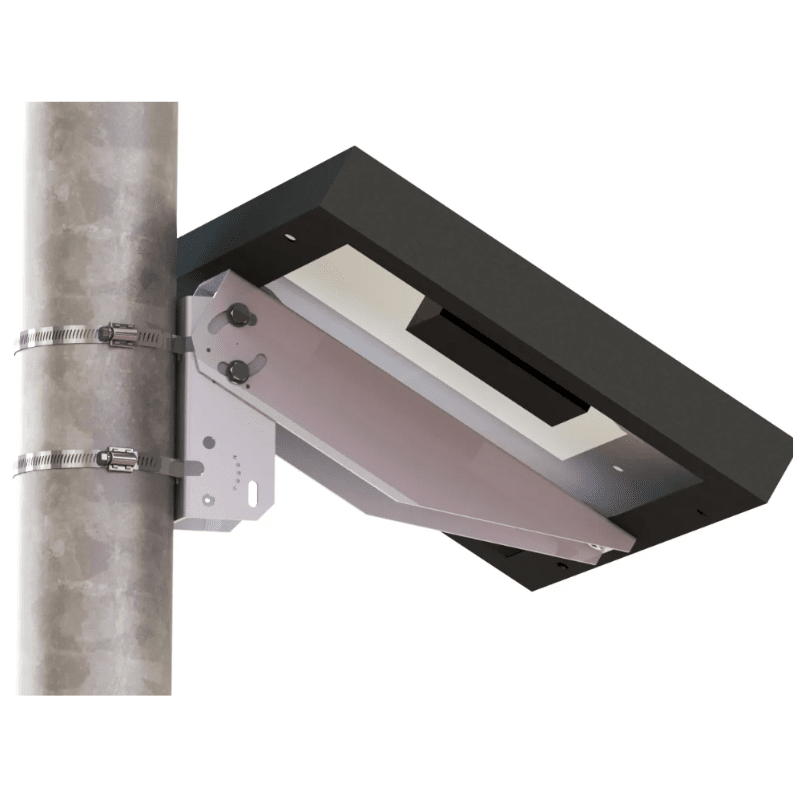

• UNI-SA/14.0 – 14" Single-Arm

• UNI-SA/21.5 – 21.5" Single-Arm

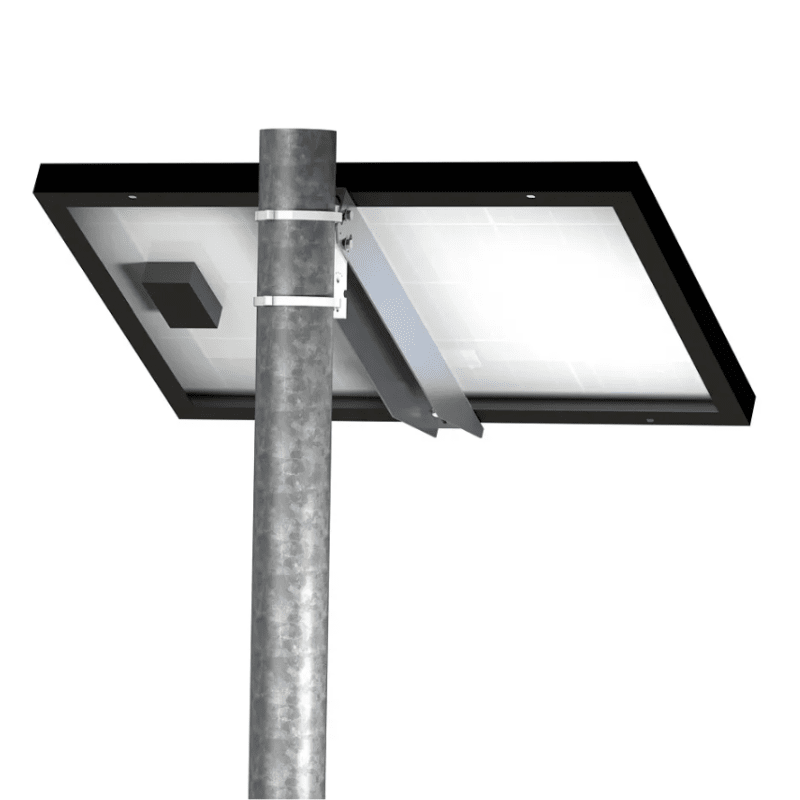

• UNI-SA/26.0 – 26" Single-Arm

Sizing Tip (Important):

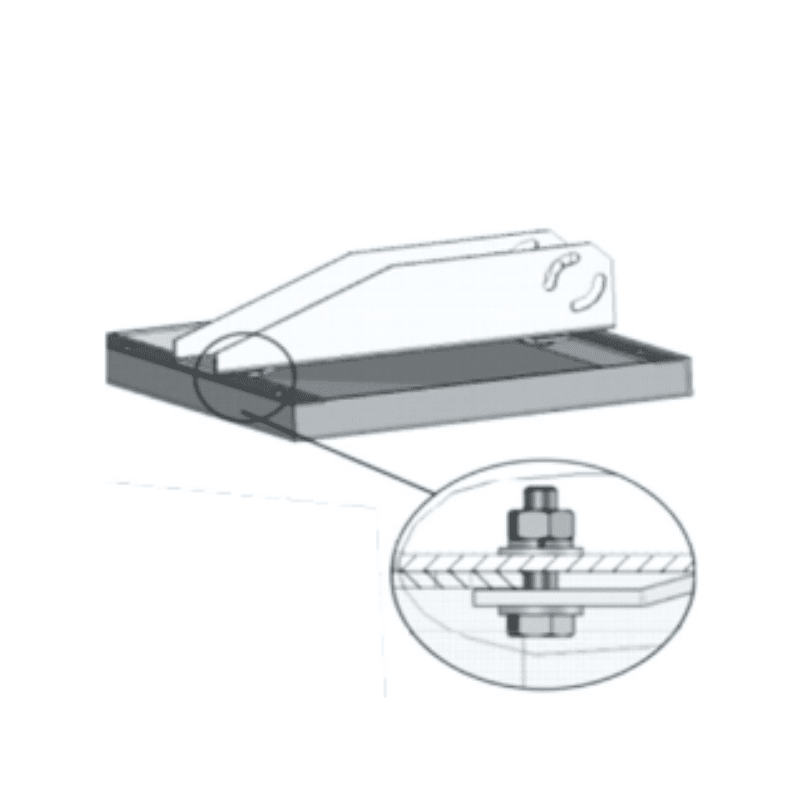

UNI-SA mounts do not use the module mounting holes. Instead, they clamp to the inside extrusion dimension (the inside distance between two sides of the module frame). Measure that inside frame dimension and select the UNI-SA size that matches your module.

User Manual / Documents:

• Tamarack Solar UNI-SA Single Arm Pole Mount Data Sheet
• Tamarack Solar UNI-SA Single Arm Pole Mount Sizing
• Tamarack Solar UNI-SA Single Arm Pole Mount Installation Manual
