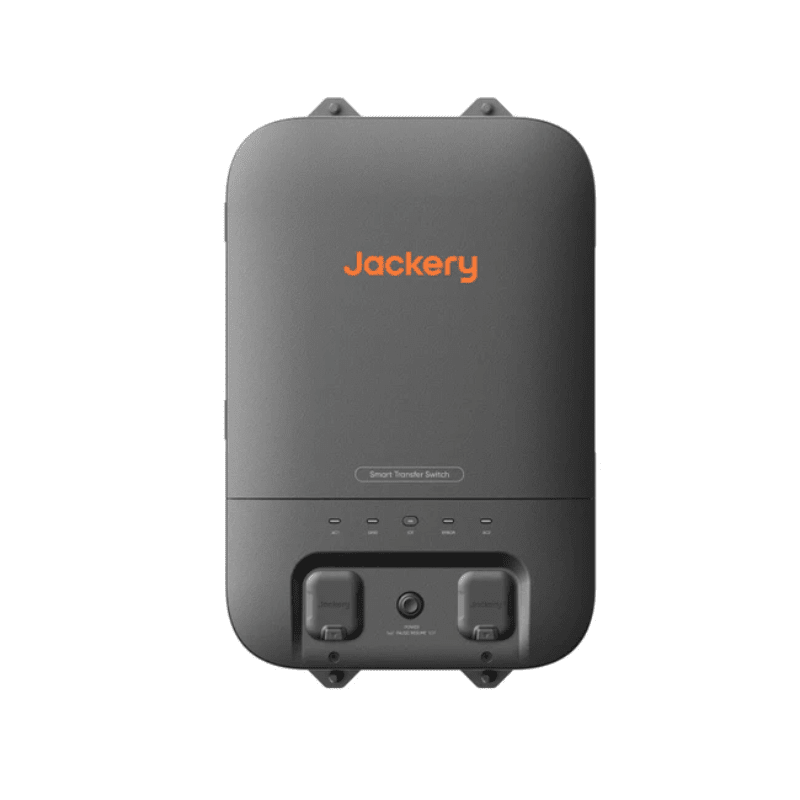

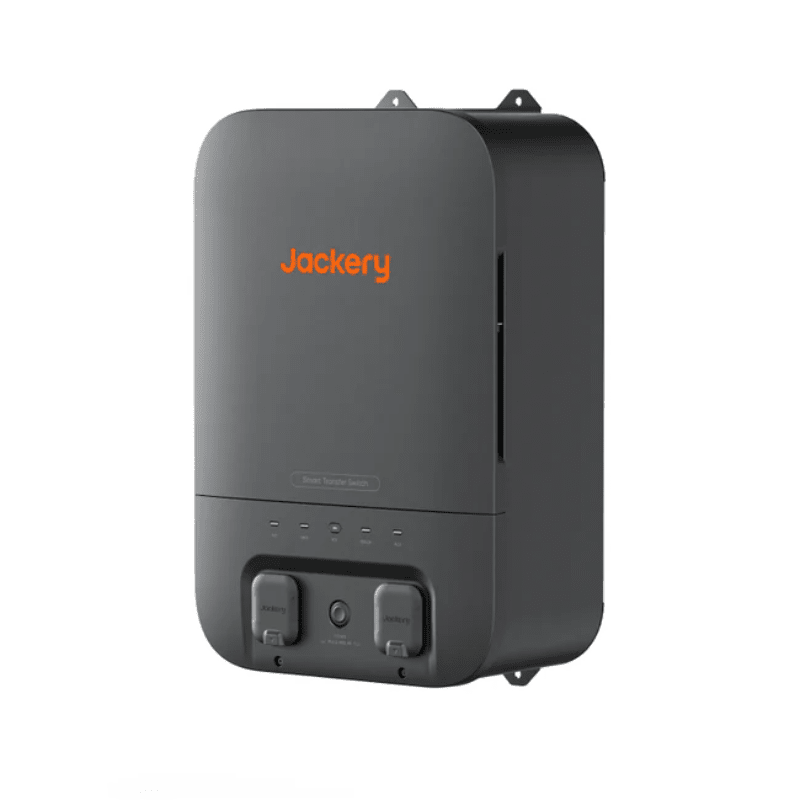

Jackery Smart Transfer Switch
Take control of your home backup power with the Jackery Smart Transfer Switch—the perfect companion to the Jackery Explorer 5000 Plus. Designed for seamless ≤20ms UPS switching, this intelligent panel ensures your essential appliances stay powered during outages.
- Regular price
- $999.00
- Sale price
- $999.00
- Regular price
-
$1,699.00
Questions before you buy?
Call 877-242-2792 and we’ll work it out with you. Mon–Thu 10am–5:30pm, Fri 10am–1pm EST.
Frequently bought together
Specifications
The details.
Take control of your home backup power with the Jackery Smart Transfer Switch—the perfect companion to the Jackery Explorer 5000 Plus. Designed for seamless ≤20ms UPS switching, this intelligent panel ensures your essential appliances stay powered during outages.
Key Features & Benefits:
-
Ultra-Fast UPS Switching: Seamless ≤20ms switch during grid outages keeps your fridge, router, and computer running without disruption.
-

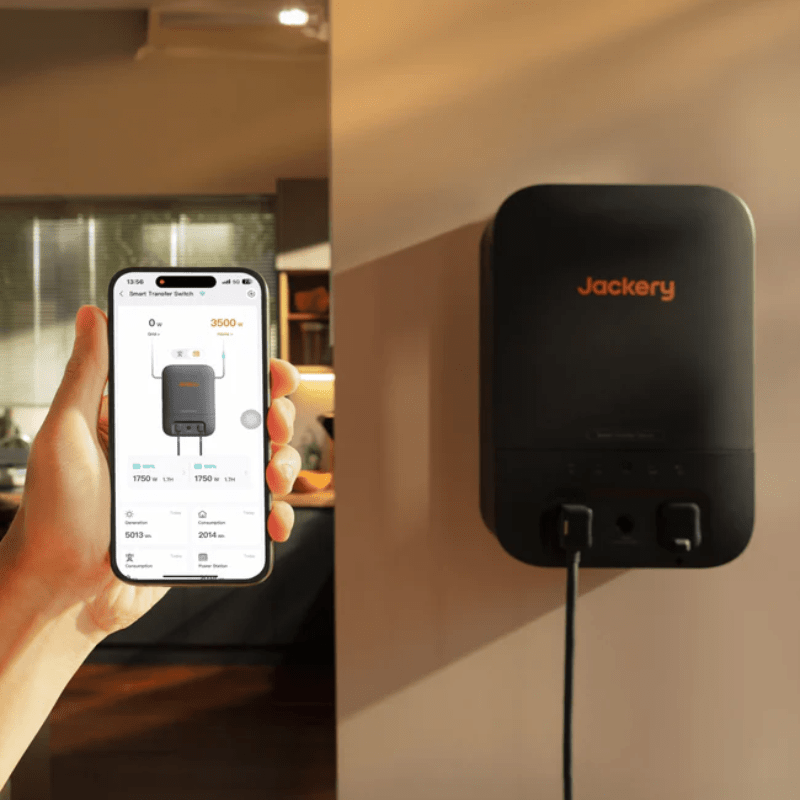

Smart App Management: Monitor and manage energy use remotely via Wi-Fi/Bluetooth with real-time status updates and remote control features.
-
Energy Cost Savings: Automatically uses stored solar power during peak grid hours to reduce your electricity bill.
-
Solar & Eco Integration: Connects with rooftop PV systems through the Jackery 5000 Plus for clean, quiet, sustainable power.
-

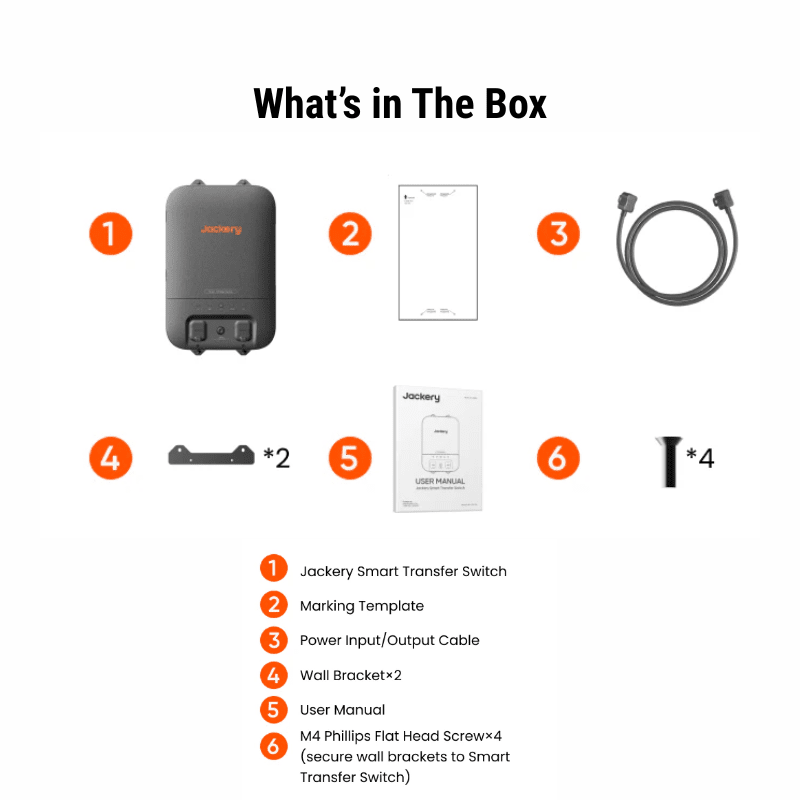

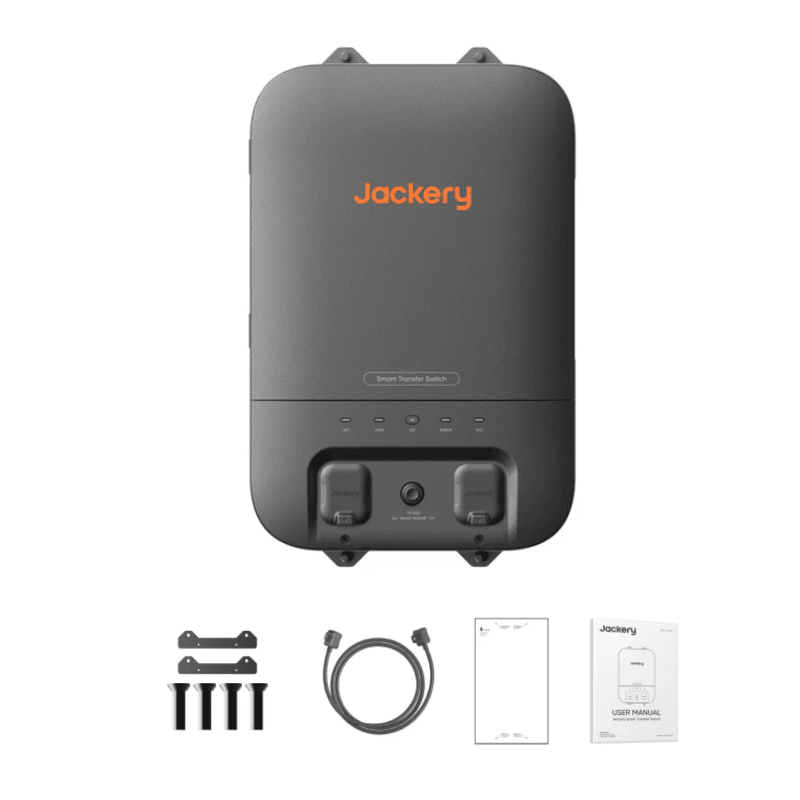

DIY-Friendly Installation: Compact, lightweight (25.57 lbs), and includes mounting hardware and template for easy setup.
- Maintenance-Free Operation: Built to last with no ongoing maintenance required.
⚠️ Note: Only compatible with the Jackery Explorer 5000 Plus Series. UPS functionality must be activated via the Jackery app.
User Manual / Documents:
- Model No.
- JA-TS02A
- AC Voltage (Nominal)
- 120V/240V~ 60Hz
- Feed-In Type
- Split Phase
- Maximum Input Current
- 100A Grid / 60A Power Station
- Maximum Output Current
- 60A Home Load / 33.4A Power Station
- Maximum Input Short-Circuit Current
- 10KA
- Overvoltage Category
- IV
- UPS
- ≤20ms
- Enclosure Type (Distribution Panel)
- NEMA Type 1
- Number of Load Branches
- 12
- Main Circuit
- 2 AWG
- Branch Circuit
- 14 AWG 12 AWG 10 AWG
- Communication
- Wi-Fi and Bluetooth
- Operating Temperature
- -20°C~40°C (-4°F~104°F)
- Weight
- About 25.57 lbs/11.6 kg
- Dimensions
- 22 x 14.7 x 7.87 in/56 x 37.4 x 20 cm
