48V EG4 Chargeverter | 100A Battery Charger | 5,120W Output | 240/120V Input *Shipping Early July 2024*

Current price $479
Original price $599
Translation missing: en.product_price.item.price.range_html
Original price $599
from $479
Current price $479
You Saved: $120 20%

Color Options: Grey
Request a Free Quote
truck
In Stock Get yours today!
truck
10+ sold In the last 7 days
truck
Free Returns Free Returns within 30 Days of Delivery

*Shipping Early July 2024*

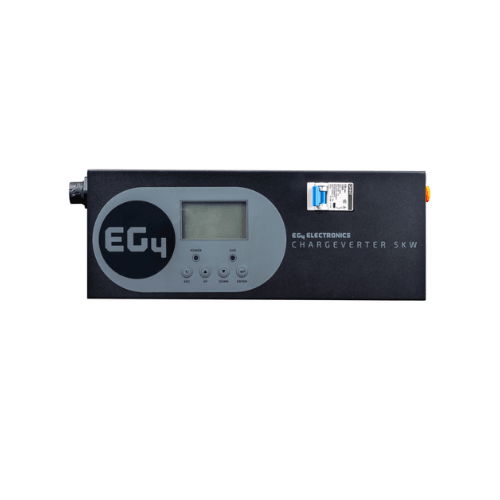

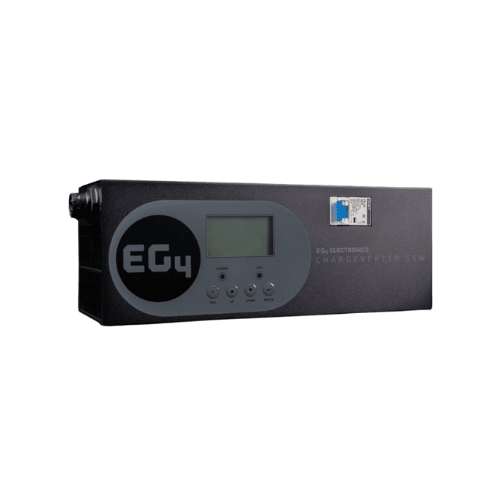

Introducing the EG4 Chargeverter 5KW AC Charger, a high-performance battery charger designed for reliability and versatility. With its 48V 100A capacity and 5120W output, this charger ensures efficient power supply for various applications. Its compact design and dual 240/120V input make it suitable for diverse setups.

Bad Weather Resilience:

  • Charge batteries during low light conditions using a generator (up to 100A)
  • Ideal for unpredictable weather patterns

Protection from "Dirty Power":

  • Guards against unreliable sine waves from lower-budget generators
  • Protects inverters from power quality issues

Charger Output Specifications:

  • Optimized for 240 VAC power supply
  • Nominal Battery Voltage: 48VDC
  • Adjustable Charge Current: 0-100A at 240VAC
  • Adjustable Charge Voltage: 43-57VDC (Default at 54VDC)
  • Maximum Output Watts: 5120W at 240 VAC

AC Input Specifications:

  • Plug directly into a generator without concern for power issues
  • AC Input Voltage Range: 90-264VAC
  • Maximum Input Amps: 26A at 240VAC, 28A at 120VAC

Dry Contacts:

  • Control of generator start/stop function based on Voltage or state of charge (SOC)

Using EG4 Batteries?

  • Closed loop communication with EG4 batteries for charging based on battery state of charge (SOC), when batteries are not in communication with the inverter

Specifications

Charger Output Specifications

  • Battery Voltage 48Vdc nominal
  • Charge Current (adjustable) 0-100A @240VAC, 0-45A @120VAC, 0-50A @208VAC
  • Charge Voltage (adjustable) 43-57VDC (default 54VDC)
  • Max Output 5120W @240VAC, 3050W @120VAC
  • Max Efficiency 94% @240VAC, 92% @120VAC

AC Input Specifications

  • AC Input Voltage Range 90-264VAC
  • AC Frequency 50-60Hz
  • Maximum Input Amps 26A at 240Vac, 28A at 120Vac
  • Idle Consumption ~10W

Environmental Specifications

  • Operating Temperature Range 14°F to 131°F (-10°C to 55°C)
  • Storage Temperature Range 5°F – 140°F (-15°C – 60°C)
  • Humidity 5% to 95% relative humidity (non-condensing)
  • Ingress Protection IP21
  • Operating Altitude 0~4921 ft. (0~1500m)

General Specifications

  • Communication Port RS485 (RJ45 Jack)
  • Dimensions H×W×D 5” x 13.2” x 4.9” (127mm x 335mm x 124mm)
  • Net Weight 13 lbs. (5.9 kg)
  • Warranty 3 years (only when used indoors)
