EG4 12K Mini-Split Air Conditioner Heat Pump | 12000 BTU | SEER2 28.5 | Plug-N-Cool Do-It-Yourself Installation

Current price $1,449.00
Original price $1,819.00
Translation missing: en.product_price.item.price.range_html
Original price $1,819.00
from $1,449.00
Current price $1,449.00
You Saved: $370.00 20%

Request a Free Quote
truck
In Stock Get yours today!
truck
12+ sold In the last 7 days
truck
Free Returns Free Returns within 30 Days of Delivery

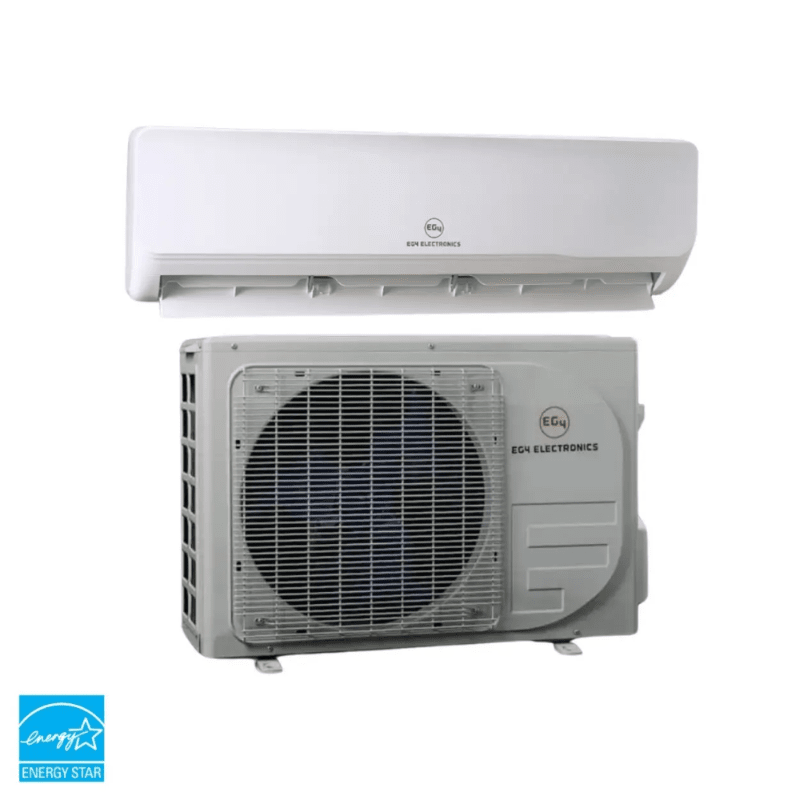

The Do-It-Yourself EG4 12K Air Conditioner is a highly efficient, 12000 BTU air conditioning system that provides great cooling and heating performance in small to medium-sized rooms. Featuring a new SEER2 rating of 28.5, this unit offers energy savings as well as cost efficiency without sacrificing cooling/heating power. Its compact size, sleek design, and new Plug-N-Cool technology make this EG4 Mini-Split a Do-It-Yourself project. Plug-C-Cool allows the EG4 Mini-Split to be easily installed, cooling and heating quickly in virtually any living space or workplace.

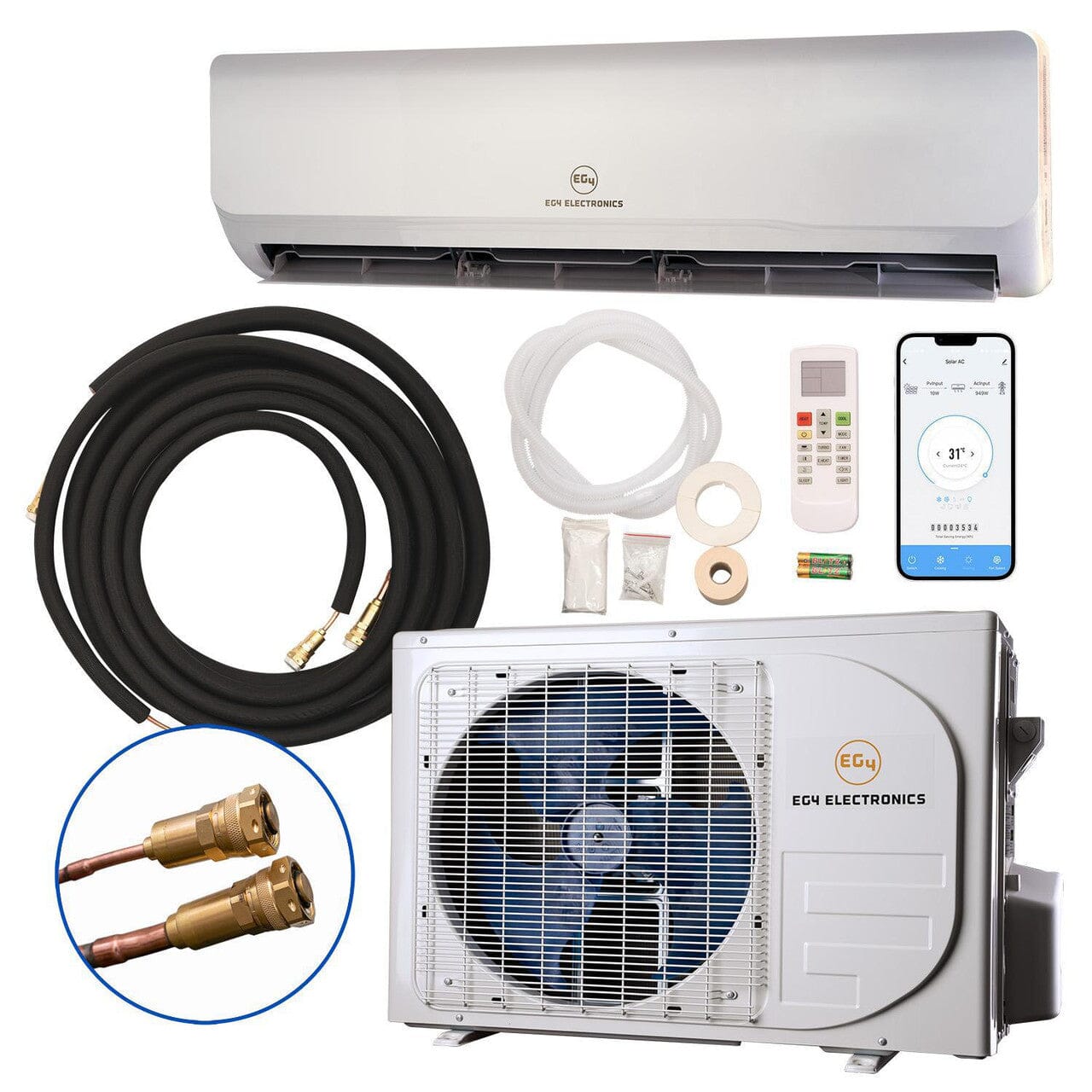

What's Included With Your Order?

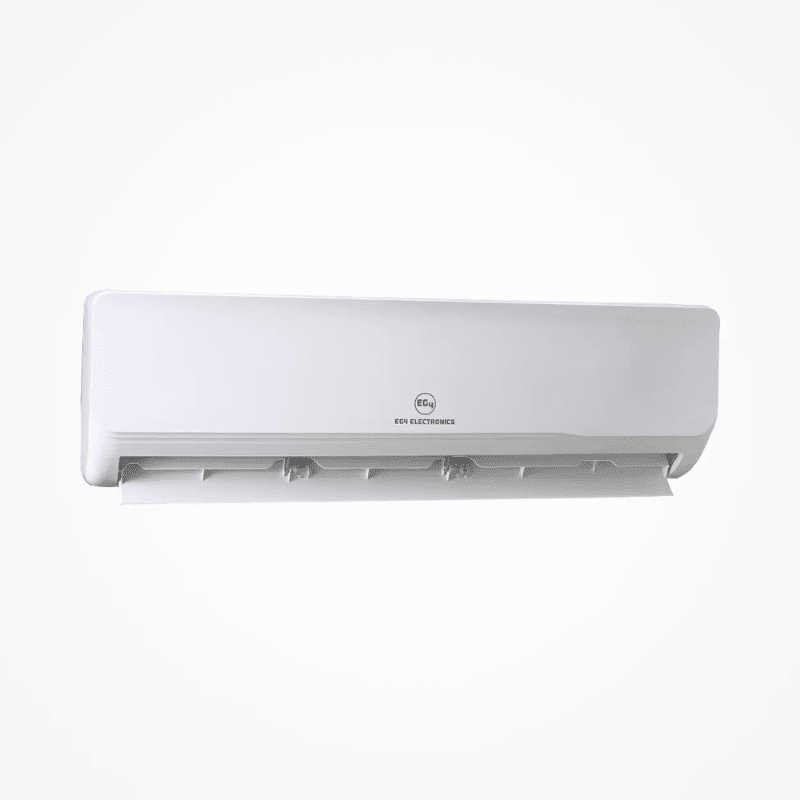

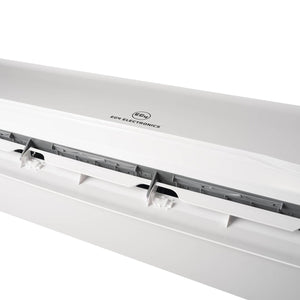

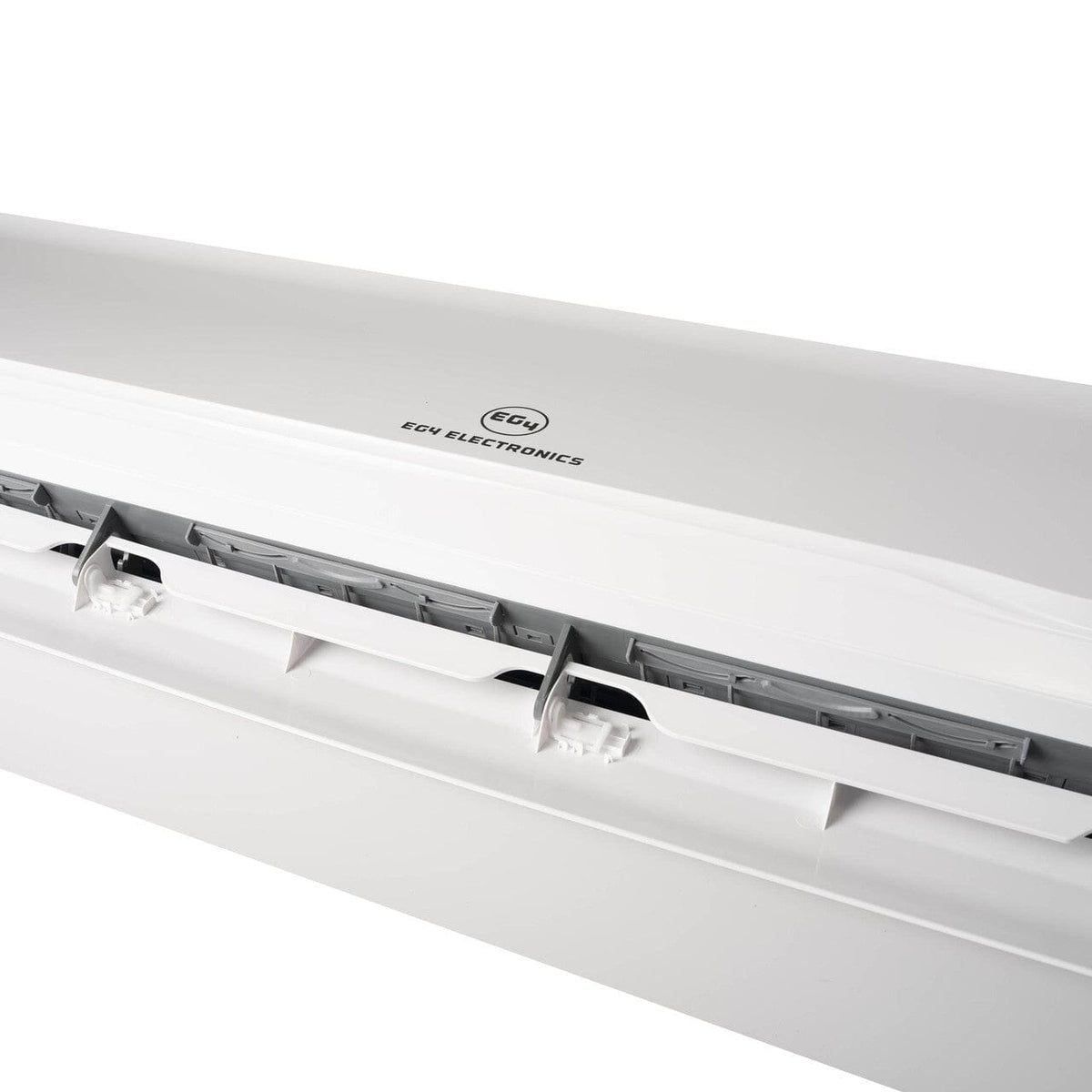

  • Indoor Head Unit

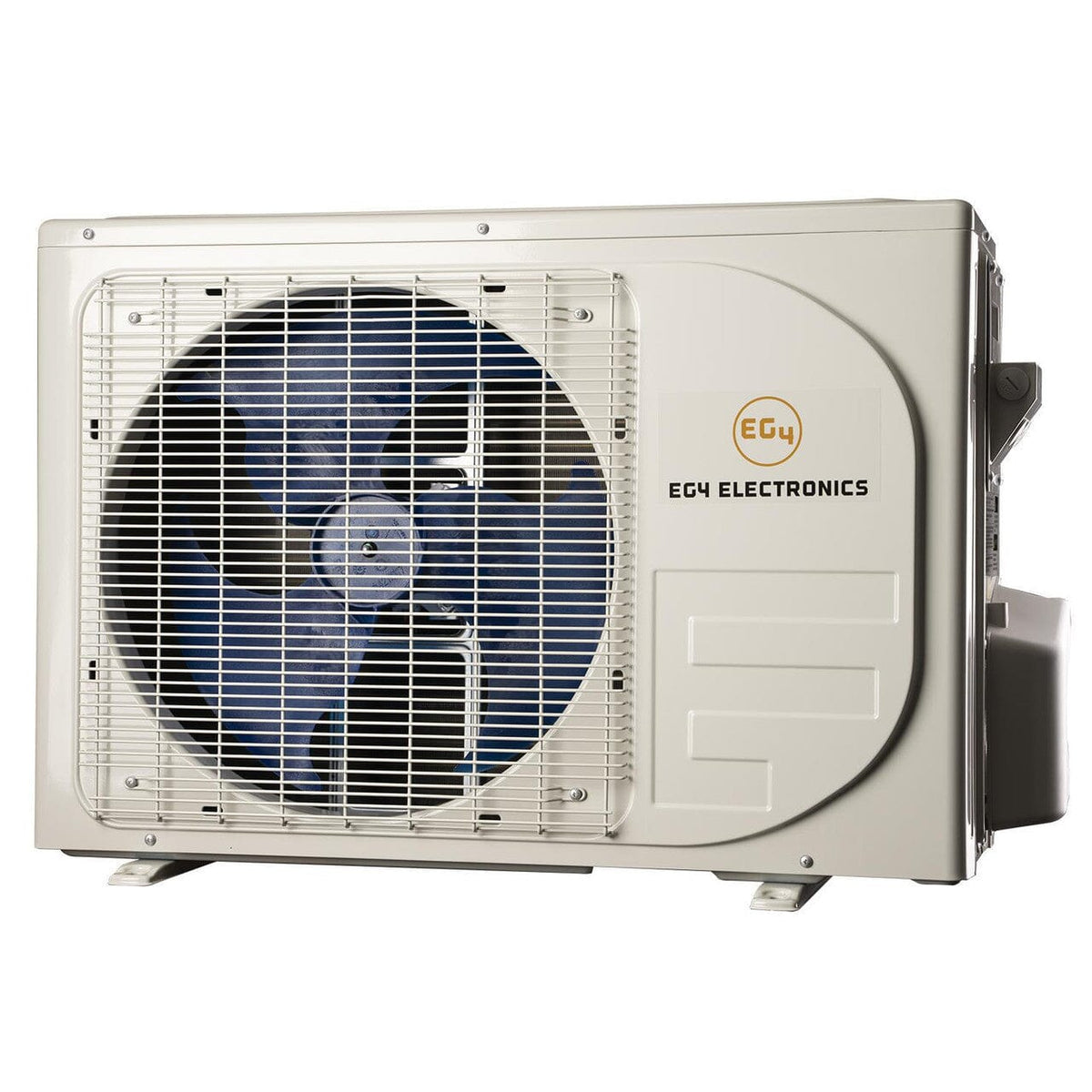

  • Outdoor Unit
  • Pre-Charged Lineset & Electrical Wire - 16.4Ft
  • LCD Remote Control
  • Installation Accessories

New Plug-n-Cool Technology - Easy Do-It-Yourself Installation

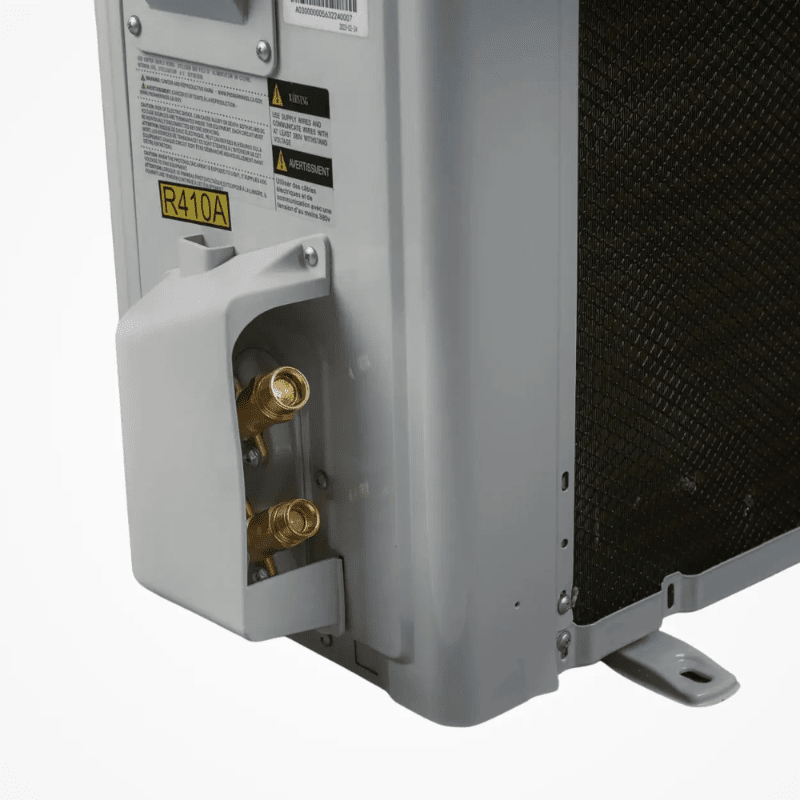

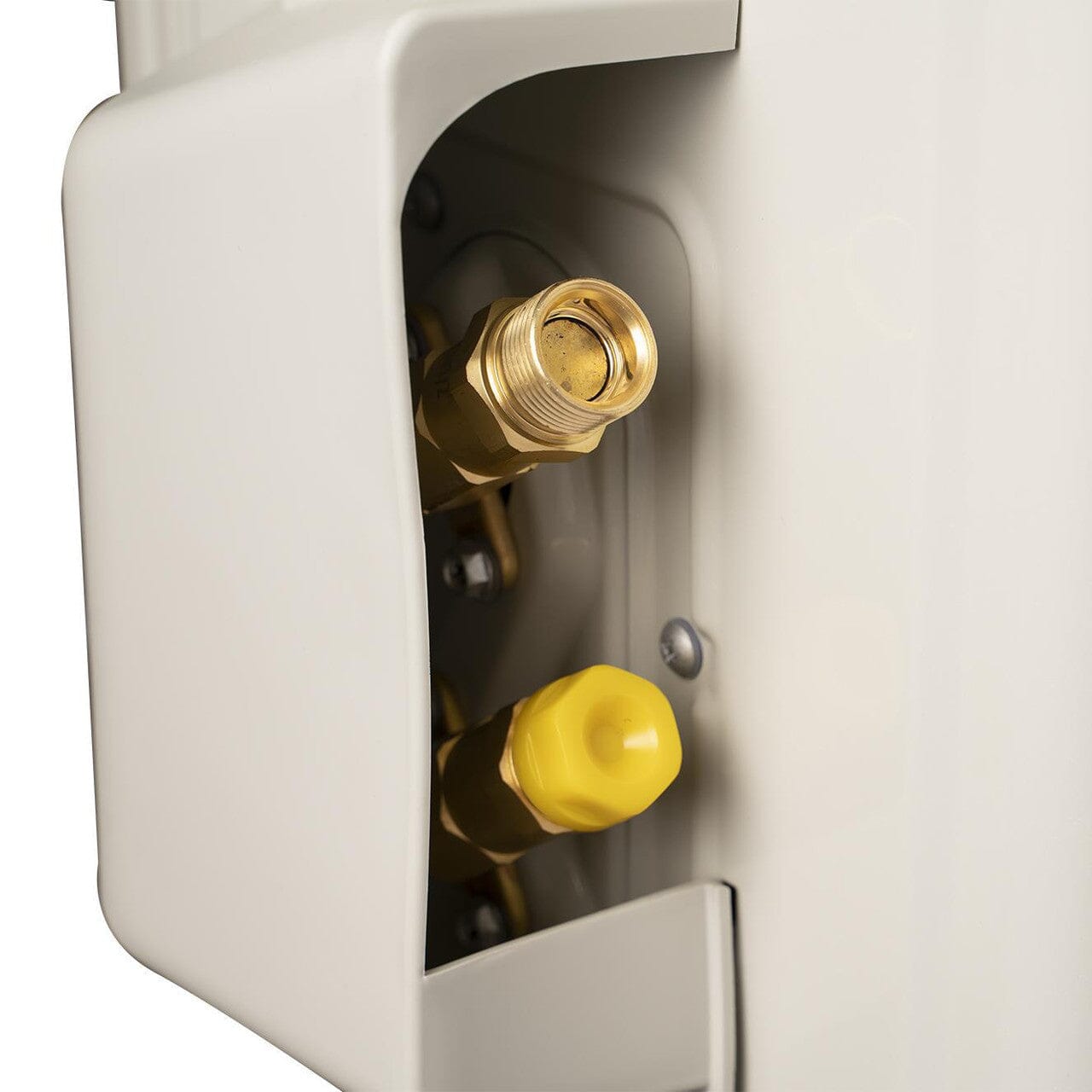

Allows for quick and easy connection via the quick-connect self-closing companion valves. Plug-n-cool allows you to install this innovative mini-split system without special tools, equipment, or training. No need to pull a vacuum.

Latest & Greatest Efficiency Rating - New SEER2 Rating: 28.5

Go above and beyond the norms of other efficient mini-split systems while maintaining maximum performance, safety, and reliability.

Over 12000BTU of Heating & Cooling Capacity - Heat & Cool up to 650 Square Feet

Get sophisticated air conditioning medium to large-sized rooms.

EG4 Warranty Coverage

5-Year Limited Warranty

EG4 12K Air Conditioner Specifications

Electrical Specifications

  • Solar Input 1000-1600W (90VDC-380VDC)
  • Rated Voltage Single-Phase 115VAC
  • Rated Current 8.35A
  • Frequency 60Hz
  • Minimum Circuit Ampacity 19.05A
  • Maximum Fuse Size 20A
  • Maximum Starting Current 4A

Rated Cooling

  • Nominal Capacity 12,000 BTU/h
  • Capacity Range 3,000-13,000 BTU/h
  • Input Power 190-1050W
  • Rated Current 8.45A
  • EER 12.5
  • SEER2 28.5

Rated Heating

  • Nominal Capacity 12,000 BTU/h
  • Capacity Range 3,000-13,000 BTU/h
  • Input Power 190-1050W
  • Rated Current 7.47A
  • COP 14.12 Btu/W
  • Heating Seasonal Performance Factor (HSPF) 12.7
  • HSPF2 11.3

System Data

  • Design Pressure [PSI Gauge (PSIG)] <651
  • Refrigerant R410A/45.86 oz.
  • Refrigerant Pre-charge 16.4 ft.
  • Additional charge per ft 0.2 oz.
  • Liquid valve 0.25 in. (6.35mm)
  • Gas valve 0.5 in. (12.7mm)
  • Max refrigerant pipe length 49 ft.
  • Max difference in level 26 ft.

Compressor Specifications

  • Type 2xRotary
  • Input Power 190-1050W
  • Rated Load Amperage (RLA) 3.6A

Indoor Unit Data

  • Rated Load Amperage (RLA) 0.48A
  • Speed (Turbo/5/4/3/2/1block) 900/850/800/750/700/680 r/min
  • Air Flow (Turbo/5/4/3/2/1block) 442/410/380/350/320/305 CFM
  • Sound Pressure (Turbo/5/4/3/2/1block) 37/36/35/34/33/32 dB(A)
  • Moisture Removal 2.65 pt/hr

Indoor Unit Dimensions

  • Unit Dimension (WxDxH) 42.51x9.33×12.99 in
  • Packaging (WxDxH) 44.88x11.81×14.25 in.
  • Net/Gross weight 33.07/38.58 lbs.

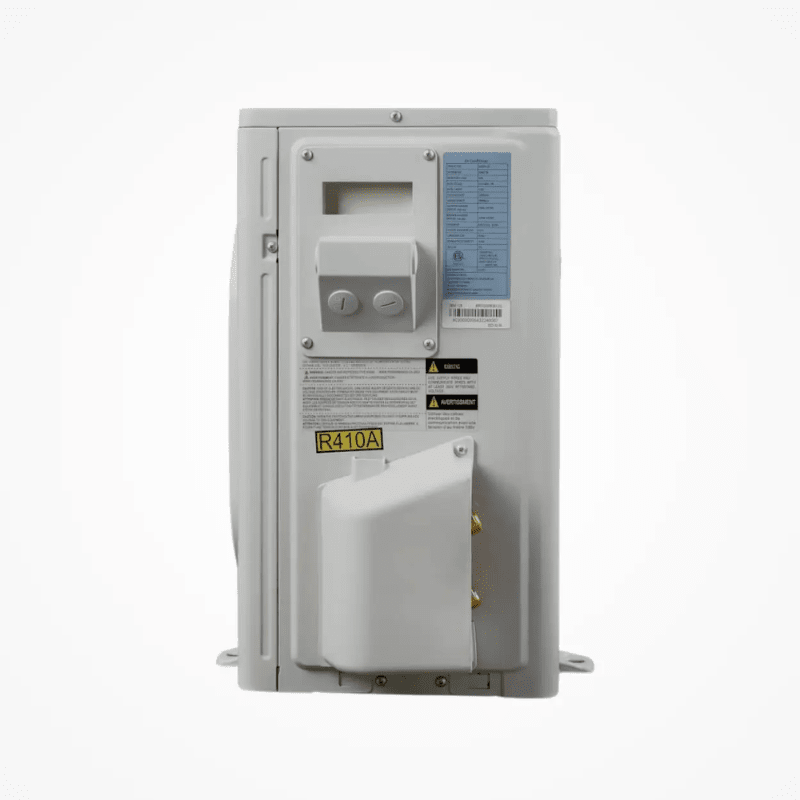

Outdoor Unit Data

  • Rated Load Amperage (RLA) 0.42A
  • Speed (Hi/Med/Lo) 800 r/min
  • Air Flow (Hi/Med/Lo) 1060 CFM
  • Sound Pressure (Hi/Med/Lo) 52 dB(A)

Outdoor Unit Dimensions

  • Unit Dimension (WxDxH) 31.57×12.72×22.2 in.
  • Packaging (WxDxH) 35.83×15.94x24.49 in.
  • Net/Gross weight 70.55/79.37 lbs.

Operation Temperature

  • Indoor (cooling/heating) 61-90/32-90 °F
  • Outdoor (cooling/heating) 32-131/5-86 °F

Accessories

  • Control Remote
  • Connection Cable 18AWG (4 Stranded)
  • Installation Copper Kit 16.4 ft.

Warranty

  • Limited Warranty: 5* year limited warranty
