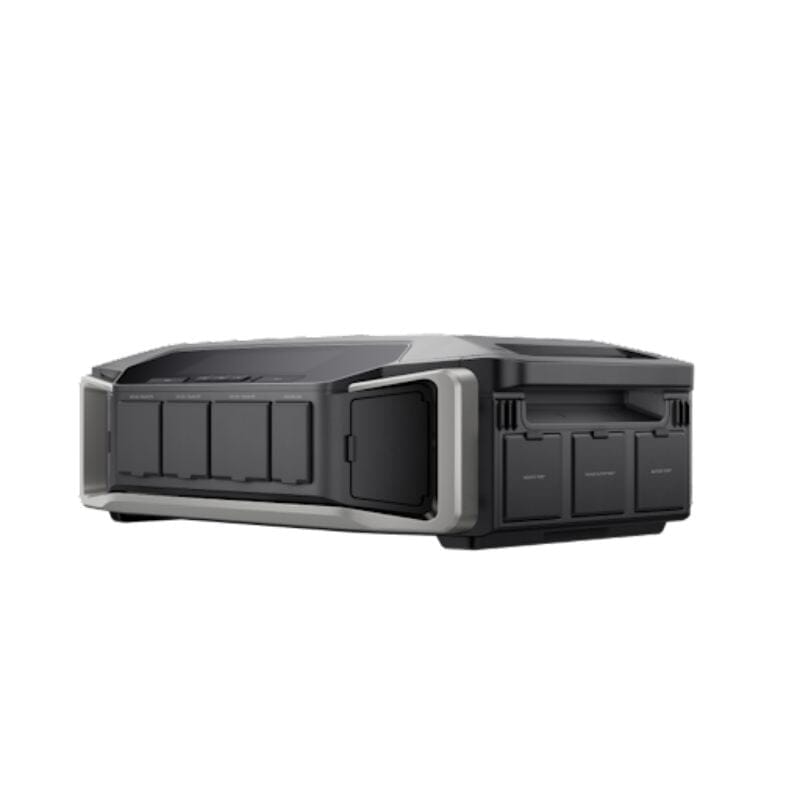

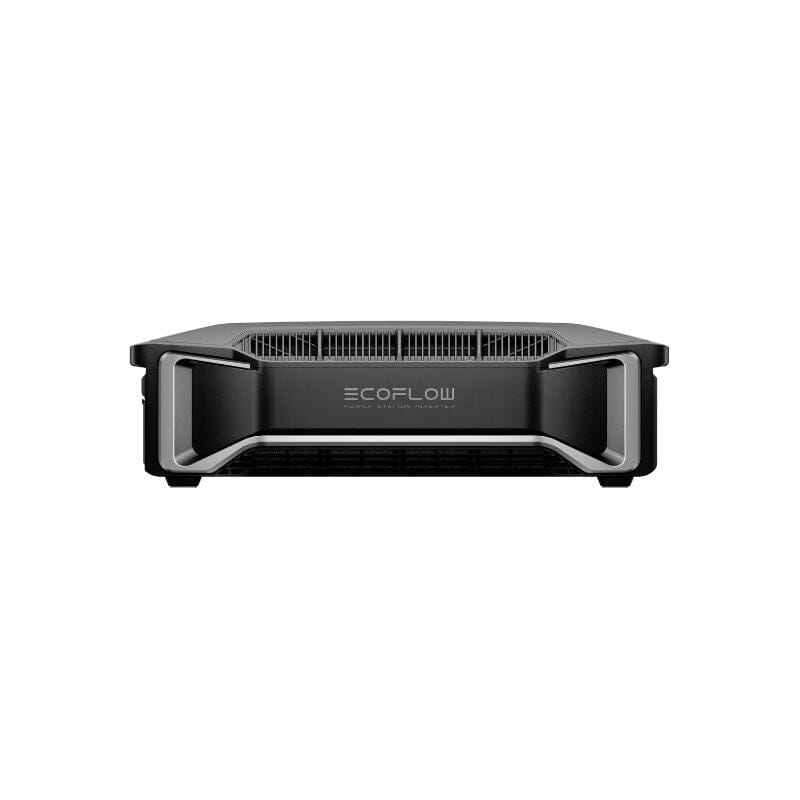

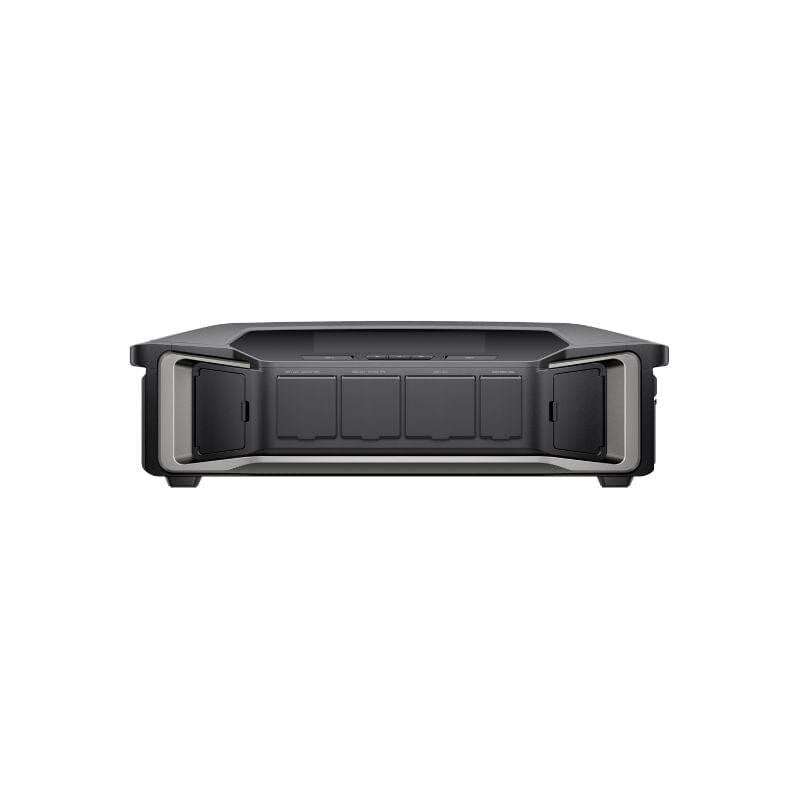

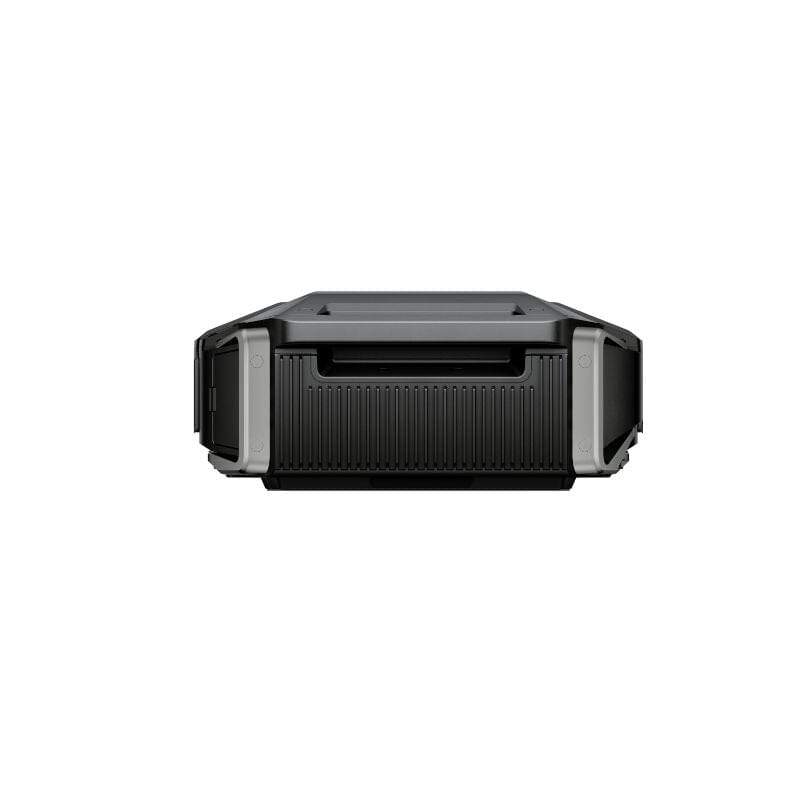

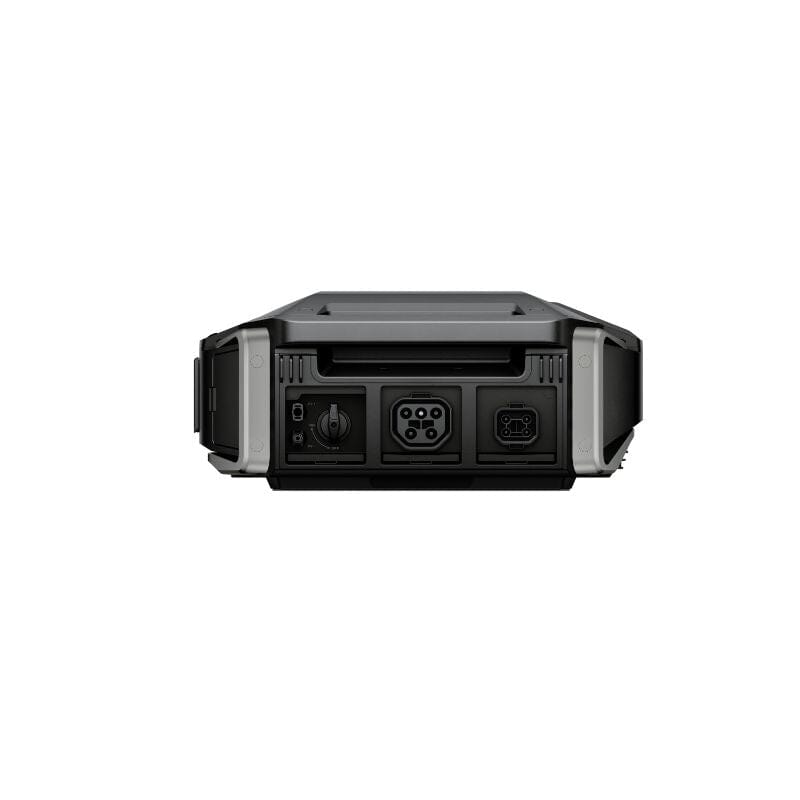

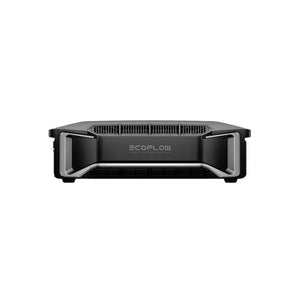

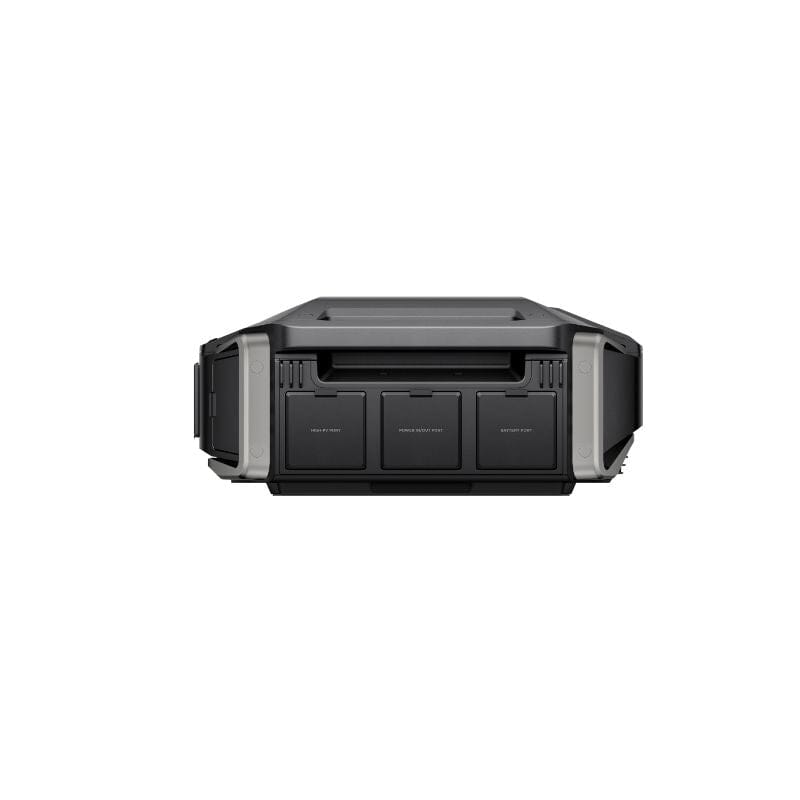

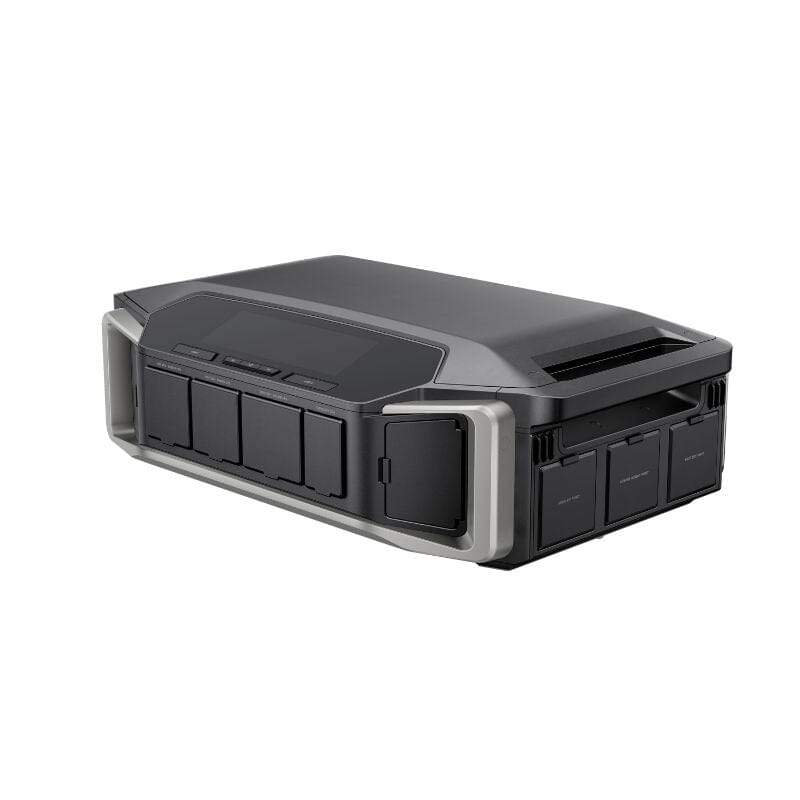

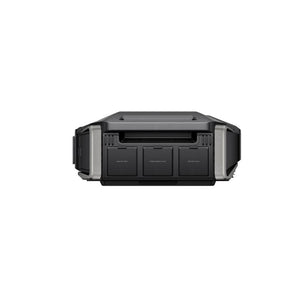

EcoFlow DELTA PRO ULTRA - Single Inverter

What's Included With Your DELTA Pro Ultra Single Inverter Order?

• 1 x EcoFlow DELTA Pro Ultra Inverter
• 1 x EcoFlow Portable Stand
• 4 x EcoFlow Supporting Leg
• 4 x M6*20 (x4) EcoFlow Side Mount Caster
• 1 x EcoFlow Disassembly and Assembly Tool
• 1 x EcoFlow Solar to Low-PV Port Charging Cable
• 1 x EcoFlow AC Charging Cable-C20
• User Manual & Warranty Card

DELTA Pro Ultra Single Inverter Specifications

Bidirectional Inverter Discharging

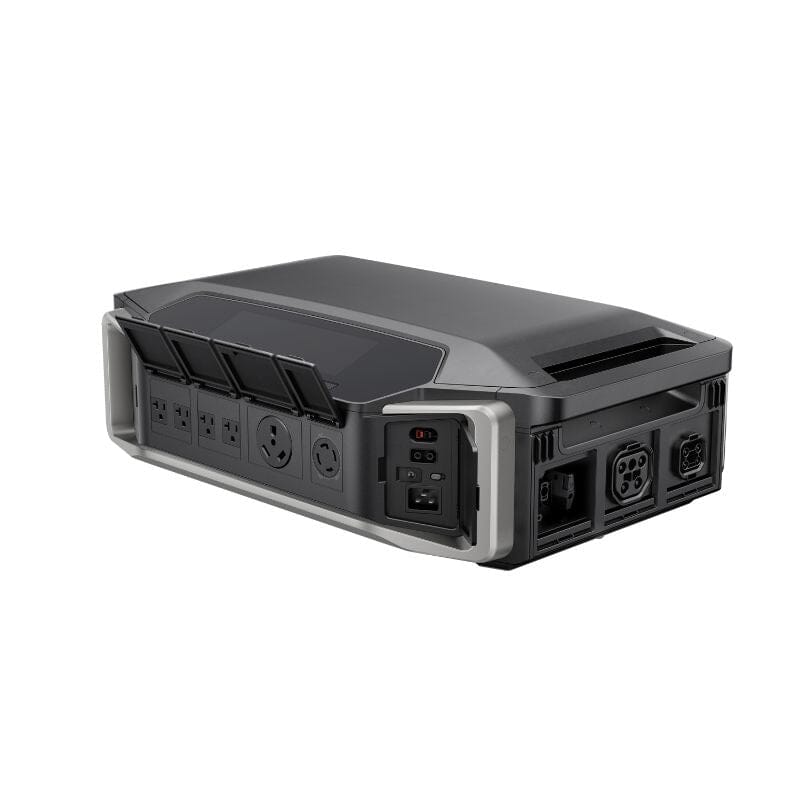

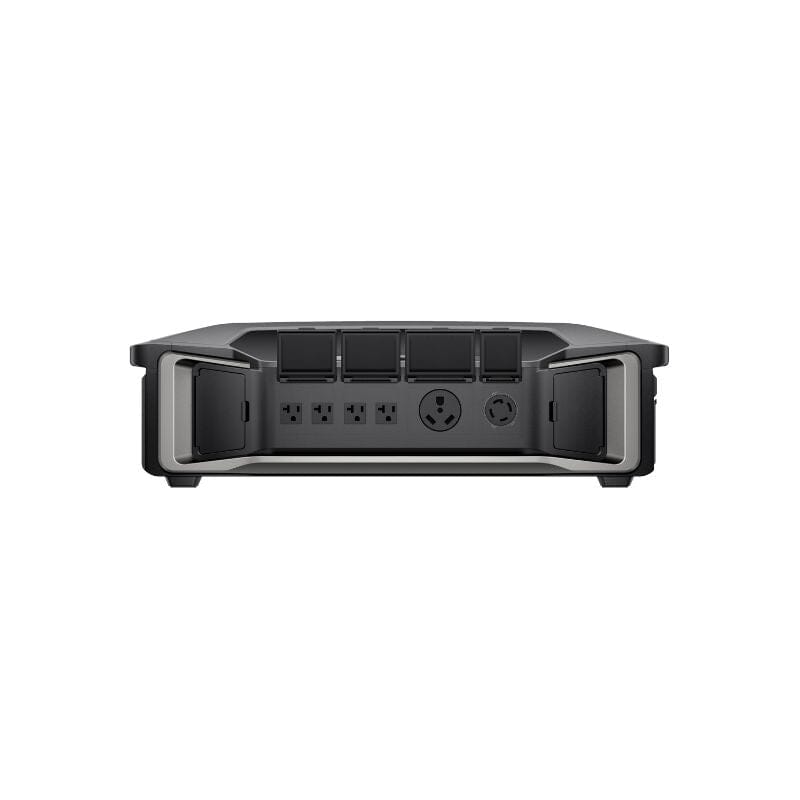

• AC Output 6*AC Outlets, 120V/240V, 7200W Total
• X-Boost No UPS Backup UPS Port (L1 Phase <20ms); online
• UPS Port (L2 Phase 0ms)
• No-load Consumption <45W
• Efficiency of AC Output of 100W 70%
• Discharging Efficiency at Full Load 94%

Bidirectional Inverter Charging

• Charging Voltage C20 Input: Support 100V-120V / 220V-240V; Power Input/Output Port: Support 100V-120V /220V-240V The two ports of C20 and Power input/output are mutually exclusive. Please do not charge both at the same time. AC Input Power Adjustment Supported, and is adjustable in all charging modes.
• AC Charging Method AC Input, Power Input/Output Port (AC Charging Pile/Generator/SHP2)
• AC Charging Input AC Charging Pile Supported: 120V/240V, 30A, 3600W/7200W Max

AC Charging

• C20 Charging Wall Charging Supported: 120V, 15A, 1800W Max; 240V, 12.5A, 3000W Max
• Protection Protection from Lightning and Surges

DC Output

• USB-A *2 5V, 2.4A, 12W
• USB-C *2 5V, 9V, 12V, 15V, 20V, 5A, 100W Max
• Anderson Port 12.6V, 30A, 378W Max

MPPT

• High Voltage PV 80-450V, 15A, 4000W Max
• Low Voltage PV 30-150V, 15A, 1600W Max

Power input/output High Voltage Port

• Parallel Connection Supported
• Grid-tie Not supported
• Smart Home Panel 2 Supported
• Car Charing input Not supported
