SKU: BATTERY-SWITCH-6006

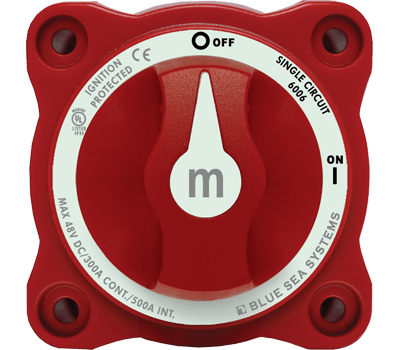

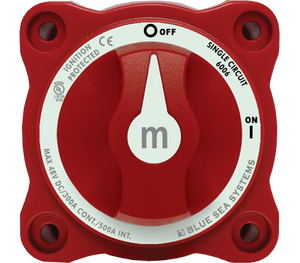

Blue Sea M-6006 Mini Battery Switch
- Regular price
- $39.00
- Sale price
- $39.00
- Regular price
-
$59.00
Orders processed in 24–48 hours
30-day returns
Lifetime support by phone, chat & email
Full manufacturer warranty
Questions before you buy?
Call 877-242-2792 and we’ll work it out with you. Mon–Thu 10am–5:30pm, Fri 10am–1pm EST.
Trusted by 50,000+
Customers powered since 2018
Lifetime Support
Phone, email or live chat, for good
Price Match
Found it cheaper? Tell us
Ships from the USA
Warehouses in CA, TX and NY
Frequently bought together
The details.

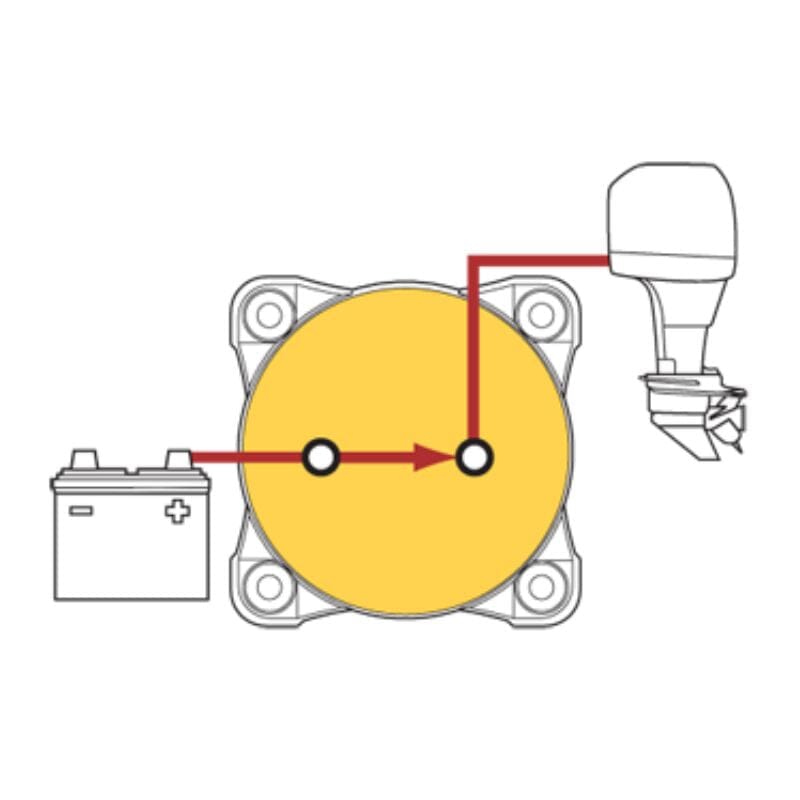

Switches a single battery to a single load group
- Ignition protected—safe for installation aboard gasoline powered boats

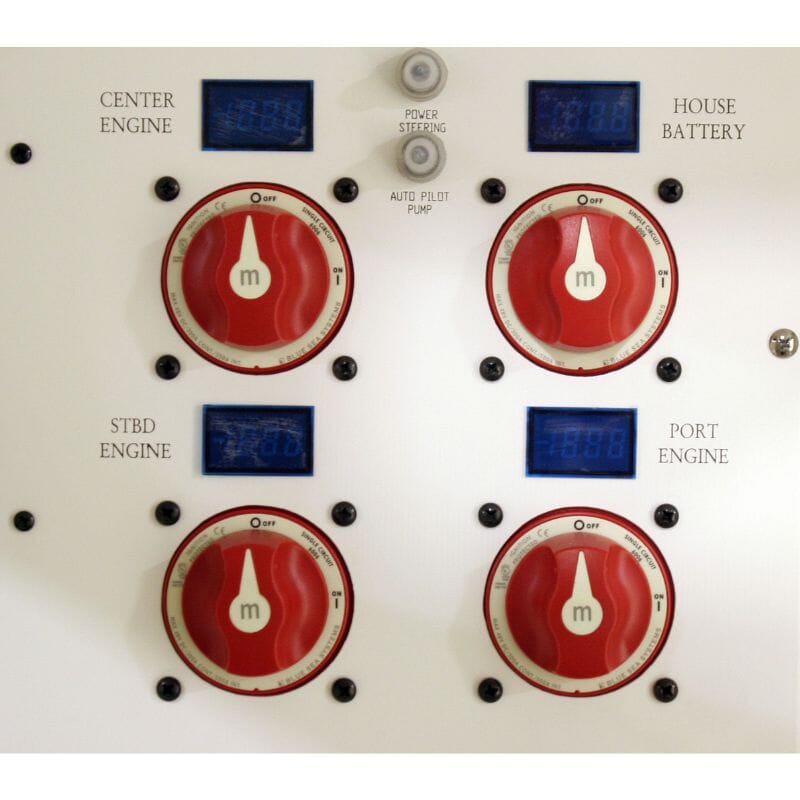

- Case design allows surface, front panel, or rear panel mounting
- Isolating cover with snap-on sections protects rear contacts
- 3/8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance
- Accepts 3/8" and M10 ring terminals
- 7/8" (22.22mm) stud length to accept multiple cable terminals
- Ideal for marine or RV applications
- All non-corrosive marine grade metals
- Molded in durable reinforced polycarbonate
- Tactile textures indicate knob position by feel only
- Label with international ON/OFF legends
- Removable key or knob remains positively retained
- ICON label set included for circuit identification
Blue Sea M-6006 Mini Battery Switch Specifications
- Model Number: M-6006
- Cranking Rating: 10 sec.- 1,500 Amps
- Cranking Rating: 1 min- 775 Amps
- Intermittent Rating: 5 min.- 500 Amps
- Continuous Rating: 300 Amps
- Maximum Voltage Rating:48 Volts DC
- Terminal Stud Size: 3/8"-16 (M10)
- Terminal Stud Torque: 120 in-lb max.
- Barrel diam for panel mount: 1.6" (65mm)
- Mounting holes center-to-center: 2.17" (55.25mm) - up to #10 screw
- Size (W x H x D incl knob): 2.82" x 2.82" x 3.07" (72 x 72 x 78 mm)
- Cable Size to Meet Ratings: 4/0 AWG (120mm²)
- Clearance For 4/0 AWG Cables: 1.12" (28.4mm)
- Weight Lb (Kg): 0.65 (0.29)
