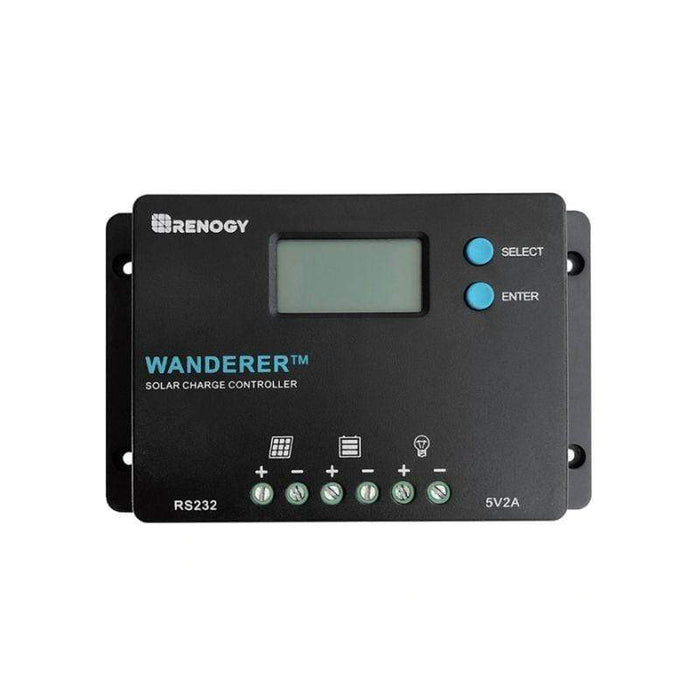

Renogy Wanderer 10A Charge Controller | RNG-CTRL-WND10

Rated 3.5 out of 5
Based on 2 reviews
Rated 3.5 out of 5
Based on 2 reviews

SKU: RNG-CTRL-WND10

What We Offer:

  • Image of

    Lifetime Customer Service

  • Image of

    Guaranteed Safe Delivery

  • Image of

    After-Sale Support

Have a question? We're here to help.

Friendly Phone Support: 877-242-2792
| Quick Quote | Mon-Fri 10am-6pm EST

Renogy Wanderer 10A Charge Controller | RNG-CTRL-WND10

The Renogy Wanderer 10A solar charge controller integrates efficient PWM charging to increase battery life and improve system performance. Designed with a simple interface for ease of use the controller uses an LCD to notify users of battery information.

This advanced charge controller is designed for off-grid solar applications and can be used with a 12V/24V battery or battery bank. The compact size of the controller makes installation a breeze. The controller comes equipped with fully comprehensive self-diagnostics and electronic protection functions to prevent damage from installation mistakes or system faults.

KEY FEATURES

  • Optimized for a 12V/24V system; Deep cycle Sealed (AGM), Gel, Flooded and Lithium battery option ready.
  • Smart 4 Stage PWM charging (Bulk, Boost, Float, and Equalization) increases battery life and improves system performance. Intelligent protection against reverse polarity, overcharging, short-circuit, and reverse current.
  • Backlit LCD screen for displaying system operation, diverse load control and error codes.
  • Integrated 5V 2A USB ports to charge USB devices.
  • Compact in size makes it easy to install virtually anywhere.
  • Capable of charging over-discharged lithium batteries.
  • Integrated RS232 port allows communication with BT-1 Bluetooth module and usage of Renogy BT smartphone app.
WANDERER 10A PWM CHARGE CONTROLLER
Nominal Voltage: 12V/24V Auto Recognition Rated Charge Current: 10A
Max Gauge Size: Up to 12AWG Max. PV Input Voltage: 50 VDC
Self-Consumption: <10mA Working Temperature: -31°F - 113°F / -25°C - 45°C
Dimensions: 4.68 x 2.95 x 1.08 in / 119 x 75 x 27.5 mm Storage Temperature: -31°F - 176°F / -35°C - 80°C
Weight: 0.27 lbs / 122.47g


WARRANTY INFORMATION

Accessories 1-year material warranty


Shipping Times Estimated delivery time to your door for in-stock orders placed today is 5-10 business days.

Shipments & Lead Times: We process all orders within 72 hours. From there, we do our best to ship as quickly as possible. Shipping times vary depending on the product and size of your order. We will send you your tracking information to the e-mail and/or phone number on file.

With the incredible demand for solar products, our average delivery time to your door is between 7-10 business days from date of order. However, for some products, shipping can be as fast as 3-5 business days to your door. Please check specific product pages for the most accurate information.

*Please Note* - As a large retailer, our stock levels are healthy and shipments are moving quickly. If you place an order for something that is not in stock, or is on backorder, our team will reach out to you within 24-72 hours of placing your order to determine how you would like to move forward.

If you have any questions, give us a call at 877-242-2792 or reach out via email / live chat.

average rating 3.5 out of 5
Based on 2 reviews
  • 5 Stars
    1 Review
  • 4 Stars
    0 Reviews
  • 3 Stars
    0 Reviews
  • 2 Stars
    1 Review
  • 1 Star
    0 Reviews
50% of reviewers would recommend this product to a friend
2 Reviews
Reviewed by stephanie h., from United States
Verified Buyer
I recommend this product
Rated 5 out of 5
Review posted

Worth the money

I’m glad I bought this charge control it works great with my solar panel.

Loading...
Was this helpful?
Reviewed by Anonymous, from United States
Verified Buyer
I don't recommend this product
Rated 2 out of 5
Review posted

Looks good

I have not implemented this yet but the shopping experience was superb

Loading...
Was this helpful?

Product Description

Renogy Wanderer 10A Charge Controller | RNG-CTRL-WND10

The Renogy Wanderer 10A solar charge controller integrates efficient PWM charging to increase battery life and improve system performance. Designed with a simple interface for ease of use the controller uses an LCD to notify users of battery information.

This advanced charge controller is designed for off-grid solar applications and can be used with a 12V/24V battery or battery bank. The compact size of the controller makes installation a breeze. The controller comes equipped with fully comprehensive self-diagnostics and electronic protection functions to prevent damage from installation mistakes or system faults.

KEY FEATURES

  • Optimized for a 12V/24V system; Deep cycle Sealed (AGM), Gel, Flooded and Lithium battery option ready.
  • Smart 4 Stage PWM charging (Bulk, Boost, Float, and Equalization) increases battery life and improves system performance. Intelligent protection against reverse polarity, overcharging, short-circuit, and reverse current.
  • Backlit LCD screen for displaying system operation, diverse load control and error codes.
  • Integrated 5V 2A USB ports to charge USB devices.
  • Compact in size makes it easy to install virtually anywhere.
  • Capable of charging over-discharged lithium batteries.
  • Integrated RS232 port allows communication with BT-1 Bluetooth module and usage of Renogy BT smartphone app.
WANDERER 10A PWM CHARGE CONTROLLER
Nominal Voltage: 12V/24V Auto Recognition Rated Charge Current: 10A
Max Gauge Size: Up to 12AWG Max. PV Input Voltage: 50 VDC
Self-Consumption: <10mA Working Temperature: -31°F - 113°F / -25°C - 45°C
Dimensions: 4.68 x 2.95 x 1.08 in / 119 x 75 x 27.5 mm Storage Temperature: -31°F - 176°F / -35°C - 80°C
Weight: 0.27 lbs / 122.47g


WARRANTY INFORMATION

Accessories 1-year material warranty
