MPP Solar LV6548 Hybrid Solar Inverter UL Listed 120V (Battery Optional) | 6,500W Continuous / 240V w/ two or more units | 8,000W Solar PV Input - ShopSolar.com

MPP Solar LV6548 Hybrid Solar Inverter UL Listed 120V (Battery Optional) | 6,500W Continuous / 240V w/ two or more units | 8,000W Solar PV Input

by MPP Solar
SKU MPP-LV6548

people are currently viewing this product
$1,362
$1,709
Translation missing: en.product_price.item.price.range_html
$1,709
from $1,362
$1,362
You Saved: $347 20%

✔40,000+ Happy Customers!

✔We Beat All Competitors Prices.

✔Includes Lifetime Customer Support!

✔Fast & Reliable Shipping - While Supplies Last.
Support Agent

Have a question? We're here to help.

Friendly Phone Support:  877-242-2792

Instant Live Chat:  Chat Now

Mon-Fri 10am-6pm EST

Cyber Monday Sale Extended!

Don't miss out on our biggest deals of the year!

Days

Hours

Minutes

Seconds

120vac /240vac 6500W 48V off-grid solar inverter + mppt solar charger 120A, (PV input 390Vdc) + battery charger 120A

  • Max PV input up to 390V
  • UL1741 / CSA compliant
  • Customizable RGB LED setting to display operation mode
  • Max 6.5KW / 48V pure sine wave output 120V
  • Parallel support up to 6 units, in single phase (120V), split phase (120V/240V/208V) or 3-phase (208V).
  • Batteryless operation (single unit mode only)
  • Built-in WIFI transmitter to monitor data on smartphones
  • Pylontech/Weco/Soltaro Lithium BMS support
  • Detachable LCD remote display

Specifications

  • Rated Inverter Power: 6500W
  • Parallel Capability: Up to 6 units

Electrical Specification

  • Output Waveform: Pure Sine Wave
  • Nominal Output Voltage: 120 VAC
  • Frequency Range: 50 Hz/60 Hz (Auto sensing)
  • AC Voltage Regulation (Batt. Mode): 120VAC±5%
  • Efficiency(Peak): 91%
  • Transfer Time: 15ms (For Personal Computers), 20ms (For Home Appliance)
  • No Load Power Consumption: <70W
  • Max Bulk/Float Charge: 62 VDC
  • Overcharge Protection: 66 VDC
  • Cold Start Voltage: 46 VDC

Solar Charger & AC Charger

  • Solar Charger Type: MPPT
  • Maximum PV Array Power: 4000W (each)
  • PV Input: 2
  • Recommended Minimum PV input: 90VDC
  • Max PV Input Current: 18A (each)
  • Maximum PV Array Voc: 250V
  • Maximum Solar Charge Current: 120A
  • Maximum AC Charge Current: 120A
  • Maximum Total Charge Current: 120A

Environmental / Mechanical Specs

  • Communication Interface: USB/BMS/RS232/WIFI/dry contact
  • Humidity: 5% to 95% Relative Humidity (Non-condensing)
  • Operating / Storage Temp: -10C to 40C / -15C to 60C
  • Compliance Safety: UL1741 / CSA compliant
  • Dimension D x W x H(mm): 554 x 433 x 148
  • Net Weight: 19 kg

Still Have Questions? Give us a call today 1-877-242-2792

The solar investment tax credit (ITC), commonly known as the solar tax credit, offers home and commercial property owners incentives to install solar and move to renewable energy.

The solar tax credit will allow you to claim 30% of the total cost of this solar system as a credit on your federal tax return.

*To be eligible for the tax credit, you must own the system and install it at a residence or business that you own in the USA. You must also fill out Form 5695 (Residential) or Form 2468 (Commercial)

Simplified Solar Solutions

Simplified Solar Solutions

Our carefully curated solar kits combine the best components to create an ideal solution for your individual power needs. So whether you need to get off the grid, to save on your electric bill, for emergency backup power, or to fuel your next adventure - we eliminate the need for a designer or custom solution, and pass those savings on to you without compromising on performance.

Best Components, Lowest Prices

Best Components, Lowest Prices

We cut out the bloat of traditional solar companies and pass those savings off to you. Plus, we provide free shipping on all solar kits and lifetime customer service on everything we sell.

Expert Guidance

Expert Guidance

Our team of solar professionals is here to help you navigate the world of solar with ease. From selecting the perfect solar kit to installation and beyond, we provide support and expertise at every step of the journey.

We’re people just like you

We’re people just like you

We’re not corporate and neither are our customers. We’re just a group of 50+ solar enthusiasts who are passionate about providing an honest, no-BS way for anyone, anywhere to improve their lives and the world around them with solar power.

Trusted Solar Authority

Trusted Solar Authority

With over 40,000+ happy customers, 2,500+ positive reviews, and decades of experience in the industry, we’re proud to say we’re America’s #1 solar power solutions provider. You can trust us to provide you with top-notch products and legendary customer service at every step of the way.

What is the Shop Solar Kits returns policy?

Returns are free in the first 30 days with no restocking or processing fees, although the customer must pay for the return shipping costs. See our complete return policy on our Shipping, Deliver, and Returns page.

What’s covered by the Shop Solar Kits returns policy?

Our returns policy covers all purchases made through Shop Solar Kits. For warranty issues, as authorized distributors, we honor the full manufacturer warranty of ALL the brands on our website. See our complete returns and warranty policies on our Shipping, Deliver, and Returns page.

How long will it take to receive my Shop Solar Kits order?

All orders are processed within 72 hours and you can expect delivery within 5 to 10 business days. You will receive access to our customer portal after ordering, where it is easy to track all your shipments. See our Shipping, Delivery and Returns page for more details.

What are the financing and payment options at Shop Solar Kits?

We offer several ways to pay to make getting your solar kit simple:

  • Credit Card: if the purchase is greater than your card’s limit, you can split the cost onto multiple cards as well as Paypal, financing through Affirm, and ACH/bank transfer
  • You can arrange financing during the checkout process, see our Financing page for more details

How does the Shop Solar Kits Lifetime Support work?

Our legendary lifetime customer support has helped make us the #1 solar kit retailer.

We have a dedicated team of solar professionals standing by to help you navigate the world of solar with ease. From selecting the perfect solar kit to installation and beyond, we provide support and expertise at every step of the journey.

If you need help with ordering, shipping, troubleshooting, expanding your system, warranty issues, or anything else you have questions about for as long as you own your Shop Solar Kits equipment, we’ve got you covered: we’re always only a phone call or email away.

Write a Review
average rating 4.6 out of 5
Based on 20 reviews
  • 5 Stars
    13 Reviews
  • 4 Stars
    6 Reviews
  • 3 Stars
    1 Review
  • 2 Stars
    0 Reviews
  • 1 Star
    0 Reviews
95% of reviewers would recommend this product to a friend
Quality
Rated 4 out of 5
Easy to Use
Rated 4 out of 5
Customer photos and videos
Open user-uploaded photo and review in a modal Open user-uploaded photo and review in a modal Open user-uploaded photo and review in a modal Open user-uploaded photo and review in a modal Open user-uploaded photo and review in a modal Open user-uploaded photo and review in a modal
20 Reviews
Reviewed by Whitney G.
Verified Buyer
MPP Solar LV2424 Hybrid [Green] – 2,400W 24V 120V Output + 2kW Solar Input 80A MPPT Charge Controller (Grid Feedback Optional)
Reviewing
MPP Solar LV2424 Hybrid [Green] – 2,400W 24V 120V Output + 2kW Solar Input 80A MPPT Charge Controller (Grid Feedback Optional)
I recommend this product
Age Range
35 - 44
Rated 5 out of 5
Review posted

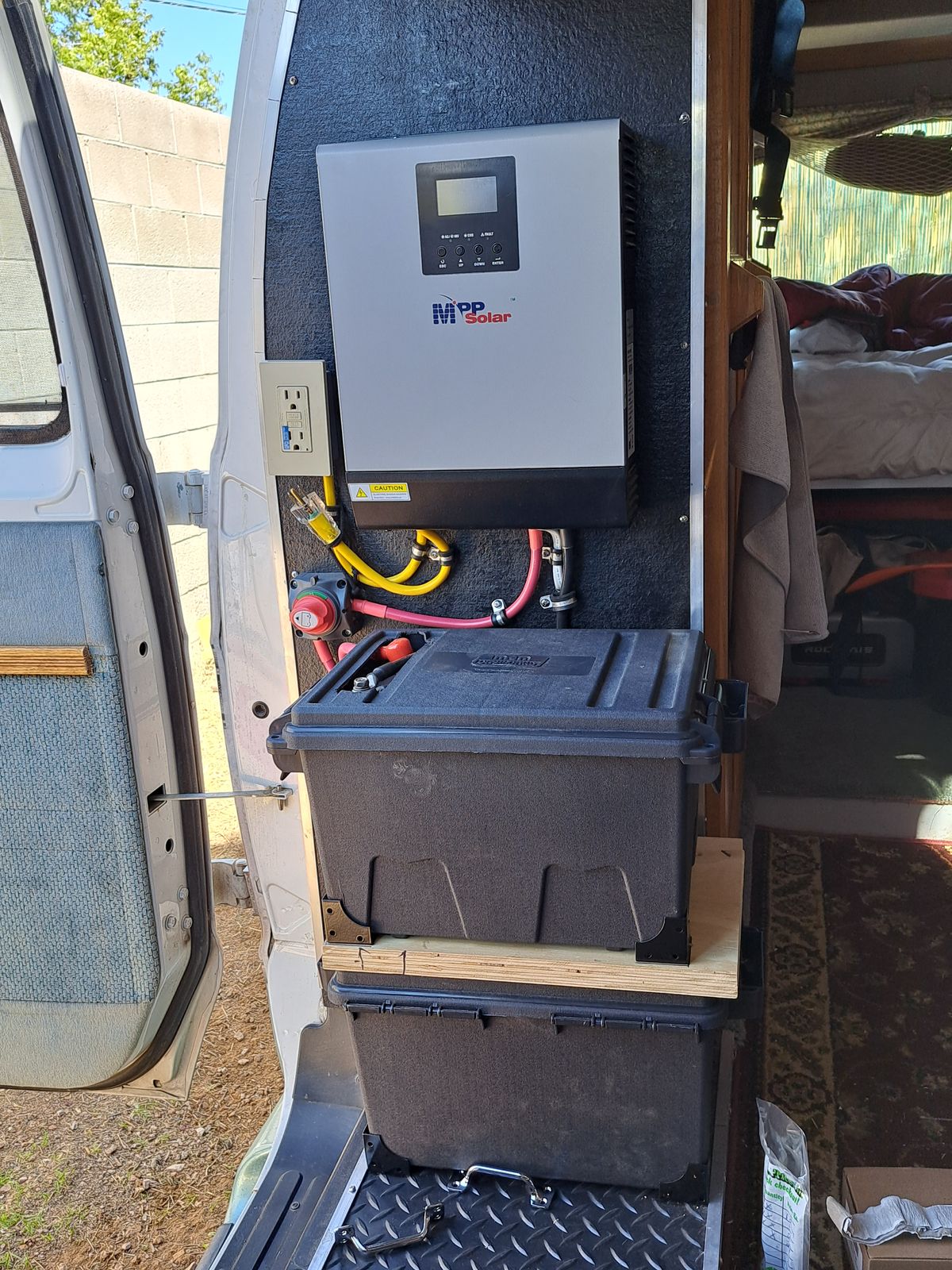

Works great, but issues with generator charging
