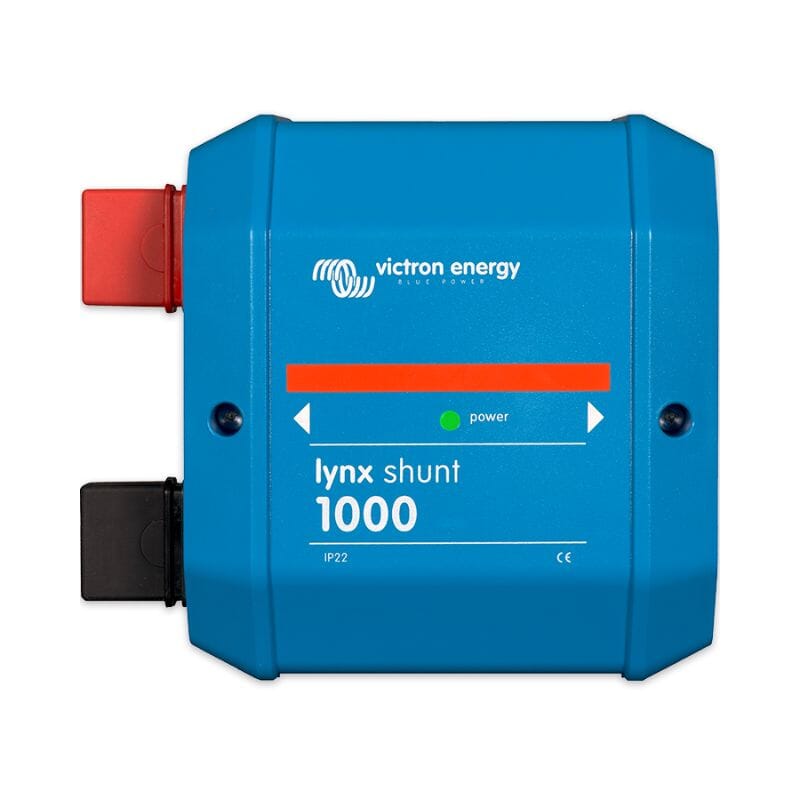

Victron Lynx Shunt VE.Can

The Lynx Shunt VE.Can is an intelligent 1000A shunt with location for a fuse (not included), the built-in battery monitor accurately monitors the state of charge of your battery. Use a GX device (e.g. Cerbo GX) for reading out the information. Part of the modular Lynx distribution system.

The Lynx Shunt VE.Can contains a positive and negative busbar, a battery monitor and a fuse holder for the main system fuse. It is part of the Lynx Distribution system. The Lynx Distributor has a power LED.

The Lynx Shunt VE.Can can communicate via VE.Can with an GX device.

The Lynx Shunt VE.Can ships with two RJ45 VE.Can terminators, these are used when connecting to a GX device. The Lynx Shunt VE.Can is designed to hold a CNN fuse. The fuse needs to be purchased separately. For more info see section Fusing in the Lynx Shunt VE.Can manual.

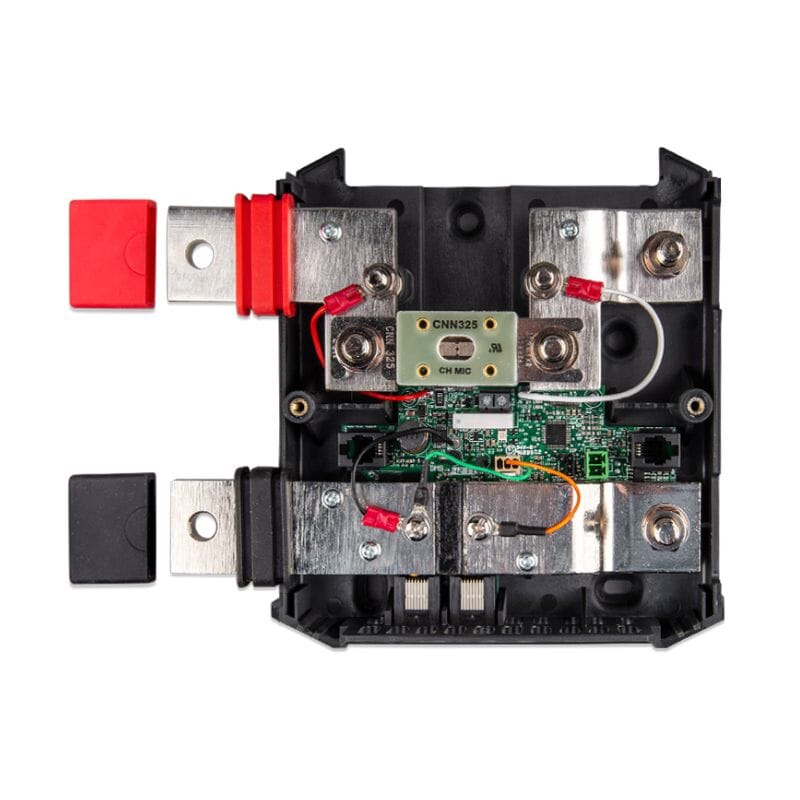

Lynx Shunt VE.Can is a positive busbar with a space for a main system fuse and a negative busbar with a shunt for battery monitoring. It has VE.Can communication for monitoring and setup with a GX device.

Specifications

POWER

• Supply voltage range 9 - 70 Vdc
• Supported system voltages 12, 24 or 48V
• Reverse polarity protection No
• Current rating 1000Adc continuous
• Power consumption 60mA @ 12V 33mA @ 24V 20mA @ 48V
• Potential free alarm contact 3A, 30Vdc, 250Vac

PHYSICAL

• Enclosure material ABS
• Enclosure dimensions (h x w x d) 190 x 180 x 80 mm
• Unit weight 1.4 kg
• Busbar material Tinned copper
• Busbar dimensions (hxw) 8 x 30 mm
