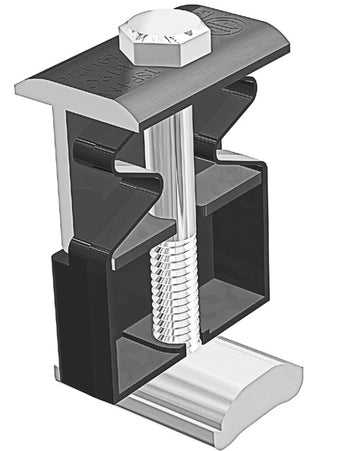

Tamarack Solar 5050 Clamp BLACK 30mm-40mm (12 Pack) 88450

• Combine Tamarack 3.1 rails with 2-IN Schedule-40 or -80 galvanized steel pipe (purchased separately).

• Use four 66-inch rails + two structural splices per column = two 132-IN rails to mount 3 modules per column.

• Use four 93-IN rails + two structural splices per column = two 186- IN rails to mount 4 modules per column.

The maximum PV module width:

• 45-IN on 4 module columns

• 43-IN on 3 module columns

• Quick easy assembly suitable for almost any terrain.

Features:

• Simple Design - Arrays of 3 or 4 modules high and any width required

• Easy to install - No welding or drilling - two wrench sizes fit all fasteners

• Easy to Configure - Unlimited system size with tilt angles from 0 to 45 degrees

• Visually Appealing - Simple to adjust for perfect alignment, even if surface is irregular

• Extremely Robust - Rated for wind speeds up to 170 MPH and ground snow loads of up

• to 70 PSF

• UL 2703 Listed - All components meet UL 2703 standards for bonding and grounding

• PE Certified - Pre-stamped engineering letters available for most states

• Simple Wire Management - Cables and wires fit inside rails
