SunGold Power 500W Mono Black PERC Solar Panel

Build more power into less roof (or rack) space with SunGold Power’s 500W all-black mono PERC panel. With half-cut cell tech, UL 61730 safety certification, and CEC listing, it’s a reliable choice for off-grid, on-grid, or hybrid solar systems—whether you’re lowering utility bills or powering an independent setup.

Key Features & Benefits:

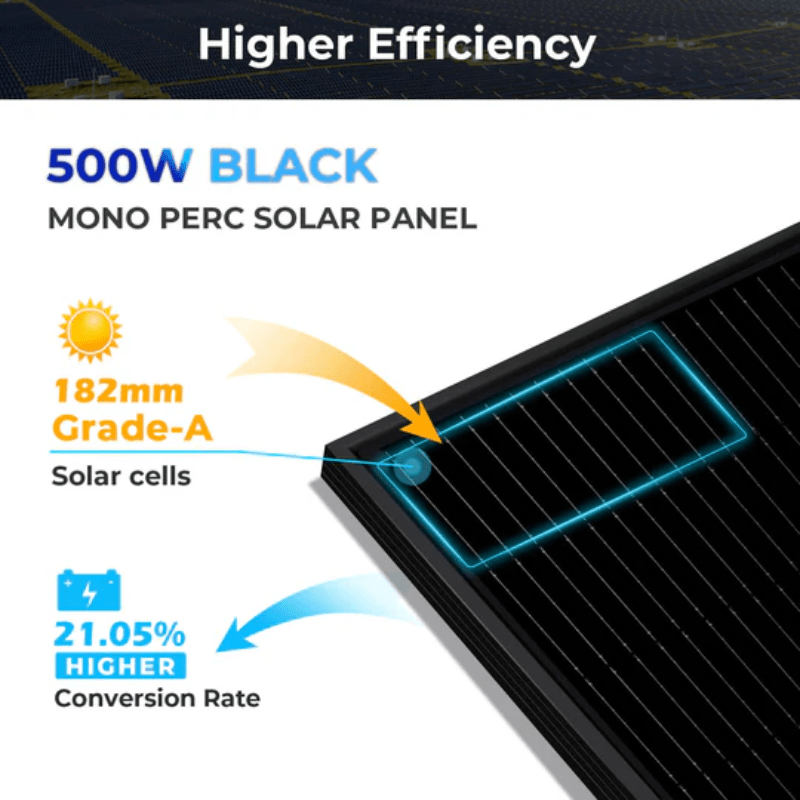

• High output, high efficiency: 500W panel with 21.05% module efficiency using Mono PERC half-cut cells

• Certified & code-friendly: UL 61730, CE, TUV, CEC Listed (ideal for compliant installations)

• Better performance in real-world conditions: Half-cut design helps improve performance and shade tolerance

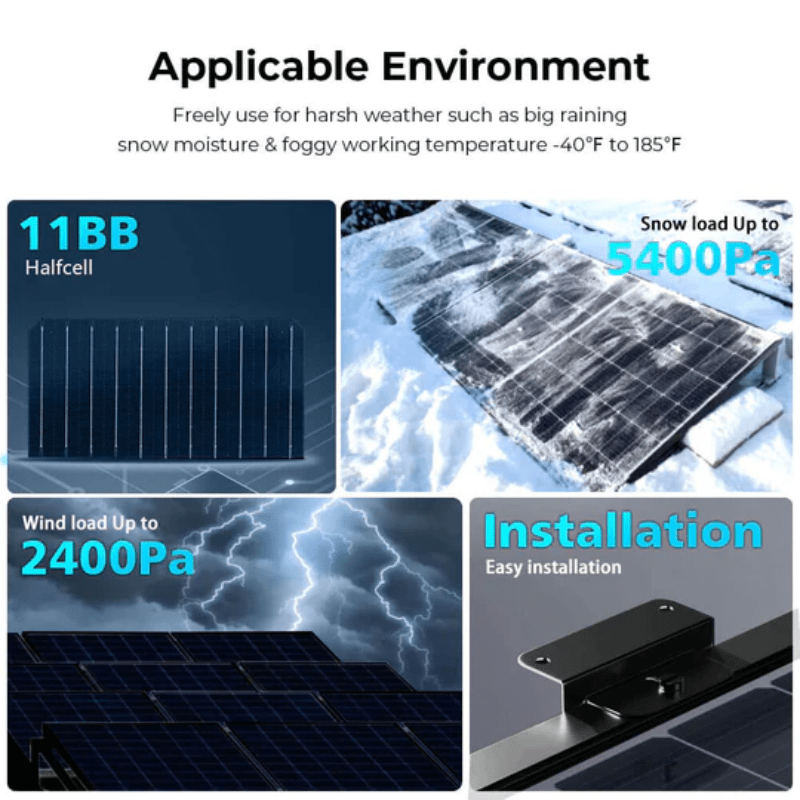

• Built to handle harsh weather: Load tested to 5,400 Pa snow and 2,400 Pa wind resistance

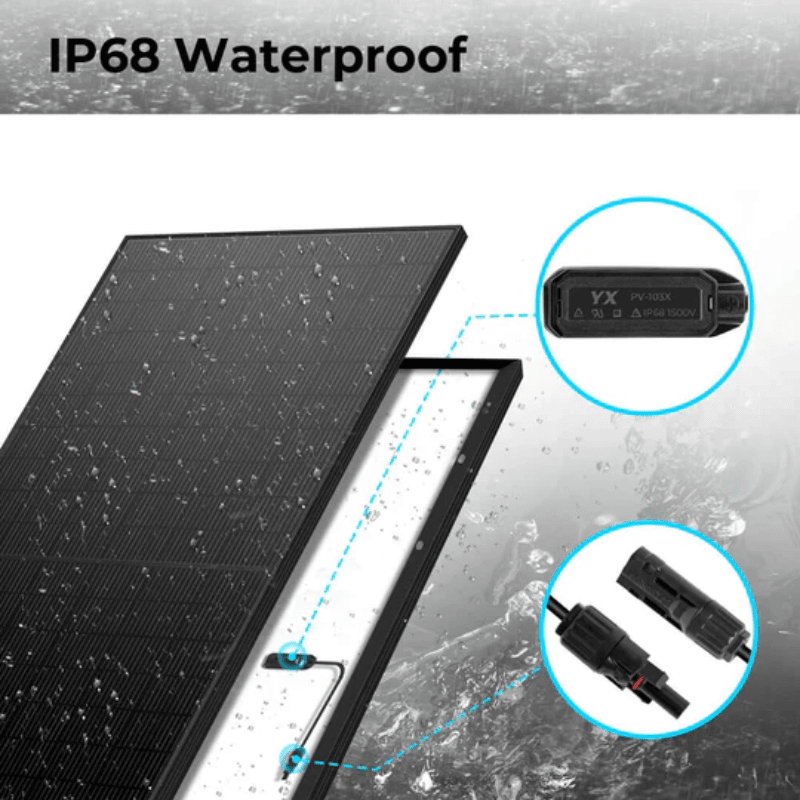

• IP68 junction box: Dust-tight and protected against temporary water immersion

• DIY-ready connections: Factory leads included (12 AWG, ~1 ft per cable) for straightforward wiring

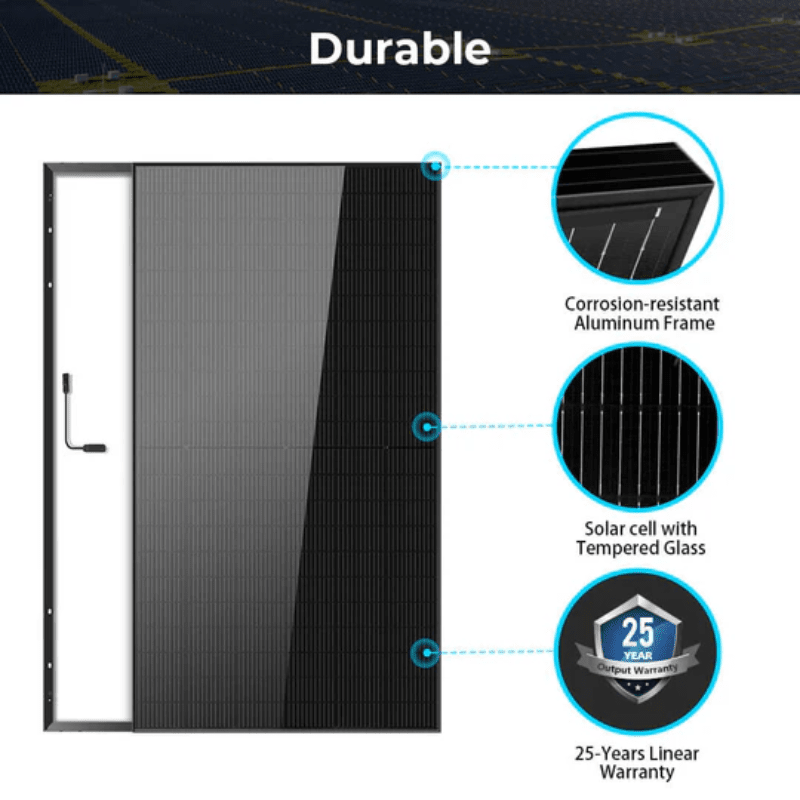

• Long-term protection: 12-year material & workmanship warranty + 25-year 80% output performance warranty

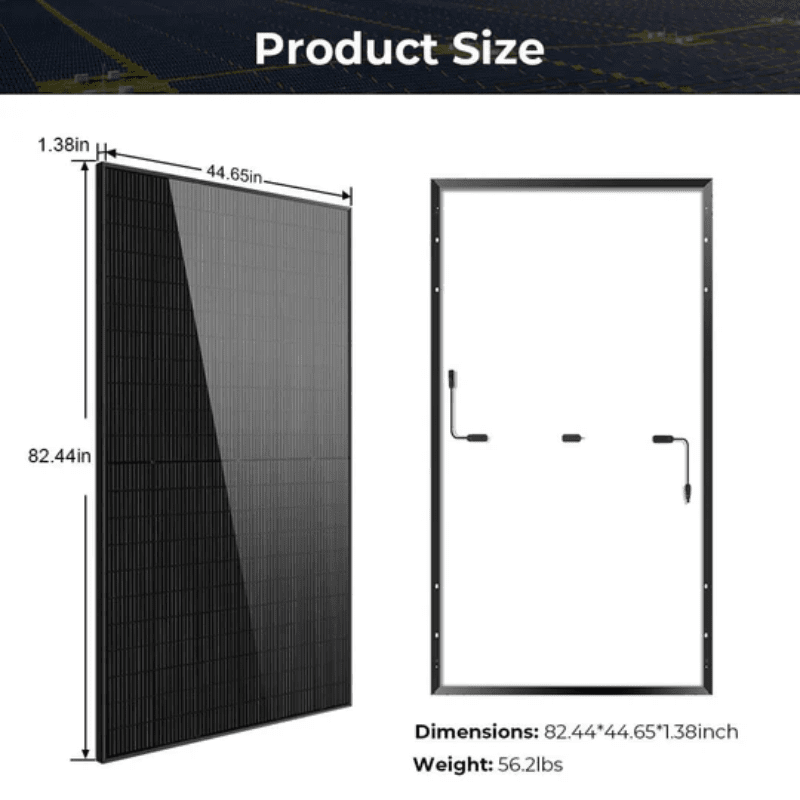

• Large format power: 82.44" × 44.65" × 1.38", 56.2 lbs per panel

Specs (Model: SG500WM):

• Pmax: 500W | Power tolerance: ±3%

• Vmp/Imp: 37.60V / 13.30A

• Voc/Isc: 44.36V / 14.09A

• Max system voltage: 1,500V DC | Max series fuse: 20A

• Operating temp: -40°F to 185°F

• Cells: 132 (6×22), Mono 182*91mm | Front glass: 3.2mm tempered

Warranty:

• 12-year material & workmanship warranty

• Output warranty: 95%, 10-year 90%, 25-year 80%

User Manual / Documents:

• SunGold Power 500W Mono Black PERC Solar Panel User Manual
