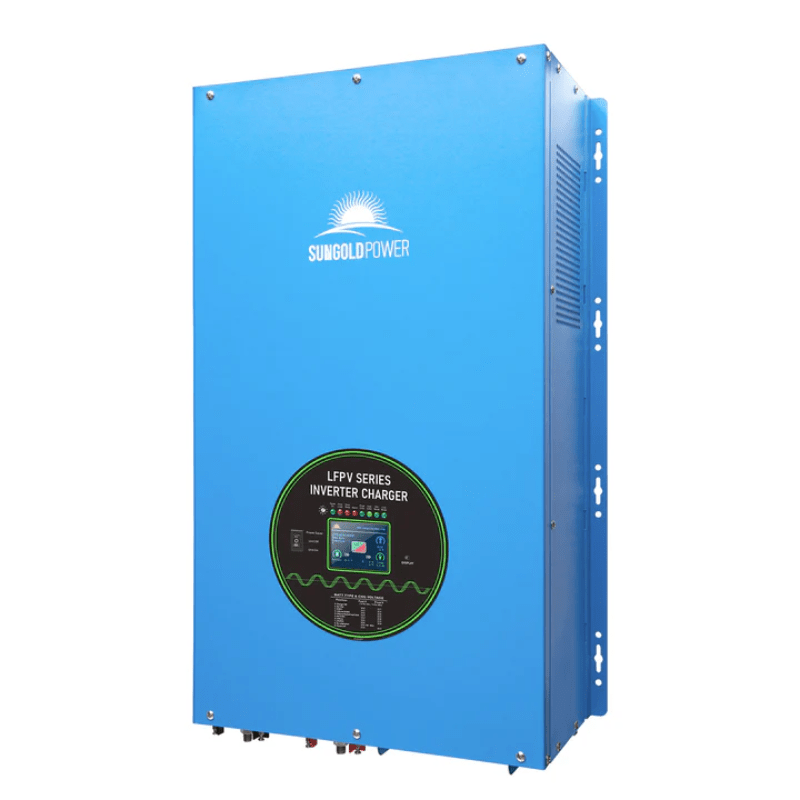

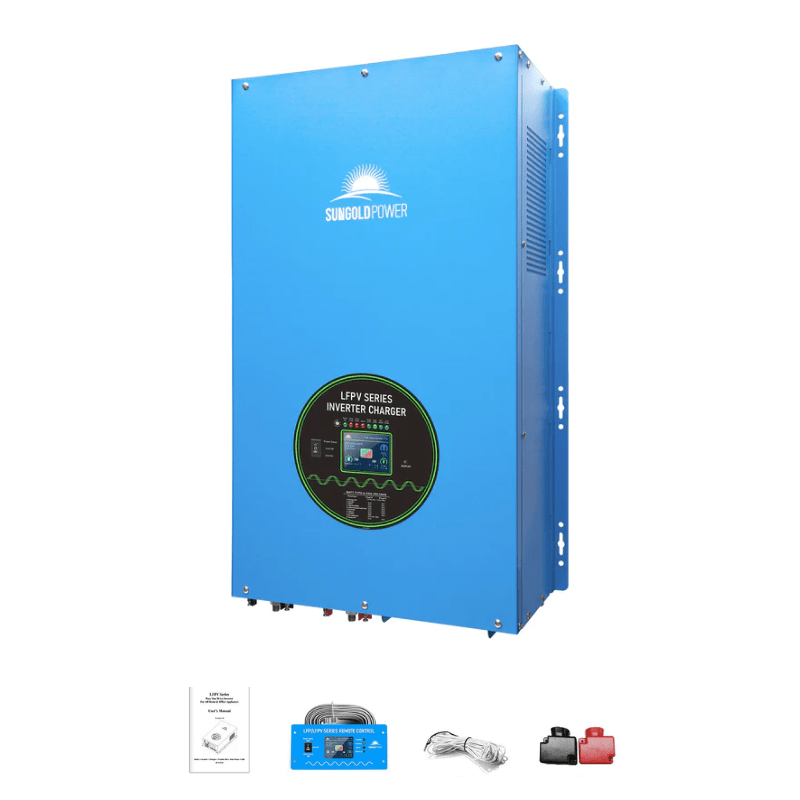

Sungold Power 12,000W 48V Split-Phase Inverter Charger

Power demanding 120/240V loads with a low-frequency, split-phase inverter/charger designed for off-grid and backup applications. The Sungold Power LF-PV series combines an inverter, high-current AC charger, and auto-transfer switch in one complete system (without MPPT)—built to handle large appliances, motor loads, and quick changeovers when utility power drops.

Key Features & Benefits

• 12,000W continuous power — Run large home or business loads without constantly load-managing.

• 36,000W surge (20s) + low-frequency transformer design — Helps start and support high-inrush equipment like pumps, dryers, and air conditioners more reliably.

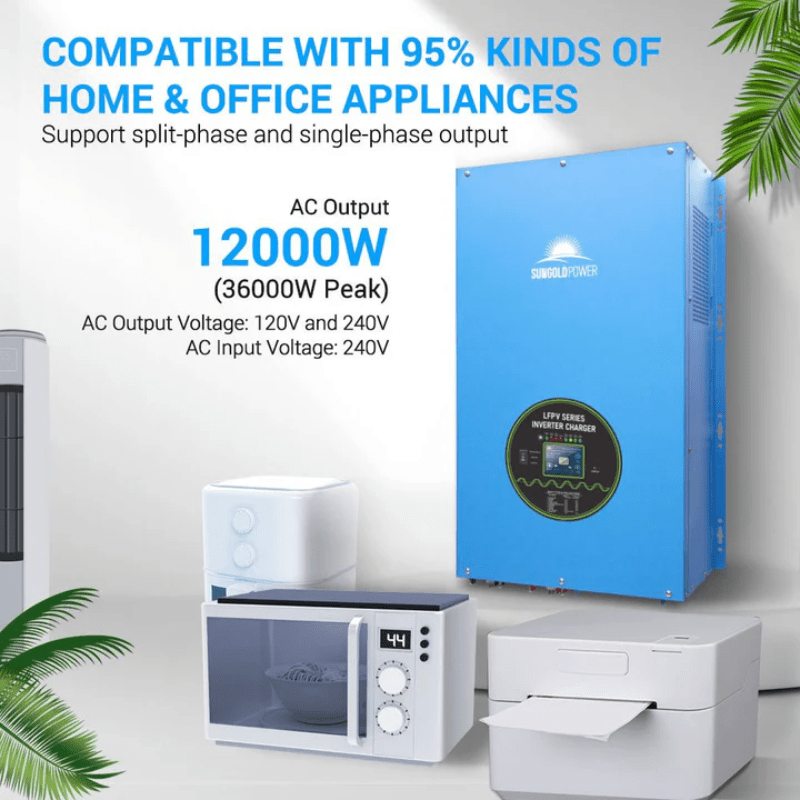

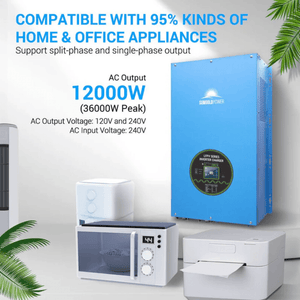

• Split-phase 120/240V output — Powers both 120V circuits and 240V appliances from one inverter platform.

• 240VAC input (not suitable for 120VAC input) — Ensures proper operation on 240V utility or generator sources designed for split-phase systems.

• Built-in auto-transfer switch + ~10ms typical transfer time (max) — Keeps power interruptions minimal for better continuity during outages.

• AC Priority (default) or Battery Priority selectable — Choose how your system behaves: maximize backup responsiveness or prioritize utility/generator charging.

• Built-in AC battery charger (115±5A) with selectable charge rate up to 120A (0%–100%) — Faster recharge options and more control to match battery bank size and generator capacity.

• 4-step intelligent charging + PFC (Power Factor Correction) — More efficient charging from grid/generator power and better charging behavior across conditions.

• Auto Generator Start (AGS) — Enables automated generator starts for hands-off backup workflows (when paired with a compatible generator setup).

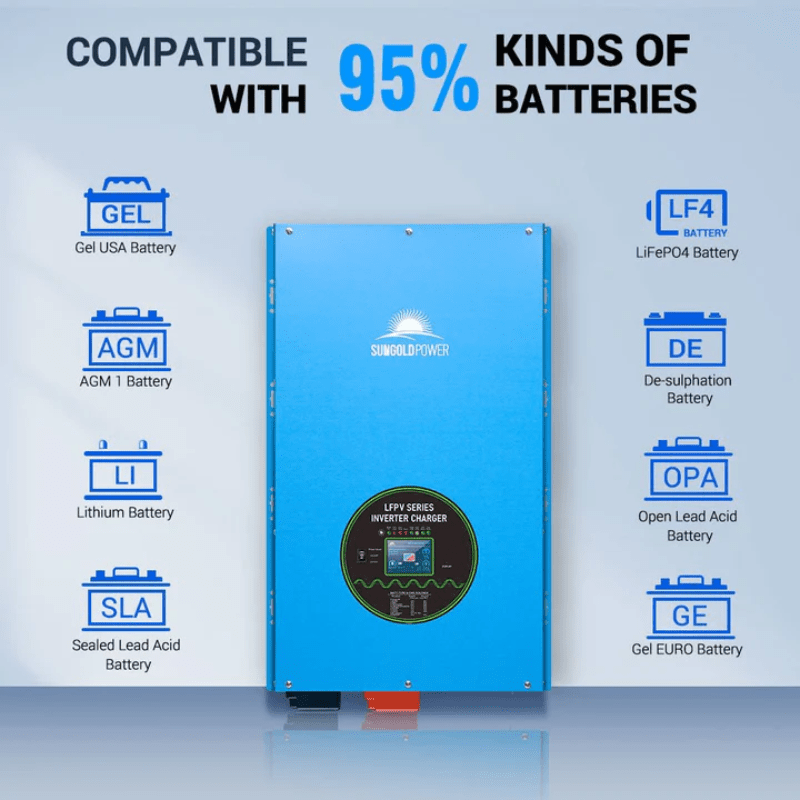

• 8 battery voltage selections (LiFePO4, Gel, AGM, Lead Acid) — Flexible battery compatibility for new builds or upgrades.

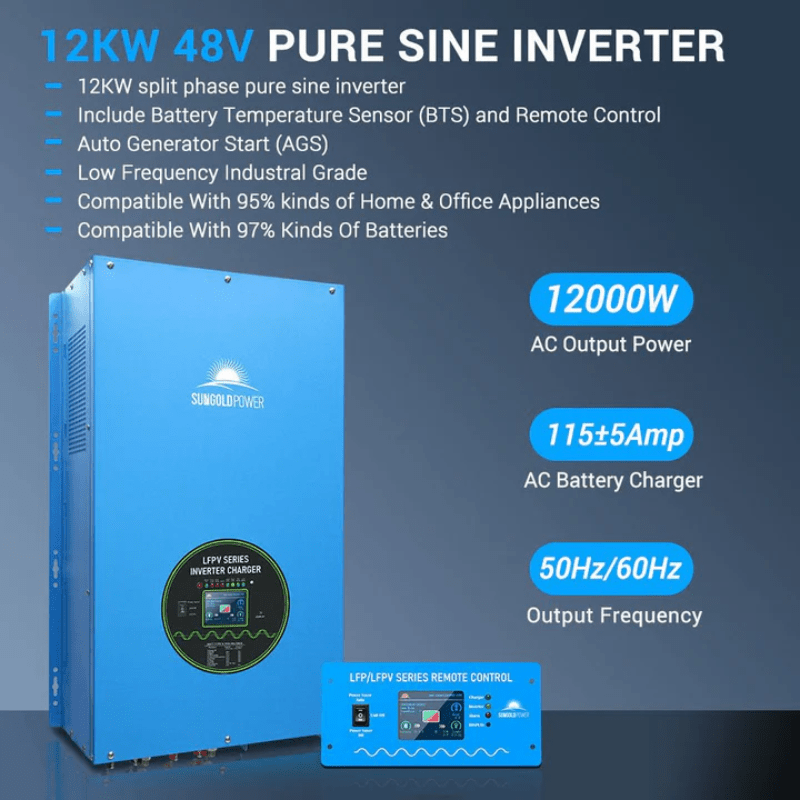

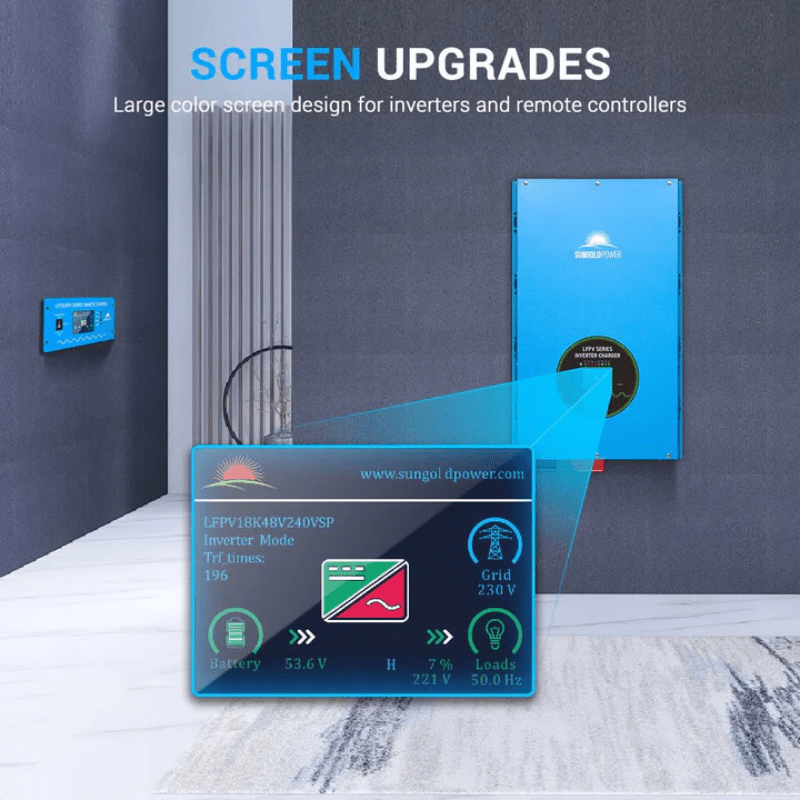

• Remote Control + Battery Temperature Sensor (BTS) included — Easier monitoring/operation and temperature-aware charging support.

• 15s delay before transfer when AC recovers — Helps protect loads when used with generators as power stabilizes after recovery.

Specs in a Glance

• Continuous Output Power: 12.0kW

• Surge Rating: 36.0kW (20s)

• Waveform: Pure Sine Wave

• AC Output Voltage: 120V / 240V

• AC Input Voltage: 240V (not suitable for 120V input)

• DC Battery Voltage: 48Vdc

• AC Battery Charger: 115±5A

• Output Frequency: 50Hz / 60Hz

• Transfer Time: 10ms typical (Max)

• Idle Consumption: 40W (Power Saver on) / 180W (Power Saver off)

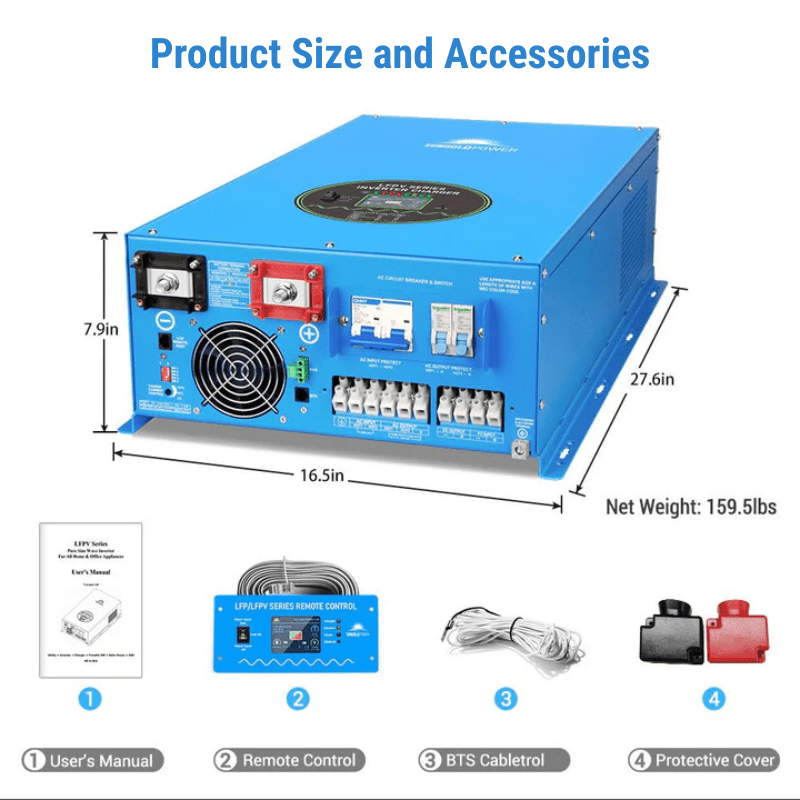

• Unit Size: 27.6 × 16.5 × 8 in

• Unit Weight: 160 lb

• Shipping Size: 29.2 × 23 × 16.5 in

• Shipping Weight: 185 lb

Ideal For

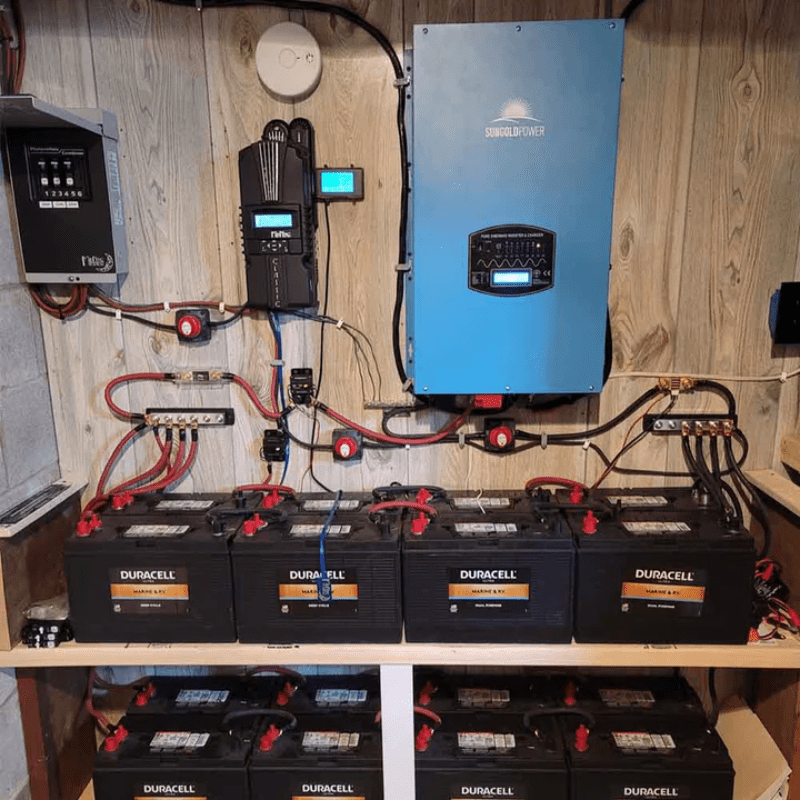

• Off-grid home and business backup power

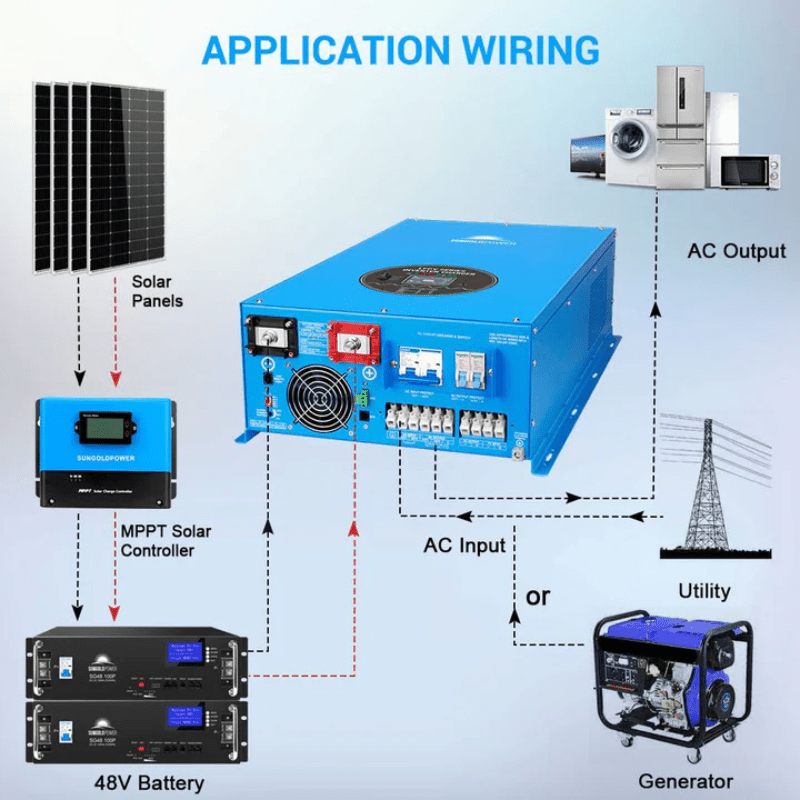

• Split-phase 120/240V systems needing inverter + charger + transfer switching

• Large appliance loads (refrigerators/freezers, microwaves, dryers, A/C, pumps)

User Manual / Documents:

• Sungold Power 12kW 48V Split-Phase Pure Sine Wave Inverter Charge User Manual
