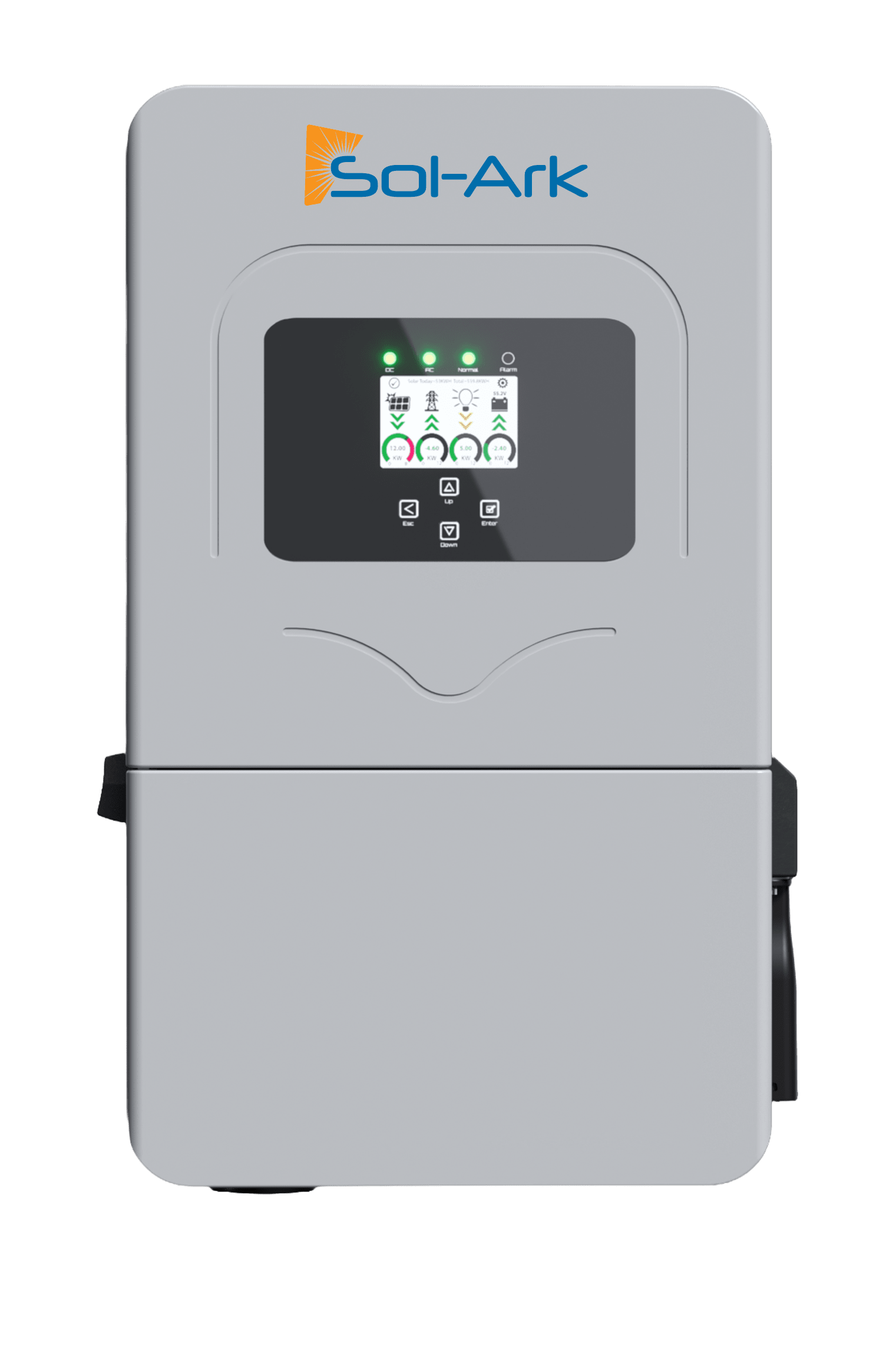

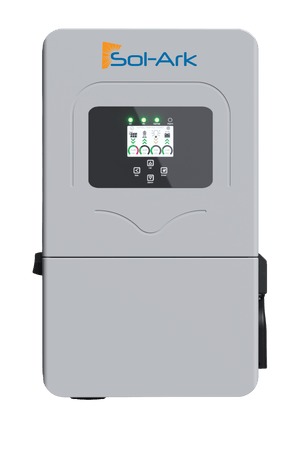

Sol-Ark Limitless 12K-2P-LL Hybrid Inverter

The Sol-Ark Limitless 12K-2P-LL Hybrid Inverter combines whole-home backup power, advanced energy management, and solar flexibility into one compact, value-focused platform. Designed for homeowners who want reliable backup power without the cost and complexity of larger systems, the Limitless 12K can deliver up to 12,000 watts of grid-tied power and 10,000 watts of continuous battery-backed power for critical loads during outages.

Whether you're building a new solar energy system or upgrading an existing installation, the Limitless 12K supports both DC-coupled and AC-coupled solar, making it one of the most versatile hybrid inverters in its class. With support for generators, smart load management, peak shaving, time-of-use optimization, and virtual power plant programs, it gives homeowners greater control over their energy production, storage, and consumption.

Key Benefits

• Delivers up to 12kW of grid-tied power output

• Provides 10kW of continuous backup power from batteries

• Supports both DC-coupled and AC-coupled solar systems

• Ideal for home backup, energy savings, and energy independence

• Integrated Smart Load controls help prioritize critical circuits

• Generator-ready with multifunction GEN port

• Supports peak shaving and time-of-use energy management

• Virtual Power Plant (VPP) capable

• Compact design saves valuable wall space

• Suitable for both new installations and retrofit projects

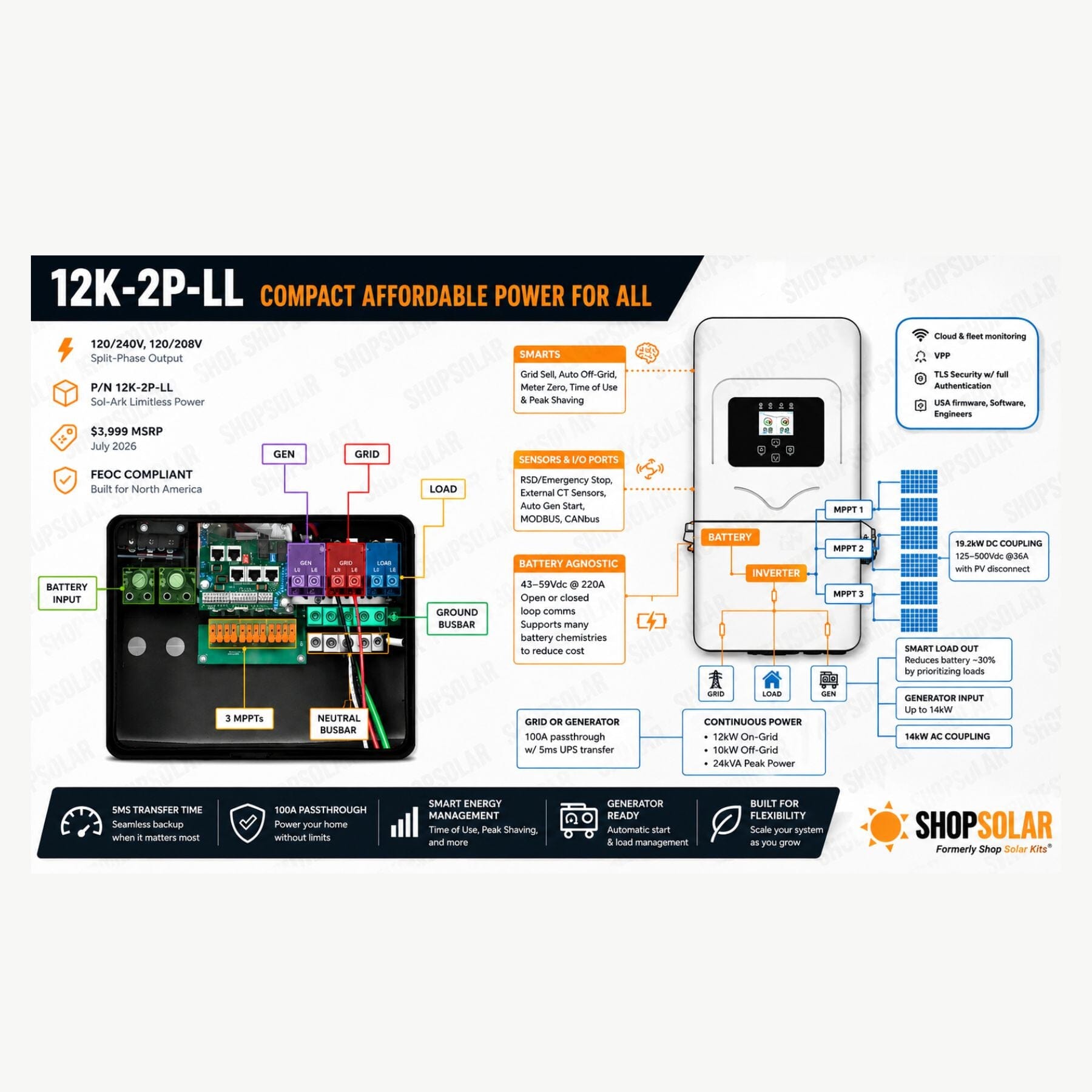

Solar & Battery Features

• Three MPPT charge controllers

• Supports up to 19.2kW of solar PV input

• Dual PV string inputs per MPPT

• Up to 14kW of AC-coupled solar

• Rapid Shutdown control compatibility

• 48V battery architecture

• 220A integrated battery charger

• Compatible with a wide range of 48V battery systems

Specifications

• Inverter Output Power: 12,000W (12kW)

• Continuous Battery Backup Output: 10,000W (10kW)

• Grid Passthrough: 100A

• Battery Voltage: 48V

• Battery Charger: 220A

• Solar Input Capacity: 19.2kW

• AC Coupling Capacity: 14kW

• Number of MPPTs: 3

• PV Strings per MPPT: 2

• Transfer Time: 5ms

• Output Voltage: 120/240V Split Phase
