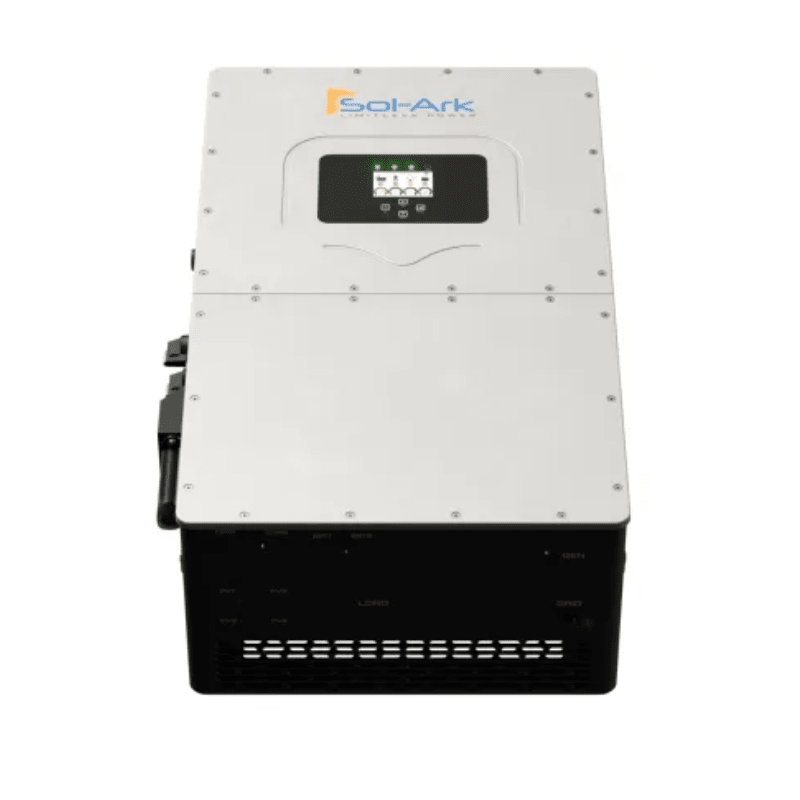

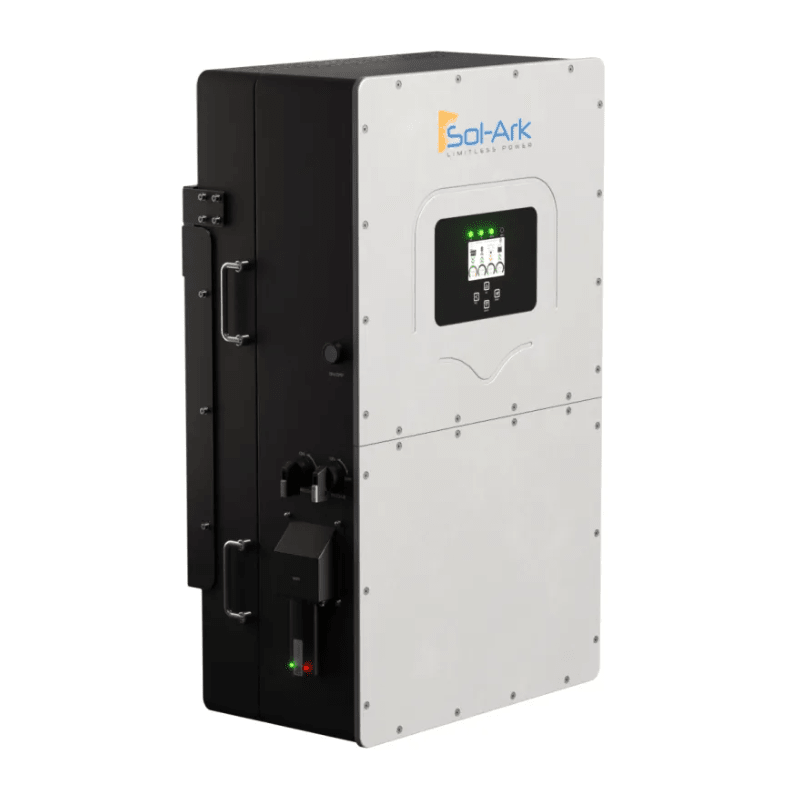

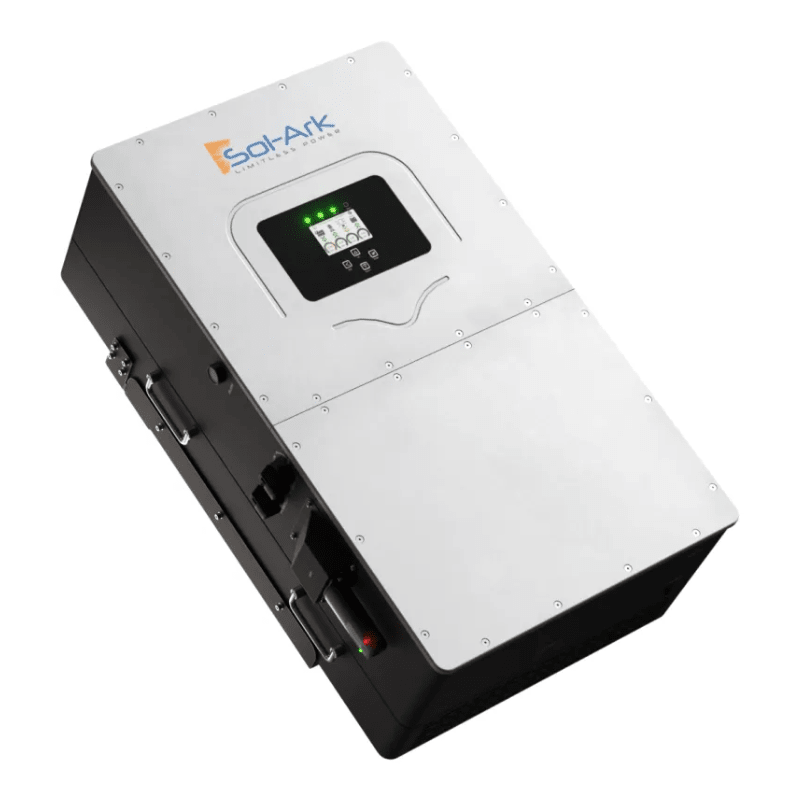

Sol-Ark 60K-3P-480V Commercial Hybrid Inverter
Maximize uptime, reduce energy costs, and future-proof your facility with the Sol-Ark 60K-3P-480V — a powerful, scalable hybrid inverter engineered for demanding commercial and industrial applications.
- Regular price
- $15,399.25
- Sale price
- $15,399.25
- Regular price
-
$19,685.31
Questions before you buy?
Call 877-242-2792 and we’ll work it out with you. Mon–Thu 10am–5:30pm, Fri 10am–1pm EST.
Frequently bought together
Specifications
The details.
Maximize uptime, reduce energy costs, and future-proof your facility with the Sol-Ark 60K-3P-480V — a powerful, scalable hybrid inverter engineered for demanding commercial and industrial applications.
With native 277/480V 3-phase output, this inverter simplifies installation for large-scale buildings while supporting both AC and DC coupling. Whether integrating with existing grid-tied systems or building new, the 60K-3P-480V delivers seamless performance and blazing-fast backup power.
Key Features & Benefits:
-
60kW 3-Phase Commercial Inverter – Native 277/480V (Wye or Delta) for direct compatibility with large-scale electrical systems.
-
AC & DC Coupling – Enables hybrid solar setups with existing PV arrays and new battery storage systems.
-
Modular & Scalable – Stack up to 10 inverters and 16 batteries per unit to scale from 40kWh to 9.6MWh.
-
Seamless Backup Power – 15ms transfer time with 200A grid pass-through keeps operations running during outages.
-
Built-in MPPT Controllers – 4x MPPT channels with 2 strings each for efficient PV harvesting (up to 78,000W input).
-
High Efficiency – Up to 97.5% max efficiency and 96.5% CEC rated.
-
Flexible Battery Support – Lithium-ion compatible with BMS communication and AGS support.
-
Outdoor-Ready & Quiet – IP65/NEMA 3R rated with <30 dB noise level and wide -40°C to 60°C temperature range.
-
Safety & Compliance – UL 1741SB, IEEE 1547, NEC 690 compliance, and integrated arc fault, ground fault, and rapid shutdown.
Backed by a 10-year warranty, Sol-Ark’s trusted performance and seamless integration make it the smart choice for commercial solar + storage solutions.
User Manual / Documents:
- Max PV Input Power (STC)
- 78,0
- MPPT Voltage Range
- 150–850V
- Max Input Voltage
- 1,000V
- Startup Voltage
- 180V
- MPPT Channels
- 4 (2 strings per MPPT)
- Max Current per MPPT
- 36A
- Max Short Circuit Current per MPPT
- 55A
- Max AC-Coupled Input
- 60,000W
- Nominal Voltage (3-Phase)
- 277/480V Wye or 480V Delta
- Frequency
- 50/60Hz
- Max Continuous Power
- 60,000W
- Max Output Current
- 72.3A
- Peak Apparent Power (10 sec)
- 90,000VA
- Max Grid Passthrough (10 min)
- 200A
- Power Factor
- Adjustable ±0.8
- Backup Transfer Time
- ≤15ms
- CEC Efficiency
- 96.5%
- Max Efficiency
- 97.5%
- Inverter Design
- Transformerless DC
- Stackable
- Up to 10 inverters
- Chemistry Supported
- Lithium-ion
- Battery Inputs
- 2 (50A each)
- Nominal DC Voltage
- ≥600V
- Voltage Range
- 160–700V
- Capacity Range
- 50–9,900Ah
- Max Charge/Discharge Current
- 100A total
- Charge Controller
- CC/CV, BMS-controlled
- Grid to Battery Charging Efficiency
- 96.0%
- AGS Support
- 2-Wire Start Integrated
- BMS Communication
- 3x CAN Bus
- Dimensions (H x W x D)
- 35.2" x 20.8" x 11.6"
- Weight
- 176 lbs (80 kg)
- Enclosure Rating
- IP65 / NEMA 3R
- Operating Temp
- -40°C to 60°C (Derating above 45°C)
- Max Altitude
- 2,000m (6,561 ft)
- Noise Level
- <30 dB @ 25°C
- Idle Consumption
- 60W (no load)
- Connectivity
- Wi-Fi & LAN (Included)
- Certifications & Safety
- UL 1741-SB, CSA C22.2 No. 107.1-16 IEEE 1547, UL1699B, CEC, SGIP, CSIP
- Warranty
- 10-Year Manufacturer Warranty
