Sol Ark · Inverter/Charger
SKU: 15K-2P

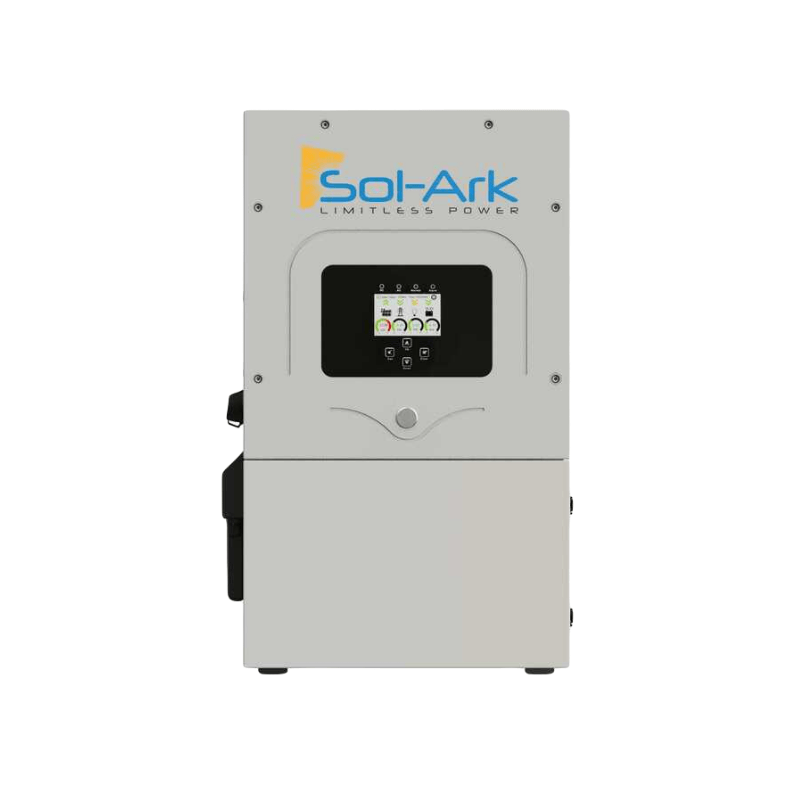

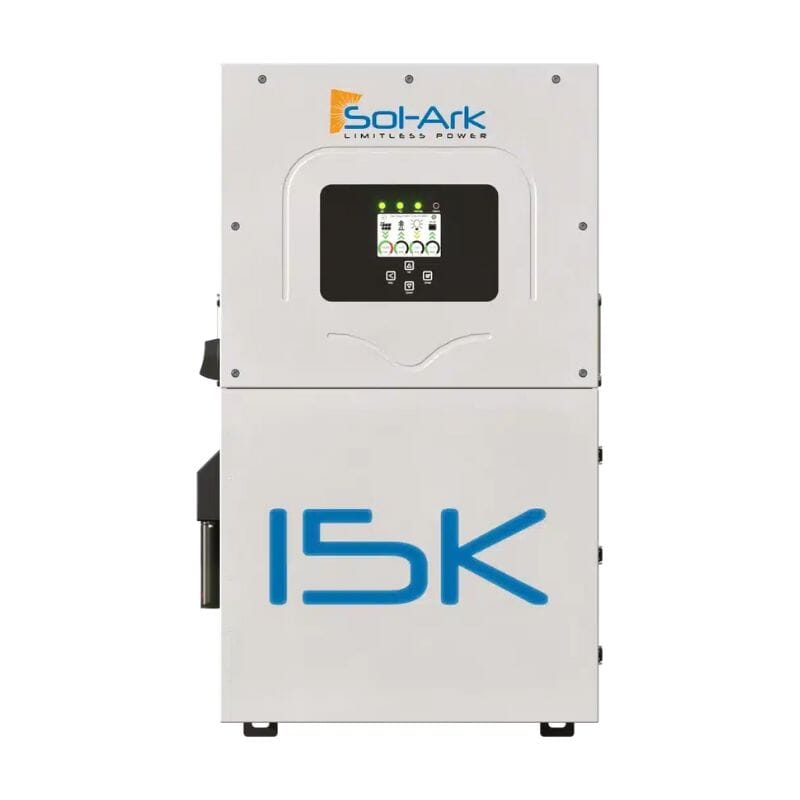

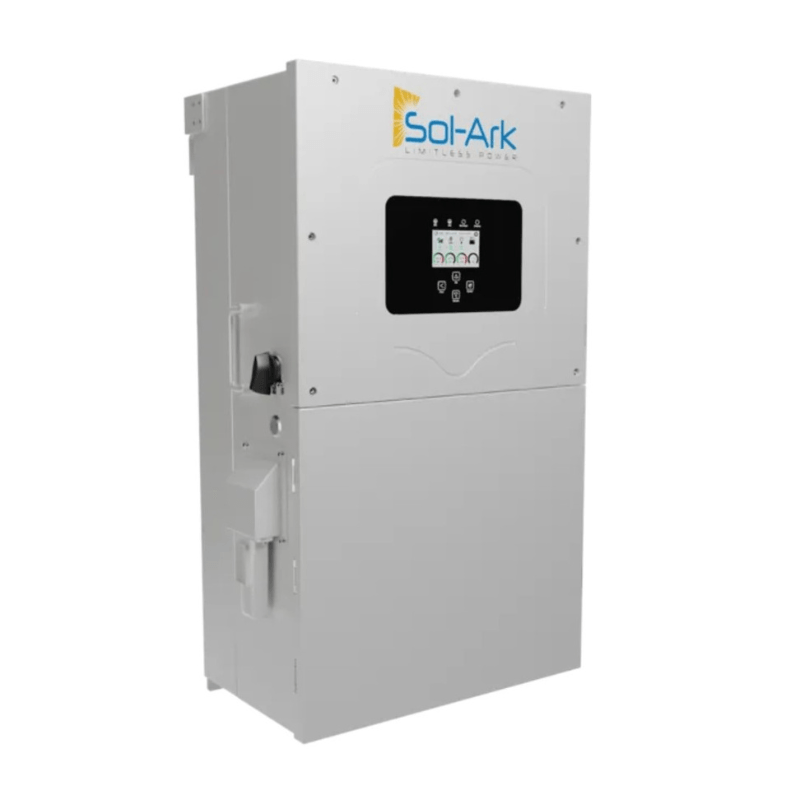

Sol-Ark 15K - 48V All-In-One Pre-Wired Hybrid Solar Inverter
- Regular price
- $4,999.00
- Sale price
- $4,999.00
- Regular price
-
$8,999.00
Orders processed in 24–48 hours
30-day returns
Lifetime support by phone, chat & email
Full manufacturer warranty
Not sure which one you need?
Call 877-242-2792 and we’ll work it out with you. Mon–Thu 10am–5:30pm, Fri 10am–1pm EST.
Trusted by 50,000+
Customers powered since 2018
Lifetime Support
Phone, email or live chat, for good
Price Match
Found it cheaper? Tell us
Ships from the USA
Warehouses in CA, TX and NY
Frequently bought together
The details.
Sol-Ark's Sixth Generation of Hybrid Inverters

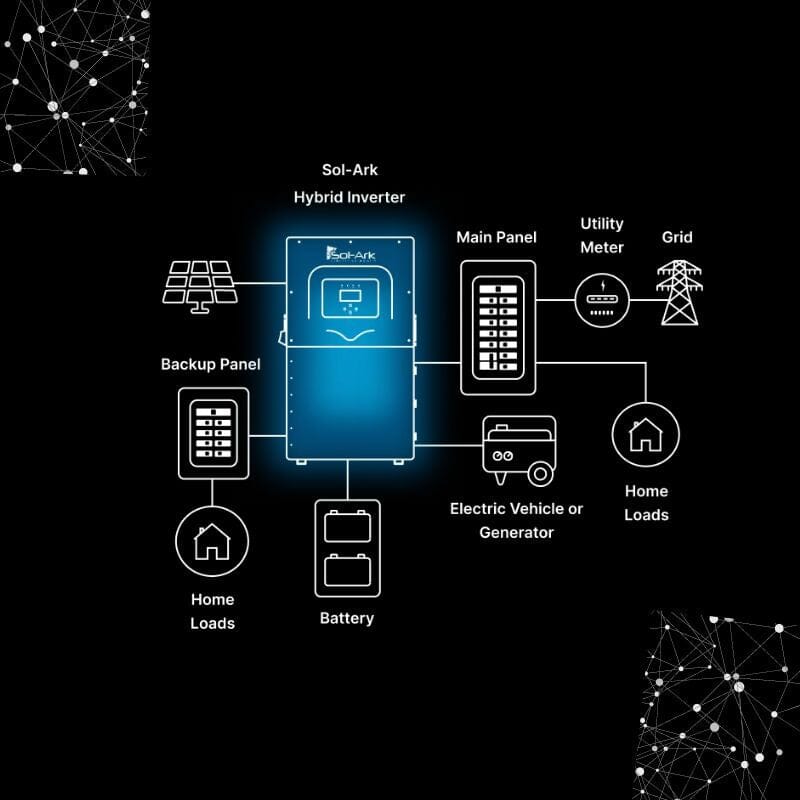

Whole Home Backup
- Combined battery plus solar power handling of 15kW
- A true whole home back-up in one box. Handles high (current or inductive) loads such as HVAC units and well pumps Hybrid Inverter

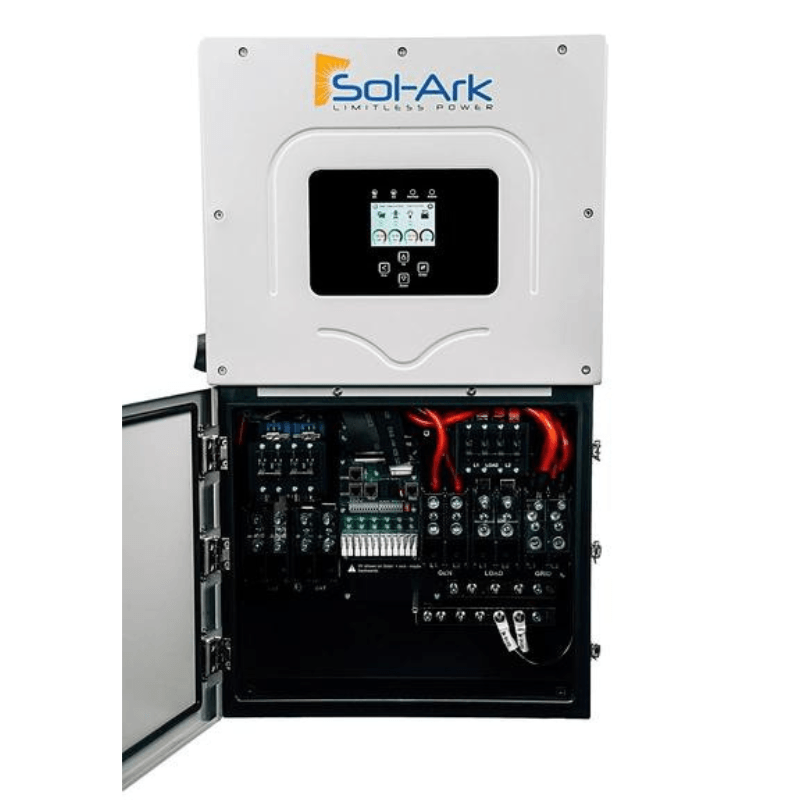

200A Grid Passthrough
- Built-in to allow for cleaner, faster system installations. Eliminates the need to choose essential loads and route through a sub-panel
- Less wiring needed
- Fewer components simplify installation and reduce costs Residential Energy Storage Solutions 2x surge protection
2X Surge Protection
- Inverter can handle sudden increases in power and supports a surge up to 24kW for up to 10 seconds
- Handles heavy motors and inductive loads, including well pumps, HVAC & compressors
Dedicated Generator Passthrough
- Incorporate a permanent or temporary generator system at any time with minimal wiring and low complexity
- Get redundant back-up power with generator integration, the convenience of not having to physically start/stop generator and reduce fuel consumption Seamless Grid to Off-Grid Transfer Time
5MS Transfer Time
- “No Glitch” seamless switching from grid to off-grid.

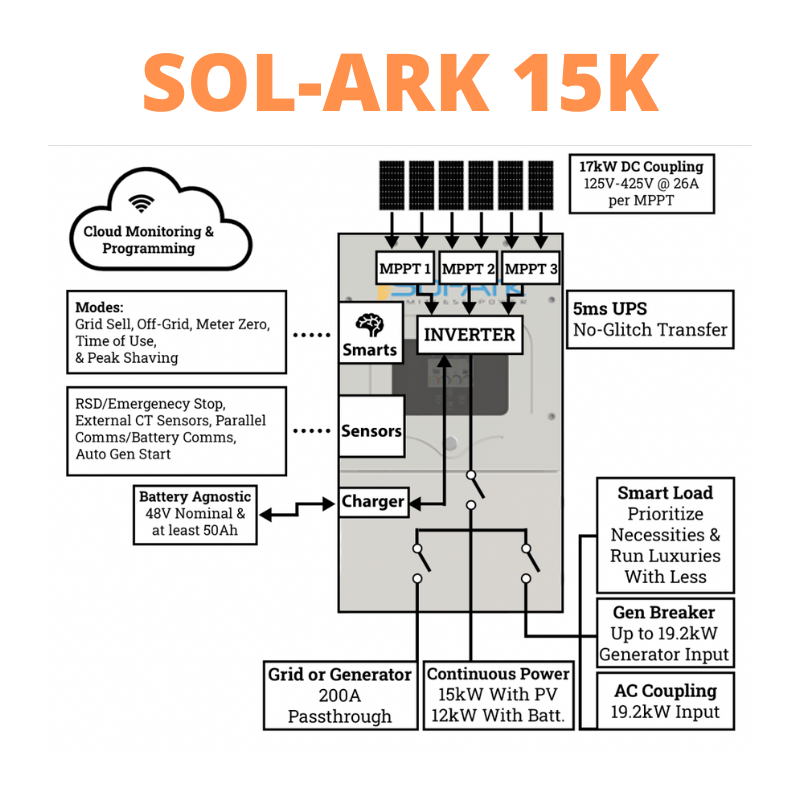

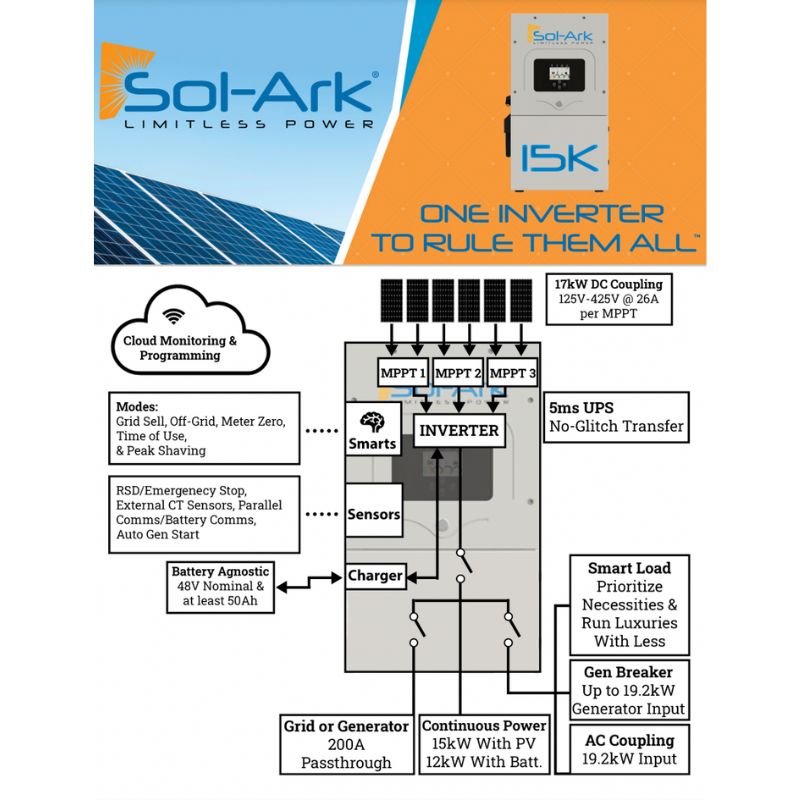

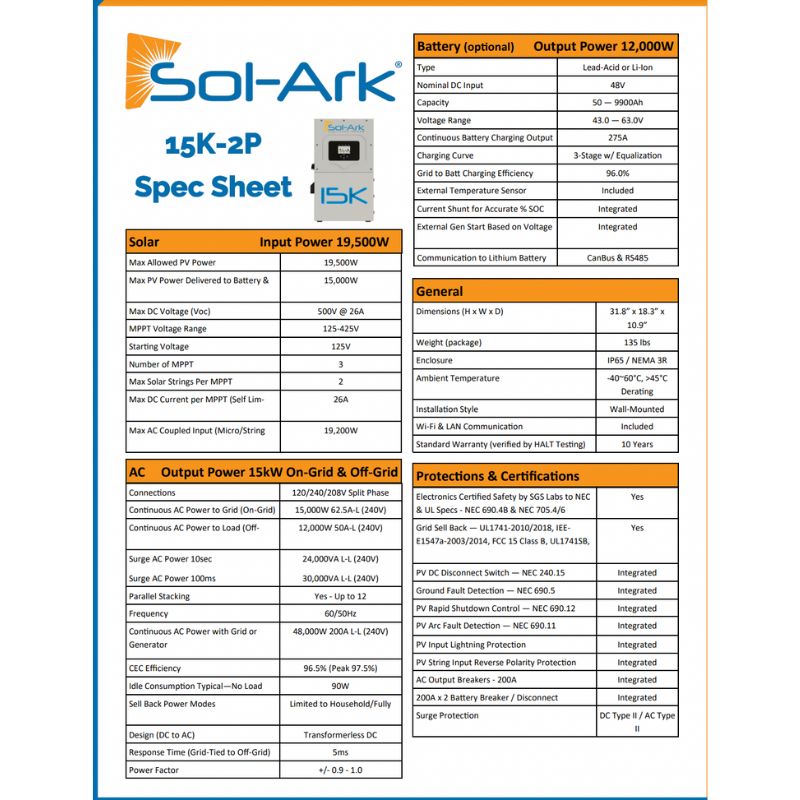

Sol-Ark 15K Specifications
- Max. Allowed PV Power (STC): 19,500W
- Rated MPPT Operating Voltage Range: 175 - 425V
- MPPT Voltage Range: 150 - 500V
- Startup Voltage: 125V
- Max. DC Input Voltage: 500V
- Max. Operating Input Current per MPPT: 26A
- Max. Short Circuit Current per MPPT: 44A
- Max. AC Coupled Input: 19,200W
- Nominal AC Voltage: 120/240V, 120/208V, 220V
- Grid Frequency: 50 / 60Hz
- Real Power, max continuous: 15,000W
- Real Power, max continuous (batteries only, no PV): 12,000W (50A @ 240V)
- Max output current: 62.5A
- Dimensions: 807 x 494 x 306 mm (31.8 x 19.4 x 12 in)
- Weight: 61.2 Kg / 135 lb.
- Enclosure: IP65 / NEMA 3R
- Ambient Temperature: -25~55°C, > 45°C Derating
- Noise: < 30 dB @ 25°C (77°F)
- Idle Consumption - No Load: 90W
- Communication & Monitoring: Wi-Fi & LAN Hardware Included
- Certification and Listings: UL1741-2010/2018, IEEE1547a 2003/2014,
FCC 15 Class B, UL1741SB, CA Rule 21, HECO Rule 14H
User Manual / Documents:
