Ruixu · Batteries
SKU: RX-LFP48100

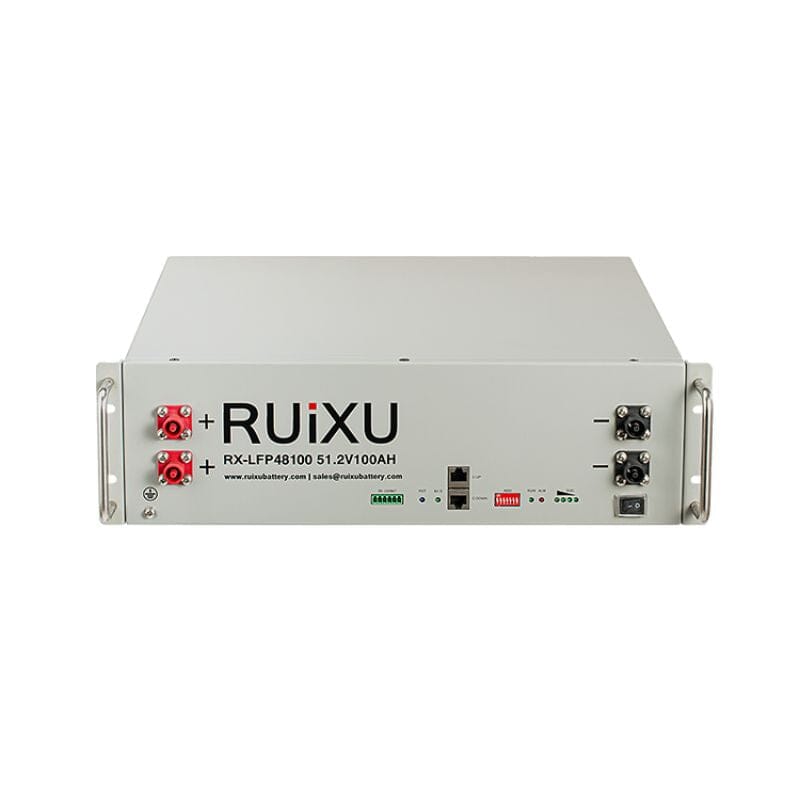

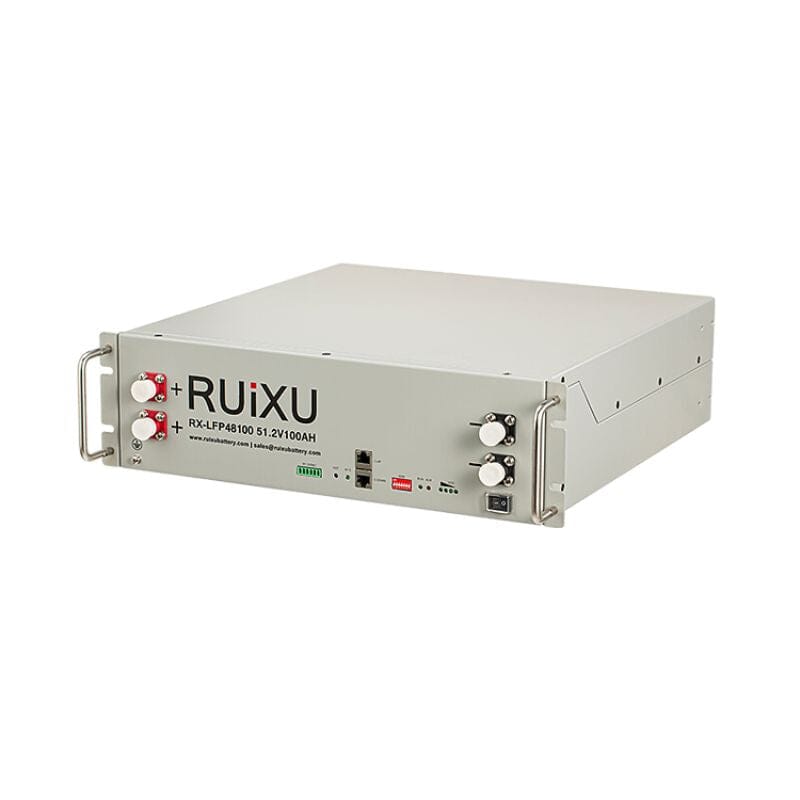

RUiXU Battery - RX-LFP48100 - Server Rack battery
RUiXU battery packs are rack type residential lithium batteries,designed entirely for residential ESS applications,with our battery technology ,you can easily combine it with a mainstream inverter in different scenarios to save your electrical bill & back up your power during grid outage or unavailable.
- Regular price
- $1,059.00
- Sale price
- $1,059.00
- Regular price
-
$1,629.00
Not sure which one you need?
Call 877-242-2792 and we’ll work it out with you. Mon–Thu 10am–5:30pm, Fri 10am–1pm EST.
Frequently bought together
Specifications
The details.

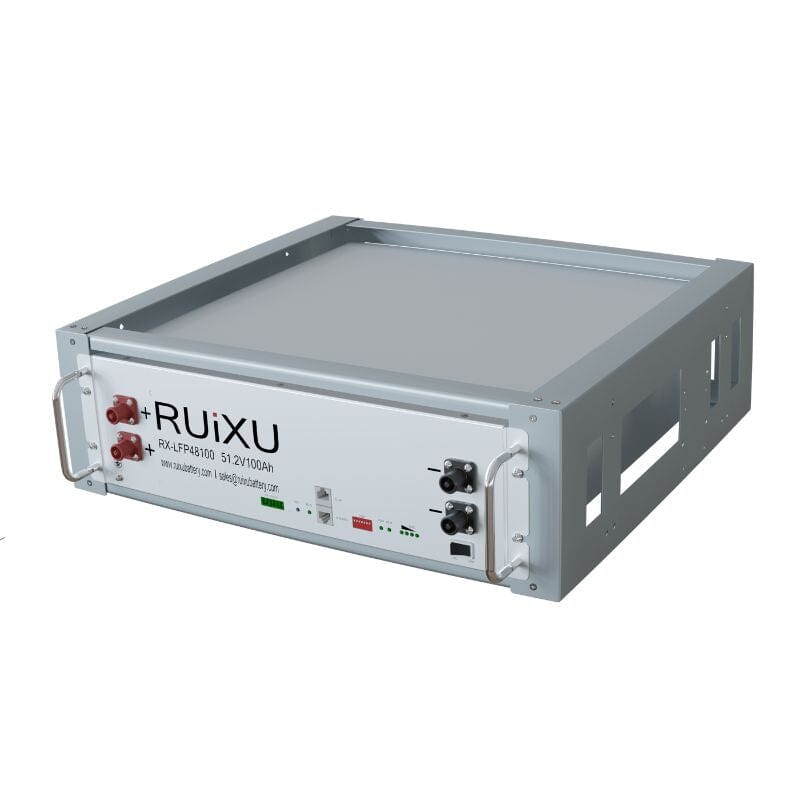

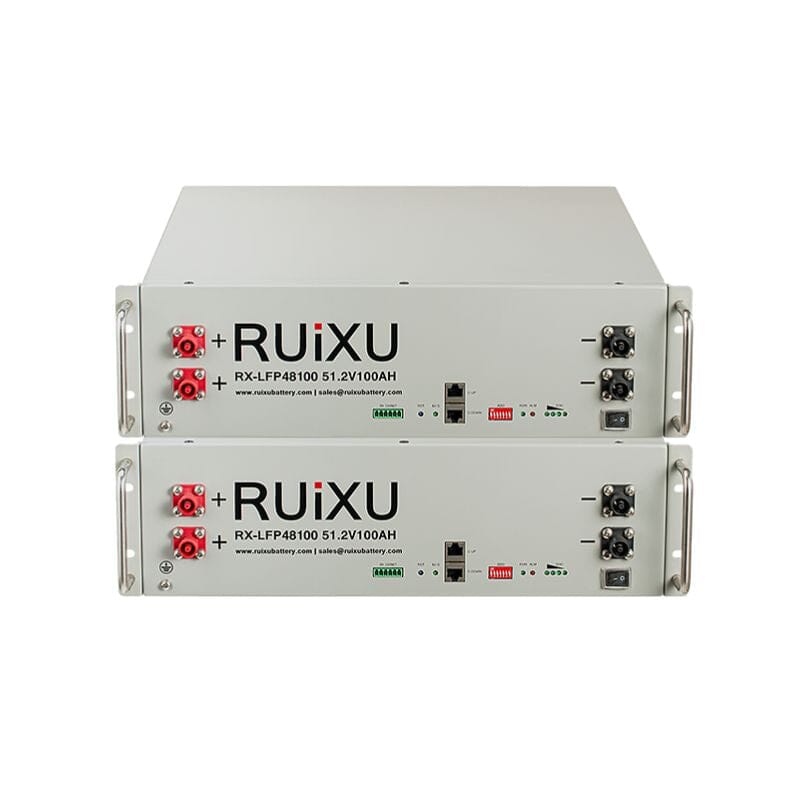

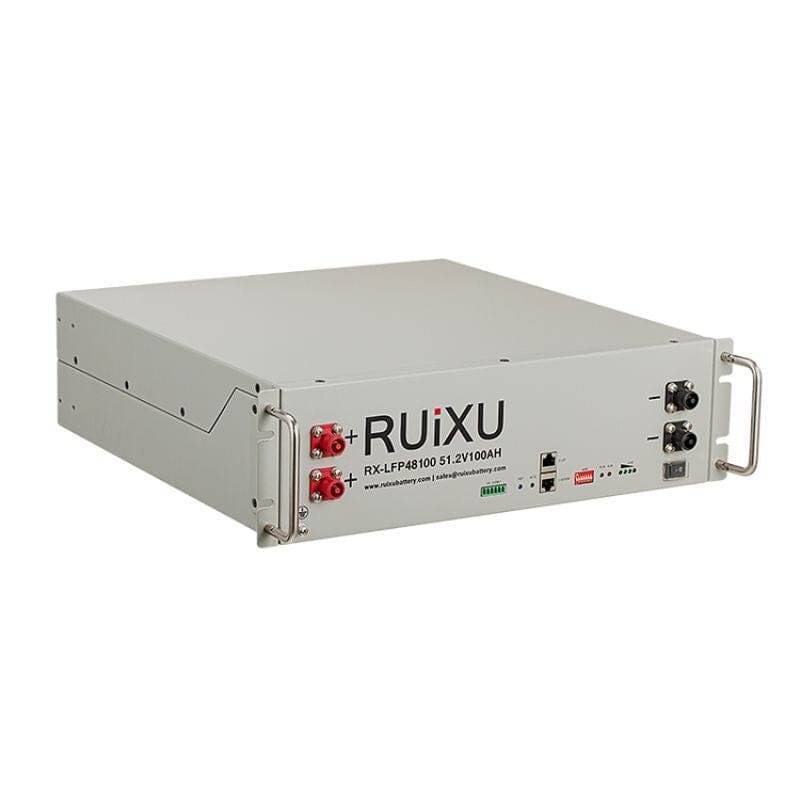

RUIXU 51.2V100A 5120Wh | 19" Rack Mounted 3U Module
RUiXU battery packs are rack type residential lithium batteries,designed entirely for residential ESS applications,with our battery technology ,you can easily combine it with a mainstream inverter in different scenarios to save your electrical bill & back up your power during grid outage or unavailable.
Why Choose RUiXU Server Rack Battery?

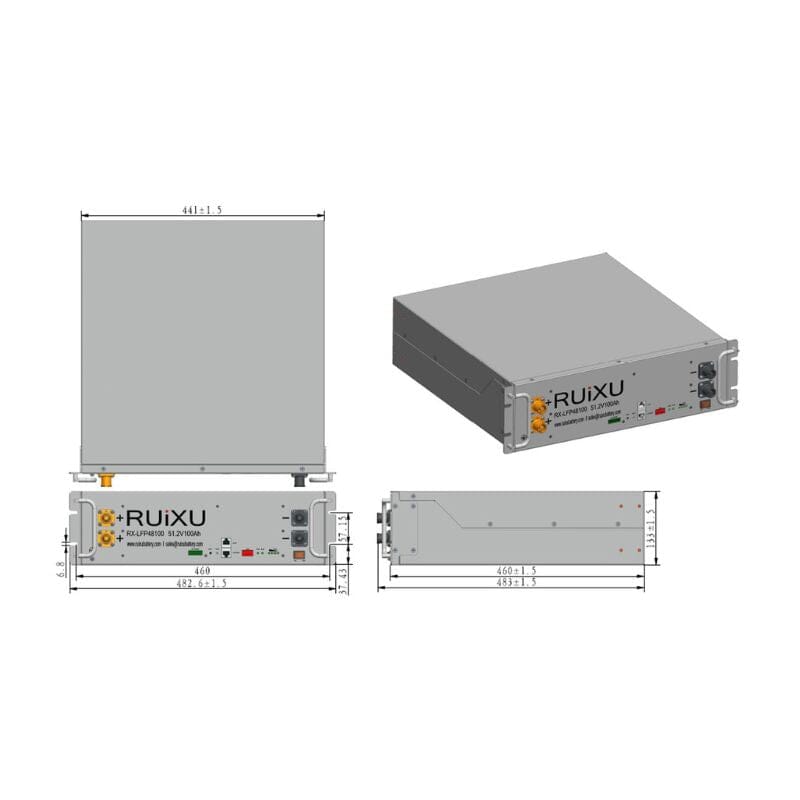

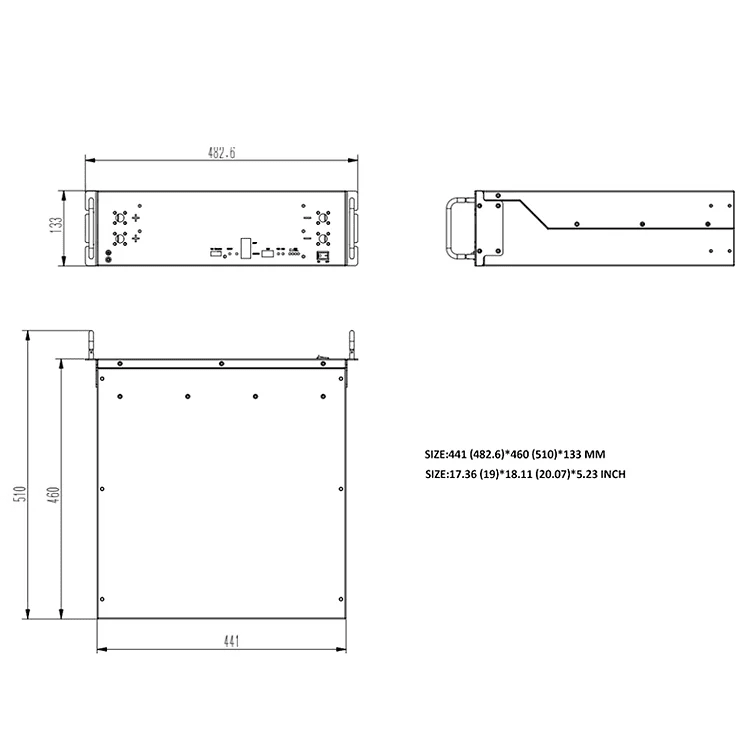

- Size (Ultra-thin) 3U Size(482x460x133.5mm),133mm height will save more space, compact & flexible

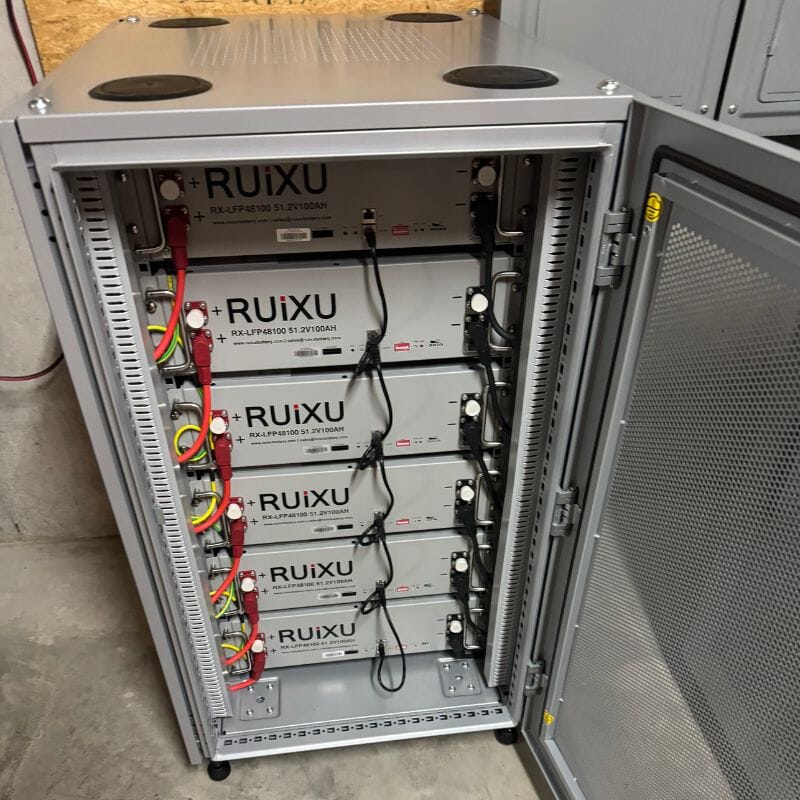

- Installation Rack Mounted, Floor Mounted, Wall Mounted, Stack Mounted
- Inverter Protocol Choosing Use DIP address to set the RS485 baud rate and inverter protocol choosing

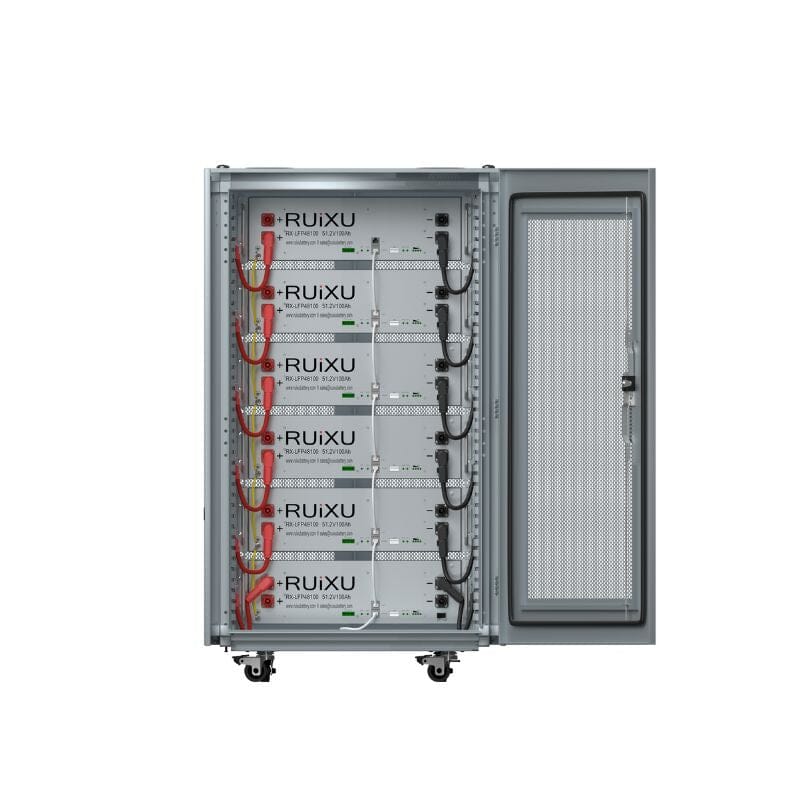

- Modular Support up to 32units in parallel, extend to 160KWh system without additional controller
- Certification UL1973 &IEC62619 for whole battery pack ,UN38.3,MSDS
- Pre-charge ability(single battery) 1000000uF,capable of pre-charging higher power inverters
- Working Temperature Charge:-5°C-59°C Discharge:-10°C-59°C,built-in heater is optional
What's Included With Your Server Rack battery Order?
- 1 x RUiXU 48V Server Rack battery (RX-LFP48100)
- 1 x RS485 Communication Cable
- 1 x Ground Cable

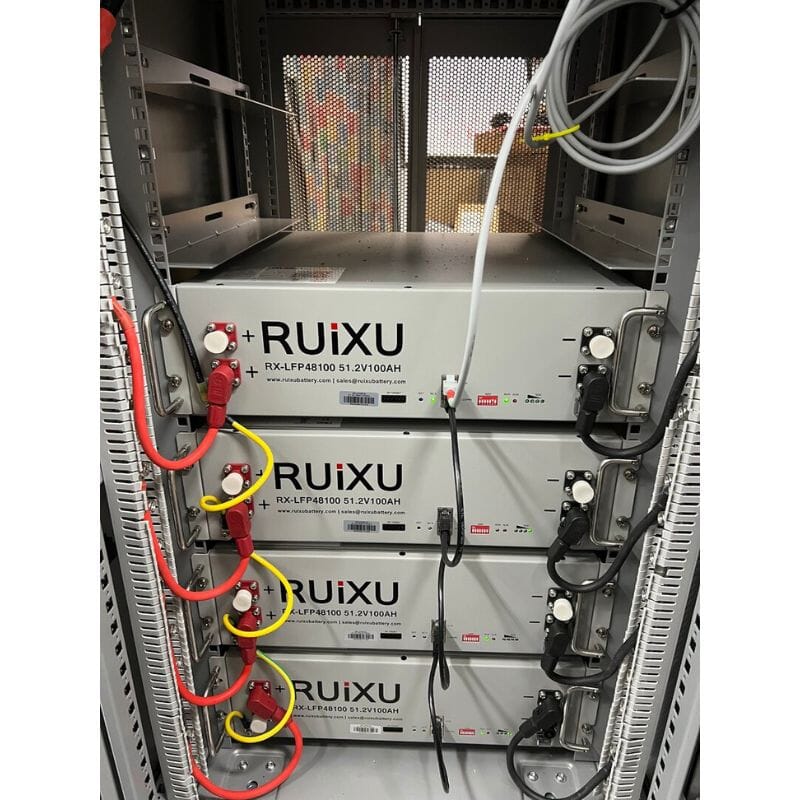

- 1 x Set of Parallel 4AWG Cables per battery
- Lifetime Customer Support (Email, Live Chat & Phone)

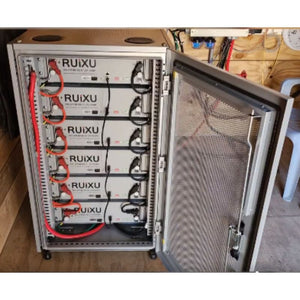

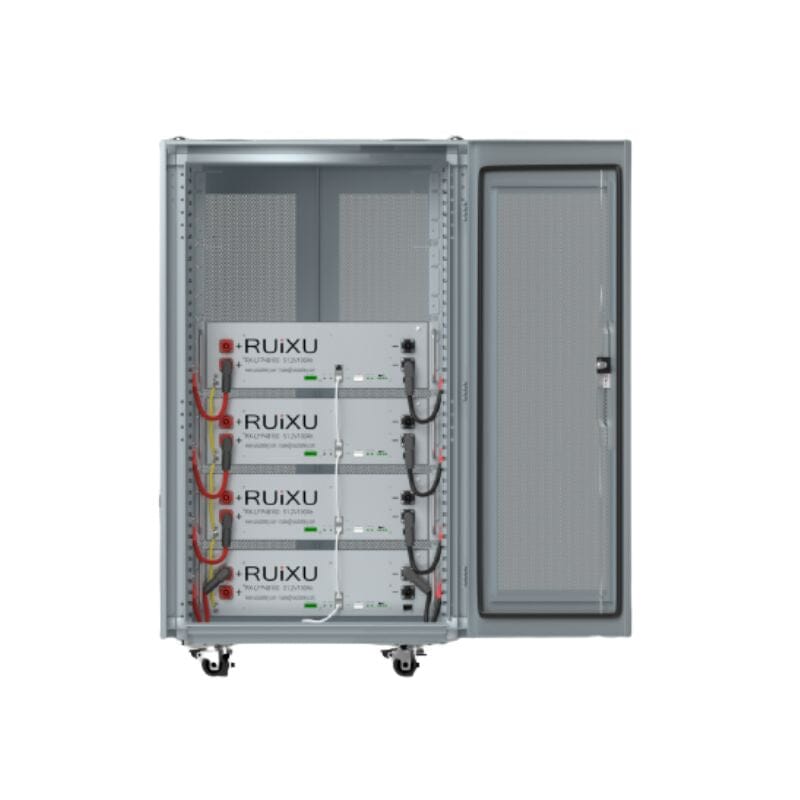

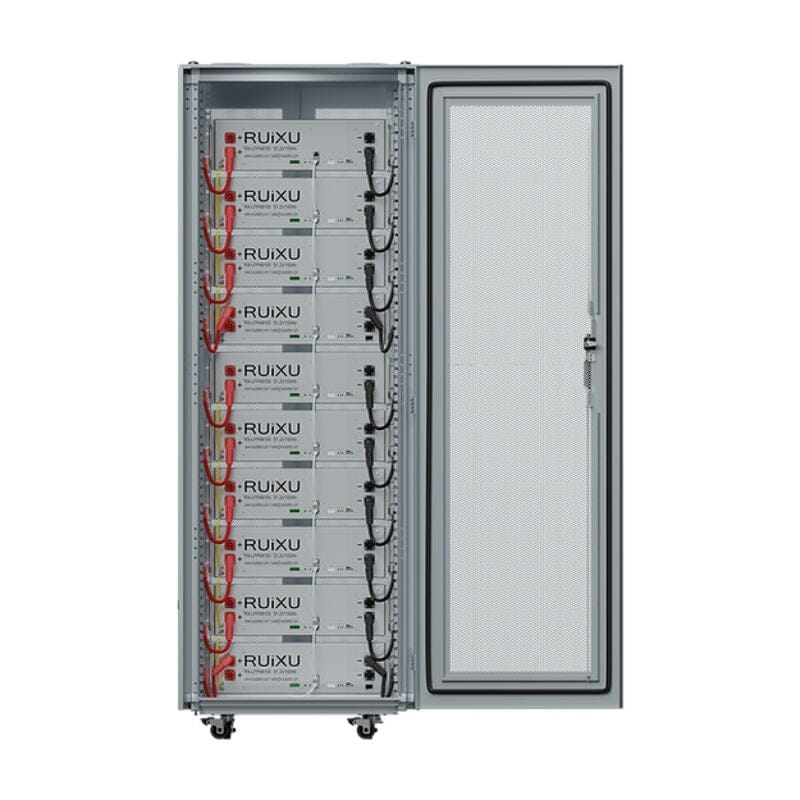

Modular
Support up to 32 units in parallel, scale from 5 kWh to 160 kWh configuration without external controller
4 types of installation

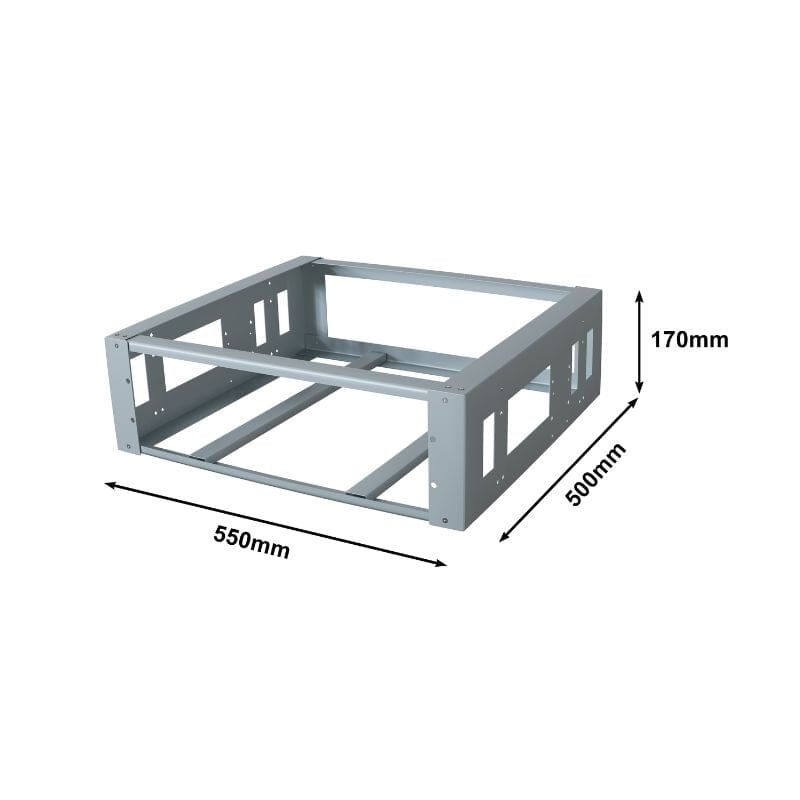

Optional bracket kits for different installation senarios
3U Model

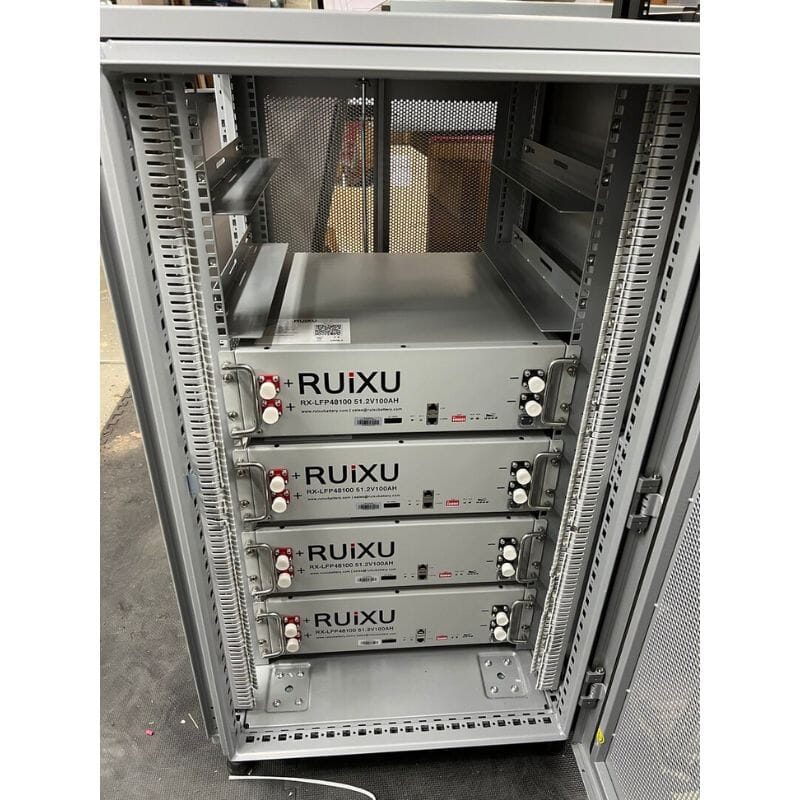

Server Rack battery has 3U (133mm) standard height design
Inverter Protocol Choosing
Use DIP address to set the RS485 baud rate and inverter protocol choosing
Certification
CE/IEC62619 / UL1973 / UN38.3

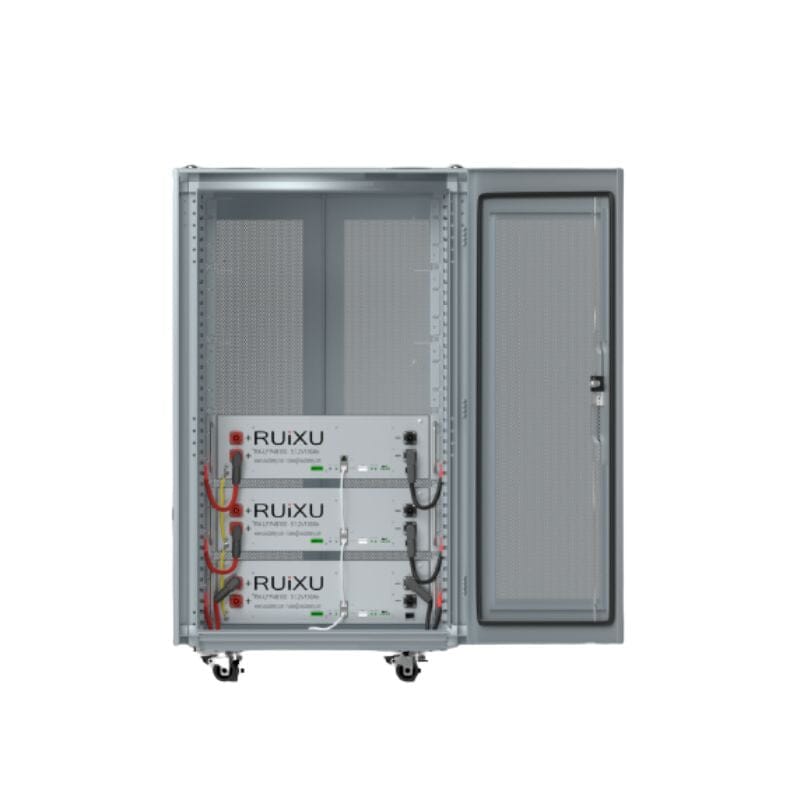

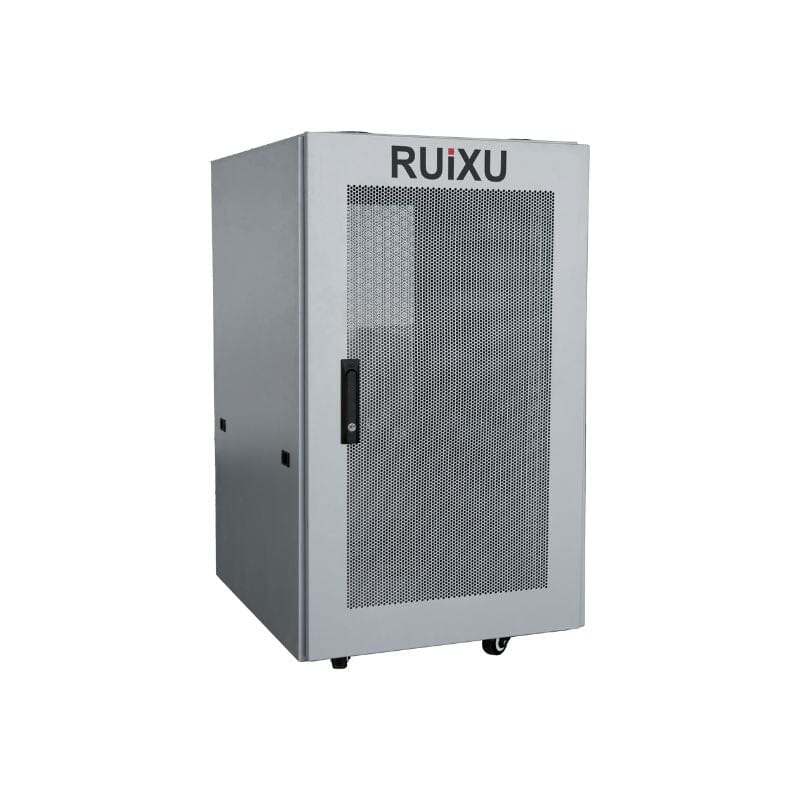

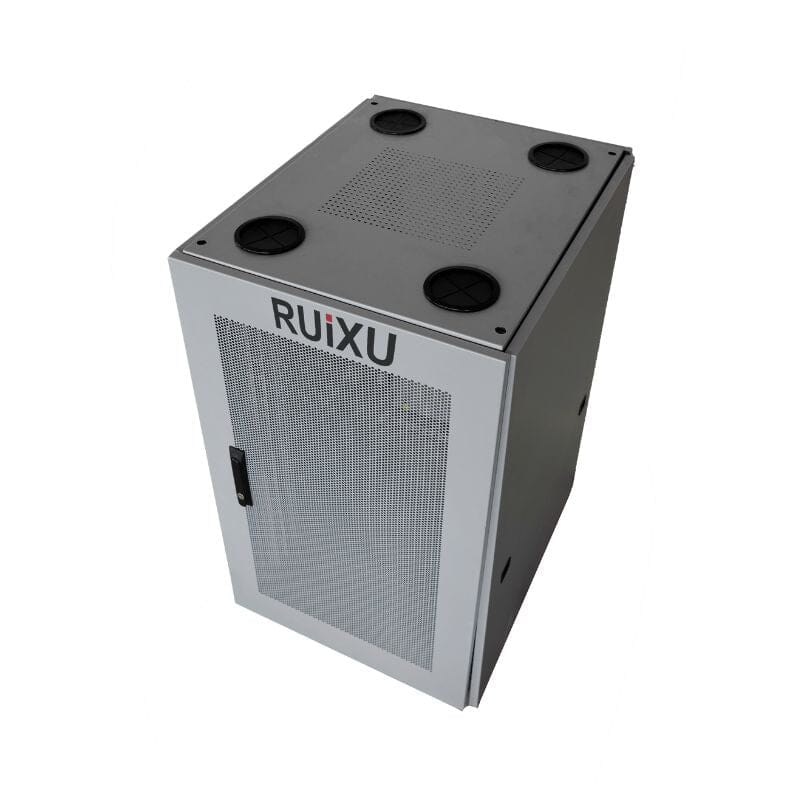

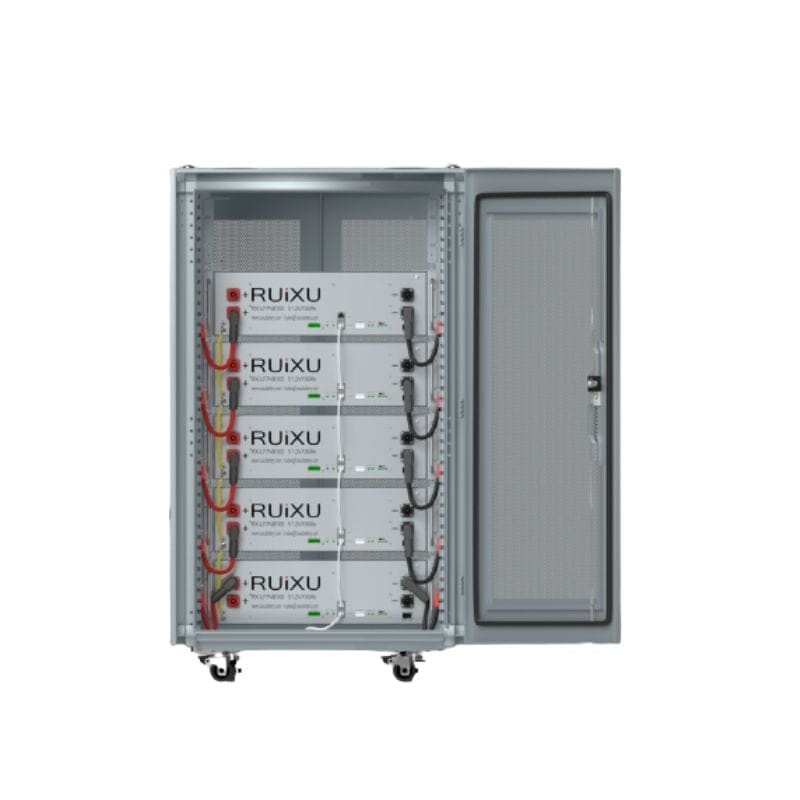

Note: Assembly of rack is required
Still Have Questions? Give us a call today 1-877-242-2792
- Nominal voltage
- 51.2V
- Nominal capacity
- 100Ah
- Nominal energy
- 5.12kWh
- Usable energy
- 4.92kWh
- Operating voltage range
- 44.8V~56.0V
- Charge voltage
- 56V
- Float voltage
- 54.6V
- Recommended charge current
- 50A
- Max. charge current
- 70A
- Recommended discharge current
- 50A
- Max. discharge current
- 100A
- Communication
- RS485 /CAN
- Peak discharge current
- 101~119A@5mins | 120~149A@15S
- IP rating
- IP20
- Cycle life
- ≥6000 cycles @90%DOD
- Net weight
- ~47kg (103.6lb)

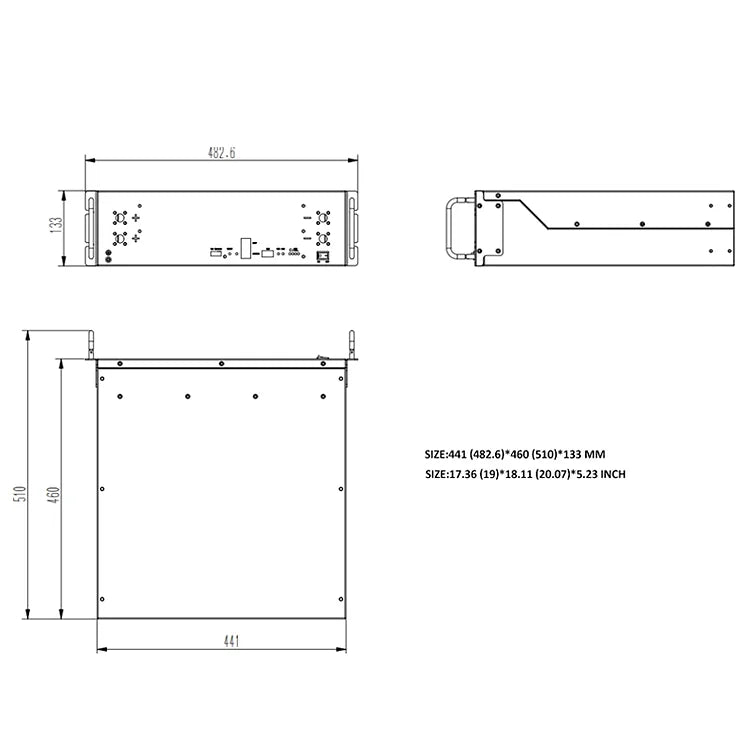

- Dimension(W*H*D)
- 482*133.5*460mm (18.9*5.2*18.1 inch)
- Cell type
- Lithium-iron phosphate (LiFePO4)
- Design life
- 15 Years
- Operation temperature
- -10~50℃ (14~122℉)
- Storage temperature
- -10~45℃ (14~113℉)
- Relative humidity
- 5%~90%No condensation
- Install altitude
- ≤4000m
- Install location
- Indoor
- Installation
- Wall mounted / Floor mounted / Stack / Rack mounted
- Certification
- CE / IEC62619 / Ul1973 / UN38.3
