Rich Solar · Inverter/Charger
SKU: RS-H6048K
Rich Solar NOVA 8K PV Inverter
- Regular price
- $1,199.00
- Sale price
- $1,199.00
- Regular price
-
$1,999.00
Orders processed in 24–48 hours
30-day returns
Lifetime support by phone, chat & email
Full manufacturer warranty
Questions before you buy?
Call 877-242-2792 and we’ll work it out with you. Mon–Thu 10am–5:30pm, Fri 10am–1pm EST.
Trusted by 50,000+
Customers powered since 2018
Lifetime Support
Phone, email or live chat, for good
Price Match
Found it cheaper? Tell us
Ships from the USA
Warehouses in CA, TX and NY
Frequently bought together
The details.

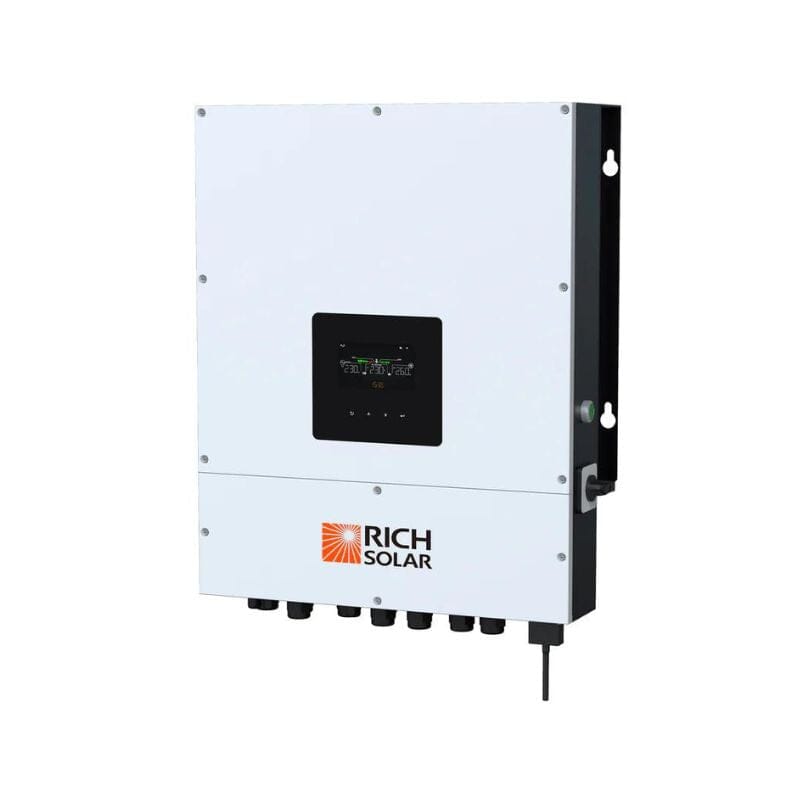

Rich Solar NOVA 8K PV Inverter

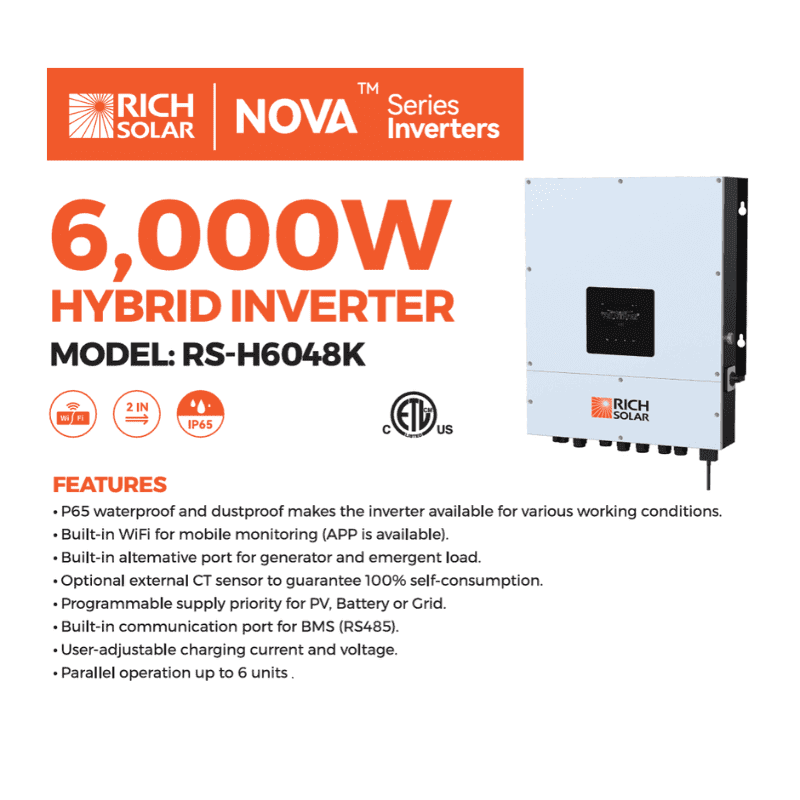

Features
- IP65 waterproof and dustproof makes the inverter available for various working conditions.
- Configurable color with the built-in RGB LED bar
- Built-in Wi-Fi for mobile monitoring (APP is required)
- Built-in alternative port for generator and emergent load.
- Optional external CT sensor to guarantee 100% self-consumption.
- Programmable supply priority for PV, Battery or Grid.
- Built-in communication port for BMS (RS485).
- User-adjustable charging current and voltage.
- Parallel operation up to 6 units

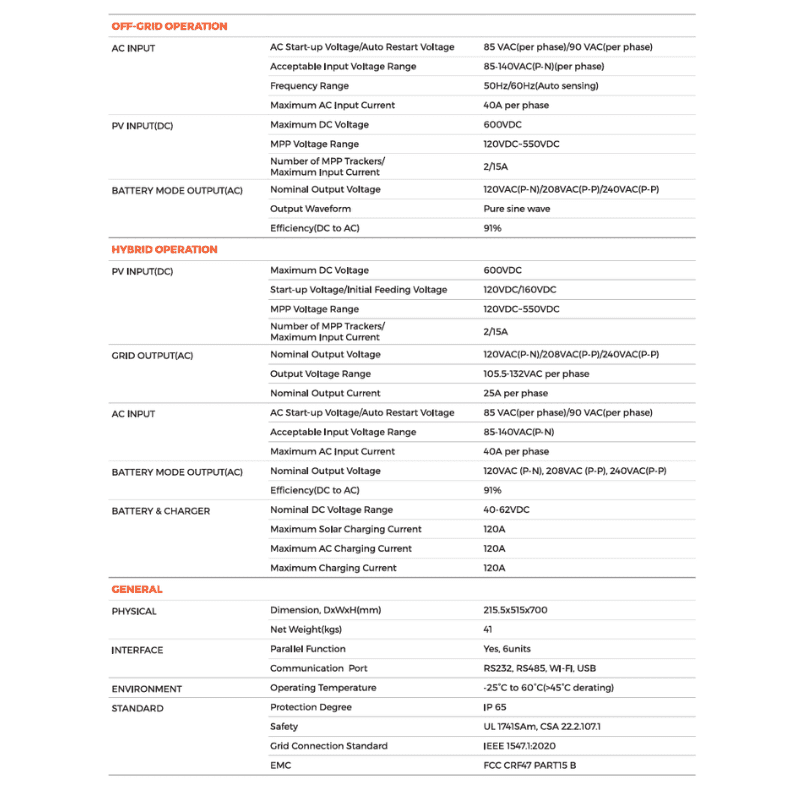

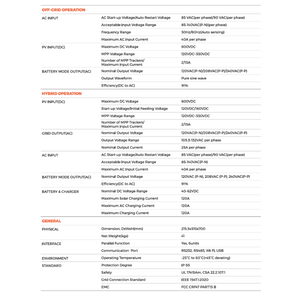

Specifications
- Maximum PV Input Power: 12000W
- Rated Output Power: 6000VA/6000W
- PARALLEL CAPABILITY: Yes, 6 units
INPUT
- Maximum DC Voltage: 600VDC
- Start-up Voltage/initial Feeding Voltage: 120VDC/160VDC
- MPPT Voltage Range: 120VDC-550VDC
- Frequency Range: 50Hz / 60Hz (Auto detection)
OUTPUT
- Output Voltage Waveform: Pure Sine Wave
- Nominal Output Voltage: 120VAC(P-N)/208VAC(P-P)/240VAC(P-P)
- Output Voltage Range: 105.5-132VAC per phase
- Nominal Output Current: 25A per phase
BATTERY
- Battery Voltage: 40-62 VDC
- Maximum Charging Current: 120A
- Efficient(DC to AC): 91%
OPERATING ENVIRONMENT
- Operating Temperature Range: -25°C to 60°C(>45°C derating)
PHYSICAL
- Dimension (mm): 215.5 x 515 x 700 (with extension box)
- Net Weight : 41kg / 90.4lb
