Installation and Wiring-Overview

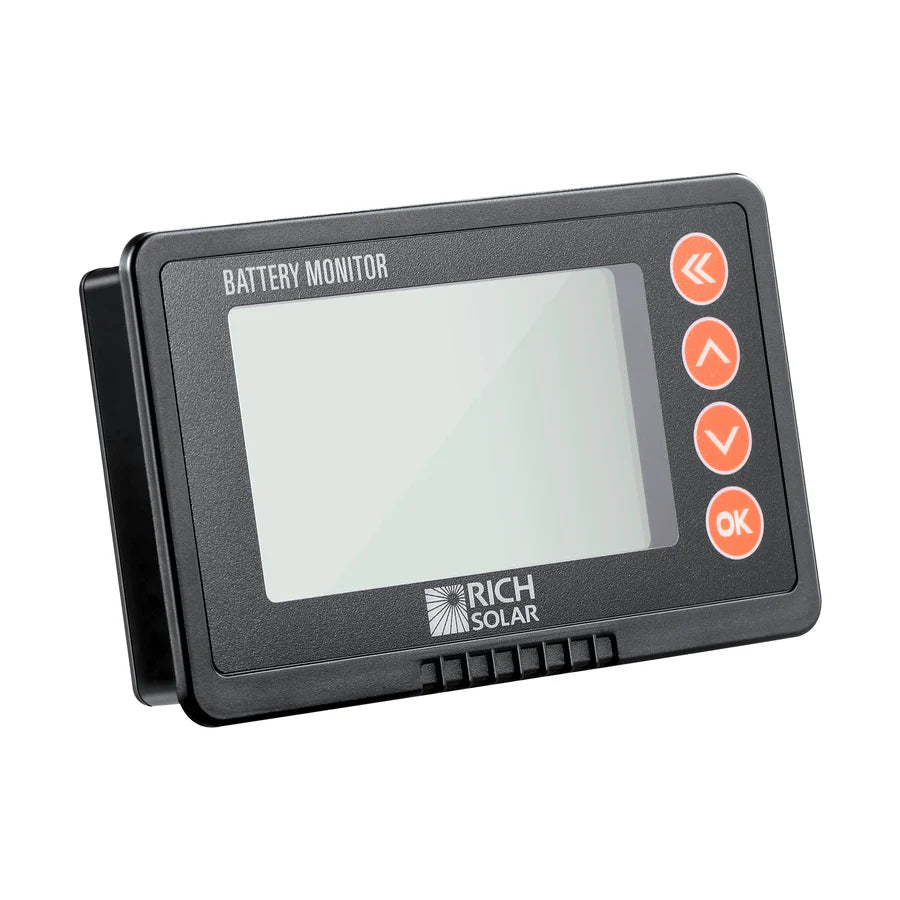

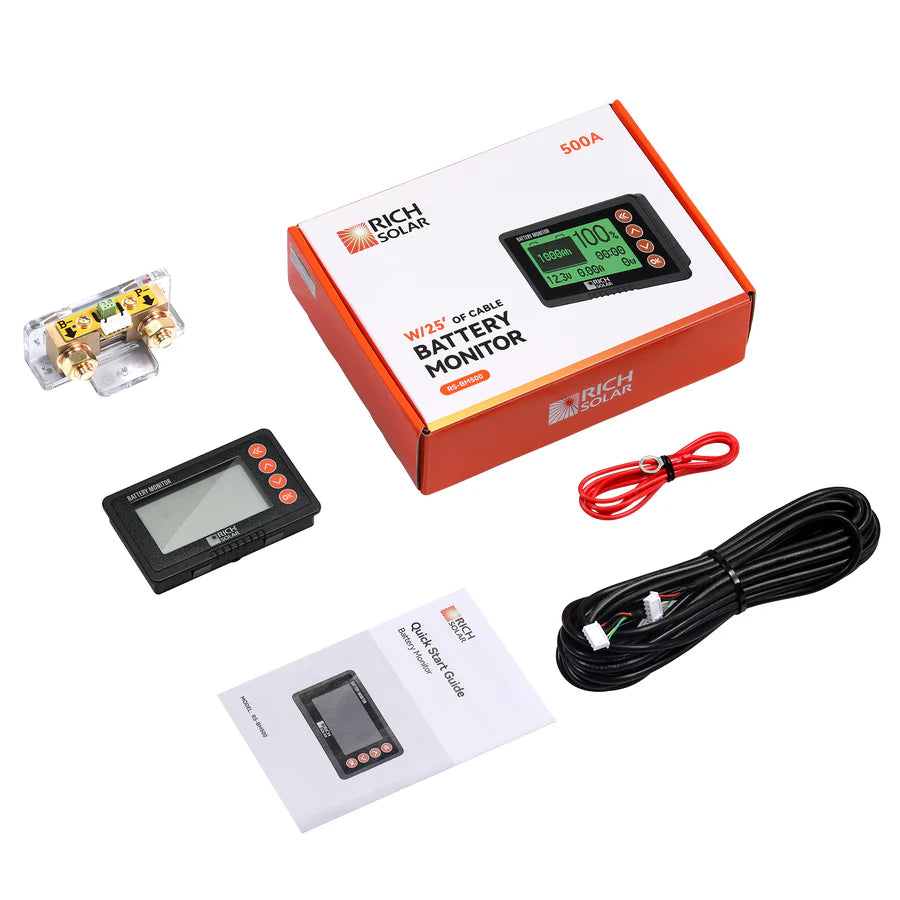

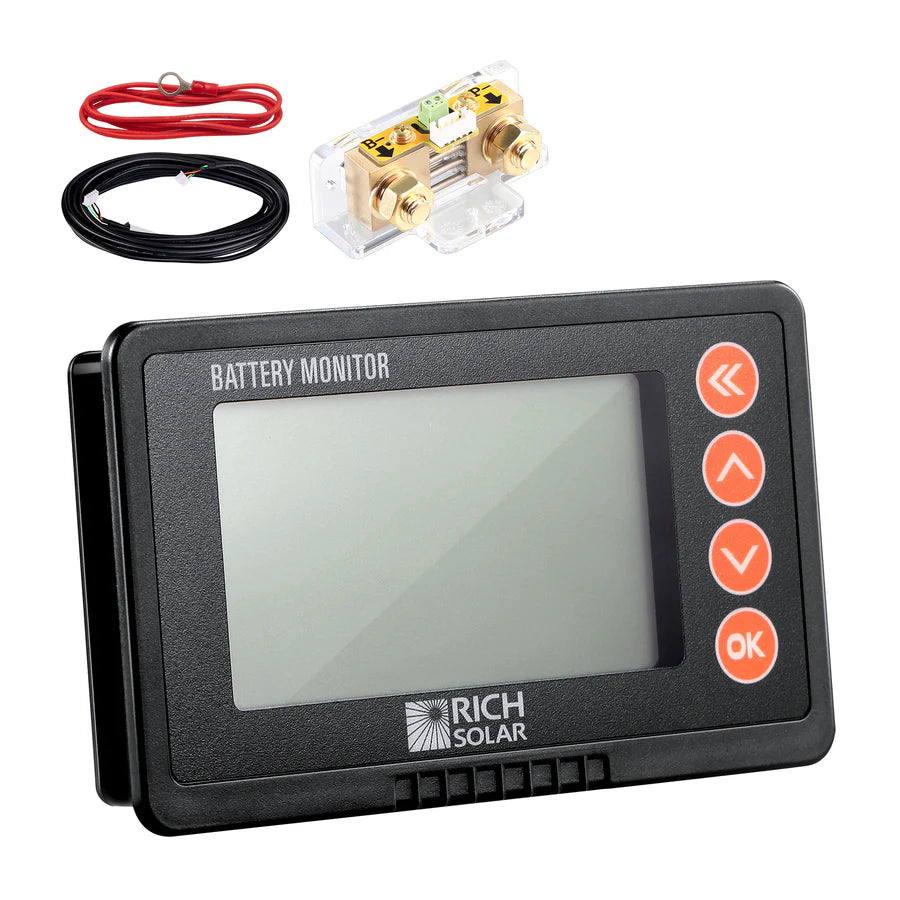

The RS-BM500 shunt should be mounted as close to the battery as possible, and the remote display is intended to be mounted on a wall.
Recommended Tools
- Wrench
- Drill
- Jig saw
- 2 ring terminals of appropriate size for battery cable
- Crimp tool for ring terminals
Wiring Diagram
The following wiring diagram will be referenced in the next section.
Installation
- Before doing anything, disconnect all wires from the negative side of the battery.
- Cut the negative cable for the battery and crimp on new ring terminals. Alternatively, use a new wire of appropriate gauge to carry the full current demand of your system.
- Install the shunt as shown in the wiring diagram above.
Note: The negative terminal of the battery must connect directly to the“B-" side of the shunt, and there should be no other connections to the negative terminal of the battery for accurate measurements. - Use the B+ wire included in the package to connect the B+ terminal of the shunt to the positive side of the battery.
Note: Do not stack smaller terminals under large ones. - Connect the shunt to the remote display using the included shielded cable.

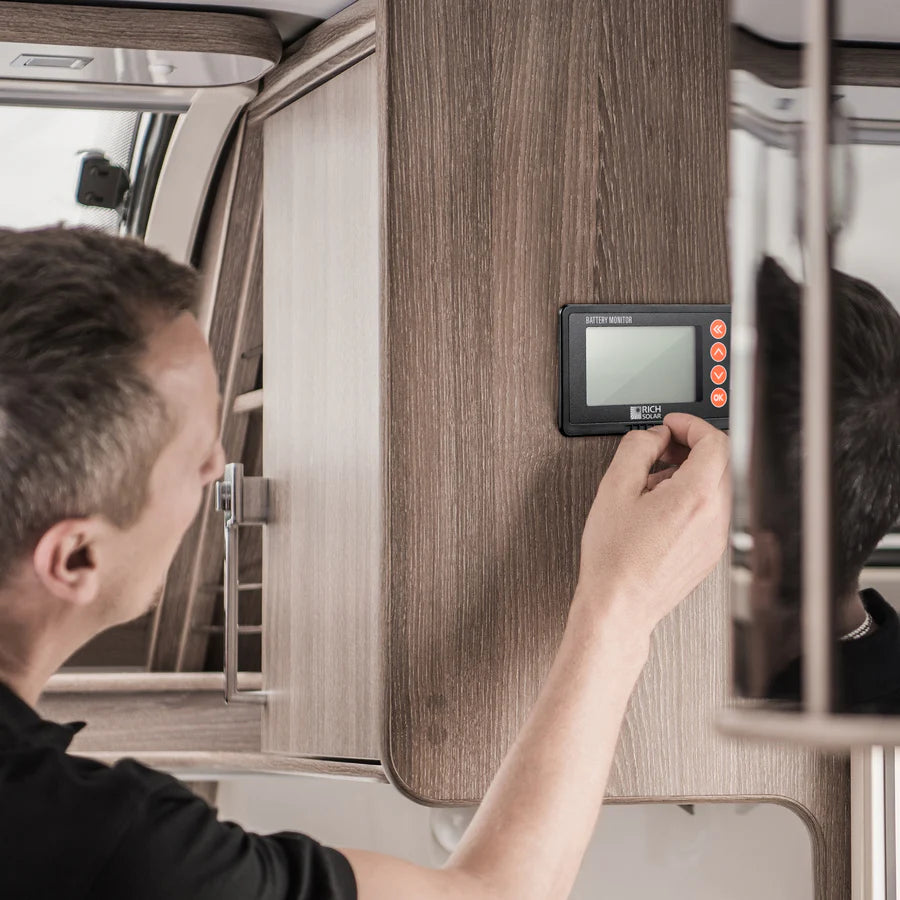

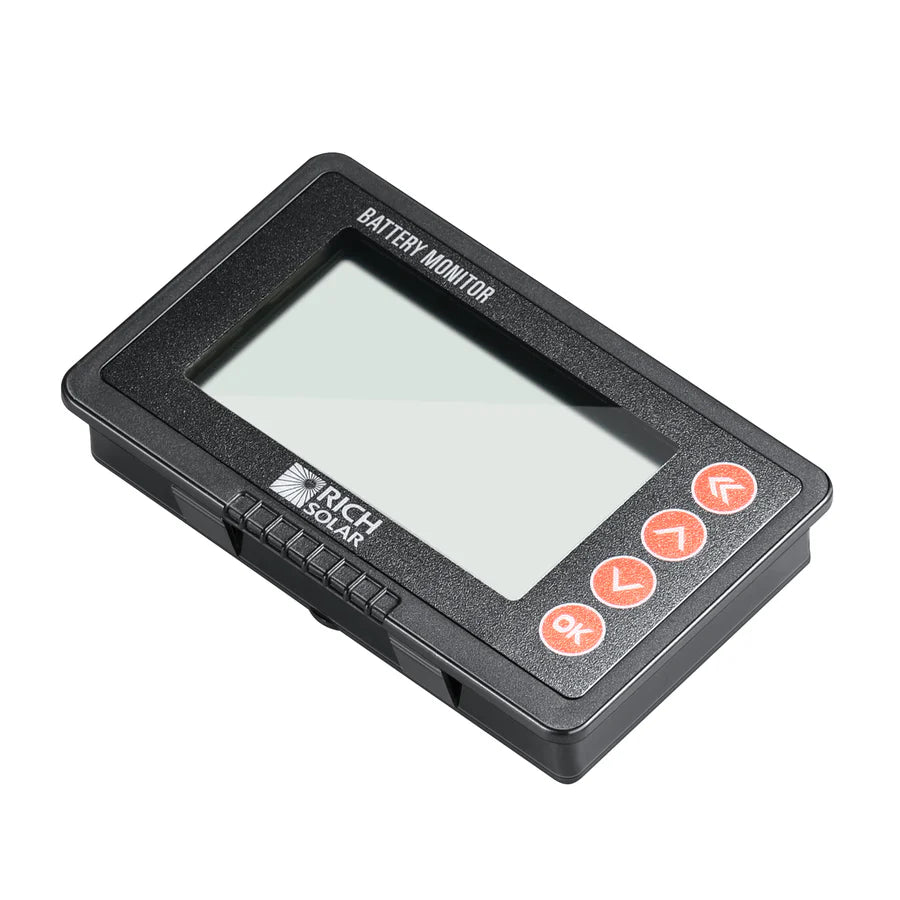

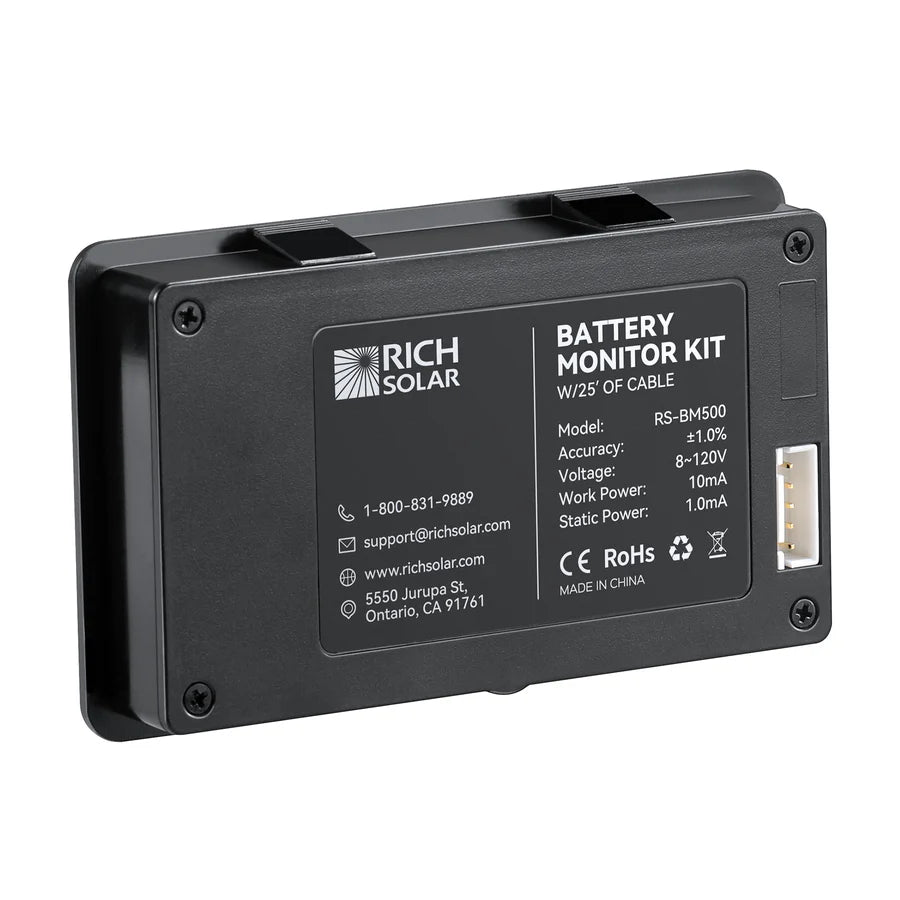

Mounting the Remote Display
- Plan the location of your remote display and keep in mind there is a cable that needs to route all the way to the shunt.
- Drill a hole in the center of the planned location and use the jig saw to cut a hole according to the following picture.
- Connect the shielded cable to the shunt and route it such that you can bring it through the hole.
- Connect the shielded cable to the remote and snap the remote into place.

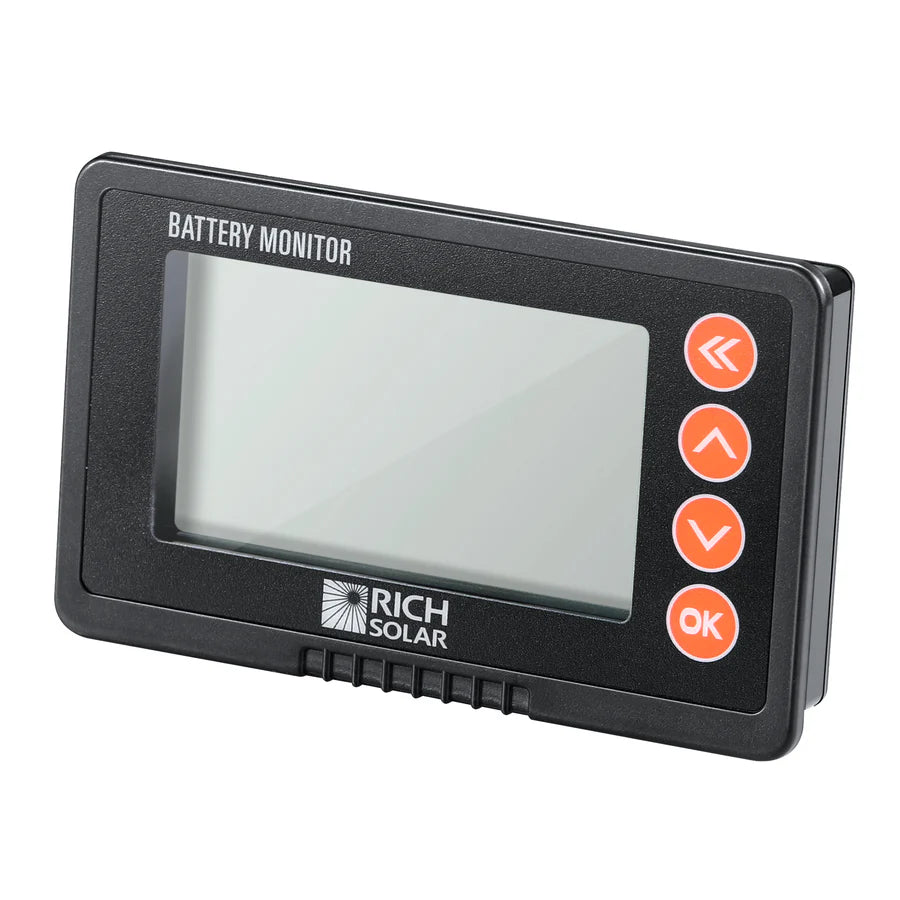

Basic Setup

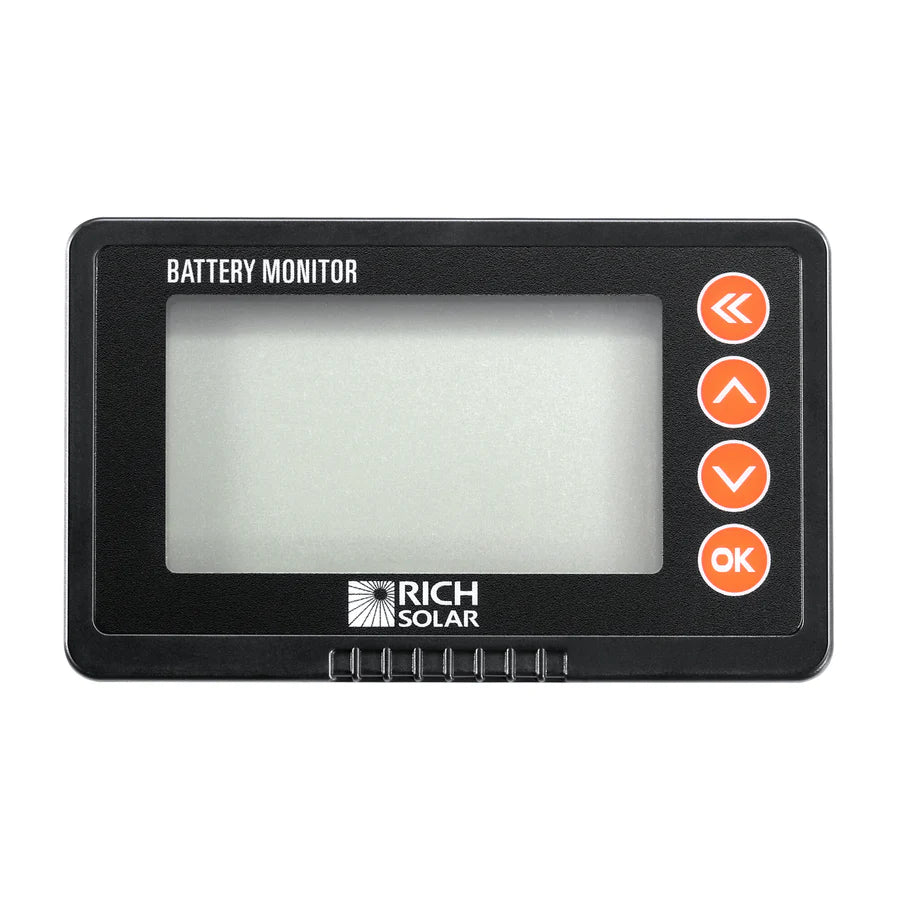

- Hold the "Ok" button for 3 seconds to enter the settings screen. The up and down arrows are used to navigate as well as change parameters. The "Ok" and "<<" button are used to enter and exit a setting.
- Set the "CAP" setting to match the capacity of your battery or battery bank.
- Optionally set the "HIGH V" and "LOW V" values to the voltages at which you want remaining capacity/percentage to reset to 100% and 0% respectively.
- Alarm is the minimum Ah value that will trigger an audible alarm.
- Once all of these settings are complete, hit "<<" and your BMK is set up.
Still have questions? Give us a call at 877-242-2792
Installation and Wiring-Overview
The RS-BM500 shunt should be mounted as close to the battery as possible, and the remote display is intended to be mounted on a wall.
Recommended Tools
- Wrench
- Drill
- Jig saw
- 2 ring terminals of appropriate size for battery cable
- Crimp tool for ring terminals
Wiring Diagram
The following wiring diagram will be referenced in the next section.
Installation
- Before doing anything, disconnect all wires from the negative side of the battery.
- Cut the negative cable for the battery and crimp on new ring terminals. Alternatively, use a new wire of appropriate gauge to carry the full current demand of your system.
- Install the shunt as shown in the wiring diagram above.
Note: The negative terminal of the battery must connect directly to the“B-" side of the shunt, and there should be no other connections to the negative terminal of the battery for accurate measurements. - Use the B+ wire included in the package to connect the B+ terminal of the shunt to the positive side of the battery.
Note: Do not stack smaller terminals under large ones. - Connect the shunt to the remote display using the included shielded cable.
Mounting the Remote Display
- Plan the location of your remote display and keep in mind there is a cable that needs to route all the way to the shunt.
- Drill a hole in the center of the planned location and use the jig saw to cut a hole according to the following picture.
- Connect the shielded cable to the shunt and route it such that you can bring it through the hole.
- Connect the shielded cable to the remote and snap the remote into place.
Basic Setup
- Hold the "Ok" button for 3 seconds to enter the settings screen. The up and down arrows are used to navigate as well as change parameters. The "Ok" and "<<" button are used to enter and exit a setting.
- Set the "CAP" setting to match the capacity of your battery or battery bank.
- Optionally set the "HIGH V" and "LOW V" values to the voltages at which you want remaining capacity/percentage to reset to 100% and 0% respectively.
- Alarm is the minimum Ah value that will trigger an audible alarm.
- Once all of these settings are complete, hit "<<" and your BMK is set up.
Still have questions? Give us a call at 877-242-2792

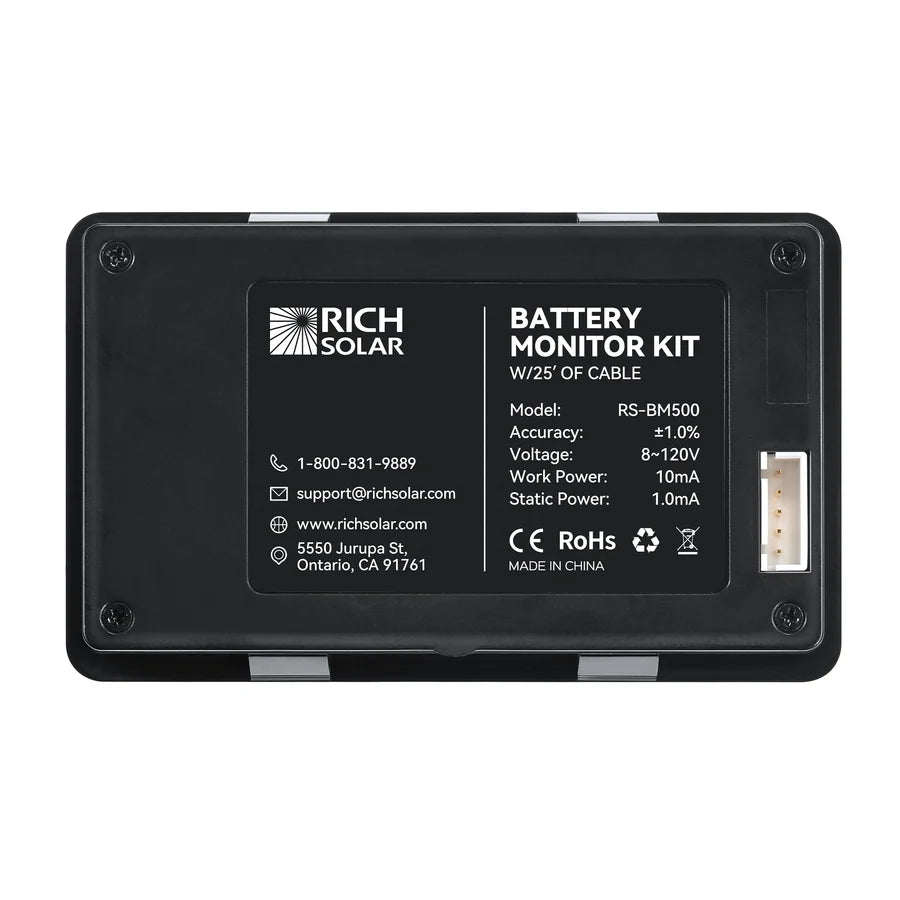

Rich Solar 500A Battery Monitor With Shunt | 8~120V Automotive Monitor for RV Battery
