RENON EBrick 5.12kWh Battery

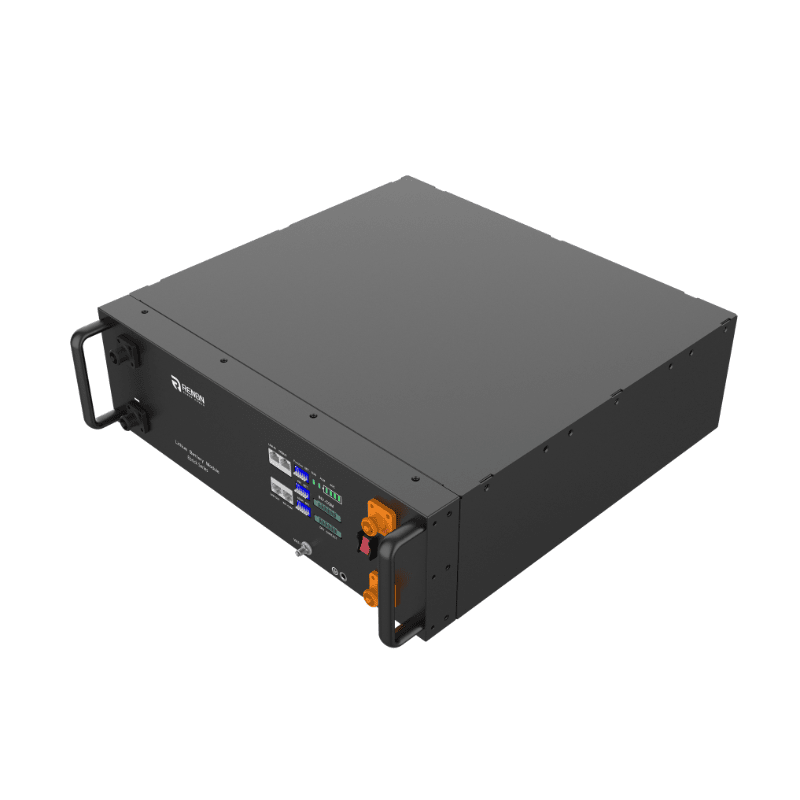

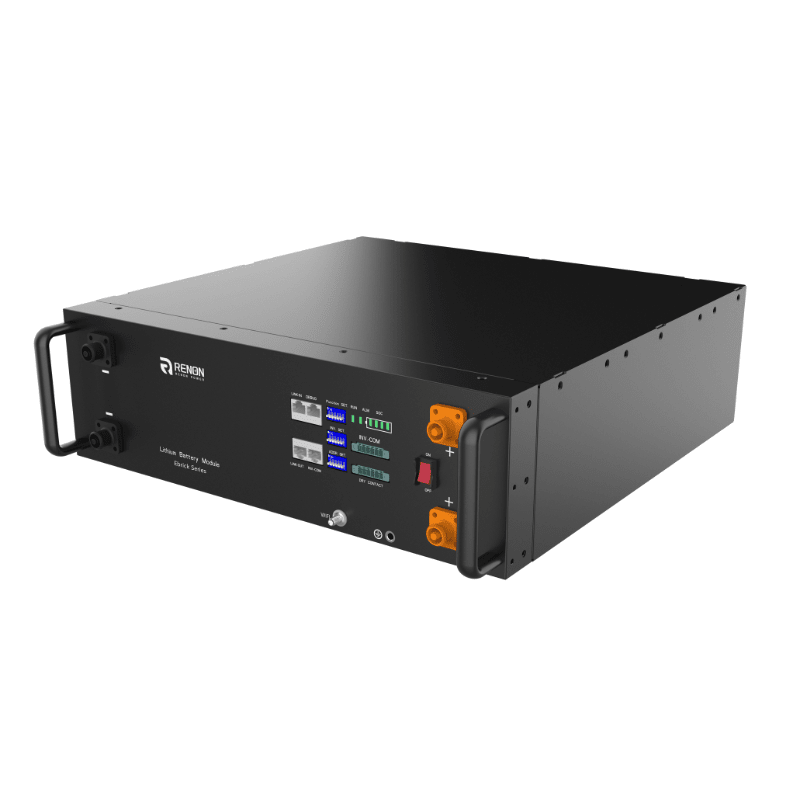

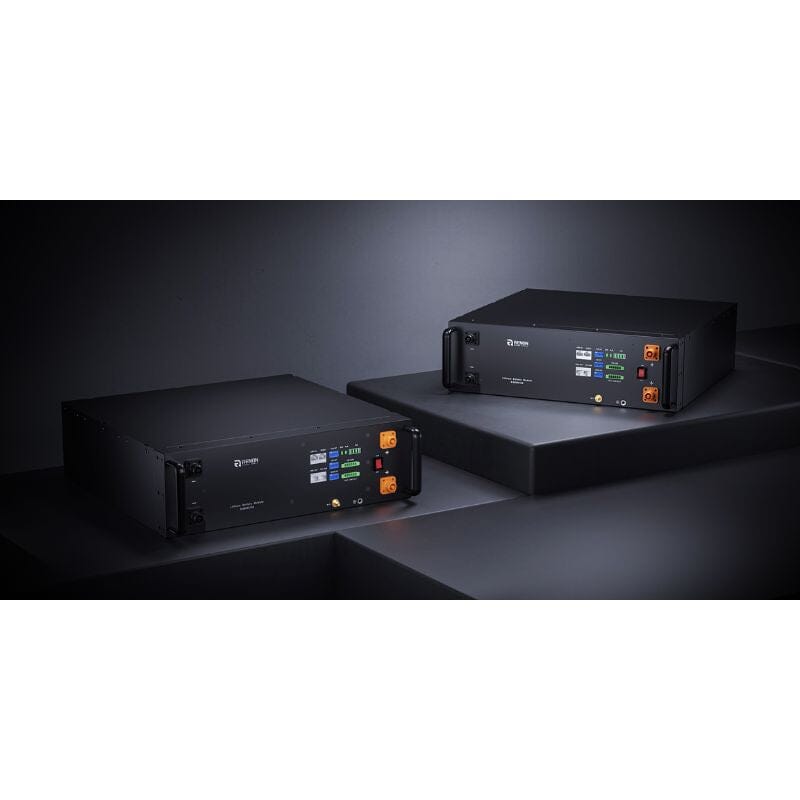

The RENON E Series EBrick 5.12kWh LiFePO4 Battery is a compact, rack-mountable energy storage solution built for long-term performance and energy independence.
- Regular price
- $1,168.20
- Sale price
- $1,168.20
- Regular price
-
$1,460.25
Not sure which one you need?
Call 877-242-2792 and we’ll work it out with you. Mon–Thu 10am–5:30pm, Fri 10am–1pm EST.
Frequently bought together
Specifications
The details.
The RENON E Series EBrick 5.12kWh LiFePO4 Battery is a compact, rack-mountable energy storage solution built for long-term performance and energy independence. Designed with premium lithium iron phosphate cells, each module is engineered for a 20-year product life—making it a smart, future-proof investment for off-grid, hybrid, or backup systems.
Available in two configurations to meet your climate needs:
-
Standard Model – 51.2V 100Ah battery module
-
Heating Model – Same specs, with integrated heating film for cold-weather performance (activates at 41°F / 5°C)
Both models feature a modular, plug-and-play design with front-facing connections for easy DIY installation and seamless rack integration.
Key Features & Benefits:
-
5.12kWh LiFePO4 Capacity – Safe, stable, and environmentally friendly battery chemistry
-
20-Year Design Life – Premium cells rated for 8,000+ cycles at 80% DOD
-
Heated or Standard Options – Choose the right model for your climate
-

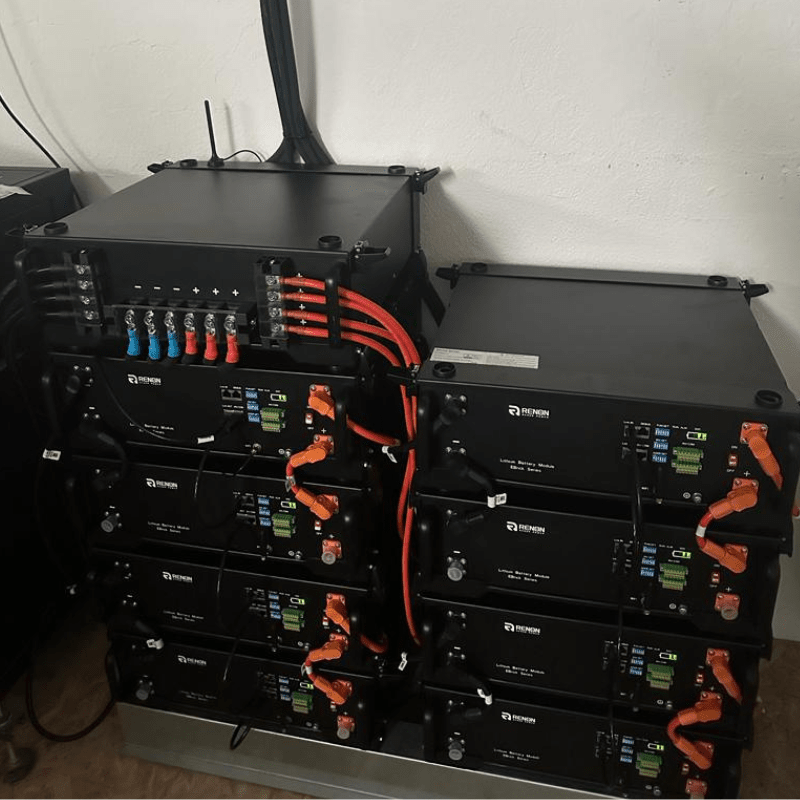

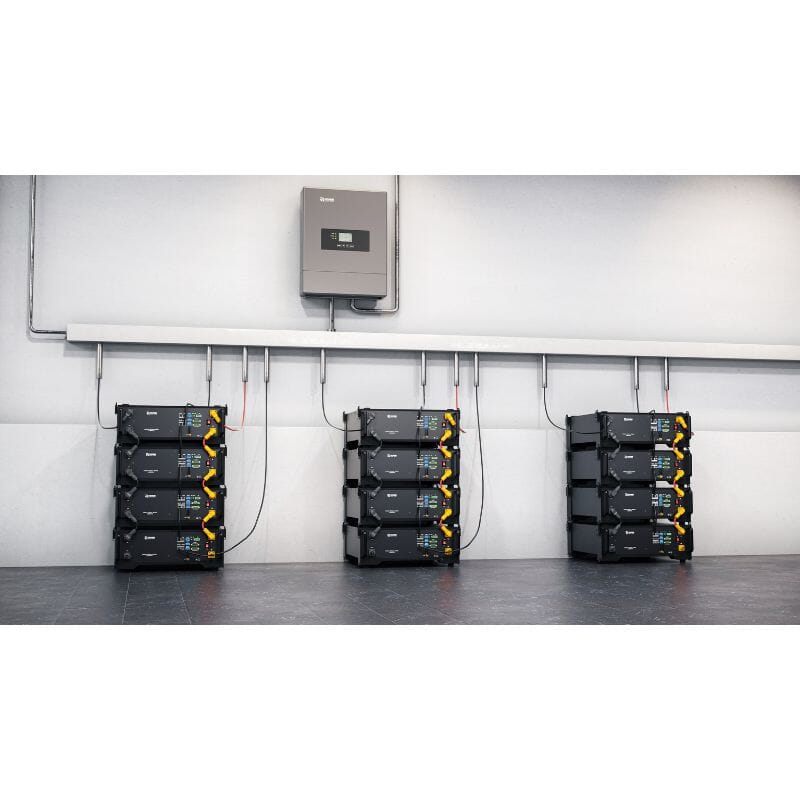

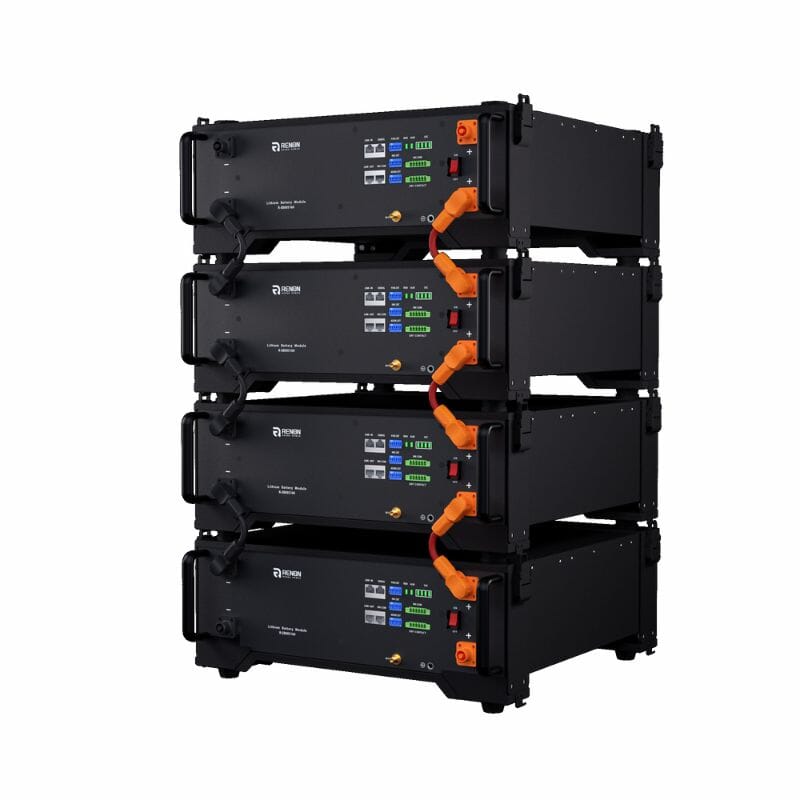

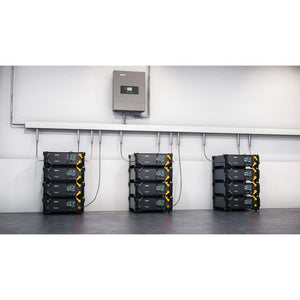

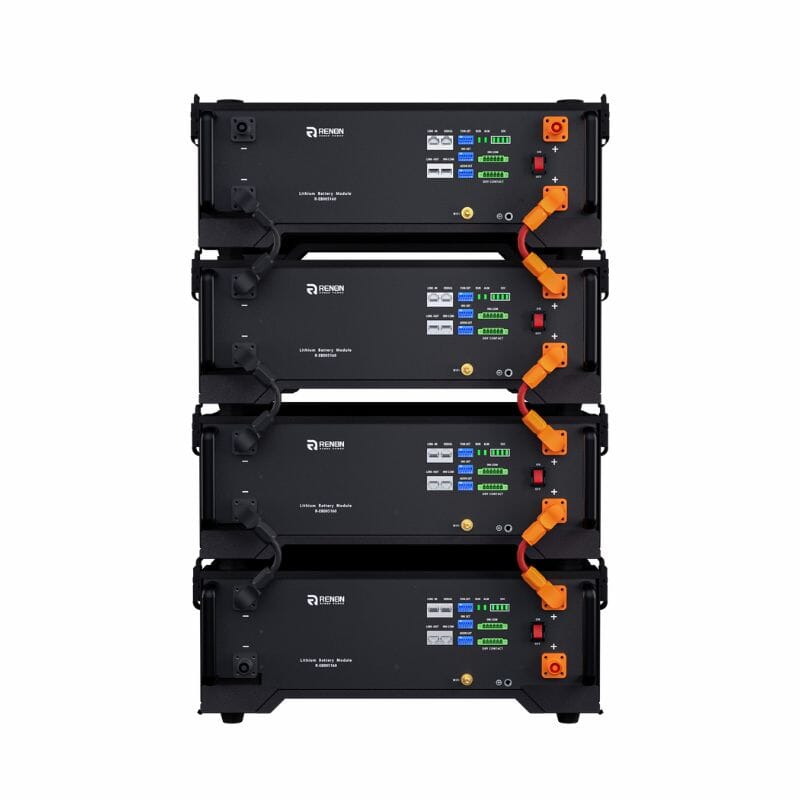

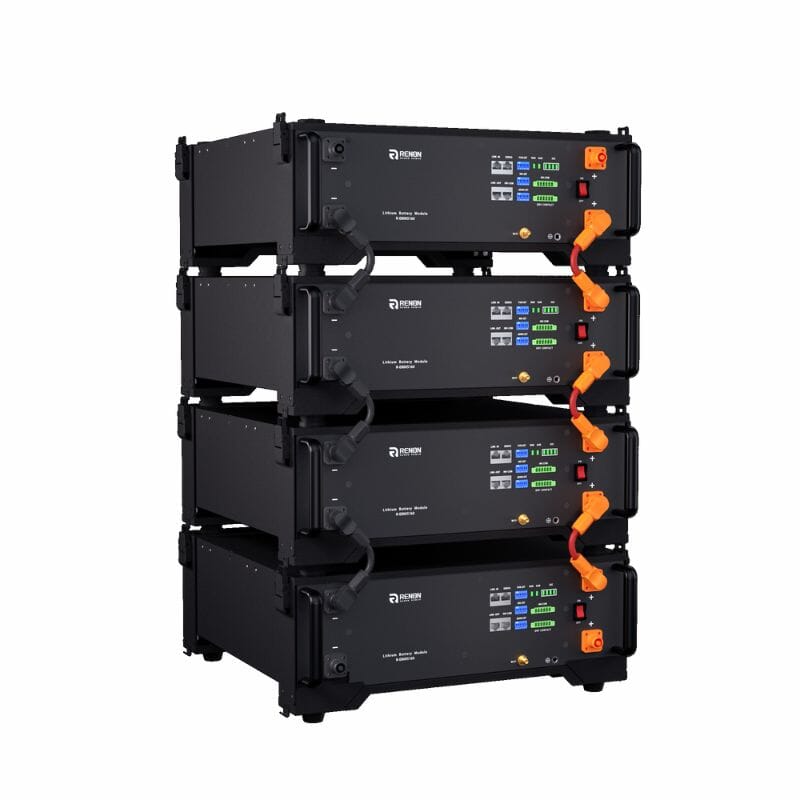

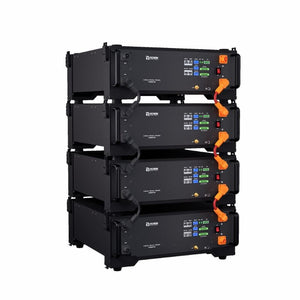

Expandable & Stackable – Connect up to 31 units in parallel for larger systems
-

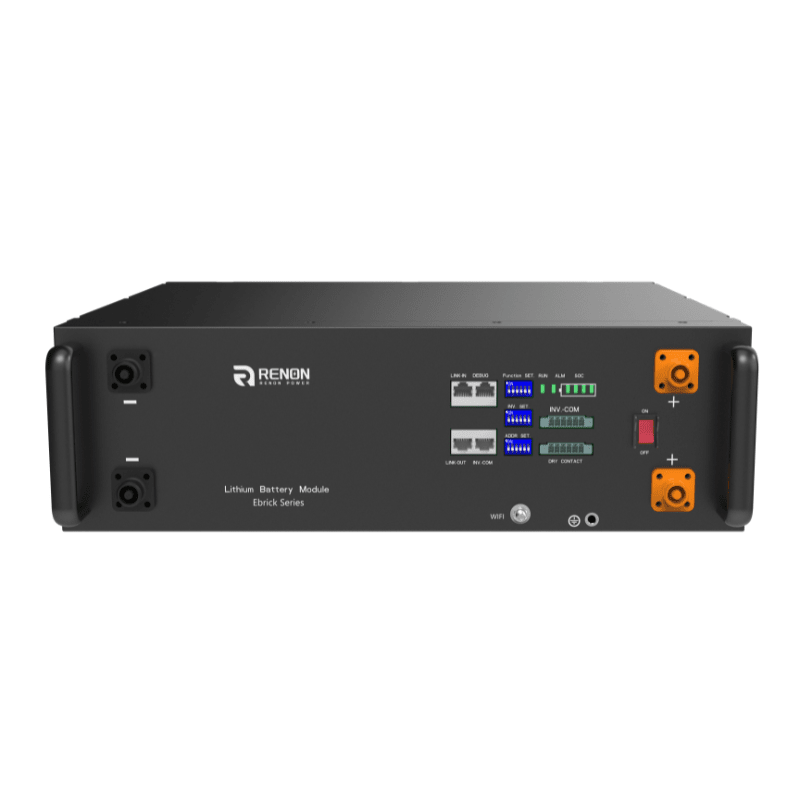

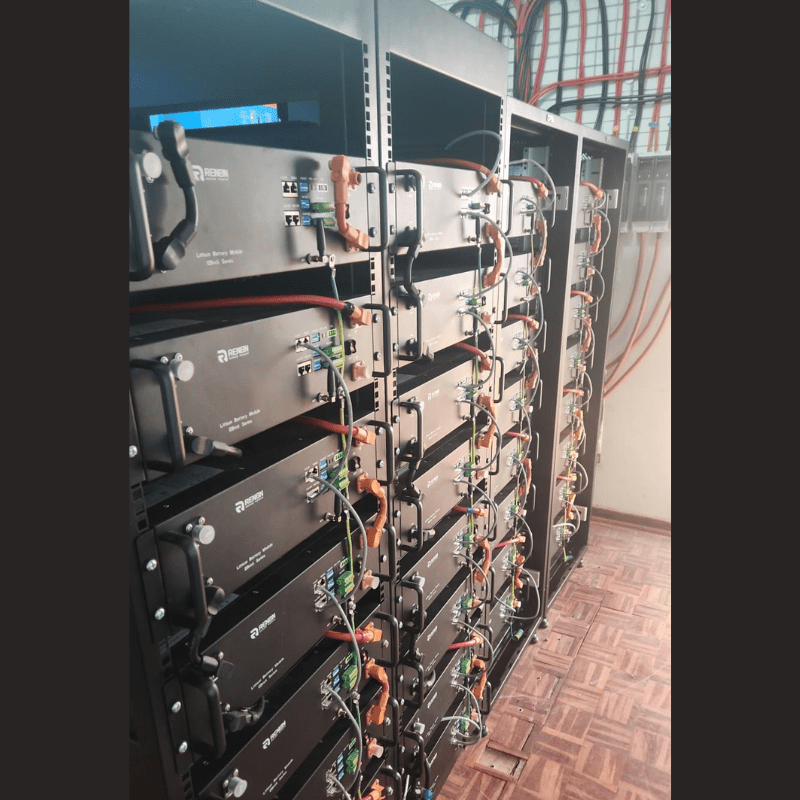

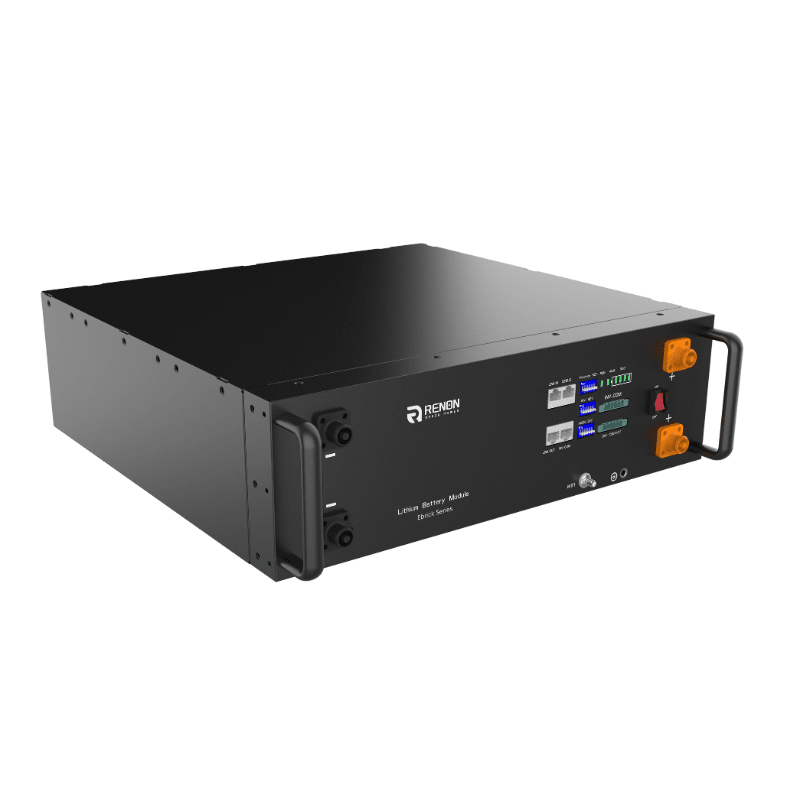

DIY-Friendly Rack Mount – 19" rack compatibility with front-facing terminals
-
Built-In Smart BMS – Monitors voltage, current & temperature in real time
-
Durable Construction – SPCC enclosure with sleek fine-textured black finish
-
Wide Operating Range – Performs in temps from -4°F to 122°F (-20°C to 50°C)
-
Low Self-Discharge – Maintains charge for up to 3 months without use
-
Smart Communication – Supports RS485, CAN, and Wi-Fi monitoring

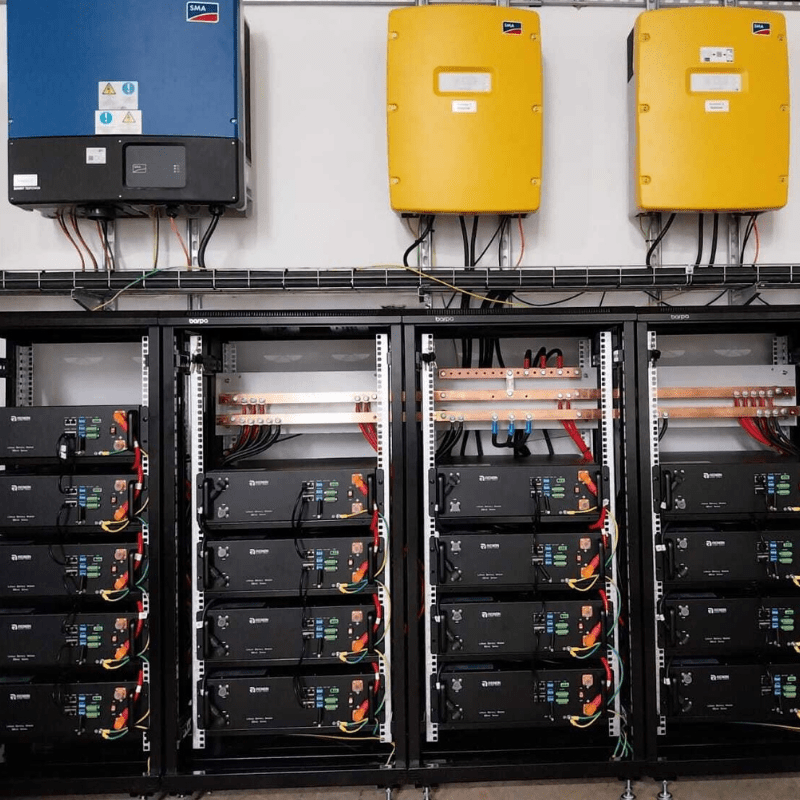

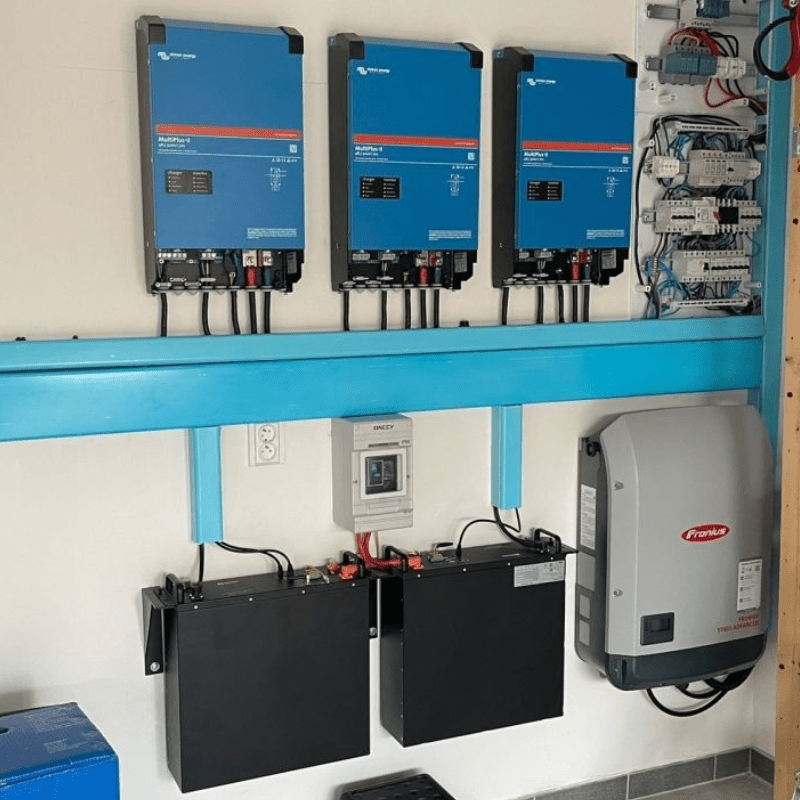

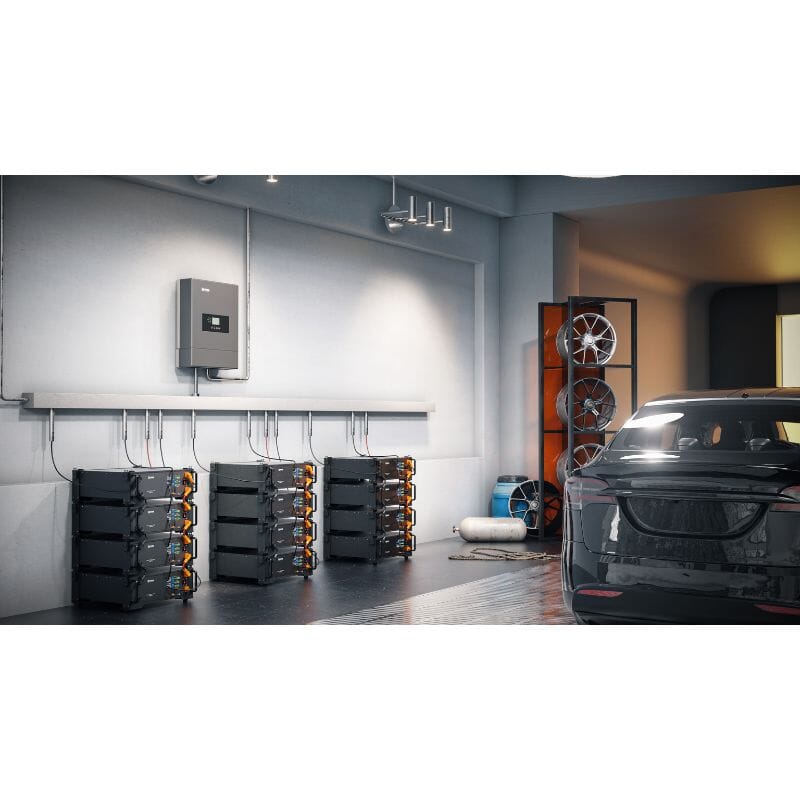

Ideal for expanding a residential solar setup or building a powerful off-grid system, the RENON EBrick combines safety, scalability, and long-term value in one sleek, plug-and-play battery.
User Manual:
- Battery Chemistry
- LiFePO4
- Nominal Energy (kWh)
- 5.12
- Nominal Capacity (Ah)
- 100
- Max. Charging/Discharging Current (A)
- 95
- Nominal Voltage (V)
- 51.2
- Recommend Charging Voltage (V)
- 56.8
- Max. Charging Voltage (V)
- 58.4
- Discharge Cut-off Voltage (V)
- 43.2
- Operation Temperature(℉/℃)
- Discharge: -4~122 / -20~50 Charge: 32~122 / 0~50
- Safety Function
- Over-charge, Over-discharge, Over-current, Low/High-temperature, Short-circuit Protections
- Parallel Capacity
- Maximum 31
- Communication
- RS485/CAN/Wi-Fi
- Weight (lbs/kg) (Approx.)
- 99/45
- without the rack mounting kit, handle, wiring terminal
- 17.3*16.5*5.2/440*420*132
- with the rack mounting kit, handle, wiring terminal
- 19.1*18.0*5.2/485*458*132
- Level of Protection
- IP20
- Cycle Life
- 8000 cycles @77℉(25℃),0.5C,80%DOD,80%EOL
- Designed Calendar Life
- 10 Years
