Complete Off-Grid Solar Kit - 2,400W 120V/24VDC [2.4-5.12kWh Battery Bank] + 4 x 200W Solar Panels | Off-Grid, Mobile, Backup [RPK-PLUS]

Current price $2,365
Original price $3,199
Translation missing: en.product_price.item.price.range_html
Original price $3,199
from $2,365
Current price $2,365
You Saved: $834 26%

Battery Bank: 1 x 100Ah 24V LiFePO4 - 2.56kWH
Request a Free Quote
truck
In Stock Get yours today!
truck
9+ sold In the last 7 days
truck
Free Shipping Get it between Wed, Jun 19 - Fri, Jun 21
truck
Free Returns Free Returns within 30 Days of Delivery

What's Included:

  • Ships from USA!

  • 1 x 2,400 Watt Pure Sine All-In-One Inverter Charger - 24VDC / 120V Output - 2-Year Warranty

  • 4 x 200 Watt Monocrystalline Solar Panels 12V - 25-Year Power Output Warranty

  • 1 x 100Ah 24V LiFePO4 Battery

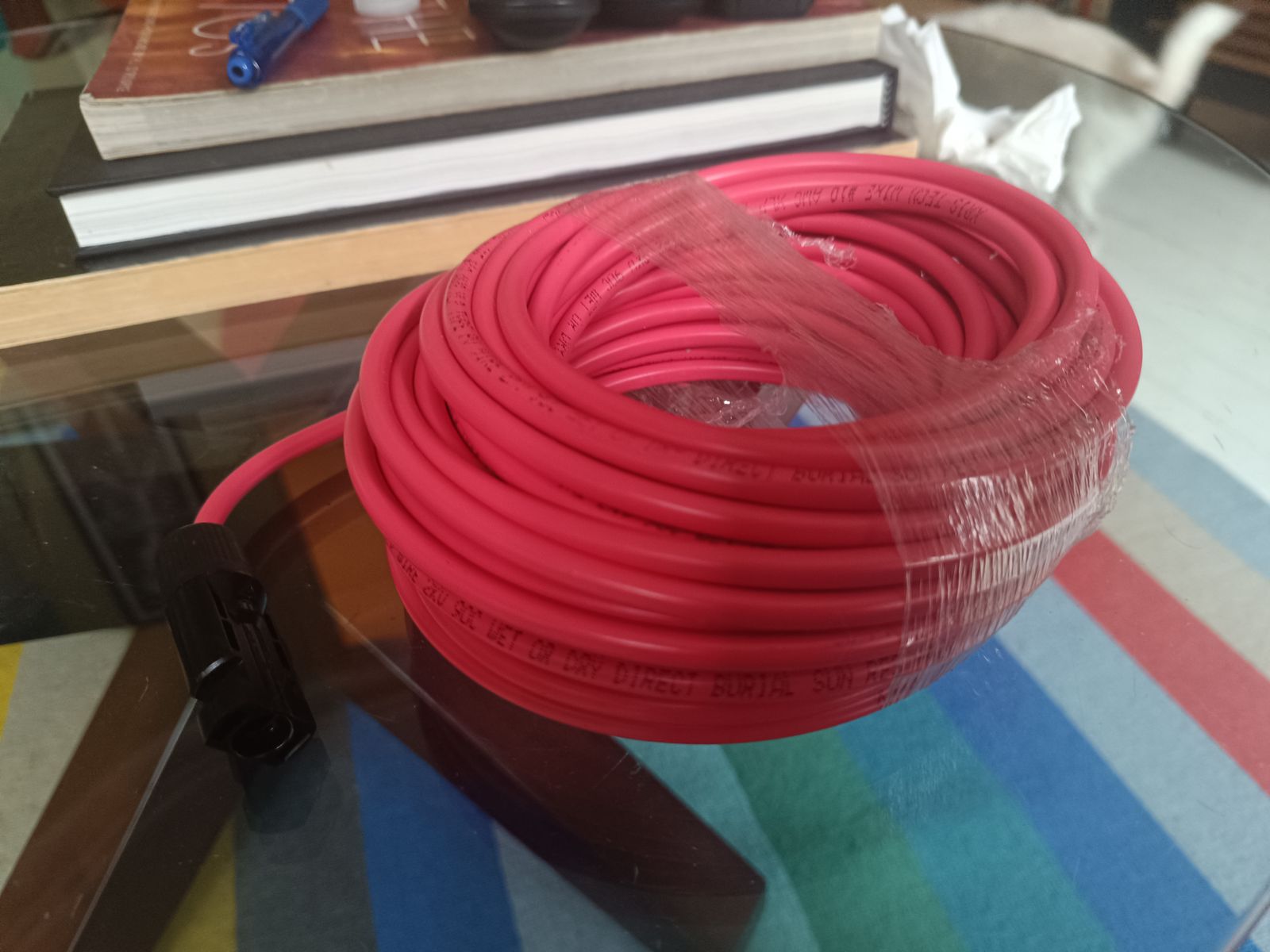

  • 1 x 50ft, 10AWG, PV Extension Cables, MC4, SET

  • 1 x 15A Inline Fuse MC4 Compatible

  • 1 x 150A Inline Fuse Kit

  • 4 x Solar Panel Z-bracket Sets

  • 1 x 2ft, 2AWG, Cables, Lug1/4" - Lug5/16", RED

  • 1 x 1ft, 2AWG, Cables, Lug5/16" - Lug5/16", RED

  • 1 x 3ft, 2AWG, Cables, Lug1/4" - Lug5/16", BLACK

  • 1 x 250A Busbar, Set

  • Fuse and Fuse Holders

  • Free Digital System Schematic / Wiring Diagram & Commissioning Guide

  • Guaranteed Lifetime Customer Support (Phone, Live Chat, Email)

Product Specifications:

Rich Solar RS-H2424
Max.PV Array Power 2400W
Maximum PV Array Open Circuit Voltage 145 VDC
MPPT Range @ Operating Voltage 30 VDC ~ 115 VDC
Number of MPP Tracker 1
Nominal Output Voltage 101/110/120 VAC
Rated Output Power 2400W / 3000VA
Output Waveform Pure Sine Wave
Efficiency (DC to AC) 90%
Dimension, D X W X H (in) 4.7 x 11.6 x 18.4
Net Weight (kgs) 11
24V 100Ah LiFePO4 Lithium Iron Phosphate Battery
Nominal Voltage 25.6V
Nominal Capacity(at .5C, 77°F) 100Ah
Minimum Capacity (at .5C, 77°F) 95Ah
Expected Cycle Life >3000 cycles w/1C charge and discharge rate, at 77°F, 80% DOD
Energy 2560 Watt Hours
Battery Dimensions 19.0″L x 6.7″W x 9.5″H
Weight 42.5 lb
200 Watt Solar Panels
Maximum Power(Pmax) 200W
Maximum Power Voltage(Vmp) 20.4V
Maximum Power Current(Imp) 9.80A
Open Circuit Voltage(Voc) 24.3V
Short Circuit Current(Isc) 10.2A
Maximum System Voltage(Vmax) 1000VDC
Temperature Range -40°C ~ 90°C
Dimensions 58.7 x 26.8 x 1.4 in
Weight 26.5 lbs
Warranty 25 Year
Solar Kit Specs
Max Continuous Output 2,400W
Max Solar Input 2000W
Total Wattage of Panels 800W
Total KWH of Batteries 2.56kWh
Wattage Per Panel 200W
# of Panels 4
System Voltage 24V
Chemistry Lithium
# of Batteries 1
Battery Weight 42.5lb per pc

Disclaimer: Each solar kit includes solar-specific equipment to get you started, but please keep in mind that you may need to purchase additional items like installation tools, grounding rods/wire, and any AC components you might need. We highly recommend bringing in a certified solar installer or master electrician to help with the installation process to ensure a safe and reliable system that meets all relevant codes and standards. Also, if you purchase a solar kit without solar panels, you will be responsible for ensuring the compatibility and configuration of your solar panel array. Each solar kit includes professionally designed schematics that work within the parameters of each inverter. There are minimum and maximum input voltages with each inverter that you will need to be aware of so that you do not damage your inverter and/or void your warranty.

average rating 4.9 out of 5
Based on 28 reviews
  • 5 Stars
    25 Reviews
  • 4 Stars
    2 Reviews
  • 3 Stars
    1 Review
  • 2 Stars
    0 Reviews
  • 1 Star
    0 Reviews
96% of reviewers would recommend this product to a friend
Quality
Rated 4 out of 5
Easy to Use
Rated 4 out of 5

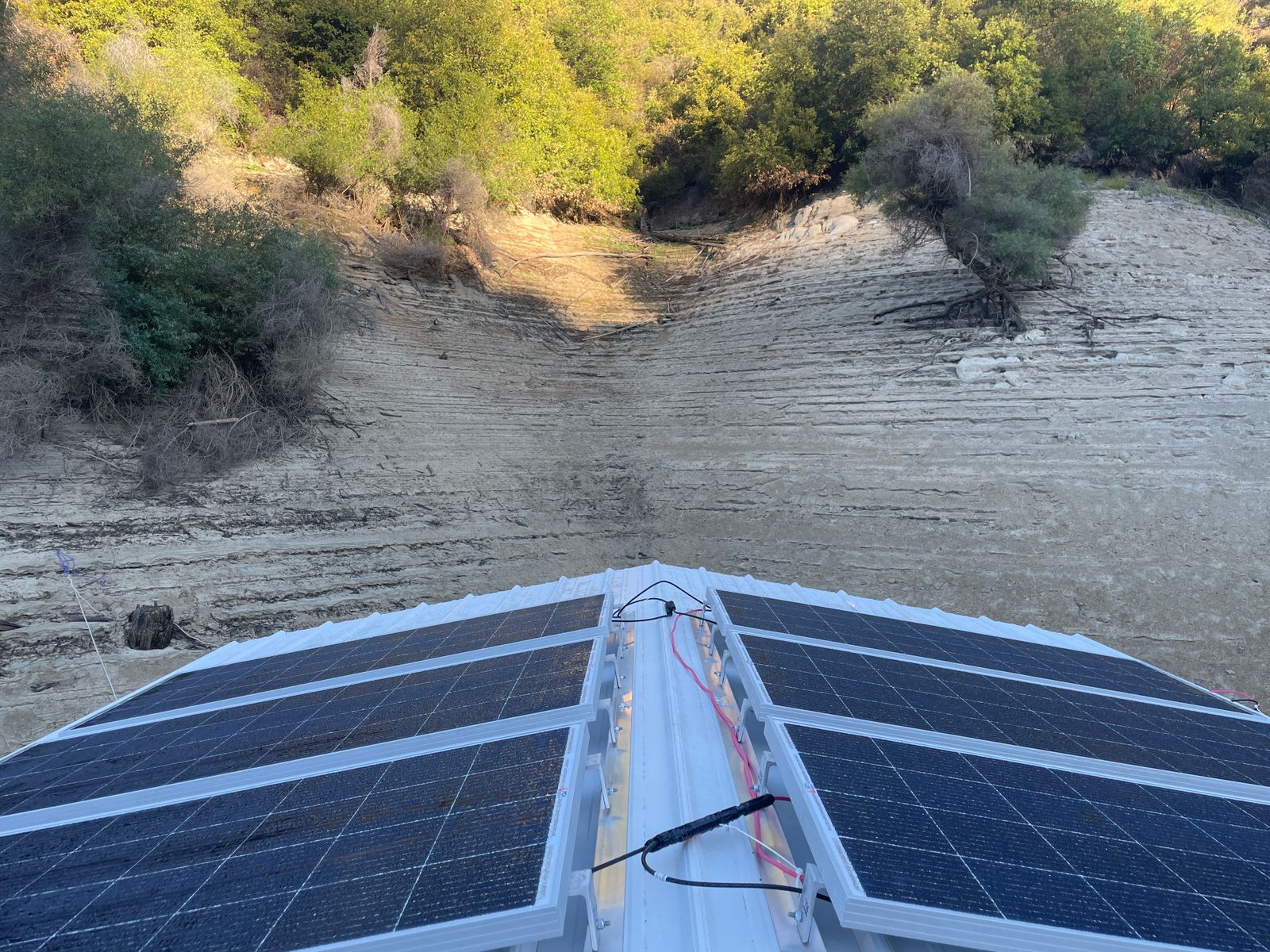

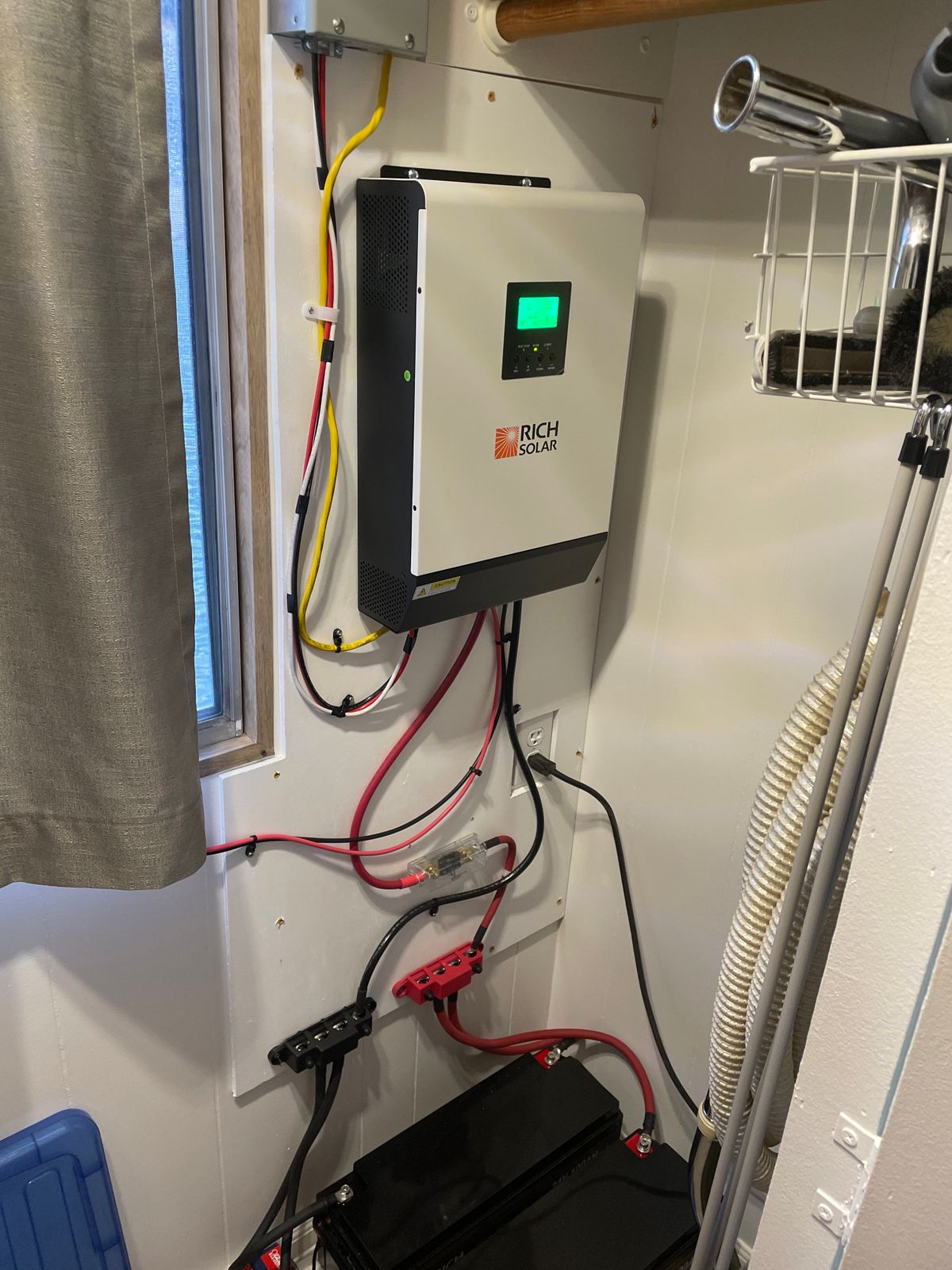

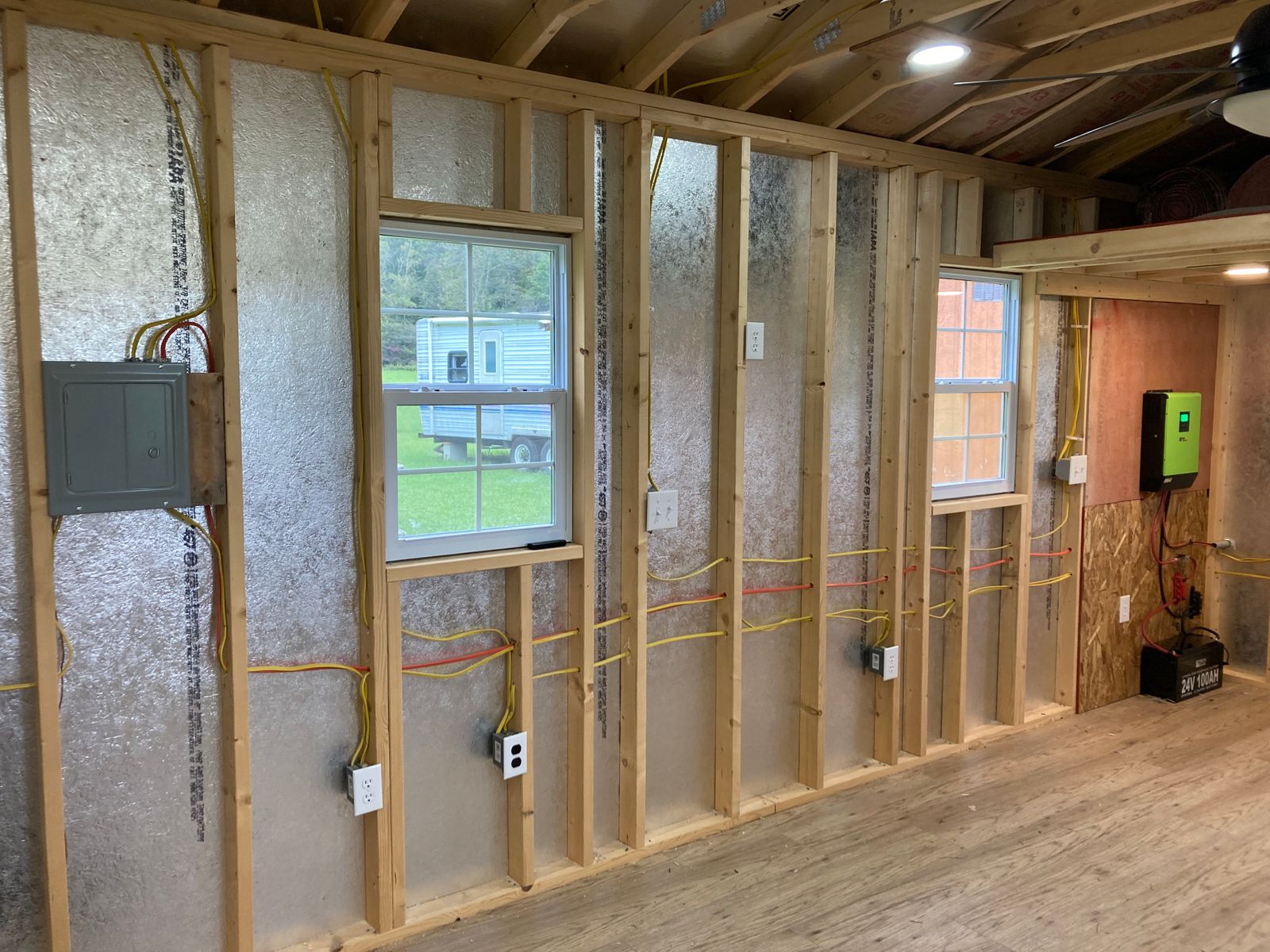

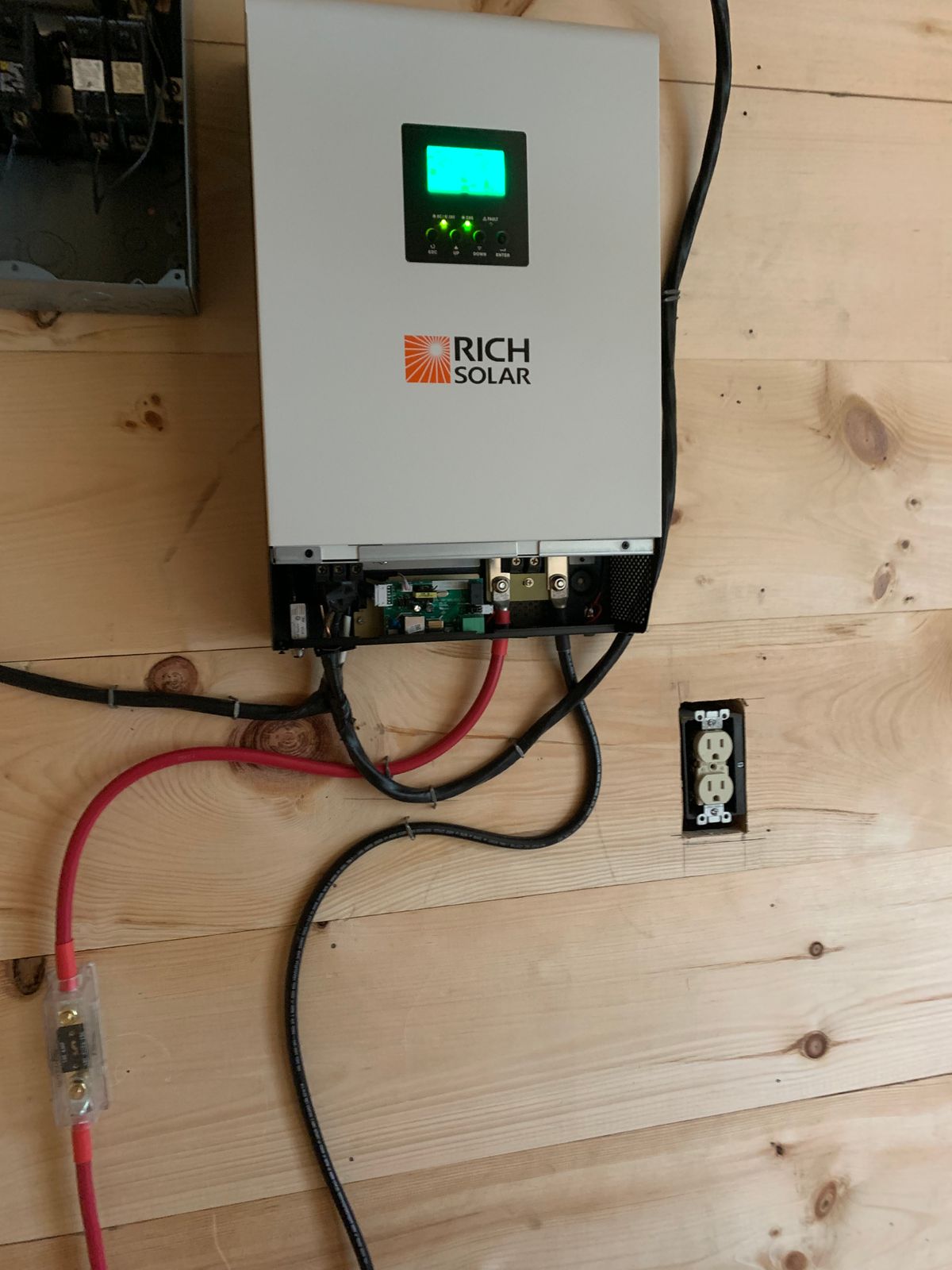

Customer photos and videos
28 Reviews
Reviewed by Patrick b.
Verified Buyer
I recommend this product
Age Range
55 - 64
Rated 5 out of 5
Review posted

High quality

All products were delivered in a timely fashion and inter-worked well

Loading...
Quality
Rated 5 out of 5
Easy to Use
Rated 4 out of 5
Was this helpful?
Reviewed by luis P.
Verified Buyer
I recommend this product
Age Range
55 - 64
Rated 5 out of 5
Review posted

Easy to install.

Fast shipping. Easy to set up. Product is as described,

Loading...
Quality
Rated 5 out of 5
Easy to Use
Rated 5 out of 5
Was this helpful?
Reviewed by Andre A.
Verified Reviewer
I recommend this product
Age Range
45 - 54
Rated 5 out of 5
Review posted

Service is impeccable and unmatched.

I am not reviewing any specific product here. I did that about 6 months ago when I purchased my off-grid kit. Product is very high quality, that goes without saying, but what's more important is the support and people there! I bought my kit about half a year ago. Due to TN laws I had to wait a long time to get a permit as I was installing it on the pole barn without main residence. When the crew finally got around to the installation they noticed one solar panel out of 8 was broken. I was devastated because NOBODY would replace the panel after so long. I pleaded with 'shopsolar'. They contacted the manufacturer, who naturally refused, stating that I should have unpacked and checked them upon receipt (my bad I didn't do it). 'ShopSolar' then took it upon themselves to make a one time exception and sent me another panel free of charge! WOW! Steve there was absolutely amazing - he followed my case all the way through and kept in tight contact. I run a large support organization of a fortune 200 company. I'd hire someone like Steve in a heart beat! Thank you guys at 'shopsolar'. You are amazing!

Loading...
Quality
Rated 5 out of 5
Easy to Use
Rated 5 out of 5
Was this helpful?
Reviewed by Johnny P.
Verified Buyer
I recommend this product
Age Range
45 - 54
Rated 5 out of 5
Review posted

Outdoor restroom

Bought 2 kits for outdoor restrooms on my golf course.

Work great , easy to set up with easy to follow instructions. Our golfers love that we went solar with them.

Fast shipment , durable equipment.

Can’t beat the price.

Loading...
Quality
Rated 5 out of 5
Easy to Use
Rated 5 out of 5
Was this helpful?
Reviewed by John M.
Verified Buyer
I recommend this product
Age Range
55 - 64
Rated 5 out of 5
Review posted

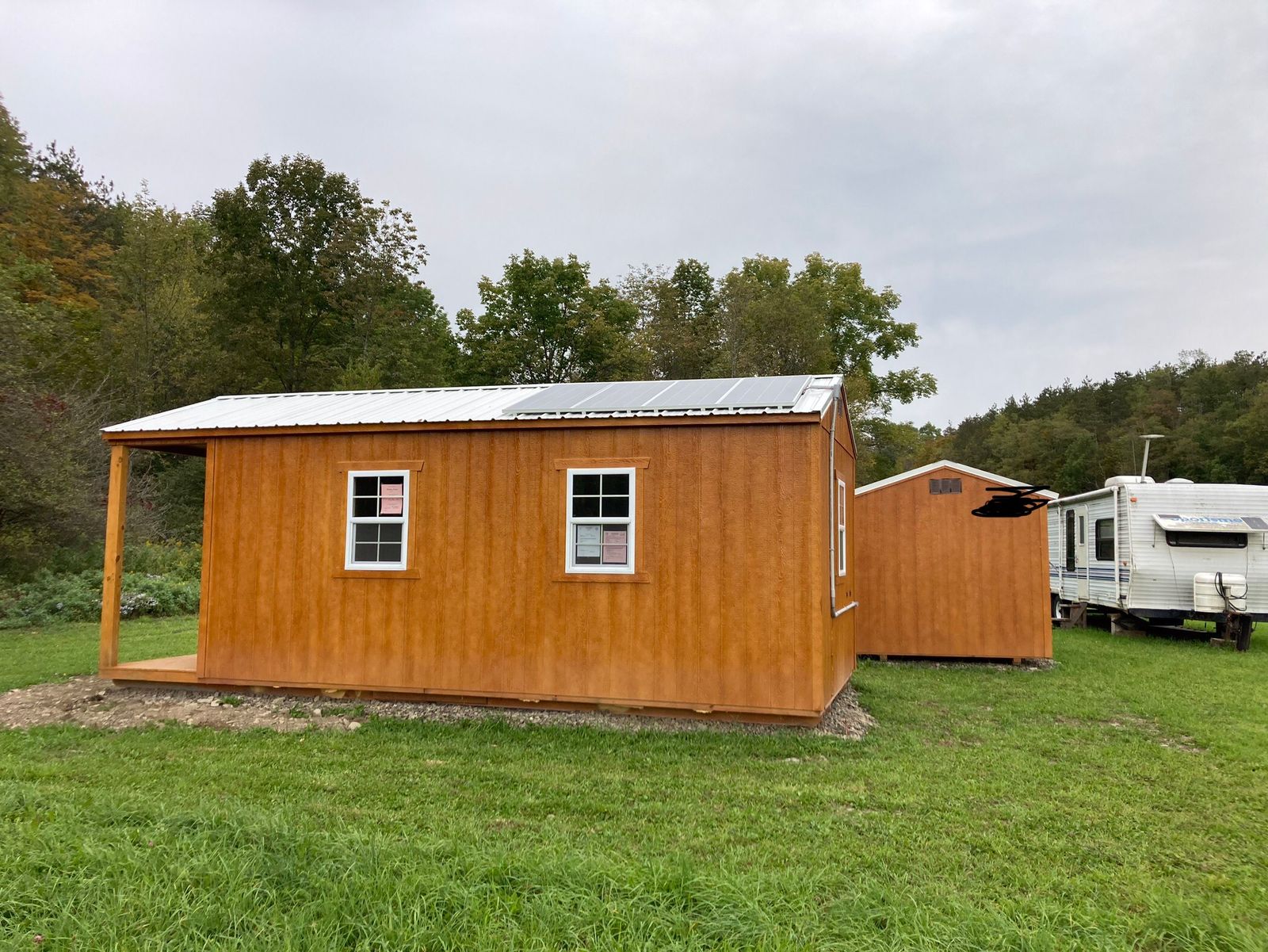

My off grid cabin

Very easy to install, nice to have everything you need from one source. I installed two generator inlets, one for the inverter panel and one for 2 black outlets for appliances that I might use, to leave the inverter for lights and microwave.

Loading...
Quality
Rated 5 out of 5
Easy to Use
Rated 5 out of 5
Was this helpful?
Reviewed by Thomas H.
Verified Buyer
I recommend this product
Rated 5 out of 5
Review posted

Fast, complete, great support

Bought the 800w kit (4x00w panels, 2.6kw hybrid converter/controller, 2x100ah LiFePO4 batteries.) Everything shipped right away and arrived intact. Easy set up and support was very helpful when I got stuck.

Loading...
Was this helpful?
Reviewed by Mike D.
Verified Buyer
I recommend this product
Age Range
65+
Rated 5 out of 5
Review posted

Backup solar power system

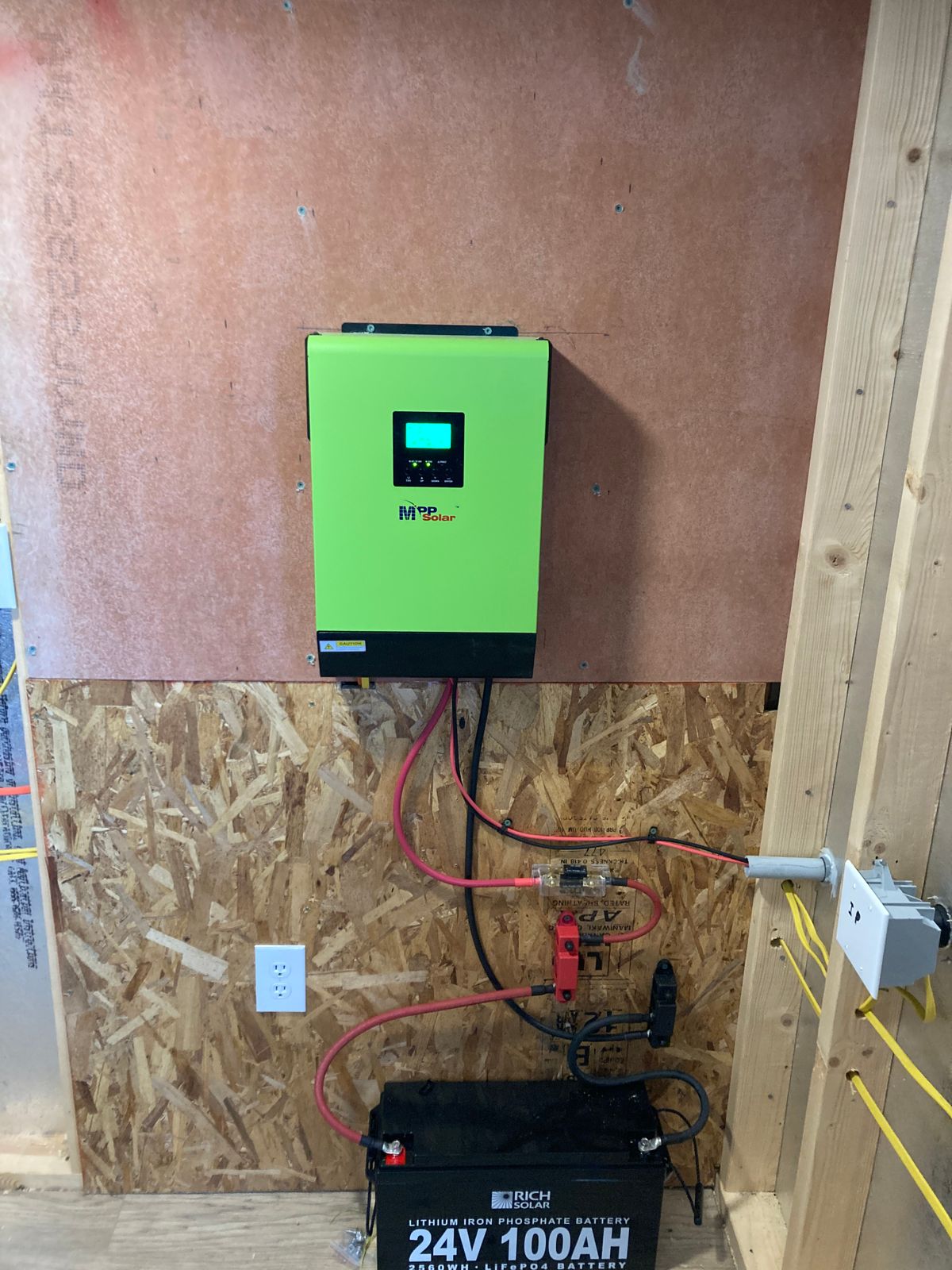

Very good and simple system centered around the MPP LV2424 inverter charge controller. I added a 5 th panel on my original order and recently ordered ace going to add 2 more panels. The design of the MPP LV2424 allows for expansion quite easily. Very happy with the system!

Loading...
Quality
Rated 5 out of 5
Easy to Use
Rated 5 out of 5
Was this helpful?
Reviewed by Lorin M.
Verified Buyer
I recommend this product
Age Range
65+
Rated 5 out of 5
Review posted

I think the system is great

Very good

Loading...
Quality
Rated 5 out of 5
Easy to Use
Rated 5 out of 5
Was this helpful?
Reviewed by Randy B.
Verified Buyer
I recommend this product
Age Range
55 - 64
Rated 5 out of 5
Review posted

Awesome experience.

It was a pleasure working with the people I got to speak with at SSK. Shipping was very fast.

Loading...
Quality
Rated 5 out of 5
Easy to Use
Rated 5 out of 5
Was this helpful?
Reviewed by Mike D.
Verified Buyer
I recommend this product
Age Range
65+
Rated 5 out of 5
Review posted

Back up solar kit

Haven't completed the install of this kit yet due to snow and cold weather. Panels are going to be mounted on top of a metal roof so have to wait for warmer weather to be safe. Have mounted the inverter, buss bars, battery cables, etc in the shed where the system is being located. Kit is very complete and satisfied with everything so far. Will update when weather permits.

Loading...
Quality
Rated 5 out of 5
Easy to Use
Rated 5 out of 5
Was this helpful?

What warranty is included with this solar kit?

When you buy this solar kit, you are covered by the full manufacturer warranties on each component. Plus, you’ll receive our lifetime customer and technical support.

Can I expand this system in the future?

Yes, you can easily add more solar panels and batteries. You can even stack another inverter if you need more output. Every area of this kit is expandable.

What solar panels are included with this kit?

You'll receive 200W monocrystalline solar panels from one of the leading brands in the solar industry. Backed by a minimum 25-Year power output warranty. We do our best to source all of our solar panels from North America, Mexico or Vietnam. Most popular brands we carry are Aptos, Phono, Mission and SolarEver.

How long will my battery bank last?

You'll be covered by a 10-year warranty on the lithium option and 5-year on AGM. The LFP batteries mea it's rated for up to 6,000 lifecycles (15+ years of daily use). To calculate daily run times, divide the total battery bank watt hours by your average load in watts to get rough hours of run time.

Can I install this system myself?

We've created the kits for absolute simplicity. That said, we highly recommend getting the help of a professional installer / certified electrician. You should plan on potential costs associated with this as well.

Can this kit handle a well-pump and/or other 240V appliances?

This kit comes standard with 120V output. So it cannot run 240V appliances the way it is. That said, you can add another inverter in the future to get 240V output.

What sort of solar panel racking is included?

We include pre-drilled frames on the solar panels along with standard z-brackets to make mounting the panels to the structure of your choosing as easy as possible. Most of our customers make their own racking systems using locally sourced UniStrut or add one of our ground racks to your order.

Can I use a generator or the grid to charge my battery bank if needed?

Absolutely. Your inverter comes ready to go with an AC input where you can hook up a stand by generator for charging the batteries on cloudy days or at night if needed. You can also use the grid as the AC input source if it's available.

Can I sell power back to the grid with this system?

No you cannot. However, most people who buy this kit are looking to gain power and grid independence and opt for storing or using any excess power they may have!

How big is all of this? How much space do I need?

The solar panels will come individually boxed and can be left inside or outside. All together you'll need a good corner of a garage or a spare bedroom worth of space for storing all of the equipment before installing it.

Where is this equipment made?

We do our best to source as much product from North America as possible. Our solar panels are USA, Mexico or Vietnam and most of our batteries and inverters are designed and assembled in the USA.

Do the batteries need to be inside or outside? Does it matter?

Lithium batteries like to be around the same temperature as humans. They also like a temperature controlled environment. So putting them in a garage that is 40F' in the morning and 110F' in the afternoon is NOT ideal. They'd prefer to be in a basement that sits somewhere around 60F-90F on a consistent basis. That said, lithium batteries can be used when below 32F' but not charged unless they are above 32F'

Do I need to buy anything else?

You'll have everything you need to get up and running with our kits. That said, you will want to plan on a trip to the hardware store to buy any necessary installation tools, ground rods and wire as well as UniStrut if needed for mounting the solar panels. Outside of this, you'll be getting all of the most important components in your kit!

How long will it take for me to get my kit after ordering?

If you're in the lower 48 states we do our best to get you your order within 5-15 business days. Recently with the incredible demand for products, our delivery times to customer's door are averaging around 9-12 business days. You will receive your tracking numbers as soon as they are available.

How much does shipping cost?

Shipping is calculated at checkout. You'll get lowest possible shipping rates when you buy from ShopSolarKits.com. You can also reach out to us here and inquire about shipping, or just give us a call 877-242-2792.

Will I be able to track my order and deliveries?

You will receive your tracking numbers via email and/or text message as soon as they are available. So please make sure you use a good Email address when ordering or a phone number that can receive text messages for your your tracking information. Also, please expect to receive multiple deliveries and packages as we ship from multiple warehouses to keep costs down.

What's Your Return Policy?

We try and keep returns simple and easy. We do not charge restocking or return fees. That said, if you decide to return it because you no longer want it, you'll just pay return shipping. If something arrives damaged, we'll cover all of the costs to get you a properly working product.

What happens if stuff arrives damaged?

We stand behind what we sell and we'll take care of the costs of getting you a new working product. Just reach out to us if this happens and we will get you all taken care of.

Does the kit come with a wiring diagram/setup guide?

Yes, you'll get our 3-page setup diagram and instruction manual along with all of the manufactuer guides and user manuals. We've also created the SolarHub which you get lifetime access to when you order from us.

Where do you ship from?

We have 3 main distribution centers (CA, TX, NY) along with suppliers across the US. We ship from multiple different warehouses in order to try and keep costs as low as possible for our customers.

Do you offer financing?

Yes we do! We have 2 financing options which you can learn more about if you keep scrolling down this page.

What sort of after-sale customer support do you offer?

You can reach us Monday to Friday via phone, live chat or email. You'll also get free, lifetime access to the industry leading "Solar Hub" - Where you'll find all of our diagrams, installation manuals, troubleshooting guides and more!

Can I qualify for the 30% federal tax credit if I order this kit?

Yes, if you order this solar kit and install it before the end of the year, you may be eligible to claim 30% of its cost as a credit on your federal tax return. This is made possible by the Solar Investment Tax Credit (ITC), which is part of the Inflation Reduction Act. We recommend consulting a tax professional to make sure you’re eligible to receive the federal solar tax credit.
