MRCOOL · Appliances
SKU: EZPRO-24-HP-23016D-O

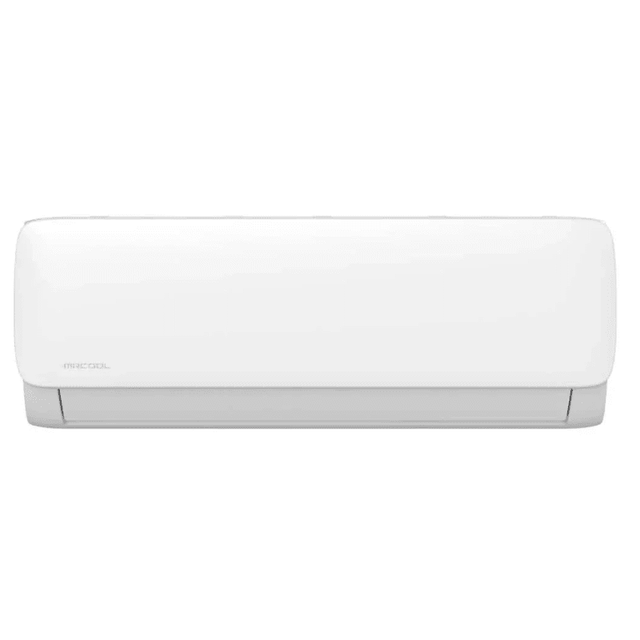

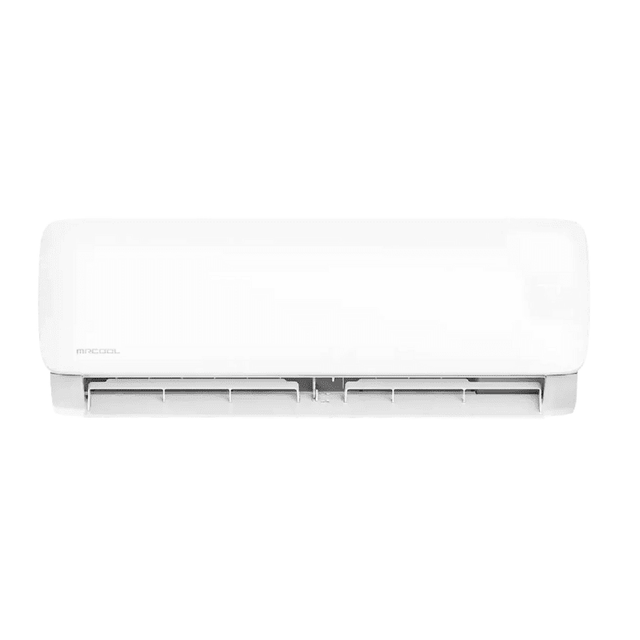

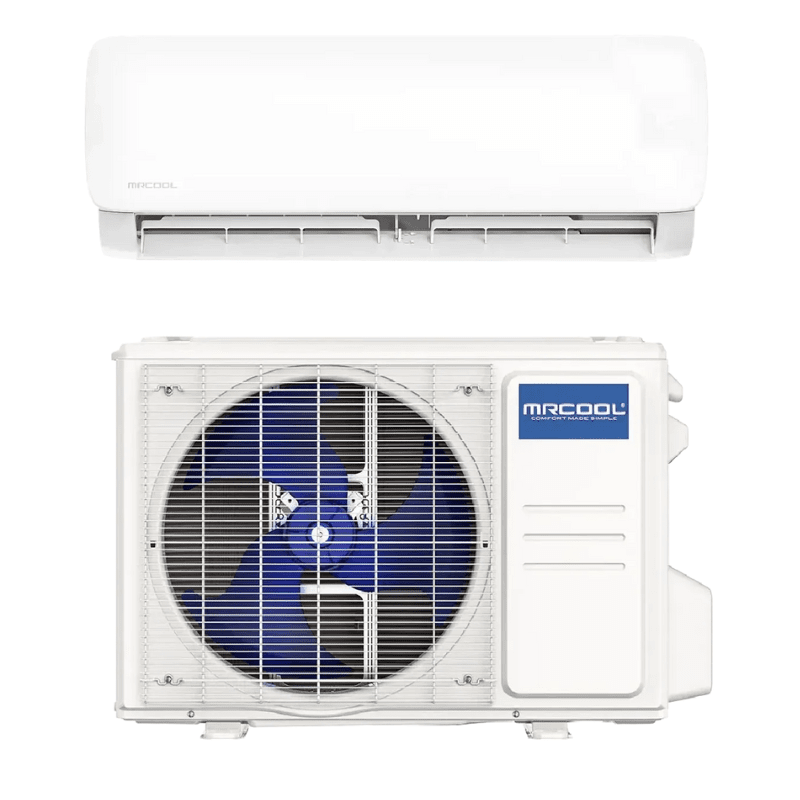

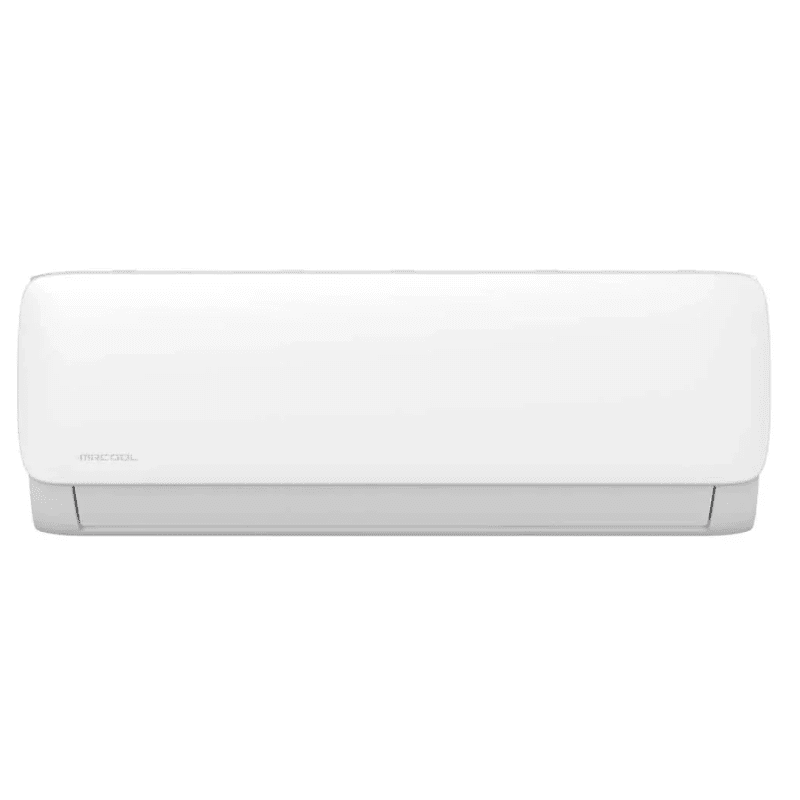

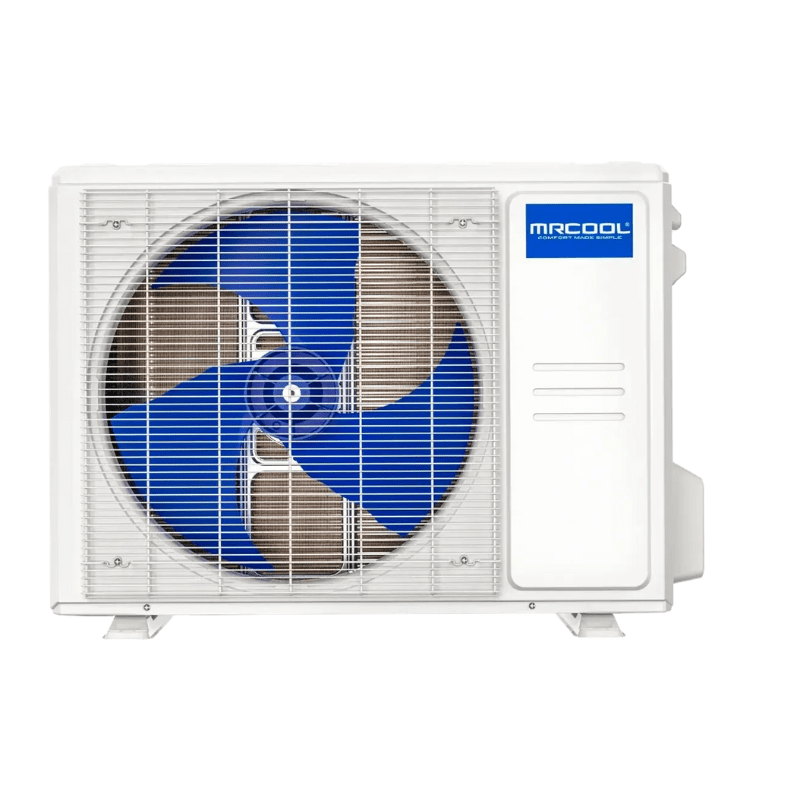

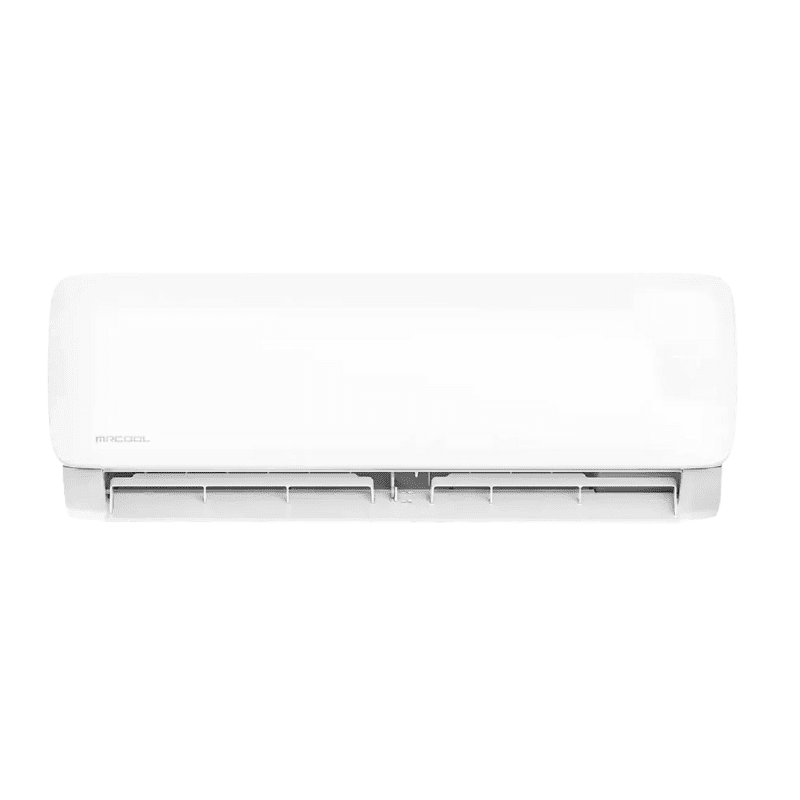

MRCOOL EasyPro 24K DIY Mini Split
Stay cool in summer and warm in winter — without hiring a contractor. The MRCOOL EasyPro™ 24K BTU 5th Gen DIY Mini Split delivers powerful heating and cooling for up to 1,050 sq.
- Regular price
- $2,149.00
- Sale price
- $2,149.00
- Regular price
-
$2,868.00
Questions before you buy?
Call 877-242-2792 and we’ll work it out with you. Mon–Thu 10am–5:30pm, Fri 10am–1pm EST.
Frequently bought together
Specifications
The details.
Stay cool in summer and warm in winter — without hiring a contractor. The MRCOOL EasyPro™ 24K BTU 5th Gen DIY Mini Split delivers powerful heating and cooling for up to 1,050 sq. ft., with everything you need for easy, professional-grade installation.
Perfect for garages, bonus rooms, basements, and more, this all-in-one system combines quiet operation, smart control, and serious energy savings — no HVAC license required.
Key Features & Benefits:
-

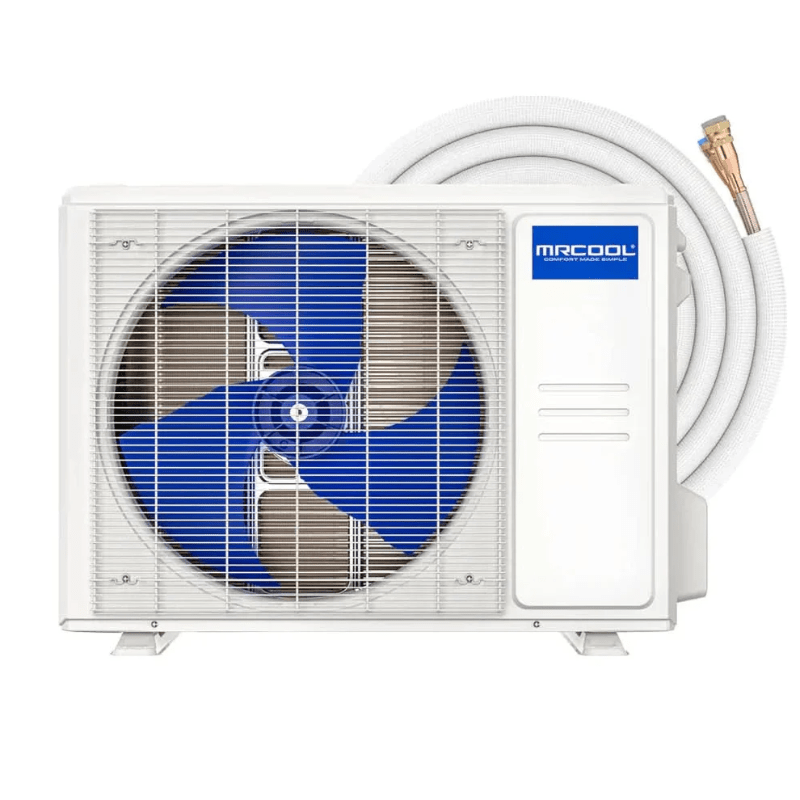

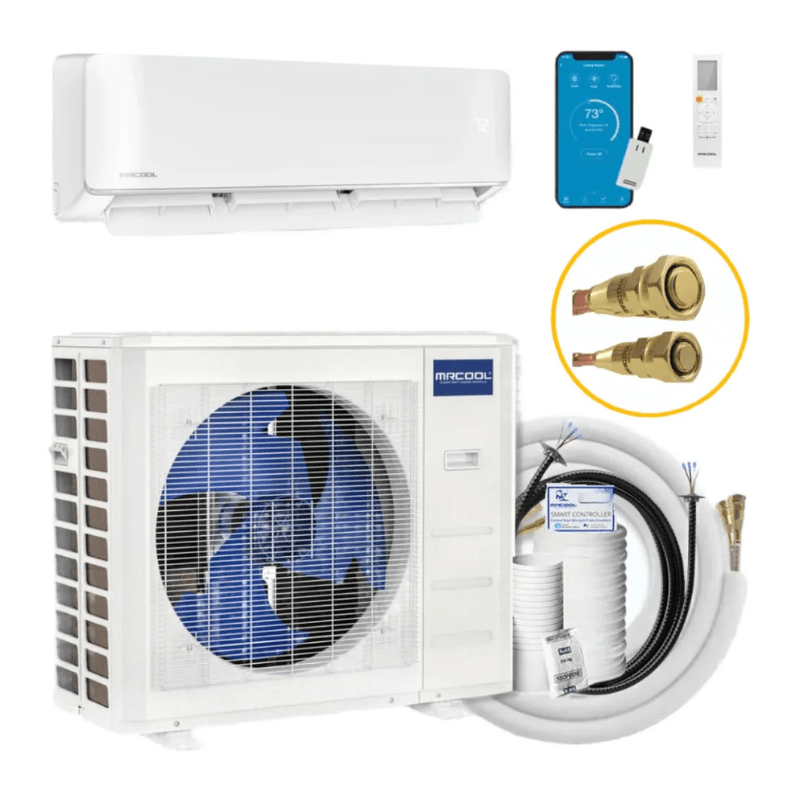

Easy DIY Installation – Includes 16 ft. pre-charged Fast Connection® line set with Quick Connect® fittings — no vacuum pump needed.
-
Efficient Year-Round Comfort – 24,000 BTU cooling / 25,000 BTU heating for spaces up to 1,050 sq. ft.
-
High SEER2 Rating – Energy-efficient with 18.9 SEER2 and 8.7 HSPF2-4, helping cut utility bills.
-
Smart WiFi Controls – Control via MRCOOL app or voice using Alexa and Google Assistant.
-
Follow Me + Sleep Mode – Personalized comfort features for smarter temperature management.
-
Ultra-Quiet Operation – Runs at just 54–61 dB(A) — ideal for bedrooms, home offices, and more.
-
Low Ambient Cooling – Keeps cooling down to 5°F — perfect for all-season use.
-
Corrosion-Resistant Gold Fin® Coating – Built for long-lasting durability, even in coastal climates.
-
Eco-Friendly R-454B Refrigerant – Low-GWP alternative to R-410A.
-
Certified Performance – AHRI Certified, NEEP Listed, CEE Tier 1 North Compliant.
-
Backed by Warranty – Includes 2-Year Compressor and 1-Year Parts Warranty upon registration.
User Manual / Documents:
- MRCOOL EasyPro 24K BTU 5th Gen DIY Mini Split System Brochure
- MRCOOL EasyPro 24K BTU 5th Gen DIY Mini Split System Installation Manual
- MRCOOL EasyPro 24K BTU 5th Gen DIY Mini Split System Remote Manual
- MRCOOL EasyPro 24K BTU 5th Gen DIY Mini Split System Service Manual
- MRCOOL EasyPro 24K BTU 5th Gen DIY Mini Split System Accessories Manual
- BRAND NAME
- MRCOOL
- SERIES
- EasyPro 5th Gen
- GTIN
- 00840255586757
- UPC
- 840255586757
- UNIT TYPE
- Mini-Split
- EQUIPMENT TYPE
- Condenser
- SHORT DESCRIPTION
- EasyPro 5th Generation 24k BTU 230V Condenser
- SEER2
- 18.9
- EER2
- 9.7
- HSPF2-4
- 8.7
- HSPF2-5
- 6.9
- TONNAGE
- 2
- COOLING CAPACITY (BTU)
- 24000
- HEATING CAPACITY (BTU)
- 25000
- VOLTAGE (V)
- 208/230
- PHASE
- 1
- CYCLE
- 60
- MAX FUSE BREAKER (A)
- 20
- MIN CIRCUIT AMPACITY (A)
- 19
- COLOR
- White
- ZONE CAPACITY
- 1
- REFRIGERANT TYPE
- R-454B
- REFRIGERANT VOLUME (OZ)
- 50.44
- DECIBEL RATING HIGH (DBA)
- 61
- INVERTER
- DC
- MIN AMBIENT COOL (F)
- 5
- LINESET INCLUDED
- Yes
- LINE SET LENGTH
- 16ft
- MAX LINESET LENGTH (FT)
- 164
- LIQUID LINE SIZE
- 3/8
- SUCTION LINE SIZE
- 5/8
- COMPRESSOR MOTOR TYPE
- Rotary
- WORKS WITH IOS
- Yes
- WORKS WITH ANDROID
- Yes
- UL LISTED
- Yes
- CSA LISTED
- Yes
- ETL LISTED
- Yes
- AHRI CERTIFIED
- Yes
- REGISTERED WARRANTY
- Extended Limited Lifetime*
- BASE PARTS WARRANTY
- 1 Year
- BASE COMPRESSOR WARRANTY
- 2 Years
- CONTAINS CHEMICALS
- Yes
- CONTAINS COMPRESSED GAS
- Yes
- PROPOSITION 65 WARNING
- Yes
- NET DEPTH (IN)
- 13.46
- NET HEIGHT (IN)
- 26.5
- NET WIDTH (IN)
- 35.04
- NET WEIGHT (LBS)
- 95.9
- GROSS DEPTH (IN)
- 15.67
- GROSS HEIGHT (IN)
- 29.13
- GROSS WIDTH (IN)
- 39.17
- GROSS WEIGHT (LBS)
- 117.73
