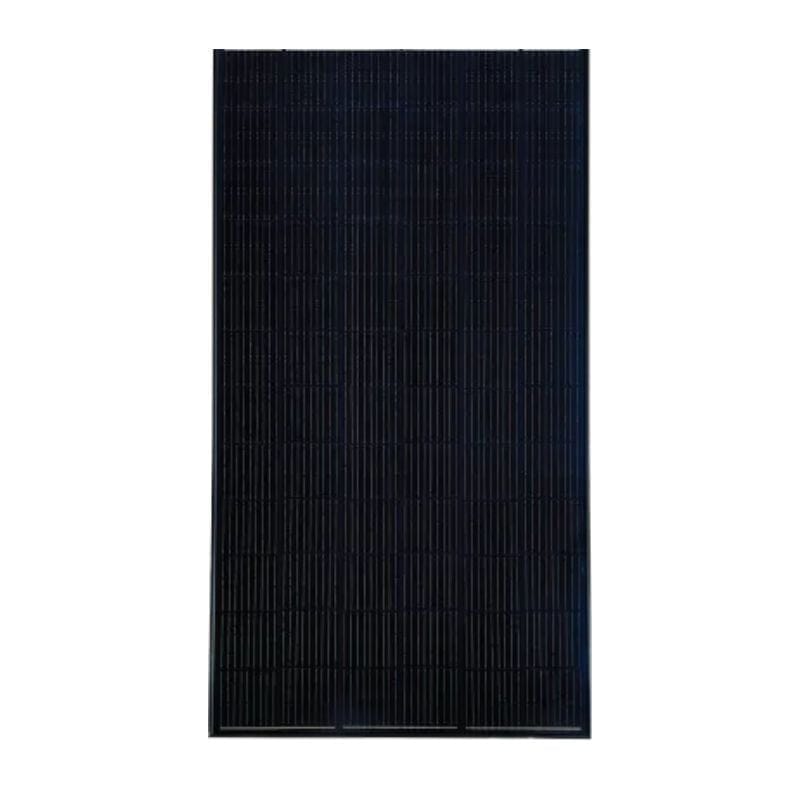

Mission Solar 395 Watt

Mission Solar Energy is headquartered in San Antonio, Texas where we manufacture our modules, Mission Solar 395 Watt. We produce American, high-quality solar modules ensuring the highest-in-class power output and best-in-class reliability. Our product line is tailored for residential, commercial and utility applications. Every Mission Solar Energy solar module is certified and surpasses industry standard regulations, proving excellent performance over the long term.

HIGH-POWER OUTPUT

The MSE PERC 66 has the highest power output in its class. It is well suited for residential, commercial, and utility applications. It features PERC and nine busbar advanced technology driving 19.35% module efficiency. The MSE PERC 66 is Buy American Act and American Recovery and Reinvestment Act compliant.

GAIN MORE WITH PERC TECHNOLOGY

The PERC 66 features PERC technology which allows for more energy generation than traditional solar panels. With PERC, a “passivation layer” is added to the rear of the cell so light can be better captured throughout the cell. This layer also has reflective properties that allows light to bounce off the passivation layer and elsewhere into the cell. This produces additional energy (see illustration). The more power a module produces, the more money you save.

LONG-TERM RELIABILITY

Our modules offer an industry leading 25-year performance warranty independently backed by Powerguard’s third-party insurance and a 12-year product warranty. Mission Solar Energy is dedicated to quality, safety and reliability to ensure you get the very best.

PERC 66 ADVANTAGES

• Certified Reliability - Tested to UL1703 & IEC standards. PID Resistant
• Advanced Technology - PERC and 9 busbar drive >18% module efficiency. Ideal for all applications
• Extreme Weather Resilience - 5631 Pa snow load (117 psf) tested load to UL1703. 185 mph wind rating*
• BAA Compliant - Buy American Act and American Recovery & Reinvestment Act

Demand the best. Demand Mission Solar Energy.

Certified Reliability

• Tested to UL 61730 & IEC Standards
• PID resistant
• Resistance to salt mist corrosion

Advanced Technology

• 9 Busbar
• Passivated Emitter Rear Contact
• Ideal for all applications

Extreme Weather Resilience

• Up to 5,400 Pa front load & 3,600 Pa back load
• Tested load to UL 61730 • 40 mm frame

BAA Compliant for Government Projects

• Buy American Act
• American Recovery & Reinvestment Act

Mission Solar 395 Watt Specifications

• Solar Cells P-type mono-crystalline silicon
• Cell Orientation 66 cells (6x11)
• Module Dimension 1,907mm x 1,054mm x 40mm
• Weight 48.5 lbs. (22 kg)
• Front Glass 3.2mm tempered, low-iron, anti-reflective
• Frame 40mm Anodized
• Encapsulant Ethylene vinyl acetate (EVA)
• Junction Box Protection class IP67 with 3 bypass-diodes
• Cable 1.2m, Wire 4mm2 (12AWG)
• Connector Staubli PV-KBT4/6II-UR and PV-KST4/6II-UR, MC4, Renhe 05-8
• Maximum System Voltage 1,000Vdc
• Operating Temperature Range -40°F to 185°F (-40°C to +85°C)
• Maximum Series Fuse Rating 20A
• Fire Safety Classification Type 1*
• Front & Back Load (UL Standard) Up to 5,400 Pa front and 3,600 Pa back load, Tested to UL 61730
• Hail Safety Impact Velocity 25mm at 23 m/s

Still have questions? Give us a call at 877-242-2792
