In Stock
SKU LPK-MAX-100-LFP-R
by LPK

Complete Solar Panel Kit - 2,000W Pure Sine Inverter + [12V Battery Bank] + 4 x 200W Mono Solar Panels | Off-Grid, Mobile, Backup [LPK-MAX]

Current price $2,339
Original price $2,899
Translation missing: en.product_price.item.price.range_html
Original price $2,899
from $2,339
Current price $2,339
You Saved: $560 19%

Battery Bank: 2 x 100ah Lithium [2.56kWh]
Solar Panel: 4 x 200W Rigid Solar Panels
Request a Free Quote
truck
In Stock Get yours today!
truck
12+ sold In the last 7 days
truck
Free Returns Free Returns within 30 Days of Delivery

What's Included:

  • Ships from USA!

  • 1 x 2,000W 12V Pure Sine Inverter - 120V Output - 2-Year Warranty

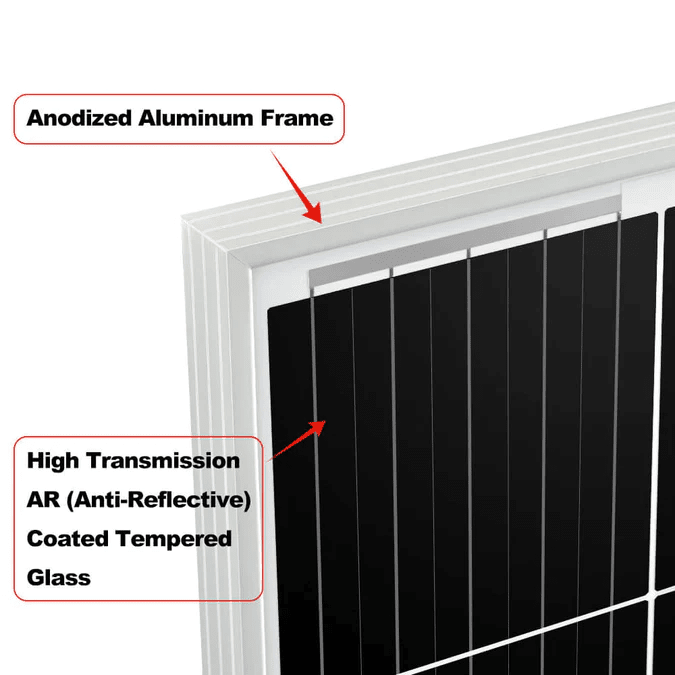

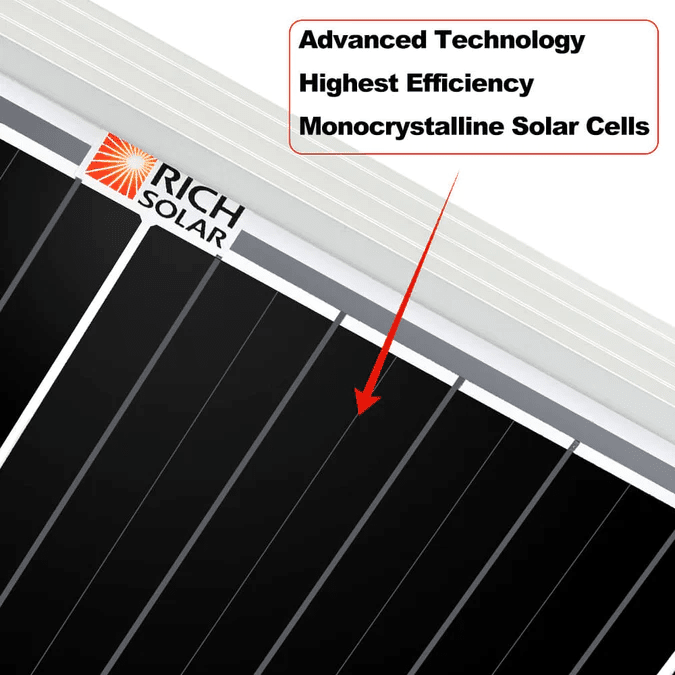

  • 4 x 200 Watt Monocrystalline Solar Panels 12V - 25-Year Power Output Warranty

  • 2 x 100AH 12V LiFePO4 Lithium Iron Phosphate Battery Bank- 12-Month Warranty

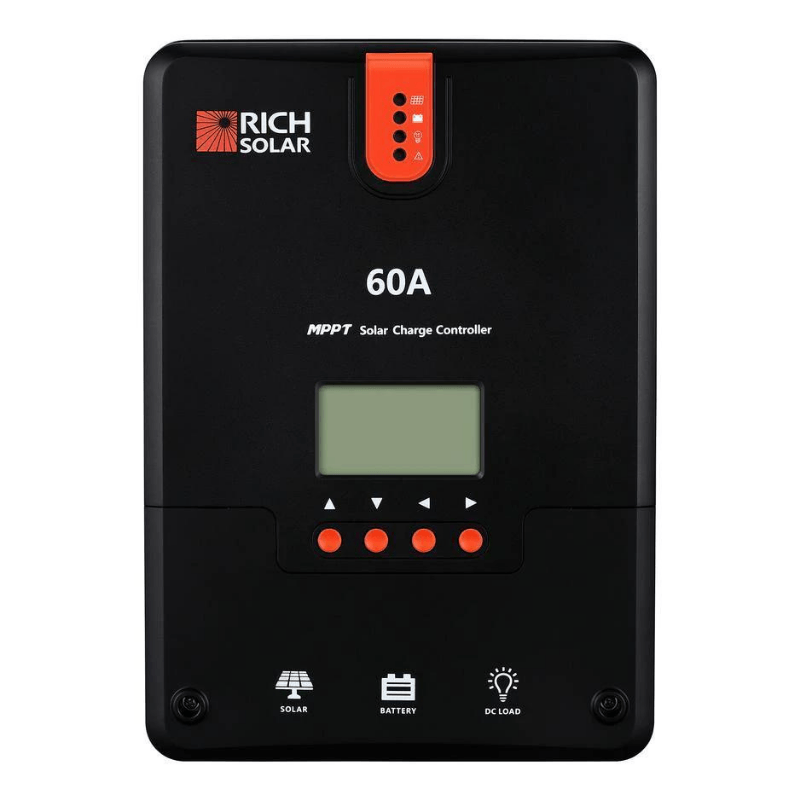

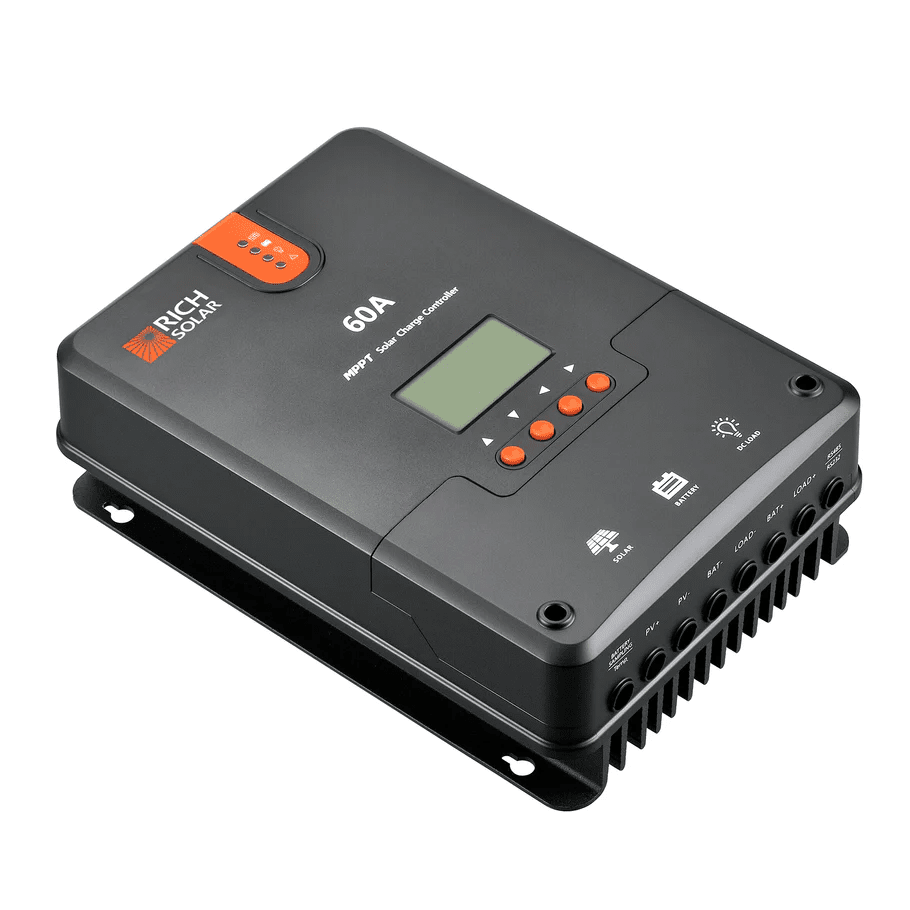

  • 1 x 60A MPPT Solar Charge Controller

  • 1 x 10AWG Solar Extension Cables PV, approx. 50ft, Set

  • 1 x 4AWG Charge Controller Cable, approx. 4ft, Set

  • 1 x 1/0AWG Inverter Cable, approx. 3ft, Set

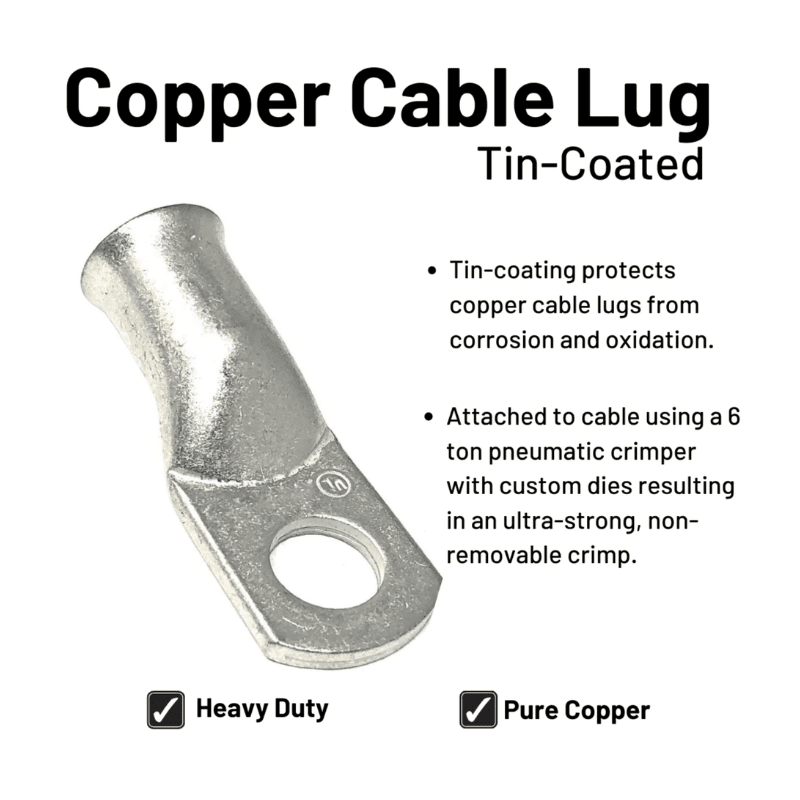

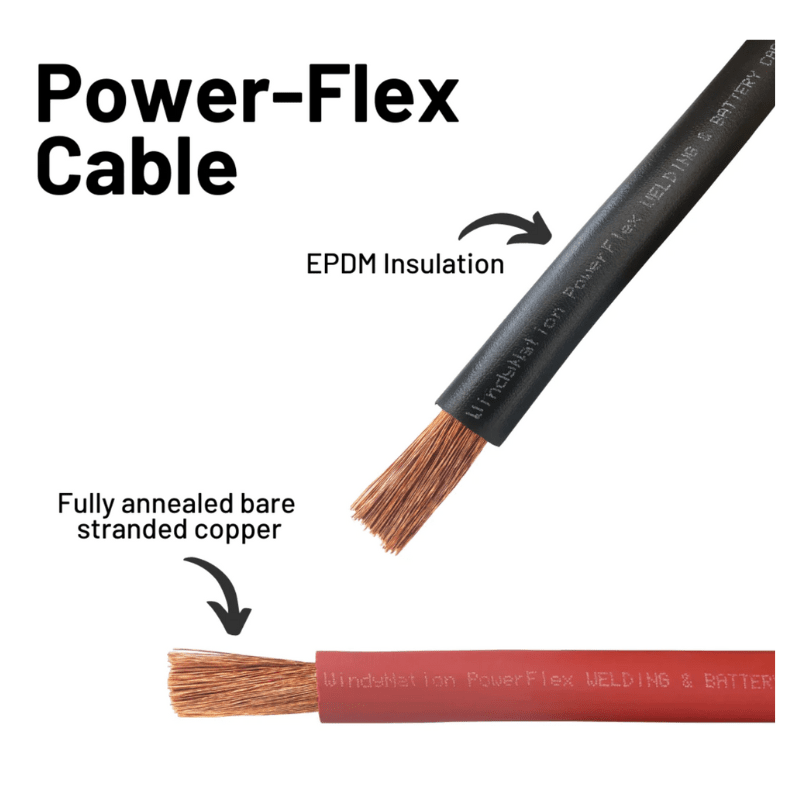

  • 4 x 2/0AWG Battery Cable, approx. 3ft, Set

  • Note: 1ft Red cables are jumper cables for Charge controller and Inverter.

  • 1 x 250Amp Bus Bar

  • Fuse and Fuse Holders

  • 1 x Entry Gland

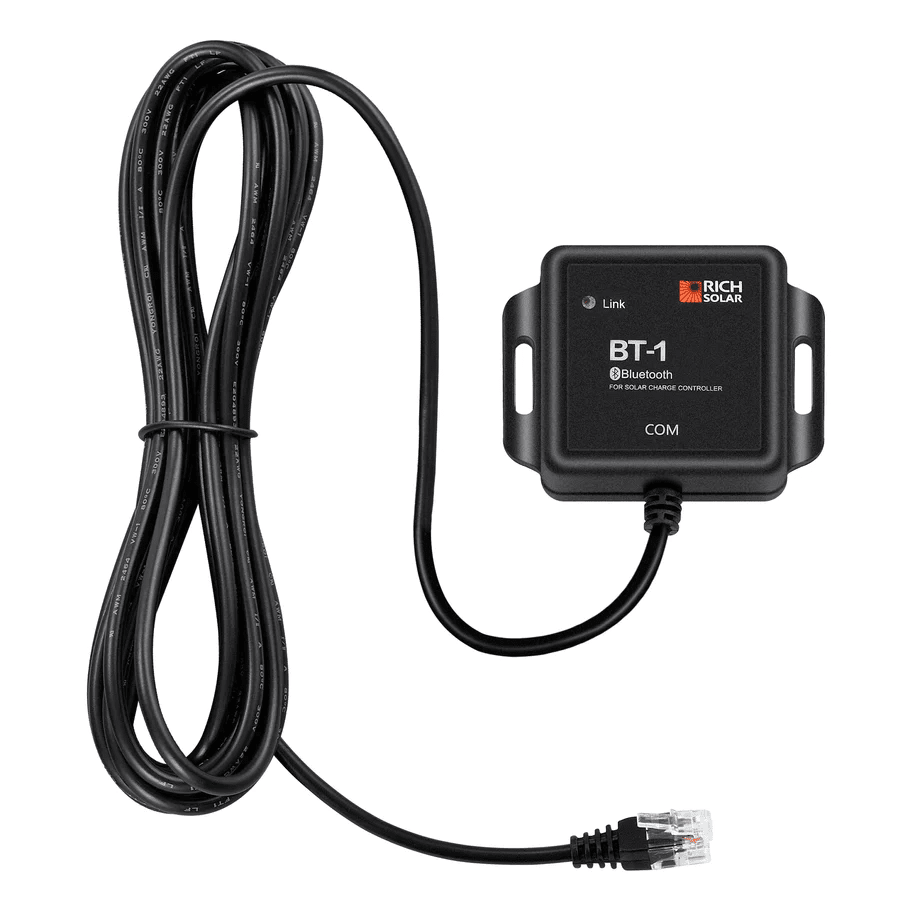

  • 1 x Bt-1 Bluetooth Module

  • 4 x Solar Panel Z-Bracket Sets

  • 1 x Free System Schematic / Wiring Diagram & Commissioning Guide

  • Guaranteed Lifetime Customer Support (Phone, Email, Live Chat)

Product Specifications:

2,000W Power Inverter
Continuous Output Power 2,000 Watts
Surge Rating 4,000 Watts (20 Seconds)
Input DC 12V
Output 100 – 120V AC 60HZ
Standard 120V AC Wall Outlets 2
With remote control function / LCD display Yes
Warranty 2 years
Max Series Fuse Rating 15A
Parallel Stacking No
Dimension 58.7 x 26.8 x 1.4 in
Weight 26.5 lbs
100Ah Lithium Battery
Capacity 100Ah
Charge Voltage 12.8V
Maximum charging current 50A
Max. Discharge Current 100A
Useable Capacity 1280wH
Type Lithium
Discharge 8V =/- 0.5V
Dimensions 12.8L x 6.6W x 8.5H
Weight 21.8 lbs
Warranty 3 years
LPK-MAX Kit
Max Continuous Output 2,000W
Max Solar Input 4,000W
Total Wattage of Panels 800W
Total KWH of Batteries 1.2Kwh-5.2Kwh
Wattage Per Panel 200W
# of Panels 4
Voltage 48V
Chemistry Lithium
# of Batteries 2
Battery Weight 21.8 lbs

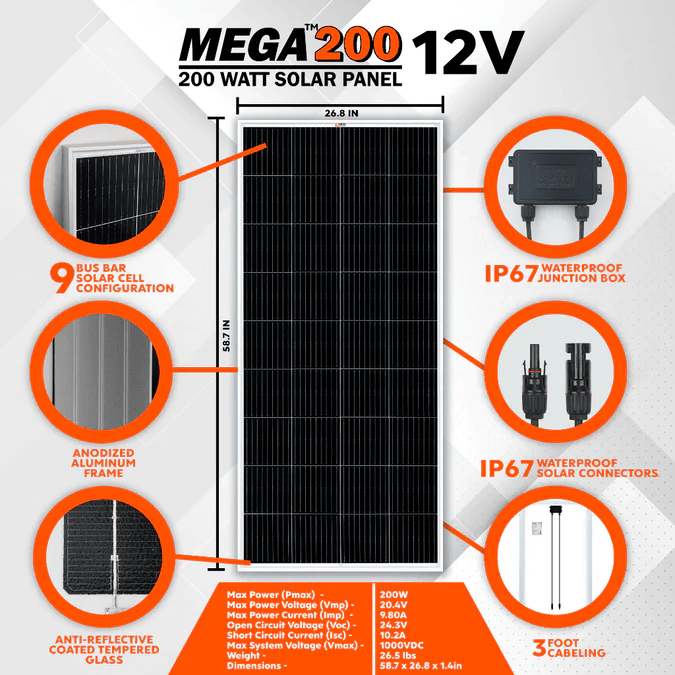

200 Watt Solar Panel
Maximum Power(Pmax) 200W
Maximum Power Voltage(Vmp) 20.4V
Maximum Power Current(Imp) 9.80A
Open Circuit Voltage(Voc) 24.3V
Short Circuit Current(Isc) 10.2A
Maximum System Voltage(Vmax) 1000VDC
Temperature Range -40°C ~ 90°C
Max Series Fuse Rating 15A

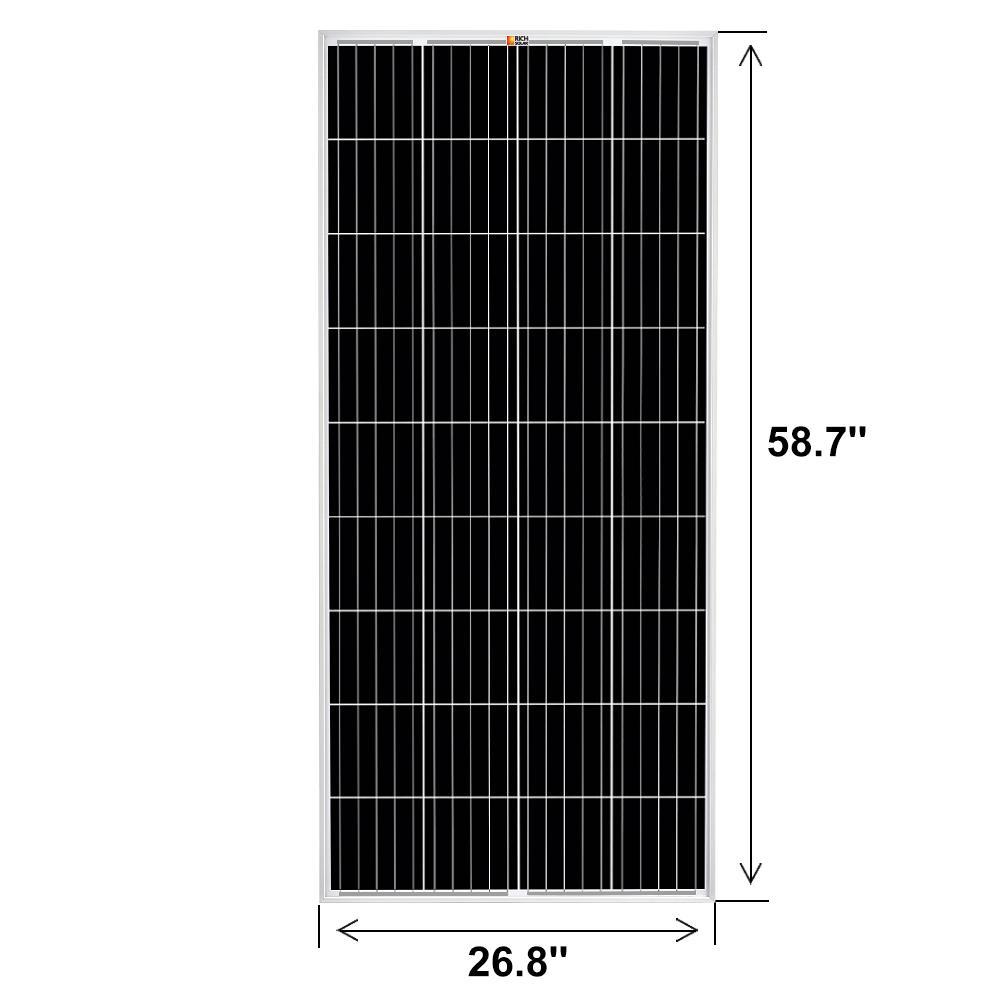

Dimension 58.7 x 26.8 x 1.4 in
Weight 26.5 lbs

Disclaimer: Each solar kit includes solar-specific equipment to get you started, but please keep in mind that you may need to purchase additional items like installation tools, grounding rods/wire, and any AC components you might need. We highly recommend bringing in a certified solar installer or master electrician to help with the installation process to ensure a safe and reliable system that meets all relevant codes and standards. Also, if you purchase a solar kit without solar panels, you will be responsible for ensuring the compatibility and configuration of your solar panel array. Each solar kit includes professionally designed schematics that work within the parameters of each inverter. There are minimum and maximum input voltages with each inverter that you will need to be aware of so that you do not damage your inverter and/or void your warranty. WARNING! Connect the battery terminal wires to the charge controller FIRST, then connect the solar panel(s) to the charge controller. NEVER connect solar panel(s) to charge controller before the battery.

average rating 4.7 out of 5
Based on 31 reviews
  • 5 Stars
    23 Reviews
  • 4 Stars
    7 Reviews
  • 3 Stars
    1 Review
  • 2 Stars
    0 Reviews
  • 1 Star
    0 Reviews
97% of reviewers would recommend this product to a friend
Quality
Rated 4 out of 5
Easy to Use
Rated 4 out of 5
Customer photos and videos
31 Reviews
Reviewed by David S.
Verified Buyer
I recommend this product
Age Range
65+
Rated 5 out of 5
Review posted

Solar Start

The kit is very well done and training makes it look pretty easy. Shipping was a problem as I ordered two kits for two sites and parts were sent to one. Customer Service found the error and assisted in get parts to the right place. Attention to detail in shipping is needed.

Loading...
Quality
Rated 5 out of 5
Easy to Use
Rated 5 out of 5
Was this helpful?
Reviewed by Franko I.
Verified Buyer
I recommend this product
Age Range
65+
Rated 5 out of 5
Review posted

400w system

Actually it was pretty easy to set up. I am using it in my shed for lights and battery chargers. I have also been running a small fan. No issues thus far. I have the solar panels on the side of the shed for now. It picks up a good 6 hrs of sun there. Eventually they will go on the roof.

Loading...
Quality
Rated 5 out of 5
Easy to Use
Rated 5 out of 5
Was this helpful?
Reviewed by Michael F.
Verified Buyer
I recommend this product
Age Range
35 - 44
Rated 4 out of 5
Review posted

Beginner DIY kit works very well

The panels charge the batteries quickly even at times when the sun is not shining brightly! The 2000w inverter will run my refrigerator when the batteries are putting out at least 12.4 volts, but then the starting surges trip the overload alarm. The inverter also has the grounded fan cover very close to the hot lug of the 12 volts power source. I had to buy longer battery posts to get the 4/0 cables all attached, and I had to make the fuse openings bigger for the 4/0 cable 200 amp fuse to fit. Otherwise, everything worked out of the box and has been very reliable as long as I don't over do it.

Loading...
Quality
Rated 5 out of 5
Easy to Use
Rated 5 out of 5
Was this helpful?

ShopSolar.com

Great Photo's!

Reviewed by Vicstickels
Verified Reviewer
I recommend this product
Age Range
55 - 64
Rated 5 out of 5
Review posted

Great kit

This kit is very nice an when set up right with a remote generator there's no worries. I highly recommend upgrading to the better batteries for a large RV. I had minor issues but the team at solar kits helped greatly. The way I have them in picture on RV works awesome in the winter down here in Arizona. But I plan on hinging the mounting boards for more angle in summer.

Loading...
Quality
Rated 5 out of 5
Easy to Use
Rated 5 out of 5
Was this helpful?
Reviewed by Paul R.
Verified Buyer
I recommend this product
Age Range
45 - 54
Rated 4 out of 5
Review posted

Paul

So far good I haven't gotten it up and running yet but looks great I needed to order roof mounts for it would be nice if that were an option

Loading...
Quality
Rated 4 out of 5
Easy to Use
Rated 3 out of 5
Was this helpful?
Reviewed by Bruce S.
Verified Buyer
I recommend this product
Age Range
55 - 64
Rated 5 out of 5
Review posted

Great Buy! Would do it again!

So far, I am very impressed. Waiting on a couple of components to arrive, but service has been outstanding.

Product is impressive. I have owned sail boats in the past and am familiar with low voltage systems.

Would highly recommend using Shop Solar Kits to anyone.

Bruce

Loading...
Quality
Rated 5 out of 5
Easy to Use
Rated 5 out of 5
Was this helpful?

ShopSolar.com

Amazing, thank you for the review.

Rated 3 out of 5
Review posted

DIY 4

Disappointed with inverter remote and lack of branch connector for multiple panels

Loading...
Quality
Rated 3 out of 5
Easy to Use
Rated 3 out of 5
Was this helpful?

ShopSolar.com

Hey David,

This kit came with the proper amount of connectors and cables! Sorry the remote is not quite what you had hoped as well. Thank you for your review!

Reviewed by Wayne G.
Verified Buyer
I recommend this product
Age Range
45 - 54
Rated 5 out of 5
Review posted

Great system for sheds

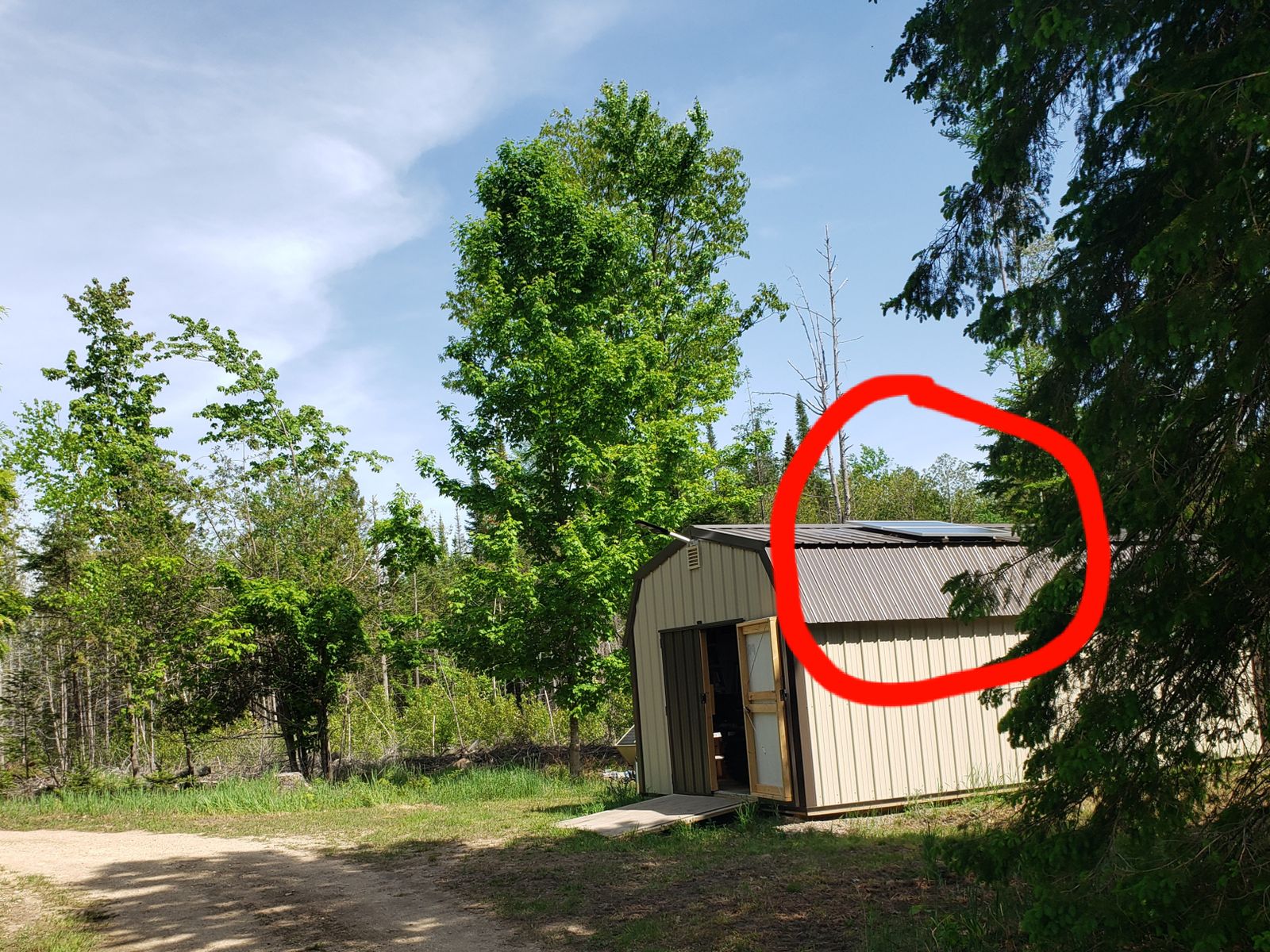

I ordered this system to power my shed in Northern Michigan. Everything was sent with tracking numbers. Items arrived when expected and was well-packaged. Included was a digital wiring diagram with step-by-step instructions on how to hook-up. I have called customer service with questions on a second system I ordered and their service was great!

Loading...
Quality
Rated 5 out of 5
Easy to Use
Rated 5 out of 5
Was this helpful?
Reviewed by Erik R.
Verified Buyer
I recommend this product
Age Range
35 - 44
Rated 5 out of 5
Review posted

Super good customer service

We received all the shipment for our solar kit in a timely manner. It came in a few different shipments and tracking numbers and communication was top notch.

We are still finishing our garage project so we have not set up our system yet.

Loading...
Quality
Rated 5 out of 5
Easy to Use
Rated 5 out of 5
Was this helpful?
Reviewed by SV Sea F.
Verified Buyer
I recommend this product
Age Range
25 - 34
Rated 5 out of 5
Review posted

Great product Great Service

I purchased this kit because its a great price to get started with solar..I am extremely satisfied with the products in the kit along with their customer service.. the kit comes with everything you need to get started..

In my case... I was doing a complete rewire of a 24' sailboat.. so of course I had to design my boats DC only system with this kit.. And of course in the pictures you will see things not included with this kit.. keep in mind... a complete rewire.. I was easily able to apply their system to my system.. since this was my first time doing solar.. oh I had questions.. I researched a ton.. but still youll always have questions.. and that is where the customer service @shopsolarkits is beyond compare.. they listened and helped with every question I had.. and if one person didn't have the answer.. they got someone who could.. ild like to thank Raph, John, Kristen, Max and everyone else @shopsolarkits for the great products and Customer service..

-SV Sea Flower

Loading...
Quality
Rated 5 out of 5
Easy to Use
Rated 5 out of 5
Was this helpful?

What warranty is included with this solar kit?

When you buy this solar kit, you are covered by the full manufacturer warranties on each component. Plus, you’ll receive our lifetime customer and technical support.

Can I expand this system in the future?

Yes, you can add more solar panels, charge controllers and batteries to this kit. But consider the specifications based on the system voltage. If otherwise unsure, you can consult our solar technicians.

What solar panels are included with this kit?

You'll receive 200 Watt monocrystalline solar panels from one of the leading brands in the solar industry. Backed by a minimum 25-Year power output warranty. We do our best to source all of our solar panels from North America, Mexico or Vietnam. Most popular brands we carry are Aptos, Phono, Mission and SolarEver.

How long will my battery bank last?

You'll be covered by a 5 or 10 year warranty depending on if you pick AGM (5 years) or Lithium (10-Years). To calculate daily run times, divide the total battery bank watt hours by your average load in watts to get rough hours of run time.

Can I install this system myself?

We've created the kits for absolute simplicity. That said, we highly recommend getting the help of a professional installer / certified electrician. You should plan on potential costs associated with this as well.

Can this kit handle a well-pump and/or other 240V appliances?

No. This kit is NOT capable of running 120V, 208V and 240V appliances. This includes well pumps, dryers and 240V air conditioning units.

What sort of solar panel racking is included?

We include pre-drilled frames on the solar panels along with standard z-brackets to make mounting the panels to the structure of your choosing as easy as possible. Most of our customers make their own racking systems using locally sourced UniStrut or add one of our ground racks to your order.

Can I use a generator or the grid to charge my battery bank if needed?

This kit does not come with a direct AC charger.

Can I sell power back to the grid with this system?

No you cannot. This is strictly off-grid use.

How big is all of this? How much space do I need?

The solar panels will be the biggest at around 5 ft x 2 ft. Other than that, everything should fit in the trunk of your car.

Where is this equipment made?

We do our best to source as much product from North America as possible. Our solar panels are USA, Mexico or Vietnam and most of our batteries and inverters are designed and assembled in the USA.

Do the batteries need to be inside or outside? Does it matter?

Lithium batteries like to be around the same temperature as humans. They also like a temperature controlled environment. So putting them in a garage that is 40F' in the morning and 110F' in the afternoon is NOT ideal. They'd prefer to be in a basement that sits somewhere around 60F-90F on a consistent basis. That said, lithium batteries can be used when below 32F' but not charged unless they are above 32F'.

Do I need to buy anything else?

You'll have everything you need to get up and running with our kits. That said, you will want to plan on a trip to the hardware store to buy any necessary installation tools, ground rods and wire as well as UniStrut if needed for mounting the solar panels. Outside of this, you'll be getting all of the most important components in your kit!

How long will it take for me to get my kit after ordering?

If you're in the lower 48 states we do our best to get you your order within 5-15 business days. Recently with the incredible demand for products, our delivery times to customer's door are averaging around 9-12 business days. You will receive your tracking numbers as soon as they are available.

How much does shipping cost?

Shipping is calculated at checkout. You'll get lowest possible shipping rates when you buy from ShopSolarKits.com. You can also reach out to us here and inquire about shipping, or just give us a call 877-242-2792.

Will I be able to track my order and deliveries?

You will receive your tracking numbers via email and/or text message as soon as they are available. So please make sure you use a good Email address when ordering or a phone number that can receive text messages for your your tracking information. Also, please expect to receive multiple deliveries and packages as we ship from multiple warehouses to keep costs down.

What's Your Return Policy?

We try and keep returns simple and easy. We do not charge restocking or return fees. That said, if you decide to return it because you no longer want it, you'll just pay return shipping. If something arrives damaged, we'll cover all of the costs to get you a properly working product.

What happens if stuff arrives damaged?

We stand behind what we sell and we'll take care of the costs of getting you a new working product. Just reach out to us if this happens and we will get you all taken care of.

Does the kit come with a wiring diagram/setup guide?

Yes, you'll get our 3-page setup diagram and instruction manual along with all of the manufactuer guides and user manuals. We've also created the SolarHub which you get lifetime access to when you order from us.

Where do you ship from?

We have 3 main distribution centers (CA, TX, NY) along with suppliers across the US. We ship from multiple different warehouses in order to try and keep costs as low as possible for our customers.

Do you offer financing?

Yes we do! We have 2 financing options which you can learn more about if you keep scrolling down this page.

What sort of after-sale customer support do you offer?

You can reach us Monday to Friday via phone, live chat or email. You'll also get free, lifetime access to the industry leading "Solar Hub" - Where you'll find all of our diagrams, installation manuals, troubleshooting guides and more!

Can I qualify for the 30% federal tax credit if I order this kit?

10-4pm EST 10785 Twain Ave. Ste #229 Las Vegas, NV 89169 808 Proctor Ave. Unit #2 Ogdensburg, NY 13669 Secure Checkout We use encrypted SSL security to ensure that your credit card information is 100% protected. Checkout Secure Proudly Associated With Solar Energy Industries Association Logo American Solar Energy Society Logo PV Platforms Logo © 2023 ShopSolarKits.com. All rights reserved. Complete Off-Grid Solar Kit - 6,000W 120/240 Output... Someone purchased a Complete Off-Grid Solar Kit - 6,000W 120/240 Outp

What is the Shop Solar Kits returns policy?

Returns are free in the first 30 days with no restocking or processing fees, although the customer must pay for the return shipping costs. See our complete return policy on our Shipping, Deliver, and Returns page.

What’s covered by the Shop Solar Kits returns policy?

Our returns policy covers all purchases made through Shop Solar Kits. For warranty issues, as authorized distributors, we honor the full manufacturer warranty of ALL the brands on our website. See our complete returns and warranty policies on our Shipping, Deliver, and Returns page.

How long will it take to receive my Shop Solar Kits order?

All orders are processed within 72 hours and you can expect delivery within 5 to 10 business days. You will receive access to our customer portal after ordering, where it is easy to track all your shipments. See our Shipping, Delivery and Returns page for more details.

What are the financing and payment options at Shop Solar Kits?

We offer several ways to pay to make getting your solar kit simple:

  • Credit Card: if the purchase is greater than your card’s limit, you can split the cost onto multiple cards as well as Paypal, financing through Affirm, and ACH/bank transfer
  • You can arrange financing during the checkout process, see our Financing page for more details

How does the Shop Solar Kits Lifetime Support work?

Our legendary lifetime customer support has helped make us the #1 solar kit retailer. We have a dedicated team of solar professionals standing by to help you navigate the world of solar with ease. From selecting the perfect solar kit to installation and beyond, we provide support and expertise at every step of the journey.If you need help with ordering, shipping, troubleshooting, expanding your system, warranty issues, or anything else you have questions about for as long as you own your Shop Solar Kits equipment, we’ve got you covered: we’re always only a phone call or email away.
