LG · Batteries
SKU: 1652001

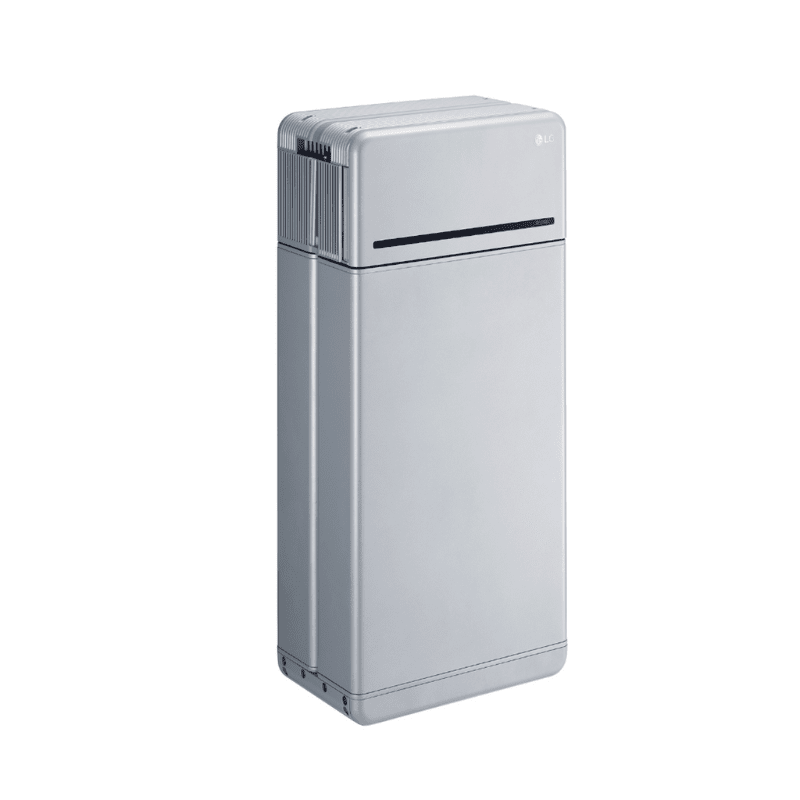

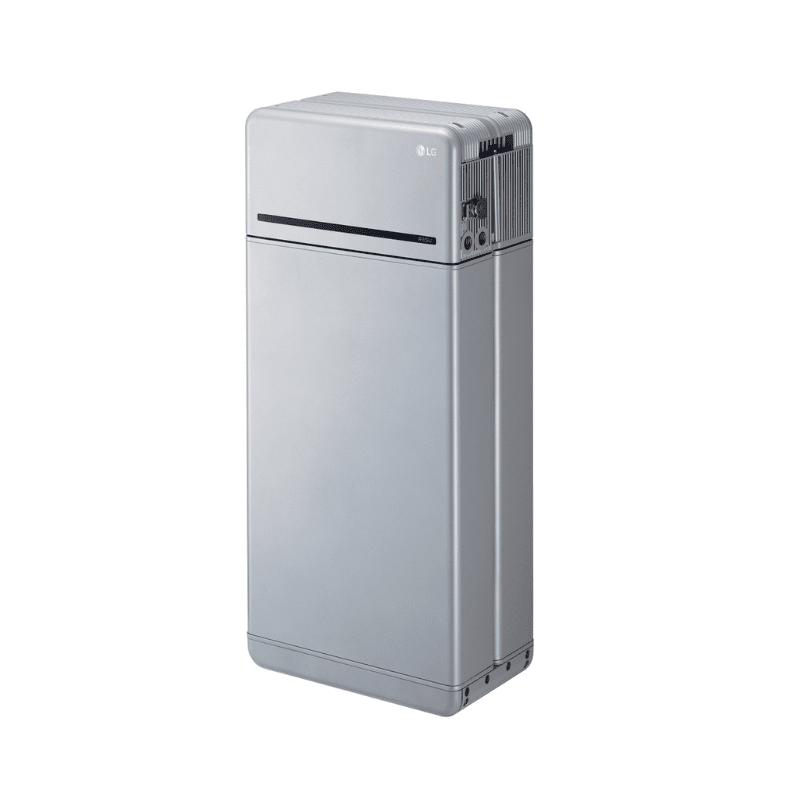

LG 16H Prime Battery
Power your energy storage system with the LG 16H Prime 16kWh 400V High Voltage Battery—a compact, stackable solution designed for reliable, long-lasting backup and off-grid performance.
- Regular price
- $2,550.00
- Sale price
- $2,550.00
- Regular price
-
$3,295.00
Questions before you buy?
Call 877-242-2792 and we’ll work it out with you. Mon–Thu 10am–5:30pm, Fri 10am–1pm EST.
Frequently bought together
Specifications
The details.
Power your energy storage system with the LG 16H Prime 16kWh 400V High Voltage Battery—a compact, stackable solution designed for reliable, long-lasting backup and off-grid performance.
Key Features & Benefits:
-

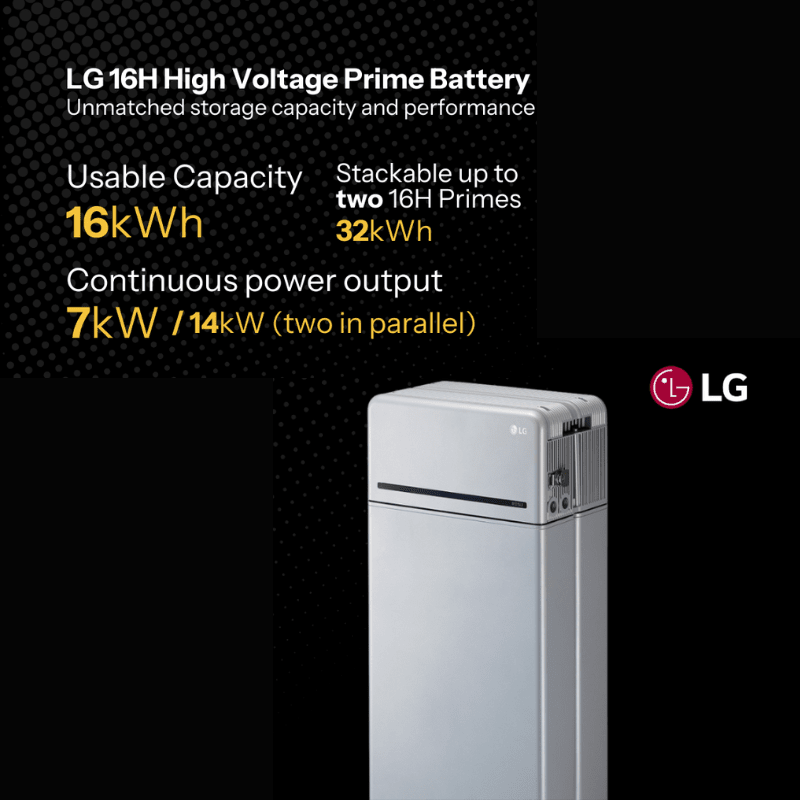

16kWh Usable Energy – Ideal for whole-home or critical load backup
-
400V High Voltage System – Enhances charging efficiency and system performance
-
Stackable up to 32kWh – Easily scale your system with up to 2 units in parallel
-
Outdoor-Ready (IP55 Rated) – Durable, weather-resistant enclosure for flexible installation
-
Certified for Safety – UL1973, UL1642, FCC, UN38.3 & IEC 62619 compliance
-
Natural Convection Cooling – Silent and efficient thermal management
-
Easy Integration – Spring-type connectors, RS485/CAN communication, and smart BMS
-
Reliable Peak Output – Up to 11kW discharge for high-demand appliances
-
DIY-Friendly Setup – Modular and pre-configured for streamlined installation
-
10-Year Warranty – Backed by LG's trusted performance guarantee
Perfect for hybrid systems, battery storage upgrades, or energy independence goals, the LG 16H Prime delivers high-capacity performance you can count on—backed by global brand reliability.
User Manual / Specifications:
- Usable Energy1)
- 16.0 kWh @77°F (25°C)
- Charge
- 420 ~ 450 VDC
- Discharge
- 350 ~ 410VDC
- Max. Charge/Discharge Current
- 20A@350V
- Max. Charge/Discharge Power
- 7 kW
- Peak Power (only discharging)2)
- 11 kW for 10 sec.
- Peak Current (only discharging)
- 32.8A for 10 sec.
- Communication Interface
- RS485/CAN
- DC Protection
- Circuit Breaker, Fuse, DCDC converter
- Connection Method
- Spring Type Connector
- User interface
- LEDs for Normal and Fault operation
- Protection Features
- Over Voltage / Over Current / short circuit / Reverse Polarity
- Scalability (Total Energy, Max. Charge/Discharge Power)
- Max. 2 in parallel (32.0 kWh @77°F (25°C), 14kW)
- Installation Location
- Indoor / Outdoor, Stand only
- Charge
- 14 ~ 122°F (-10 ~ 50°C)
- Discharge
- -4 ~ 122°F (-20 ~ 50°C)
- Operating Temperature (Recommended)
- 59 ~ 86°F (15 ~ 30°C)
- Storage Temperature (At shipping state)
- -22 to 140°F (-30 to 60°C), acceptable for 7 days in total -4 to 113°F (-20 to 45°C), acceptable for the first 6 months -4 to 86°F (-20 to 30°C), accep
- Humidity
- 5%~95%
- Altitude Max.
- 6,562ft (2,000m)
- Cooling Strategy
- Natural Convection
- Cell
- UL1642
- Battery Pack
- UL1973 / CE / RCM / IEC 62619
- Emissions
- FCC
- Hazardous Materials Classification
- Class 9
- Transportation
- UN38.3 (UNDOT)
- Ingress Rating
- IP55

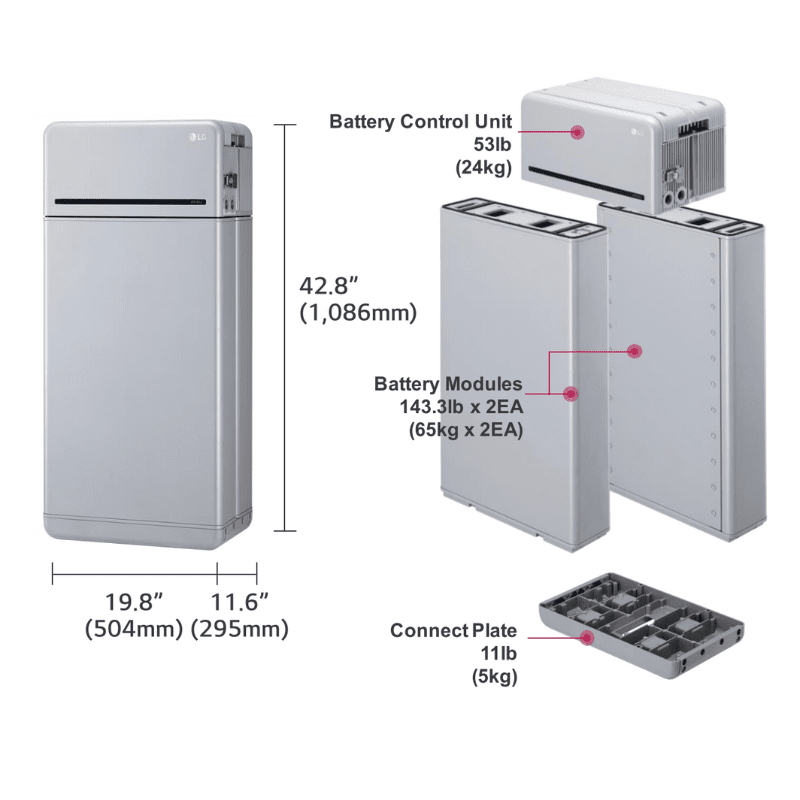

- Width
- 19.8 inch (504 mm)
- Height
- 42.8 inch (1086 mm)
- Depth
- 11.6 inch (295 mm)
- Weight
- 351 lb (159 kg)
