EG4 24K Hybrid Solar Mini-Split

The EG4 24K Hybrid Solar Mini-Split offers a powerful, energy-efficient solution for year-round climate control. Delivering 24,000 BTUs of heating and cooling, this ductless system seamlessly integrates with both solar and grid power, ensuring optimal comfort while reducing energy costs.

Key Features & Benefits:

• Hybrid AC/DC Operation: Directly connect to solar panels during the day and switch to grid power at night or during overcast conditions—no inverter, battery, or charge controller required.

• Plug-n-Cool DIY Installation: Quick-connect self-closing valves and pre-charged lineset allow for easy installation without special tools or vacuuming.

• High Efficiency: Achieves a SEER2 rating of 21 and HSPF2 of 9.6, making it Energy Star certified for superior energy savings.

• Wide Operating Range: Functions efficiently in temperatures ranging from -10°C to 58°C (14°F to 136°F), suitable for various climates.

• Smart Features: Compatible with the Solar Aircon app for remote control, energy monitoring, and real-time data access.

Specifications:

• Cooling Capacity: 24,000 BTU/h (6,100–25,200 BTU/h range)

• Heating Capacity: 26,000 BTU/h (6,100–26,000 BTU/h range)

• Recommended Solar Input: 1,600–2,400W (90–380VDC)Indoor Unit Dimensions: 42.5" x 9.3" x 13.0"

• Outdoor Unit Dimensions: 35.4" x 13.3" x 27.6"

• Refrigerant: R410A, pre-charged for 16.4 ft lineset

• Warranty: 5-year limited warranty

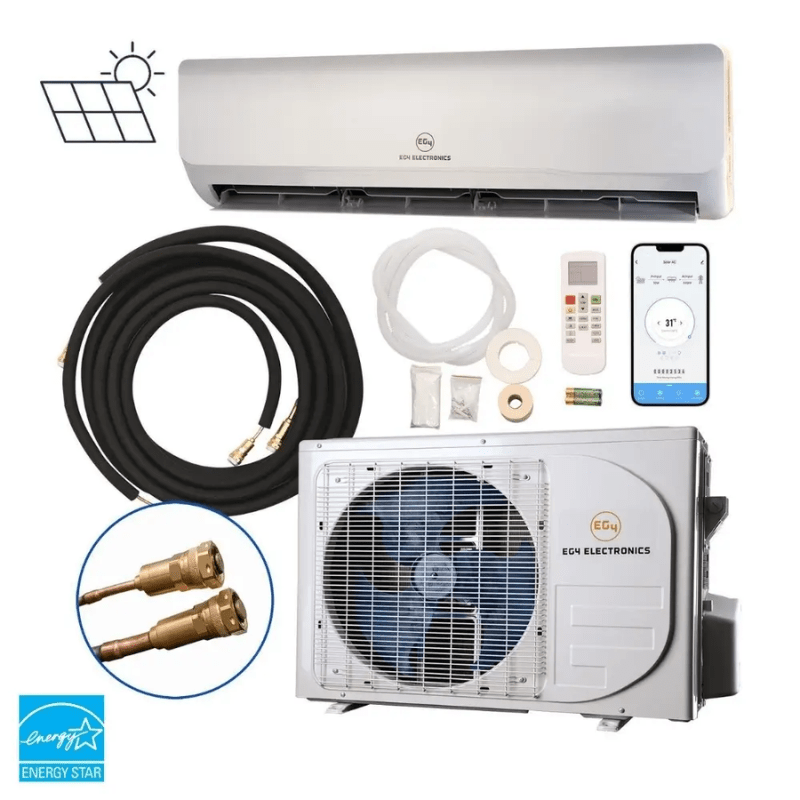

What's Included:

• Indoor Head Unit

• Outdoor Unit

• Pre-Charged 16.4 ft Lineset & Electrical Wire

• LCD Remote Control

• Installation Accessories

User Manual / Specifications:

• EG4 24K Hybrid Solar Mini-Split Air Conditioner User Manual
• EG4 24K Hybrid Solar Mini-Split Air Conditioner Spec Sheet
• EG4 24K Hybrid Solar Mini-Split Air Conditioner Wiring Diagrams V1.2
• EG4 24K Hybrid Solar Mini-Split Air Conditioner Environmental Considerations
• EG4 24K Hybrid Solar Mini-Split Air Conditioner Certification
