Blue Sea Systems PowerBar 1000
Complex wiring systems require a single point to consolidate large and small conductors. The PowerBar 1000 offers a 1,000 Amp busbar with various size studs and screws to connect conductors and fuse blocks.
- Regular price
- $209.00
- Sale price
- $209.00
- Regular price
-
$239.00
Orders processed in 24–48 hours
30-day returns
Lifetime support by phone, chat & email
Full manufacturer warranty
Not sure which one you need?
Call 877-242-2792 and we’ll work it out with you. Mon–Thu 10am–5:30pm, Fri 10am–1pm EST.
Trusted by 50,000+
Customers powered since 2018
Lifetime Support
Phone, email or live chat, for good
Price Match
Found it cheaper? Tell us
Ships from the USA
Warehouses in CA, TX and NY
Frequently bought together
The details.
Complex wiring systems require a single point to consolidate large and small conductors. The PowerBar 1000 offers a 1,000 Amp busbar with various size studs and screws to connect conductors and fuse blocks.
- 1,000 Amp busbar for large complex wiring systems
- Tin plated pure electrical copper for maximum conductivity

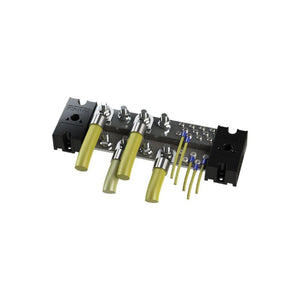

- Stepped bus design offers two elevations for conductors which doubles the density of the wire loom compared to traditional bus bars

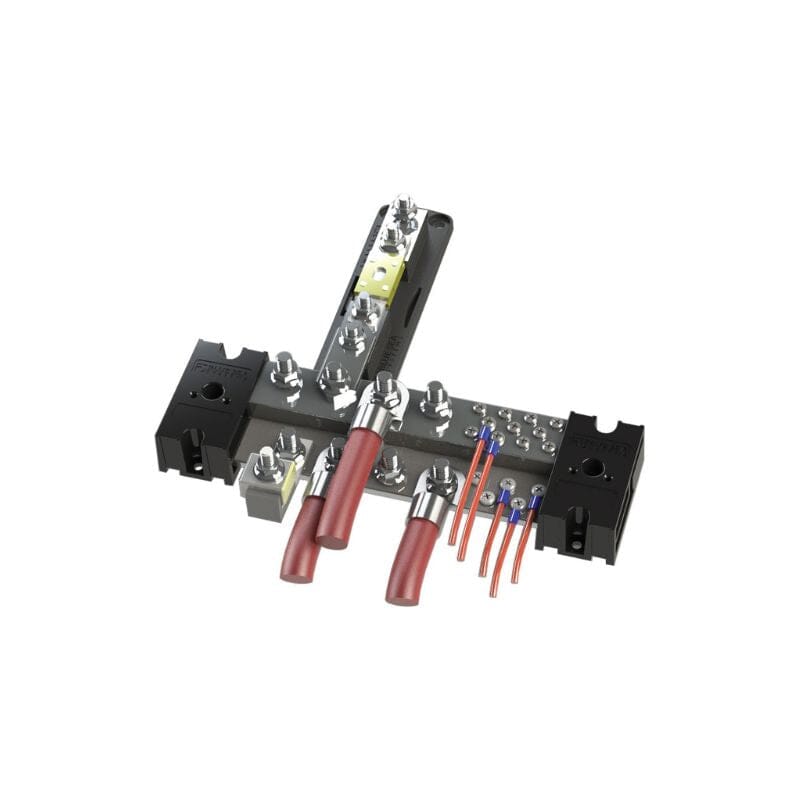

- Busbar and fuse block elevations match common fuse blocks allowing for multiple fuse block attachment, eliminating the need for connecting cables
- One-piece serrated flange nuts ensure correct and secure connections
- Stainless steel 8-32 screws with captive lock washers for securing smaller gauge wires
- Busbar may be cut to a shorter length to accommodate constricted spaces
- Bi-directional busbar end caps allow the ganging of additional busbars

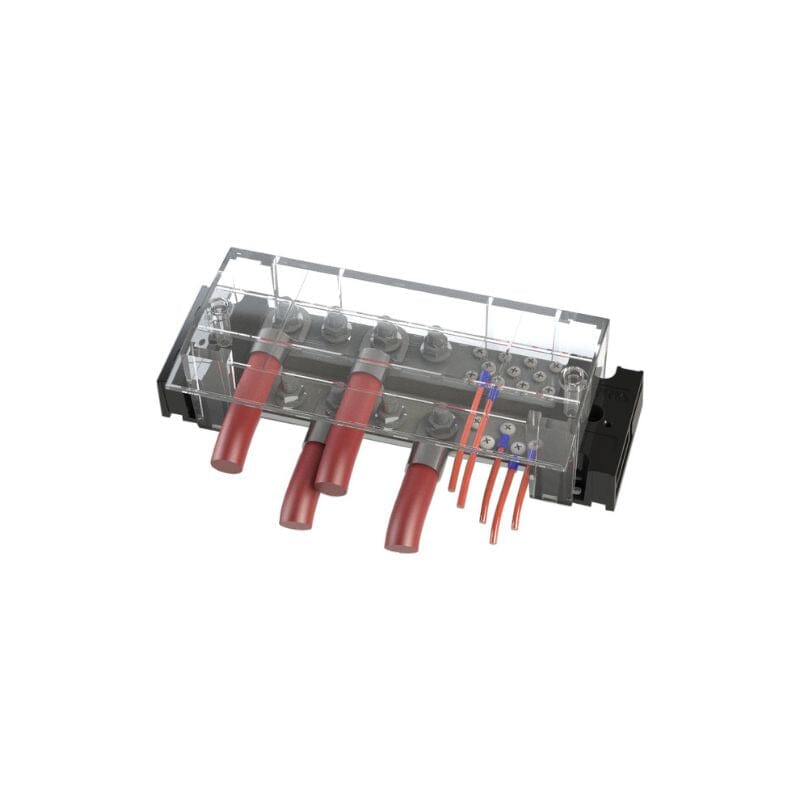

- Snap on insulating cover meets ABYC and USCG requirements and includes label recess
Specifications

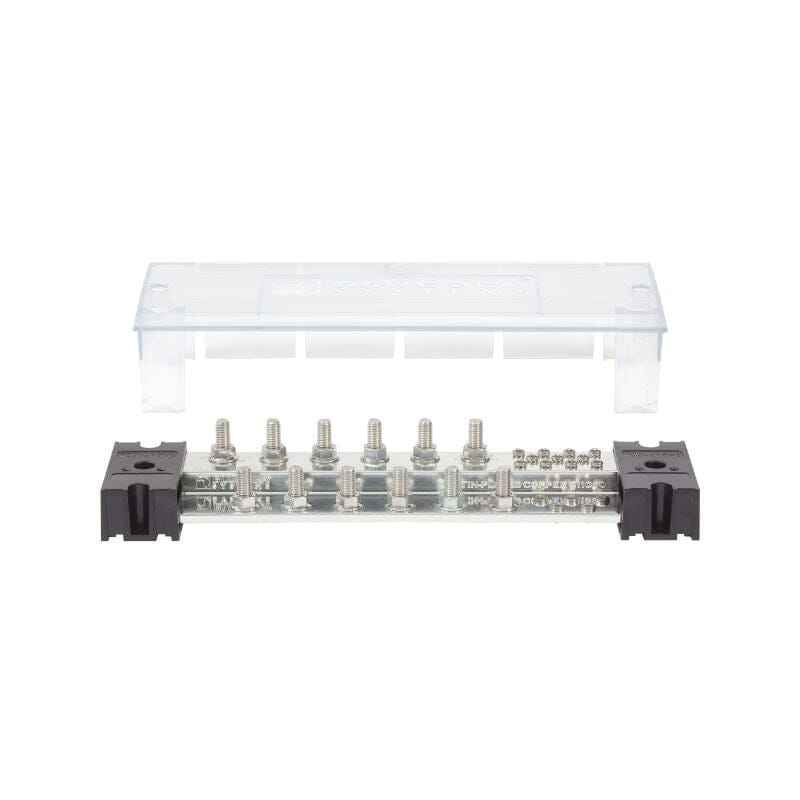

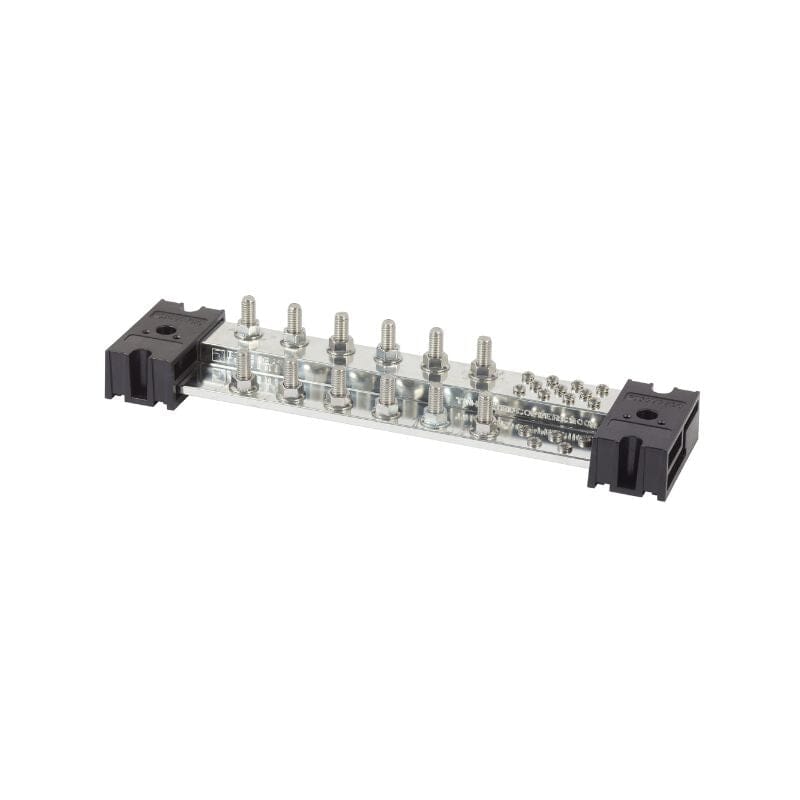

12 3/8" Terminal Studs
- Maximum Voltage 150V
- Number of Terminal Studs 12
- Terminal Stud Torque 140 in-lb (15.82 Nm)
- Continuous Rating The maximum current a switch is designed to conduct for an indefinite period. 1000A
- Base Material UL 94-V0 Rated, Glass Reinforced Thermoplastics
- Bus Material Tin-Plated Copper C11000
- Mounting Holes Accepts #10 (M5) Screws
- Screw Terminal Torque 18 in-lb (2.03 Nm) #10-32 15 in-lb (1.69 Nm) #8-32
- Terminal Screws #10-32 #8-32
- Terminal Stud Size 3/8" - 16
- Weight 8.00lb (3.63 kg)

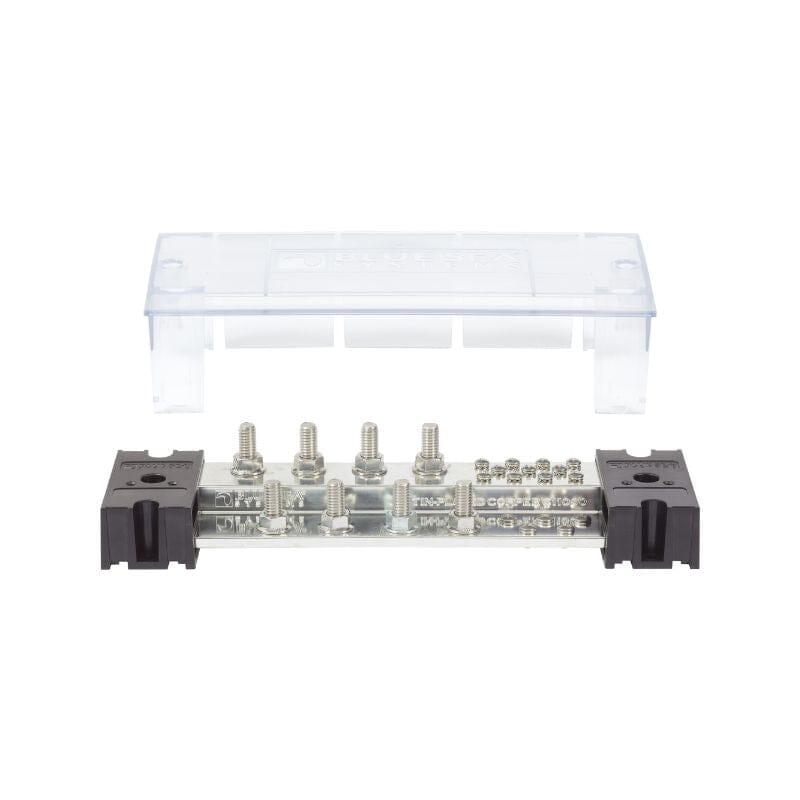

8 3/8" Terminal Studs
- Maximum Voltage 150V
- Number of Terminal Studs 8
- Terminal Type 3/8" - 16 stud
- Continuous Rating 1000A
- Base Material UL 94-V0 Rated, Glass Reinforced Thermoplastics
- Bus Material Tin-Plated Copper C11000
- Mounting Holes Accepts #10 (M5) Screws
- Screw Terminal Torque 15 in-lb (1.69 Nm) #10-32 18 in-lb (2.03 Nm) #8-32
- Terminal Screws #10-32 #8-32
- Terminal Stud Size 3/8" - 16
- Weight 6.00lb (2.72 kg)
