Blue Sea Systems PowerBar 1000

Complex wiring systems require a single point to consolidate large and small conductors. The PowerBar 1000 offers a 1,000 Amp busbar with various size studs and screws to connect conductors and fuse blocks.

• 1,000 Amp busbar for large complex wiring systems
• Tin plated pure electrical copper for maximum conductivity

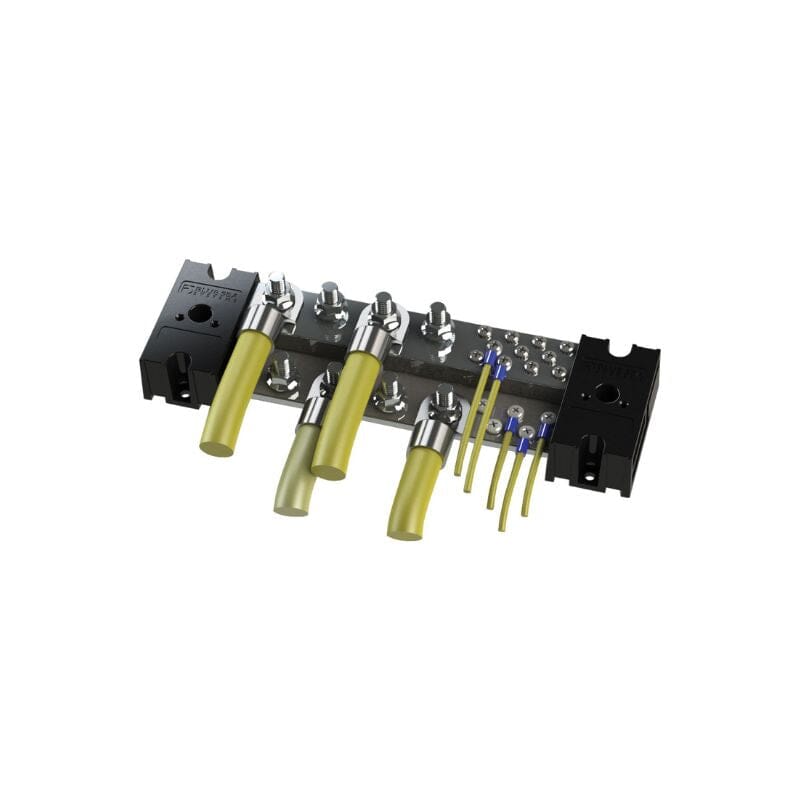

• Stepped bus design offers two elevations for conductors which doubles the density of the wire loom compared to traditional bus bars

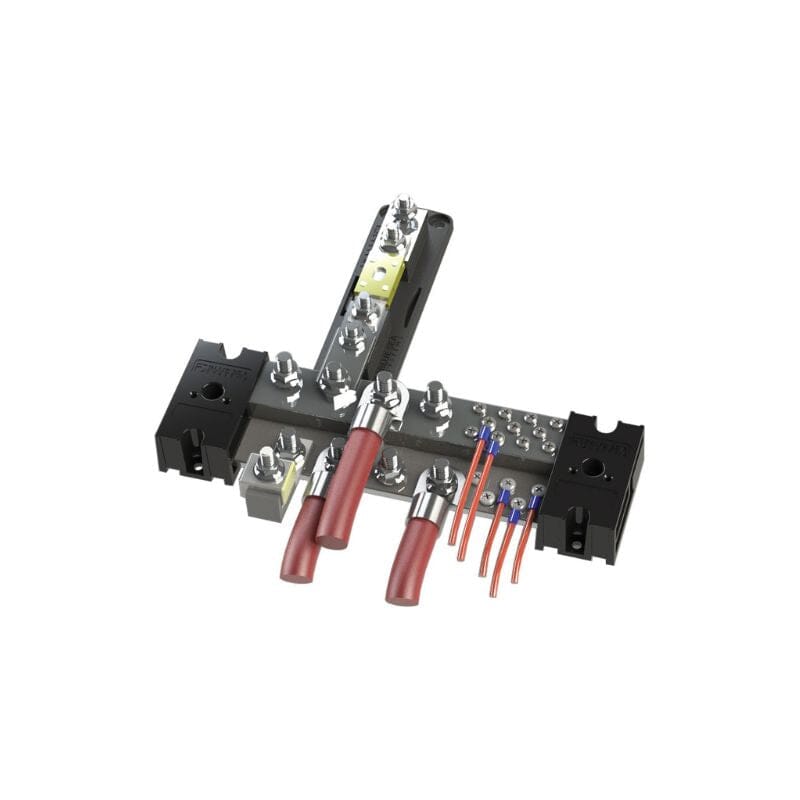

• Busbar and fuse block elevations match common fuse blocks allowing for multiple fuse block attachment, eliminating the need for connecting cables
• One-piece serrated flange nuts ensure correct and secure connections
• Stainless steel 8-32 screws with captive lock washers for securing smaller gauge wires
• Busbar may be cut to a shorter length to accommodate constricted spaces
• Bi-directional busbar end caps allow the ganging of additional busbars

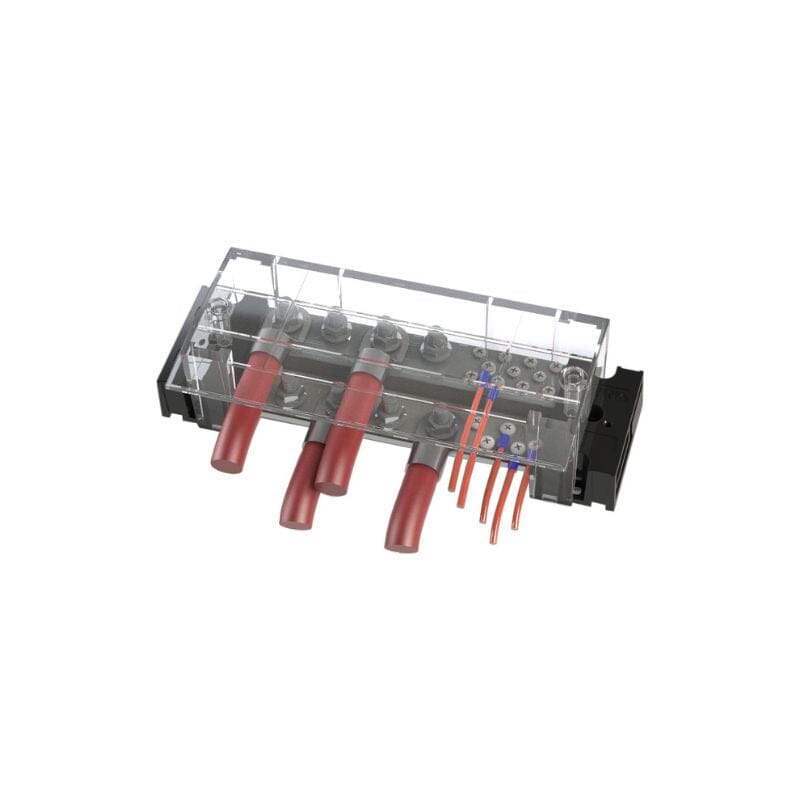

• Snap on insulating cover meets ABYC and USCG requirements and includes label recess

Specifications

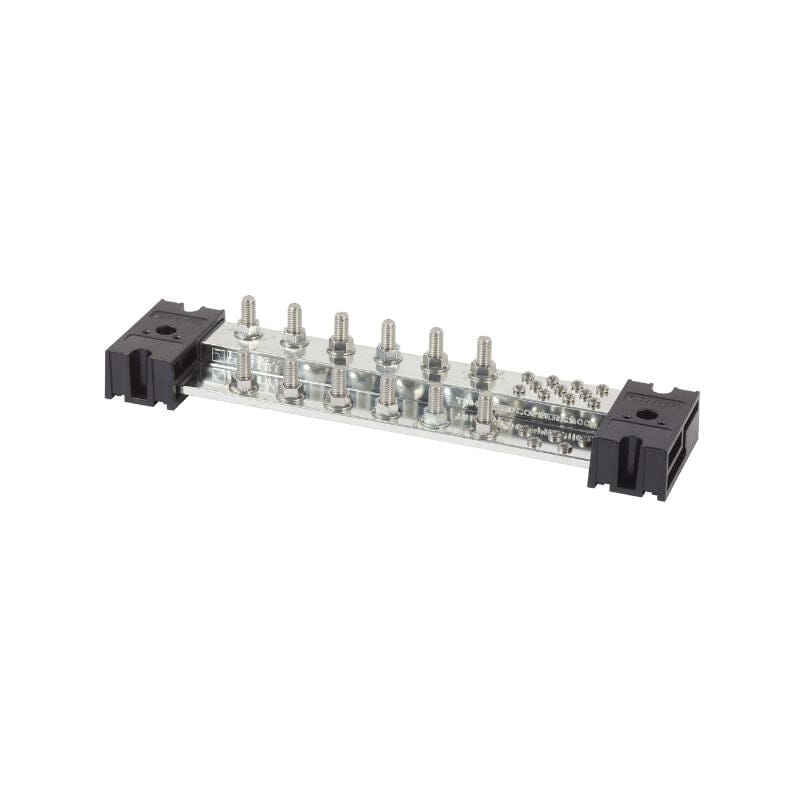

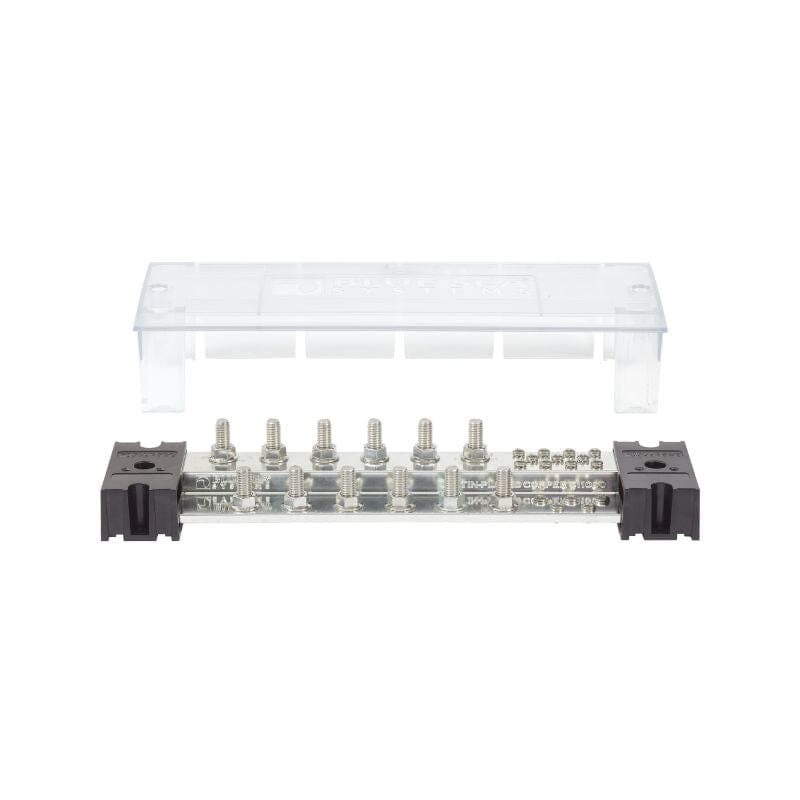

12 3/8" Terminal Studs

• Maximum Voltage 150V
• Number of Terminal Studs 12
• Terminal Stud Torque 140 in-lb (15.82 Nm)
• Continuous Rating The maximum current a switch is designed to conduct for an indefinite period. 1000A
• Base Material UL 94-V0 Rated, Glass Reinforced Thermoplastics
• Bus Material Tin-Plated Copper C11000
• Mounting Holes Accepts #10 (M5) Screws
• Screw Terminal Torque 18 in-lb (2.03 Nm) #10-32 15 in-lb (1.69 Nm) #8-32
• Terminal Screws #10-32 #8-32
• Terminal Stud Size 3/8" - 16
• Weight 8.00lb (3.63 kg)

8 3/8" Terminal Studs

• Maximum Voltage 150V
• Number of Terminal Studs 8
• Terminal Type 3/8" - 16 stud
• Continuous Rating 1000A
• Base Material UL 94-V0 Rated, Glass Reinforced Thermoplastics
• Bus Material Tin-Plated Copper C11000
• Mounting Holes Accepts #10 (M5) Screws
• Screw Terminal Torque 15 in-lb (1.69 Nm) #10-32 18 in-lb (2.03 Nm) #8-32
• Terminal Screws #10-32 #8-32
• Terminal Stud Size 3/8" - 16
• Weight 6.00lb (2.72 kg)
