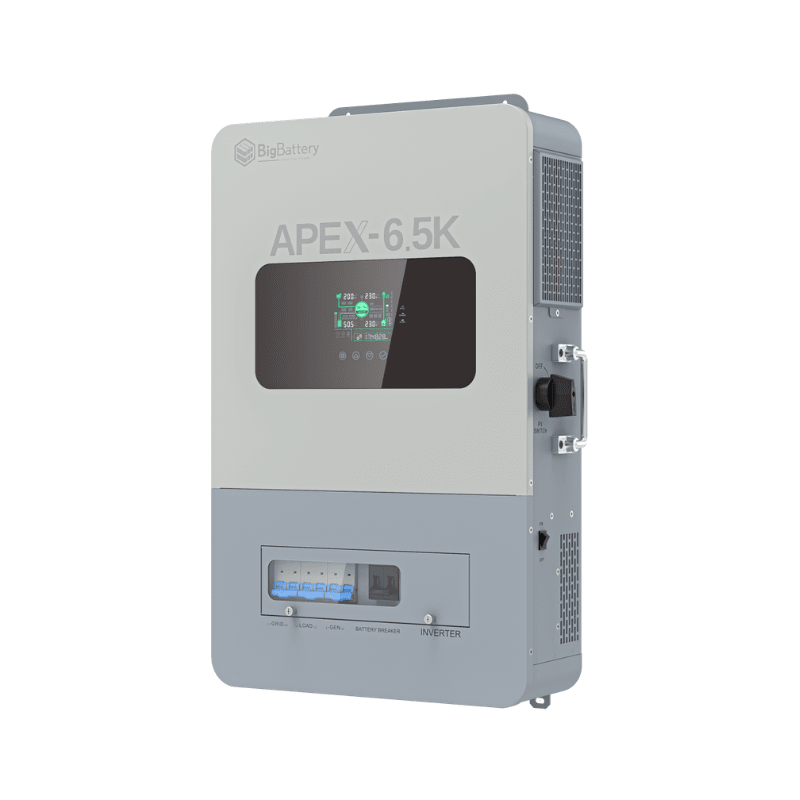

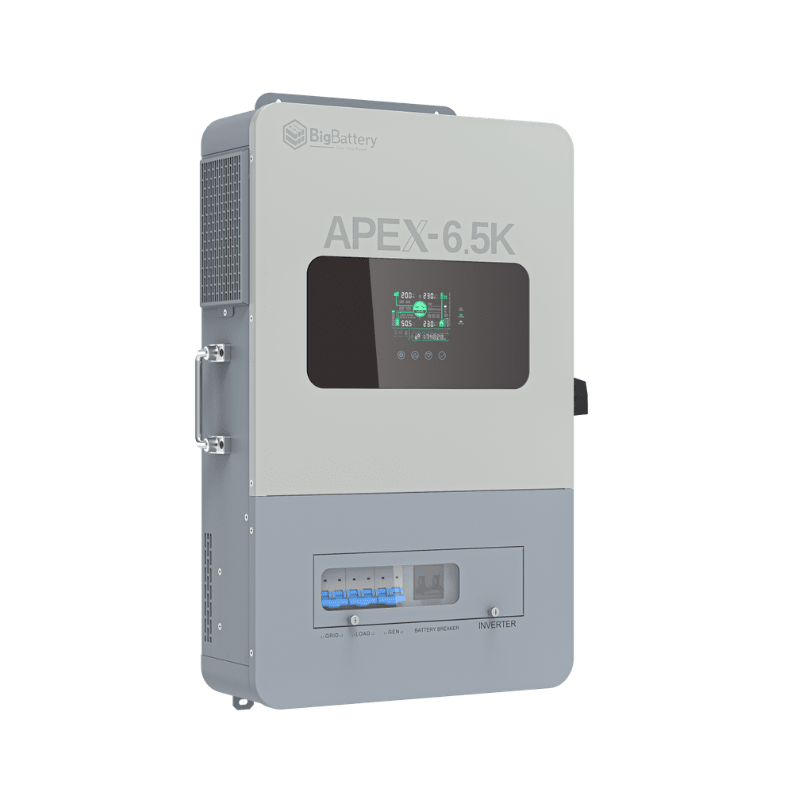

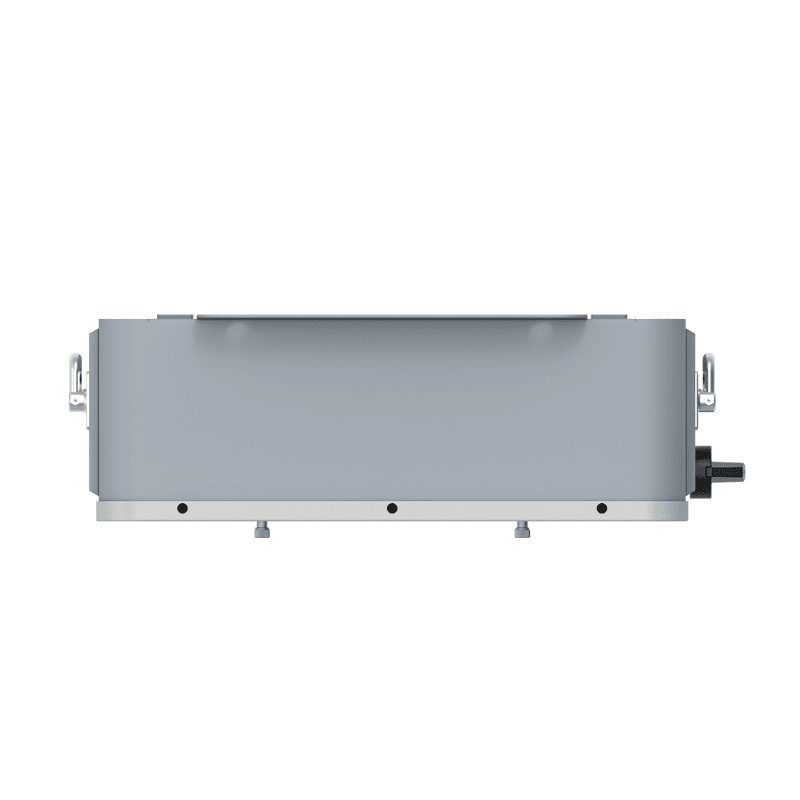

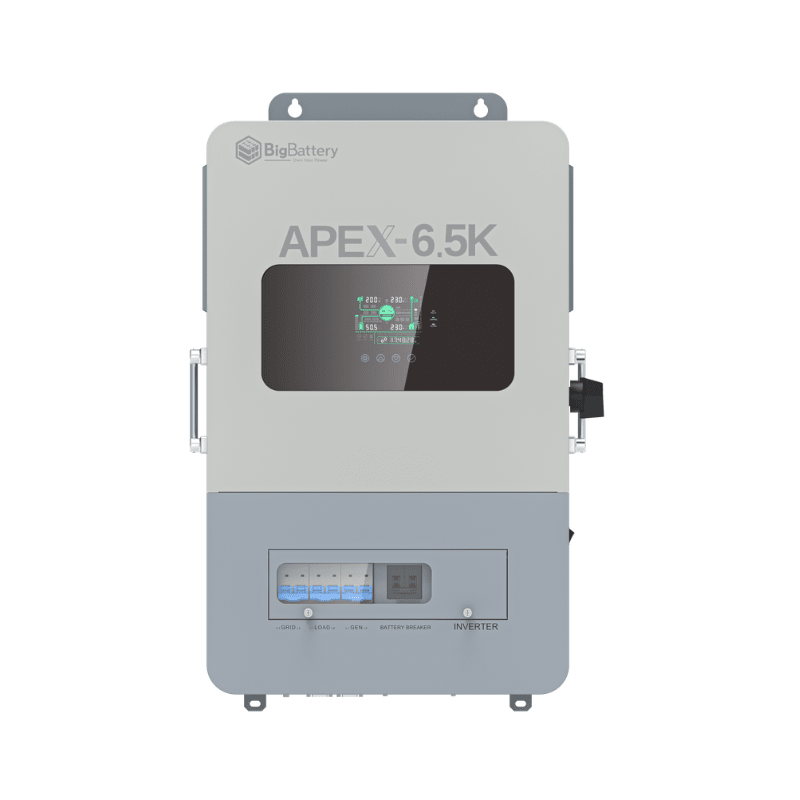

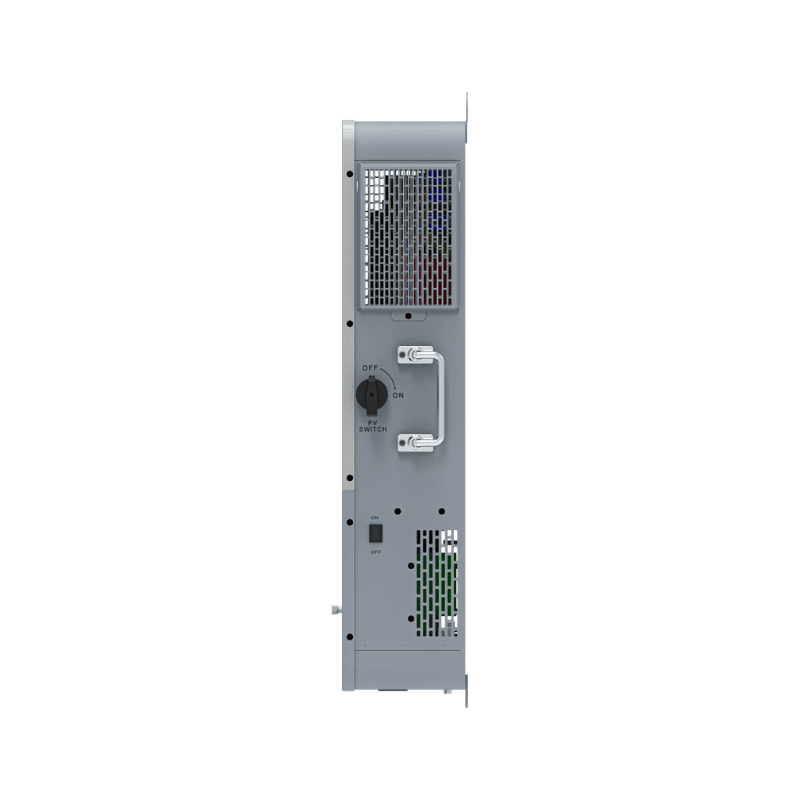

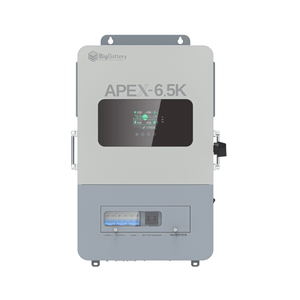

BigBattery APEX-6.5K 6,500W Hybrid Inverter
The BigBattery APEX-6.5K is an all-in-one off-grid hybrid inverter that combines an inverter, solar charger, and battery charger to deliver reliable 120/240V split-phase power with a clean pure sine wave output.
- Regular price
- $1,490.00
- Sale price
- $1,490.00
- Regular price
-
$1,900.00
Questions before you buy?
Call 877-242-2792 and we’ll work it out with you. Mon–Thu 10am–5:30pm, Fri 10am–1pm EST.
Frequently bought together
Specifications
The details.
The BigBattery APEX-6.5K is an all-in-one off-grid hybrid inverter that combines an inverter, solar charger, and battery charger to deliver reliable 120/240V split-phase power with a clean pure sine wave output. Built for DIY-friendly installs, it supports solar + generator inputs, smart energy modes, and communication ports for monitoring—making energy independence simpler, clearer, and more affordable
Key Features & Benefits:
-
6,500W continuous / 13,000W surge power for demanding loads
-
120/240V split-phase, 50/60Hz pure sine wave output for household + 240V appliances
-
Dual MPPT (1+1) solar charging with up to 10,000W PV input and 125–450VDC MPPT range for flexible array design
-
48V battery system (40–60VDC) supports lithium / lead-acid / user-defined battery profiles
-
Charge rates: 140A max solar, 80A max grid/generator, 140A max hybrid
-
Two A/C inputs (Grid & Generator) plus 40A bypass overload current for pass-through support
-
Parallel up to 6 units for scalable systems
-

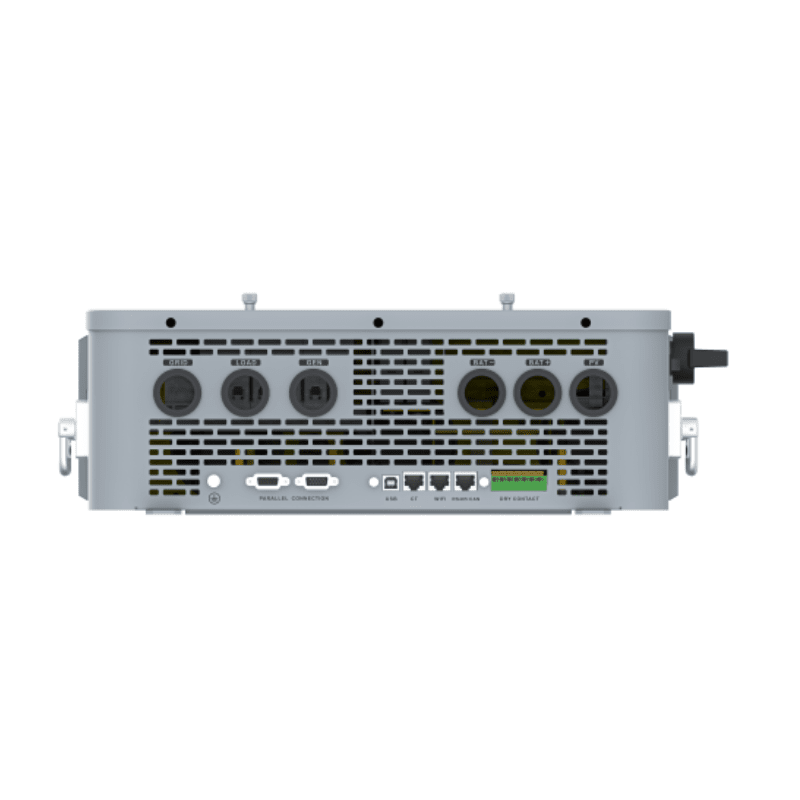

Installer-friendly bottom-entry wiring + built-in protections for safer, cleaner installs
-
Monitoring & integration: RS485/CAN/USB/Dry Contact (optional Wi-Fi/GPRS module)
-
Certifications: includes UL1741 (plus others listed) and 5-year warranty
Specs at a Glance:
-
Battery Voltage: 48V (40–60VDC range)
-
Bypass/Overload Current: 63A
-
Dimensions / Weight: 28.46 × 17.64 × 5.91 in / 62 lbs
-
Operating Temp: 14–131°F (derate above 113°F)
User Manual / Documents:
- Rated Output Power
- 6,500W
- Max. Output Power
- 13,000VA
- Rated Output Voltage
- 120/240 Vac (single-phase / split-phase)
- Load capacity of motors
- 4 HP
- Rated Frequency
- 50/60Hz
- Output Wave
- Pure sine wave
- Switching Time
- 10ms (typical value)
- Voltage Range
- 40–60Vdc
- Max. Solar Charging Current
- 140A
- Max. Grid / Generator Charging Current
- 80A
- Max. Hybrid Charge Current
- 140A
- No. of MPPT
- 1 + 1
- Max. Input Power
- 5,000W + 5,000W
- Max. Input Current
- 18A + 18A
- Max. Open Circuit Voltage
- 550Vdc + 550Vdc
- MPPT Voltage Range
- 125–450Vdc
- Input Voltage Range
- 65–140Vac
- Input Frequency Range
- 50/60Hz
- Bypass Overload Current
- 40A
- AC Inputs
- 2 inputs (Grid & Generator)
- Max. Efficiency
- 99.9%
- MPPT Tracking Efficiency
- 93%
- Parallel Capacity
- Up to 6 units (3 or more units in parallel can form a three-phase output)
- Dimension
- 25.51 × 16.14 × 5.51 inches
- Weight
- 48 lbs
- Protection Degree
- IP20 (indoor only)
- Temperature
- 14–131°F, derate above 113°F
- External Module (Optional)
- Wi-Fi / GPRS
- Certificate
- UL1741 / RoHS / EN61000-6-1 / EC61000-6-3 / FCC Part15 Class B / IEC62109-1 / IEC62109-2
- Noise
- <60dB
- Cooling Method
- Intelligent fan
- Warranty
- 5 years
- Communication
- RS485 / CAN / USB / Dry contact
- Integrated Circuit Breaker
- Utility / Load / Battery / PV
- Overload protection behavior
- After overload protection is enabled, the inverter output will be restored after 3 minutes, and after 5 times of overload, the output will be off until the inverter is restarted. (102% < load < 110%): an error will be reported and the output will be turned off after 5 minutes. (110% < load < 125%): an error will be reported and the output will be turned off after 10 seconds. Load > 125%: an error will be reported and the output will be turned off after 5 seconds.
- Protection features
- Has PV input current limiting protection, PV input over-voltage protection, PV night reverse current protection, AC input over-voltage protection, AC input under-voltage protection, battery over-voltage protection, battery under-voltage protection, battery over-current protection, AC output short-circuit protection, heat sink over-temperature protection, inverter over-load protection.
