Anker  ·  Accessories

SKU: A17B1111

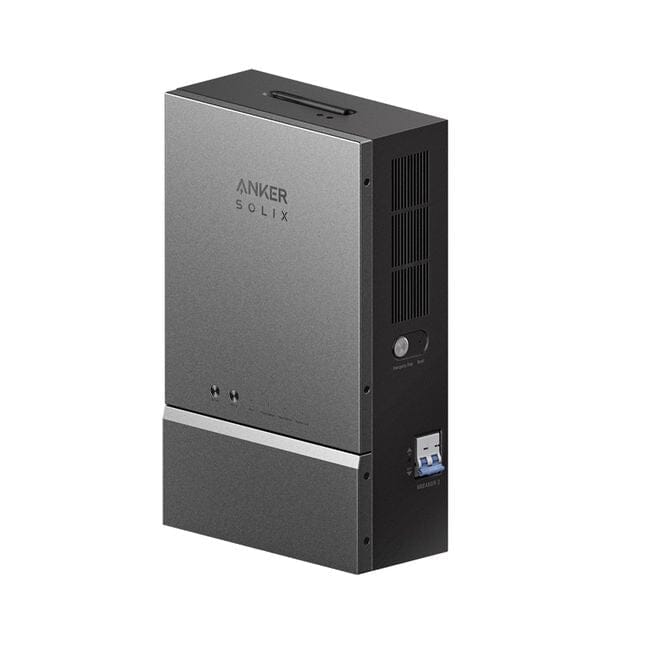

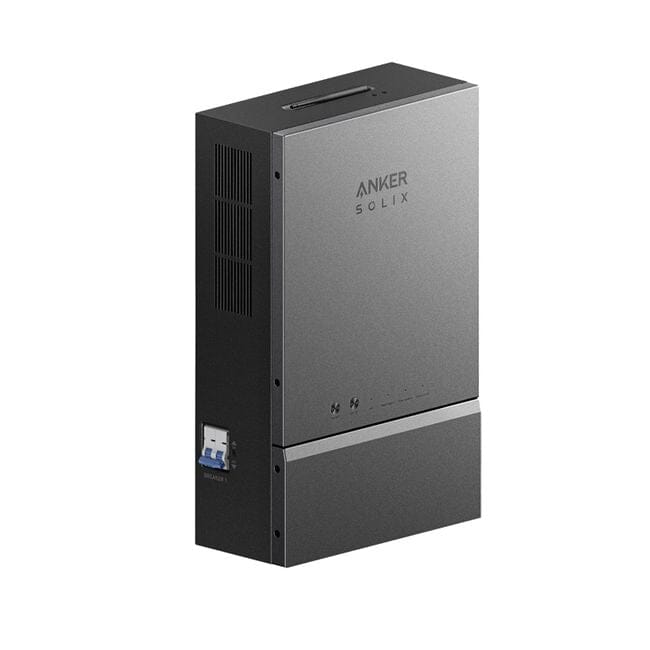

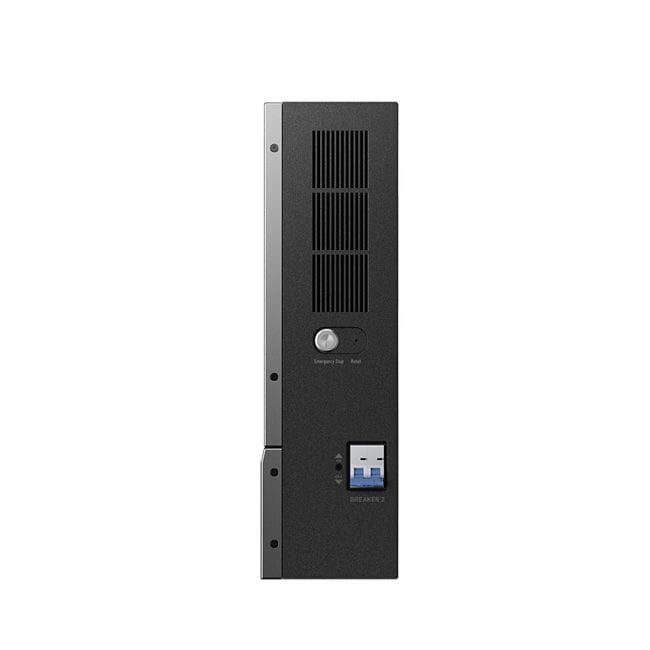

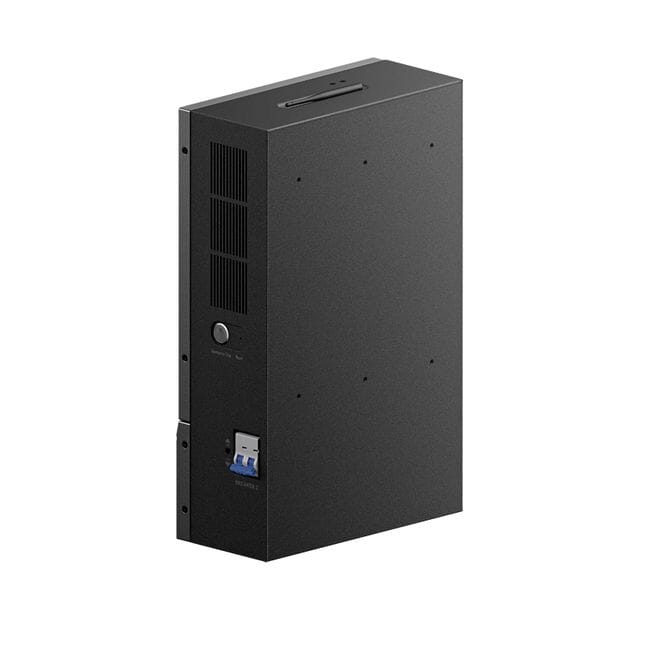

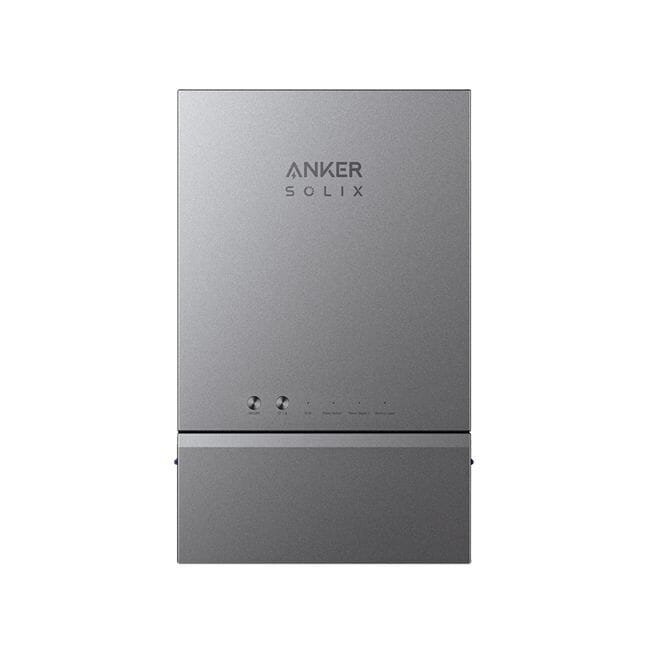

Anker SOLIX F3800 Home Power Panel

5.0 1 review
Trustpilot

Powder-Coated Steel Cabinet For Indoor Installation 18" Flexible conduit w/ all factory wires clearly marked/colored .

$1,299.99
$1,299.99
$1,990.75
You save $690.76
Pay over time at checkout.
Orders processed in 24–48 hours
30-day returns
Lifetime support by phone, chat & email
Full manufacturer warranty

Questions before you buy?

Call 877-242-2792 and we’ll work it out with you. Mon–Thu 10am–5:30pm, Fri 10am–1pm EST.

Trusted by 50,000+ Customers powered since 2018
Lifetime Support Phone, email or live chat, for good
Price Match Found it cheaper? Tell us
Ships from the USA Warehouses in CA, TX and NY

Frequently bought together

Specifications

The details.

Anker SOLIX Home Power Panel

  • Anker SOLIX Home Power Panel: Pro/Tran® 2 x 50-Amp 10-Circuit 120/240V Manual Transfer Switch
  • The next generation of Loadside™ manual transfer switches, works flawlessly with Anker SOLIX F3800
  • Total Circuits (1" Interchangeable Style) 15A 1-pole, 20A 2-pole, and 30A 2-pole
  • NEW Color-Coded Built-In Wattage Meter Helps you balance and manage Anker SOLIX F3800 load
  • Hinged, Non-Metallic Cover Protects toggle switches/breakers & provides a finished appearance

Powder-Coated Steel Cabinet For Indoor Installation 18" Flexible conduit w/ all factory wires clearly marked/colored

Combination 1/2" & 3/4" knockouts for easier installation

Easily re-configured in the field for multiple 2-pole circuits

Safety & Certifications Certified for use by Underwriter Laboratories to UL Stanard 1008 Meets all requirements of article 702 of the NEC ANSI/NFPA 70

Covers up to 10 essential circuits backup (120V & 240V) Scalable up to 12kW and 53.8kWh for extended blackout.

Still have questions? Give us a call at 877-242-2792

Product Weight
19 lbs / 8.8 kg
Product Dimensions
19.7×13×5.7 in 500×330.2×144.8 mm
Installation
Wall
Warranty
5 Years
Rated System Voltage
120 / 240V AC
Grid Wiring Area (Input)
18kW Max, 75A Max, 60Hz, L1+L2+N+PE
Grid Wiring Area (Output)
6kW Max (Continuous), 25A Max (Continuous), 60Hz, L1+L2+N+PE
Backup Wiring Area (Output)
12kW Max (Continuous), 50A Max (Continuous), 60Hz, L1+L2+N+PE
Power Station 1 Ports (Input)
6kW Max, 25A Max, 60Hz, L1+L2+N+PE
Power Station 1 Ports (Output)
3.8kW Max (Continuous), 15.8A Max (Continuous), 60Hz, L1+L2+N+PE
Power Station 2 Ports (Input)
6kW Max, 25A Max, 60Hz, L1+L2+N+PE
Power Station 2 Ports (Output)
3.8kW Max (Continuous), 15.8A Max (Continuous), 60Hz, L1+L2+N+PE
Power Stations 1 and 2 Ports (Total Output)
6kW Max (Continuous), 25A Max (Continuous), 60Hz, L1+L2+N+PE
Power Stations 1 and 2 Ports (Total Input)
12kW Max (Continuous), 50A Max (Continuous), 60Hz, L1+L2+N+PE
Nominal Output Voltage (AC)
120/240V
Normal Output Frequency
60Hz
Normal Temperature Range Operation
-4°F - 104°F / -20°C - 40°C
