WN Cable & Wire · Accessories
SKU: ANL-HF-30

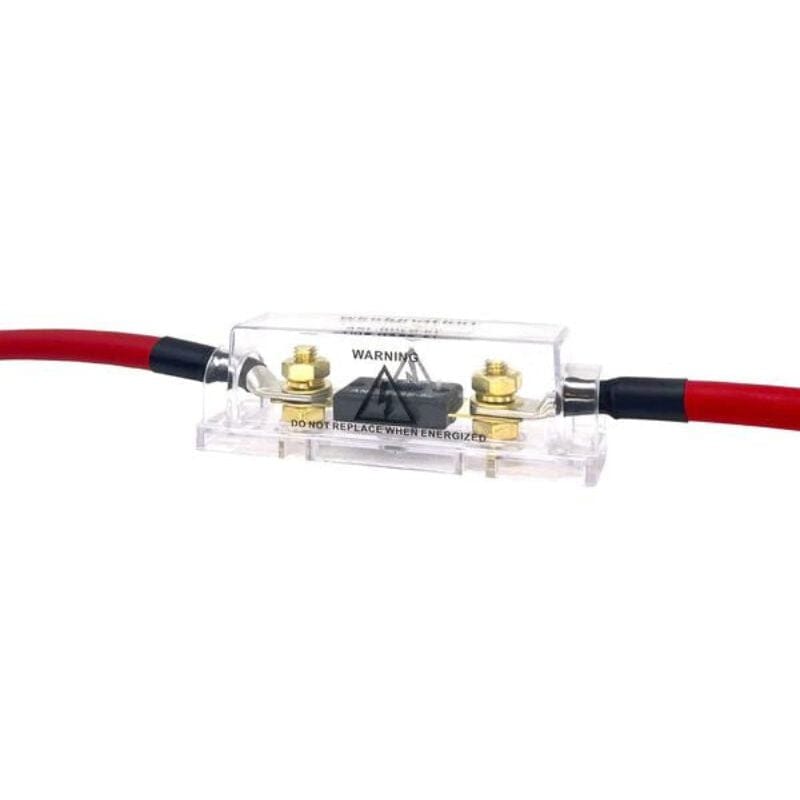

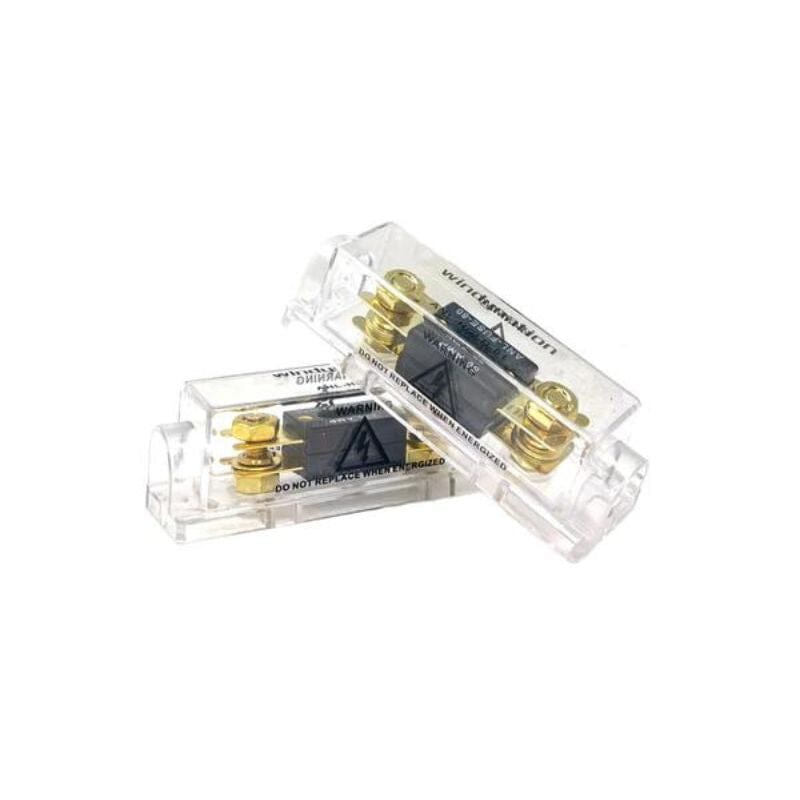

ANL Fuse Holder with ANL Fuse
The WindyNation ANL Fuse Holder with fuses are used in electrical systems in which the fuse is designed to burn out when the current exceeds the safe limit for the device being protected by the fuse.
- Regular price
- $15.99
- Sale price
- $15.99
- Regular price
-
$19.99
Not sure which one you need?
Call 877-242-2792 and we’ll work it out with you. Mon–Thu 10am–5:30pm, Fri 10am–1pm EST.
Frequently bought together
The details.
The WindyNation ANL Fuse Holder with fuses are used in electrical systems in which the fuse is designed to burn out when the current exceeds the safe limit for the device being protected by the fuse. It is the end user's responsibility to determine the appropriate fuse size for the electrical circuit. In general, the fuse should be sized at approximately 1.30 times the rated power of the device being protected by the fuse
- Includes 1pc WindyNation ANL Fuse Holder + 2pcs ANL Fuses
- ANL fuse holder will accept up to a maximum of 2/0 gauge cable
- Maximum Voltage: 72 VDC

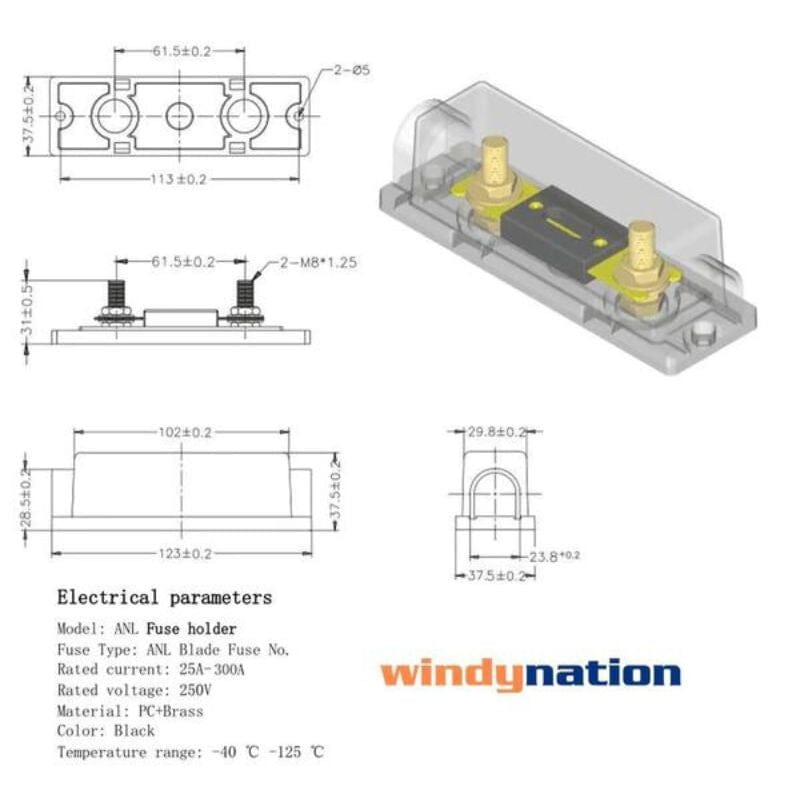

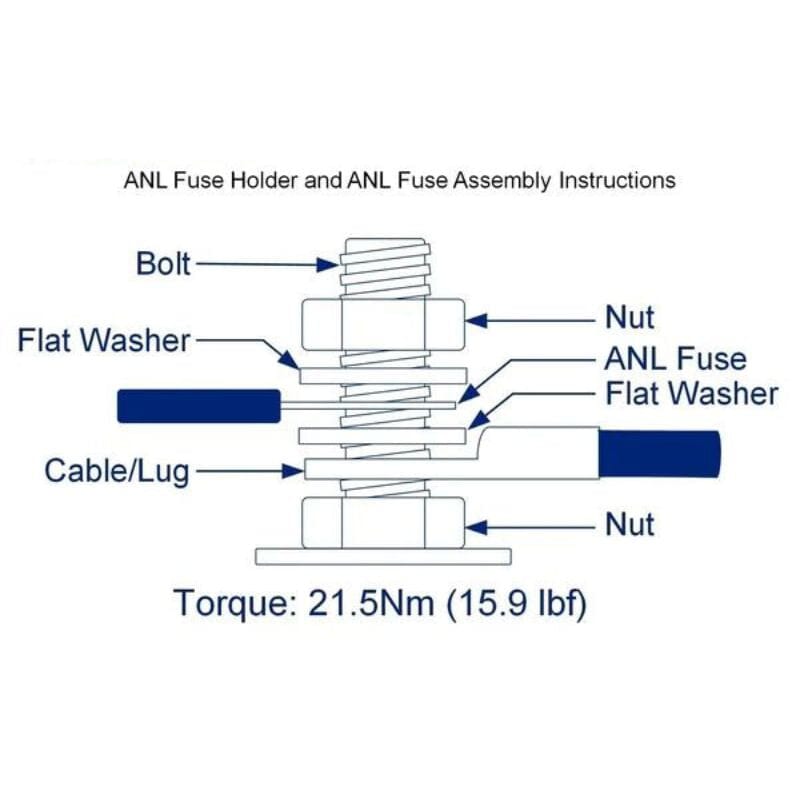

- ANL Fuse Holder mounting bolts are 8 mm in diameter. Use cable terminals with a 5/16" diameter or 8 mm diameter mounting hole to achieve a proper connection to the ANL Fuse Holder mounting bolts
- For most applications, the fuse should be sized at approximately 1.30 times the rated power of the device being protected by the fuse
