Rich Solar 40 Amp MPPT Solar Charge Controller - ShopSolar.com

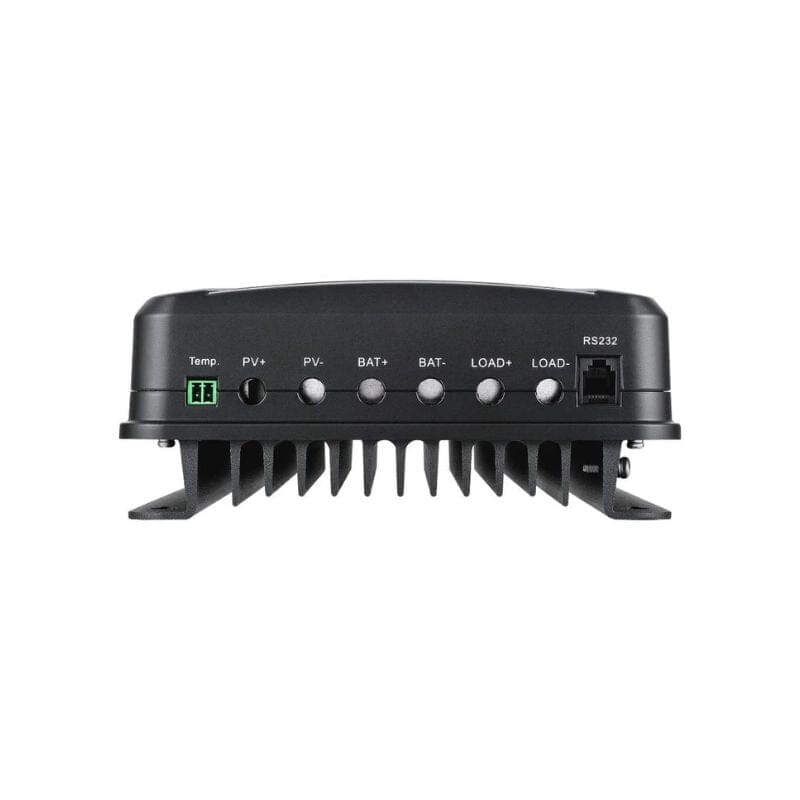

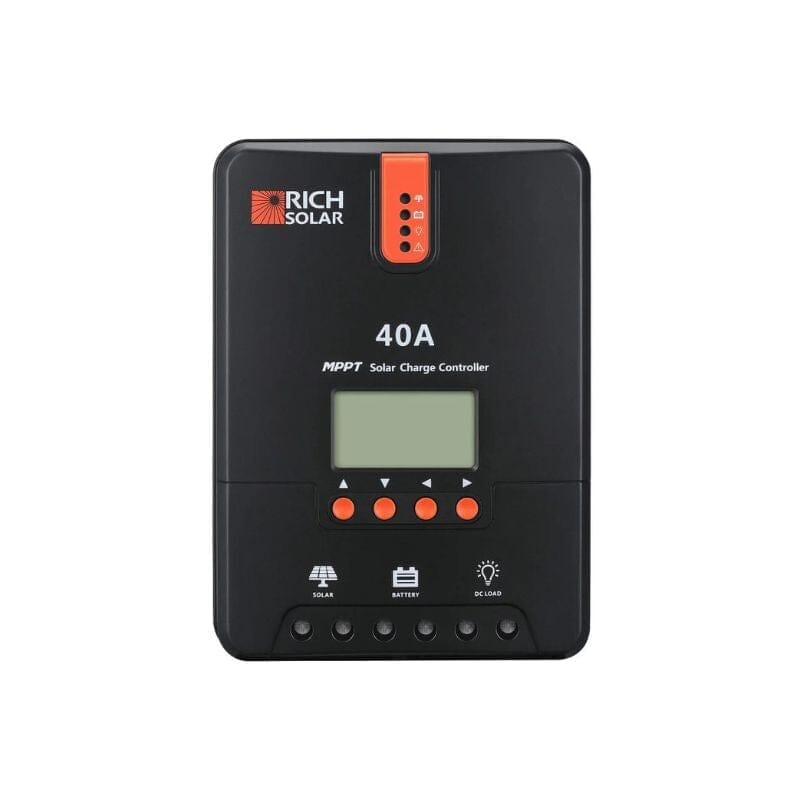

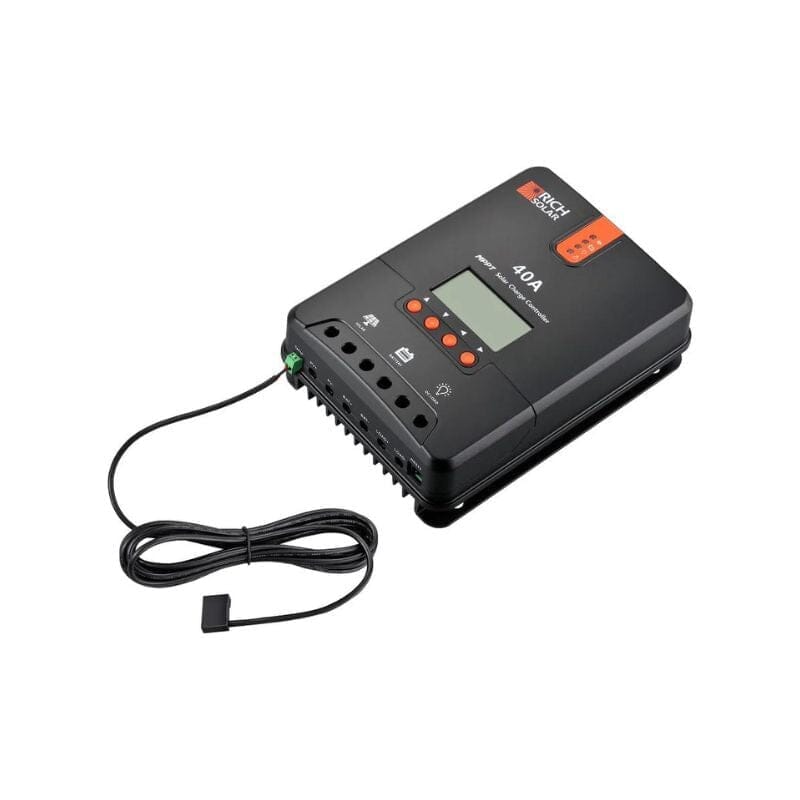

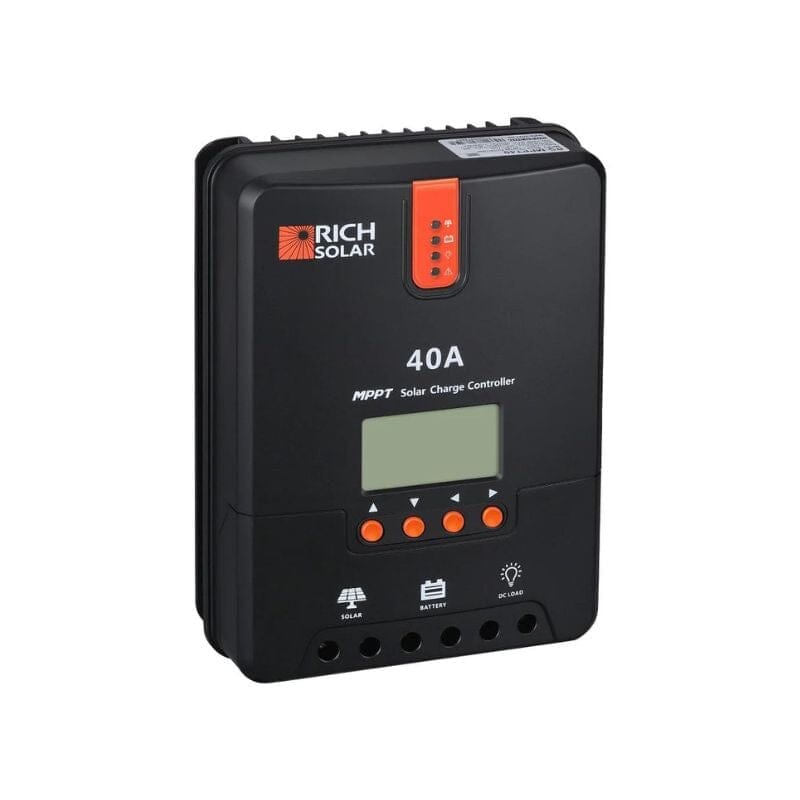

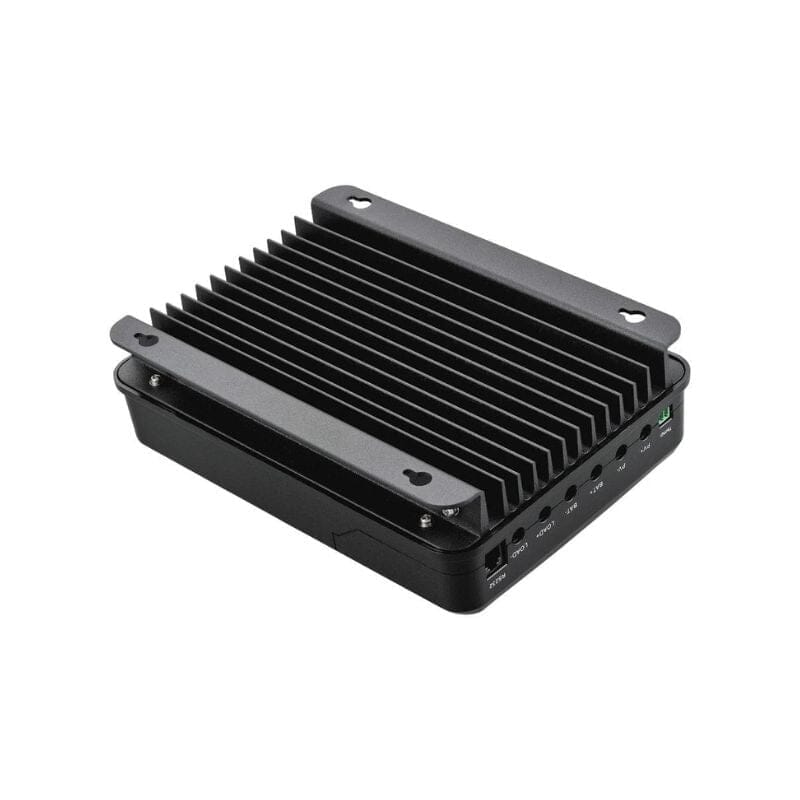

Rich Solar 40 Amp MPPT Solar Charge Controller

by Rich Solar
SKU RS-MPPT40

$160
$200
Translation missing: en.product_price.item.price.range_html
$200
from $160
$160
You Saved: $40 20%

Support Agent

Have a question? We're here to help.

Friendly Phone Support:  877-242-2792

Instant Live Chat:  Chat Now

Mon-Fri 10am-6pm EST

Estimated Delivery Time: 5-7 Days | Order Today

30-Day Returns | Fast Shipping | 40,000+ Customers

40 Amp MPPT Solar Charge Controller

Features:

  • Automatically detects 12V or 24V DC system voltages.
  • Compatible with various deep cycle battery options: Sealed, Gel, Flooded, and Lithium.
  • Innovative MPPT technology with high tracking efficiency up to 99% and peak conversion efficiency of 98%.
  • Electronic protection against reverse polarity, overcharging, over-discharging, overload, short-circuiting, and reverse current.
  • LCD screen and multiple LED indicators for displaying system operation information, customizable parameters, and error codes.
  • Features diverse load control; also capable of charging over-discharged lithium batteries.
  • Die-cast aluminum design allows for efficient heat dissipation.
  • RS232 port to communicate with BT-1 Bluetooth module.

Specifications:

  • Rated Battery Current: 40A
  • Rated Load Current: 20A
  • Max. PV Input Short Current: 50A
  • Max. Battery Voltage: 32V
  • Max Solar Input Voltage: 100VDC
  • Charge circuit voltage drop: ≤ 0.26V
  • Discharge Circuit Voltage drop: ≤ 0.15V
  • Working Temperature: -35°C to +45°C
  • Max Terminal Size: 8AWG
  • Rated Load Current: 10% to 90% NC
  • Overall Dimension: 9.37 x 6.81 x 2.85 in
  • Net Weight: 4.41 lb

Still have questions About 40 Amp MPPT Solar Charge Controller? Give us a call at 877-242-2792

Write a Review
average rating 5.0 out of 5
Based on 3 reviews
  • 5 Stars
    3 Reviews
  • 4 Stars
    0 Reviews
  • 3 Stars
    0 Reviews
  • 2 Stars
    0 Reviews
  • 1 Star
    0 Reviews
100% of reviewers would recommend this product to a friend
Quality
Rated 4 out of 5
Easy to Use
Rated 5 out of 5
Customer photos and videos
Open user-uploaded photo and review in a modal
3 Reviews
Reviewed by Jeff H.
I recommend this product
Age Range
35 - 44
Rated 5 out of 5
Review posted

** I AM SOOO PLEASED ** !!!

Gentlemen,

been running RICHSOLAR MPPT40 CONTROLLER for 3 months now

** I AM SOOO PLEASED ** !!!

THIS CONTROLLER IS SO INCREDIBLE I ** REALLY ** I suggest u guys HIGHLIGHT IT on ur website - i am not working for Rich Solar...not associated in any way...BUT I CAN GUARANTEED 1000% SATISFACTION FROM 100% of those who try one - THIS CONTROLLER IS FAR BEYOND WHAT I EXPECTED

my batt banks have automatically EQUALIZED 3 times now - my banks ARE RUNNING 12.8-12.9 at rest at night...THIS CONTROLLER IS A GIFT FROM GOD

Loading...
Quality
Rated 5 out of 5
Easy to Use
Rated 5 out of 5
Was this helpful?
Reviewed by airbike209
Verified Buyer
I recommend this product
Age Range
55 - 64
Rated 5 out of 5
Review posted

Best Controller !

I love the Rich Solar MPPT40 !! - Best controller Ever...and ive run many before it - This controller keeps track EA DAY of my Ahr's rec'd from my array - VERY helpful ! - SUPERB RANGE of control i can set ANY parameter i want - This controller has kept my new 500Ahr bank in TIP TOP shape ! I like it so much i'm ordering another for my 2nd bank !! - THANKS SHOPSOLARKITS !! your Sundanzer freezer and Rich Solar MPPT40 ARE BOTH TOP OF THE LINE !! I AM EXTREMELY PLEASED !!

Loading...
Quality
Rated 5 out of 5
Easy to Use
Rated 5 out of 5
Open Image by airbike209 in a modal
Was this helpful?

ShopSolar.com

Beautiful :)

Reviewed by Doug
Verified Reviewer
I recommend this product
Age Range
55 - 64
Rated 5 out of 5
Review posted

Nice efficient controller.

I got this as part of a 400 watt kit and I have been pretty impressed at the efficiency. Just for an experiment I hooked up two 200 watt panels and didn't even worry about the angle. I laid them out on a cloudy and cold day. I was getting about 1.5 to 2 amps and this controller was sending 2.8 to 4.5 amps to the batteries. I turned my inverter on to draw a small load and when the battery voltage dropped this controller did it's thing and started maximizing the input amps to the battery at a little over 5 amps. Considering the sun was behind a thick layer of clouds an I was only getting 40 to 80 watts coming in. Getting a charge on a cloudy day is pretty impressive to me!
