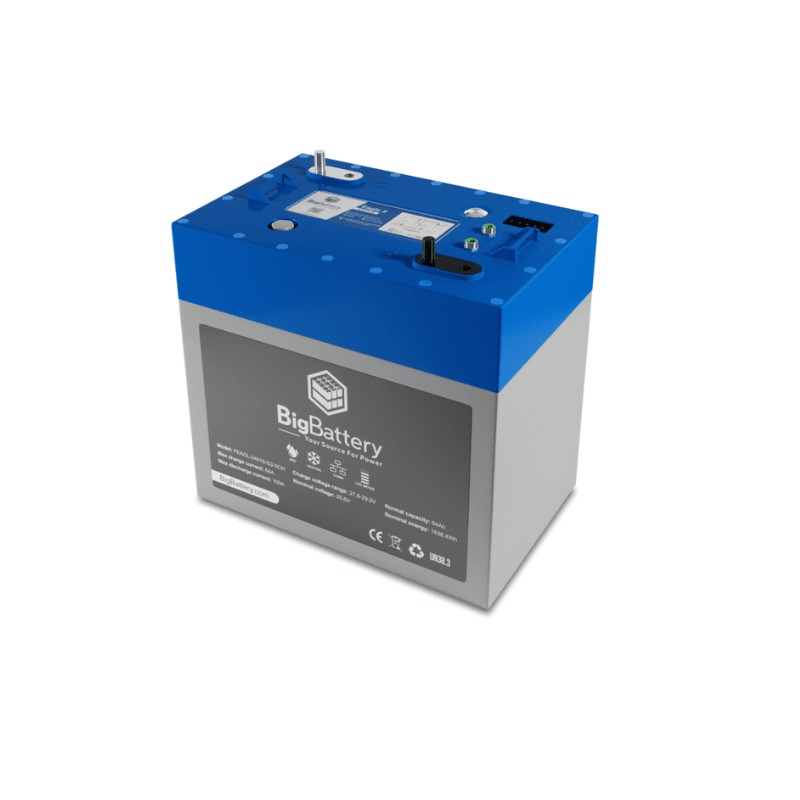

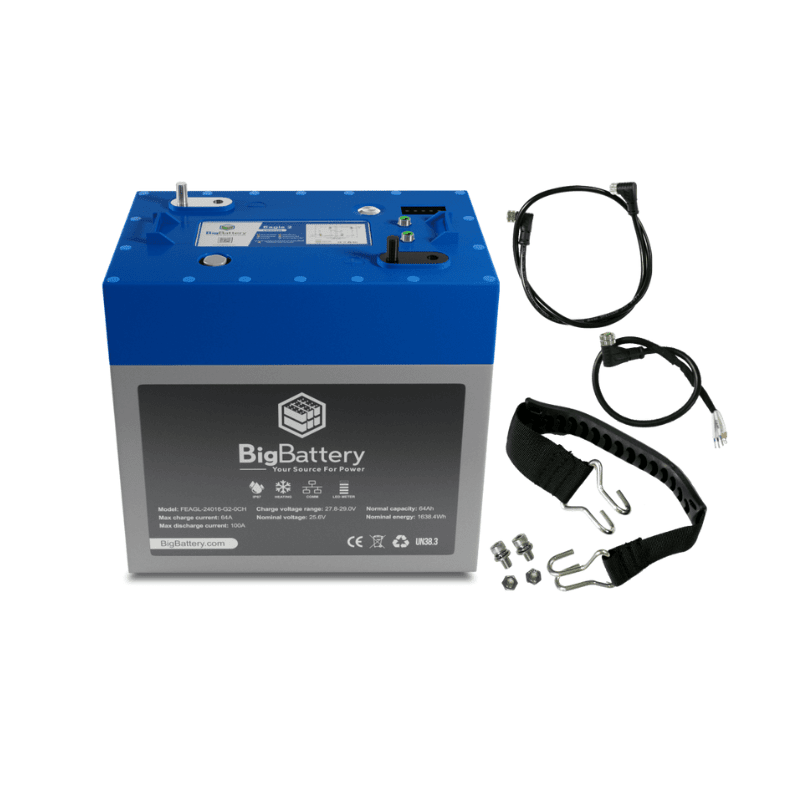

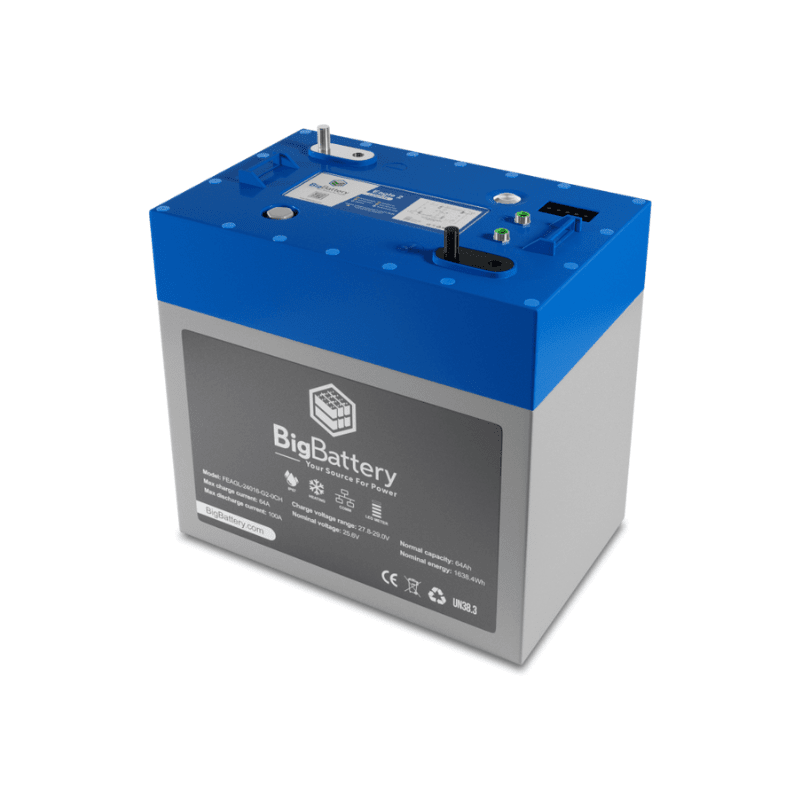

BigBattery 24V Eagle 2 LiFePO4 Battery
Power your off-grid, backup, or mobile energy needs with the BigBattery 24V Eagle 2 LiFePO4 Battery. With a rugged design, long lifespan, and ultra-safe LiFePO4 chemistry, the Eagle 2 delivers reliable 24V power in a compact, DIY-friendly package.
- Regular price
- $650.00
- Sale price
- $650.00
- Regular price
-
$915.00
Not sure what capacity you need?
Call 877-242-2792 and we’ll work it out with you. Mon–Thu 10am–5:30pm, Fri 10am–1pm EST.
Frequently bought together
Specifications
The details.
Power your off-grid, backup, or mobile energy needs with the BigBattery 24V Eagle 2 LiFePO4 Battery. With a rugged design, long lifespan, and ultra-safe LiFePO4 chemistry, the Eagle 2 delivers reliable 24V power in a compact, DIY-friendly package.
Available in flexible kit options—choose a single battery or scale up with 2x, 3x, or 4x battery kits for expanded capacity and greater energy independence.
Key Features:
-

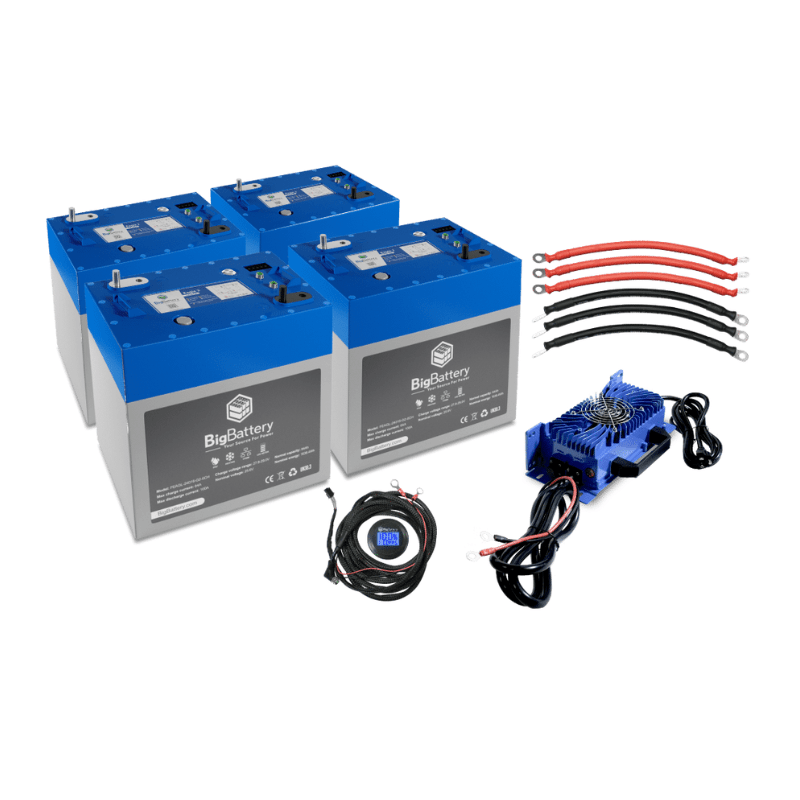

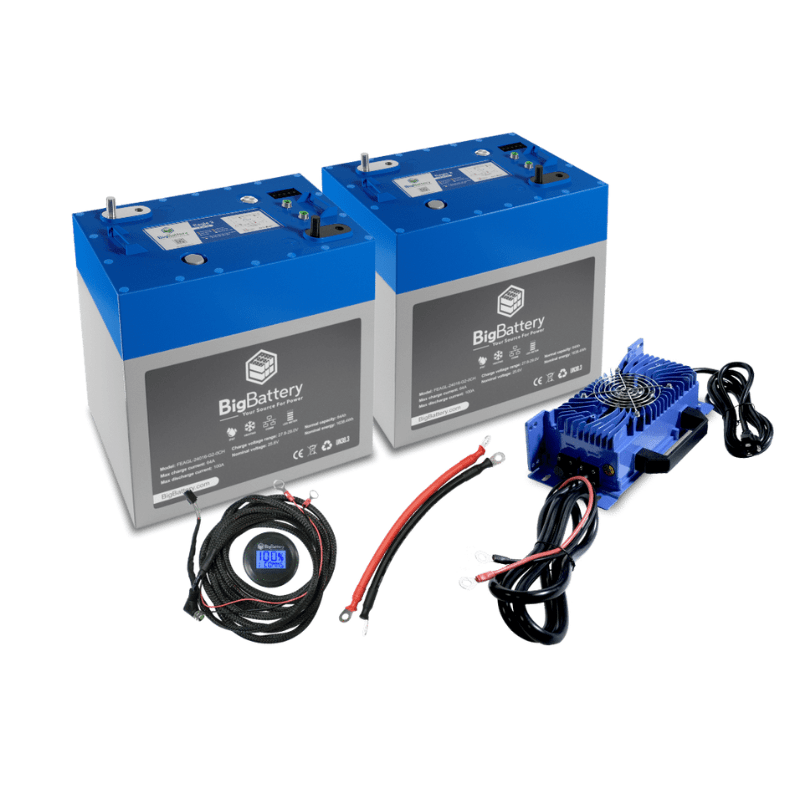

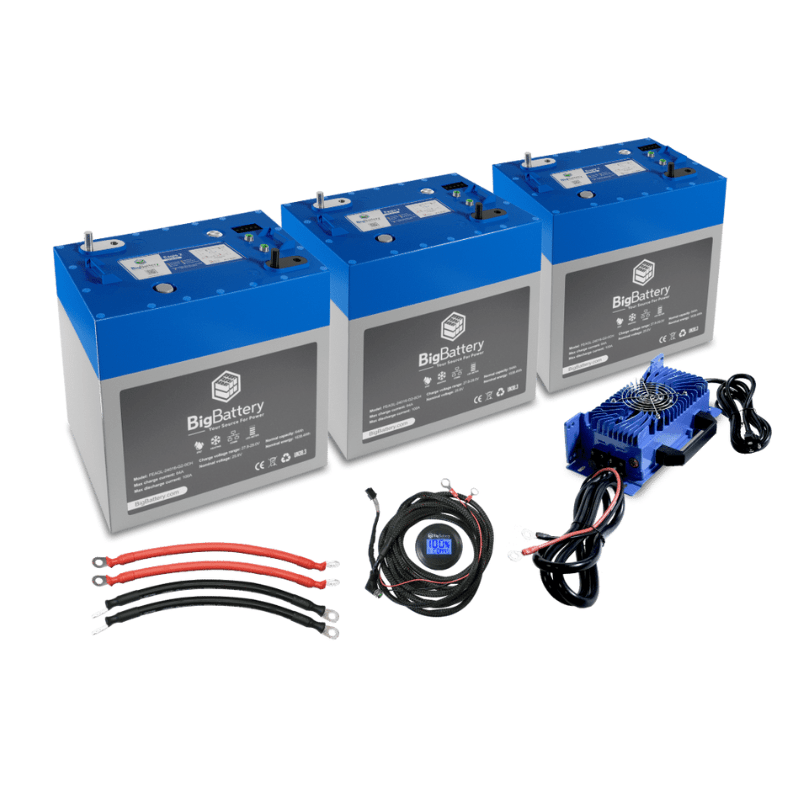

Expandable Kits: Available as single (1.63kWh), 2x (3.26kWh), 3x (4.89kWh), or 4x (6.52kWh) setups.
-
Safe, Long-Lasting Power: 10+ year lifespan with advanced LiFePO4 cells.
-
DIY Friendly: Easy installation with plug-and-play Anderson connectors.
-
Rugged & Reliable: Aluminum casing with built-in BMS for maximum safety.
-
High Performance: 2.56kW continuous discharge rate, perfect for off-grid living, RVs, marine, and backup systems.
-
Cost-Effective Energy: Save thousands on your solar setup by installing it yourself.
-
Legendary Support: Backed by a 10-year warranty and Shop Solar’s trusted customer service.
Specifications:
-
Nominal Voltage: 25.6V
-
Capacity: 64Ah (1.63kWh)
-
Weight: 44 lbs
-
Dimensions: 10.24" x 7.09" x 10.95"
-
Cycle Life: 3,000–5,000 cycles
-
Operating Temp: -4°F to 140°F
-
Output: 175A Anderson Connector
Take control of your energy with scalable, reliable power designed for serious solar users.
User Manual:
- SKU
- FEAGL-24016-G2-0CH
- GTIN-12 (U.P.C.)
- 850061252197
- System Voltage
- 24V
- Nominal Voltage
- 25.6V
- Chemistry
- LiFePO4
- kWh Capacity
- 1.63kWh
- Ah Capacity
- 64Ah
- Charging Voltage Range
- 27.8 - 29V
- Max Charge Voltage
- 29.2V
- Operating Voltage Range
- 24 - 28.8V
- Suggested Low Voltage Cutoff
- 24 - 25.4V
- BMS Cutoff Range
- 21 - 23.5V
- Cell Configuration
- 8S
- Max Continuous Discharge Current
- 100A
- Max Continuous Power
- 2560W
- Max Discharge Peak Current
- 200A (Max 5 seconds)
- Max Charge Current
- 64A
- Charge Temperature Range
- -4°F - 131°F (-20°C - 55°C)
- Discharge Temperature Range
- -4°F - 140°F (-20°C - 60°C)
- Optimal Discharge Temperature Range
- 59°F - 95°F (15°C - 35°C)
- Storage Temperature Range
- 23°F - 95°F (-5°C - 35°C) (Max 3 months) 32°F - 77°F (0°C - 25°C) (Max 12 months)
- Weight
- 38 lb (17.2 kg)
- Depth
- 7.1 in (180 mm)
- Width
- 10.2 in (260 mm)
- Height
- 10.8 in (274 mm)
- Max Connections
- Up to (10) Parallel
- Protection Rating
- IP67 / NEMA 6
- Communications
- CANBus
- Self-Heating
- Yes
