Battle Born Battery Voltage Chart

Short on Time? Here’s The Article Summary

The article introduces Battle Born batteries as powerful storage devices for solar energy systems and discusses their benefits. It emphasizes the importance of voltage charts in understanding battery performance and capacity. The Battle Born 12V 100Ah lithium battery is highlighted for its long lifespan, high energy output, and durability.

Pros of the Battle Born battery include its long lifespan, high performance, and warranty. However, its higher price and larger size compared to some alternatives are noted as potential drawbacks. Alternatives to the Battle Born battery, such as the Lion Energy UT 1300, Renogy 12V 100Ah, and AIMS 12V 100Ah, are also discussed, each offering its own set of features and pricing. The article concludes that Battle Born batteries are worth the investment due to their quality, performance, and warranty, but suggests considering alternatives based on specific needs and budget.

Introduction

Those who’ve spent a few years looking into solar power have no doubt heard of Battle Born batteries, the sleek and powerful storage device to keep your home running throughout the night. If you want to get an idea of just how powerful these tools are, have a look at our Battle Born battery voltage chart.

Battery technology has come a long way since its early designs. Modern batteries are significant;y more powerful than their older counterpart with higher voltages and the ability to power devices over longer periods.

However, these new batteries come with complicated manuals that can be difficult to navigate for beginners. There are a lot more factors to consider when it comes to modern-day batteries, especially Battle Born batteries, and their associated voltage charts.

Voltage charts are incredibly important and should always be consulted when looking at purchasing a new battery. Failure to do so can result in electrical faults and incorrect charging times of depleted batteries.

The following article will discuss the battery voltage chart for Battle Born batteries and give you a good understanding of charge states concerning voltage.

What Is a Battle Born Battery

battle born battery state of charge chart

A Battle Born battery is a lithium-ion battery with rechargeable functionality. They are designed for a wide range of electrical applications such as solar panel systems and storage, electric vehicles, and other electronic devices.

Battle Born batteries are designed to have incredibly long lifespans, high energy output, and incredibly durable. They are highly efficient and can be charged and discharged repeatedly.

More impressively, the repeated charging and discharging have no significant degradation on the battery’s performance or efficiency.

Many batteries are manufactured using harmful chemicals, but the Battle Born is specifically designed to be environmentally friendly. Their composition is completely devoid of toxic chemicals and heavy metals, making it the best choice for individuals who want to live a sustainable life.

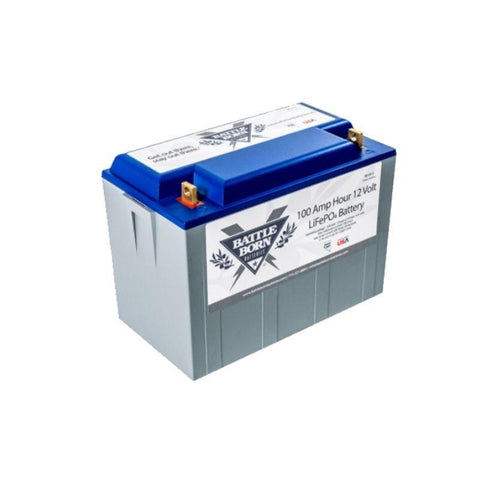

If you are interested in getting yourself a Battle Born battery or just looking to upgrade your existing system, then you can visit Shop Solar Kits. We stock the Battle Born 100Ah 12V LiFePO4 Deep Cycle Battery, which is well suited for solar systems.

battleborn voltage chart

Benefits of Battle Born Batteries

Battle Born 100Ah 12V LiFePO4 Deep Cycle Battery comes with several more benefits than your traditional lead acid batteries. Looking at a lead-acid battery discharge curve alone will show you the difference between Battle Born batteries and traditional lead-acid batteries.

They have an incredibly long lifespan that can go be charged and discharged over 5000 times. Traditional rechargeable batteries cap off around 800 cycles, which means you will often have to purchase new batteries.

Battle Born batteries are also significantly lighter than their counterparts. Believe it or not, Battle Born batteries only weigh in at around 29 pounds. This is almost half the weight of traditional lead acid batteries. The battery's compact design and low weight make it easier to transport and install.

One of the best features of Battle Born batteries is that they are fast charging. A typical lead acid battery will take up to 10 hours to fully charge, while the Battle Born batteries only require between 1 to 2 hours to charge up fully.

The discharge rate is much higher making Battle Born batteries suitable for high-powered electronic devices. Not only that, but their self-discharge rate is low, meaning that they can sustain their charge for long periods when not powering any applications.

General Battle Born Voltage Chart

battle born battery state of charge chart

There is a common misconception that a depleted battery has a voltage of zero, but this is not at all the case.

To clear up this confusion, the table below shows a typical voltage chart with the corresponding state of charge for Battle Born batteries. They are slightly different from the 12-volt battery charge voltage chart, but it is used in the same way.

If you want to determine the capacity of your battery without using expensive measuring tools, then all you have to do is determine your voltage and consult the table to get the corresponding charge capacity.

Make sure you make use of the LiFePO4 voltage chart below when determining your battery’s ratings.

Voltage

State of Charge (Capacity)

13.6

100%

13.4

99%

13.3

90%

13.2

70%

13.1

40%

13.0

30%

12.9

20%

12.8

17%

12.5

14%

12.0

9%

10.0

0%

The ratings above are for when the battery is not connected to a charging source. When the battery is connected to a charging source, the highest voltage reading is 14.6 volts.

As you can see, the voltage is not zero when the battery’s charge has been fully depleted but is rather at 10 volts. This is an impressive feature of Battle Born batteries and it ensures that the battery is protected from being fully degraded.

There is a clear direct relationship between voltage and the state of charge. As the voltage decrease so does the state of charge.

battle born voltage chart

Do The Math

The relationship between voltage and capacity can be described using the following equation:

V = Vmax – (Vmax – Vmin) x SoC

Vmax is the maximum voltage at 100% capacity, Vmin is the voltage at 0% capacity, and SoC is the batteries state of charge.

Let's use the voltage from the table above to demonstrate how this equation is used. Let’s say we have a Battle Born battery and we want to know the voltage at a 50% state of charge.

For our example the highest voltage or Vmax is 13.6 volts, the Vmin is 10 volts and the state of charge is 50%.

Simply substitute these values into your equation and it will look something like this:

V = 13.6 – (13.6 – 10) x 50%

This will give us a V value of 11.8 volts.

How to Get the Best from Your Battery

Battle Born batteries are specifically made to power certain devices such as RV campers and other off-the-grid electronic applications.

If you are in the market for a new battery, it is a good idea to couple it with solar panels, especially if you are using it for a recreational camping vehicle.

The connected solar panels will ensure that the battery is always being charged when out of use. This reduces the number of repeated charges and discharges by supplying it with constant power.

battle born batteries voltage chart

Connecting solar panels also ensures that you can use your battery to power more devices throughout the day. Its low discharge rate makes it the perfect battery for systems powered by renewable energy such as the sun.

Cost of Battle Born Batteries

Battle Born batteries are a little pricier than other batteries on the market, but you are going to reap the benefits once the purchase is made. The upfront cost can be anywhere from $800 to $1,000.

However, thanks to its ability to repeatedly be charged and discharged, it will pay for itself over its lifecycle. You will end up saving a lot more money in the long run thanks to its prolonged life cycle.

Conclusion

There are a lot of intricacies involved in understanding battery ratings and the differences between battery types. However, all you need to understand voltage concerning discharge rate is by using a voltage chart.

Battle Born batteries can be a little more difficult to comprehend because of their superior performance, but a voltage chart is still used to figure out its associated capacity or SoC.

Overall, Battle Born batteries offer so many more benefits than traditional batteries. Their superior performance makes them an excellent choice for recreational vehicles, large and small solar panel systems, and other off-grid power systems. If you want a battery for more powerful systems then consider consulting with a 52V battery voltage chart to see its capabilities.

Battle Born battery voltage chart

Make sure you consult a solar panel voltage chart before setting up your system with a battery. Visit Shop Solar Kits to find the best Battle Born battery for all your electrical needs.
