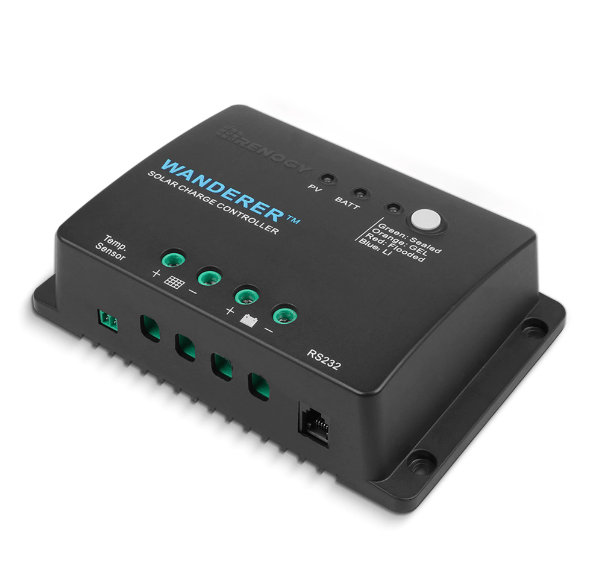

Renogy Wanderer LI 30A Charge Controller | RNG-CTRL-WND30-LI
The Renogy Wanderer-Li is a 30A PWM solar charge controller that integrates efficient PWM charging to increase battery life and improve system performance. Designed with a simple interface for ease of use, the controller uses multiple LED indicators to notify users of charge status and battery information.
This newly improved model has two advanced features: an RS232 port and Lithium battery charging. With the addition of the RS232 port, users can now connect and communicate with the Renogy BT-1 Bluetooth module. By adding the BT-1 to the Wanderer-Li, you can now use the smartphone app, Renogy BT, to monitor and adjust your solar system remotely.
With the inclusion of the Lithium Battery Mode, the 30A negative-ground controller is now capable of charging various 12V battery types and banks, including most 12V lithium models available on the market.
Renogy Wanderer LI 30A Charge Controller Features:
- Optimized for a 12V system; Deep cycle Sealed, Gel, Flooded, and Lithium battery option ready.
- Smart 4 Stage PWM charging (Bulk, Boost, Float, and Equalization) and temperature compensation increases battery life and improves system performance.
- Intelligent protection against reverse polarity, overcharging, short-circuit, and reverse current. Multiple LED indicators for easy to read charge status and battery information.
- Integrated RS232 port allows communication with BT-1 Bluetooth module and usage of Renogy BT smartphone app.
Renogy Wanderer LI 30A Charge Controller Specs:
Nominal Voltage: 12 VDC | Max. PV Input Power: 400W |
Rated Charge Current: 30A | Max. PV Input Voltage: 25 VDC |
Self-Consumption: <10mA | High Voltage Disconnect: 16V |
Boost Duration: 120 min | Temperature Compensation: -3mV/°C/2V |
Working Temperature: -20°F - 113°F | Storage Temperature: -31°F - 176°F |
Max Gauge Size: Up to 8AWG | Weight: 0.65 lbs |
Dimensions: 6.45 x 4.31 x 1.76 inches | Enclosure: IP20 |
OPTIONS: BT-1 BLUETOOTH MODULE | |
---|---|
Model: BT-1 | Input Voltage: 5V-12V |
Standby Power Consumption: 0.04W | Operating Power Consumption: 0.05W |
Communication Range: ≤15m | Serial Baud Rate: Fixed Baud Rate 9600bps |
Cable Length: 5.00 m (16.4 ft) | Dimensions: 2.6 X 2.01 X 0.61 In |
Installation Dimensions: 57.5, φ3.2mm (2.26, φ0.13in) | Operation Temperature: -20°C to 75°C(-4°F to 167°F) |
Protection Grade: IP67 | Weight: 120 g (4.2oz) |
