9.84kW Complete Solar Power System - 12,000W 120/240V [28.6kWh-30.72kWh Lithium Battery Bank] 24 x 410W Mono Solar Panels | Includes Schematic [OGK-PRO]
use code SUN101 to save
$101 Expires Soonuse code SUN101 to save
$101 Expires Soonuse code SUN101 to save
$101 Expires Soonuse code SUN101 to save
$101 Expires Soonuse code SUN101 to save
$101 Expires Soonuse code SUN101 to save
$101 Expires Soon
Discover the powerful and affordable off-grid power solution you've been searching for with our complete off-grid solar kits. These all-in-one plug-and-play solar kits have the ability to hook up to solar panels, fuel/backup generator and/or utility power - So whether you're looking to run your RV, off-grid home/cabin or for an emergency backup solar system they were designed with versatility and expandability in mind.
Common Uses: Full-time off-grid living, standalone home backup systems, larger shops and outbuildings as well as remote or mobile applications like food trucks, construction sites and even small industrial and light commercial needs.
Each kit includes all of the cables, connectors, adapters, diagrams, guides, parts and pieces, needed to get up and running with quiet, free and reliable solar power, all backed by our lifetime customer support (phone, email & chat). Experience simplicity, value, and reliability with our complete solar kit packages.
Order securely online with major credit cards or PayPal, or enjoy instant financing options at checkout. Give us a call at 877-242-2792 if you have any specific questions.
Embrace the freedom of renewable energy and take control of your power needs today!

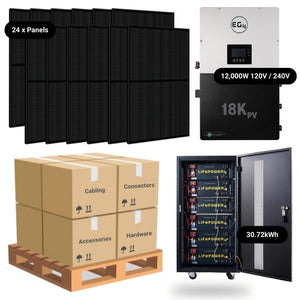

What's Included:
Ships from USA!
1 x EG4 18k PV Hybrid Inverter | All-In-One Solar Inverter

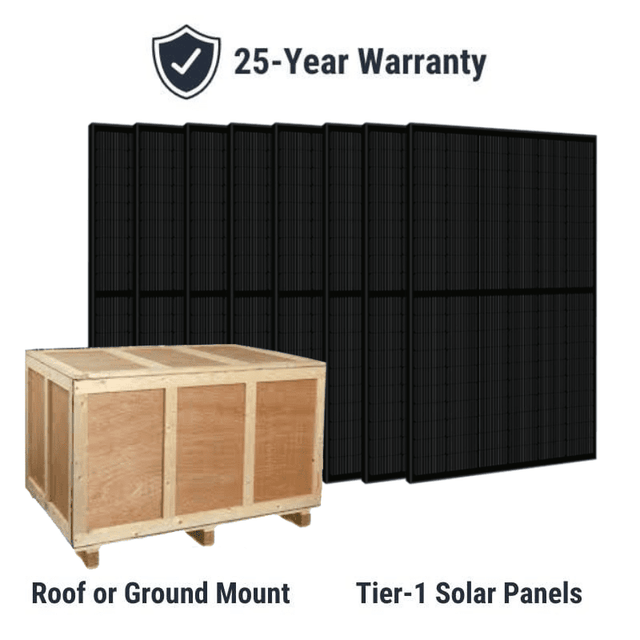

24 x 410 Watt Monocrystalline Solar Panels 12V - 25-Year Power Output Warranty
1 x DC Disconnect Switch
2 x PV Inline Fuse Kit
2 x 50ft, 10AWG, PV Extension Cables, SET
2 x 10ft, 10AWG, PV Extension Cables SET
6 x Rich Solar Alpha 5 Pro [30.72kWh] - 10 Year Warranty
1 x 6-slot Battery Rack
1 x 5ft, 4/0AWG Cable, SET - Inverter to Battery Cable
Free System Schematic & Wiring Diagram Included
User Manuals & Any Related Certifications
Fast, Reliable Shipping
Lifetime Customer Support
Product Specifications:
EG4 18KPV Hybrid Inverter Specifications
Nominal AC Voltage
240 | 208VAC
Frequency
50/60Hz
Max. Continuous AC Current
50A
Rated Voltage
240VAC
Type
Lead-acid battery/Lithium battery
Max. Charge/ Discharge Current
250A
Nominal Voltage
48 VDC
Dimensions H×W×D
34.3×20.5×11.2 in. (87×52×28.5 cm)
Weight
121.25 lbs (55kg)
Cooling Concept
Fan
Rich Solar Alpha 5 Pro Specifications
Battery Type
LFP Battery
Nominal Voltage
51.2V
Nominal Capacity
100Ah
Minimum Capacity
99.5Ah
Nominal Energy
5120Wh
Charging Voltage
57.6V
Discharging Cutoff Voltage
44.8V
Standard Charging Current
20A
Maximum Charging Current
100A
Standard Discharge Current
50A
Continuous Discharge Current
100A
Maximum Discharge Current
100A
Weight
99.20lb
Overall Dimensions
17.7x17.8x5.2in
Cycle Life
≥7000; Capacity Retention≥70%
Warranty
10 Years
Solar Panel Specifications
Cell Type Monocrystalline
182mm x 91mm
Dimension (L× W × H)
67.80 x 44.65 x 1.18 inch
Weight
22.0kg (45.80 lbs)
Front Glass
3.2mm Toughened Glass
Frame
Anodized Aluminium Alloy
Cable
250mm or Customized Length
Junction Box
IP 68 Rated
Rated Power (Pmpp)
410
Rated Current (Impp)
13.15
Rated Voltage (Vmpp)
31.18
Short Circuit Current (Isc)
13.72
Open Circuit Voltage (Voc)
37.23
Module Efficiency (%)
21.00
Warranty
25years Linear Performance Warranty
OGK PRO Solar Kit Specs
Max Continuous Output
12,000W
Max Recommended Solar Input
21,000W
Total Wattage of Panels
9,840W
Total KWH of Batteries
30.72kWh
Wattage Per Panel
410W
# of Panels
24
System Voltage
48V
Battery Chemistry
Lithium
# of Batteries
6
Disclaimer: Each solar kit includes solar-specific equipment to get you started, but please keep in mind that you may need to purchase additional items like installation tools, grounding rods/wire, and any AC components you might need. We highly recommend bringing in a certified solar installer or master electrician to help with the installation process to ensure a safe and reliable system that meets all relevant codes and standards. Also, if you purchase a solar kit without solar panels, you will be responsible for ensuring the compatibility and configuration of your solar panel array. Each solar kit includes professionally designed schematics that work within the parameters of each inverter. There are minimum and maximum input voltages with each inverter that you will need to be aware of so that you do not damage your inverter and/or void your warranty.
What's Included:
Ships from USA!
1 x EG4 18k PV Hybrid Inverter | All-In-One Solar Inverter
24 x 410 Watt Monocrystalline Solar Panels 12V - 25-Year Power Output Warranty
1 x DC Disconnect Switch
2 x PV Inline Fuse Kit
2 x 50ft, 10AWG, PV Extension Cables, SET
2 x 10ft, 10AWG, PV Extension Cables SET
6 x Rich Solar Alpha 5 Pro [30.72kWh] - 10 Year Warranty
1 x 6-slot Battery Rack
1 x 5ft, 4/0AWG Cable, SET - Inverter to Battery Cable
1 x PV Roof Mount Set
Free System Schematic & Wiring Diagram Included
User Manuals & Any Related Certifications
Fast, Reliable Shipping
Lifetime Customer Support
Product Specifications:
EG4 18KPV Hybrid Inverter Specifications
Nominal AC Voltage
240 | 208VAC
Frequency
50/60Hz
Max. Continuous AC Current
50A
Rated Voltage
240VAC
Type
Lead-acid battery/Lithium battery
Max. Charge/ Discharge Current
250A
Nominal Voltage
48 VDC
Dimensions H×W×D
34.3×20.5×11.2 in. (87×52×28.5 cm)
Weight
121.25 lbs (55kg)
Cooling Concept
Fan
Rich Solar Alpha 5 Pro Specifications
Battery Type
LFP Battery
Nominal Voltage
51.2V
Nominal Capacity
100Ah
Minimum Capacity
99.5Ah
Nominal Energy
5120Wh
Charging Voltage
57.6V
Discharging Cutoff Voltage
44.8V
Standard Charging Current
20A
Maximum Charging Current
100A
Standard Discharge Current
50A
Continuous Discharge Current
100A
Maximum Discharge Current
100A
Weight
99.20lb
Overall Dimensions
17.7x17.8x5.2in
Cycle Life
≥7000; Capacity Retention≥70%
Warranty
10 Years
Solar Panel Specifications
Cell Type Monocrystalline
182mm x 91mm
Dimension (L× W × H)
67.80 x 44.65 x 1.18 inch
Weight
22.0kg (45.80 lbs)
Front Glass
3.2mm Toughened Glass
Frame
Anodized Aluminium Alloy
Cable
250mm or Customized Length
Junction Box
IP 68 Rated
Rated Power (Pmpp)
410
Rated Current (Impp)
13.15
Rated Voltage (Vmpp)
31.18
Short Circuit Current (Isc)
13.72
Open Circuit Voltage (Voc)
37.23
Module Efficiency (%)
21.00
Warranty
25years Linear Performance Warranty
OGK PRO Solar Kit Specs
Max Continuous Output
12,000W
Max Solar Input
21,000W
Total Wattage of Panels
9,840W
Total KWH of Batteries
30.72kWh
Wattage Per Panel
410W
# of Panels
24
System Voltage
48V
Battery Chemistry
Lithium
# of Batteries
6
Disclaimer: Each solar kit includes solar-specific equipment to get you started, but please keep in mind that you may need to purchase additional items like installation tools, grounding rods/wire, and any AC components you might need. We highly recommend bringing in a certified solar installer or master electrician to help with the installation process to ensure a safe and reliable system that meets all relevant codes and standards. Also, if you purchase a solar kit without solar panels, you will be responsible for ensuring the compatibility and configuration of your solar panel array. Each solar kit includes professionally designed schematics that work within the parameters of each inverter. There are minimum and maximum input voltages with each inverter that you will need to be aware of so that you do not damage your inverter and/or void your warranty.
What's Included:
Ships from USA!
1 x EG4 18k PV Hybrid Inverter | All-In-One Solar Inverter
24 x 410 Watt Monocrystalline Solar Panels 12V - 25-Year Power Output Warranty
1 x DC Disconnect Switch
2 x PV Inline Fuse Kit
2 x 50ft, 10AWG, PV Extension Cables, SET
2 x 10ft, 10AWG, PV Extension Cables SET
6 x Rich Solar Alpha 5 Pro [30.72kWh] - 10 Year Warranty
1 x 6-slot Battery Rack
1 x 5ft, 4/0AWG Cable, SET - Inverter to Battery Cable
1 x PV Ground Mount Assembly
Free System Schematic & Wiring Diagram Included
User Manuals & Any Related Certifications
Fast, Reliable Shipping
Lifetime Customer Support
Product Specifications:
EG4 18KPV Hybrid Inverter Specifications
Nominal AC Voltage
240 | 208VAC
Frequency
50/60Hz
Max. Continuous AC Current
50A
Rated Voltage
240VAC
Type
Lead-acid battery/Lithium battery
Max. Charge/ Discharge Current
250A
Nominal Voltage
48 VDC
Dimensions H×W×D
34.3×20.5×11.2 in. (87×52×28.5 cm)
Weight
121.25 lbs (55kg)
Cooling Concept
Fan
Rich Solar Alpha 5 Pro Specifications
Battery Type
LFP Battery
Nominal Voltage
51.2V
Nominal Capacity
100Ah
Minimum Capacity
99.5Ah
Nominal Energy
5120Wh
Charging Voltage
57.6V
Discharging Cutoff Voltage
44.8V
Standard Charging Current
20A
Maximum Charging Current
100A
Standard Discharge Current
50A
Continuous Discharge Current
100A
Maximum Discharge Current
100A
Weight
99.20lb
Overall Dimensions
17.7x17.8x5.2in
Cycle Life
≥7000; Capacity Retention≥70%
Warranty
10 Years
Solar Panel Specifications
Cell Type Monocrystalline
182mm x 91mm
Dimension (L× W × H)
67.80 x 44.65 x 1.18 inch
Weight
22.0kg (45.80 lbs)
Front Glass
3.2mm Toughened Glass
Frame
Anodized Aluminium Alloy
Cable
250mm or Customized Length
Junction Box
IP 68 Rated
Rated Power (Pmpp)
410
Rated Current (Impp)
13.15
Rated Voltage (Vmpp)
31.18
Short Circuit Current (Isc)
13.72
Open Circuit Voltage (Voc)
37.23
Module Efficiency (%)
21.00
Warranty
25years Linear Performance Warranty
OGK PRO Solar Kit Specs
Max Continuous Output
12,000W
Max Solar Input
21,000W
Total Wattage of Panels
9,840W
Total KWH of Batteries
30.72kWh
Wattage Per Panel
410W
# of Panels
24
System Voltage
48V
Battery Chemistry
Lithium
# of Batteries
6
Disclaimer: Each solar kit includes solar-specific equipment to get you started, but please keep in mind that you may need to purchase additional items like installation tools, grounding rods/wire, and any AC components you might need. We highly recommend bringing in a certified solar installer or master electrician to help with the installation process to ensure a safe and reliable system that meets all relevant codes and standards. Also, if you purchase a solar kit without solar panels, you will be responsible for ensuring the compatibility and configuration of your solar panel array. Each solar kit includes professionally designed schematics that work within the parameters of each inverter. There are minimum and maximum input voltages with each inverter that you will need to be aware of so that you do not damage your inverter and/or void your warranty.
What's Included:
Ships from USA!
1 x EG4 18k PV Hybrid Inverter | All-In-One Solar Inverter
24 x 410 Watt Monocrystalline Solar Panels 12V - 25-Year Power Output Warranty
1 x DC Disconnect Switch
2 x PV Inline Fuse Kit
2 x 50ft, 10AWG, PV Extension Cables, SET
2 x 10ft, 10AWG, PV Extension Cables SET
6 x EG4-LL-S [30.72kWh] - 10 Year Warranty
1 x 6-slot Battery Rack
1 x 5ft, 4/0AWG Cable, SET - Inverter to Battery Cable
Free System Schematic & Wiring Diagram Included
User Manuals & Any Related Certifications
Fast, Reliable Shipping
Lifetime Customer Support
Product Specifications:
EG4 18KPV Hybrid Inverter Specifications
Nominal AC Voltage
240 | 208VAC
Frequency
50/60Hz
Max. Continuous AC Current
50A
Rated Voltage
240VAC
Type
Lead-acid battery/Lithium battery
Max. Charge/ Discharge Current
250A
Nominal Voltage
48 VDC
Dimensions H×W×D
34.3×20.5×11.2 in. (87×52×28.5 cm)
Weight
121.25 lbs (55kg)
Cooling Concept
Fan
EG4 LL-S Lithium Battery Specifications
Nominal Voltage
51.2V
Nominal Capacity
100Ah
Charging Current
100A (Max. continuous)
Discharging Current
100A (Max. continuous)
Charging Range
32° ‒ 113°F (0°C to 45°C)
Discharging Range
-4°F ‒ 122°F (-20°C to 50°C)
Dimensions
6.1 × 19 × 17.4 in.
Design Life
*15 Years at 80% DoD
Communications
EG4, Schneider, Sol-Ark, Victron, Growatt, Megarevo, Luxpower, and Deye inverters
Warranty
10 years
Solar Panel Specifications
Cell Type Monocrystalline
182mm x 91mm
Dimension (L× W × H)
67.80 x 44.65 x 1.18 inch
Weight
22.0kg (45.80 lbs)
Front Glass
3.2mm Toughened Glass
Frame
Anodized Aluminium Alloy
Cable
250mm or Customized Length
Junction Box
IP 68 Rated
Rated Power (Pmpp)
410
Rated Current (Impp)
13.15
Rated Voltage (Vmpp)
31.18
Short Circuit Current (Isc)
13.72
Open Circuit Voltage (Voc)
37.23
Module Efficiency (%)
21.00
Warranty
25years Linear Performance Warranty
OGK PRO Solar Kit Specs
Max Continuous Output
12,000W
Max Solar Input
21,000W
Total Wattage of Panels
9,840W
Total KWH of Batteries
30.72kWh
Wattage Per Panel
410W
# of Panels
24
System Voltage
48V
Battery Chemistry
Lithium
# of Batteries
6
Battery Weight
99.6lb
Disclaimer: Each solar kit includes solar-specific equipment to get you started, but please keep in mind that you may need to purchase additional items like installation tools, grounding rods/wire, and any AC components you might need. We highly recommend bringing in a certified solar installer or master electrician to help with the installation process to ensure a safe and reliable system that meets all relevant codes and standards. Also, if you purchase a solar kit without solar panels, you will be responsible for ensuring the compatibility and configuration of your solar panel array. Each solar kit includes professionally designed schematics that work within the parameters of each inverter. There are minimum and maximum input voltages with each inverter that you will need to be aware of so that you do not damage your inverter and/or void your warranty.
What's Included:
Ships from USA!
1 x EG4 18k PV Hybrid Inverter | All-In-One Solar Inverter
24 x 410 Watt Monocrystalline Solar Panels 12V - 25-Year Power Output Warranty
1 x DC Disconnect Switch
2 x PV Inline Fuse Kit
2 x 50ft, 10AWG, PV Extension Cables, SET
2 x 10ft, 10AWG, PV Extension Cables SET
6 x EG4-LL-S [30.72kWh] - 10 Year Warranty
1 x 6-slot Battery Rack
1 x 5ft, 4/0AWG Cable, SET - Inverter to Battery Cable
1 x PV Roof Mount Set
Free System Schematic & Wiring Diagram Included
User Manuals & Any Related Certifications
Fast, Reliable Shipping
Lifetime Customer Support
Product Specifications:
EG4 18KPV Hybrid Inverter Specifications
Nominal AC Voltage
240 | 208VAC
Frequency
50/60Hz
Max. Continuous AC Current
50A
Rated Voltage
240VAC
Type
Lead-acid battery/Lithium battery
Max. Charge/ Discharge Current
250A
Nominal Voltage
48 VDC
Dimensions H×W×D
34.3×20.5×11.2 in. (87×52×28.5 cm)
Weight
121.25 lbs (55kg)
Cooling Concept
Fan
EG4 LL-S Lithium Battery Specifications
Nominal Voltage
51.2V
Nominal Capacity
100Ah
Charging Current
100A (Max. continuous)
Discharging Current
100A (Max. continuous)
Charging Range
32° ‒ 113°F (0°C to 45°C)
Discharging Range
-4°F ‒ 122°F (-20°C to 50°C)
Dimensions
6.1 × 19 × 17.4 in.
Design Life
*15 Years at 80% DoD
Communications
EG4, Schneider, Sol-Ark, Victron, Growatt, Megarevo, Luxpower, and Deye inverters
Warranty
10 years
Solar Panel Specifications
Cell Type Monocrystalline
182mm x 91mm
Dimension (L× W × H)
67.80 x 44.65 x 1.18 inch
Weight
22.0kg (45.80 lbs)
Front Glass
3.2mm Toughened Glass
Frame
Anodized Aluminium Alloy
Cable
250mm or Customized Length
Junction Box
IP 68 Rated
Rated Power (Pmpp)
410
Rated Current (Impp)
13.15
Rated Voltage (Vmpp)
31.18
Short Circuit Current (Isc)
13.72
Open Circuit Voltage (Voc)
37.23
Module Efficiency (%)
21.00
Warranty
25years Linear Performance Warranty
OGK PRO Solar Kit Specs
Max Continuous Output
12,000W
Max Solar Input
21,000W
Total Wattage of Panels
9,840W
Total KWH of Batteries
30.72kWh
Wattage Per Panel
410W
# of Panels
24
System Voltage
48V
Battery Chemistry
Lithium
# of Batteries
6
Battery Weight
99.6lb
Disclaimer: Each solar kit includes solar-specific equipment to get you started, but please keep in mind that you may need to purchase additional items like installation tools, grounding rods/wire, and any AC components you might need. We highly recommend bringing in a certified solar installer or master electrician to help with the installation process to ensure a safe and reliable system that meets all relevant codes and standards. Also, if you purchase a solar kit without solar panels, you will be responsible for ensuring the compatibility and configuration of your solar panel array. Each solar kit includes professionally designed schematics that work within the parameters of each inverter. There are minimum and maximum input voltages with each inverter that you will need to be aware of so that you do not damage your inverter and/or void your warranty.
What's Included:
Ships from USA!
1 x EG4 18k PV Hybrid Inverter | All-In-One Solar Inverter
24 x 410 Watt Monocrystalline Solar Panels 12V - 25-Year Power Output Warranty
1 x DC Disconnect Switch
2 x PV Inline Fuse Kit
2 x 50ft, 10AWG, PV Extension Cables, SET
2 x 10ft, 10AWG, PV Extension Cables SET
6 x EG4-LL-S [30.72kWh] - 10 Year Warranty
1 x 6-slot Battery Rack
1 x 5ft, 4/0AWG Cable, SET - Inverter to Battery Cable
1 x PV Ground Mount Assembly
Free System Schematic & Wiring Diagram Included
User Manuals & Any Related Certifications
Fast, Reliable Shipping
Lifetime Customer Support
Product Specifications:
EG4 18KPV Hybrid Inverter Specifications
Nominal AC Voltage
240 | 208VAC
Frequency
50/60Hz
Max. Continuous AC Current
50A
Rated Voltage
240VAC
Type
Lead-acid battery/Lithium battery
Max. Charge/ Discharge Current
250A
Nominal Voltage
48 VDC
Dimensions H×W×D
34.3×20.5×11.2 in. (87×52×28.5 cm)
Weight
121.25 lbs (55kg)
Cooling Concept
Fan
EG4 LL-S Lithium Battery Specifications
Nominal Voltage
51.2V
Nominal Capacity
100Ah
Charging Current
100A (Max. continuous)
Discharging Current
100A (Max. continuous)
Charging Range
32° ‒ 113°F (0°C to 45°C)
Discharging Range
-4°F ‒ 122°F (-20°C to 50°C)
Dimensions
6.1 × 19 × 17.4 in.
Design Life
*15 Years at 80% DoD
Communications
EG4, Schneider, Sol-Ark, Victron, Growatt, Megarevo, Luxpower, and Deye inverters
Warranty
10 years
Solar Panel Specifications
Cell Type Monocrystalline
182mm x 91mm
Dimension (L× W × H)
67.80 x 44.65 x 1.18 inch
Weight
22.0kg (45.80 lbs)
Front Glass
3.2mm Toughened Glass
Frame
Anodized Aluminium Alloy
Cable
250mm or Customized Length
Junction Box
IP 68 Rated
Rated Power (Pmpp)
410
Rated Current (Impp)
13.15
Rated Voltage (Vmpp)
31.18
Short Circuit Current (Isc)
13.72
Open Circuit Voltage (Voc)
37.23
Module Efficiency (%)
21.00
Warranty
25years Linear Performance Warranty
OGK PRO Solar Kit Specs
Max Continuous Output
12,000W
Max Solar Input
21,000W
Total Wattage of Panels
9,840W
Total KWH of Batteries
30.72kWh
Wattage Per Panel
410W
# of Panels
24
System Voltage
48V
Battery Chemistry
Lithium
# of Batteries
6
Battery Weight
99.6lb
Disclaimer: Each solar kit includes solar-specific equipment to get you started, but please keep in mind that you may need to purchase additional items like installation tools, grounding rods/wire, and any AC components you might need. We highly recommend bringing in a certified solar installer or master electrician to help with the installation process to ensure a safe and reliable system that meets all relevant codes and standards. Also, if you purchase a solar kit without solar panels, you will be responsible for ensuring the compatibility and configuration of your solar panel array. Each solar kit includes professionally designed schematics that work within the parameters of each inverter. There are minimum and maximum input voltages with each inverter that you will need to be aware of so that you do not damage your inverter and/or void your warranty.
What's Included:
Ships from USA!
1 x EG4 18k PV Hybrid Inverter | All-In-One Solar Inverter
24 x 410 Watt Monocrystalline Solar Panels 12V - 25-Year Power Output Warranty
1 x DC Disconnect Switch
2 x PV Inline Fuse Kit
2 x 50ft, 10AWG, PV Extension Cables, SET
2 x 10ft, 10AWG, PV Extension Cables SET
6 x EG4 Server Rack Batteries [30.72kWh] 48V 100Ah LiFePO4 V2 - 10 Year Warranty
1 x EG4 6-slot Battery Rack with Built-in Busbars
1 x 5ft, 4/0AWG Cable, SET - Inverter to Battery Cable
Free System Schematic & Wiring Diagram Included
User Manuals & Any Related Certifications
Fast, Reliable Shipping
Lifetime Customer Support
Product Specifications:
EG4 18KPV Hybrid Inverter Specifications
Nominal AC Voltage
240 | 208VAC
Frequency
50/60Hz
Max. Continuous AC Current
50A
Rated Voltage
240VAC
Type
Lead-acid battery/Lithium battery
Max. Charge/ Discharge Current
250A
Nominal Voltage
48 VDC
Dimensions H×W×D
34.3×20.5×11.2 in. (87×52×28.5 cm)
Weight
121.25 lbs (55kg)
Cooling Concept
Fan
EG4 LifePower4 Specifications
Voltage
51.2V
Capacity
100Ah
Charging Voltage
56.8V
SOC Cutoff
44.8V
Charging Current
100A (Max continuous)
Discharging Current
100A (Max continuous)
Maximum Continuous Discharge Rate
5.12kW
Nameplate Energy Capacity
5.12kWh
Dimension
6.1 in. × 19 in. × 17.4 in. (155 mm × 442 mm × 470 mm)
Weight
99.6 lbs. (45.2 kg)
Warranty
10 years
Solar Panel Specifications
Cell Type Monocrystalline
182mm x 91mm
Dimension (L× W × H)
67.80 x 44.65 x 1.18 inch
Weight
22.0kg (45.80 lbs)
Front Glass
3.2mm Toughened Glass
Frame
Anodized Aluminium Alloy
Cable
250mm or Customized Length
Junction Box
IP 68 Rated
Rated Power (Pmpp)
410
Rated Current (Impp)
13.15
Rated Voltage (Vmpp)
31.18
Short Circuit Current (Isc)
13.72
Open Circuit Voltage (Voc)
37.23
Module Efficiency (%)
21.00
Warranty
25years Linear Performance Warranty
OGK PRO Solar Kit Specs
Max Continuous Output
12,000W
Max Solar Input
21,000W
Total Wattage of Panels
9,840W
Total KWH of Batteries
30.72kWh
Wattage Per Panel
410W
# of Panels
24
System Voltage
48V
Battery Chemistry
Lithium
# of Batteries
6
Battery Weight
99.6 lbs.
Disclaimer: Each solar kit includes solar-specific equipment to get you started, but please keep in mind that you may need to purchase additional items like installation tools, grounding rods/wire, and any AC components you might need. We highly recommend bringing in a certified solar installer or master electrician to help with the installation process to ensure a safe and reliable system that meets all relevant codes and standards. Also, if you purchase a solar kit without solar panels, you will be responsible for ensuring the compatibility and configuration of your solar panel array. Each solar kit includes professionally designed schematics that work within the parameters of each inverter. There are minimum and maximum input voltages with each inverter that you will need to be aware of so that you do not damage your inverter and/or void your warranty.
What's Included:
Ships from USA!
1 x EG4 18k PV Hybrid Inverter | All-In-One Solar Inverter
24 x 410 Watt Monocrystalline Solar Panels 12V - 25-Year Power Output Warranty
1 x DC Disconnect Switch
2 x PV Inline Fuse Kit
2 x 50ft, 10AWG, PV Extension Cables, SET
2 x 10ft, 10AWG, PV Extension Cables SET
6 x EG4 Server Rack Batteries [30.72kWh] 48V 100Ah LiFePO4 V2 - 10 Year Warranty
1 x EG4 6-slot Battery Rack with Built-in Busbars
1 x 5ft, 4/0AWG Cable, SET - Inverter to Battery Cable
1 x PV Roof Mount Set
Free System Schematic & Wiring Diagram Included
User Manuals & Any Related Certifications
Fast, Reliable Shipping
Lifetime Customer Support
Product Specifications:
EG4 18KPV Hybrid Inverter Specifications
Nominal AC Voltage
240 | 208VAC
Frequency
50/60Hz
Max. Continuous AC Current
50A
Rated Voltage
240VAC
Type
Lead-acid battery/Lithium battery
Max. Charge/ Discharge Current
250A
Nominal Voltage
48 VDC
Dimensions H×W×D
34.3×20.5×11.2 in. (87×52×28.5 cm)
Weight
121.25 lbs (55kg)
Cooling Concept
Fan
EG4 LifePower4 Specifications
Voltage
51.2V
Capacity
100Ah
Charging Voltage
56.8V
SOC Cutoff
44.8V
Charging Current
100A (Max continuous)
Discharging Current
100A (Max continuous)
Maximum Continuous Discharge Rate
5.12kW
Nameplate Energy Capacity
5.12kWh
Dimension
6.1 in. × 19 in. × 17.4 in. (155 mm × 442 mm × 470 mm)
Weight
99.6 lbs. (45.2 kg)
Warranty
10 years
Solar Panel Specifications
Cell Type Monocrystalline
182mm x 91mm
Dimension (L× W × H)
67.80 x 44.65 x 1.18 inch
Weight
22.0kg (45.80 lbs)
Front Glass
3.2mm Toughened Glass
Frame
Anodized Aluminium Alloy
Cable
250mm or Customized Length
Junction Box
IP 68 Rated
Rated Power (Pmpp)
410
Rated Current (Impp)
13.15
Rated Voltage (Vmpp)
31.18
Short Circuit Current (Isc)
13.72
Open Circuit Voltage (Voc)
37.23
Module Efficiency (%)
21.00
Warranty
25years Linear Performance Warranty
OGK PRO Solar Kit Specs
Max Continuous Output
12,000W
Max Solar Input
21,000W
Total Wattage of Panels
9,840W
Total KWH of Batteries
30.72kWh
Wattage Per Panel
410W
# of Panels
24
System Voltage
48V
Battery Chemistry
Lithium
# of Batteries
6
Battery Weight
99.6 lbs.
Disclaimer: Each solar kit includes solar-specific equipment to get you started, but please keep in mind that you may need to purchase additional items like installation tools, grounding rods/wire, and any AC components you might need. We highly recommend bringing in a certified solar installer or master electrician to help with the installation process to ensure a safe and reliable system that meets all relevant codes and standards. Also, if you purchase a solar kit without solar panels, you will be responsible for ensuring the compatibility and configuration of your solar panel array. Each solar kit includes professionally designed schematics that work within the parameters of each inverter. There are minimum and maximum input voltages with each inverter that you will need to be aware of so that you do not damage your inverter and/or void your warranty.
What's Included:
Ships from USA!
1 x EG4 18k PV Hybrid Inverter | All-In-One Solar Inverter
24 x 410 Watt Monocrystalline Solar Panels 12V - 25-Year Power Output Warranty
1 x DC Disconnect Switch
2 x PV Inline Fuse Kit
2 x 50ft, 10AWG, PV Extension Cables, SET
2 x 10ft, 10AWG, PV Extension Cables SET
6 x EG4 Server Rack Batteries [30.72kWh] 48V 100Ah LiFePO4 V2 - 10 Year Warranty
1 x EG4 6-slot Battery Rack with Built-in Busbars
1 x 5ft, 4/0AWG Cable, SET - Inverter to Battery Cable
1 x PV Ground Mount Assembly
Free System Schematic & Wiring Diagram Included
User Manuals & Any Related Certifications
Fast, Reliable Shipping
Lifetime Customer Support
Product Specifications:
EG4 18KPV Hybrid Inverter Specifications
Nominal AC Voltage
240 | 208VAC
Frequency
50/60Hz
Max. Continuous AC Current
50A
Rated Voltage
240VAC
Type
Lead-acid battery/Lithium battery
Max. Charge/ Discharge Current
250A
Nominal Voltage
48 VDC
Dimensions H×W×D
34.3×20.5×11.2 in. (87×52×28.5 cm)
Weight
121.25 lbs (55kg)
Cooling Concept
Fan
EG4 LifePower4 Specifications
Voltage
51.2V
Capacity
100Ah
Charging Voltage
56.8V
SOC Cutoff
44.8V
Charging Current
100A (Max continuous)
Discharging Current
100A (Max continuous)
Maximum Continuous Discharge Rate
5.12kW
Nameplate Energy Capacity
5.12kWh
Dimension
6.1 in. × 19 in. × 17.4 in. (155 mm × 442 mm × 470 mm)
Weight
99.6 lbs. (45.2 kg)
Warranty
10 years
Solar Panel Specifications
Cell Type Monocrystalline
182mm x 91mm
Dimension (L× W × H)
67.80 x 44.65 x 1.18 inch
Weight
22.0kg (45.80 lbs)
Front Glass
3.2mm Toughened Glass
Frame
Anodized Aluminium Alloy
Cable
250mm or Customized Length
Junction Box
IP 68 Rated
Rated Power (Pmpp)
410
Rated Current (Impp)
13.15
Rated Voltage (Vmpp)
31.18
Short Circuit Current (Isc)
13.72
Open Circuit Voltage (Voc)
37.23
Module Efficiency (%)
21.00
Warranty
25years Linear Performance Warranty
OGK PRO Solar Kit Specs
Max Continuous Output
12,000W
Max Solar Input
21,000W
Total Wattage of Panels
9,840W
Total KWH of Batteries
30.72kWh
Wattage Per Panel
410W
# of Panels
24
System Voltage
48V
Battery Chemistry
Lithium
# of Batteries
6
Battery Weight
99.6 lbs.
Disclaimer: Each solar kit includes solar-specific equipment to get you started, but please keep in mind that you may need to purchase additional items like installation tools, grounding rods/wire, and any AC components you might need. We highly recommend bringing in a certified solar installer or master electrician to help with the installation process to ensure a safe and reliable system that meets all relevant codes and standards. Also, if you purchase a solar kit without solar panels, you will be responsible for ensuring the compatibility and configuration of your solar panel array. Each solar kit includes professionally designed schematics that work within the parameters of each inverter. There are minimum and maximum input voltages with each inverter that you will need to be aware of so that you do not damage your inverter and/or void your warranty.
What's Included:
Ships from USA!
1 x EG4 18k PV Hybrid Inverter | All-In-One Solar Inverter
24 x 410 Watt Monocrystalline Solar Panels 12V - 25-Year Power Output Warranty
1 x DC Disconnect Switch
2 x PV Inline Fuse Kit
2 x 50ft, 10AWG, PV Extension Cables, SET
2 x 10ft, 10AWG, PV Extension Cables SET
2 x EG4 WallMount Indoor Battery [28.6kWh] - 10 Year Warranty
2 x Conduit Box
1 x EG4 Paralleling Cables
1 x Inverter to Battery Cable
Free System Schematic & Wiring Diagram Included
User Manuals & Any Related Certifications
Fast, Reliable Shipping
Lifetime Customer Support
Product Specifications:
EG4 18KPV Hybrid Inverter Specifications
Nominal AC Voltage
240 | 208VAC
Frequency
50/60Hz
Max. Continuous AC Current
50A
Rated Voltage
240VAC
Type
Lead-acid battery/Lithium battery
Max. Charge/ Discharge Current
250A
Nominal Voltage
48 VDC
Dimensions H×W×D
34.3×20.5×11.2 in. (87×52×28.5 cm)
Weight
121.25 lbs (55kg)
Cooling Concept
Fan
EG4 WallMount Indoor Specifications
Total Energy Capacity
14.3kWh @25C, 100% SOC
Voltage
51.2V
Capacity
280Ah
Charging Voltage
56.0V (+/-0.8V)
Charging Current
200A (Max. continuous)
Discharging Current
200A (Max. continuous)
Discharge Rate
10.24kW (Max. continuous)
Dimensions
36.4 in.×18.1 in.×9.6 in. (925 mm×460 mm×245 mm)
Weight
282.2 lbs. (128 kg)
Design Life
>10 Years
Cycle Life
>8000 cycles, 0.5C 80% DOD
Certifications
UL1973, UL 9540A (Passed)
Warranty
10 Years
Solar Panel Specifications
Cell Type Monocrystalline
182mm x 91mm
Dimension (L× W × H)
67.80 x 44.65 x 1.18 inch
Weight
22.0kg (45.80 lbs)
Front Glass
3.2mm Toughened Glass
Frame
Anodized Aluminium Alloy
Cable
250mm or Customized Length
Junction Box
IP 68 Rated
Rated Power (Pmpp)
410
Rated Current (Impp)
13.15
Rated Voltage (Vmpp)
31.18
Short Circuit Current (Isc)
13.72
Open Circuit Voltage (Voc)
37.23
Module Efficiency (%)
21.00
Warranty
25years Linear Performance Warranty
OGK PRO Solar Kit Specs
Max Continuous Output
12,000W
Max Solar Input
21,000W
Total Wattage of Panels
9,840W
Total KWH of Batteries
28.6kWh
Wattage Per Panel
410W
# of Panels
24
System Voltage
48V
Battery Chemistry
Lithium
# of Batteries
2
Battery Weight
282.2 lbs. (128 kg)
Disclaimer: Each solar kit includes solar-specific equipment to get you started, but please keep in mind that you may need to purchase additional items like installation tools, grounding rods/wire, and any AC components you might need. We highly recommend bringing in a certified solar installer or master electrician to help with the installation process to ensure a safe and reliable system that meets all relevant codes and standards. Also, if you purchase a solar kit without solar panels, you will be responsible for ensuring the compatibility and configuration of your solar panel array. Each solar kit includes professionally designed schematics that work within the parameters of each inverter. There are minimum and maximum input voltages with each inverter that you will need to be aware of so that you do not damage your inverter and/or void your warranty.
What's Included:
Ships from USA!
1 x EG4 18k PV Hybrid Inverter | All-In-One Solar Inverter
24 x 410 Watt Monocrystalline Solar Panels 12V - 25-Year Power Output Warranty
1 x DC Disconnect Switch
2 x PV Inline Fuse Kit
2 x 50ft, 10AWG, PV Extension Cables, SET
2 x 10ft, 10AWG, PV Extension Cables SET
2 x EG4 WallMount Indoor Battery [28.6kWh] - 10 Year Warranty
2 x Conduit Box
1 x EG4 Paralleling Cables
1 x Inverter to Battery Cable
1 x PV Roof Mount Set
Free System Schematic & Wiring Diagram Included
User Manuals & Any Related Certifications
Fast, Reliable Shipping
Lifetime Customer Support
Product Specifications:
EG4 18KPV Hybrid Inverter Specifications
Nominal AC Voltage
240 | 208VAC
Frequency
50/60Hz
Max. Continuous AC Current
50A
Rated Voltage
240VAC
Type
Lead-acid battery/Lithium battery
Max. Charge/ Discharge Current
250A
Nominal Voltage
48 VDC
Dimensions H×W×D
34.3×20.5×11.2 in. (87×52×28.5 cm)
Weight
121.25 lbs (55kg)
Cooling Concept
Fan
EG4 WallMount Indoor Specifications
Total Energy Capacity
14.3kWh @25C, 100% SOC
Voltage
51.2V
Capacity
280Ah
Charging Voltage
56.0V (+/-0.8V)
Charging Current
200A (Max. continuous)
Discharging Current
200A (Max. continuous)
Discharge Rate
10.24kW (Max. continuous)
Dimensions
36.4 in.×18.1 in.×9.6 in. (925 mm×460 mm×245 mm)
Weight
282.2 lbs. (128 kg)
Design Life
>10 Years
Cycle Life
>8000 cycles, 0.5C 80% DOD
Certifications
UL1973, UL 9540A (Passed)
Warranty
10 Years
Solar Panel Specifications
Cell Type Monocrystalline
182mm x 91mm
Dimension (L× W × H)
67.80 x 44.65 x 1.18 inch
Weight
22.0kg (45.80 lbs)
Front Glass
3.2mm Toughened Glass
Frame
Anodized Aluminium Alloy
Cable
250mm or Customized Length
Junction Box
IP 68 Rated
Rated Power (Pmpp)
410
Rated Current (Impp)
13.15
Rated Voltage (Vmpp)
31.18
Short Circuit Current (Isc)
13.72
Open Circuit Voltage (Voc)
37.23
Module Efficiency (%)
21.00
Warranty
25years Linear Performance Warranty
OGK PRO Solar Kit Specs
Max Continuous Output
12,000W
Max Solar Input
21,000W
Total Wattage of Panels
9,840W
Total KWH of Batteries
28.6kWh
Wattage Per Panel
410W
# of Panels
24
System Voltage
48V
Battery Chemistry
Lithium
# of Batteries
2
Battery Weight
282.2 lbs. (128 kg)
Disclaimer: Each solar kit includes solar-specific equipment to get you started, but please keep in mind that you may need to purchase additional items like installation tools, grounding rods/wire, and any AC components you might need. We highly recommend bringing in a certified solar installer or master electrician to help with the installation process to ensure a safe and reliable system that meets all relevant codes and standards. Also, if you purchase a solar kit without solar panels, you will be responsible for ensuring the compatibility and configuration of your solar panel array. Each solar kit includes professionally designed schematics that work within the parameters of each inverter. There are minimum and maximum input voltages with each inverter that you will need to be aware of so that you do not damage your inverter and/or void your warranty.
What's Included:
Ships from USA!
1 x EG4 18k PV Hybrid Inverter | All-In-One Solar Inverter
24 x 410 Watt Monocrystalline Solar Panels 12V - 25-Year Power Output Warranty
1 x DC Disconnect Switch
2 x PV Inline Fuse Kit
2 x 50ft, 10AWG, PV Extension Cables, SET
2 x 10ft, 10AWG, PV Extension Cables SET
2 x EG4 WallMount Indoor Battery [28.6kWh] - 10 Year Warranty
2 x Conduit Box
1 x EG4 Paralleling Cables
1 x Inverter to Battery Cable
1 x PV Ground Mount Assembly
Free System Schematic & Wiring Diagram Included
User Manuals & Any Related Certifications
Fast, Reliable Shipping
Lifetime Customer Support
Product Specifications:
EG4 18KPV Hybrid Inverter Specifications
Nominal AC Voltage
240 | 208VAC
Frequency
50/60Hz
Max. Continuous AC Current
50A
Rated Voltage
240VAC
Type
Lead-acid battery/Lithium battery
Max. Charge/ Discharge Current
250A
Nominal Voltage
48 VDC
Dimensions H×W×D
34.3×20.5×11.2 in. (87×52×28.5 cm)
Weight
121.25 lbs (55kg)
Cooling Concept
Fan
EG4 WallMount Indoor Specifications
Total Energy Capacity
14.3kWh @25C, 100% SOC
Voltage
51.2V
Capacity
280Ah
Charging Voltage
56.0V (+/-0.8V)
Charging Current
200A (Max. continuous)
Discharging Current
200A (Max. continuous)
Discharge Rate
10.24kW (Max. continuous)
Dimensions
36.4 in.×18.1 in.×9.6 in. (925 mm×460 mm×245 mm)
Weight
282.2 lbs. (128 kg)
Design Life
>10 Years
Cycle Life
>8000 cycles, 0.5C 80% DOD
Certifications
UL1973, UL 9540A (Passed)
Warranty
10 Years
Solar Panel Specifications
Cell Type Monocrystalline
182mm x 91mm
Dimension (L× W × H)
67.80 x 44.65 x 1.18 inch
Weight
22.0kg (45.80 lbs)
Front Glass
3.2mm Toughened Glass
Frame
Anodized Aluminium Alloy
Cable
250mm or Customized Length
Junction Box
IP 68 Rated
Rated Power (Pmpp)
410
Rated Current (Impp)
13.15
Rated Voltage (Vmpp)
31.18
Short Circuit Current (Isc)
13.72
Open Circuit Voltage (Voc)
37.23
Module Efficiency (%)
21.00
Warranty
25years Linear Performance Warranty
OGK PRO Solar Kit Specs
Max Continuous Output
12,000W
Max Solar Input
21,000W
Total Wattage of Panels
9,840W
Total KWH of Batteries
28.6kWh
Wattage Per Panel
410W
# of Panels
24
System Voltage
48V
Battery Chemistry
Lithium
# of Batteries
2
Battery Weight
282.2 lbs. (128 kg)
Disclaimer: Each solar kit includes solar-specific equipment to get you started, but please keep in mind that you may need to purchase additional items like installation tools, grounding rods/wire, and any AC components you might need. We highly recommend bringing in a certified solar installer or master electrician to help with the installation process to ensure a safe and reliable system that meets all relevant codes and standards. Also, if you purchase a solar kit without solar panels, you will be responsible for ensuring the compatibility and configuration of your solar panel array. Each solar kit includes professionally designed schematics that work within the parameters of each inverter. There are minimum and maximum input voltages with each inverter that you will need to be aware of so that you do not damage your inverter and/or void your warranty.
What's Included:
Ships from USA!
1 x EG4 18k PV Hybrid Inverter | All-In-One Solar Inverter
24 x 410 Watt Monocrystalline Solar Panels 12V - 25-Year Power Output Warranty
1 x DC Disconnect Switch
2 x PV Inline Fuse Kit
2 x 50ft, 10AWG, PV Extension Cables, SET
2 x 10ft, 10AWG, PV Extension Cables SET
2 x EG4 PowerPro Battery [28.6kWh] - 10 Year Warranty
2 x EG4 PowerPro Conduit Box
1 x EG4 Paralleling Cables
1 x Inverter to Battery Cable
Free System Schematic & Wiring Diagram Included
User Manuals & Any Related Certifications
Fast, Reliable Shipping
Lifetime Customer Support
Product Specifications:
EG4 18KPV Hybrid Inverter Specifications
Nominal AC Voltage
240 | 208VAC
Frequency
50/60Hz
Max. Continuous AC Current
50A
Rated Voltage
240VAC
Type
Lead-acid battery/Lithium battery
Max. Charge/ Discharge Current
250A
Nominal Voltage
48 VDC
Dimensions H×W×D
34.3×20.5×11.2 in. (87×52×28.5 cm)
Weight
121.25 lbs (55kg)
Cooling Concept
Fan
EG4 Powerpro Specifications
Dimensions (HxWxD)
34.6 x 22.3 x 9.1 in. (88 x 56.6 x 23.2cm)
Weight
308.6 lbs (140 kg)
Design Life
>15 Years
Cycle Life
>8000 Cycles @ 0.5C 80% DOD
Lifetime Production
82.6 MWh*
Certifications
UL1973, UL9540A (Passed)
Total Energy Capacity
14.3kWh @25C, 100% SOC
Voltage
51.2V
Capacity
280Ah±2%
Charge Voltage (Bulk/Absorb)
56.0V (±0.8V)
Charge Current
200A Max. Continuous
Discharge Current
200A Max. Continuous
Solar Panel Specifications
Cell Type Monocrystalline
182mm x 91mm
Dimension (L× W × H)
67.80 x 44.65 x 1.18 inch
Weight
22.0kg (45.80 lbs)
Front Glass
3.2mm Toughened Glass
Frame
Anodized Aluminium Alloy
Cable
250mm or Customized Length
Junction Box
IP 68 Rated
Rated Power (Pmpp)
410
Rated Current (Impp)
13.15
Rated Voltage (Vmpp)
31.18
Short Circuit Current (Isc)
13.72
Open Circuit Voltage (Voc)
37.23
Module Efficiency (%)
21.00
Warranty
25years Linear Performance Warranty
OGK PRO Solar Kit Specs
Max Continuous Output
12,000W
Max Solar Input
21,000W
Total Wattage of Panels
9,840W
Total KWH of Batteries
28.6kWh
Wattage Per Panel
410W
# of Panels
24
System Voltage
48V
Battery Chemistry
Lithium
# of Batteries
2
Disclaimer: Each solar kit includes solar-specific equipment to get you started, but please keep in mind that you may need to purchase additional items like installation tools, grounding rods/wire, and any AC components you might need. We highly recommend bringing in a certified solar installer or master electrician to help with the installation process to ensure a safe and reliable system that meets all relevant codes and standards. Also, if you purchase a solar kit without solar panels, you will be responsible for ensuring the compatibility and configuration of your solar panel array. Each solar kit includes professionally designed schematics that work within the parameters of each inverter. There are minimum and maximum input voltages with each inverter that you will need to be aware of so that you do not damage your inverter and/or void your warranty.
What's Included:
Ships from USA!
1 x EG4 18k PV Hybrid Inverter | All-In-One Solar Inverter
24 x 410 Watt Monocrystalline Solar Panels 12V - 25-Year Power Output Warranty
1 x DC Disconnect Switch
2 x PV Inline Fuse Kit
2 x 50ft, 10AWG, PV Extension Cables, SET
2 x 10ft, 10AWG, PV Extension Cables SET
2 x EG4 PowerPro Battery [28.6kWh] - 10 Year Warranty
2 x EG4 PowerPro Conduit Box
1 x EG4 Paralleling Cables
1 x PV Roof Mount Set
1 x Inverter to Battery Cable
Free System Schematic & Wiring Diagram Included
User Manuals & Any Related Certifications
Fast, Reliable Shipping
Lifetime Customer Support
Product Specifications:
EG4 18KPV Hybrid Inverter Specifications
Nominal AC Voltage
240 | 208VAC
Frequency
50/60Hz
Max. Continuous AC Current
50A
Rated Voltage
240VAC
Type
Lead-acid battery/Lithium battery
Max. Charge/ Discharge Current
250A
Nominal Voltage
48 VDC
Dimensions H×W×D
34.3×20.5×11.2 in. (87×52×28.5 cm)
Weight
121.25 lbs (55kg)
Cooling Concept
Fan
EG4 Powerpro Specifications
Dimensions (HxWxD)
34.6 x 22.3 x 9.1 in. (88 x 56.6 x 23.2cm)
Weight
308.6 lbs (140 kg)
Design Life
>15 Years
Cycle Life
>8000 Cycles @ 0.5C 80% DOD
Lifetime Production
82.6 MWh*
Certifications
UL1973, UL9540A (Passed)
Total Energy Capacity
14.3kWh @25C, 100% SOC
Voltage
51.2V
Capacity
280Ah±2%
Charge Voltage (Bulk/Absorb)
56.0V (±0.8V)
Charge Current
200A Max. Continuous
Discharge Current
200A Max. Continuous
Solar Panel Specifications
Cell Type Monocrystalline
182mm x 91mm
Dimension (L× W × H)
67.80 x 44.65 x 1.18 inch
Weight
22.0kg (45.80 lbs)
Front Glass
3.2mm Toughened Glass
Frame
Anodized Aluminium Alloy
Cable
250mm or Customized Length
Junction Box
IP 68 Rated
Rated Power (Pmpp)
410
Rated Current (Impp)
13.15
Rated Voltage (Vmpp)
31.18
Short Circuit Current (Isc)
13.72
Open Circuit Voltage (Voc)
37.23
Module Efficiency (%)
21.00
Warranty
25years Linear Performance Warranty
OGK PRO Solar Kit Specs
Max Continuous Output
12,000W
Max Solar Input
21,000W
Total Wattage of Panels
9,840W
Total KWH of Batteries
28.6kWh
Wattage Per Panel
410W
# of Panels
24
System Voltage
48V
Battery Chemistry
Lithium
# of Batteries
2
Disclaimer: Each solar kit includes solar-specific equipment to get you started, but please keep in mind that you may need to purchase additional items like installation tools, grounding rods/wire, and any AC components you might need. We highly recommend bringing in a certified solar installer or master electrician to help with the installation process to ensure a safe and reliable system that meets all relevant codes and standards. Also, if you purchase a solar kit without solar panels, you will be responsible for ensuring the compatibility and configuration of your solar panel array. Each solar kit includes professionally designed schematics that work within the parameters of each inverter. There are minimum and maximum input voltages with each inverter that you will need to be aware of so that you do not damage your inverter and/or void your warranty.
What's Included:
Ships from USA!
1 x EG4 18k PV Hybrid Inverter | All-In-One Solar Inverter
24 x 410 Watt Monocrystalline Solar Panels 12V - 25-Year Power Output Warranty
1 x DC Disconnect Switch
2 x PV Inline Fuse Kit
2 x 50ft, 10AWG, PV Extension Cables, SET
2 x 10ft, 10AWG, PV Extension Cables SET
2 x EG4 PowerPro Battery [28.6kWh] - 10 Year Warranty
2 x EG4 PowerPro Conduit Box
1 x EG4 Paralleling Cables
1 x Inverter to Battery Cable
1 x PV Ground Mount Assembly
Free System Schematic & Wiring Diagram Included
User Manuals & Any Related Certifications
Fast, Reliable Shipping
Lifetime Customer Support
Product Specifications:
EG4 18KPV Hybrid Inverter Specifications
Nominal AC Voltage
240 | 208VAC
Frequency
50/60Hz
Max. Continuous AC Current
50A
Rated Voltage
240VAC
Type
Lead-acid battery/Lithium battery
Max. Charge/ Discharge Current
250A
Nominal Voltage
48 VDC
Dimensions H×W×D
34.3×20.5×11.2 in. (87×52×28.5 cm)
Weight
121.25 lbs (55kg)
Cooling Concept
Fan
EG4 Powerpro Specifications
Dimensions (HxWxD)
34.6 x 22.3 x 9.1 in. (88 x 56.6 x 23.2cm)
Weight
308.6 lbs (140 kg)
Design Life
>15 Years
Cycle Life
>8000 Cycles @ 0.5C 80% DOD
Lifetime Production
82.6 MWh*
Certifications
UL1973, UL9540A (Passed)
Total Energy Capacity
14.3kWh @25C, 100% SOC
Voltage
51.2V
Capacity
280Ah±2%
Charge Voltage (Bulk/Absorb)
56.0V (±0.8V)
Charge Current
200A Max. Continuous
Discharge Current
200A Max. Continuous
Solar Panel Specifications
Cell Type Monocrystalline
182mm x 91mm
Dimension (L× W × H)
67.80 x 44.65 x 1.18 inch
Weight
22.0kg (45.80 lbs)
Front Glass
3.2mm Toughened Glass
Frame
Anodized Aluminium Alloy
Cable
250mm or Customized Length
Junction Box
IP 68 Rated
Rated Power (Pmpp)
410
Rated Current (Impp)
13.15
Rated Voltage (Vmpp)
31.18
Short Circuit Current (Isc)
13.72
Open Circuit Voltage (Voc)
37.23
Module Efficiency (%)
21.00
Warranty
25years Linear Performance Warranty
OGK PRO Solar Kit Specs
Max Continuous Output
12,000W
Max Solar Input
21,000W
Total Wattage of Panels
9,840W
Total KWH of Batteries
28.6kWh
Wattage Per Panel
410W
# of Panels
24
System Voltage
48V
Battery Chemistry
Lithium
# of Batteries
2
Disclaimer: Each solar kit includes solar-specific equipment to get you started, but please keep in mind that you may need to purchase additional items like installation tools, grounding rods/wire, and any AC components you might need. We highly recommend bringing in a certified solar installer or master electrician to help with the installation process to ensure a safe and reliable system that meets all relevant codes and standards. Also, if you purchase a solar kit without solar panels, you will be responsible for ensuring the compatibility and configuration of your solar panel array. Each solar kit includes professionally designed schematics that work within the parameters of each inverter. There are minimum and maximum input voltages with each inverter that you will need to be aware of so that you do not damage your inverter and/or void your warranty.
What's Included:
Ships from USA!
1 x EG4 18k PV Hybrid Inverter | All-In-One Solar Inverter
24 x 410 Watt Monocrystalline Solar Panels 12V - 25-Year Power Output Warranty
1 x DC Disconnect Switch
2 x PV Inline Fuse Kit
2 x 50ft, 10AWG, PV Extension Cables, SET
2 x 10ft, 10AWG, PV Extension Cables SET
6 x RUiXU Server Rack Battery [30.72kWh] - 10 Year Warranty
1 x 6-slot Battery Rack
1 x 5ft, 4/0AWG Cable, SET - Inverter to Battery Cable
Disclaimer: Each solar kit includes solar-specific equipment to get you started, but please keep in mind that you may need to purchase additional items like installation tools, grounding rods/wire, and any AC components you might need. We highly recommend bringing in a certified solar installer or master electrician to help with the installation process to ensure a safe and reliable system that meets all relevant codes and standards. Also, if you purchase a solar kit without solar panels, you will be responsible for ensuring the compatibility and configuration of your solar panel array. Each solar kit includes professionally designed schematics that work within the parameters of each inverter. There are minimum and maximum input voltages with each inverter that you will need to be aware of so that you do not damage your inverter and/or void your warranty.
What's Included:
Ships from USA!
1 x EG4 18k PV Hybrid Inverter | All-In-One Solar Inverter
24 x 410 Watt Monocrystalline Solar Panels 12V - 25-Year Power Output Warranty
1 x DC Disconnect Switch
2 x PV Inline Fuse Kit
2 x 50ft, 10AWG, PV Extension Cables, SET
2 x 10ft, 10AWG, PV Extension Cables SET
6 x RUiXU Server Rack Battery [30.72kWh] - 10 Year Warranty
1 x 6-slot Battery Rack
1 x 5ft, 4/0AWG Cable, SET - Inverter to Battery Cable
Disclaimer: Each solar kit includes solar-specific equipment to get you started, but please keep in mind that you may need to purchase additional items like installation tools, grounding rods/wire, and any AC components you might need. We highly recommend bringing in a certified solar installer or master electrician to help with the installation process to ensure a safe and reliable system that meets all relevant codes and standards. Also, if you purchase a solar kit without solar panels, you will be responsible for ensuring the compatibility and configuration of your solar panel array. Each solar kit includes professionally designed schematics that work within the parameters of each inverter. There are minimum and maximum input voltages with each inverter that you will need to be aware of so that you do not damage your inverter and/or void your warranty.
What's Included:
Ships from USA!
1 x EG4 18k PV Hybrid Inverter | All-In-One Solar Inverter
24 x 410 Watt Monocrystalline Solar Panels 12V - 25-Year Power Output Warranty
1 x DC Disconnect Switch
2 x PV Inline Fuse Kit
2 x 50ft, 10AWG, PV Extension Cables, SET
2 x 10ft, 10AWG, PV Extension Cables SET
6 x RUiXU Server Rack Battery [30.72kWh] - 10 Year Warranty
1 x 6-slot Battery Rack
1 x 5ft, 4/0AWG Cable, SET - Inverter to Battery Cable
Disclaimer: Each solar kit includes solar-specific equipment to get you started, but please keep in mind that you may need to purchase additional items like installation tools, grounding rods/wire, and any AC components you might need. We highly recommend bringing in a certified solar installer or master electrician to help with the installation process to ensure a safe and reliable system that meets all relevant codes and standards. Also, if you purchase a solar kit without solar panels, you will be responsible for ensuring the compatibility and configuration of your solar panel array. Each solar kit includes professionally designed schematics that work within the parameters of each inverter. There are minimum and maximum input voltages with each inverter that you will need to be aware of so that you do not damage your inverter and/or void your warranty.
97%
of reviewers would recommend this product to a friend
Quality
Rated 5 out of 5
Poor
Excellent
Easy to Use
Rated 4 out of 5
Poor
Excellent
Customer photos and videos
37 Reviews
DS
Don S.Reviewed by Don S.
Verified Buyer
I recommend this product
Age Range
65+
Rated 5 out of 5
Review posted
Delta 2 Max
So during the fall of 2022, a hurricane destroyed our pool enclosure. I took everything down, cut up the straight pieces of aluminum and stored it behind my barn. Early this year I decided to clean up the place and that ugly pile of aluminum had to go. I thought of scrapping it but as it wouldn't bring much cash, I decided to just try and build something out of it. One thought led to another and we decided to build a mobile chicken coop. Never had chickens before, so did a bit of research and the attached is what I came up with. The coop is 6'6 x 16', all aluminum framed. After getting the chicks (1 rooster and 7 layers) grown, I decided the run was too small (I move the coop once a week) . So an additional 16' PVC run was added. I wanted a Solar System to make the coop fully self sufficient. After discussing my needs with Alex, a Shop Solar specialist, we decided on the The Delta 2 Max. It works great. The 110v outlets power the ceiling light, vent fan and 4 motion detector predator lights. The USB connection powers the automatic chicken door, and the 12volt car outlet connector powers the rear jack. The Delta 2 Max has been operating 24/7 flawlessly for 4 months now and I couldn't be happier. The 2 x 200watt panels always produce more power than I need, even with several cloudy days in a row. I have been so impressed with Shop Solar that I have now purchased a 12,000w OGK-PRO solar system from them. I am in the process of installation now and will have a review of that…
Loading...
Quality
Rated 5 out of 5
Poor
Excellent
Easy to Use
Rated 5 out of 5
Poor
Excellent
Was this helpful?
DS
David S.Reviewed by David S.
Verified Buyer
I recommend this product
Age Range
55 - 64
Rated 4 out of 5
Review posted
Quality unit
Only 4 stars due to excessive Shipping delays. This unit throws a ton of juice to your battery bank. Cuts generator run time substantially.
Loading...
Quality
Rated 5 out of 5
Poor
Excellent
Easy to Use
Rated 5 out of 5
Poor
Excellent
Was this helpful?
MM
Mark M.Reviewed by Mark M.
Verified Buyer
I recommend this product
Age Range
65+
Rated 5 out of 5
Review posted
EG 4
Very satisfied with the product and the customer service
Loading...
Quality
Rated 5 out of 5
Poor
Excellent
Easy to Use
Rated 5 out of 5
Poor
Excellent
Was this helpful?
AS
Alli S.Reviewed by Alli S.
Verified Buyer
I recommend this product
Age Range
45 - 54
Rated 5 out of 5
Review posted
Search long and hard for this complete kit
We have not had a chance to install this yet, but it was definitely shipped quickly, packaged well, and customer service was excellent! Directions seems simple
Loading...
Quality
Rated 5 out of 5
Poor
Excellent
Easy to Use
Rated 5 out of 5
Poor
Excellent
Was this helpful?
KG
Kenneth G.Reviewed by Kenneth G.
Verified Buyer
I recommend this product
Age Range
55 - 64
Rated 5 out of 5
Review posted
Worked well
They allowed me to move my batteries inside far from the solar panels
Loading...
Quality
Rated 5 out of 5
Poor
Excellent
Easy to Use
Rated 5 out of 5
Poor
Excellent
Was this helpful?
GT
George T.Reviewed by George T.
Verified Buyer
I recommend this product
Age Range
55 - 64
Rated 5 out of 5
Review posted
Not installed yet but very impressed
This system is being admired by my neighbors even though it is not installed. I showed them how simple it is but i am still going to use a local licensed pro to hook it all up.
Loading...
Quality
Rated 5 out of 5
Poor
Excellent
Easy to Use
Rated 5 out of 5
Poor
Excellent
Was this helpful?
DM
Duane M.Reviewed by Duane M.
Verified Buyer
I recommend this product
Age Range
55 - 64
Rated 5 out of 5
Review posted
Solar kit
We just got our solar kit working 3 days ago and it has worked great thus far. Looking forward to many more days and years of use!
Loading...
Quality
Rated 5 out of 5
Poor
Excellent
Easy to Use
Rated 5 out of 5
Poor
Excellent
Was this helpful?
CH
Charles H.Reviewed by Charles H.
Verified Buyer
I recommend this product
Age Range
45 - 54
Rated 5 out of 5
Review posted
As advertised great product
As advertised great product, easy to use
Loading...
Quality
Rated 5 out of 5
Poor
Excellent
Easy to Use
Rated 5 out of 5
Poor
Excellent
Was this helpful?
SJ
Steven J.Reviewed by Steven J.
Verified Buyer
I recommend this product
Age Range
55 - 64
Rated 5 out of 5
Review posted
Great Customer Service!!
I had two minor issues with my order, a missing cable and a hole in one of the solar panels. The Solar Kits rep jumped right on it and got the cable out to me and organized getting a replacement panel real fast!! The hole in the panel was a shipping problem not a manufacturing problem.
Loading...
Quality
Rated 5 out of 5
Poor
Excellent
Easy to Use
Rated 4 out of 5
Poor
Excellent
Was this helpful?
DW
Denis W.Reviewed by Denis W.
Verified Buyer
I recommend this product
Age Range
65+
Rated 4 out of 5
Review posted
New home off grid system.
The wire was what I needed to connect the solar panels to the inverters. Works well.
Loading...
Quality
Rated 5 out of 5
Poor
Excellent
Easy to Use
Rated 5 out of 5
Poor
Excellent
Was this helpful?
ShopSolar.com
Awesome photo's :)
What is your return policy?
Returns are free in the first 30 days with no restocking or processing fees, although the customer may be responsible for paying return shipping. See our complete return policy on our Shipping, Delivery, and Returns page linked in the footer of this website.
What’s covered by your return policy?
Our returns policy covers all purchases made through Shop Solar. For warranty issues, as authorized distributors, we honor the full manufacturer warranty of ALL the brands on our website. See our complete returns and warranty policies on our Shipping, Deliver, and Returns page.
How long will it take to receive my order?
All orders are processed within 72 hours and you can expect delivery on most orders within 5-7 business days. You will receive access to our customer portal after ordering, where it is easy to track all your shipments. See our Shipping, Delivery and Returns page for more details.
What are your financing and payment options?
We offer several ways to pay to make getting your solar kit simple:
Credit Card: if the purchase is greater than your card’s limit, you can split the cost onto multiple cards as well as Paypal, financing through Affirm, and ACH/bank transfer
You can arrange financing during the checkout process, or scroll further down this page for more details. Please note, if you'd like to finance your order, you can do so instantly, right at checkout.
How does your Lifetime Customer Support work?
Our legendary lifetime customer support has helped make us the #1 online solar retailer! We have a dedicated team of solar professionals standing by to help you navigate the world of solar with ease. From selecting the perfect solar kit to installation and beyond, we provide support and expertise at every step of the journey.If you need help with ordering, shipping, troubleshooting, expanding your system, warranty issues, or anything else you have questions about for as long as you own your Shop Solar Kits equipment, we’ve got you covered: we’re always only a phone call or email away.
Top Solar Company in the USA
The prestigious ranking by Consumer Affairs is based on comprehensive evaluations, including ratings and reviews, equipment options, support services, pricing transparency, warranties, and various other factors. Among the top 6 nominated companies, Shop Solar stands out with the highest review rating, reaffirming its dedication to customer satisfaction and product quality.
Best Components, Lowest Prices
We cut out the bloat of traditional solar companies and pass those savings off to you. Plus, we provide free shipping on all solar kits and lifetime customer service on everything we sell.
Expert Guidance
Our team of solar professionals is here to help you navigate the world of solar with ease. From selecting the perfect solar kit to installation and beyond, we provide support and expertise at every step of the journey.
We’re people just like you
We’re not corporate and neither are our customers. We’re just a group of 50+ solar enthusiasts who are passionate about providing an honest, no-BS way for anyone, anywhere to improve their lives and the world around them with solar power.
Trusted Solar Authority
With over 40,000+ happy customers, 2,500+ positive reviews, and decades of experience in the industry, we’re proud to say we’re America’s #1 solar power solutions provider. You can trust us to provide you with top-notch products and legendary customer service at every step of the way.
Prepare for Anything
From hurricanes to blackouts, reliable solar power ensures you're able to keep your home & family safe no matter what comes your way.
Solar Power Made Easy
Making one-click solar solutions simple since 2018. Whether you’re powering a cabin, charging devices, or backing up your home.
Secure Your Independence
Say goodbye to reliance on the energy companies. Enjoy the same freedom that 50,000+ customers have with their own solar power system.
Solar That Makes Sense - DIY+
Why pay more when you can go solar your way? With our DIY+ model, you become the master of your own solar project - we call it being your own general contractor, using our seasoned technicians to help guide you at every turn. So you can skip the high-commission salespeople and source your own top-tier equipment from us, and if you need a professional installer, we can help with that too. It’s solar, but smarter and more rewarding—because who said going green couldn’t also save you some green?
Solar Power, Your Way - Expert Guidance Included
Become Your Own Solar Contractor with Our DIY+ Program
Save Thousands with Our DIY Solar Kits and Support
Go Green and Save Green with Our Do-It-Yourself Solar Solution
Solar Power, Your Way - Expert Guidance Included
Become Your Own Solar Contractor with Our DIY+ Program
Save Thousands with Our DIY Solar Kits and Support
Go Green and Save Green with Our Do-It-Yourself Solar Solution
Why Choose Shop Solar
What To Expect - Complete Kits
We've been providing America and Canada with complete solar kits since 2018. Our mission is to make solar simple, which is why our complete packages contain every part and piece that you'd ever need. Designed by our expert solar and electrical engineers, we can have the entire kit shipped to your door. All of our kits come with diagrams and videos along with a lifetime of customer support.
Top Solar Company in the USA
The prestigious ranking by Consumer Affairs is based on comprehensive evaluations, including ratings and reviews, equipment options, support services, pricing transparency, warranties, and various other factors. Among the top 6 nominated companies, Shop Solar stands out with the highest review rating, reaffirming its dedication to customer satisfaction and product quality.
Best Components, Lowest Prices
We cut out the bloat of traditional solar companies and pass those savings off to you. Plus, lifetime customer service on everything we sell.
Expert Guidance
Our team of solar professionals is here to help you navigate the world of solar with ease. From selecting the perfect solar kit to installation and beyond, we provide support and expertise at every step of the journey.
We’re people just like you
We’re not corporate and neither are our customers. We’re just a group of 50+ solar enthusiasts who are passionate about providing an honest, no-BS way for anyone, anywhere to improve their lives and the world around them with solar power.
Trusted Solar Authority
With over 40,000+ happy customers, 2,500+ positive reviews, and decades of experience in the industry, we’re proud to say we’re America’s #1 solar power solutions provider. You can trust us to provide you with top-notch products and legendary customer service at every step of the way.
What to Expect - Solar Panels
Get to know the top-tier solar panels included in your kit. These panels are designed to deliver consistent & reliable performance, ensuring your system powers your needs with ease.
What to Expect - Batteries
Learn about the high-quality batteries included in every solar kit, designed to provide reliable energy storage for all your needs. These batteries ensure your system delivers consistent power when you need it most.
Go Solar Now, Pay Later
At ShopSolar you, we offer a wide variety of payment plan options to meet each customer's needs.
Quick and Easy Application
Fill out a short application and we will match you with multiple payment plan options instantly - Survey at checkout!
Poor Credit or No Credit?
Don’t sweat it. We welcome all credit scores and having a credit score is not required for approval.
No Money Down Today
Some payment plans offer as little as no money down, if you qualify.*` - Survey at checkout!
How we compare to the others!
Tired of the costly and complicated traditional solar sales model? At ShopSolar.com, we streamline the process with our digital-first platform, offering one-click complete solar power solutions that save you up to 50%, often including batteries, for true energy independence. Join over 45,000 satisfied customers enjoying affordable solar energy. Start your journey towards saving thousands at ShopSolar.com today!
Local Installer
Other Online Retailers
Best for You Systems
Transparent Pricing
Installation Guidance
Lifetime Customer Support
Customer Success Stories
TP
Troy P
EG4 off-grid base kit, Happy with my purchase.
This is the first stage of my three planned purches. I got the eg4 inverter 6000 XP base kit with six 400 watt panels and the two server rack batteries. Did a little online research and followed the instructions and it got set up without any issues. Right now I'm just running it in my garage on a single outlet and have been running dual 750 watt water distillers with it. Once I get the second inverter and a bunch more panels and batteries, I plan on attaching it to my subpanel in my house that has my lights and outlets and appliances on it. Then I'll get a soft start for my AC and blower and run it on my main panel.
JB
Jacob B
Easy Process, Genuine Support
Trying to pick the correct solar system for your needs can be very technical and frustrating. I wanted to thank Yvhan and the Shop Solar team for their patience and helpful attitudes through multiple calls. I feel like we were able to narrow it down to what worked for me and my family. My system works great and I couldn't be happier to have picked Shop Solar.
PB
Patrick B
Off Grid Solar Purchase
I wanted to get an offgrid solar system for years but didn’t know where to start. I found Shop Solar on Facebook and decided to submit a quote. Within 24 hours I had a custom proposal that was almost half the price of the companies I had previously got quotes from. My wife and I decided to order online and the kit came in a timely manner and it was an easy install. Great company to work with!
JM
James Martin
Highly Recommend
I would like to take the time to express the outstanding service that I was provided with by Shop Solar. They provided me with all the answers to my questions, and after reviewing our quote over the phone I felt comfortable proceeding to order my kit. It’s exactly what I needed and they were there to help us over the phone when we had questions installing it. I highly recommend others in need to choose Shop Solar Kits.
BH
Brian H
Solar Kit for Mobile Work Van
As a professional videographer, I needed reliable power on the go. ShopSolar's Delta Pro and roof-mounted panels were the perfect solution. Setup was easy, and the kit included everything needed. The Delta Pro powers my cameras, lights, laptop, and a small fridge with impressive battery capacity.
KS
Keith S
Best Tech Support
You folks have been wonderful guiding me through the ins and outs of going solar. Plus your tech guys Rod and Nelson are the absolute best. They explained all the different aspects of inverters, batteries and how to keep them in top condition. Too much more to put here… but no other company has the 100% tech support you provide for your customers!
CA
Coll A
Great Experience
My experience with Shop Solar has been excellent. Before the sales, they answered all my questions to assure that I got what I needed. After the sales they continued to support me with answers and help. I had a warranty issue with a unit, and it was handled as well as possible. I would recommend them to anyone looking to go solar.
TP
Troy P
EG4 off-grid base kit, Happy with my purchase.
This is the first stage of my three planned purches. I got the eg4 inverter 6000 XP base kit with six 400 watt panels and the two server rack batteries. Did a little online research and followed the instructions and it got set up without any issues. Right now I'm just running it in my garage on a single outlet and have been running dual 750 watt water distillers with it. Once I get the second inverter and a bunch more panels and batteries, I plan on attaching it to my subpanel in my house that has my lights and outlets and appliances on it. Then I'll get a soft start for my AC and blower and run it on my main panel.
JB
Jacob B
Easy Process, Genuine Support
Trying to pick the correct solar system for your needs can be very technical and frustrating. I wanted to thank Yvhan and the Shop Solar team for their patience and helpful attitudes through multiple calls. I feel like we were able to narrow it down to what worked for me and my family. My system works great and I couldn't be happier to have picked Shop Solar.
PB
Patrick B
Off Grid Solar Purchase
I wanted to get an offgrid solar system for years but didn’t know where to start. I found Shop Solar on Facebook and decided to submit a quote. Within 24 hours I had a custom proposal that was almost half the price of the companies I had previously got quotes from. My wife and I decided to order online and the kit came in a timely manner and it was an easy install. Great company to work with!
JM
James Martin
Highly Recommend
I would like to take the time to express the outstanding service that I was provided with by Shop Solar. They provided me with all the answers to my questions, and after reviewing our quote over the phone I felt comfortable proceeding to order my kit. It’s exactly what I needed and they were there to help us over the phone when we had questions installing it. I highly recommend others in need to choose Shop Solar Kits.
BH
Brian H
Solar Kit for Mobile Work Van
As a professional videographer, I needed reliable power on the go. ShopSolar's Delta Pro and roof-mounted panels were the perfect solution. Setup was easy, and the kit included everything needed. The Delta Pro powers my cameras, lights, laptop, and a small fridge with impressive battery capacity.
KS
Keith S
Best Tech Support
You folks have been wonderful guiding me through the ins and outs of going solar. Plus your tech guys Rod and Nelson are the absolute best. They explained all the different aspects of inverters, batteries and how to keep them in top condition. Too much more to put here… but no other company has the 100% tech support you provide for your customers!
CA
Coll A
Great Experience
My experience with Shop Solar has been excellent. Before the sales, they answered all my questions to assure that I got what I needed. After the sales they continued to support me with answers and help. I had a warranty issue with a unit, and it was handled as well as possible. I would recommend them to anyone looking to go solar.
Avoid Scams, Buy with Confidence, Enjoy Peace of Mind
Manufacturer Warranty, Exceptional Service
Be Smart, Buy From an Authorized Dealer
When you choose us, you’re investing in real products from a trusted company with established supplier relationships. Enjoy peace of mind with 100% manufacturer warranty coverage and lifetime customer support. In an age where online shopping is fraught with risks, it’s crucial to avoid fly-by-night websites that skirt regulations. Shop with confidence, knowing you’re getting genuine quality and reliable service.
Instant Access
Easy to follow videos
Lifetime Updates
SOLAR + STORAGE MINI COURSE
We get it—solar can be confusing, especially if you're diving in for the first time. Which is exactly why we created this short, no-fluff solar mini course. In just 60 minutes, you'll learn everything you need to know to size, install, and optimize your very own solar power system—no confusing jargon or technical overwhelm.
75% OFF TODAY | LIMITED TIME ONLY.
![9.84kW Complete Solar Power System - 12,000W 120/240V [28.6kWh-30.72kWh Lithium Battery Bank] 24 x 410W Mono Solar Panels | Includes Schematic [OGK-PRO] - ShopSolar.com](http://shopsolarkits.com/cdn/shop/files/OGK_PRO_-_ALPHA_-_NONE_6d0496c9-8508-4fe8-a241-1675dde7cc6e_640x.jpg?v=1733923404)
![Complete Solar Panel Kit - 2,000W Pure Sine Wave Inverter + [12V Battery Bank] + 2 x 200W Mono Solar Panels | Off-Grid, Mobile, Backup [LPK-PLUS] - ShopSolar.com](http://shopsolarkits.com/cdn/shop/files/2.02-800x800-ShopSolar-DO-244393_640x.jpg?v=1734736918)
![Complete Solar Power System - 12,000W 120/240V [28.6kWh-30.72kWh Lithium Battery Bank] 24 x 400W Mono Solar Panels | Includes Schematic [OGK-PRO] - ShopSolar.com](http://shopsolarkits.com/cdn/shop/files/ShopSolar877-242-2792_5ba4fac8-f1ac-4e61-bece-271e5d088be3_640x.png?v=1733890827)
![Complete Solar Panel Kit - 2,000W Pure Sine Wave Inverter + [12V Battery Bank] + 2 x 200W Mono Solar Panels | Off-Grid, Mobile, Backup [LPK-PLUS] - ShopSolar.com](http://shopsolarkits.com/cdn/shop/files/2.01-800x800-Shop_Solar-SP-244396_640x.jpg?v=1734565861)
![Complete Solar Power System - 12,000W 120/240V [28.6kWh-30.72kWh Lithium Battery Bank] 24 x 400W Mono Solar Panels | Includes Schematic [OGK-PRO] - ShopSolar.com](http://shopsolarkits.com/cdn/shop/files/4.02-1080x1080-ShopSolar-JSP-197487_206463c7-f145-48ab-9185-fa3d679f538b_640x.png?v=1733890827)
![Complete Solar Power System - 12,000W 120/240V [28.6kWh-30.72kWh Lithium Battery Bank] 24 x 400W Mono Solar Panels | Includes Schematic [OGK-PRO] - ShopSolar.com](http://shopsolarkits.com/cdn/shop/files/24panels_1_640x.jpg?v=1733890827)
![Complete Solar Power System - 12,000W 120/240V [28.6kWh-30.72kWh Lithium Battery Bank] 24 x 400W Mono Solar Panels | Includes Schematic [OGK-PRO] - ShopSolar.com](http://shopsolarkits.com/cdn/shop/files/Untitleddesign-2023-11-08T135110.937_b4ff1fe5-9f65-428e-8c0c-c45747247a92_640x.png?v=1733890827)
![Complete Solar Power System - 12,000W 120/240V [28.6kWh-30.72kWh Lithium Battery Bank] 24 x 400W Mono Solar Panels | Includes Schematic [OGK-PRO] - ShopSolar.com](http://shopsolarkits.com/cdn/shop/files/Untitleddesign-2023-11-08T135124.595_286d2e77-cba0-4a4a-ac6a-a028d839b711_640x.png?v=1733890827)
![Complete Solar Power System - 12,000W 120/240V [28.6kWh-30.72kWh Lithium Battery Bank] 24 x 400W Mono Solar Panels | Includes Schematic [OGK-PRO] - ShopSolar.com](http://shopsolarkits.com/cdn/shop/files/Untitleddesign-2023-11-08T135050.298_2276d816-6321-475f-8f80-a16914ec0664_640x.png?v=1733890827)
![EG4 18K + PowerPro Battery [14.3kWh - 28.6kWh] | Battery Storage Bundle | Outdoor Rated |10-Year Warranty | Choose Battery Bank - ShopSolar.com](http://shopsolarkits.com/cdn/shop/files/EG4_18K_640x.jpg?v=1733890827)
![EG4 18K + PowerPro Battery [14.3kWh - 28.6kWh] | Battery Storage Bundle | Outdoor Rated |10-Year Warranty | Choose Battery Bank - ShopSolar.com](http://shopsolarkits.com/cdn/shop/files/EG4_8d9d6d71-dd90-446f-b29e-4ad9a3d746aa_640x.jpg?v=1733890827)
![9.84kW Complete Solar Power System - 12,000W 120/240V [28.6kWh-30.72kWh Lithium Battery Bank] 24 x 410W Mono Solar Panels | Includes Schematic [OGK-PRO]](http://shopsolarkits.com/cdn/shop/files/EG4_Lifepower4_V2_2_640x.jpg?v=1734136508)
![9.84kW Complete Solar Power System - 12,000W 120/240V [28.6kWh-30.72kWh Lithium Battery Bank] 24 x 410W Mono Solar Panels | Includes Schematic [OGK-PRO]](http://shopsolarkits.com/cdn/shop/files/EG4_Lifepower4_V2_640x.jpg?v=1734136508)
![9.84kW Complete Solar Power System - 12,000W 120/240V [28.6kWh-30.72kWh Lithium Battery Bank] 24 x 410W Mono Solar Panels | Includes Schematic [OGK-PRO]](http://shopsolarkits.com/cdn/shop/files/lifepo4_leftcorner_alt_3_signaturesolar__69822_231dbd4d-9a80-4892-a9d2-24fffdeda4ce_640x.webp?v=1734136508)
![9.84kW Complete Solar Power System - 12,000W 120/240V [28.6kWh-30.72kWh Lithium Battery Bank] 24 x 410W Mono Solar Panels | Includes Schematic [OGK-PRO]](http://shopsolarkits.com/cdn/shop/files/lifepo4_fronttop_signaturesolar__20721_8b4c30f3-6237-40d8-8382-d0ab383b4754_640x.webp?v=1734136508)
![9.84kW Complete Solar Power System - 12,000W 120/240V [28.6kWh-30.72kWh Lithium Battery Bank] 24 x 410W Mono Solar Panels | Includes Schematic [OGK-PRO]](http://shopsolarkits.com/cdn/shop/files/EG4_LL_S_640x.jpg?v=1734064180)
![9.84kW Complete Solar Power System - 12,000W 120/240V [28.6kWh-30.72kWh Lithium Battery Bank] 24 x 410W Mono Solar Panels | Includes Schematic [OGK-PRO]](http://shopsolarkits.com/cdn/shop/files/EG4_LL_S_2_640x.jpg?v=1734064180)
![9.84kW Complete Solar Power System - 12,000W 120/240V [28.6kWh-30.72kWh Lithium Battery Bank] 24 x 410W Mono Solar Panels | Includes Schematic [OGK-PRO]](http://shopsolarkits.com/cdn/shop/files/EG4_Indoor_Wallmount_Battery_640x.jpg?v=1734060178)
![9.84kW Complete Solar Power System - 12,000W 120/240V [28.6kWh-30.72kWh Lithium Battery Bank] 24 x 410W Mono Solar Panels | Includes Schematic [OGK-PRO]](http://shopsolarkits.com/cdn/shop/files/51.2V_100Ah_5120Wh_Lithium_Iron_Phosphate_Battery_20240826_9_640x.webp?v=1733890827)
![9.6kW Complete Solar Power System - 12,000W 120/240V [28.6kWh-30.72kWh Lithium Battery Bank] 24 x 400W Mono Solar Panels | Includes Schematic [OGK-PRO] - ShopSolar.com](http://shopsolarkits.com/cdn/shop/products/AverageModuleSize_2_993cb4ca-7ba6-4612-a0c9-66696393403d_640x.png?v=1733890827)
![9.6kW Complete Solar Power System - 12,000W 120/240V [28.6kWh-30.72kWh Lithium Battery Bank] 24 x 400W Mono Solar Panels | Includes Schematic [OGK-PRO] - ShopSolar.com](http://shopsolarkits.com/cdn/shop/products/AverageModuleSize_1_203b5731-e09d-4009-b11f-cfb6157bc094_640x.png?v=1733890827)
![9.6kW Complete Solar Power System - 12,000W 120/240V [28.6kWh-30.72kWh Lithium Battery Bank] 24 x 400W Mono Solar Panels | Includes Schematic [OGK-PRO] - ShopSolar.com](http://shopsolarkits.com/cdn/shop/products/APTOS_SOLAR_DNA-120-MF26-365W_365W_120_CELL_MONO_BLACK_ON_BLACK-01_3_e56c5178-a2a9-4743-933e-6417f63c88e3_640x.png?v=1733890827)
![Complete Solar Power System - 12,000W 120/240V [28.6kWh-30.72kWh Lithium Battery Bank] 24 x 400W Mono Solar Panels | Includes Schematic [OGK-PRO] - ShopSolar.com](http://shopsolarkits.com/cdn/shop/files/Untitleddesign-2022-05-31T234736.130_a82a3858-888b-4dca-87ef-e7c380bc3d4c_640x.png?v=1733890827)
![Complete Solar Power System - 12,000W 120/240V [28.6kWh-30.72kWh Lithium Battery Bank] 24 x 400W Mono Solar Panels | Includes Schematic [OGK-PRO] - ShopSolar.com](http://shopsolarkits.com/cdn/shop/files/CableQuality_1_0998b564-a7f1-424c-be13-465a77e6e58c_640x.png?v=1733890827)
![Complete Solar Power System - 12,000W 120/240V [28.6kWh-30.72kWh Lithium Battery Bank] 24 x 400W Mono Solar Panels | Includes Schematic [OGK-PRO] - ShopSolar.com](http://shopsolarkits.com/cdn/shop/files/CableQuality_3_e1b3c8eb-ae09-460a-8d40-6e0427e63cfc_640x.png?v=1733890827)
![Complete Solar Power System - 12,000W 120/240V [28.6kWh-30.72kWh Lithium Battery Bank] 24 x 400W Mono Solar Panels | Includes Schematic [OGK-PRO] - ShopSolar.com](http://shopsolarkits.com/cdn/shop/files/CableQuality_2_48b4af27-fc5d-4a26-adf2-8c12a62305b4_640x.png?v=1733890827)
![Complete Solar Power System - 12,000W 120/240V [28.6kWh-30.72kWh Lithium Battery Bank] 24 x 400W Mono Solar Panels | Includes Schematic [OGK-PRO] - ShopSolar.com](http://shopsolarkits.com/cdn/shop/files/MAMMOTH-PRO-23.5K_2_640x.png?v=1733890827)
![Complete Solar Power System - 12,000W 120/240V [28.6kWh-30.72kWh Lithium Battery Bank] 24 x 400W Mono Solar Panels | Includes Schematic [OGK-PRO] - ShopSolar.com](http://shopsolarkits.com/cdn/shop/files/995807dd-d847-4a4d-8132-38578f61317f__48943_37d2691d-8ca8-43dd-95f7-7ee3893415d2_640x.jpg?v=1733890827)
![Complete Solar Power System - 12,000W 120/240V [28.6kWh-30.72kWh Lithium Battery Bank] 24 x 400W Mono Solar Panels | Includes Schematic [OGK-PRO] - ShopSolar.com](http://shopsolarkits.com/cdn/shop/files/BasicPVSystemOverview._356826be-9dae-49a5-8f0f-6b7c2f72a917_640x.png?v=1733890827)
![Complete Solar Power System - 12,000W 120/240V [28.6kWh-30.72kWh Lithium Battery Bank] 24 x 400W Mono Solar Panels | Includes Schematic [OGK-PRO] - ShopSolar.com](http://shopsolarkits.com/cdn/shop/files/Cabling_41e7e4d6-ffd4-4e38-b38f-1a6a7521a894_640x.png?v=1733890827)
![9.84kW Complete Solar Power System - 12,000W 120/240V [28.6kWh-30.72kWh Lithium Battery Bank] 24 x 410W Mono Solar Panels | Includes Schematic [OGK-PRO]](http://shopsolarkits.com/cdn/shop/files/OGK_PRO_-_ALPHA_-_GROUND_640x.jpg?v=1733890827)
![9.84kW Complete Solar Power System - 12,000W 120/240V [28.6kWh-30.72kWh Lithium Battery Bank] 24 x 410W Mono Solar Panels | Includes Schematic [OGK-PRO]](http://shopsolarkits.com/cdn/shop/files/OGK_PRO_-_ALPHA_-_NONE_640x.jpg?v=1733890827)
![9.84kW Complete Solar Power System - 12,000W 120/240V [28.6kWh-30.72kWh Lithium Battery Bank] 24 x 410W Mono Solar Panels | Includes Schematic [OGK-PRO]](http://shopsolarkits.com/cdn/shop/files/OGK_PRO_-_ALPHA_-_ROOF_640x.jpg?v=1733890827)
![9.84kW Complete Solar Power System - 12,000W 120/240V [28.6kWh-30.72kWh Lithium Battery Bank] 24 x 410W Mono Solar Panels | Includes Schematic [OGK-PRO]](http://shopsolarkits.com/cdn/shop/files/OGK_PRO_-_LIFEPO4_-_GROUND_640x.jpg?v=1733890827)
![9.84kW Complete Solar Power System - 12,000W 120/240V [28.6kWh-30.72kWh Lithium Battery Bank] 24 x 410W Mono Solar Panels | Includes Schematic [OGK-PRO]](http://shopsolarkits.com/cdn/shop/files/OGK_PRO_-_LIFEPO4_-_NONE_640x.jpg?v=1733890827)
![9.84kW Complete Solar Power System - 12,000W 120/240V [28.6kWh-30.72kWh Lithium Battery Bank] 24 x 410W Mono Solar Panels | Includes Schematic [OGK-PRO]](http://shopsolarkits.com/cdn/shop/files/OGK_PRO_-_LIFEPO4_-_ROOF_640x.jpg?v=1733890827)
![9.84kW Complete Solar Power System - 12,000W 120/240V [28.6kWh-30.72kWh Lithium Battery Bank] 24 x 410W Mono Solar Panels | Includes Schematic [OGK-PRO]](http://shopsolarkits.com/cdn/shop/files/OGK_PRO_LL_GROUND_640x.png?v=1733890827)
![9.84kW Complete Solar Power System - 12,000W 120/240V [28.6kWh-30.72kWh Lithium Battery Bank] 24 x 410W Mono Solar Panels | Includes Schematic [OGK-PRO]](http://shopsolarkits.com/cdn/shop/files/OGK_PRO_LL_NONE_640x.png?v=1733890827)
![9.84kW Complete Solar Power System - 12,000W 120/240V [28.6kWh-30.72kWh Lithium Battery Bank] 24 x 410W Mono Solar Panels | Includes Schematic [OGK-PRO]](http://shopsolarkits.com/cdn/shop/files/OGK_PRO_LL_ROOF_640x.png?v=1733890827)
![9.84kW Complete Solar Power System - 12,000W 120/240V [28.6kWh-30.72kWh Lithium Battery Bank] 24 x 410W Mono Solar Panels | Includes Schematic [OGK-PRO]](http://shopsolarkits.com/cdn/shop/files/OGK_PRO_-_WALLMOUNT_-_GROUND_493201b0-3d5e-4491-8b03-50ba2cd6f5e4_640x.jpg?v=1733904031)
![9.84kW Complete Solar Power System - 12,000W 120/240V [28.6kWh-30.72kWh Lithium Battery Bank] 24 x 410W Mono Solar Panels | Includes Schematic [OGK-PRO]](http://shopsolarkits.com/cdn/shop/files/OGK_PRO_-_WALLMOUNT_-_NONE_2b57c846-a25e-458f-97ca-7778d0363be9_640x.jpg?v=1733904033)
![9.84kW Complete Solar Power System - 12,000W 120/240V [28.6kWh-30.72kWh Lithium Battery Bank] 24 x 410W Mono Solar Panels | Includes Schematic [OGK-PRO]](http://shopsolarkits.com/cdn/shop/files/OGK_PRO_-_WALLMOUNT_-_ROOF_96d120c1-6873-4b60-9cbd-48619df8fff3_640x.jpg?v=1733904027)
![9.84kW Complete Solar Power System - 12,000W 120/240V [28.6kWh-30.72kWh Lithium Battery Bank] 24 x 410W Mono Solar Panels | Includes Schematic [OGK-PRO]](http://shopsolarkits.com/cdn/shop/files/OGK_PRO_POWERPRO_GROUND_640x.jpg?v=1733904025)
![9.84kW Complete Solar Power System - 12,000W 120/240V [28.6kWh-30.72kWh Lithium Battery Bank] 24 x 410W Mono Solar Panels | Includes Schematic [OGK-PRO]](http://shopsolarkits.com/cdn/shop/files/OGK_PRO_POWERPRO_NONE_640x.jpg?v=1733904035)
![9.84kW Complete Solar Power System - 12,000W 120/240V [28.6kWh-30.72kWh Lithium Battery Bank] 24 x 410W Mono Solar Panels | Includes Schematic [OGK-PRO]](http://shopsolarkits.com/cdn/shop/files/OGK_PRO_POWERPRO_ROOF_640x.jpg?v=1733904082)
![9.84kW Complete Solar Power System - 12,000W 120/240V [28.6kWh-30.72kWh Lithium Battery Bank] 24 x 410W Mono Solar Panels | Includes Schematic [OGK-PRO]](http://shopsolarkits.com/cdn/shop/files/OGK_PRO_RUIXU_GROUND_640x.jpg?v=1733904080)
![9.84kW Complete Solar Power System - 12,000W 120/240V [28.6kWh-30.72kWh Lithium Battery Bank] 24 x 410W Mono Solar Panels | Includes Schematic [OGK-PRO]](http://shopsolarkits.com/cdn/shop/files/OGK_PRO_RUIXU_NONE_640x.jpg?v=1733904048)
![9.84kW Complete Solar Power System - 12,000W 120/240V [28.6kWh-30.72kWh Lithium Battery Bank] 24 x 410W Mono Solar Panels | Includes Schematic [OGK-PRO]](http://shopsolarkits.com/cdn/shop/files/OGK_PRO_RUIXU_ROOF_640x.jpg?v=1733904091)
![6 x Alpha 5 Pro [30.72kWh] / None / Not Needed](http://shopsolarkits.com/cdn/shop/files/OGK_PRO_-_ALPHA_-_NONE_1024x1024.jpg?v=1733890827)
![6 x Alpha 5 Pro [30.72kWh] / Roof Rack - Standard](http://shopsolarkits.com/cdn/shop/files/OGK_PRO_-_ALPHA_-_ROOF_1024x1024.jpg?v=1733890827)
![6 x Alpha 5 Pro [30.72kWh] / Ground Mount - Seasonal Adjust](http://shopsolarkits.com/cdn/shop/files/OGK_PRO_-_ALPHA_-_GROUND_1024x1024.jpg?v=1733890827)
![6 x EG4 LL-S [30.72kWh] / None / Not Needed](http://shopsolarkits.com/cdn/shop/files/OGK_PRO_LL_NONE_1024x1024.png?v=1733890827)
![6 x EG4 LL-S [30.72kWh] / Roof Rack - Standard](http://shopsolarkits.com/cdn/shop/files/OGK_PRO_LL_ROOF_1024x1024.png?v=1733890827)
![6 x EG4 LL-S [30.72kWh] / Ground Mount - Seasonal Adjust](http://shopsolarkits.com/cdn/shop/files/OGK_PRO_LL_GROUND_1024x1024.png?v=1733890827)
![6 x EG4 LP4 [30.72kWh] / None / Not Needed](http://shopsolarkits.com/cdn/shop/files/OGK_PRO_-_LIFEPO4_-_NONE_1024x1024.jpg?v=1733890827)
![6 x EG4 LP4 [30.72kWh] / Roof Rack - Standard](http://shopsolarkits.com/cdn/shop/files/OGK_PRO_-_LIFEPO4_-_ROOF_1024x1024.jpg?v=1733890827)
![6 x EG4 LP4 [30.72kWh] / Ground Mount - Seasonal Adjust](http://shopsolarkits.com/cdn/shop/files/OGK_PRO_-_LIFEPO4_-_GROUND_1024x1024.jpg?v=1733890827)
![2 x EG4 PP INDOOR [28.6kWh] / None / Not Needed](http://shopsolarkits.com/cdn/shop/files/OGK_PRO_-_WALLMOUNT_-_NONE_2b57c846-a25e-458f-97ca-7778d0363be9_1024x1024.jpg?v=1733904033)
![2 x EG4 PP INDOOR [28.6kWh] / Roof Rack - Standard](http://shopsolarkits.com/cdn/shop/files/OGK_PRO_-_WALLMOUNT_-_ROOF_96d120c1-6873-4b60-9cbd-48619df8fff3_1024x1024.jpg?v=1733904027)
![2 x EG4 PP INDOOR [28.6kWh] / Ground Mount - Seasonal Adjust](http://shopsolarkits.com/cdn/shop/files/OGK_PRO_-_WALLMOUNT_-_GROUND_493201b0-3d5e-4491-8b03-50ba2cd6f5e4_1024x1024.jpg?v=1733904031)
![2 x EG4 PP OUTDOOR [28.6kWh] / None / Not Needed](http://shopsolarkits.com/cdn/shop/files/OGK_PRO_POWERPRO_NONE_1024x1024.jpg?v=1733904035)
![2 x EG4 PP OUTDOOR [28.6kWh] / Roof Rack - Standard](http://shopsolarkits.com/cdn/shop/files/OGK_PRO_POWERPRO_ROOF_1024x1024.jpg?v=1733904082)
![2 x EG4 PP OUTDOOR [28.6kWh] / Ground Mount - Seasonal Adjust](http://shopsolarkits.com/cdn/shop/files/OGK_PRO_POWERPRO_GROUND_1024x1024.jpg?v=1733904025)
![6 x R3U [30.72kWh] / None / Not Needed](http://shopsolarkits.com/cdn/shop/files/OGK_PRO_RUIXU_NONE_1024x1024.jpg?v=1733904048)
![6 x R3U [30.72kWh] / Roof Rack - Standard](http://shopsolarkits.com/cdn/shop/files/OGK_PRO_RUIXU_ROOF_1024x1024.jpg?v=1733904091)
![6 x R3U [30.72kWh] / Ground Mount - Seasonal Adjust](http://shopsolarkits.com/cdn/shop/files/OGK_PRO_RUIXU_GROUND_1024x1024.jpg?v=1733904080)
![9.84kW Complete Solar Power System - 12,000W 120/240V [28.6kWh-30.72kWh Lithium Battery Bank] 24 x 410W Mono Solar Panels | Includes Schematic [OGK-PRO] - ShopSolar.com](http://shopsolarkits.com/cdn/shop/files/OGK_PRO_-_ALPHA_-_NONE_6d0496c9-8508-4fe8-a241-1675dde7cc6e_200x.jpg?v=1733923404)
![Complete Solar Panel Kit - 2,000W Pure Sine Wave Inverter + [12V Battery Bank] + 2 x 200W Mono Solar Panels | Off-Grid, Mobile, Backup [LPK-PLUS] - ShopSolar.com](http://shopsolarkits.com/cdn/shop/files/2.02-800x800-ShopSolar-DO-244393_200x.jpg?v=1734736918)
![Complete Solar Power System - 12,000W 120/240V [28.6kWh-30.72kWh Lithium Battery Bank] 24 x 400W Mono Solar Panels | Includes Schematic [OGK-PRO] - ShopSolar.com](http://shopsolarkits.com/cdn/shop/files/ShopSolar877-242-2792_5ba4fac8-f1ac-4e61-bece-271e5d088be3_200x.png?v=1733890827)
![Complete Solar Panel Kit - 2,000W Pure Sine Wave Inverter + [12V Battery Bank] + 2 x 200W Mono Solar Panels | Off-Grid, Mobile, Backup [LPK-PLUS] - ShopSolar.com](http://shopsolarkits.com/cdn/shop/files/2.01-800x800-Shop_Solar-SP-244396_200x.jpg?v=1734565861)
![Complete Solar Power System - 12,000W 120/240V [28.6kWh-30.72kWh Lithium Battery Bank] 24 x 400W Mono Solar Panels | Includes Schematic [OGK-PRO] - ShopSolar.com](http://shopsolarkits.com/cdn/shop/files/4.02-1080x1080-ShopSolar-JSP-197487_206463c7-f145-48ab-9185-fa3d679f538b_200x.png?v=1733890827)
![Complete Solar Power System - 12,000W 120/240V [28.6kWh-30.72kWh Lithium Battery Bank] 24 x 400W Mono Solar Panels | Includes Schematic [OGK-PRO] - ShopSolar.com](http://shopsolarkits.com/cdn/shop/files/24panels_1_200x.jpg?v=1733890827)
![Complete Solar Power System - 12,000W 120/240V [28.6kWh-30.72kWh Lithium Battery Bank] 24 x 400W Mono Solar Panels | Includes Schematic [OGK-PRO] - ShopSolar.com](http://shopsolarkits.com/cdn/shop/files/Untitleddesign-2023-11-08T135110.937_b4ff1fe5-9f65-428e-8c0c-c45747247a92_200x.png?v=1733890827)
![Complete Solar Power System - 12,000W 120/240V [28.6kWh-30.72kWh Lithium Battery Bank] 24 x 400W Mono Solar Panels | Includes Schematic [OGK-PRO] - ShopSolar.com](http://shopsolarkits.com/cdn/shop/files/Untitleddesign-2023-11-08T135124.595_286d2e77-cba0-4a4a-ac6a-a028d839b711_200x.png?v=1733890827)
![Complete Solar Power System - 12,000W 120/240V [28.6kWh-30.72kWh Lithium Battery Bank] 24 x 400W Mono Solar Panels | Includes Schematic [OGK-PRO] - ShopSolar.com](http://shopsolarkits.com/cdn/shop/files/Untitleddesign-2023-11-08T135050.298_2276d816-6321-475f-8f80-a16914ec0664_200x.png?v=1733890827)
![EG4 18K + PowerPro Battery [14.3kWh - 28.6kWh] | Battery Storage Bundle | Outdoor Rated |10-Year Warranty | Choose Battery Bank - ShopSolar.com](http://shopsolarkits.com/cdn/shop/files/EG4_18K_200x.jpg?v=1733890827)
![EG4 18K + PowerPro Battery [14.3kWh - 28.6kWh] | Battery Storage Bundle | Outdoor Rated |10-Year Warranty | Choose Battery Bank - ShopSolar.com](http://shopsolarkits.com/cdn/shop/files/EG4_8d9d6d71-dd90-446f-b29e-4ad9a3d746aa_200x.jpg?v=1733890827)
![9.84kW Complete Solar Power System - 12,000W 120/240V [28.6kWh-30.72kWh Lithium Battery Bank] 24 x 410W Mono Solar Panels | Includes Schematic [OGK-PRO]](http://shopsolarkits.com/cdn/shop/files/EG4_Lifepower4_V2_2_200x.jpg?v=1734136508)
![9.84kW Complete Solar Power System - 12,000W 120/240V [28.6kWh-30.72kWh Lithium Battery Bank] 24 x 410W Mono Solar Panels | Includes Schematic [OGK-PRO]](http://shopsolarkits.com/cdn/shop/files/EG4_Lifepower4_V2_200x.jpg?v=1734136508)
![9.84kW Complete Solar Power System - 12,000W 120/240V [28.6kWh-30.72kWh Lithium Battery Bank] 24 x 410W Mono Solar Panels | Includes Schematic [OGK-PRO]](http://shopsolarkits.com/cdn/shop/files/lifepo4_leftcorner_alt_3_signaturesolar__69822_231dbd4d-9a80-4892-a9d2-24fffdeda4ce_200x.webp?v=1734136508)
![9.84kW Complete Solar Power System - 12,000W 120/240V [28.6kWh-30.72kWh Lithium Battery Bank] 24 x 410W Mono Solar Panels | Includes Schematic [OGK-PRO]](http://shopsolarkits.com/cdn/shop/files/lifepo4_fronttop_signaturesolar__20721_8b4c30f3-6237-40d8-8382-d0ab383b4754_200x.webp?v=1734136508)
![9.84kW Complete Solar Power System - 12,000W 120/240V [28.6kWh-30.72kWh Lithium Battery Bank] 24 x 410W Mono Solar Panels | Includes Schematic [OGK-PRO]](http://shopsolarkits.com/cdn/shop/files/EG4_LL_S_200x.jpg?v=1734064180)
![9.84kW Complete Solar Power System - 12,000W 120/240V [28.6kWh-30.72kWh Lithium Battery Bank] 24 x 410W Mono Solar Panels | Includes Schematic [OGK-PRO]](http://shopsolarkits.com/cdn/shop/files/EG4_LL_S_2_200x.jpg?v=1734064180)
![9.84kW Complete Solar Power System - 12,000W 120/240V [28.6kWh-30.72kWh Lithium Battery Bank] 24 x 410W Mono Solar Panels | Includes Schematic [OGK-PRO]](http://shopsolarkits.com/cdn/shop/files/EG4_Indoor_Wallmount_Battery_200x.jpg?v=1734060178)
![9.84kW Complete Solar Power System - 12,000W 120/240V [28.6kWh-30.72kWh Lithium Battery Bank] 24 x 410W Mono Solar Panels | Includes Schematic [OGK-PRO]](http://shopsolarkits.com/cdn/shop/files/51.2V_100Ah_5120Wh_Lithium_Iron_Phosphate_Battery_20240826_9_200x.webp?v=1733890827)
![9.6kW Complete Solar Power System - 12,000W 120/240V [28.6kWh-30.72kWh Lithium Battery Bank] 24 x 400W Mono Solar Panels | Includes Schematic [OGK-PRO] - ShopSolar.com](http://shopsolarkits.com/cdn/shop/products/AverageModuleSize_2_993cb4ca-7ba6-4612-a0c9-66696393403d_200x.png?v=1733890827)
![9.6kW Complete Solar Power System - 12,000W 120/240V [28.6kWh-30.72kWh Lithium Battery Bank] 24 x 400W Mono Solar Panels | Includes Schematic [OGK-PRO] - ShopSolar.com](http://shopsolarkits.com/cdn/shop/products/AverageModuleSize_1_203b5731-e09d-4009-b11f-cfb6157bc094_200x.png?v=1733890827)
![9.6kW Complete Solar Power System - 12,000W 120/240V [28.6kWh-30.72kWh Lithium Battery Bank] 24 x 400W Mono Solar Panels | Includes Schematic [OGK-PRO] - ShopSolar.com](http://shopsolarkits.com/cdn/shop/products/APTOS_SOLAR_DNA-120-MF26-365W_365W_120_CELL_MONO_BLACK_ON_BLACK-01_3_e56c5178-a2a9-4743-933e-6417f63c88e3_200x.png?v=1733890827)
![Complete Solar Power System - 12,000W 120/240V [28.6kWh-30.72kWh Lithium Battery Bank] 24 x 400W Mono Solar Panels | Includes Schematic [OGK-PRO] - ShopSolar.com](http://shopsolarkits.com/cdn/shop/files/Untitleddesign-2022-05-31T234736.130_a82a3858-888b-4dca-87ef-e7c380bc3d4c_200x.png?v=1733890827)
![Complete Solar Power System - 12,000W 120/240V [28.6kWh-30.72kWh Lithium Battery Bank] 24 x 400W Mono Solar Panels | Includes Schematic [OGK-PRO] - ShopSolar.com](http://shopsolarkits.com/cdn/shop/files/CableQuality_1_0998b564-a7f1-424c-be13-465a77e6e58c_200x.png?v=1733890827)
![Complete Solar Power System - 12,000W 120/240V [28.6kWh-30.72kWh Lithium Battery Bank] 24 x 400W Mono Solar Panels | Includes Schematic [OGK-PRO] - ShopSolar.com](http://shopsolarkits.com/cdn/shop/files/CableQuality_3_e1b3c8eb-ae09-460a-8d40-6e0427e63cfc_200x.png?v=1733890827)
![Complete Solar Power System - 12,000W 120/240V [28.6kWh-30.72kWh Lithium Battery Bank] 24 x 400W Mono Solar Panels | Includes Schematic [OGK-PRO] - ShopSolar.com](http://shopsolarkits.com/cdn/shop/files/CableQuality_2_48b4af27-fc5d-4a26-adf2-8c12a62305b4_200x.png?v=1733890827)
![Complete Solar Power System - 12,000W 120/240V [28.6kWh-30.72kWh Lithium Battery Bank] 24 x 400W Mono Solar Panels | Includes Schematic [OGK-PRO] - ShopSolar.com](http://shopsolarkits.com/cdn/shop/files/MAMMOTH-PRO-23.5K_2_200x.png?v=1733890827)
![Complete Solar Power System - 12,000W 120/240V [28.6kWh-30.72kWh Lithium Battery Bank] 24 x 400W Mono Solar Panels | Includes Schematic [OGK-PRO] - ShopSolar.com](http://shopsolarkits.com/cdn/shop/files/995807dd-d847-4a4d-8132-38578f61317f__48943_37d2691d-8ca8-43dd-95f7-7ee3893415d2_200x.jpg?v=1733890827)
![Complete Solar Power System - 12,000W 120/240V [28.6kWh-30.72kWh Lithium Battery Bank] 24 x 400W Mono Solar Panels | Includes Schematic [OGK-PRO] - ShopSolar.com](http://shopsolarkits.com/cdn/shop/files/BasicPVSystemOverview._356826be-9dae-49a5-8f0f-6b7c2f72a917_200x.png?v=1733890827)
![Complete Solar Power System - 12,000W 120/240V [28.6kWh-30.72kWh Lithium Battery Bank] 24 x 400W Mono Solar Panels | Includes Schematic [OGK-PRO] - ShopSolar.com](http://shopsolarkits.com/cdn/shop/files/Cabling_41e7e4d6-ffd4-4e38-b38f-1a6a7521a894_200x.png?v=1733890827)
![9.84kW Complete Solar Power System - 12,000W 120/240V [28.6kWh-30.72kWh Lithium Battery Bank] 24 x 410W Mono Solar Panels | Includes Schematic [OGK-PRO]](http://shopsolarkits.com/cdn/shop/files/OGK_PRO_-_ALPHA_-_GROUND_200x.jpg?v=1733890827)
![9.84kW Complete Solar Power System - 12,000W 120/240V [28.6kWh-30.72kWh Lithium Battery Bank] 24 x 410W Mono Solar Panels | Includes Schematic [OGK-PRO]](http://shopsolarkits.com/cdn/shop/files/OGK_PRO_-_ALPHA_-_NONE_200x.jpg?v=1733890827)
![9.84kW Complete Solar Power System - 12,000W 120/240V [28.6kWh-30.72kWh Lithium Battery Bank] 24 x 410W Mono Solar Panels | Includes Schematic [OGK-PRO]](http://shopsolarkits.com/cdn/shop/files/OGK_PRO_-_ALPHA_-_ROOF_200x.jpg?v=1733890827)
![9.84kW Complete Solar Power System - 12,000W 120/240V [28.6kWh-30.72kWh Lithium Battery Bank] 24 x 410W Mono Solar Panels | Includes Schematic [OGK-PRO]](http://shopsolarkits.com/cdn/shop/files/OGK_PRO_-_LIFEPO4_-_GROUND_200x.jpg?v=1733890827)
![9.84kW Complete Solar Power System - 12,000W 120/240V [28.6kWh-30.72kWh Lithium Battery Bank] 24 x 410W Mono Solar Panels | Includes Schematic [OGK-PRO]](http://shopsolarkits.com/cdn/shop/files/OGK_PRO_-_LIFEPO4_-_NONE_200x.jpg?v=1733890827)
![9.84kW Complete Solar Power System - 12,000W 120/240V [28.6kWh-30.72kWh Lithium Battery Bank] 24 x 410W Mono Solar Panels | Includes Schematic [OGK-PRO]](http://shopsolarkits.com/cdn/shop/files/OGK_PRO_-_LIFEPO4_-_ROOF_200x.jpg?v=1733890827)
![9.84kW Complete Solar Power System - 12,000W 120/240V [28.6kWh-30.72kWh Lithium Battery Bank] 24 x 410W Mono Solar Panels | Includes Schematic [OGK-PRO]](http://shopsolarkits.com/cdn/shop/files/OGK_PRO_LL_GROUND_200x.png?v=1733890827)
![9.84kW Complete Solar Power System - 12,000W 120/240V [28.6kWh-30.72kWh Lithium Battery Bank] 24 x 410W Mono Solar Panels | Includes Schematic [OGK-PRO]](http://shopsolarkits.com/cdn/shop/files/OGK_PRO_LL_NONE_200x.png?v=1733890827)
![9.84kW Complete Solar Power System - 12,000W 120/240V [28.6kWh-30.72kWh Lithium Battery Bank] 24 x 410W Mono Solar Panels | Includes Schematic [OGK-PRO]](http://shopsolarkits.com/cdn/shop/files/OGK_PRO_LL_ROOF_200x.png?v=1733890827)
![9.84kW Complete Solar Power System - 12,000W 120/240V [28.6kWh-30.72kWh Lithium Battery Bank] 24 x 410W Mono Solar Panels | Includes Schematic [OGK-PRO]](http://shopsolarkits.com/cdn/shop/files/OGK_PRO_-_WALLMOUNT_-_GROUND_493201b0-3d5e-4491-8b03-50ba2cd6f5e4_200x.jpg?v=1733904031)
![9.84kW Complete Solar Power System - 12,000W 120/240V [28.6kWh-30.72kWh Lithium Battery Bank] 24 x 410W Mono Solar Panels | Includes Schematic [OGK-PRO]](http://shopsolarkits.com/cdn/shop/files/OGK_PRO_-_WALLMOUNT_-_NONE_2b57c846-a25e-458f-97ca-7778d0363be9_200x.jpg?v=1733904033)
![9.84kW Complete Solar Power System - 12,000W 120/240V [28.6kWh-30.72kWh Lithium Battery Bank] 24 x 410W Mono Solar Panels | Includes Schematic [OGK-PRO]](http://shopsolarkits.com/cdn/shop/files/OGK_PRO_-_WALLMOUNT_-_ROOF_96d120c1-6873-4b60-9cbd-48619df8fff3_200x.jpg?v=1733904027)
![9.84kW Complete Solar Power System - 12,000W 120/240V [28.6kWh-30.72kWh Lithium Battery Bank] 24 x 410W Mono Solar Panels | Includes Schematic [OGK-PRO]](http://shopsolarkits.com/cdn/shop/files/OGK_PRO_POWERPRO_GROUND_200x.jpg?v=1733904025)
![9.84kW Complete Solar Power System - 12,000W 120/240V [28.6kWh-30.72kWh Lithium Battery Bank] 24 x 410W Mono Solar Panels | Includes Schematic [OGK-PRO]](http://shopsolarkits.com/cdn/shop/files/OGK_PRO_POWERPRO_NONE_200x.jpg?v=1733904035)
![9.84kW Complete Solar Power System - 12,000W 120/240V [28.6kWh-30.72kWh Lithium Battery Bank] 24 x 410W Mono Solar Panels | Includes Schematic [OGK-PRO]](http://shopsolarkits.com/cdn/shop/files/OGK_PRO_POWERPRO_ROOF_200x.jpg?v=1733904082)
![9.84kW Complete Solar Power System - 12,000W 120/240V [28.6kWh-30.72kWh Lithium Battery Bank] 24 x 410W Mono Solar Panels | Includes Schematic [OGK-PRO]](http://shopsolarkits.com/cdn/shop/files/OGK_PRO_RUIXU_GROUND_200x.jpg?v=1733904080)
![9.84kW Complete Solar Power System - 12,000W 120/240V [28.6kWh-30.72kWh Lithium Battery Bank] 24 x 410W Mono Solar Panels | Includes Schematic [OGK-PRO]](http://shopsolarkits.com/cdn/shop/files/OGK_PRO_RUIXU_NONE_200x.jpg?v=1733904048)
![9.84kW Complete Solar Power System - 12,000W 120/240V [28.6kWh-30.72kWh Lithium Battery Bank] 24 x 410W Mono Solar Panels | Includes Schematic [OGK-PRO]](http://shopsolarkits.com/cdn/shop/files/OGK_PRO_RUIXU_ROOF_200x.jpg?v=1733904091)
![6 x Alpha 5 Pro [30.72kWh] / None / Not Needed](http://shopsolarkits.com/cdn/shop/files/OGK_PRO_-_ALPHA_-_NONE_200x200.jpg?v=1733890827)
![6 x Alpha 5 Pro [30.72kWh] / Roof Rack - Standard](http://shopsolarkits.com/cdn/shop/files/OGK_PRO_-_ALPHA_-_ROOF_200x200.jpg?v=1733890827)
![6 x Alpha 5 Pro [30.72kWh] / Ground Mount - Seasonal Adjust](http://shopsolarkits.com/cdn/shop/files/OGK_PRO_-_ALPHA_-_GROUND_200x200.jpg?v=1733890827)
![6 x EG4 LL-S [30.72kWh] / None / Not Needed](http://shopsolarkits.com/cdn/shop/files/OGK_PRO_LL_NONE_200x200.png?v=1733890827)
![6 x EG4 LL-S [30.72kWh] / Roof Rack - Standard](http://shopsolarkits.com/cdn/shop/files/OGK_PRO_LL_ROOF_200x200.png?v=1733890827)
![6 x EG4 LL-S [30.72kWh] / Ground Mount - Seasonal Adjust](http://shopsolarkits.com/cdn/shop/files/OGK_PRO_LL_GROUND_200x200.png?v=1733890827)
![6 x EG4 LP4 [30.72kWh] / None / Not Needed](http://shopsolarkits.com/cdn/shop/files/OGK_PRO_-_LIFEPO4_-_NONE_200x200.jpg?v=1733890827)
![6 x EG4 LP4 [30.72kWh] / Roof Rack - Standard](http://shopsolarkits.com/cdn/shop/files/OGK_PRO_-_LIFEPO4_-_ROOF_200x200.jpg?v=1733890827)
![6 x EG4 LP4 [30.72kWh] / Ground Mount - Seasonal Adjust](http://shopsolarkits.com/cdn/shop/files/OGK_PRO_-_LIFEPO4_-_GROUND_200x200.jpg?v=1733890827)
![2 x EG4 PP INDOOR [28.6kWh] / None / Not Needed](http://shopsolarkits.com/cdn/shop/files/OGK_PRO_-_WALLMOUNT_-_NONE_2b57c846-a25e-458f-97ca-7778d0363be9_200x200.jpg?v=1733904033)
![2 x EG4 PP INDOOR [28.6kWh] / Roof Rack - Standard](http://shopsolarkits.com/cdn/shop/files/OGK_PRO_-_WALLMOUNT_-_ROOF_96d120c1-6873-4b60-9cbd-48619df8fff3_200x200.jpg?v=1733904027)
![2 x EG4 PP INDOOR [28.6kWh] / Ground Mount - Seasonal Adjust](http://shopsolarkits.com/cdn/shop/files/OGK_PRO_-_WALLMOUNT_-_GROUND_493201b0-3d5e-4491-8b03-50ba2cd6f5e4_200x200.jpg?v=1733904031)
![2 x EG4 PP OUTDOOR [28.6kWh] / None / Not Needed](http://shopsolarkits.com/cdn/shop/files/OGK_PRO_POWERPRO_NONE_200x200.jpg?v=1733904035)
![2 x EG4 PP OUTDOOR [28.6kWh] / Roof Rack - Standard](http://shopsolarkits.com/cdn/shop/files/OGK_PRO_POWERPRO_ROOF_200x200.jpg?v=1733904082)
![2 x EG4 PP OUTDOOR [28.6kWh] / Ground Mount - Seasonal Adjust](http://shopsolarkits.com/cdn/shop/files/OGK_PRO_POWERPRO_GROUND_200x200.jpg?v=1733904025)
![6 x R3U [30.72kWh] / None / Not Needed](http://shopsolarkits.com/cdn/shop/files/OGK_PRO_RUIXU_NONE_200x200.jpg?v=1733904048)
![6 x R3U [30.72kWh] / Roof Rack - Standard](http://shopsolarkits.com/cdn/shop/files/OGK_PRO_RUIXU_ROOF_200x200.jpg?v=1733904091)
![6 x R3U [30.72kWh] / Ground Mount - Seasonal Adjust](http://shopsolarkits.com/cdn/shop/files/OGK_PRO_RUIXU_GROUND_200x200.jpg?v=1733904080)
Financing Applications at Checkout
