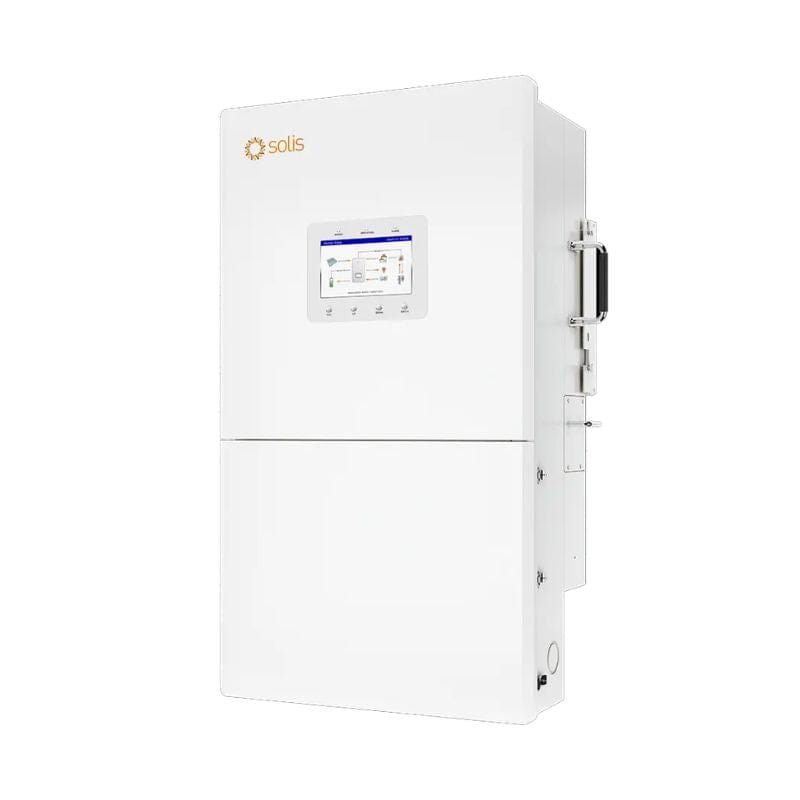

The Solis S6 16kW Hybrid Storage Inverter (S6-EH2P16K03-SV-YD-L-US) is designed to deliver true energy independence for North American homeowners, whether you are on-grid, off-grid, or building a microgrid. Featuring a massive 16,000W rated output, an integrated 200A pass-through, and compatibility with a wide range of 48V battery banks, this versatile inverter makes resilient, cost-effective solar and storage installations easier than ever.
Key Features & Benefits
-
Versatile Operating Modes — Functions seamlessly on-grid, off-grid, or as a microgrid, giving you the flexibility to build the exact energy system you need.
-
Ultra-Fast Transfer Time — An automatic switchover time of under 4ms provides a seamless transition from grid to backup, ensuring your load stays powered during outages.
-
Integrated 200A Pass-Through — The fully integrated bypass function limits the need for external hardware, saving you installation time and streamlining your setup.
-
High-Power PV Support — Supports a high input current (up to 40A per MPPT / 20A per string), making it compatible with larger, high-power solar modules to improve power density and eliminate clipping.
-
Massive Charging Capacity — The battery's DC side handles up to a 290A maximum charge and discharge current, allowing you to efficiently store and utilize more surplus solar energy.
-
Smart Port Technology — Supports flexible configurations, including AC coupling or generator integration, giving you total control over critical and non-critical loads.
-
Flexible Generator Integration — Connects to a generator (up to 24kW input) to reliably extend your backup power duration during prolonged grid down-time.
Specs in a Glance
-
Rated Output Power: 16,000 W (16 kW)
-
Max Apparent Output Power: 16 kVA (With 200% overload capability for 10 seconds in backup)
-
Max PV Input Voltage: 550 V
-
MPPTs: 3 (2 strings per MPPT)
-
Battery Voltage Range: 40-60 V (48V Battery Bank Compatible)
-
Battery Chemistry Supported: Li-ion / Lead-acid
-
Rated Output Voltage: 120 V / 240 V (Split Phase)
-
Ingress Protection: NEMA 4X (IP66)
-
Dimensions: 21.6" W x 34.6" H x 11.4" D
-
Weight: (Confirm) Not provided
-
Warranty: 10 Years

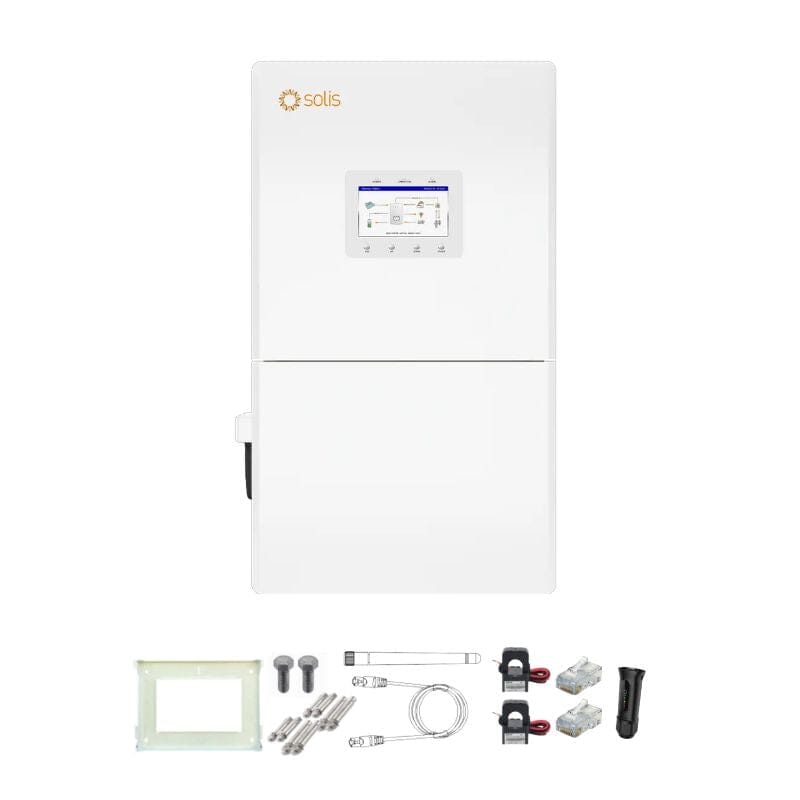

What’s Included
-
1x Solis S6 16kW Hybrid Storage Inverter
-
1x Inverter Mounting Bracket
-
Stabilizing Set Bolts
-
4x Concrete Anchor Bolts
-
1x Parallel Communication Ethernet Cable
-
1x Bluetooth Antenna
-
2x Current Transformers
-
2x RJ45 Connectors
-
1x S2-WL-ST Wi-Fi & LAN Solis Data Logger
Ideal For
-
Whole-home residential backup power systems
-
High-capacity DIY off-grid and hybrid solar setups
-
Integrating smart generator backup with solar and battery storage
User Manual / Documents
The Solis S6 16kW Hybrid Storage Inverter (S6-EH2P16K03-SV-YD-L-US) is designed to deliver true energy independence for North American homeowners, whether you are on-grid, off-grid, or building a microgrid. Featuring a massive 16,000W rated output, an integrated 200A pass-through, and compatibility with a wide range of 48V battery banks, this versatile inverter makes resilient, cost-effective solar and storage installations easier than ever.
Key Features & Benefits
-
Versatile Operating Modes — Functions seamlessly on-grid, off-grid, or as a microgrid, giving you the flexibility to build the exact energy system you need.
-
Ultra-Fast Transfer Time — An automatic switchover time of under 4ms provides a seamless transition from grid to backup, ensuring your load stays powered during outages.
-
Integrated 200A Pass-Through — The fully integrated bypass function limits the need for external hardware, saving you installation time and streamlining your setup.
-
High-Power PV Support — Supports a high input current (up to 40A per MPPT / 20A per string), making it compatible with larger, high-power solar modules to improve power density and eliminate clipping.
-
Massive Charging Capacity — The battery's DC side handles up to a 290A maximum charge and discharge current, allowing you to efficiently store and utilize more surplus solar energy.
-
Smart Port Technology — Supports flexible configurations, including AC coupling or generator integration, giving you total control over critical and non-critical loads.
-
Flexible Generator Integration — Connects to a generator (up to 24kW input) to reliably extend your backup power duration during prolonged grid down-time.
Specs in a Glance
-
Rated Output Power: 16,000 W (16 kW)
-
Max Apparent Output Power: 16 kVA (With 200% overload capability for 10 seconds in backup)
-
Max PV Input Voltage: 550 V
-
MPPTs: 3 (2 strings per MPPT)
-
Battery Voltage Range: 40-60 V (48V Battery Bank Compatible)
-
Battery Chemistry Supported: Li-ion / Lead-acid
-
Rated Output Voltage: 120 V / 240 V (Split Phase)
-
Ingress Protection: NEMA 4X (IP66)
-
Dimensions: 21.6" W x 34.6" H x 11.4" D
-
Weight: (Confirm) Not provided
-
Warranty: 10 Years
What’s Included
-
1x Solis S6 16kW Hybrid Storage Inverter
-
1x Inverter Mounting Bracket
-
Stabilizing Set Bolts
-
4x Concrete Anchor Bolts
-
1x Parallel Communication Ethernet Cable
-
1x Bluetooth Antenna
-
2x Current Transformers
-
2x RJ45 Connectors
-
1x S2-WL-ST Wi-Fi & LAN Solis Data Logger
Ideal For
-
Whole-home residential backup power systems
-
High-capacity DIY off-grid and hybrid solar setups
-
Integrating smart generator backup with solar and battery storage
User Manual / Documents
