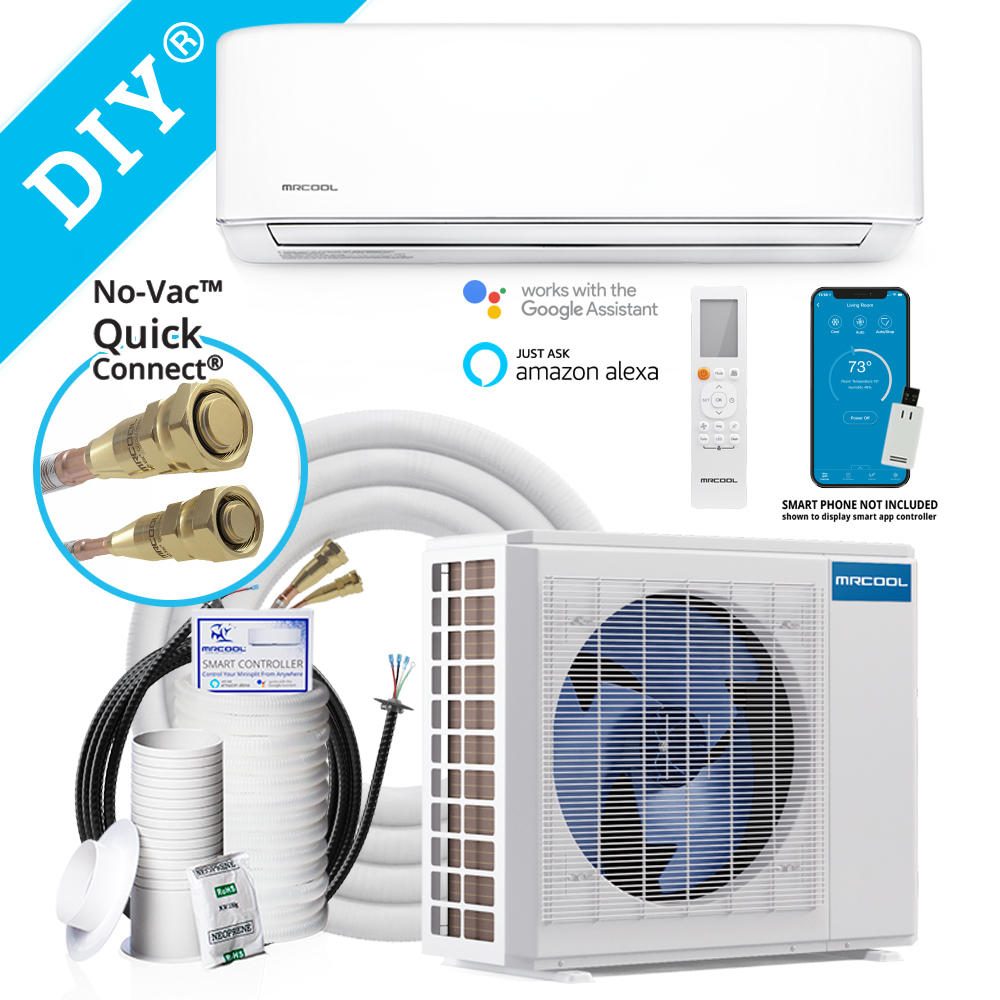

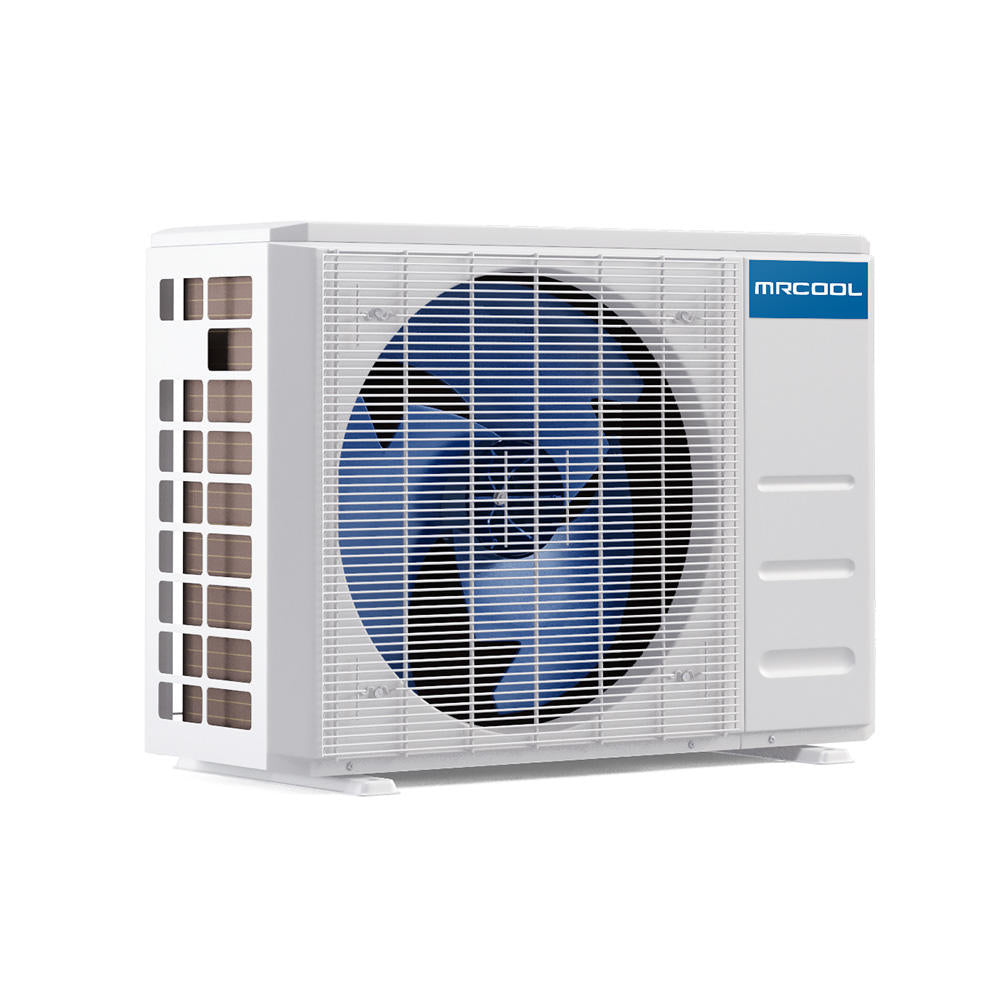

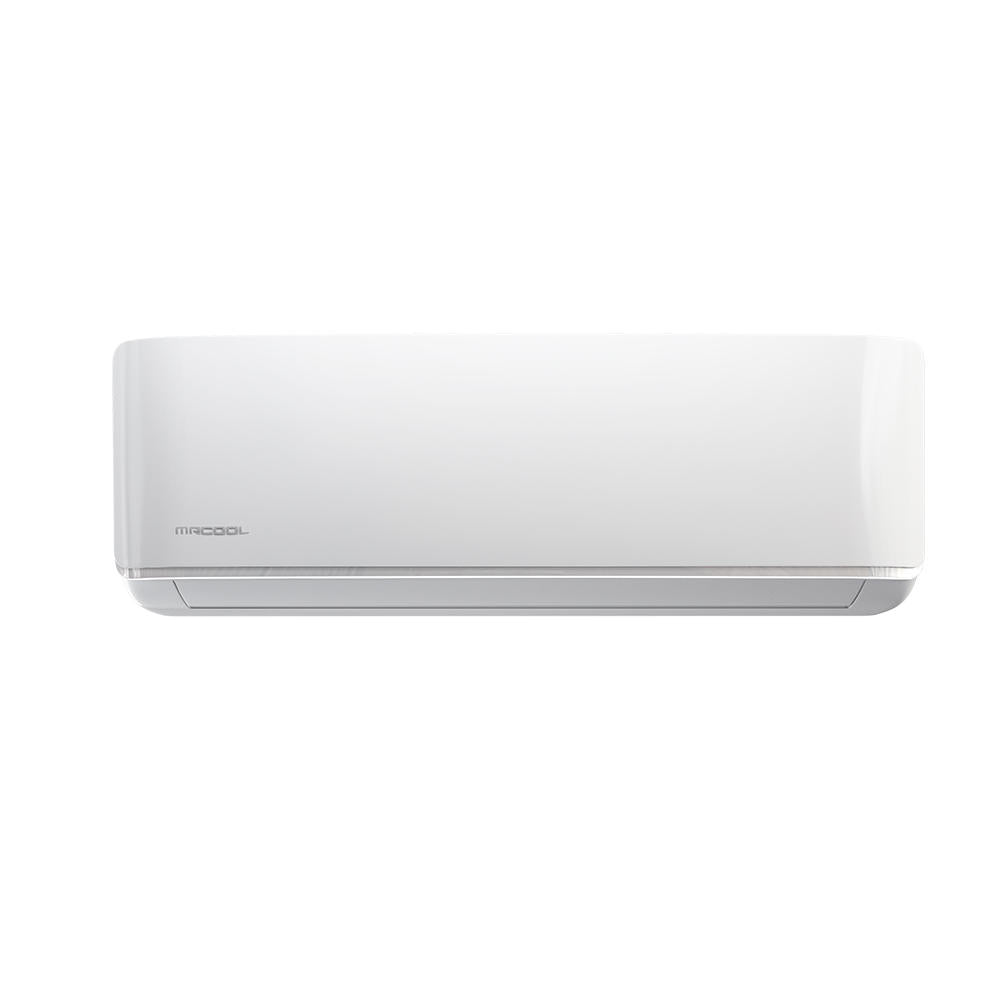

The 4th generation MRCOOL DIY 12K BTU ductless heat pump system keeps you comfortable year-round. This powerful single-zone system is capable of heating and cooling an area up to 500 square feet. It comes complete with a 12K condenser, 12K air handler, and a 25-foot line set pre-charged with R-410A refrigerant. The line set also has quick connectors, which require no special tools, equipment, or training to install.

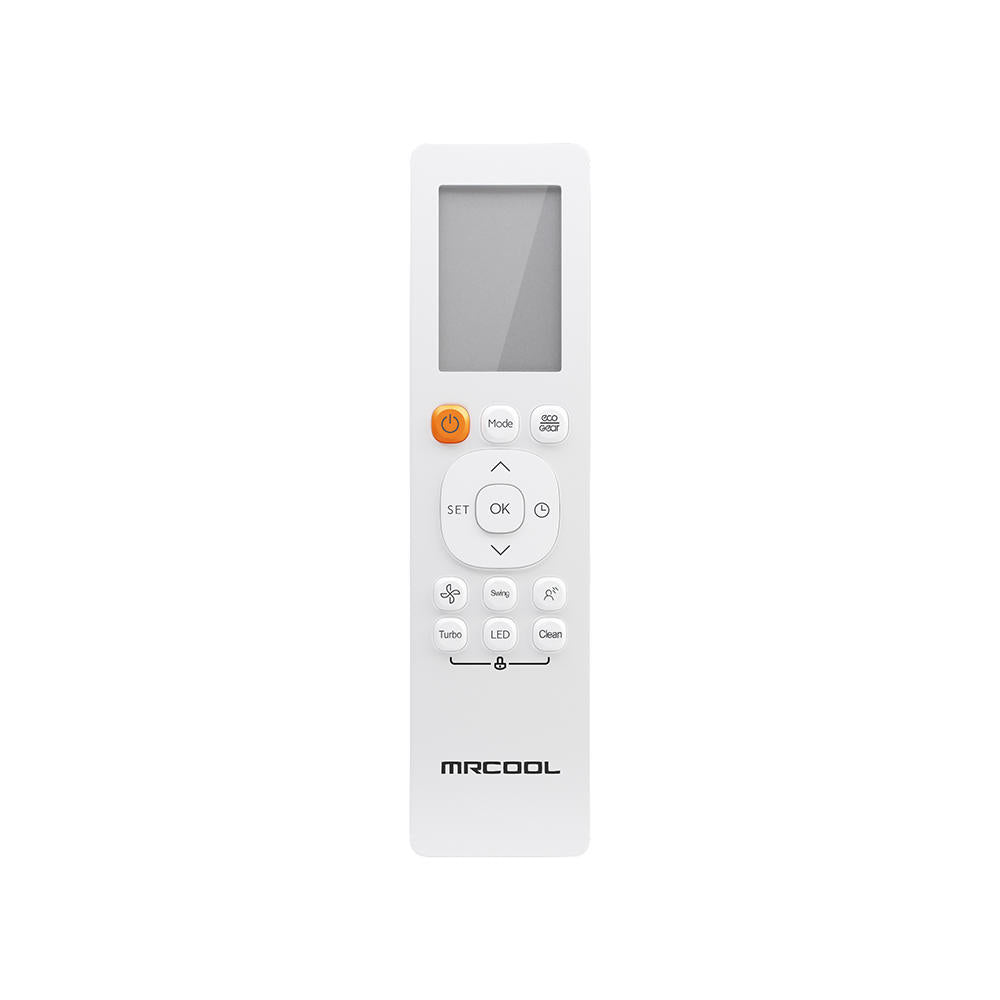

The MRCOOL® DIY system also includes many features that make it stand out among its competitors-it achieves an outstanding 22 SEER efficiency rating, allowing it to be ENERGY STAR ® certified. This system has many operating modes to select from to suit the needs of the user, including heat, cool, dry (dehumidification), and sleep. It also has a follow me function that adjusts the temperature of the room based on the temperature being read by the hand-held remote control.
Features
- ENERGY STAR® certified, 22 SEER, and 11.5 HSPF

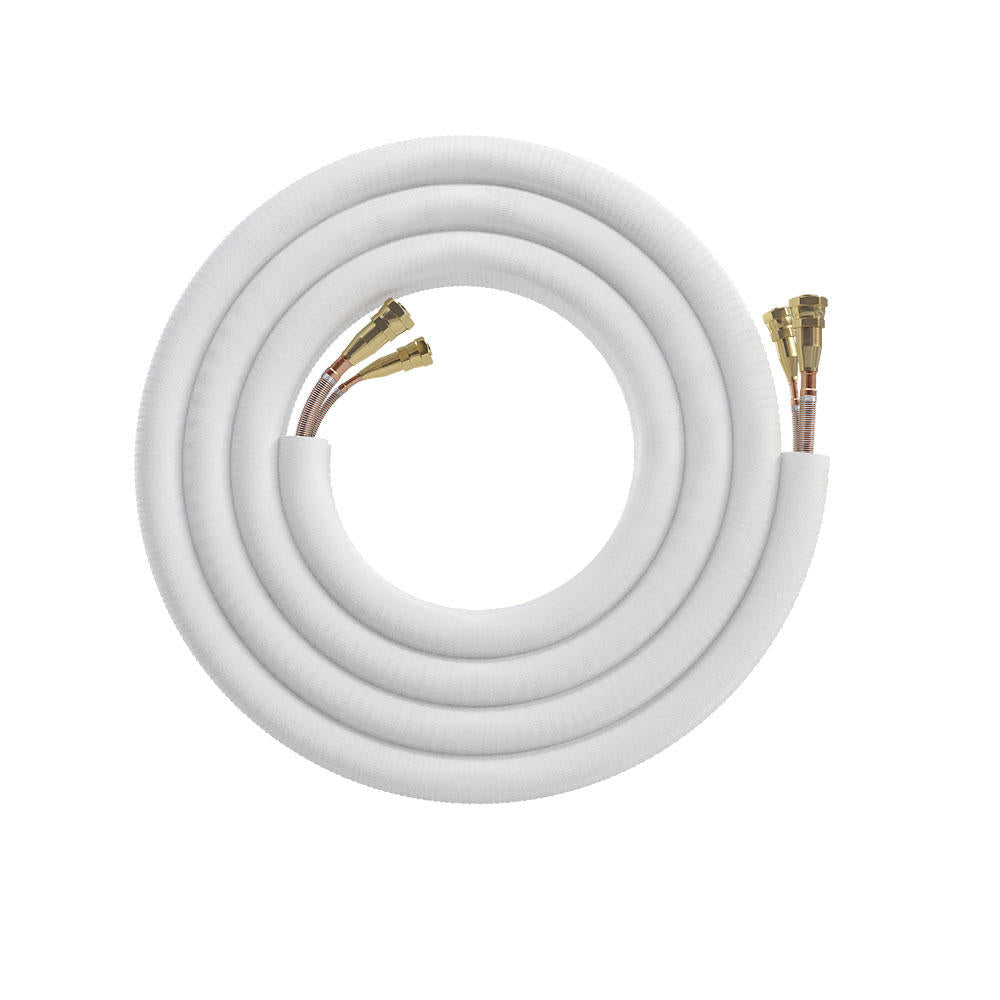

- Easy DIY installation—the pre-charged R-410A 25' quick connect line doesn't require special tools, equipment, or training
- Designed to efficiently heat and cool a single 500 sq ft room
- SmartHVAC app enables Wi-Ficontrol, is compatible with Amazon Alexa and Google Assistant, and is used anywhere with your apple or android smart device and a Wi-Fi connection
- Variable-speed DC inverter compressor technology cuts operating costs
- Low ambient cooling—cools down to 5°F
- Corrosion-resistant gold fin condenser
- 7 year compressor warranty and 5 year parts warranty
- Includes follow me feature, dehumidifying operation, auto mode, louver position memory, and sleep mode
MRCOOL-DIY-12-HP-115C25 - Specs:
Capacity and Performance
- Cooling Capacity: 12000
- SEER: 22.0
- Heating Capacity: 12000
- HSPF4: 11.5
- HSPF5: 9
- Coverage Area (Heat/Cool): Up to 500
- Indoor Noise Level (Hi/Mi/Lo): 37/31/23.5
- Outdoor Noise Level: 53.5
Electrical Parts
- Power Supply: 115V, 60Hz, 1Ph
- Minimum Circuit Ampacity: 19.0
- Maximum Fuse (Breaker): 25.0
Dimensions and Height
- Net Dimension (WxDxH): Indoor 31.57 x 7.44 x 11.69 in
Outdoor: 30.12 x 11.93 x 21.85 in - Net Gross Weight: Indoor 24.03/34.17 lbs
Outdoor: 65.70/85.3 lbs
Refrigerant & Piping
- Refrigerant R-410A: 38.01 oz
- Piping Size Liquid side/Gas side: 1/4"-1/2 in
Still have questions? Give us a call at 877-242-2792
