Take your energy independence to the next level with the Anker SOLIX E10 Dual Kit — a scalable, smart whole-home backup solution built for complete grid freedom, extended outage protection, and DIY-friendly installation.
This powerful kit includes 2x E10 power modules + 2x LiFePO4 battery packs, giving you serious output, longer runtimes, and full-panel backup for your entire home — from central A/C to EV chargers. Customize your system with up to 18 x 400W premium solar panels, plus your choice of automatic or manual transfer switch to match your home's setup and energy goals.
Key Features & Benefits:
-

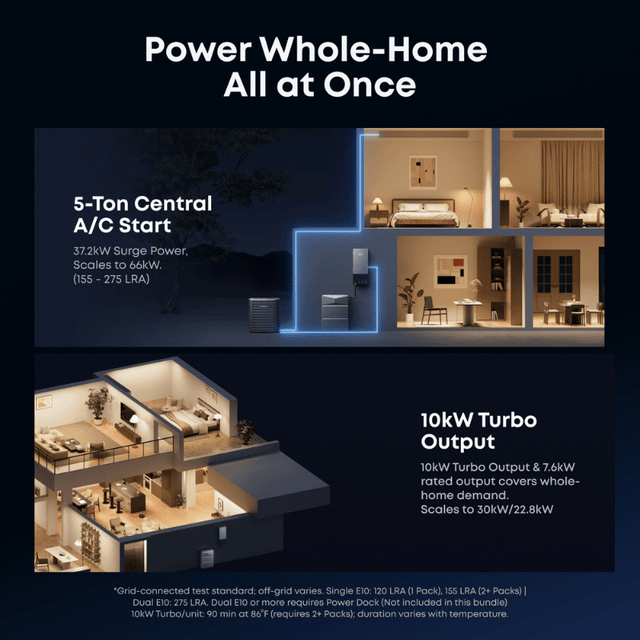

Dual E10 Units = Double the Power
20kW turbo output (30kW max for 90 mins) | 7.6–22.8kW continuous
Powers entire home including central A/C, EV charger, and all major appliances. -
Expandable Battery Bank Options

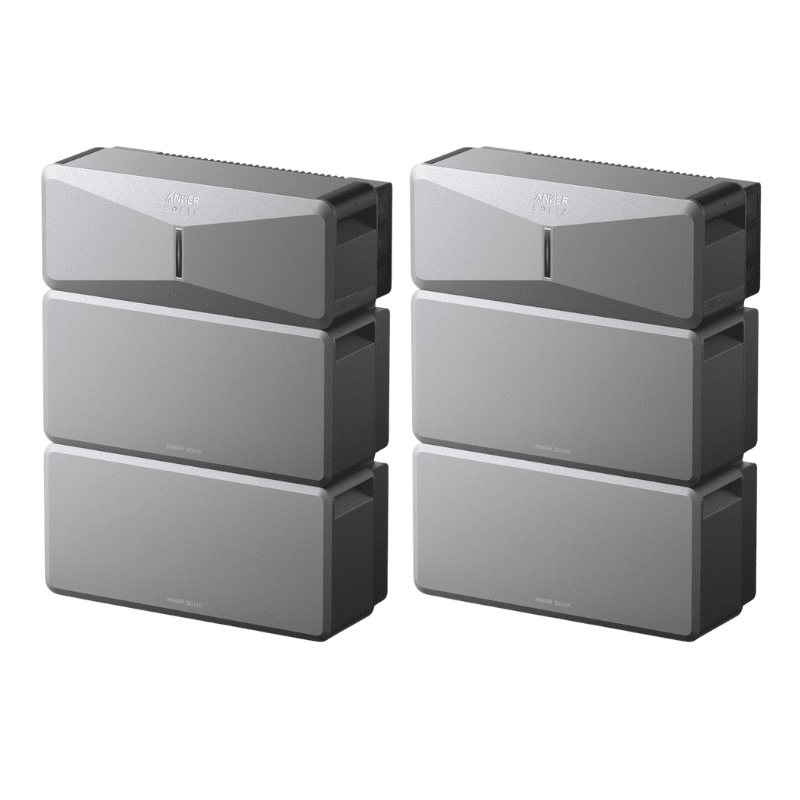

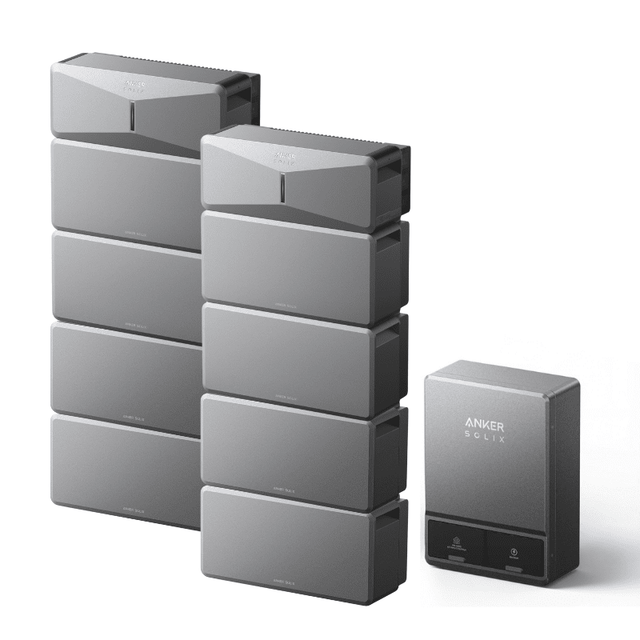

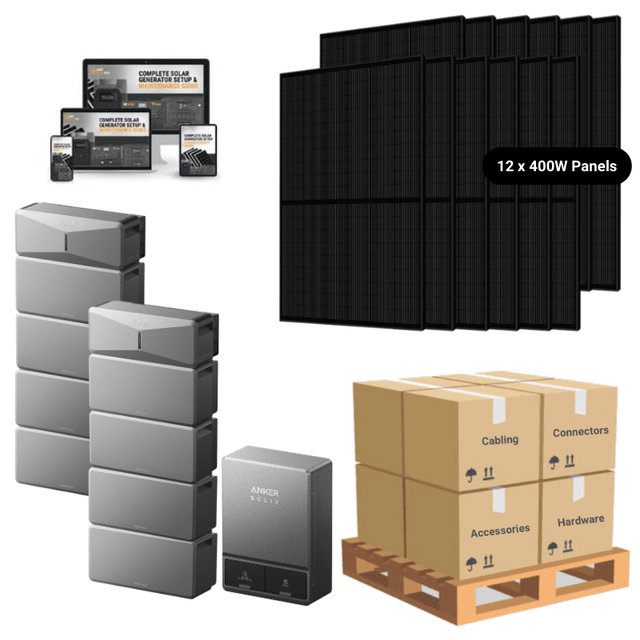

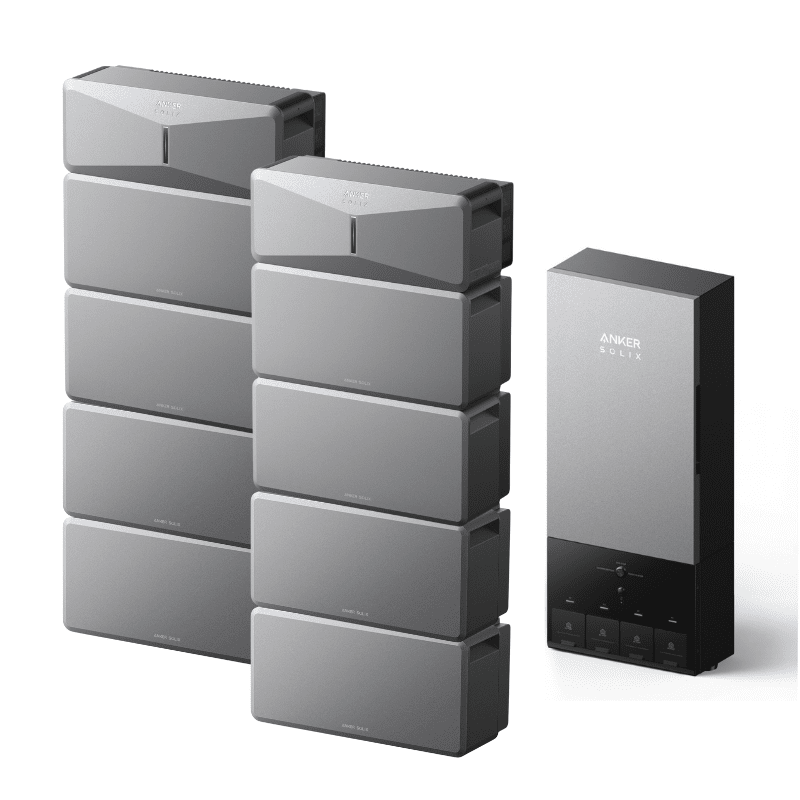

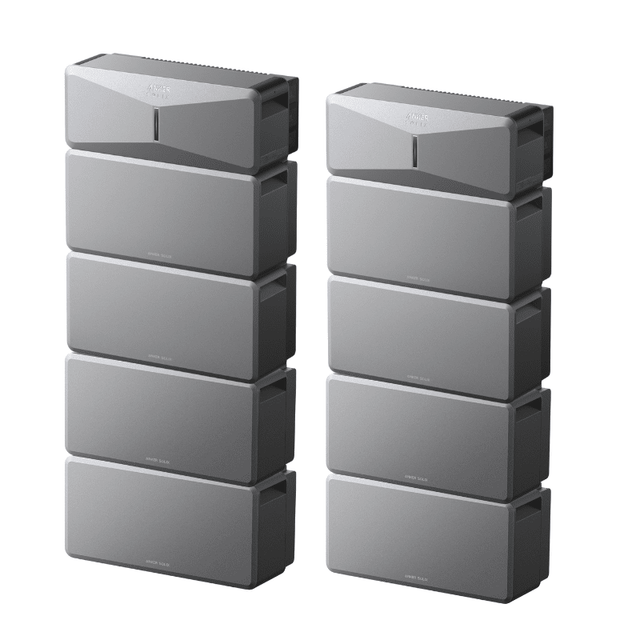

Choose from 12kWh (base), 24kWh, or 48kWh using 2x high-efficiency LiFePO4 batteries.
Scale up to 90kWh capacity across 3 E10 units. -
Massive Solar Input

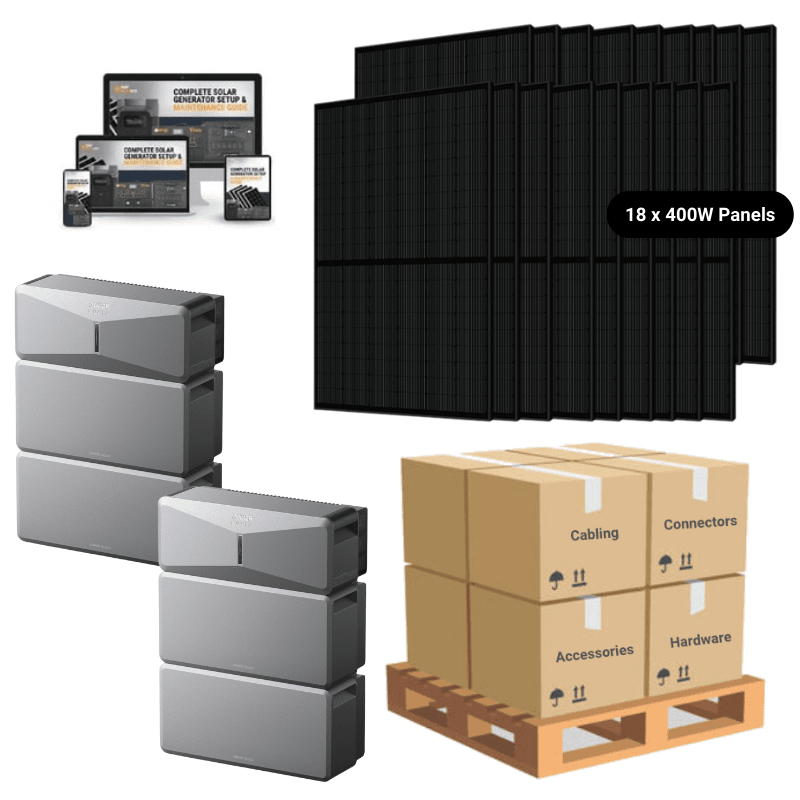

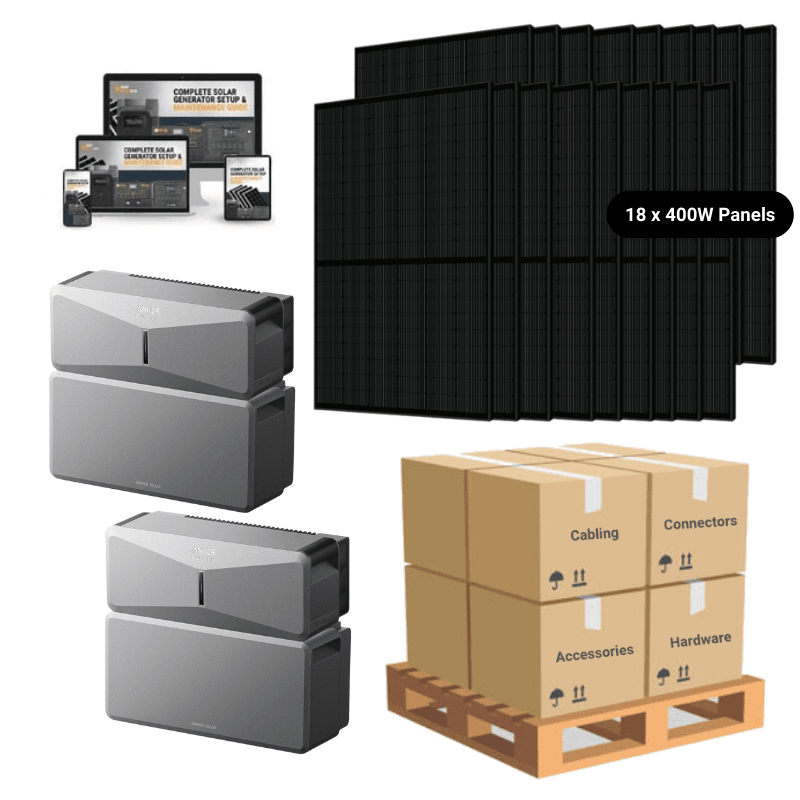

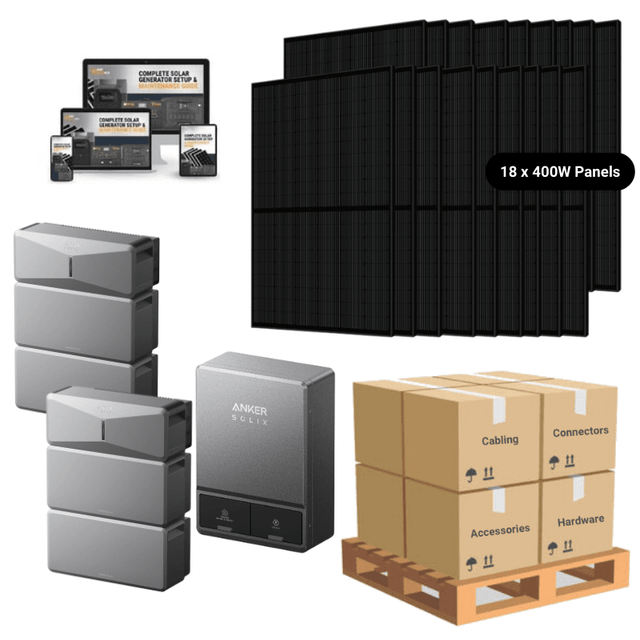

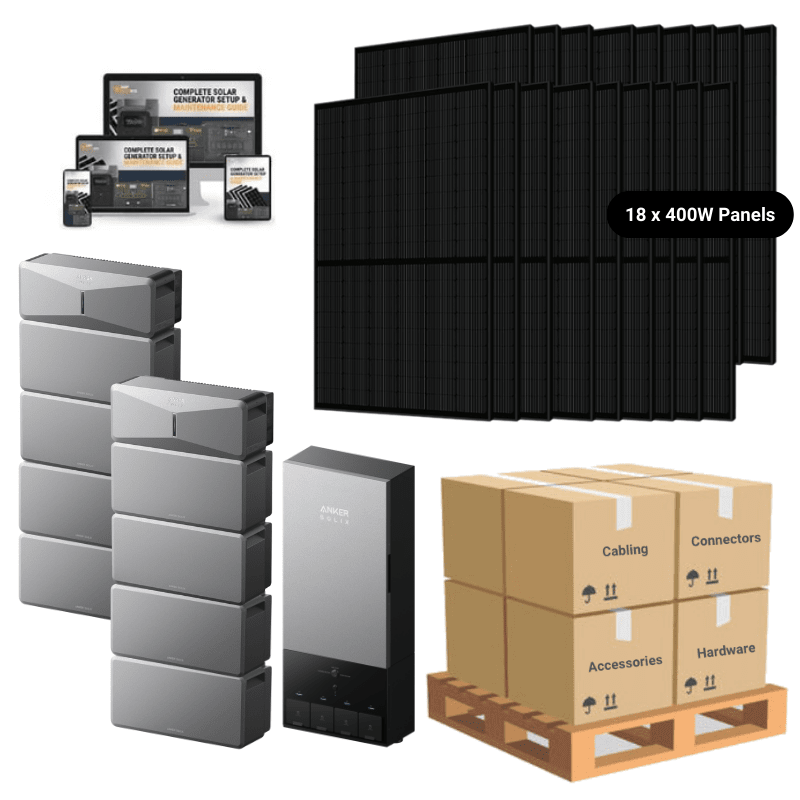

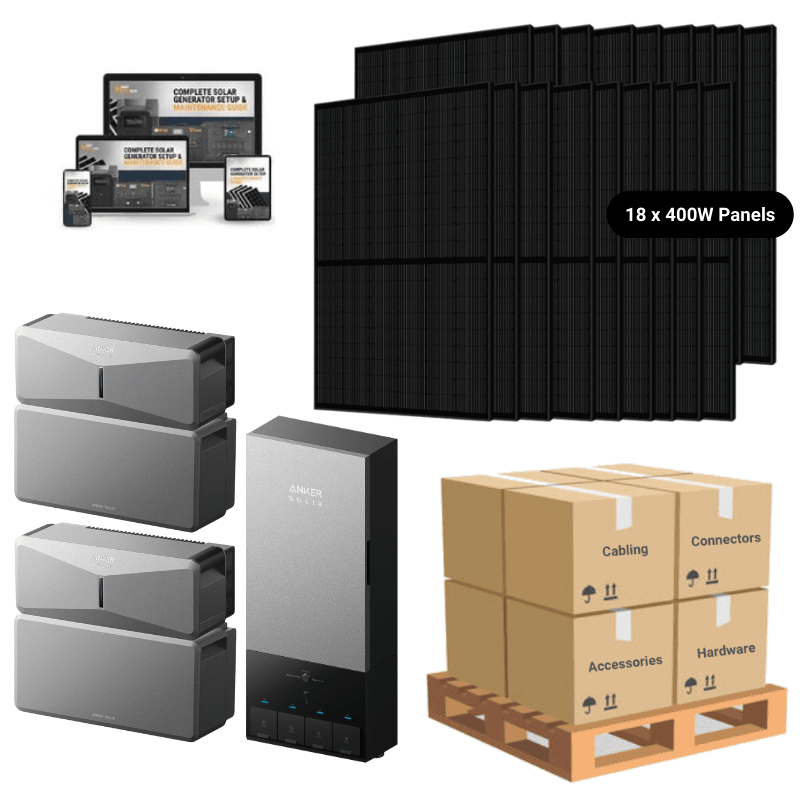

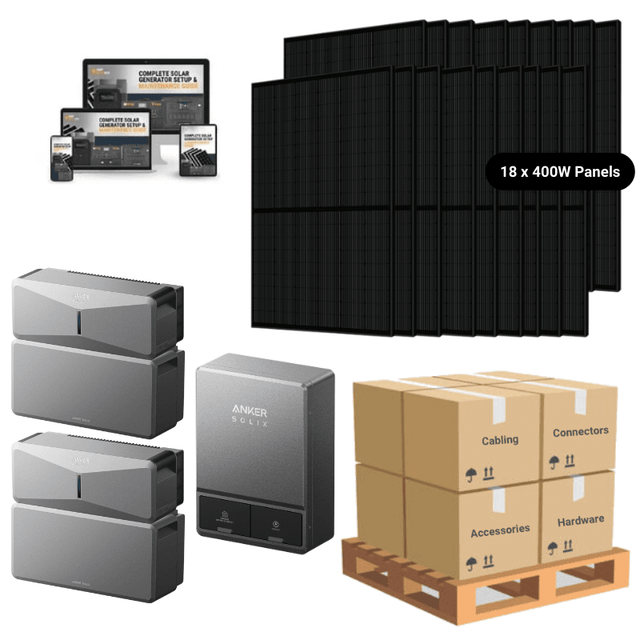

Supports 9–27kW solar (up to 18 x 400W panels) | 30V–450V MPPT range
Works with or without existing rooftop solar — no system overhaul needed. -
Smart Grid + Storm Guard Mode
Auto-charges before outages | Seamless ≤20ms switchover
Proactive weather monitoring for uninterrupted comfort. -
DIY-Friendly Setup
Plug-and-play stackable design | Wall or floor mount
Step-by-step guides, videos & live expert support included. -
Optional Smart Generator Integration
Tri-fuel (gas, propane, natural gas) for infinite backup
Quiet, fuel-efficient operation with app-based monitoring. -

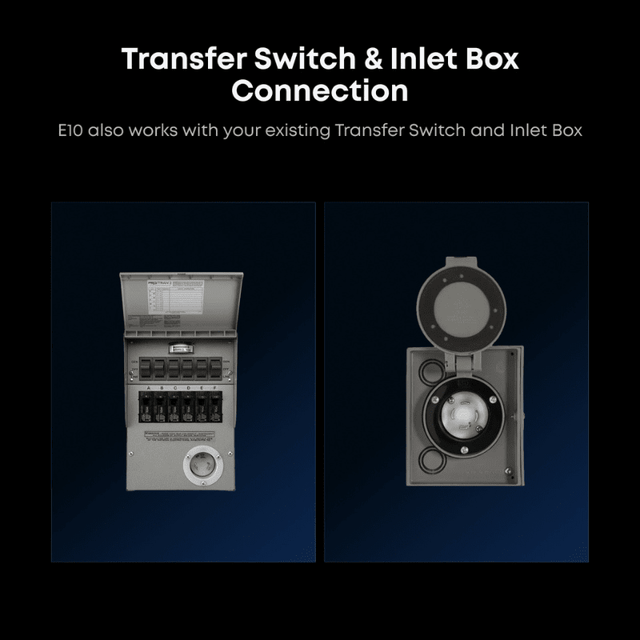

Customize Your Backup
Add manual or automatic 12-circuit transfer switch for intelligent load control. -
Durable + Worry-Free
Automotive-grade LFP batteries | Military-grade IP66 casing
Backed by 5–10 year warranties across all components.
Build Your Ideal System
The E10 is designed to grow with you — scale from a basic backup setup to a full off-grid powerhouse with up to 90kWh of battery and 27kW of solar input. Add a Smart Generator or additional modules at any time.
User Manual / Documents:

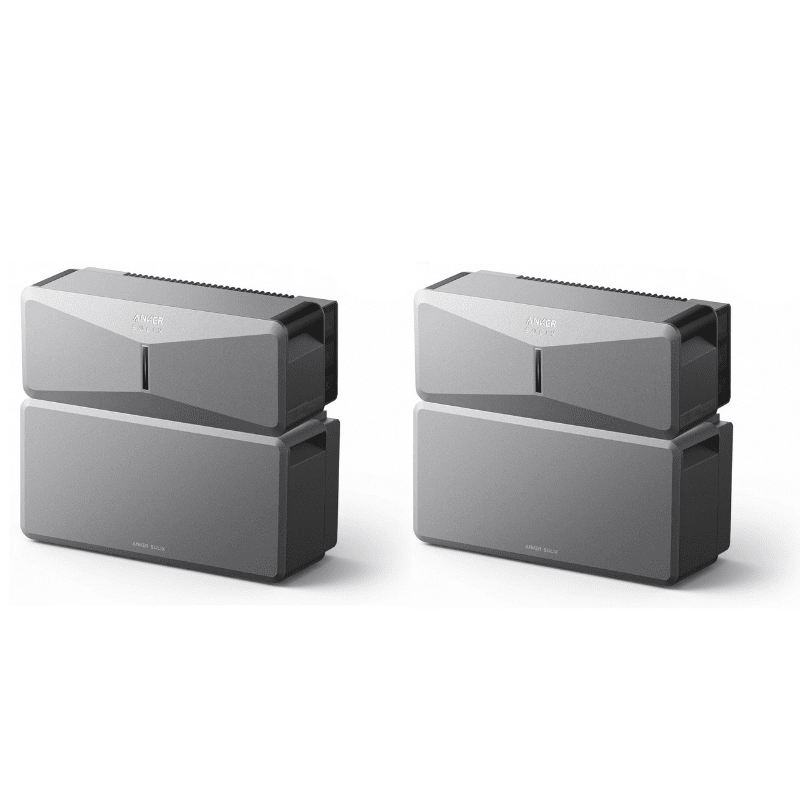

What's Included:
-
2 x Anker SOLIX E10 Power Module
-
2 x Anker SOLIX E10 Battery
Product Specifications:
| Anker SOLIX E10 Power Module | |
|---|---|
| Output | |
| Rated Voltage | 120 / 240 VAC (Split Phase) |
| Rated Frequency | 60Hz |
| Maximum Continuous Output Power (With Battery) | 7,680W, 32A |
| Turbo Backup Output Current (With two Batteries) | 10,000W, 41.6A (90 Minutes) |
| LRA Equivalent Ability | 120A (1 Inverter, 1 Battery) 155A (1 Inverter, 2+ Batteries) 275A (2+ Inverters, 2+ Batteries Each) |
| Input | |
| AC Input Port Recharging | 1,800W, 120V / 15A* 7,680W, 240V / 32A |
| AC Input Port Bypass | 9,600W, 240V / 40A |
| PV (Solar) Input | 2*4,500W, 30 to 450V(DC), 15A(Imp) |
| DC Generator Input | 4,500W |
| Resilience | |
| Warranty | 5 Years |
| Enclosure Type | NEMA TYPE 4 (IP66) |
| Operating Temperature | -4 °F to 131 °F (-20~55°C) |
| General | |
| Connectivity | Wi-Fi, Bluetooth |
| Dimensions (W x H x D) | 26.4" x 11.8" x 10.2" (670 x 300 x 260 mm) |
| Weight | 60.6lb(27.5kg) |
| Remarks | |
| AC Input Port Recharging | <3 hours when the current exceeds 12A |
| Anker SOLIX B6000 Battery Module | |
|---|---|
| Battery | |
| Battery Type | Li-ion (LFP) |
| Capacity | 6,144 Wh per Battery | Up to 30 kWh Total Capacity with One Power Module |
| Resilience | |
| Warranty | 5 Years |
| Enclosure Type | NEMA TYPE 4 (IP66) |
| Operating Temperature | -4 °F to 131 °F (-20~55°C) |
| General | |
| Installation Option | Floor Mounting Or Wall Mounting |
| Dimensions (W x H x D) | 26.4" x 12.7" x 11.1" (670 x 322 x 281 mm) |
| Weight | 130 Ibs (59 kg) |

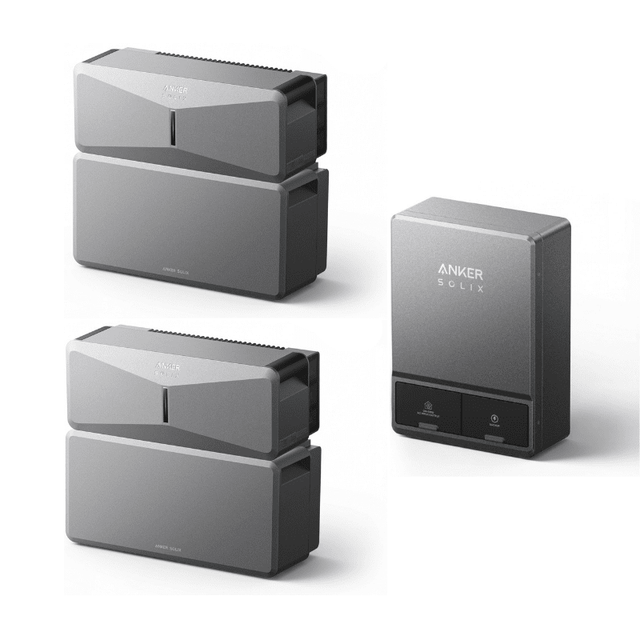

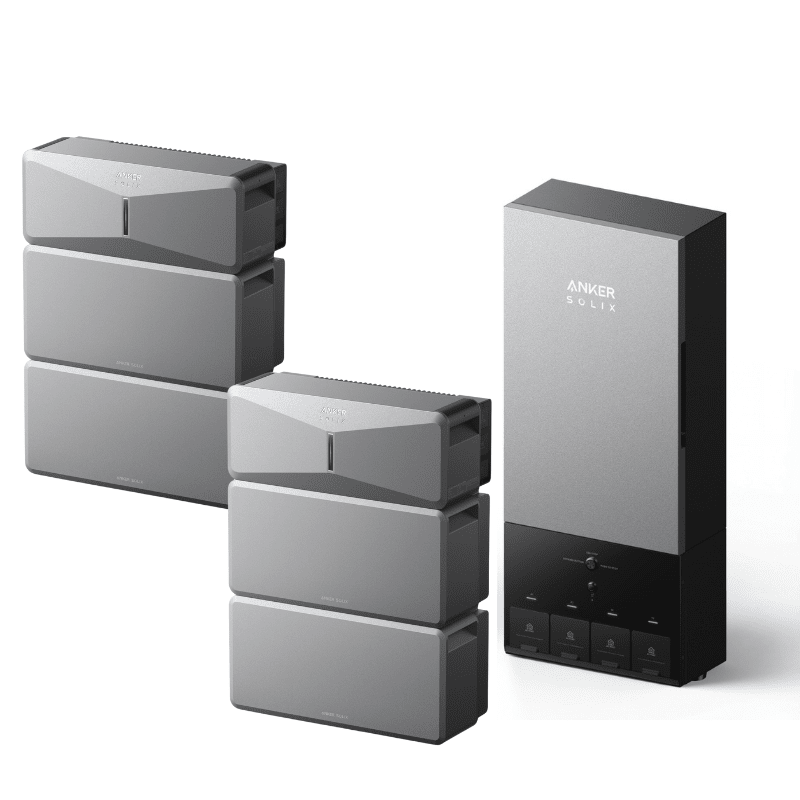

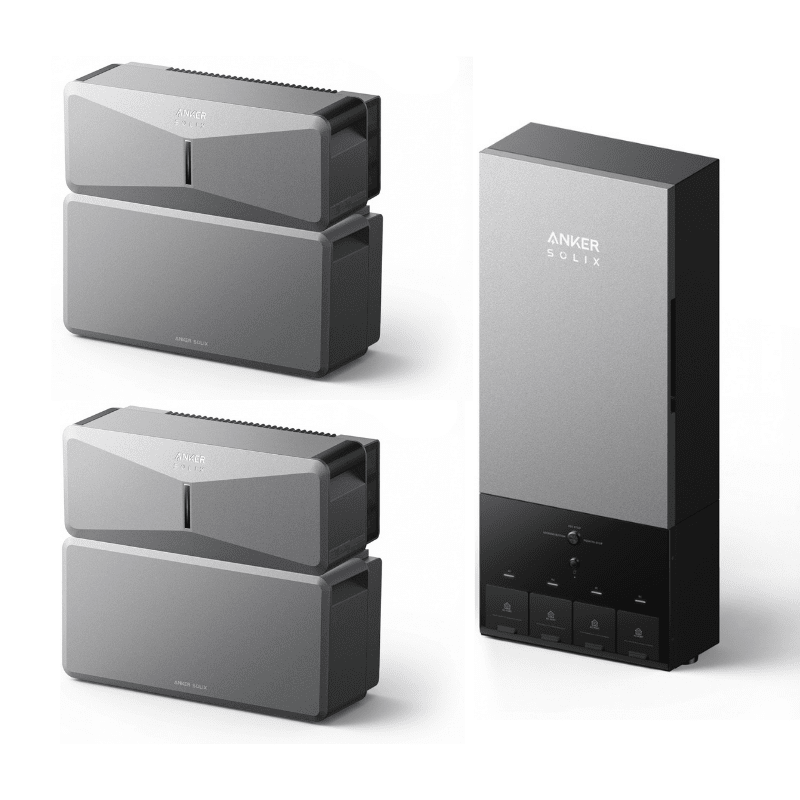

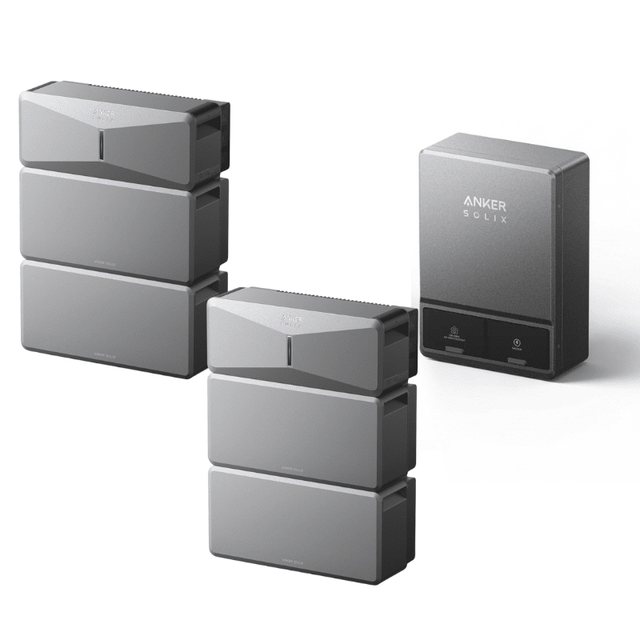

What's Included:
-
2 x Anker SOLIX E10 Power Module
-
2 x Anker SOLIX E10 Battery
-
1 x Anker SOLIX Power Dock
Product Specifications:
| Anker SOLIX E10 Power Module | |
|---|---|
| Output | |
| Rated Voltage | 120 / 240 VAC (Split Phase) |
| Rated Frequency | 60Hz |
| Maximum Continuous Output Power (With Battery) | 7,680W, 32A |
| Turbo Backup Output Current (With two Batteries) | 10,000W, 41.6A (90 Minutes) |
| LRA Equivalent Ability | 120A (1 Inverter, 1 Battery) 155A (1 Inverter, 2+ Batteries) 275A (2+ Inverters, 2+ Batteries Each) |
| Input | |
| AC Input Port Recharging | 1,800W, 120V / 15A* 7,680W, 240V / 32A |
| AC Input Port Bypass | 9,600W, 240V / 40A |
| PV (Solar) Input | 2*4,500W, 30 to 450V(DC), 15A(Imp) |
| DC Generator Input | 4,500W |
| Resilience | |
| Warranty | 5 Years |
| Enclosure Type | NEMA TYPE 4 (IP66) |
| Operating Temperature | -4 °F to 131 °F (-20~55°C) |
| General | |
| Connectivity | Wi-Fi, Bluetooth |
| Dimensions (W x H x D) | 26.4" x 11.8" x 10.2" (670 x 300 x 260 mm) |
| Weight | 60.6lb(27.5kg) |
| Remarks | |
| AC Input Port Recharging | <3 hours when the current exceeds 12A |
| Anker SOLIX B6000 Battery Module | |
|---|---|
| Battery | |
| Battery Type | Li-ion (LFP) |
| Capacity | 6,144 Wh per Battery | Up to 30 kWh Total Capacity with One Power Module |
| Resilience | |
| Warranty | 5 Years |
| Enclosure Type | NEMA TYPE 4 (IP66) |
| Operating Temperature | -4 °F to 131 °F (-20~55°C) |
| General | |
| Installation Option | Floor Mounting Or Wall Mounting |
| Dimensions (W x H x D) | 26.4" x 12.7" x 11.1" (670 x 322 x 281 mm) |
| Weight | 130 Ibs (59 kg) |
| Anker SOLIX Power Dock for E10 Automatic Backup Kit | |
|---|---|
| Connection | |
| Rated Voltage | 120 / 240 VAC (Split Phase) |
| Rated Frequency | 60 Hz |
| Switchover Time | ≤20 ms |
| Grid Connection | 200 A Maximum, 160 A Continuous |
| Subpanel Connection | 200 A Maximum, 160 A Continuous |
| Plug&Play AC Ports | 4*100A, Total≤160A |
| Circuits 1 and 2 (Load Or Generator) | 100 A Maximum, 80 A Continuous |
| Circuits 7 and 8 (Load Or AC Solar) | 80 A Maximum, 64 A Continuous |
| Circuits 3, 4, 5, 6, 9, 10, 11, 12 (Load) | 60 A Maximum, 48 A Continuous |
| Circuits For Batteries | 125 A Maximum, 100 A Continuous |
| Resilience | |
| Warranty | 10 Years |
| Enclosure Type | NEMA TYPE 3R |
| Operating Temperature | -4 °F to 131 °F (-20~55°C) |
| General | |
| Installation Option | Wall Mounting |
| Dimensions (W x H x D) | 36.1" × 15" × 7.1" (380 × 916 × 180 mm) |
| Weight | 60 Ibs (27.2 kg) |
| Connectivity | Wi-Fi, Bluetooth |

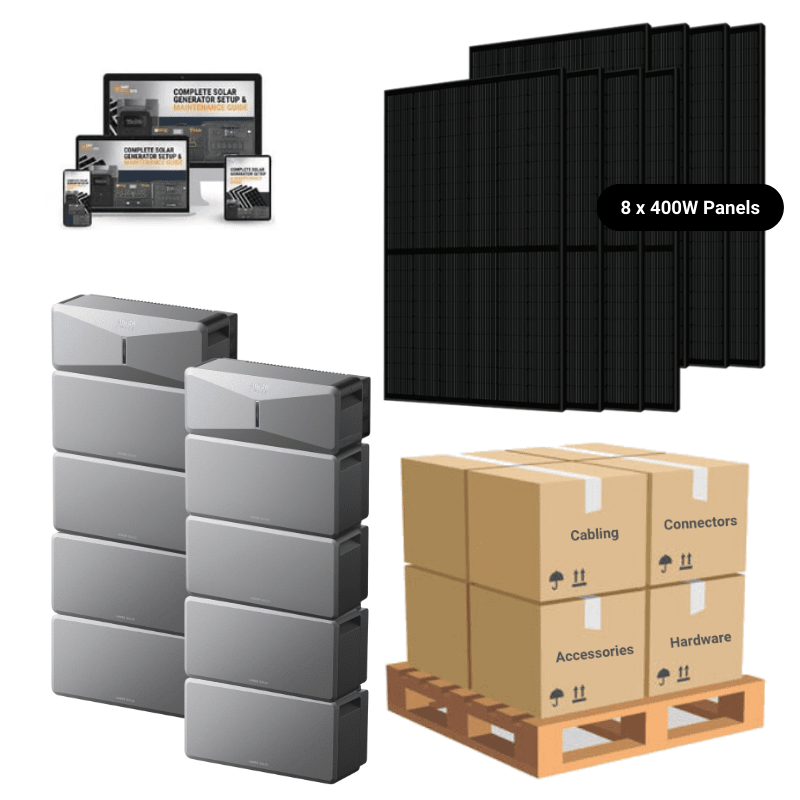

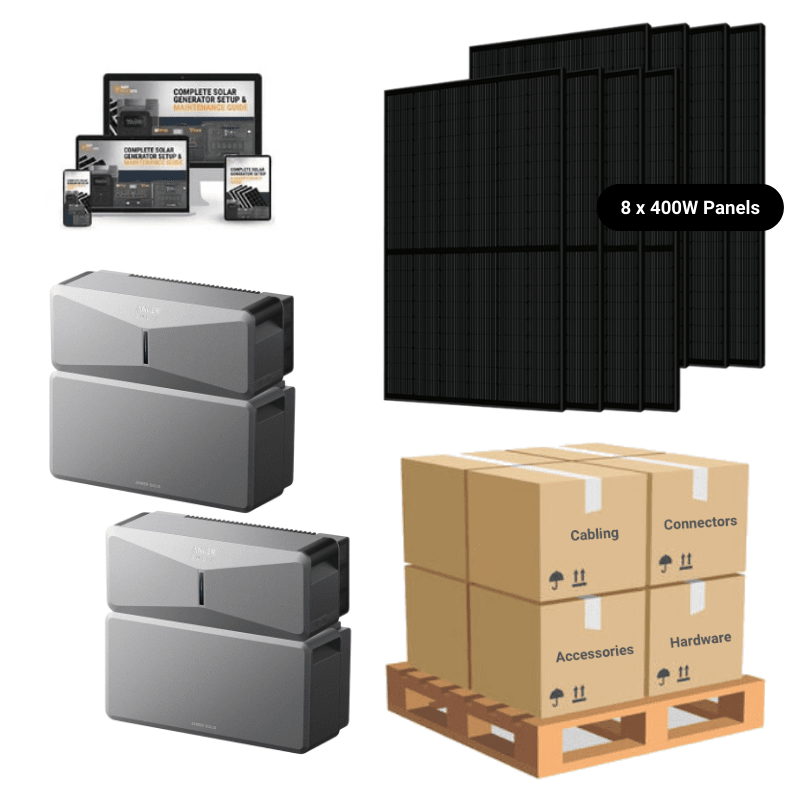

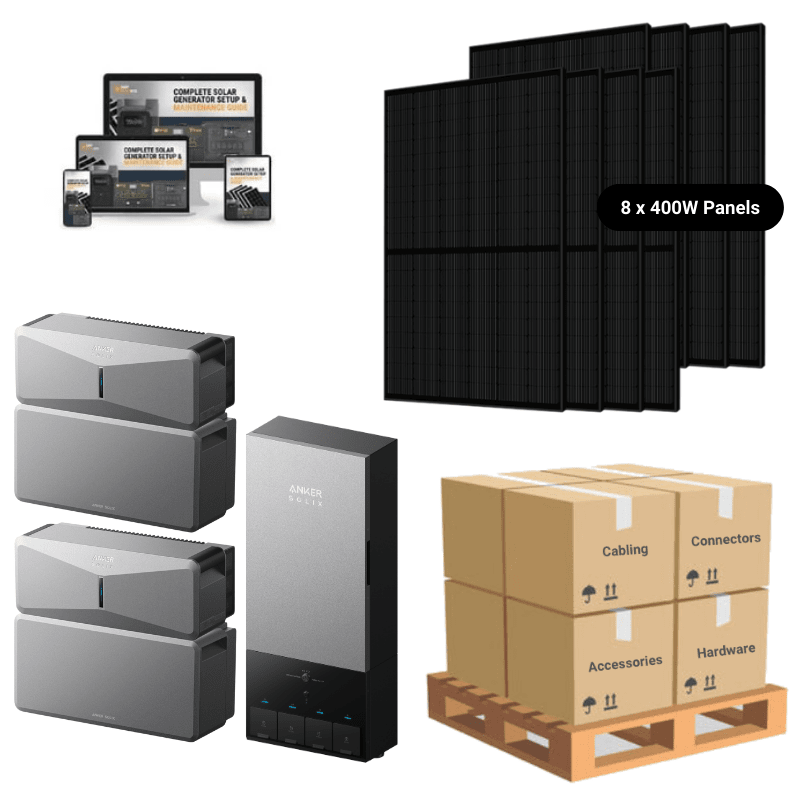

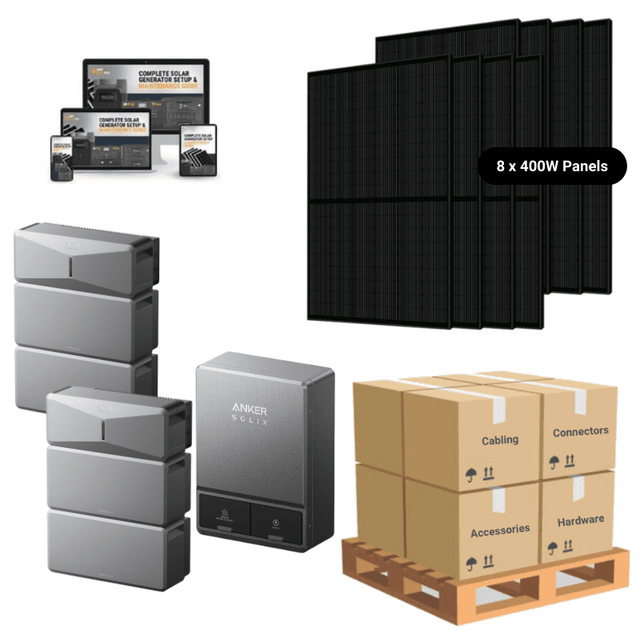

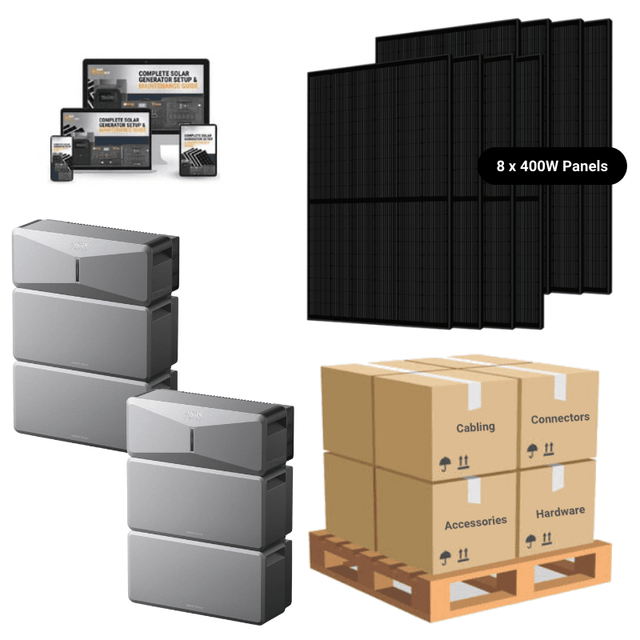

What's Included:
-
2 x Anker SOLIX E10 Power Module
-
2 x Anker SOLIX E10 Battery
-
8 x 400W Monocrystalline Solar Panels
Product Specifications:
| Anker SOLIX E10 Power Module | |
|---|---|
| Output | |
| Rated Voltage | 120 / 240 VAC (Split Phase) |
| Rated Frequency | 60Hz |
| Maximum Continuous Output Power (With Battery) | 7,680W, 32A |
| Turbo Backup Output Current (With two Batteries) | 10,000W, 41.6A (90 Minutes) |
| LRA Equivalent Ability | 120A (1 Inverter, 1 Battery) 155A (1 Inverter, 2+ Batteries) 275A (2+ Inverters, 2+ Batteries Each) |
| Input | |
| AC Input Port Recharging | 1,800W, 120V / 15A* 7,680W, 240V / 32A |
| AC Input Port Bypass | 9,600W, 240V / 40A |
| PV (Solar) Input | 2*4,500W, 30 to 450V(DC), 15A(Imp) |
| DC Generator Input | 4,500W |
| Resilience | |
| Warranty | 5 Years |
| Enclosure Type | NEMA TYPE 4 (IP66) |
| Operating Temperature | -4 °F to 131 °F (-20~55°C) |
| General | |
| Connectivity | Wi-Fi, Bluetooth |
| Dimensions (W x H x D) | 26.4" x 11.8" x 10.2" (670 x 300 x 260 mm) |
| Weight | 60.6lb(27.5kg) |
| Remarks | |
| AC Input Port Recharging | <3 hours when the current exceeds 12A |
| Anker SOLIX B6000 Battery Module | |
|---|---|
| Battery | |
| Battery Type | Li-ion (LFP) |
| Capacity | 6,144 Wh per Battery | Up to 30 kWh Total Capacity with One Power Module |
| Resilience | |
| Warranty | 5 Years |
| Enclosure Type | NEMA TYPE 4 (IP66) |
| Operating Temperature | -4 °F to 131 °F (-20~55°C) |
| General | |
| Installation Option | Floor Mounting Or Wall Mounting |
| Dimensions (W x H x D) | 26.4" x 12.7" x 11.1" (670 x 322 x 281 mm) |
| Weight | 130 Ibs (59 kg) |
| MEGA 400 Watt Monocrystalline Solar Panel Specifications | |
|---|---|
| Maximum Power (Pmax) | 400W |
| Maximum Power Voltage (Vmp) | 30.9V |
| Maximum Power Current (Imp) | 12.9A |
| Open Circuit Voltage (Voc) | 37.1V |
| Short Circuit Current (Isc) | 13.7A |
| Maximum System Voltage (Vmax) | 1500VDC |
| Temperature Range | -40°F ~ 185°F |
| Weight | 49.4lb |
| Dimensions | 67.9 x 44.6 x 1.2 in |

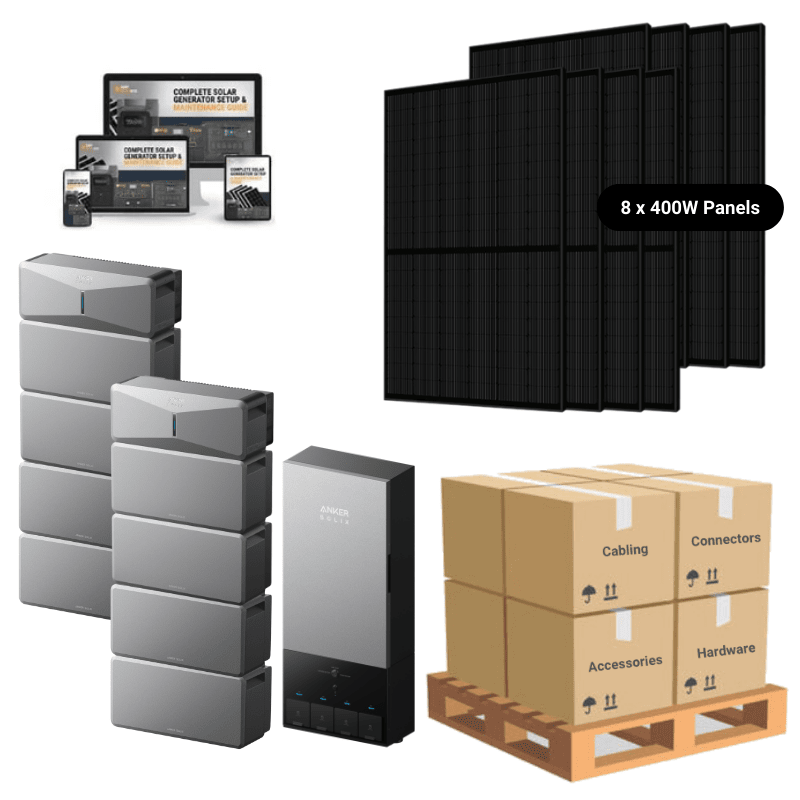

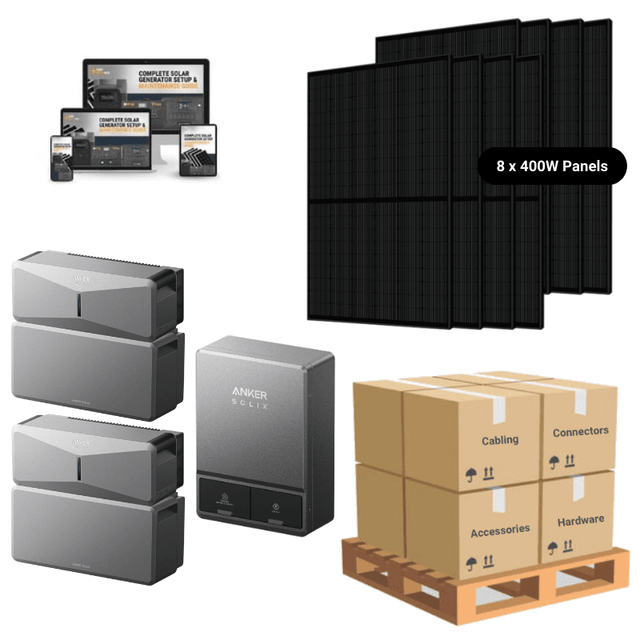

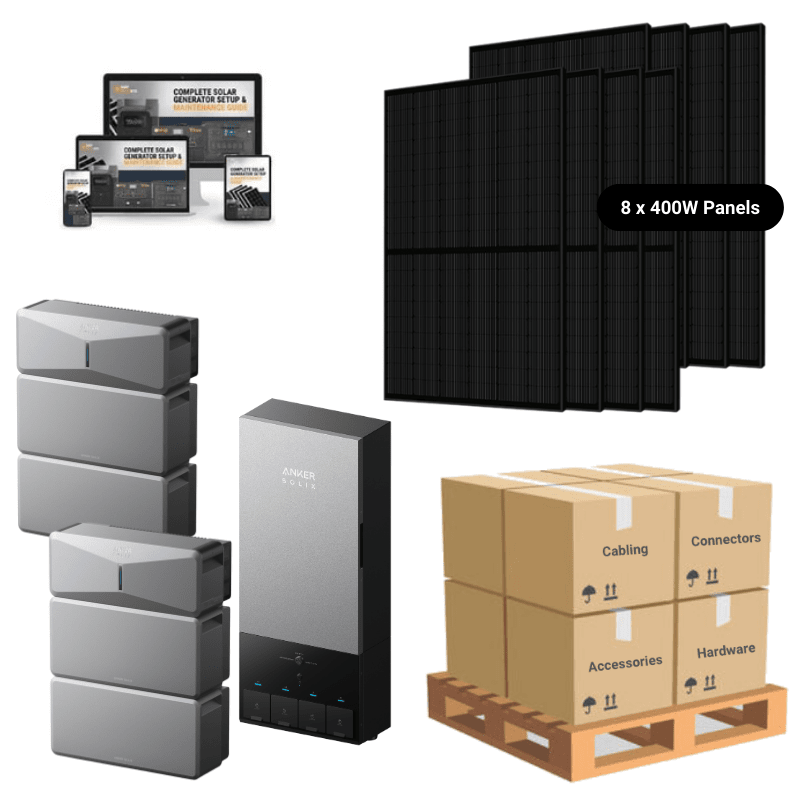

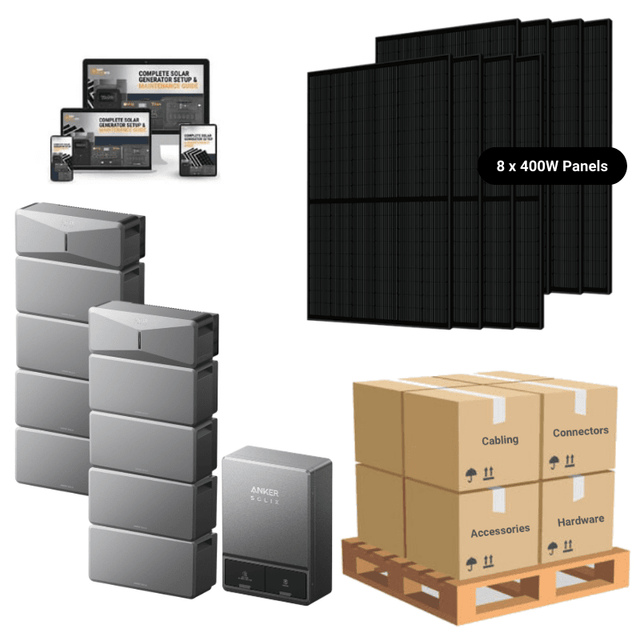

What's Included:
-
2 x Anker SOLIX E10 Power Module
-
2 x Anker SOLIX E10 Battery
-
8 x 400W Monocrystalline Solar Panels
-
1 x Anker SOLIX Power Dock
Product Specifications:
| Anker SOLIX E10 Power Module | |
|---|---|
| Output | |
| Rated Voltage | 120 / 240 VAC (Split Phase) |
| Rated Frequency | 60Hz |
| Maximum Continuous Output Power (With Battery) | 7,680W, 32A |
| Turbo Backup Output Current (With two Batteries) | 10,000W, 41.6A (90 Minutes) |
| LRA Equivalent Ability | 120A (1 Inverter, 1 Battery) 155A (1 Inverter, 2+ Batteries) 275A (2+ Inverters, 2+ Batteries Each) |
| Input | |
| AC Input Port Recharging | 1,800W, 120V / 15A* 7,680W, 240V / 32A |
| AC Input Port Bypass | 9,600W, 240V / 40A |
| PV (Solar) Input | 2*4,500W, 30 to 450V(DC), 15A(Imp) |
| DC Generator Input | 4,500W |
| Resilience | |
| Warranty | 5 Years |
| Enclosure Type | NEMA TYPE 4 (IP66) |
| Operating Temperature | -4 °F to 131 °F (-20~55°C) |
| General | |
| Connectivity | Wi-Fi, Bluetooth |
| Dimensions (W x H x D) | 26.4" x 11.8" x 10.2" (670 x 300 x 260 mm) |
| Weight | 60.6lb(27.5kg) |
| Remarks | |
| AC Input Port Recharging | <3 hours when the current exceeds 12A |
| Anker SOLIX B6000 Battery Module | |
|---|---|
| Battery | |
| Battery Type | Li-ion (LFP) |
| Capacity | 6,144 Wh per Battery | Up to 30 kWh Total Capacity with One Power Module |
| Resilience | |
| Warranty | 5 Years |
| Enclosure Type | NEMA TYPE 4 (IP66) |
| Operating Temperature | -4 °F to 131 °F (-20~55°C) |
| General | |
| Installation Option | Floor Mounting Or Wall Mounting |
| Dimensions (W x H x D) | 26.4" x 12.7" x 11.1" (670 x 322 x 281 mm) |
| Weight | 130 Ibs (59 kg) |
| MEGA 400 Watt Monocrystalline Solar Panel Specifications | |
|---|---|
| Maximum Power (Pmax) | 400W |
| Maximum Power Voltage (Vmp) | 30.9V |
| Maximum Power Current (Imp) | 12.9A |
| Open Circuit Voltage (Voc) | 37.1V |
| Short Circuit Current (Isc) | 13.7A |
| Maximum System Voltage (Vmax) | 1500VDC |
| Temperature Range | -40°F ~ 185°F |
| Weight | 49.4lb |
| Dimensions | 67.9 x 44.6 x 1.2 in |
| Anker SOLIX Power Dock for E10 Automatic Backup Kit | |
|---|---|
| Connection | |
| Rated Voltage | 120 / 240 VAC (Split Phase) |
| Rated Frequency | 60 Hz |
| Switchover Time | ≤20 ms |
| Grid Connection | 200 A Maximum, 160 A Continuous |
| Subpanel Connection | 200 A Maximum, 160 A Continuous |
| Plug&Play AC Ports | 4*100A, Total≤160A |
| Circuits 1 and 2 (Load Or Generator) | 100 A Maximum, 80 A Continuous |
| Circuits 7 and 8 (Load Or AC Solar) | 80 A Maximum, 64 A Continuous |
| Circuits 3, 4, 5, 6, 9, 10, 11, 12 (Load) | 60 A Maximum, 48 A Continuous |
| Circuits For Batteries | 125 A Maximum, 100 A Continuous |
| Resilience | |
| Warranty | 10 Years |
| Enclosure Type | NEMA TYPE 3R |
| Operating Temperature | -4 °F to 131 °F (-20~55°C) |
| General | |
| Installation Option | Wall Mounting |
| Dimensions (W x H x D) | 36.1" × 15" × 7.1" (380 × 916 × 180 mm) |
| Weight | 60 Ibs (27.2 kg) |
| Connectivity | Wi-Fi, Bluetooth |

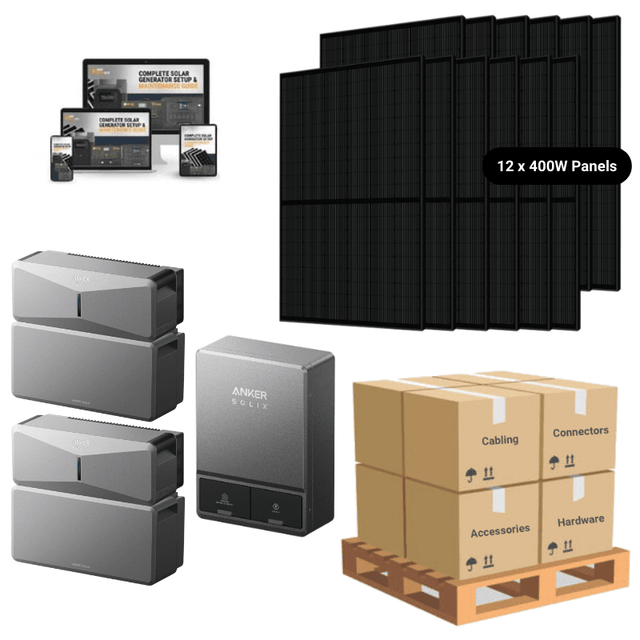

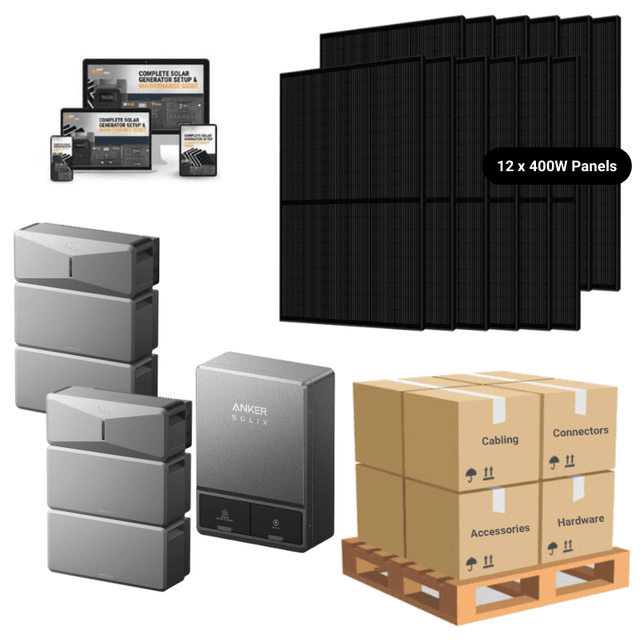

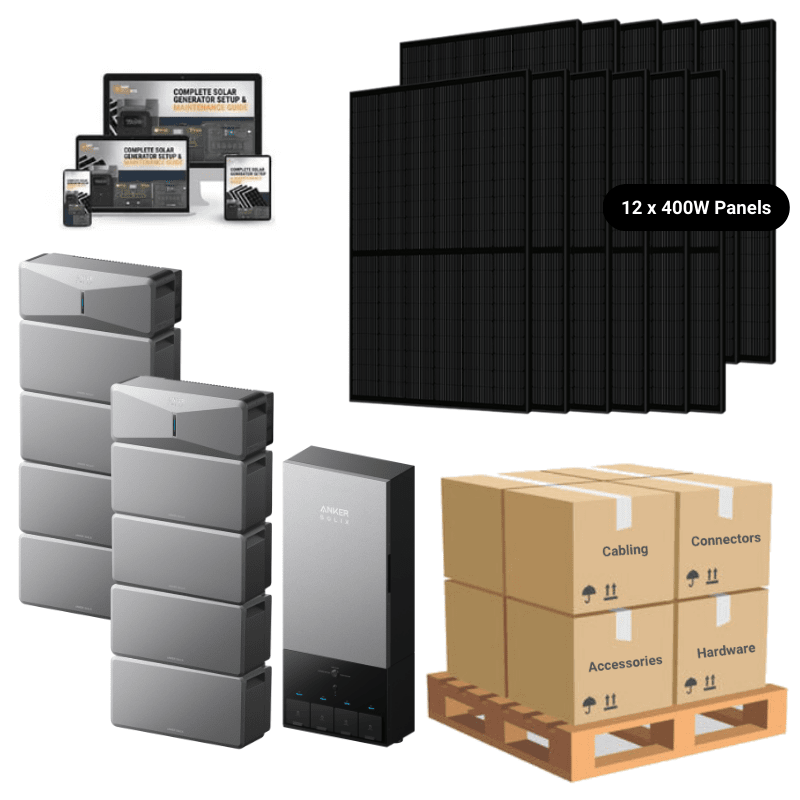

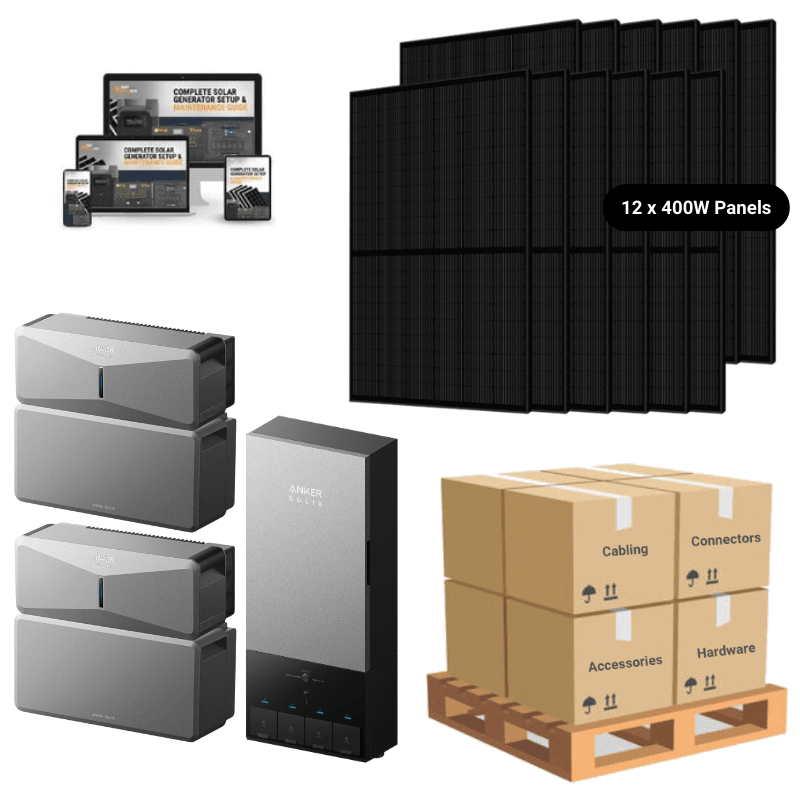

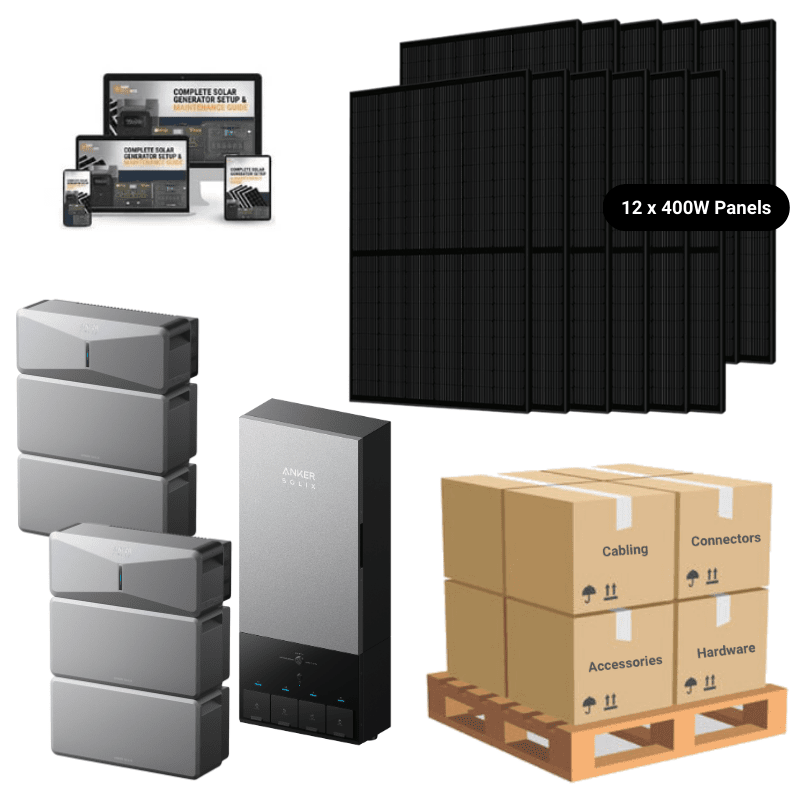

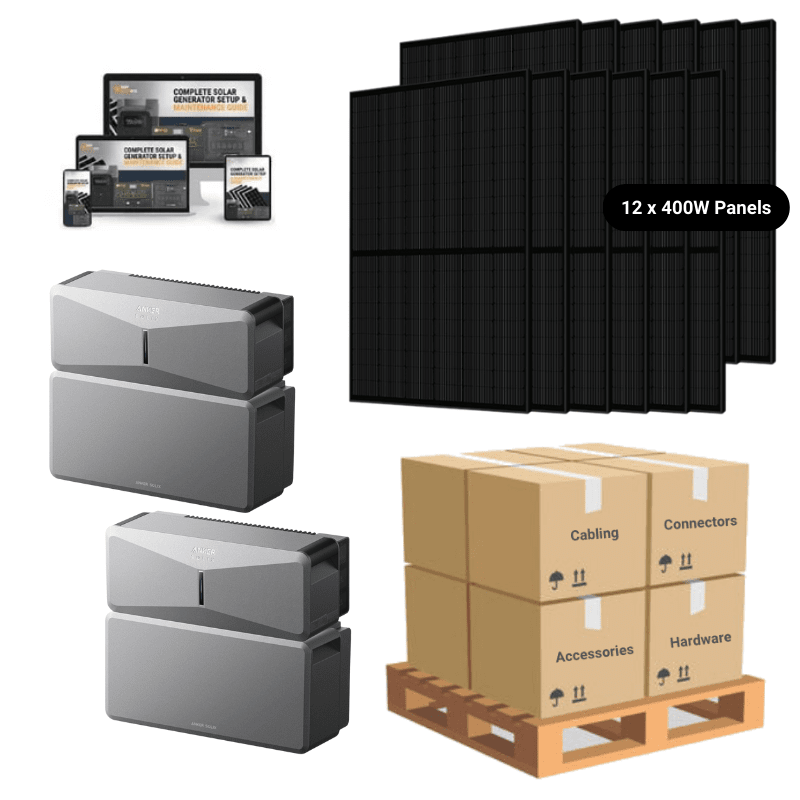

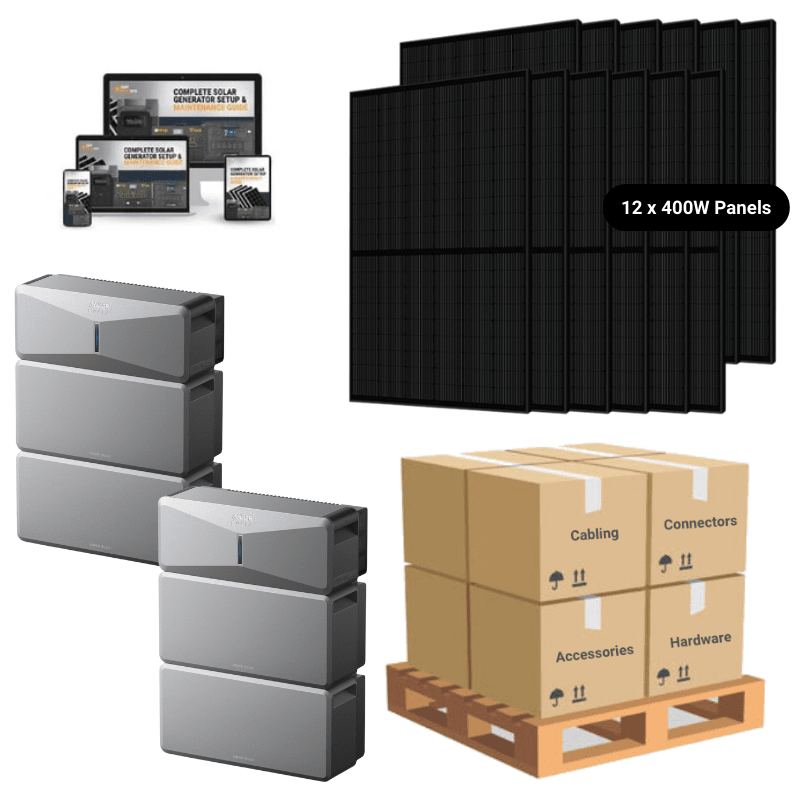

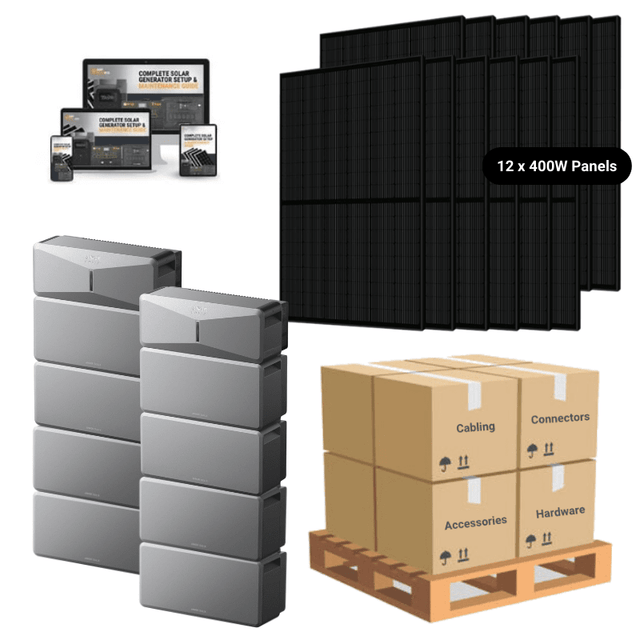

What's Included:
-
2 x Anker SOLIX E10 Power Module
-
2 x Anker SOLIX E10 Battery
-
12 x 400W Monocrystalline Solar Panels
Product Specifications:
| Anker SOLIX E10 Power Module | |
|---|---|
| Output | |
| Rated Voltage | 120 / 240 VAC (Split Phase) |
| Rated Frequency | 60Hz |
| Maximum Continuous Output Power (With Battery) | 7,680W, 32A |
| Turbo Backup Output Current (With two Batteries) | 10,000W, 41.6A (90 Minutes) |
| LRA Equivalent Ability | 120A (1 Inverter, 1 Battery) 155A (1 Inverter, 2+ Batteries) 275A (2+ Inverters, 2+ Batteries Each) |
| Input | |
| AC Input Port Recharging | 1,800W, 120V / 15A* 7,680W, 240V / 32A |
| AC Input Port Bypass | 9,600W, 240V / 40A |
| PV (Solar) Input | 2*4,500W, 30 to 450V(DC), 15A(Imp) |
| DC Generator Input | 4,500W |
| Resilience | |
| Warranty | 5 Years |
| Enclosure Type | NEMA TYPE 4 (IP66) |
| Operating Temperature | -4 °F to 131 °F (-20~55°C) |
| General | |
| Connectivity | Wi-Fi, Bluetooth |
| Dimensions (W x H x D) | 26.4" x 11.8" x 10.2" (670 x 300 x 260 mm) |
| Weight | 60.6lb(27.5kg) |
| Remarks | |
| AC Input Port Recharging | <3 hours when the current exceeds 12A |
| Anker SOLIX B6000 Battery Module | |
|---|---|
| Battery | |
| Battery Type | Li-ion (LFP) |
| Capacity | 6,144 Wh per Battery | Up to 30 kWh Total Capacity with One Power Module |
| Resilience | |
| Warranty | 5 Years |
| Enclosure Type | NEMA TYPE 4 (IP66) |
| Operating Temperature | -4 °F to 131 °F (-20~55°C) |
| General | |
| Installation Option | Floor Mounting Or Wall Mounting |
| Dimensions (W x H x D) | 26.4" x 12.7" x 11.1" (670 x 322 x 281 mm) |
| Weight | 130 Ibs (59 kg) |
| MEGA 400 Watt Monocrystalline Solar Panel Specifications | |
|---|---|
| Maximum Power (Pmax) | 400W |
| Maximum Power Voltage (Vmp) | 30.9V |
| Maximum Power Current (Imp) | 12.9A |
| Open Circuit Voltage (Voc) | 37.1V |
| Short Circuit Current (Isc) | 13.7A |
| Maximum System Voltage (Vmax) | 1500VDC |
| Temperature Range | -40°F ~ 185°F |
| Weight | 49.4lb |
| Dimensions | 67.9 x 44.6 x 1.2 in |
What's Included:
-
2 x Anker SOLIX E10 Power Module
-
2 x Anker SOLIX E10 Battery
-
12 x 400W Monocrystalline Solar Panels
-
1 x Anker SOLIX Power Dock
Product Specifications:
| Anker SOLIX E10 Power Module | |
|---|---|
| Output | |
| Rated Voltage | 120 / 240 VAC (Split Phase) |
| Rated Frequency | 60Hz |
| Maximum Continuous Output Power (With Battery) | 7,680W, 32A |
| Turbo Backup Output Current (With two Batteries) | 10,000W, 41.6A (90 Minutes) |
| LRA Equivalent Ability | 120A (1 Inverter, 1 Battery) 155A (1 Inverter, 2+ Batteries) 275A (2+ Inverters, 2+ Batteries Each) |
| Input | |
| AC Input Port Recharging | 1,800W, 120V / 15A* 7,680W, 240V / 32A |
| AC Input Port Bypass | 9,600W, 240V / 40A |
| PV (Solar) Input | 2*4,500W, 30 to 450V(DC), 15A(Imp) |
| DC Generator Input | 4,500W |
| Resilience | |
| Warranty | 5 Years |
| Enclosure Type | NEMA TYPE 4 (IP66) |
| Operating Temperature | -4 °F to 131 °F (-20~55°C) |
| General | |
| Connectivity | Wi-Fi, Bluetooth |
| Dimensions (W x H x D) | 26.4" x 11.8" x 10.2" (670 x 300 x 260 mm) |
| Weight | 60.6lb(27.5kg) |
| Remarks | |
| AC Input Port Recharging | <3 hours when the current exceeds 12A |
| Anker SOLIX B6000 Battery Module | |
|---|---|
| Battery | |
| Battery Type | Li-ion (LFP) |
| Capacity | 6,144 Wh per Battery | Up to 30 kWh Total Capacity with One Power Module |
| Resilience | |
| Warranty | 5 Years |
| Enclosure Type | NEMA TYPE 4 (IP66) |
| Operating Temperature | -4 °F to 131 °F (-20~55°C) |
| General | |
| Installation Option | Floor Mounting Or Wall Mounting |
| Dimensions (W x H x D) | 26.4" x 12.7" x 11.1" (670 x 322 x 281 mm) |
| Weight | 130 Ibs (59 kg) |
| MEGA 400 Watt Monocrystalline Solar Panel Specifications | |
|---|---|
| Maximum Power (Pmax) | 400W |
| Maximum Power Voltage (Vmp) | 30.9V |
| Maximum Power Current (Imp) | 12.9A |
| Open Circuit Voltage (Voc) | 37.1V |
| Short Circuit Current (Isc) | 13.7A |
| Maximum System Voltage (Vmax) | 1500VDC |
| Temperature Range | -40°F ~ 185°F |
| Weight | 49.4lb |
| Dimensions | 67.9 x 44.6 x 1.2 in |
| Anker SOLIX Power Dock for E10 Automatic Backup Kit | |
|---|---|
| Connection | |
| Rated Voltage | 120 / 240 VAC (Split Phase) |
| Rated Frequency | 60 Hz |
| Switchover Time | ≤20 ms |
| Grid Connection | 200 A Maximum, 160 A Continuous |
| Subpanel Connection | 200 A Maximum, 160 A Continuous |
| Plug&Play AC Ports | 4*100A, Total≤160A |
| Circuits 1 and 2 (Load Or Generator) | 100 A Maximum, 80 A Continuous |
| Circuits 7 and 8 (Load Or AC Solar) | 80 A Maximum, 64 A Continuous |
| Circuits 3, 4, 5, 6, 9, 10, 11, 12 (Load) | 60 A Maximum, 48 A Continuous |
| Circuits For Batteries | 125 A Maximum, 100 A Continuous |
| Resilience | |
| Warranty | 10 Years |
| Enclosure Type | NEMA TYPE 3R |
| Operating Temperature | -4 °F to 131 °F (-20~55°C) |
| General | |
| Installation Option | Wall Mounting |
| Dimensions (W x H x D) | 36.1" × 15" × 7.1" (380 × 916 × 180 mm) |
| Weight | 60 Ibs (27.2 kg) |
| Connectivity | Wi-Fi, Bluetooth |
What's Included:
-
2 x Anker SOLIX E10 Power Module
-
2 x Anker SOLIX E10 Battery
-
18 x 400W Monocrystalline Solar Panels
Product Specifications:
| Anker SOLIX E10 Power Module | |
|---|---|
| Output | |
| Rated Voltage | 120 / 240 VAC (Split Phase) |
| Rated Frequency | 60Hz |
| Maximum Continuous Output Power (With Battery) | 7,680W, 32A |
| Turbo Backup Output Current (With two Batteries) | 10,000W, 41.6A (90 Minutes) |
| LRA Equivalent Ability | 120A (1 Inverter, 1 Battery) 155A (1 Inverter, 2+ Batteries) 275A (2+ Inverters, 2+ Batteries Each) |
| Input | |
| AC Input Port Recharging | 1,800W, 120V / 15A* 7,680W, 240V / 32A |
| AC Input Port Bypass | 9,600W, 240V / 40A |
| PV (Solar) Input | 2*4,500W, 30 to 450V(DC), 15A(Imp) |
| DC Generator Input | 4,500W |
| Resilience | |
| Warranty | 5 Years |
| Enclosure Type | NEMA TYPE 4 (IP66) |
| Operating Temperature | -4 °F to 131 °F (-20~55°C) |
| General | |
| Connectivity | Wi-Fi, Bluetooth |
| Dimensions (W x H x D) | 26.4" x 11.8" x 10.2" (670 x 300 x 260 mm) |
| Weight | 60.6lb(27.5kg) |
| Remarks | |
| AC Input Port Recharging | <3 hours when the current exceeds 12A |
| Anker SOLIX B6000 Battery Module | |
|---|---|
| Battery | |
| Battery Type | Li-ion (LFP) |
| Capacity | 6,144 Wh per Battery | Up to 30 kWh Total Capacity with One Power Module |
| Resilience | |
| Warranty | 5 Years |
| Enclosure Type | NEMA TYPE 4 (IP66) |
| Operating Temperature | -4 °F to 131 °F (-20~55°C) |
| General | |
| Installation Option | Floor Mounting Or Wall Mounting |
| Dimensions (W x H x D) | 26.4" x 12.7" x 11.1" (670 x 322 x 281 mm) |
| Weight | 130 Ibs (59 kg) |
| MEGA 400 Watt Monocrystalline Solar Panel Specifications | |
|---|---|
| Maximum Power (Pmax) | 400W |
| Maximum Power Voltage (Vmp) | 30.9V |
| Maximum Power Current (Imp) | 12.9A |
| Open Circuit Voltage (Voc) | 37.1V |
| Short Circuit Current (Isc) | 13.7A |
| Maximum System Voltage (Vmax) | 1500VDC |
| Temperature Range | -40°F ~ 185°F |
| Weight | 49.4lb |
| Dimensions | 67.9 x 44.6 x 1.2 in |

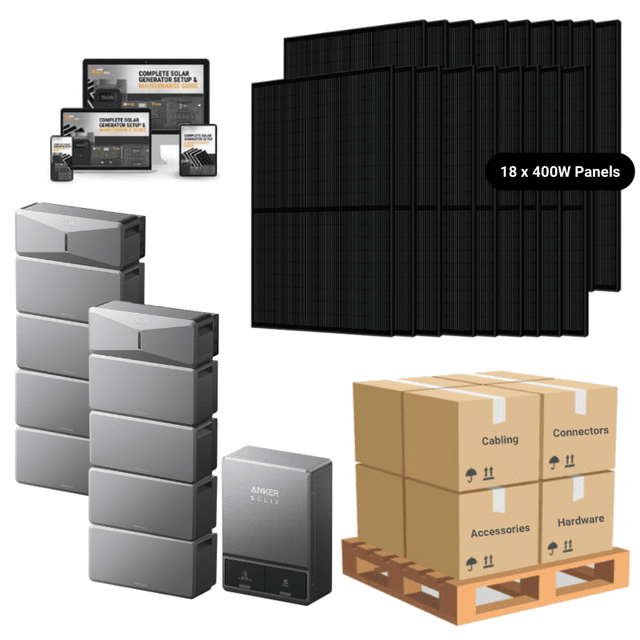

What's Included:
-
2 x Anker SOLIX E10 Power Module
-
2 x Anker SOLIX E10 Battery
-
18 x 400W Monocrystalline Solar Panels
-
1 x Anker SOLIX Power Dock
Product Specifications:
| Anker SOLIX E10 Power Module | |
|---|---|
| Output | |
| Rated Voltage | 120 / 240 VAC (Split Phase) |
| Rated Frequency | 60Hz |
| Maximum Continuous Output Power (With Battery) | 7,680W, 32A |
| Turbo Backup Output Current (With two Batteries) | 10,000W, 41.6A (90 Minutes) |
| LRA Equivalent Ability | 120A (1 Inverter, 1 Battery) 155A (1 Inverter, 2+ Batteries) 275A (2+ Inverters, 2+ Batteries Each) |
| Input | |
| AC Input Port Recharging | 1,800W, 120V / 15A* 7,680W, 240V / 32A |
| AC Input Port Bypass | 9,600W, 240V / 40A |
| PV (Solar) Input | 2*4,500W, 30 to 450V(DC), 15A(Imp) |
| DC Generator Input | 4,500W |
| Resilience | |
| Warranty | 5 Years |
| Enclosure Type | NEMA TYPE 4 (IP66) |
| Operating Temperature | -4 °F to 131 °F (-20~55°C) |
| General | |
| Connectivity | Wi-Fi, Bluetooth |
| Dimensions (W x H x D) | 26.4" x 11.8" x 10.2" (670 x 300 x 260 mm) |
| Weight | 60.6lb(27.5kg) |
| Remarks | |
| AC Input Port Recharging | <3 hours when the current exceeds 12A |
| Anker SOLIX B6000 Battery Module | |
|---|---|
| Battery | |
| Battery Type | Li-ion (LFP) |
| Capacity | 6,144 Wh per Battery | Up to 30 kWh Total Capacity with One Power Module |
| Resilience | |
| Warranty | 5 Years |
| Enclosure Type | NEMA TYPE 4 (IP66) |
| Operating Temperature | -4 °F to 131 °F (-20~55°C) |
| General | |
| Installation Option | Floor Mounting Or Wall Mounting |
| Dimensions (W x H x D) | 26.4" x 12.7" x 11.1" (670 x 322 x 281 mm) |
| Weight | 130 Ibs (59 kg) |
| MEGA 400 Watt Monocrystalline Solar Panel Specifications | |
|---|---|
| Maximum Power (Pmax) | 400W |
| Maximum Power Voltage (Vmp) | 30.9V |
| Maximum Power Current (Imp) | 12.9A |
| Open Circuit Voltage (Voc) | 37.1V |
| Short Circuit Current (Isc) | 13.7A |
| Maximum System Voltage (Vmax) | 1500VDC |
| Temperature Range | -40°F ~ 185°F |
| Weight | 49.4lb |
| Dimensions | 67.9 x 44.6 x 1.2 in |
| Anker SOLIX Power Dock for E10 Automatic Backup Kit | |
|---|---|
| Connection | |
| Rated Voltage | 120 / 240 VAC (Split Phase) |
| Rated Frequency | 60 Hz |
| Switchover Time | ≤20 ms |
| Grid Connection | 200 A Maximum, 160 A Continuous |
| Subpanel Connection | 200 A Maximum, 160 A Continuous |
| Plug&Play AC Ports | 4*100A, Total≤160A |
| Circuits 1 and 2 (Load Or Generator) | 100 A Maximum, 80 A Continuous |
| Circuits 7 and 8 (Load Or AC Solar) | 80 A Maximum, 64 A Continuous |
| Circuits 3, 4, 5, 6, 9, 10, 11, 12 (Load) | 60 A Maximum, 48 A Continuous |
| Circuits For Batteries | 125 A Maximum, 100 A Continuous |
| Resilience | |
| Warranty | 10 Years |
| Enclosure Type | NEMA TYPE 3R |
| Operating Temperature | -4 °F to 131 °F (-20~55°C) |
| General | |
| Installation Option | Wall Mounting |
| Dimensions (W x H x D) | 36.1" × 15" × 7.1" (380 × 916 × 180 mm) |
| Weight | 60 Ibs (27.2 kg) |
| Connectivity | Wi-Fi, Bluetooth |
What's Included:
-
2 x Anker SOLIX E10 Power Module
-
4 x Anker SOLIX E10 Battery
Product Specifications:
| Anker SOLIX E10 Power Module | |
|---|---|
| Output | |
| Rated Voltage | 120 / 240 VAC (Split Phase) |
| Rated Frequency | 60Hz |
| Maximum Continuous Output Power (With Battery) | 7,680W, 32A |
| Turbo Backup Output Current (With two Batteries) | 10,000W, 41.6A (90 Minutes) |
| LRA Equivalent Ability | 120A (1 Inverter, 1 Battery) 155A (1 Inverter, 2+ Batteries) 275A (2+ Inverters, 2+ Batteries Each) |
| Input | |
| AC Input Port Recharging | 1,800W, 120V / 15A* 7,680W, 240V / 32A |
| AC Input Port Bypass | 9,600W, 240V / 40A |
| PV (Solar) Input | 2*4,500W, 30 to 450V(DC), 15A(Imp) |
| DC Generator Input | 4,500W |
| Resilience | |
| Warranty | 5 Years |
| Enclosure Type | NEMA TYPE 4 (IP66) |
| Operating Temperature | -4 °F to 131 °F (-20~55°C) |
| General | |
| Connectivity | Wi-Fi, Bluetooth |
| Dimensions (W x H x D) | 26.4" x 11.8" x 10.2" (670 x 300 x 260 mm) |
| Weight | 60.6lb(27.5kg) |
| Remarks | |
| AC Input Port Recharging | <3 hours when the current exceeds 12A |
| Anker SOLIX B6000 Battery Module | |
|---|---|
| Battery | |
| Battery Type | Li-ion (LFP) |
| Capacity | 6,144 Wh per Battery | Up to 30 kWh Total Capacity with One Power Module |
| Resilience | |
| Warranty | 5 Years |
| Enclosure Type | NEMA TYPE 4 (IP66) |
| Operating Temperature | -4 °F to 131 °F (-20~55°C) |
| General | |
| Installation Option | Floor Mounting Or Wall Mounting |
| Dimensions (W x H x D) | 26.4" x 12.7" x 11.1" (670 x 322 x 281 mm) |
| Weight | 130 Ibs (59 kg) |
What's Included:
-
2 x Anker SOLIX E10 Power Module
-
4 x Anker SOLIX E10 Battery
-
1 x Anker SOLIX Power Dock
Product Specifications:
| Anker SOLIX E10 Power Module | |
|---|---|
| Output | |
| Rated Voltage | 120 / 240 VAC (Split Phase) |
| Rated Frequency | 60Hz |
| Maximum Continuous Output Power (With Battery) | 7,680W, 32A |
| Turbo Backup Output Current (With two Batteries) | 10,000W, 41.6A (90 Minutes) |
| LRA Equivalent Ability | 120A (1 Inverter, 1 Battery) 155A (1 Inverter, 2+ Batteries) 275A (2+ Inverters, 2+ Batteries Each) |
| Input | |
| AC Input Port Recharging | 1,800W, 120V / 15A* 7,680W, 240V / 32A |
| AC Input Port Bypass | 9,600W, 240V / 40A |
| PV (Solar) Input | 2*4,500W, 30 to 450V(DC), 15A(Imp) |
| DC Generator Input | 4,500W |
| Resilience | |
| Warranty | 5 Years |
| Enclosure Type | NEMA TYPE 4 (IP66) |
| Operating Temperature | -4 °F to 131 °F (-20~55°C) |
| General | |
| Connectivity | Wi-Fi, Bluetooth |
| Dimensions (W x H x D) | 26.4" x 11.8" x 10.2" (670 x 300 x 260 mm) |
| Weight | 60.6lb(27.5kg) |
| Remarks | |
| AC Input Port Recharging | <3 hours when the current exceeds 12A |
| Anker SOLIX B6000 Battery Module | |
|---|---|
| Battery | |
| Battery Type | Li-ion (LFP) |
| Capacity | 6,144 Wh per Battery | Up to 30 kWh Total Capacity with One Power Module |
| Resilience | |
| Warranty | 5 Years |
| Enclosure Type | NEMA TYPE 4 (IP66) |
| Operating Temperature | -4 °F to 131 °F (-20~55°C) |
| General | |
| Installation Option | Floor Mounting Or Wall Mounting |
| Dimensions (W x H x D) | 26.4" x 12.7" x 11.1" (670 x 322 x 281 mm) |
| Weight | 130 Ibs (59 kg) |
| Anker SOLIX Power Dock for E10 Automatic Backup Kit | |
|---|---|
| Connection | |
| Rated Voltage | 120 / 240 VAC (Split Phase) |
| Rated Frequency | 60 Hz |
| Switchover Time | ≤20 ms |
| Grid Connection | 200 A Maximum, 160 A Continuous |
| Subpanel Connection | 200 A Maximum, 160 A Continuous |
| Plug&Play AC Ports | 4*100A, Total≤160A |
| Circuits 1 and 2 (Load Or Generator) | 100 A Maximum, 80 A Continuous |
| Circuits 7 and 8 (Load Or AC Solar) | 80 A Maximum, 64 A Continuous |
| Circuits 3, 4, 5, 6, 9, 10, 11, 12 (Load) | 60 A Maximum, 48 A Continuous |
| Circuits For Batteries | 125 A Maximum, 100 A Continuous |
| Resilience | |
| Warranty | 10 Years |
| Enclosure Type | NEMA TYPE 3R |
| Operating Temperature | -4 °F to 131 °F (-20~55°C) |
| General | |
| Installation Option | Wall Mounting |
| Dimensions (W x H x D) | 36.1" × 15" × 7.1" (380 × 916 × 180 mm) |
| Weight | 60 Ibs (27.2 kg) |
| Connectivity | Wi-Fi, Bluetooth |
What's Included:
-
2 x Anker SOLIX E10 Power Module
-
4 x Anker SOLIX E10 Battery
-
8 x 400W Monocrystalline Solar Panels
Product Specifications:
| Anker SOLIX E10 Power Module | |
|---|---|
| Output | |
| Rated Voltage | 120 / 240 VAC (Split Phase) |
| Rated Frequency | 60Hz |
| Maximum Continuous Output Power (With Battery) | 7,680W, 32A |
| Turbo Backup Output Current (With two Batteries) | 10,000W, 41.6A (90 Minutes) |
| LRA Equivalent Ability | 120A (1 Inverter, 1 Battery) 155A (1 Inverter, 2+ Batteries) 275A (2+ Inverters, 2+ Batteries Each) |
| Input | |
| AC Input Port Recharging | 1,800W, 120V / 15A* 7,680W, 240V / 32A |
| AC Input Port Bypass | 9,600W, 240V / 40A |
| PV (Solar) Input | 2*4,500W, 30 to 450V(DC), 15A(Imp) |
| DC Generator Input | 4,500W |
| Resilience | |
| Warranty | 5 Years |
| Enclosure Type | NEMA TYPE 4 (IP66) |
| Operating Temperature | -4 °F to 131 °F (-20~55°C) |
| General | |
| Connectivity | Wi-Fi, Bluetooth |
| Dimensions (W x H x D) | 26.4" x 11.8" x 10.2" (670 x 300 x 260 mm) |
| Weight | 60.6lb(27.5kg) |
| Remarks | |
| AC Input Port Recharging | <3 hours when the current exceeds 12A |
| Anker SOLIX B6000 Battery Module | |
|---|---|
| Battery | |
| Battery Type | Li-ion (LFP) |
| Capacity | 6,144 Wh per Battery | Up to 30 kWh Total Capacity with One Power Module |
| Resilience | |
| Warranty | 5 Years |
| Enclosure Type | NEMA TYPE 4 (IP66) |
| Operating Temperature | -4 °F to 131 °F (-20~55°C) |
| General | |
| Installation Option | Floor Mounting Or Wall Mounting |
| Dimensions (W x H x D) | 26.4" x 12.7" x 11.1" (670 x 322 x 281 mm) |
| Weight | 130 Ibs (59 kg) |
| MEGA 400 Watt Monocrystalline Solar Panel Specifications | |
|---|---|
| Maximum Power (Pmax) | 400W |
| Maximum Power Voltage (Vmp) | 30.9V |
| Maximum Power Current (Imp) | 12.9A |
| Open Circuit Voltage (Voc) | 37.1V |
| Short Circuit Current (Isc) | 13.7A |
| Maximum System Voltage (Vmax) | 1500VDC |
| Temperature Range | -40°F ~ 185°F |
| Weight | 49.4lb |
| Dimensions | 67.9 x 44.6 x 1.2 in |
What's Included:
-
2 x Anker SOLIX E10 Power Module
-
4 x Anker SOLIX E10 Battery
-
8 x 400W Monocrystalline Solar Panels\
-
1 x Anker SOLIX Power Dock
Product Specifications:
| Anker SOLIX E10 Power Module | |
|---|---|
| Output | |
| Rated Voltage | 120 / 240 VAC (Split Phase)\ |
| Rated Frequency | 60Hz |
| Maximum Continuous Output Power (With Battery) | 7,680W, 32A |
| Turbo Backup Output Current (With two Batteries) | 10,000W, 41.6A (90 Minutes)\ |
| LRA Equivalent Ability | 120A (1 Inverter, 1 Battery) 155A (1 Inverter, 2+ Batteries) 275A (2+ Inverters, 2+ Batteries Each) |
| Input | |
| AC Input Port Recharging | 1,800W, 120V / 15A* 7,680W, 240V / 32A |
| AC Input Port Bypass | 9,600W, 240V / 40A |
| PV (Solar) Input | 2*4,500W, 30 to 450V(DC), 15A(Imp) |
| DC Generator Input | 4,500W |
| Resilience | |
| Warranty | 5 Years |
| Enclosure Type | NEMA TYPE 4 (IP66) |
| Operating Temperature | -4 °F to 131 °F (-20~55°C) |
| General | |
| Connectivity | Wi-Fi, Bluetooth |
| Dimensions (W x H x D) | 26.4" x 11.8" x 10.2" (670 x 300 x 260 mm) |
| Weight | 60.6lb(27.5kg) |
| Remarks | |
| AC Input Port Recharging | <3 hours when the current exceeds 12A |
| Anker SOLIX B6000 Battery Module | |
|---|---|
| Battery | |
| Battery Type | Li-ion (LFP) |
| Capacity | 6,144 Wh per Battery | Up to 30 kWh Total Capacity with One Power Module |
| Resilience | |
| Warranty | 5 Years |
| Enclosure Type | NEMA TYPE 4 (IP66) |
| Operating Temperature | -4 °F to 131 °F (-20~55°C) |
| General | |
| Installation Option | Floor Mounting Or Wall Mounting |
| Dimensions (W x H x D) | 26.4" x 12.7" x 11.1" (670 x 322 x 281 mm) |
| Weight | 130 Ibs (59 kg) |
| MEGA 400 Watt Monocrystalline Solar Panel Specifications | |
|---|---|
| Maximum Power (Pmax) | 400W |
| Maximum Power Voltage (Vmp) | 30.9V |
| Maximum Power Current (Imp) | 12.9A |
| Open Circuit Voltage (Voc) | 37.1V |
| Short Circuit Current (Isc) | 13.7A |
| Maximum System Voltage (Vmax) | 1500VDC |
| Temperature Range | -40°F ~ 185°F |
| Weight | 49.4lb |
| Dimensions | 67.9 x 44.6 x 1.2 in |
| Anker SOLIX Power Dock for E10 Automatic Backup Kit | |
|---|---|
| Connection | |
| Rated Voltage | 120 / 240 VAC (Split Phase) |
| Rated Frequency | 60 Hz |
| Switchover Time | ≤20 ms |
| Grid Connection | 200 A Maximum, 160 A Continuous |
| Subpanel Connection | 200 A Maximum, 160 A Continuous |
| Plug&Play AC Ports | 4*100A, Total≤160A |
| Circuits 1 and 2 (Load Or Generator) | 100 A Maximum, 80 A Continuous |
| Circuits 7 and 8 (Load Or AC Solar) | 80 A Maximum, 64 A Continuous |
| Circuits 3, 4, 5, 6, 9, 10, 11, 12 (Load) | 60 A Maximum, 48 A Continuous |
| Circuits For Batteries | 125 A Maximum, 100 A Continuous |
| Resilience | |
| Warranty | 10 Years |
| Enclosure Type | NEMA TYPE 3R |
| Operating Temperature | -4 °F to 131 °F (-20~55°C) |
| General | |
| Installation Option | Wall Mounting |
| Dimensions (W x H x D) | 36.1" × 15" × 7.1" (380 × 916 × 180 mm) |
| Weight | 60 Ibs (27.2 kg) |
| Connectivity | Wi-Fi, Bluetooth |
What's Included:
-
2 x Anker SOLIX E10 Power Module
-
4 x Anker SOLIX E10 Battery
-
12 x 400W Monocrystalline Solar Panels
Product Specifications:
| Anker SOLIX E10 Power Module | |
|---|---|
| Output | |
| Rated Voltage | 120 / 240 VAC (Split Phase) |
| Rated Frequency | 60Hz |
| Maximum Continuous Output Power (With Battery) | 7,680W, 32A |
| Turbo Backup Output Current (With two Batteries) | 10,000W, 41.6A (90 Minutes) |
| LRA Equivalent Ability | 120A (1 Inverter, 1 Battery) 155A (1 Inverter, 2+ Batteries) 275A (2+ Inverters, 2+ Batteries Each) |
| Input | |
| AC Input Port Recharging | 1,800W, 120V / 15A* 7,680W, 240V / 32A |
| AC Input Port Bypass | 9,600W, 240V / 40A |
| PV (Solar) Input | 2*4,500W, 30 to 450V(DC), 15A(Imp) |
| DC Generator Input | 4,500W |
| Resilience | |
| Warranty | 5 Years |
| Enclosure Type | NEMA TYPE 4 (IP66) |
| Operating Temperature | -4 °F to 131 °F (-20~55°C) |
| General | |
| Connectivity | Wi-Fi, Bluetooth |
| Dimensions (W x H x D) | 26.4" x 11.8" x 10.2" (670 x 300 x 260 mm) |
| Weight | 60.6lb(27.5kg) |
| Remarks | |
| AC Input Port Recharging | <3 hours when the current exceeds 12A |
| Anker SOLIX B6000 Battery Module | |
|---|---|
| Battery | |
| Battery Type | Li-ion (LFP) |
| Capacity | 6,144 Wh per Battery | Up to 30 kWh Total Capacity with One Power Module |
| Resilience | |
| Warranty | 5 Years |
| Enclosure Type | NEMA TYPE 4 (IP66) |
| Operating Temperature | -4 °F to 131 °F (-20~55°C) |
| General | |
| Installation Option | Floor Mounting Or Wall Mounting |
| Dimensions (W x H x D) | 26.4" x 12.7" x 11.1" (670 x 322 x 281 mm) |
| Weight | 130 Ibs (59 kg) |
| MEGA 400 Watt Monocrystalline Solar Panel Specifications | |
|---|---|
| Maximum Power (Pmax) | 400W |
| Maximum Power Voltage (Vmp) | 30.9V |
| Maximum Power Current (Imp) | 12.9A |
| Open Circuit Voltage (Voc) | 37.1V |
| Short Circuit Current (Isc) | 13.7A |
| Maximum System Voltage (Vmax) | 1500VDC |
| Temperature Range | -40°F ~ 185°F |
| Weight | 49.4lb |
| Dimensions | 67.9 x 44.6 x 1.2 in |
What's Included:
-
2 x Anker SOLIX E10 Power Module
-
4 x Anker SOLIX E10 Battery
-
12 x 400W Monocrystalline Solar Panels
-
1 x Anker SOLIX Power Dock
Product Specifications:
| Anker SOLIX E10 Power Module | |
|---|---|
| Output | |
| Rated Voltage | 120 / 240 VAC (Split Phase) |
| Rated Frequency | 60Hz |
| Maximum Continuous Output Power (With Battery) | 7,680W, 32A |
| Turbo Backup Output Current (With two Batteries) | 10,000W, 41.6A (90 Minutes) |
| LRA Equivalent Ability | 120A (1 Inverter, 1 Battery) 155A (1 Inverter, 2+ Batteries) 275A (2+ Inverters, 2+ Batteries Each) |
| Input | |
| AC Input Port Recharging | 1,800W, 120V / 15A* 7,680W, 240V / 32A |
| AC Input Port Bypass | 9,600W, 240V / 40A |
| PV (Solar) Input | 2*4,500W, 30 to 450V(DC), 15A(Imp) |
| DC Generator Input | 4,500W |
| Resilience | |
| Warranty | 5 Years |
| Enclosure Type | NEMA TYPE 4 (IP66) |
| Operating Temperature | -4 °F to 131 °F (-20~55°C) |
| General | |
| Connectivity | Wi-Fi, Bluetooth |
| Dimensions (W x H x D) | 26.4" x 11.8" x 10.2" (670 x 300 x 260 mm) |
| Weight | 60.6lb(27.5kg) |
| Remarks | |
| AC Input Port Recharging | <3 hours when the current exceeds 12A |
| Anker SOLIX B6000 Battery Module | |
|---|---|
| Battery | |
| Battery Type | Li-ion (LFP) |
| Capacity | 6,144 Wh per Battery | Up to 30 kWh Total Capacity with One Power Module |
| Resilience | |
| Warranty | 5 Years |
| Enclosure Type | NEMA TYPE 4 (IP66) |
| Operating Temperature | -4 °F to 131 °F (-20~55°C) |
| General | |
| Installation Option | Floor Mounting Or Wall Mounting |
| Dimensions (W x H x D) | 26.4" x 12.7" x 11.1" (670 x 322 x 281 mm) |
| Weight | 130 Ibs (59 kg) |
| MEGA 400 Watt Monocrystalline Solar Panel Specifications | |
|---|---|
| Maximum Power (Pmax) | 400W |
| Maximum Power Voltage (Vmp) | 30.9V |
| Maximum Power Current (Imp) | 12.9A |
| Open Circuit Voltage (Voc) | 37.1V |
| Short Circuit Current (Isc) | 13.7A |
| Maximum System Voltage (Vmax) | 1500VDC |
| Temperature Range | -40°F ~ 185°F |
| Weight | 49.4lb |
| Dimensions | 67.9 x 44.6 x 1.2 in |
| Anker SOLIX Power Dock for E10 Automatic Backup Kit | |
|---|---|
| Connection | |
| Rated Voltage | 120 / 240 VAC (Split Phase) |
| Rated Frequency | 60 Hz |
| Switchover Time | ≤20 ms |
| Grid Connection | 200 A Maximum, 160 A Continuous |
| Subpanel Connection | 200 A Maximum, 160 A Continuous |
| Plug&Play AC Ports | 4*100A, Total≤160A |
| Circuits 1 and 2 (Load Or Generator) | 100 A Maximum, 80 A Continuous |
| Circuits 7 and 8 (Load Or AC Solar) | 80 A Maximum, 64 A Continuous |
| Circuits 3, 4, 5, 6, 9, 10, 11, 12 (Load) | 60 A Maximum, 48 A Continuous |
| Circuits For Batteries | 125 A Maximum, 100 A Continuous |
| Resilience | |
| Warranty | 10 Years |
| Enclosure Type | NEMA TYPE 3R |
| Operating Temperature | -4 °F to 131 °F (-20~55°C) |
| General | |
| Installation Option | Wall Mounting |
| Dimensions (W x H x D) | 36.1" × 15" × 7.1" (380 × 916 × 180 mm) |
| Weight | 60 Ibs (27.2 kg) |
| Connectivity | Wi-Fi, Bluetooth |
What's Included:
-
2 x Anker SOLIX E10 Power Module
-
4 x Anker SOLIX E10 Battery
-
18 x 400W Monocrystalline Solar Panels
Product Specifications:
| Anker SOLIX E10 Power Module | |
|---|---|
| Output | |
| Rated Voltage | 120 / 240 VAC (Split Phase) |
| Rated Frequency | 60Hz |
| Maximum Continuous Output Power (With Battery) | 7,680W, 32A |
| Turbo Backup Output Current (With two Batteries) | 10,000W, 41.6A (90 Minutes) |
| LRA Equivalent Ability | 120A (1 Inverter, 1 Battery) 155A (1 Inverter, 2+ Batteries) 275A (2+ Inverters, 2+ Batteries Each) |
| Input | |
| AC Input Port Recharging | 1,800W, 120V / 15A* 7,680W, 240V / 32A |
| AC Input Port Bypass | 9,600W, 240V / 40A |
| PV (Solar) Input | 2*4,500W, 30 to 450V(DC), 15A(Imp) |
| DC Generator Input | 4,500W |
| Resilience | |
| Warranty | 5 Years |
| Enclosure Type | NEMA TYPE 4 (IP66) |
| Operating Temperature | -4 °F to 131 °F (-20~55°C) |
| General | |
| Connectivity | Wi-Fi, Bluetooth |
| Dimensions (W x H x D) | 26.4" x 11.8" x 10.2" (670 x 300 x 260 mm)\ |
| Weight | 60.6lb(27.5kg) |
| Remarks | |
| AC Input Port Recharging | <3 hours when the current exceeds 12A |
| Anker SOLIX B6000 Battery Module | |
|---|---|
| Battery | |
| Battery Type | Li-ion (LFP) |
| Capacity | 6,144 Wh per Battery | Up to 30 kWh Total Capacity with One Power Module |
| Resilience | |
| Warranty | 5 Years |
| Enclosure Type | NEMA TYPE 4 (IP66) |
| Operating Temperature | -4 °F to 131 °F (-20~55°C) |
| General | |
| Installation Option | Floor Mounting Or Wall Mounting |
| Dimensions (W x H x D) | 26.4" x 12.7" x 11.1" (670 x 322 x 281 mm) |
| Weight | 130 Ibs (59 kg) |
| MEGA 400 Watt Monocrystalline Solar Panel Specifications | |
|---|---|
| Maximum Power (Pmax) | 400W |
| Maximum Power Voltage (Vmp) | 30.9V |
| Maximum Power Current (Imp) | 12.9A |
| Open Circuit Voltage (Voc) | 37.1V |
| Short Circuit Current (Isc) | 13.7A |
| Maximum System Voltage (Vmax) | 1500VDC |
| Temperature Range | -40°F ~ 185°F |
| Weight | 49.4lb |
| Dimensions | 67.9 x 44.6 x 1.2 in |
What's Included:
-
2 x Anker SOLIX E10 Power Module
-
4 x Anker SOLIX E10 Battery
-
18 x 400W Monocrystalline Solar Panels
-
1 x Anker SOLIX Power Dock
Product Specifications:
| Anker SOLIX E10 Power Module | |
|---|---|
| Output | |
| Rated Voltage | 120 / 240 VAC (Split Phase) |
| Rated Frequency | 60Hz |
| Maximum Continuous Output Power (With Battery) | 7,680W, 32A |
| Turbo Backup Output Current (With two Batteries) | 10,000W, 41.6A (90 Minutes) |
| LRA Equivalent Ability | 120A (1 Inverter, 1 Battery) 155A (1 Inverter, 2+ Batteries) 275A (2+ Inverters, 2+ Batteries Each) |
| Input | |
| AC Input Port Recharging | 1,800W, 120V / 15A* 7,680W, 240V / 32A |
| AC Input Port Recharging | 1,800W, 120V / 15A* 7,680W, 240V / 32A |
| AC Input Port Bypass | 9,600W, 240V / 40A |
| PV (Solar) Input | 2*4,500W, 30 to 450V(DC), 15A(Imp) |
| DC Generator Input | 4,500W |
| Resilience | |
| Warranty | 5 Years |
| Enclosure Type | NEMA TYPE 4 (IP66) |
| Operating Temperature | -4 °F to 131 °F (-20~55°C) |
| General | |
| Connectivity | Wi-Fi, Bluetooth |
| Dimensions (W x H x D) | 26.4" x 11.8" x 10.2" (670 x 300 x 260 mm) |
| Weight | 60.6lb(27.5kg) |
| Remarks | |
| AC Input Port Recharging | <3 hours when the current exceeds 12A |
| Anker SOLIX B6000 Battery Module | |
|---|---|
| Battery | |
| Battery Type | Li-ion (LFP) |
| Capacity | 6,144 Wh per Battery | Up to 30 kWh Total Capacity with One Power Module |
| Resilience | |
| Warranty | 5 Years |
| Enclosure Type | NEMA TYPE 4 (IP66) |
| Operating Temperature | -4 °F to 131 °F (-20~55°C) |
| General | |
| Installation Option | Floor Mounting Or Wall Mounting |
| Dimensions (W x H x D) | 26.4" x 12.7" x 11.1" (670 x 322 x 281 mm) |
| Weight | 130 Ibs (59 kg) |
| MEGA 400 Watt Monocrystalline Solar Panel Specifications | |
|---|---|
| Maximum Power (Pmax) | 400W |
| Maximum Power Voltage (Vmp) | 30.9V |
| Maximum Power Current (Imp) | 12.9A |
| Open Circuit Voltage (Voc) | 37.1V |
| Short Circuit Current (Isc) | 13.7A |
| Maximum System Voltage (Vmax) | 1500VDC |
| Temperature Range | -40°F ~ 185°F |
| Weight | 49.4lb |
| Dimensions | 67.9 x 44.6 x 1.2 in |
| Anker SOLIX Power Dock for E10 Automatic Backup Kit | |
|---|---|
| Connection | |
| Rated Voltage | 120 / 240 VAC (Split Phase) |
| Rated Frequency | 60 Hz |
| Switchover Time | ≤20 ms |
| Grid Connection | 200 A Maximum, 160 A Continuous |
| Subpanel Connection | 200 A Maximum, 160 A Continuous |
| Plug&Play AC Ports | 4*100A, Total≤160A |
| Circuits 1 and 2 (Load Or Generator) | 100 A Maximum, 80 A Continuous |
| Circuits 7 and 8 (Load Or AC Solar) | 80 A Maximum, 64 A Continuous |
| Circuits 3, 4, 5, 6, 9, 10, 11, 12 (Load) | 60 A Maximum, 48 A Continuous |
| Circuits For Batteries | 125 A Maximum, 100 A Continuous |
| Resilience | |
| Warranty | 10 Years |
| Enclosure Type | NEMA TYPE 3R |
| Operating Temperature | -4 °F to 131 °F (-20~55°C) |
| General | |
| Installation Option | Wall Mounting |
| Dimensions (W x H x D) | 36.1" × 15" × 7.1" (380 × 916 × 180 mm) |
| Weight | 60 Ibs (27.2 kg) |
| Connectivity | Wi-Fi, Bluetooth |
What's Included:
-
2 x Anker SOLIX E10 Power Module
-
8 x Anker SOLIX E10 Battery
Product Specifications:
| Anker SOLIX E10 Power Module | |
|---|---|
| Output | |
| Rated Voltage | 120 / 240 VAC (Split Phase) |
| Rated Frequency | 60Hz |
| Maximum Continuous Output Power (With Battery) | 7,680W, 32A |
| Turbo Backup Output Current (With two Batteries) | 10,000W, 41.6A (90 Minutes) |
| LRA Equivalent Ability | 120A (1 Inverter, 1 Battery) 155A (1 Inverter, 2+ Batteries) 275A (2+ Inverters, 2+ Batteries Each) |
| Input | |
| AC Input Port Recharging | 1,800W, 120V / 15A* 7,680W, 240V / 32A |
| v\\AC Input Port Bypass | 9,600W, 240V / 40A |
| PV (Solar) Input | 2*4,500W, 30 to 450V(DC), 15A(Imp) |
| DC Generator Input | 4,500W |
| Resilience | |
| Warranty | 5 Years |
| Enclosure Type | NEMA TYPE 4 (IP66) |
| Operating Temperature | -4 °F to 131 °F (-20~55°C) |
| General | |
| Connectivity | Wi-Fi, Bluetooth |
| Dimensions (W x H x D) | 26.4" x 11.8" x 10.2" (670 x 300 x 260 mm) |
| Weight | 60.6lb(27.5kg) |
| Remarks | |
| AC Input Port Recharging | <3 hours when the current exceeds 12A |
| Anker SOLIX B6000 Battery Module | |
|---|---|
| Battery | |
| Battery Type | Li-ion (LFP) |
| Capacity | 6,144 Wh per Battery | Up to 30 kWh Total Capacity with One Power Module |
| Resilience | |
| Warranty | 5 Years |
| Enclosure Type | NEMA TYPE 4 (IP66) |
| Operating Temperature | -4 °F to 131 °F (-20~55°C) |
| General | |
| Installation Option | Floor Mounting Or Wall Mounting |
| Dimensions (W x H x D) | 26.4" x 12.7" x 11.1" (670 x 322 x 281 mm) |
| Weight | 130 Ibs (59 kg) |
What's Included:
-
2 x Anker SOLIX E10 Power Module
-
8 x Anker SOLIX E10 Battery
-
1 x Anker SOLIX Power Dock
Product Specifications:
| Anker SOLIX E10 Power Module | |
|---|---|
| Output | |
| Rated Voltage | 120 / 240 VAC (Split Phase) |
| Rated Frequency | 60Hz |
| Maximum Continuous Output Power (With Battery) | 7,680W, 32A |
| Turbo Backup Output Current (With two Batteries) | 10,000W, 41.6A (90 Minutes) |
| LRA Equivalent Ability | 120A (1 Inverter, 1 Battery) 155A (1 Inverter, 2+ Batteries) 275A (2+ Inverters, 2+ Batteries Each) |
| Input | |
| AC Input Port Recharging | 1,800W, 120V / 15A* 7,680W, 240V / 32A |
| AC Input Port Bypass | 9,600W, 240V / 40A |
| PV (Solar) Input | 2*4,500W, 30 to 450V(DC), 15A(Imp) |
| DC Generator Input | 4,500W |
| Resilience | |
| Warranty | 5 Years |
| Enclosure Type | NEMA TYPE 4 (IP66) |
| Operating Temperature | -4 °F to 131 °F (-20~55°C) |
| General | |
| Connectivity | Wi-Fi, Bluetooth |
| Dimensions (W x H x D) | 26.4" x 11.8" x 10.2" (670 x 300 x 260 mm) |
| Weight | 60.6lb(27.5kg) |
| Remarks | |
| AC Input Port Recharging | <3 hours when the current exceeds 12A |
| Anker SOLIX B6000 Battery Module | |
|---|---|
| Battery | |
| Battery Type | Li-ion (LFP) |
| Capacity | 6,144 Wh per Battery | Up to 30 kWh Total Capacity with One Power Module |
| Resilience | |
| Warranty | 5 Years |
| Enclosure Type | NEMA TYPE 4 (IP66) |
| Operating Temperature | -4 °F to 131 °F (-20~55°C) |
| General | |
| Installation Option | Floor Mounting Or Wall Mounting |
| Dimensions (W x H x D) | 26.4" x 12.7" x 11.1" (670 x 322 x 281 mm) |
| Weight | 130 Ibs (59 kg) |
| Anker SOLIX Power Dock for E10 Automatic Backup Kit | |
|---|---|
| Connection | |
| Rated Voltage | 120 / 240 VAC (Split Phase) |
| Rated Frequency | 60 Hz |
| Switchover Time | ≤20 ms |
| Grid Connection | 200 A Maximum, 160 A Continuous |
| Subpanel Connection | 200 A Maximum, 160 A Continuous |
| Plug&Play AC Ports | 4*100A, Total≤160A |
| Circuits 1 and 2 (Load Or Generator) | 100 A Maximum, 80 A Continuous |
| Circuits 7 and 8 (Load Or AC Solar) | 80 A Maximum, 64 A Continuous |
| Circuits 3, 4, 5, 6, 9, 10, 11, 12 (Load) | 60 A Maximum, 48 A Continuous |
| Circuits For Batteries | 125 A Maximum, 100 A Continuous |
| Resilience | |
| Warranty | 10 Years |
| Enclosure Type | NEMA TYPE 3R |
| Operating Temperature | -4 °F to 131 °F (-20~55°C) |
| General | |
| Installation Option | Wall Mounting |
| Dimensions (W x H x D) | 36.1" × 15" × 7.1" (380 × 916 × 180 mm) |
| Weight | 60 Ibs (27.2 kg) |
| Connectivity | Wi-Fi, Bluetooth |
What's Included:
-
2 x Anker SOLIX E10 Power Module
-
8 x Anker SOLIX E10 Battery
-
8 x 400W Monocrystalline Solar Panels
Product Specifications:
| Anker SOLIX E10 Power Module | |
|---|---|
| Output | |
| Rated Voltage | 120 / 240 VAC (Split Phase) |
| Rated Frequency | 60Hz |
| Maximum Continuous Output Power (With Battery) | 7,680W, 32A |
| Turbo Backup Output Current (With two Batteries) | 10,000W, 41.6A (90 Minutes) |
| LRA Equivalent Ability | 120A (1 Inverter, 1 Battery) 155A (1 Inverter, 2+ Batteries) 275A (2+ Inverters, 2+ Batteries Each) |
| Input | |
| AC Input Port Recharging | 1,800W, 120V / 15A* 7,680W, 240V / 32A |
| AC Input Port Bypass | 9,600W, 240V / 40A |
| PV (Solar) Input | 2*4,500W, 30 to 450V(DC), 15A(Imp) |
| DC Generator Input | 4,500W |
| Resilience | |
| Warranty | 5 Years |
| Enclosure Type | NEMA TYPE 4 (IP66) |
| Operating Temperature | -4 °F to 131 °F (-20~55°C) |
| General | |
| Connectivity | Wi-Fi, Bluetooth |
| Dimensions (W x H x D) | 26.4" x 11.8" x 10.2" (670 x 300 x 260 mm) |
| Weight | 60.6lb(27.5kg) |
| Remarks | |
| AC Input Port Recharging | <3 hours when the current exceeds 12A |
| Anker SOLIX B6000 Battery Module | |
|---|---|
| Battery | |
| Battery Type | Li-ion (LFP) |
| Capacity | 6,144 Wh per Battery | Up to 30 kWh Total Capacity with One Power Module |
| Resilience | |
| Warranty | 5 Years |
| Enclosure Type | NEMA TYPE 4 (IP66) |
| Operating Temperature | -4 °F to 131 °F (-20~55°C) |
| General | |
| Installation Option | Floor Mounting Or Wall Mounting |
| Dimensions (W x H x D) | 26.4" x 12.7" x 11.1" (670 x 322 x 281 mm) |
| Weight | 130 Ibs (59 kg) |
| MEGA 400 Watt Monocrystalline Solar Panel Specifications | |
|---|---|
| Maximum Power (Pmax) | 400W |
| Maximum Power Voltage (Vmp) | 30.9V |
| Maximum Power Current (Imp) | 12.9A |
| Open Circuit Voltage (Voc) | 37.1V |
| Short Circuit Current (Isc) | 13.7A |
| Maximum System Voltage (Vmax) | 1500VDC |
| Temperature Range | -40°F ~ 185°F |
| Weight | 49.4lb |
| Dimensions | 67.9 x 44.6 x 1.2 in |
What's Included:
-
2 x Anker SOLIX E10 Power Module]
-
8 x Anker SOLIX E10 Battery
-
8 x 400W Monocrystalline Solar Panels\
-
1 x Anker SOLIX Power Dock
Product Specifications:
| Anker SOLIX E10 Power Module | |
|---|---|
| Output | |
| Rated Voltage | 120 / 240 VAC (Split Phase)\ |
| Rated Frequency | 60Hz |
| Maximum Continuous Output Power (With Battery) | 7,680W, 32A |
| Turbo Backup Output Current (With two Batteries) | 10,000W, 41.6A (90 Minutes)\ |
| LRA Equivalent Ability | 120A (1 Inverter, 1 Battery) 155A (1 Inverter, 2+ Batteries) 275A (2+ Inverters, 2+ Batteries Each) |
| Input | |
| AC Input Port Recharging | 1,800W, 120V / 15A* 7,680W, 240V / 32A |
| AC Input Port Bypass | 9,600W, 240V / 40A |
| PV (Solar) Input | 2*4,500W, 30 to 450V(DC), 15A(Imp) |
| DC Generator Input | 4,500W |
| Resilience | |
| Warranty | 5 Years |
| Enclosure Type | NEMA TYPE 4 (IP66) |
| Operating Temperature | -4 °F to 131 °F (-20~55°C) |
| General | |
| Connectivity | Wi-Fi, Bluetooth |
| Dimensions (W x H x D) | 26.4" x 11.8" x 10.2" (670 x 300 x 260 mm) |
| Weight | 60.6lb(27.5kg) |
| Remarks | |
| AC Input Port Recharging | <3 hours when the current exceeds 12A |
| Anker SOLIX B6000 Battery Module | |
|---|---|
| Battery | |
| Battery Type | Li-ion (LFP) |
| Capacity | 6,144 Wh per Battery | Up to 30 kWh Total Capacity with One Power Module |
| Resilience | |
| Warranty | 5 Years |
| Enclosure Type | NEMA TYPE 4 (IP66) |
| Operating Temperature | -4 °F to 131 °F (-20~55°C) |
| General | |
| Installation Option | Floor Mounting Or Wall Mounting |
| Dimensions (W x H x D) | 26.4" x 12.7" x 11.1" (670 x 322 x 281 mm) |
| Weight | 130 Ibs (59 kg) |
| MEGA 400 Watt Monocrystalline Solar Panel Specifications | |
|---|---|
| Maximum Power (Pmax) | 400W |
| Maximum Power Voltage (Vmp) | 30.9V |
| Maximum Power Current (Imp) | 12.9A |
| Open Circuit Voltage (Voc) | 37.1V |
| Short Circuit Current (Isc) | 13.7A |
| Maximum System Voltage (Vmax) | 1500VDC |
| Temperature Range | -40°F ~ 185°F |
| Weight | 49.4lb |
| Dimensions | 67.9 x 44.6 x 1.2 in |
| Anker SOLIX Power Dock for E10 Automatic Backup Kit | |
|---|---|
| Connection | |
| Rated Voltage | 120 / 240 VAC (Split Phase) |
| Rated Frequency | 60 Hz |
| Switchover Time | ≤20 ms |
| Grid Connection | 200 A Maximum, 160 A Continuous |
| Subpanel Connection | 200 A Maximum, 160 A Continuous |
| Plug&Play AC Ports | 4*100A, Total≤160A |
| Circuits 1 and 2 (Load Or Generator) | 100 A Maximum, 80 A Continuous |
| Circuits 7 and 8 (Load Or AC Solar) | 80 A Maximum, 64 A Continuous |
| Circuits 3, 4, 5, 6, 9, 10, 11, 12 (Load) | 60 A Maximum, 48 A Continuous |
| Circuits For Batteries | 125 A Maximum, 100 A Continuous |
| Resilience | |
| Warranty | 10 Years |
| Enclosure Type | NEMA TYPE 3R |
| Operating Temperature | -4 °F to 131 °F (-20~55°C) |
| General | |
| Installation Option | Wall Mounting |
| Dimensions (W x H x D) | 36.1" × 15" × 7.1" (380 × 916 × 180 mm) |
| Weight | 60 Ibs (27.2 kg) |
| Connectivity | Wi-Fi, Bluetooth |
What's Included:
-
2 x Anker SOLIX E10 Power Module
-
8 x Anker SOLIX E10 Battery
-
12 x 400W Monocrystalline Solar Panels
Product Specifications:
| Anker SOLIX E10 Power Module | |
|---|---|
| Output | |
| Rated Voltage | 120 / 240 VAC (Split Phase) |
| Rated Frequency | 60Hz |
| Rated Frequency | 60Hz |
| Turbo Backup Output Current (With two Batteries) | 10,000W, 41.6A (90 Minutes) |
| LRA Equivalent Ability | 120A (1 Inverter, 1 Battery) 155A (1 Inverter, 2+ Batteries) 275A (2+ Inverters, 2+ Batteries Each) |
| Input | |
| AC Input Port Recharging | 1,800W, 120V / 15A* 7,680W, 240V / 32A |
| AC Input Port Bypass | 9,600W, 240V / 40A |
| PV (Solar) Input | 2*4,500W, 30 to 450V(DC), 15A(Imp) |
| DC Generator Input | 4,500W |
| Resilience | |
| Warranty | 5 Years |
| Enclosure Type | NEMA TYPE 4 (IP66) |
| Operating Temperature | -4 °F to 131 °F (-20~55°C) |
| General | |
| Connectivity | Wi-Fi, Bluetooth |
| Dimensions (W x H x D) | 26.4" x 11.8" x 10.2" (670 x 300 x 260 mm) |
| Weight | 60.6lb(27.5kg) |
| Remarks | |
| AC Input Port Recharging | <3 hours when the current exceeds 12A |
| Anker SOLIX B6000 Battery Module | |
|---|---|
| Battery | |
| Battery Type | Li-ion (LFP) |
| Capacity | 6,144 Wh per Battery | Up to 30 kWh Total Capacity with One Power Module |
| Resilience | |
| Warranty | 5 Years |
| Enclosure Type | NEMA TYPE 4 (IP66) |
| Operating Temperature | -4 °F to 131 °F (-20~55°C) |
| General | |
| Installation Option | Floor Mounting Or Wall Mounting |
| Dimensions (W x H x D) | 26.4" x 12.7" x 11.1" (670 x 322 x 281 mm) |
| Weight | 130 Ibs (59 kg) |
| MEGA 400 Watt Monocrystalline Solar Panel Specifications | |
|---|---|
| Maximum Power (Pmax) | 400W |
| Maximum Power Voltage (Vmp) | 30.9V |
| Maximum Power Current (Imp) | 12.9A |
| Open Circuit Voltage (Voc) | 37.1V |
| Short Circuit Current (Isc) | 13.7A |
| Maximum System Voltage (Vmax) | 1500VDC |
| Temperature Range | -40°F ~ 185°F |
| Weight | 49.4lb |
| Dimensions | 67.9 x 44.6 x 1.2 in |
What's Included:
-
2 x Anker SOLIX E10 Power Module
-
8 x Anker SOLIX E10 Battery
-
12 x 400W Monocrystalline Solar Panels
-
1 x Anker SOLIX Power Dock
Product Specifications:
| Anker SOLIX E10 Power Module | |
|---|---|
| Output | |
| Rated Voltage | 120 / 240 VAC (Split Phase) |
| Rated Frequency | 60Hz |
| Maximum Continuous Output Power (With Battery) | 7,680W, 32A |
| Turbo Backup Output Current (With two Batteries) | 10,000W, 41.6A (90 Minutes) |
| LRA Equivalent Ability | 120A (1 Inverter, 1 Battery) 155A (1 Inverter, 2+ Batteries) 275A (2+ Inverters, 2+ Batteries Each) |
| Input | |
| AC Input Port Recharging | 1,800W, 120V / 15A* 7,680W, 240V / 32A |
| AC Input Port Bypass | 9,600W, 240V / 40A |
| PV (Solar) Input | 2*4,500W, 30 to 450V(DC), 15A(Imp) |
| DC Generator Input | 4,500W |
| Resilience | |
| Warranty | 5 Years |
| Enclosure Type | NEMA TYPE 4 (IP66) |
| Operating Temperature | -4 °F to 131 °F (-20~55°C) |
| General | |
| Connectivity | Wi-Fi, Bluetooth |
| Dimensions (W x H x D) | 26.4" x 11.8" x 10.2" (670 x 300 x 260 mm) |
| Weight | 60.6lb(27.5kg) |
| Remarks | |
| AC Input Port Recharging | <3 hours when the current exceeds 12A |
| Anker SOLIX B6000 Battery Module | |
|---|---|
| Battery | |
| Battery Type | Li-ion (LFP) |
| Capacity | 6,144 Wh per Battery | Up to 30 kWh Total Capacity with One Power Module |
| Resilience | |
| Warranty | 5 Years |
| Enclosure Type | NEMA TYPE 4 (IP66) |
| Operating Temperature | -4 °F to 131 °F (-20~55°C) |
| General | |
| Installation Option | Floor Mounting Or Wall Mounting |
| Dimensions (W x H x D) | 26.4" x 12.7" x 11.1" (670 x 322 x 281 mm) |
| Weight | 130 Ibs (59 kg) |
| MEGA 400 Watt Monocrystalline Solar Panel Specifications | |
|---|---|
| Maximum Power (Pmax) | 400W |
| Maximum Power Voltage (Vmp) | 30.9V |
| Maximum Power Current (Imp) | 12.9A |
| Open Circuit Voltage (Voc) | 37.1V |
| Short Circuit Current (Isc) | 13.7A |
| Maximum System Voltage (Vmax) | 1500VDC |
| Temperature Range | -40°F ~ 185°F |
| Weight | 49.4lb |
| Dimensions | 67.9 x 44.6 x 1.2 in |
| Anker SOLIX Power Dock for E10 Automatic Backup Kit | |
|---|---|
| Connection | |
| Rated Voltage | 120 / 240 VAC (Split Phase) |
| Rated Frequency | 60 Hz |
| Switchover Time | ≤20 ms |
| Grid Connection | 200 A Maximum, 160 A Continuous |
| Subpanel Connection | 200 A Maximum, 160 A Continuous |
| Plug&Play AC Ports | 4*100A, Total≤160A |
| Circuits 1 and 2 (Load Or Generator) | 100 A Maximum, 80 A Continuous |
| Circuits 7 and 8 (Load Or AC Solar) | 80 A Maximum, 64 A Continuous |
| Circuits 3, 4, 5, 6, 9, 10, 11, 12 (Load) | 60 A Maximum, 48 A Continuous |
| Circuits For Batteries | 125 A Maximum, 100 A Continuous |
| Resilience | |
| Warranty | 10 Years |
| Enclosure Type | NEMA TYPE 3R |
| Operating Temperature | -4 °F to 131 °F (-20~55°C) |
| General | |
| Installation Option | Wall Mounting |
| Dimensions (W x H x D) | 36.1" × 15" × 7.1" (380 × 916 × 180 mm) |
| Weight | 60 Ibs (27.2 kg) |
| Connectivity | Wi-Fi, Bluetooth |
What's Included:
-
2 x Anker SOLIX E10 Power Module
-
8 x Anker SOLIX E10 Battery
-
18 x 400W Monocrystalline Solar Panels
Product Specifications:
| Anker SOLIX E10 Power Module | |
|---|---|
| Output | |
| Rated Voltage | 120 / 240 VAC (Split Phase) |
| Rated Frequency | 60Hz |
| Maximum Continuous Output Power (With Battery) | 7,680W, 32A |
| Turbo Backup Output Current (With two Batteries) | 10,000W, 41.6A (90 Minutes) |
| LRA Equivalent Ability | 120A (1 Inverter, 1 Battery) 155A (1 Inverter, 2+ Batteries) 275A (2+ Inverters, 2+ Batteries Each) |
| Input | |
| AC Input Port Recharging | 1,800W, 120V / 15A* 7,680W, 240V / 32A |
| AC Input Port Bypass | 9,600W, 240V / 40A |
| PV (Solar) Input | 2*4,500W, 30 to 450V(DC), 15A(Imp) |
| DC Generator Input | 4,500W |
| Resilience | |
| Warranty | 5 Years |
| Enclosure Type | NEMA TYPE 4 (IP66) |
| Operating Temperature | -4 °F to 131 °F (-20~55°C) |
| General | |
| Connectivity | Wi-Fi, Bluetooth |
| Dimensions (W x H x D) | 26.4" x 11.8" x 10.2" (670 x 300 x 260 mm)\ |
| Weight | 60.6lb(27.5kg) |
| Remarks | |
| AC Input Port Recharging | <3 hours when the current exceeds 12A |
| Anker SOLIX B6000 Battery Module | |
|---|---|
| Battery | |
| Battery Type | Li-ion (LFP) |
| Capacity | 6,144 Wh per Battery | Up to 30 kWh Total Capacity with One Power Module |
| Resilience | |
| Warranty | 5 Years |
| Enclosure Type | NEMA TYPE 4 (IP66) |
| Operating Temperature | -4 °F to 131 °F (-20~55°C) |
| General | |
| Installation Option | Floor Mounting Or Wall Mounting |
| Dimensions (W x H x D) | 26.4" x 12.7" x 11.1" (670 x 322 x 281 mm) |
| Weight | 130 Ibs (59 kg) |
| MEGA 400 Watt Monocrystalline Solar Panel Specifications | |
|---|---|
| Maximum Power (Pmax) | 400W |
| Maximum Power Voltage (Vmp) | 30.9V |
| Maximum Power Current (Imp) | 12.9A |
| Open Circuit Voltage (Voc) | 37.1V |
| Short Circuit Current (Isc) | 13.7A |
| Maximum System Voltage (Vmax) | 1500VDC |
| Temperature Range | -40°F ~ 185°F |
| Weight | 49.4lb |
| Dimensions | 67.9 x 44.6 x 1.2 in |
What's Included:
-
2 x Anker SOLIX E10 Power Module
-
8 x Anker SOLIX E10 Battery
-
18 x 400W Monocrystalline Solar Panels
-
1 x Anker SOLIX Power Dock
Product Specifications:
| Anker SOLIX E10 Power Module | |
|---|---|
| Output | |
| Rated Voltage | 120 / 240 VAC (Split Phase) |
| Rated Frequency | 60Hz |
| Maximum Continuous Output Power (With Battery) | 7,680W, 32A |
| Turbo Backup Output Current (With two Batteries) | 10,000W, 41.6A (90 Minutes) |
| LRA Equivalent Ability | 120A (1 Inverter, 1 Battery) 155A (1 Inverter, 2+ Batteries) 275A (2+ Inverters, 2+ Batteries Each) |
| Input | |
| AC Input Port Recharging | 1,800W, 120V / 15A* 7,680W, 240V / 32A |
| AC Input Port Recharging | 1,800W, 120V / 15A* 7,680W, 240V / 32A |
| AC Input Port Bypass | 9,600W, 240V / 40A |
| PV (Solar) Input | 2*4,500W, 30 to 450V(DC), 15A(Imp) |
| DC Generator Input | 4,500W |
| Resilience | |
| Warranty | 5 Years |
| Enclosure Type | NEMA TYPE 4 (IP66) |
| Operating Temperature | -4 °F to 131 °F (-20~55°C) |
| General | |
| Connectivity | Wi-Fi, Bluetooth |
| Dimensions (W x H x D) | 26.4" x 11.8" x 10.2" (670 x 300 x 260 mm) |
| Weight | 60.6lb(27.5kg) |
| Remarks | |
| AC Input Port Recharging | <3 hours when the current exceeds 12A |
| Anker SOLIX B6000 Battery Module | |
|---|---|
| Battery | |
| Battery Type | Li-ion (LFP) |
| Capacity | 6,144 Wh per Battery | Up to 30 kWh Total Capacity with One Power Module |
| Resilience | |
| Warranty | 5 Years |
| Enclosure Type | NEMA TYPE 4 (IP66) |
| Operating Temperature | -4 °F to 131 °F (-20~55°C) |
| General | |
| Installation Option | Floor Mounting Or Wall Mounting |
| Dimensions (W x H x D) | 26.4" x 12.7" x 11.1" (670 x 322 x 281 mm) |
| Weight | 130 Ibs (59 kg) |
| MEGA 400 Watt Monocrystalline Solar Panel Specifications | |
|---|---|
| Maximum Power (Pmax) | 400W |
| Maximum Power Voltage (Vmp) | 30.9V |
| Maximum Power Current (Imp) | 12.9A |
| Open Circuit Voltage (Voc) | 37.1V |
| Short Circuit Current (Isc) | 13.7A |
| Maximum System Voltage (Vmax) | 1500VDC |
| Temperature Range | -40°F ~ 185°F |
| Weight | 49.4lb |
| Dimensions | 67.9 x 44.6 x 1.2 in |
| Anker SOLIX Power Dock for E10 Automatic Backup Kit | |
|---|---|
| Connection | |
| Rated Voltage | 120 / 240 VAC (Split Phase) |
| Rated Frequency | 60 Hz |
| Switchover Time | ≤20 ms |
| Grid Connection | 200 A Maximum, 160 A Continuous |
| Subpanel Connection | 200 A Maximum, 160 A Continuous |
| Plug&Play AC Ports | 4*100A, Total≤160A |
| Circuits 1 and 2 (Load Or Generator) | 100 A Maximum, 80 A Continuous |
| Circuits 7 and 8 (Load Or AC Solar) | 80 A Maximum, 64 A Continuous |
| Circuits 3, 4, 5, 6, 9, 10, 11, 12 (Load) | 60 A Maximum, 48 A Continuous |
| Circuits For Batteries | 125 A Maximum, 100 A Continuous |
| Resilience | |
| Warranty | 10 Years |
| Enclosure Type | NEMA TYPE 3R |
| Operating Temperature | -4 °F to 131 °F (-20~55°C) |
| General | |
| Installation Option | Wall Mounting |
| Dimensions (W x H x D) | 36.1" × 15" × 7.1" (380 × 916 × 180 mm) |
| Weight | 60 Ibs (27.2 kg) |
| Connectivity | Wi-Fi, Bluetooth |
What is your return policy?
Returns are free in the first 30 days with no restocking or processing fees, although the customer may be responsible for paying return shipping. See our complete return policy on our Shipping, Delivery, and Returns page linked in the footer of this website.
What’s covered by your return policy?
Our returns policy covers all purchases made through Shop Solar. For warranty issues, as authorized distributors, we honor the full manufacturer warranty of ALL the brands on our website. See our complete returns and warranty policies on our Shipping, Deliver, and Returns page.
How long will it take to receive my order?
All orders are processed within 72 hours and you can expect delivery on most orders within 5-7 business days. You will receive access to our customer portal after ordering, where it is easy to track all your shipments. See our Shipping, Delivery and Returns page for more details.
What are your financing and payment options?
We offer several ways to pay to make getting your solar kit simple:
- Credit Card: if the purchase is greater than your card’s limit, you can split the cost onto multiple cards as well as Paypal, financing through Affirm, and ACH/bank transfer
- You can arrange financing during the checkout process, or scroll further down this page for more details. Please note, if you'd like to finance your order, you can do so instantly, right at checkout.
How does your Lifetime Customer Support work?
Our legendary lifetime customer support has helped make us the #1 online solar retailer! We have a dedicated team of solar professionals standing by to help you navigate the world of solar with ease. From selecting the perfect solar kit to installation and beyond, we provide support and expertise at every step of the journey.If you need help with ordering, shipping, troubleshooting, expanding your system, warranty issues, or anything else you have questions about for as long as you own your Shop Solar Kits equipment, we’ve got you covered: we’re always only a phone call or email away.
Top Solar Company in the USA
The prestigious ranking by Consumer Affairs is based on comprehensive evaluations, including ratings and reviews, equipment options, support services, pricing transparency, warranties, and various other factors. Among the top 6 nominated companies, Shop Solar stands out with the highest review rating, reaffirming its dedication to customer satisfaction and product quality.
Best Components, Lowest Prices
We cut out the bloat of traditional solar companies and pass those savings off to you. Plus, we provide free shipping on all solar kits and lifetime customer service on everything we sell.
Expert Guidance
Our team of solar professionals is here to help you navigate the world of solar with ease. From selecting the perfect solar kit to installation and beyond, we provide support and expertise at every step of the journey.
We’re people just like you
We’re not corporate and neither are our customers. We’re just a group of 50+ solar enthusiasts who are passionate about providing an honest, no-BS way for anyone, anywhere to improve their lives and the world around them with solar power.
Trusted Solar Authority
With over 40,000+ happy customers, 2,500+ positive reviews, and decades of experience in the industry, we’re proud to say we’re America’s #1 solar power solutions provider. You can trust us to provide you with top-notch products and legendary customer service at every step of the way.
Prepare for Anything
From hurricanes to blackouts, reliable solar power ensures you're able to keep your home & family safe no matter what comes your way.
Solar Power Made Easy
Making one-click solar solutions simple since 2018. Whether you’re powering a cabin, charging devices, or backing up your home.
Secure Your Independence
Say goodbye to reliance on the energy companies. Enjoy the same freedom that 50,000+ customers have with their own solar power system.
Customer Success Stories
Troy P
EG4 off-grid base kit, Happy with my purchase.
This is the first stage of my three planned purches. I got the eg4 inverter 6000 XP base kit with six 400 watt panels and the two server rack batteries. Did a little online research and followed the instructions and it got set up without any issues. Right now I'm just running it in my garage on a single outlet and have been running dual 750 watt water distillers with it. Once I get the second inverter and a bunch more panels and batteries, I plan on attaching it to my subpanel in my house that has my lights and outlets and appliances on it. Then I'll get a soft start for my AC and blower and run it on my main panel.
Jacob B
Easy Process, Genuine Support
Trying to pick the correct solar system for your needs can be very technical and frustrating. I wanted to thank Yvhan and the Shop Solar team for their patience and helpful attitudes through multiple calls. I feel like we were able to narrow it down to what worked for me and my family. My system works great and I couldn't be happier to have picked Shop Solar.
Patrick B
Off Grid Solar Purchase
I wanted to get an offgrid solar system for years but didn’t know where to start. I found Shop Solar on Facebook and decided to submit a quote. Within 24 hours I had a custom proposal that was almost half the price of the companies I had previously got quotes from. My wife and I decided to order online and the kit came in a timely manner and it was an easy install. Great company to work with!
James Martin
Highly Recommend
I would like to take the time to express the outstanding service that I was provided with by Shop Solar. They provided me with all the answers to my questions, and after reviewing our quote over the phone I felt comfortable proceeding to order my kit. It’s exactly what I needed and they were there to help us over the phone when we had questions installing it. I highly recommend others in need to choose Shop Solar Kits.
Brian H
Solar Kit for Mobile Work Van
As a professional videographer, I needed reliable power on the go. ShopSolar's Delta Pro and roof-mounted panels were the perfect solution. Setup was easy, and the kit included everything needed. The Delta Pro powers my cameras, lights, laptop, and a small fridge with impressive battery capacity.
Keith S
Best Tech Support
You folks have been wonderful guiding me through the ins and outs of going solar. Plus your tech guys Rod and Nelson are the absolute best. They explained all the different aspects of inverters, batteries and how to keep them in top condition. Too much more to put here… but no other company has the 100% tech support you provide for your customers!
Coll A
Great Experience
My experience with Shop Solar has been excellent. Before the sales, they answered all my questions to assure that I got what I needed. After the sales they continued to support me with answers and help. I had a warranty issue with a unit, and it was handled as well as possible. I would recommend them to anyone looking to go solar.
Troy P
EG4 off-grid base kit, Happy with my purchase.
This is the first stage of my three planned purches. I got the eg4 inverter 6000 XP base kit with six 400 watt panels and the two server rack batteries. Did a little online research and followed the instructions and it got set up without any issues. Right now I'm just running it in my garage on a single outlet and have been running dual 750 watt water distillers with it. Once I get the second inverter and a bunch more panels and batteries, I plan on attaching it to my subpanel in my house that has my lights and outlets and appliances on it. Then I'll get a soft start for my AC and blower and run it on my main panel.
Jacob B
Easy Process, Genuine Support
Trying to pick the correct solar system for your needs can be very technical and frustrating. I wanted to thank Yvhan and the Shop Solar team for their patience and helpful attitudes through multiple calls. I feel like we were able to narrow it down to what worked for me and my family. My system works great and I couldn't be happier to have picked Shop Solar.
Patrick B
Off Grid Solar Purchase
I wanted to get an offgrid solar system for years but didn’t know where to start. I found Shop Solar on Facebook and decided to submit a quote. Within 24 hours I had a custom proposal that was almost half the price of the companies I had previously got quotes from. My wife and I decided to order online and the kit came in a timely manner and it was an easy install. Great company to work with!
James Martin
Highly Recommend
I would like to take the time to express the outstanding service that I was provided with by Shop Solar. They provided me with all the answers to my questions, and after reviewing our quote over the phone I felt comfortable proceeding to order my kit. It’s exactly what I needed and they were there to help us over the phone when we had questions installing it. I highly recommend others in need to choose Shop Solar Kits.
Brian H
Solar Kit for Mobile Work Van
As a professional videographer, I needed reliable power on the go. ShopSolar's Delta Pro and roof-mounted panels were the perfect solution. Setup was easy, and the kit included everything needed. The Delta Pro powers my cameras, lights, laptop, and a small fridge with impressive battery capacity.
Keith S
Best Tech Support
You folks have been wonderful guiding me through the ins and outs of going solar. Plus your tech guys Rod and Nelson are the absolute best. They explained all the different aspects of inverters, batteries and how to keep them in top condition. Too much more to put here… but no other company has the 100% tech support you provide for your customers!
Coll A
Great Experience
My experience with Shop Solar has been excellent. Before the sales, they answered all my questions to assure that I got what I needed. After the sales they continued to support me with answers and help. I had a warranty issue with a unit, and it was handled as well as possible. I would recommend them to anyone looking to go solar.
Why Choose Shop Solar
2 x Buyer's Choice Award
Shop Solar stands out with some of the highest review ratings in the industry, reaffirming it's dedication to customer satisfaction and product quality.
Best Components, Best Prices
Top-tier solar gear at unbeatable prices—so you get maximum performance without overpaying.
Expert Guidance
From selecting the perfect solar components to installation and beyond, we provide support and expertise at every step of the journey.
Trusted Solar Authority
With over 50,000+ happy customers, 3,000+ positive reviews, decades of experience and legendary customer service every step of the way.
What To Expect - Complete Solar Kits
Providing America with complete solar kits since 2018. Our mission is to make solar simple, transparent and affordable.
What to Expect - Solar Panels
Get to know the top-tier solar panels included in your kit. These solar panels are designed to deliver consistent & reliable performance.
What to Expect - Batteries
Learn about the high-quality batteries included in every solar kit, designed to provide reliable energy storage for all your needs.
Quick and Easy Application
Fill out a short application and we will match you with multiple payment plan options instantly - Survey at checkout!
Poor Credit or No Credit?
Don’t sweat it. We welcome all credit scores and having a credit score is not required for approval.
No Money Down Today
Some payment plans offer as little as no money down, if you qualify.*` - Survey at checkout!
ShopGuard
Free Membership Program.Protect yourself and your purchase with a free ShopGuard Membership. Enjoy lifetime support, extended return windows, exclusive rewards, and partner discounts. Join now for unmatched benefits and protection when going solar!
30-day extended return period.
14-day price match guarantee after purchase.
Receive notifications about new product launches.
Plus many more amazing benefits!
Automatically Applied at Checkout!*
Shop Securely, Trusted Supplier, 100% Satisfaction
Trusted Company, Real Products, Lifetime Support
Avoid Scams, Buy with Confidence, Enjoy Peace of Mind
Manufacturer Warranty, Exceptional Service
Shop Securely, Trusted Supplier, 100% Satisfaction
Trusted Company, Real Products, Lifetime Support
Avoid Scams, Buy with Confidence, Enjoy Peace of Mind
Manufacturer Warranty, Exceptional Service
Be Smart, Buy From an Authorized Dealer
When you choose Shop Solar, you’re buying real products from a trusted company with established supplier relationships. Enjoy peace of mind with 100% manufacturer warranty coverage and lifetime customer support. In an age where online shopping is fraught with risks, it’s crucial to avoid fly-by-night websites that skirt regulations. Shop with confidence, knowing you’re getting genuine quality and reliable service.
