Titan Solar Generator Kit Master Wiring Diagrams [Titan Generator Kits ONLY]
Wondering how to set up and wire the solar panels for your Titan solar generator? The following guide outlines the master wiring diagrams for each of the Titan generator solar kits made by Point Zero Energy.Â
Please note that these wiring diagrams are only for the Titan generator kits and not for third party solar panel kits.

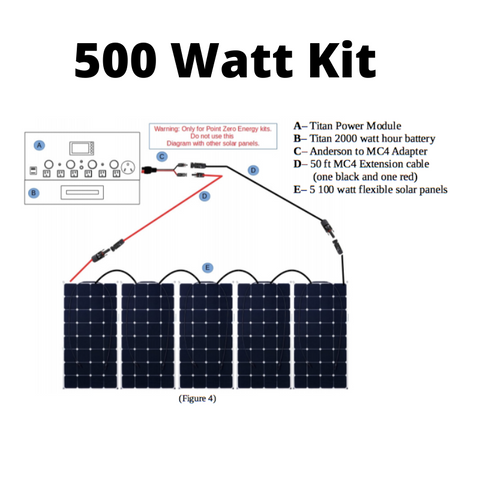

500 Watt Titan Solar Generator Kit - Wiring Diagram

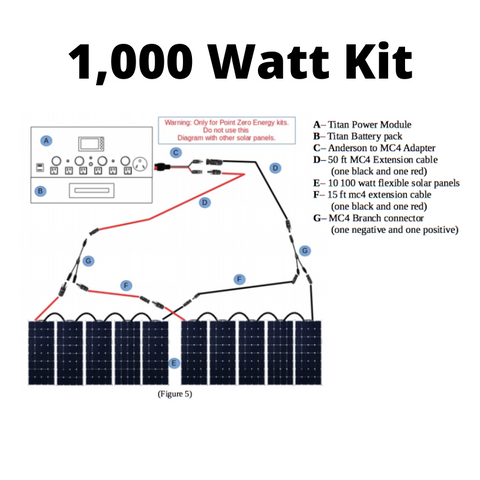

1,000 Watt Titan Solar Generator Kit - Wiring Diagram

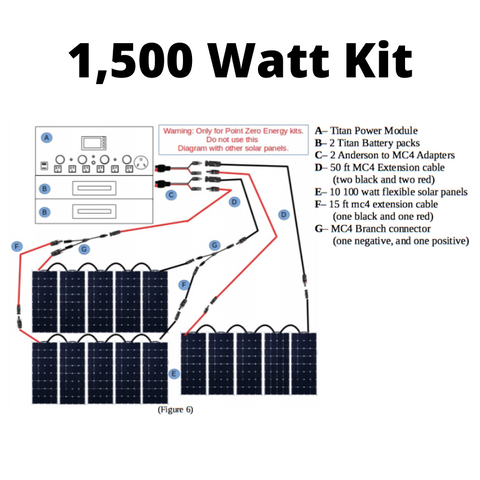

1,500 Watt Titan Solar Generator Kit - Wiring Diagram

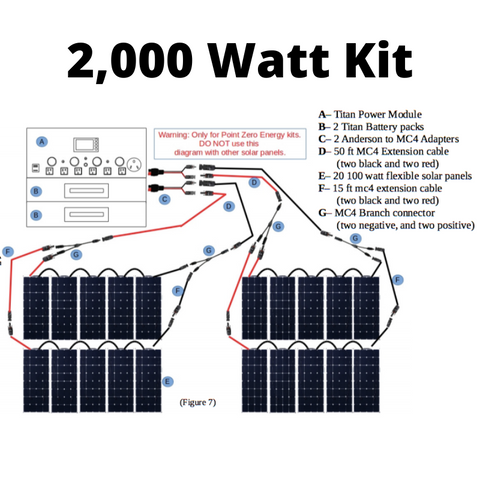

2,000 Watt Titan Solar Generator Kit - Wiring Diagram
Â
If you still have questions about how to set up your Titan solar generator, please don't hesitate to reach out, and we'd be happy to help further!Â
