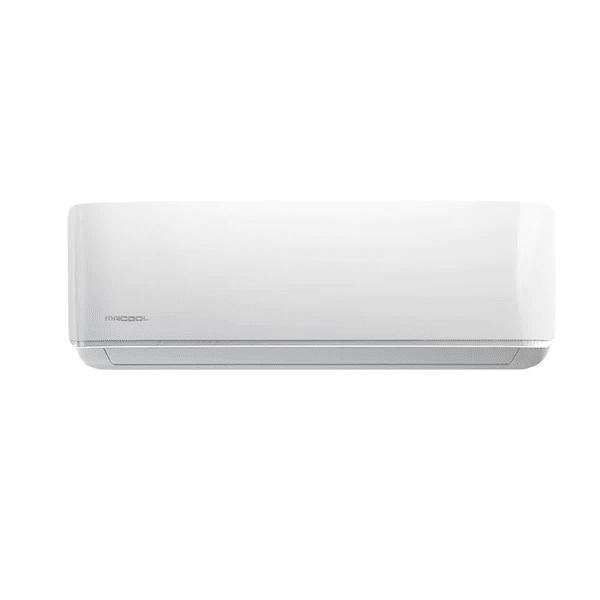

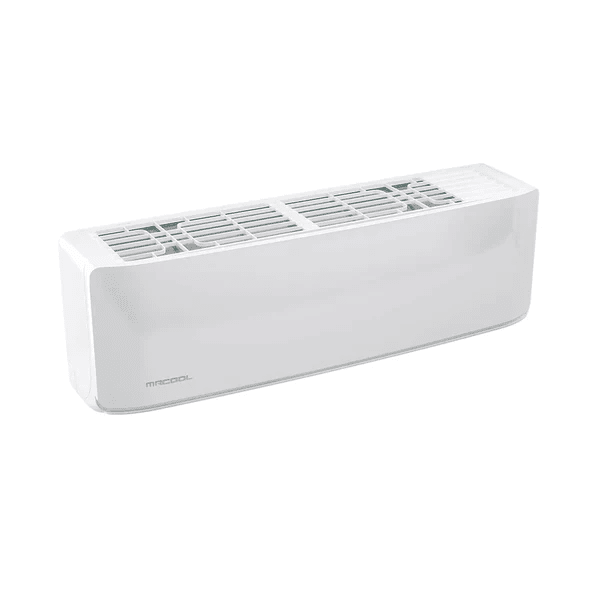

The MRCOOL 4th Generation DIY 24K BTU, 20.5 SEER Ductless Heat Pump is an all in one system that seamlessly combines efficiency, durability, and simplicity. This powerful single-zone system has the capability of heating and cooling an area up to 1,000 sq. ft. It comes complete with a 24K condenser, 24K air handler, and a 25 ft. line set pre-charged with R-410A refrigerant.
This system can offer a 20.5 SEER efficiency rating that has allowed it to achieve an Energy Star certification and can heat & cool an area up to 1,000 sq. ft. It also features durable construction and a corrosion-resistant Gold Fin condenser. All of this is contained within a Do-It-Yourself system that can be installed by a homeowner in a few hours using simple tools. This simplicity is achieved with the use of the patented MRCOOL Pre-Charged Quick-Connect Line Set included with the system. Not only is this system capable of delivering exceptional performance, it is also equipped with up to six operating modes, which include AUTO, HEAT, COOL, FAN-ONLY, DRY (dehumidification), and SLEEP.
The system’s Follow Me Feature allows the system to adjust the room temperature based on wherever you’re standing with the hand-held remote control. This system also has the ability to be controlled with a smartphone by way of the Smart HVAC app. Backed by a limited lifetime compressor warranty, this system is sure to meet your comfort needs and peace of mind.
Key Features
- Up to 20.5 SEER
- Gold Fin® condenser: corrosion-resistant coastal living - don't worry, our condenser is built to resist long term corrosion
- Variable-speed DC inverter compressor technology cuts operating costs
- R-410A environmentally friendly refrigerant
- Standard 7-year compressor/5-year parts warranty; register for limited lifetime compressor warranty
Specifications
- Condenser Dimensions 37.24"W x 16.14"D x 31.89"H
- Condenser Weight 125.22 lbs
- Air Handler Dimensions 42.52"W x 8.90"D x 13.19"H
- Air Handler Weight 35.27
- SEER 20.5
- EER 12.5
- COP 47 3.15
- HSPF hspf4/hspf5 : 10.5/9
- CFM 605.88/505.88/364.71
- Tonnage 2
- Cooling Capacity 23,000BTU
- Heating Capacity 25,000 BTU
- Voltage Requires a minimum of 208-230V/60HZ/22-35A (please check your home meets this electrical requirement prior to purchase)
- Phase 1
- Cycle 60 Hz
- Max Fuse Breaker 35 A
- Min Circuit Ampacity 22 A
- Color White
- Rate Load 0.45 A
- Max Coverage Area Up to 1000 sqft
- Zone Capacity 1
- Refrigerant Type R-410A
- Refrigerant Volume 81.13 oz
- Decibel Rating 48.5/43.5/33
- Decibel Rating Low 33 dBA
- Decibel Rating High 48.5 dBA
- Oscillation 4-W
- Inverter Yes
- Min Ambient Cool -13F - 122F
- Min Ambient Heat -13F - 75F
- Line Set Length 25ft
- Max Lineset Length 98.42 ft
- Liquid Line Size 3/8 in
- Suction Line Size 5/8 in
- Compressor Motor Type Twin-Rotary
- Condenser Fan Motor RPM 850/750/700
- Blower Motor RPM 1200/1000/700
- Auxiliary Heater Available No
- Modes Fan Only Quiet Mode Auto Cool
- Wifi Compatibility Yes
- App Compatibility Yes
- Compatible with IOS Android
- Includes Remote Batteries
- Certifications UL Listed Energy Star AHRI
- Registered Warranty 7 Years Replacement on Condenser, 5 Years Parts
- Restricted States GU;PR;VI
Still Have Questions? Give us a call today 1-877-242-2792
