All-in-one solar power solution
The EasySolar-II GX combines an MPPT Solar Charge Controller, an inverter/charger and control hub in one enclosure. The product is easy to install, with a minimum of wiring.
Models: 3000VA, 5000VA
The all-in-one solar power solution
The Victron EasySolar-II GX integrates the following elements:
- A MultiPlus-II inverter/charger
- A SmartSolar MPPT -Tr solar charge controller
- A GX device with a 2 x 16-character display.
These elements come prewired together inside a single unit. This greatly simplifies most installations, saving time and money.
Display and Wi-Fi
The display reads battery, inverter and solar charge controller parameters. The same parameters can be accessed with a smartphone or other Wi-Fi enabled device.
In addition, Wi-Fi can be used to set up the system and to change settings.
Solar charge controller
The DC output of the SmartSolar MPPT is parallel wired with the DC connection of the MultiPlus-II inverter/charger.
The on/off mechanism of the MultiPlus-II also controls the SmartSolar MPPT.
GX device
The integrated GX device includes:
- A BMS-Can interface. This can be used to connect to a compatible CAN-bus managed battery. Note that this not a VE.Can compatible port.
- A USB port
- An Ethernet port
- A VE.Direct port
The GX device controls the MultiPlus-II and the SmartSolar MPPT with respectively a VE.Bus and a VE.Direct connection.
Specifications
3000VA
- Charge voltage 'absorption': 28.8 V
- Charge voltage 'float': 27.6 V
- Storage mode: 26.4 V
- Maximum battery charge current: 70 A
- Maximum PV Power: 2000W
- Maximum PV open circuit voltage: 250V
- Self-consumption: 20mA
- Weight: 26kg
- Dimensions (h x w x d): 499 x 268 x 237
5000VA
- Charge voltage 'absorption': 57.6 V
- Charge voltage 'float': 55.2 V
- Storage mode: 52.8 V
- Maximum battery charge current: 70 A
- Maximum PV Power: 5800W
- Maximum PV open circuit voltage: 250V
- Self-consumption: 20mA
- Weight: 26kg
- Dimensions (h x w x d): 604 x 323 x 253
Still Have Questions About EasySolar II 250/70 GX? Give us a call today 1-877-242-2792
All-in-one solar power solution
The EasySolar-II GX combines an MPPT Solar Charge Controller, an inverter/charger and control hub in one enclosure. The product is easy to install, with a minimum of wiring.
Models: 3000VA, 5000VA
The all-in-one solar power solution
The Victron EasySolar-II GX integrates the following elements:
- A MultiPlus-II inverter/charger
- A SmartSolar MPPT -Tr solar charge controller
- A GX device with a 2 x 16-character display.
These elements come prewired together inside a single unit. This greatly simplifies most installations, saving time and money.
Display and Wi-Fi
The display reads battery, inverter and solar charge controller parameters. The same parameters can be accessed with a smartphone or other Wi-Fi enabled device.
In addition, Wi-Fi can be used to set up the system and to change settings.
Solar charge controller
The DC output of the SmartSolar MPPT is parallel wired with the DC connection of the MultiPlus-II inverter/charger.
The on/off mechanism of the MultiPlus-II also controls the SmartSolar MPPT.
GX device
The integrated GX device includes:
- A BMS-Can interface. This can be used to connect to a compatible CAN-bus managed battery. Note that this not a VE.Can compatible port.
- A USB port
- An Ethernet port
- A VE.Direct port
The GX device controls the MultiPlus-II and the SmartSolar MPPT with respectively a VE.Bus and a VE.Direct connection.
Specifications
3000VA
- Charge voltage 'absorption': 28.8 V
- Charge voltage 'float': 27.6 V
- Storage mode: 26.4 V
- Maximum battery charge current: 70 A
- Maximum PV Power: 2000W
- Maximum PV open circuit voltage: 250V
- Self-consumption: 20mA
- Weight: 26kg
- Dimensions (h x w x d): 499 x 268 x 237
5000VA
- Charge voltage 'absorption': 57.6 V
- Charge voltage 'float': 55.2 V
- Storage mode: 52.8 V
- Maximum battery charge current: 70 A
- Maximum PV Power: 5800W
- Maximum PV open circuit voltage: 250V
- Self-consumption: 20mA
- Weight: 26kg
- Dimensions (h x w x d): 604 x 323 x 253
Still Have Questions About EasySolar II 250/70 GX? Give us a call today 1-877-242-2792

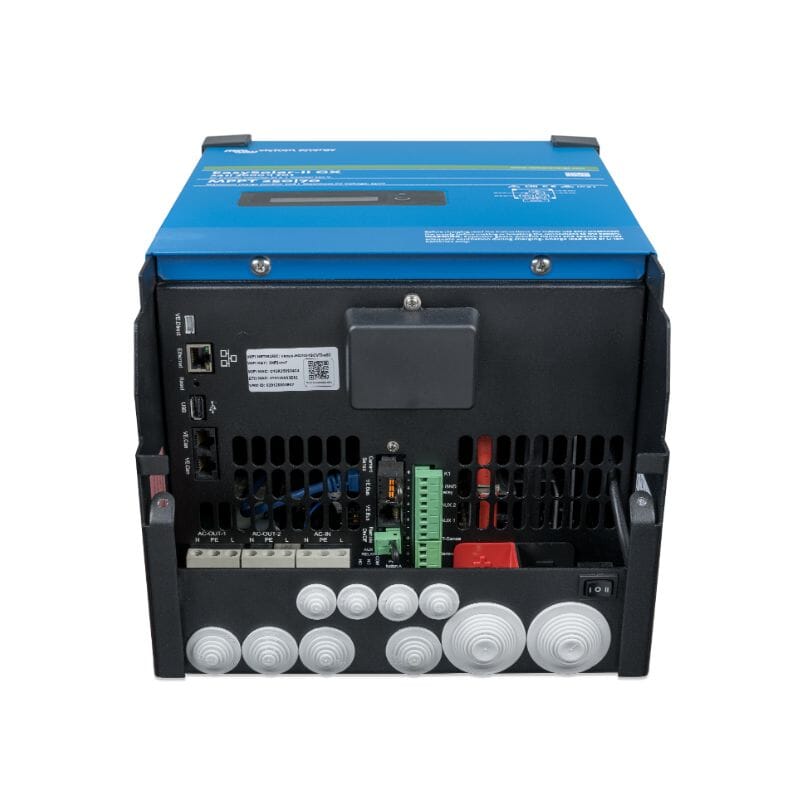

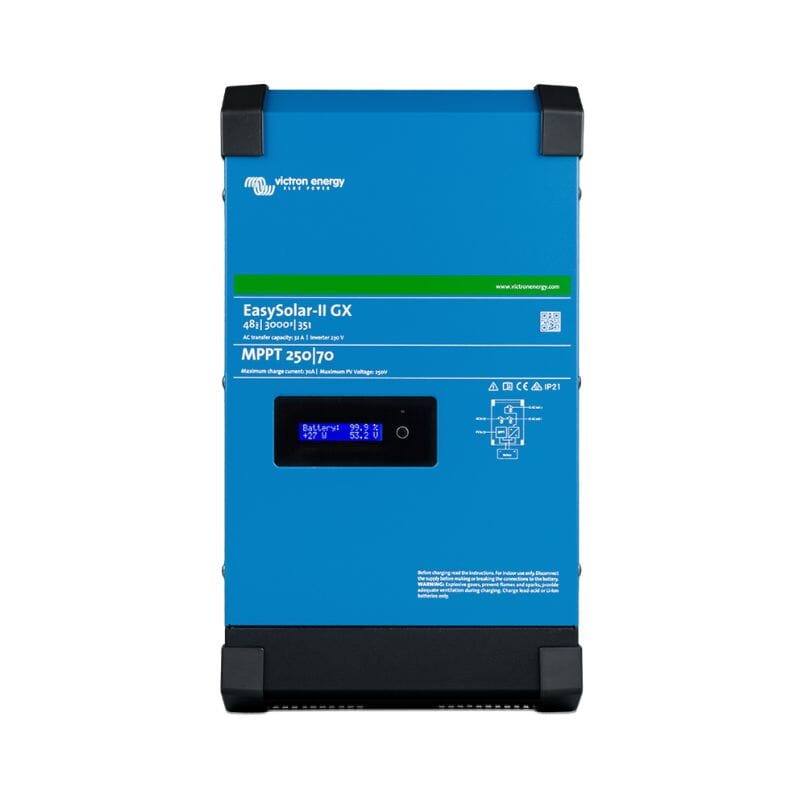

EasySolar-II 48/3000/35-32 MPPT 250/70 GX
- Regular price
- $1,552.95
- Sale price
- $1,552.95
- Regular price
-
$3,005.00
