Short on Time? Here’s The Article Summary

Off-grid solar power systems are increasingly popular due to falling costs of batteries and panels. Calculating the battery capacity for such a system is crucial. Factors include depth of discharge, rate of discharge, temperature, system voltage losses, load size, and solar array efficiency.

Calculations involve determining daily power needs, backup days required, and battery capacity. For example, with a daily consumption of 100 Ah, three backup days, and 60% depth of discharge, you'd need approximately five 100 Ah batteries. Understanding these factors helps design a system that meets energy needs efficiently.

Introduction

Off-grid solar power systems are becoming increasingly popular as the cost of batteries and solar panels continues to drop. Millions of people around the world are now using solar power to meet their energy needs.

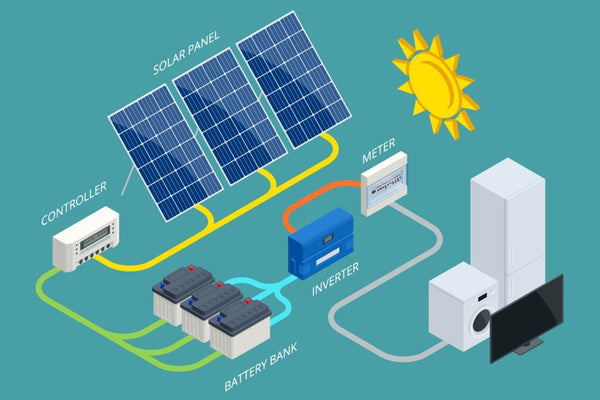

One of the most important factors in designing an off-grid solar power system is determining the size of the battery bank. The battery bank stores surplus solar energy for use at night or during cloudy weather.

In this article, we show you how to calculate the battery capacity of your battery bank. We explore some of the factors you need to consider when sizing your battery. By the end of this article, you’ll have the tools that you need to design an off-grid solar system that meets your energy needs.

Factors to Consider When Sizing a Battery

There are several factors that you need to consider when sizing your battery. They include:

Depth of Discharge

Depth of discharge (DOD) is the percentage of the battery capacity that can be used before it needs to be recharged. For example, a battery with a 50% DOD can be discharged to 50% of its capacity before it needs to be recharged.

The depth of discharge of your battery affects the size of the battery bank necessary. A higher DOD requires a larger battery bank.

The Rate of Discharge

The rate of discharge is the amount of current that can be drawn from the battery at any one time. The higher the rate of discharge, the more energy that can be stored in the battery.

One of the benefits of solar power is that it can be used to meet peak energy demand. This means that the battery does not need to be sized for the average energy consumption.

Instead, the battery can be sized for the maximum amount of energy that will be consumed in a day. This reduces the overall cost of the system.

The Temperature

The temperature also affects the battery capacity. Batteries discharge faster at higher temperatures. This means that the battery needs to be sized for the worst-case scenario.

In most cases, the average daily temperature is a good starting point. However, if you live in an area with extreme temperatures, you may need to size the battery for the highest temperature you can expect to experience.

System Voltage Losses

System voltage losses are an often overlooked factor that affects the battery capacity. Voltage losses occur when the current is converted from DC to AC.

In most cases, system voltage losses can be ignored. However, if you’re using a very long extension cord or have many appliances, you may need to consider these losses.

Size of Individual Loads

A load is appliance or tool that draws energy from the battery. Some common loads include lights, refrigerators, and pumps.

The total load of the system should be less than the maximum discharge rate of the battery. This helps prevent damage to the battery and ensures that it lasts for many years.

When you consider this factor, the best batteries for RV solar systems can last up to 20 years.

Size of Overall Load

The overall load is the total amount of energy that’s consumed in a day.

This includes the energy consumption of the individual loads, as well as any other devices that are powered by the solar battery storage system.

For example, if you use a lead-acid battery, the maximum discharge rate is 50 amps. This means that the total load of the system should be less than 50 amps.

The total load should be less than the maximum discharge rate of the battery. This prevents damage to the battery and ensures that it lasts for many years.

The Efficiency of the Solar Array

The efficiency of the solar array is the percentage of sunlight that’s converted into usable electrical energy. Higher efficiency results in less energy being lost to heat.

In general, monocrystalline solar panels have the highest efficiency. However, they are also the most expensive. If you are on a budget, you may want to consider using polycrystalline or amorphous solar panels.

Individual Run Times

When sizing a battery bank, you also need to consider the individual run times of your appliances. For example, if you want to run a fridge for 24 hours, you need a larger battery than if you only want to run it for 12 hours.

In general, it is best to overestimate the amount of energy you need. This ensures that you have enough power when you need it so you’re never caught unaware. When adding a battery to your solar system, you need to make sure that the battery can store enough energy to power your home for the length of time you need it.

Peak Sun Hours

The final factor to consider is the number of peak sun hours you will experience in a day. Peak sun hours are the number of hours of direct sunlight that you will receive in a day. This varies depending on your location and the time of year.

In most cases, you can use the average number of peak sun hours for your area. However, if you live in an area with extreme weather conditions, you may need to use the worst-case scenario. You can find the average number of peak sun hours for your area on the National Renewable Energy Laboratory website.

How to Calculate Battery Capacity

Now that you know the factors to consider when sizing a battery, you can begin to calculate the capacity of the battery you need. To do this, you need to know:

How much power you need daily: You need to know your power usage in order to determine how much capacity you need. To find out, take a look at your last few electricity bills and find your daily average.

How many days of backup are required: The number of days you want your system to last without sunlight will help determine the capacity you need.

The maximum power the battery can provide: This will be determined by the number of battery cells you have in your system.

Now that you know these three things, you can begin to calculate the capacity of your battery. To do this, use the following formula:

Batteries needed (Ah) = Daily consumption (Ah) X Backup days X Annual correction factor 1.15 / DOD (%).

For instance, if you have a daily consumption of 100 Ah, you want three days of backup timze using the best batteries for an off-grid solar system, and your batteries can provide 60% DOD, then you would need:

Batteries needed (Ah) = 100 Ah X three days X annual correction factor of 1.15/ 0.6 = 575 Ah. You would need approximately five 100 Ah batteries to power your system for the required time.

Final Thoughts

Whether you have a 10KW solar system or the smallest off-grid solar system, you cannot get the best out of it without the right batteries. Therefore, knowing how to calculate the capacity of batteries you need is critical. We hope this article has given you the information you need to make an informed decision about your battery needs.
