Complete RV Solar Panel Kit - 30A/50A DC-DC Charger + [12V Battery Bank] + 200W 12V Mono Solar Panels | Off-Grid, Mobile, RV
Need Help? 877-242-2792
Need Help? 877-242-2792
Your cart is empty
Need Help? 877-242-2792
Need Help? 877-242-2792
Ships from USA!

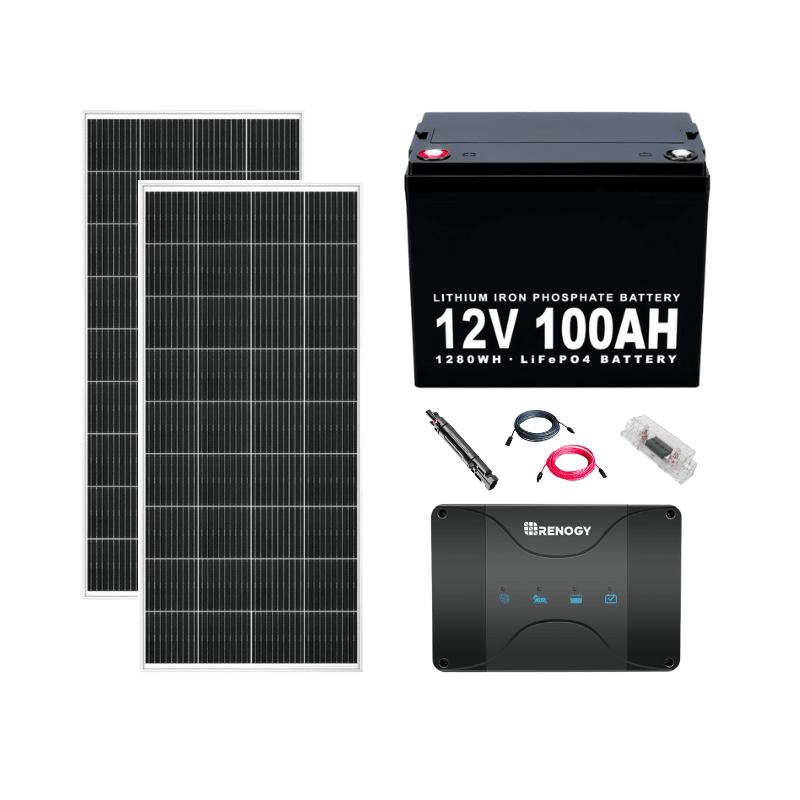

1 x DC-DC 30A Charger with MPPT
2 x 200, 12V Watt Monocrystalline Solar Panels - 25-Year Power Output Warranty
PV Inline Fuses
PV Branch Connector SET
1 x 100Ah Lithium 12V Battery Bank- 12-Month Warranty
Bus Bar Set, BLACK (for common negative connection)
Battery to Charger Cables
1 x Free System Schematic / Wiring Diagram & Commissioning Guide
Guaranteed Lifetime Customer Support (Phone, Email, Live Chat)
Battery Charger Specifications | |
---|---|
System Voltage | 12VDC |
Maximum Charging Current | 30A |
Service Battery Charging Mode | MPPT |
Max. Solar Input Voltage | 25V |
Self-consumption | 60mA |
Battery voltage Range | 9-16VDC |
Battery Types | SLD/AGM, GEL, FLD, LISER |
Charging Efficiency | Up to 97% |
Max. Solar Input Power | 400W |
Max. Alternator Input Power | 400W |
Battery Specifications | |
---|---|
Nominal Voltage | 12.8V |
Nominal Capacity(at .5C, 77°F) | 100Ah |
Minimum Capacity (at .5C, 77°F) | 95Ah |
Expected Cycle Life | >3000 cycles w/1C charge and discharge rate, at 77°F, 80% DOD |
Operating Voltage | 12.8 V |
Capacity | 100 Ah |
Energy | 1280 Watt Hours |
Charge Voltage Range (Max 14.6V) | 14.4 -14.6V |
Continuous Charge Current | 50A |
Continuous Discharge Current | 100A |
Battery Dimensions | 12.8″L x 6.6″W x 8.5″H |
Weight | 21.8 lb |
Solar Panel Specifications | |
---|---|
Maximum Power(Pmax) | 200W |
Maximum Power Voltage(Vmp) | 20.4V |
Maximum Power Current(Imp) | 9.80A |
Short Circuit Current(Isc) | 10.2A |
Maximum System Voltage(Vmax) | 1000VDC |
Temperature Range | -40°C ~ 90°C |
Max Series Fuse Rating | 20A |
Weight | 26.5 lbs |
Dimensions | 58.7 x 26.8 x 1.4 in |
